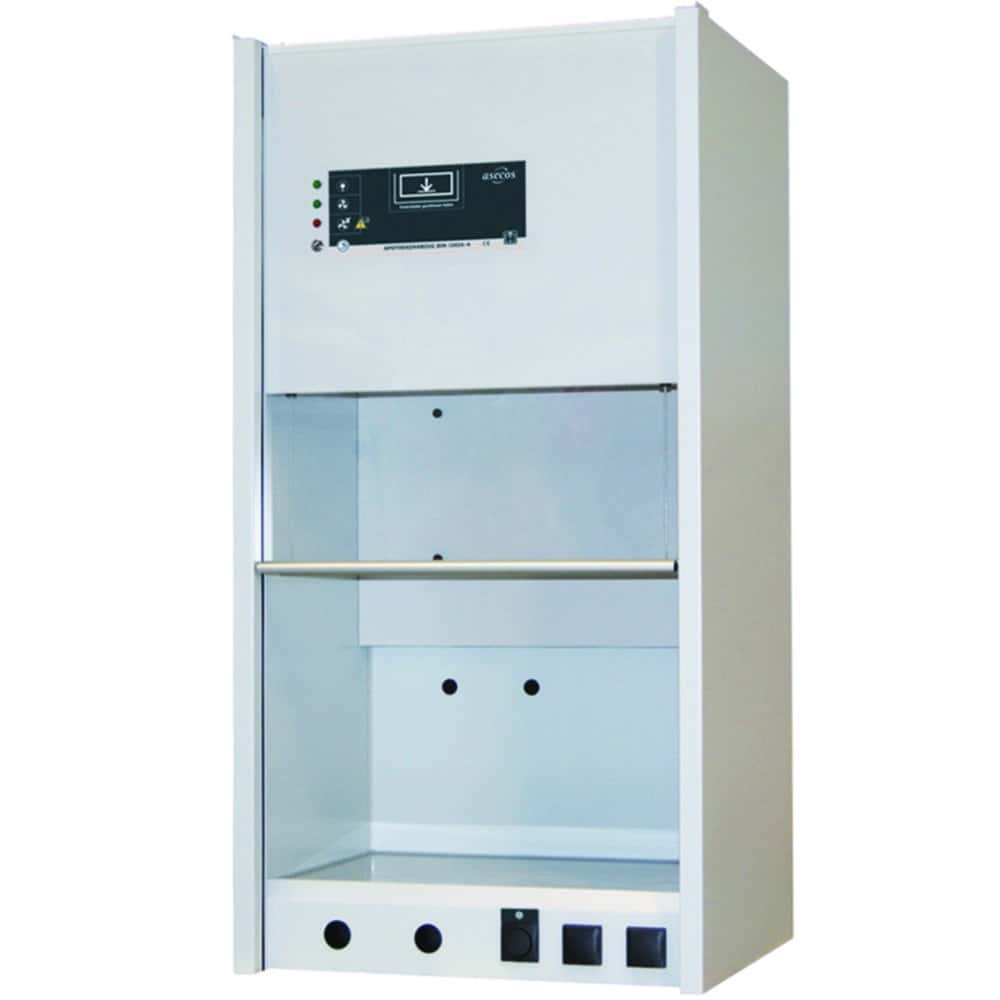

Safe handling of chemicals, protection from hazardous vapours and potentially explosive atmospheresSuitable for PharmaciesEasily mounted on a table topRobust construction made of chemically resistant, antibacterial powder-coated sheet steelTesting of the air equipment by recognized test instituteStandard equipment:Exhaust air fanMonitoring electronics with visual and audible alarmStepless height adjustable front sash made from acrylic glassWorkplace light2 sockets

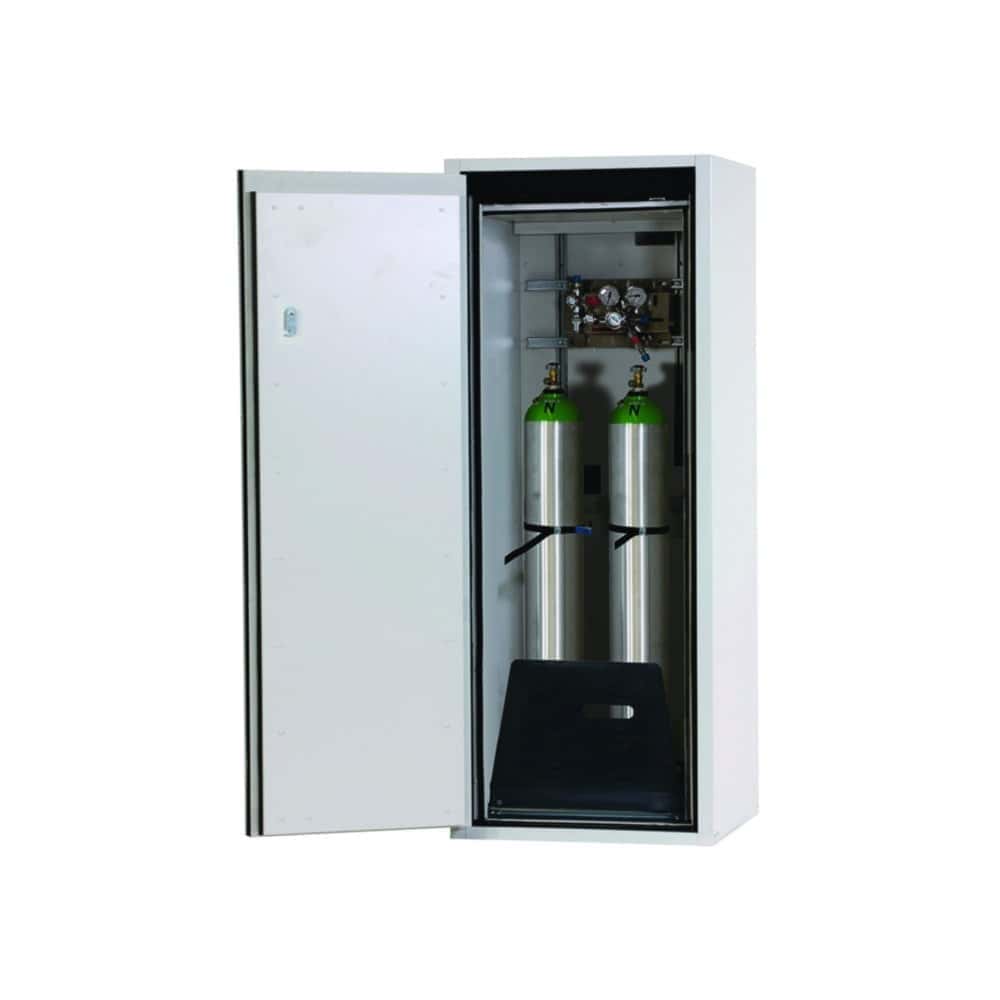

Abluftanschluss (NW 75) auf der SchrankdeckeJustierhilfen im Bodenteil zum Ausrichten bei BodenunebenheitenDurchführungsmöglichkeiten in der SchrankdeckeSerienausstattung: komplett mit Montageschienen, Einrollklappe, Flaschenhalter und passenden SpanngurtenFarbe: lichtgrau RAL 7035Geprüft und sicherTypgeprüft gemäß DIN EN 14470-2, Feuerwiderstandsfähigkeit 90 MinutenGS-geprüft

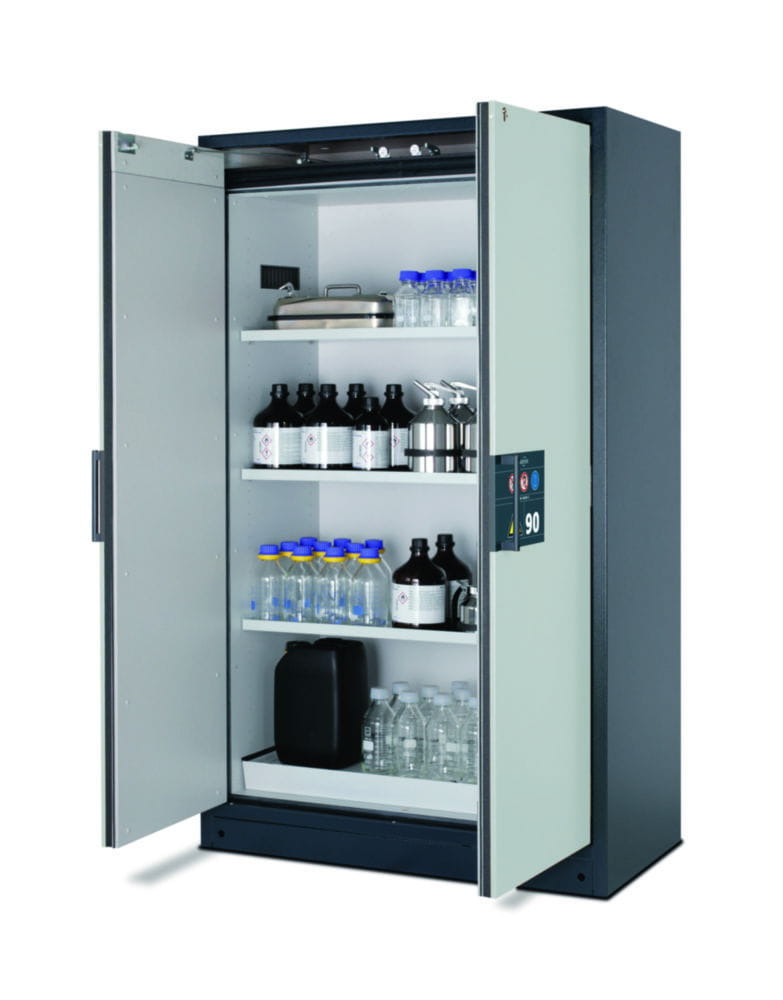

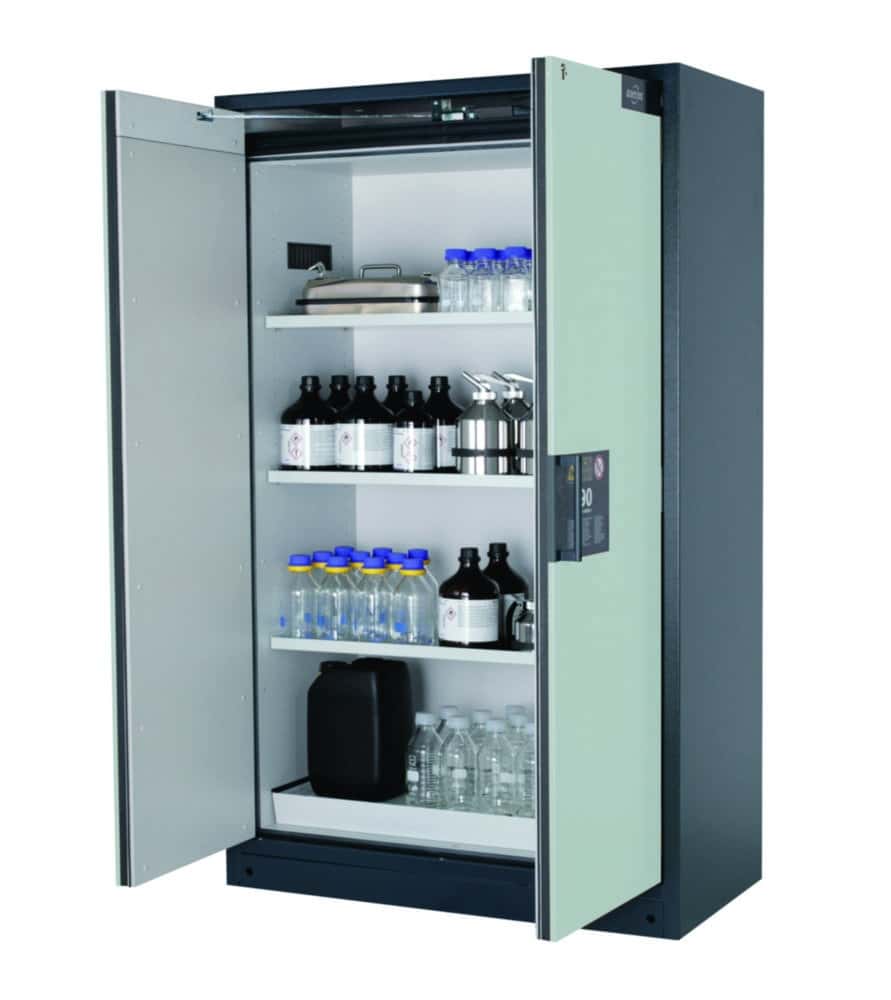

Safe and approved storage of hazardous materials in workroomsType proofed according to DIN EN 14470-1, fire resistance 90 minutesGS approvedBody made of sheet steel plastic laminated, structure finishColour: Body anthracite grey (RAL 7016) doors light grey (RAL 7035), door colour pure white (RAL 9010) available on requestConvenient handling with comfort, doors stop in any position, self-closing in the event of a fireDoors lockable with cylinder lock (suitable for master-key system) and locking state indicator (red/green)Integrated transport base, optional base coverIntegrated adjusting aids to compensate for uneven floorExhaust air connection (DN 75) on top of the cabinetHeight adjustable shelves (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity of the bottom collecting sump: 33 litre (cabinet width 1193 mm), 22 litre (cabinet width 599 mm)Scope of delivery: Safety storage cabinet model Q90.195.120 or Q90.195.060 incl. interior equipment with 3 shelves, bottom collecting sump and perforated insertMany further cabinet versions available.

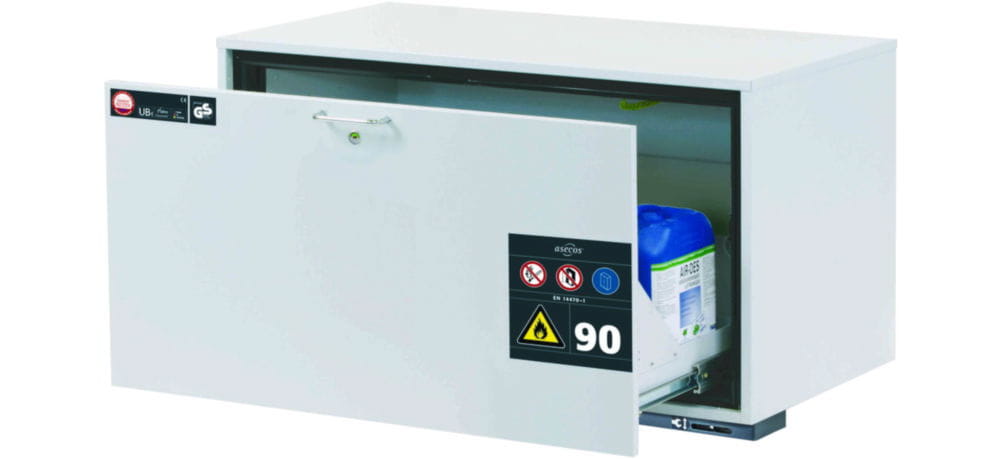

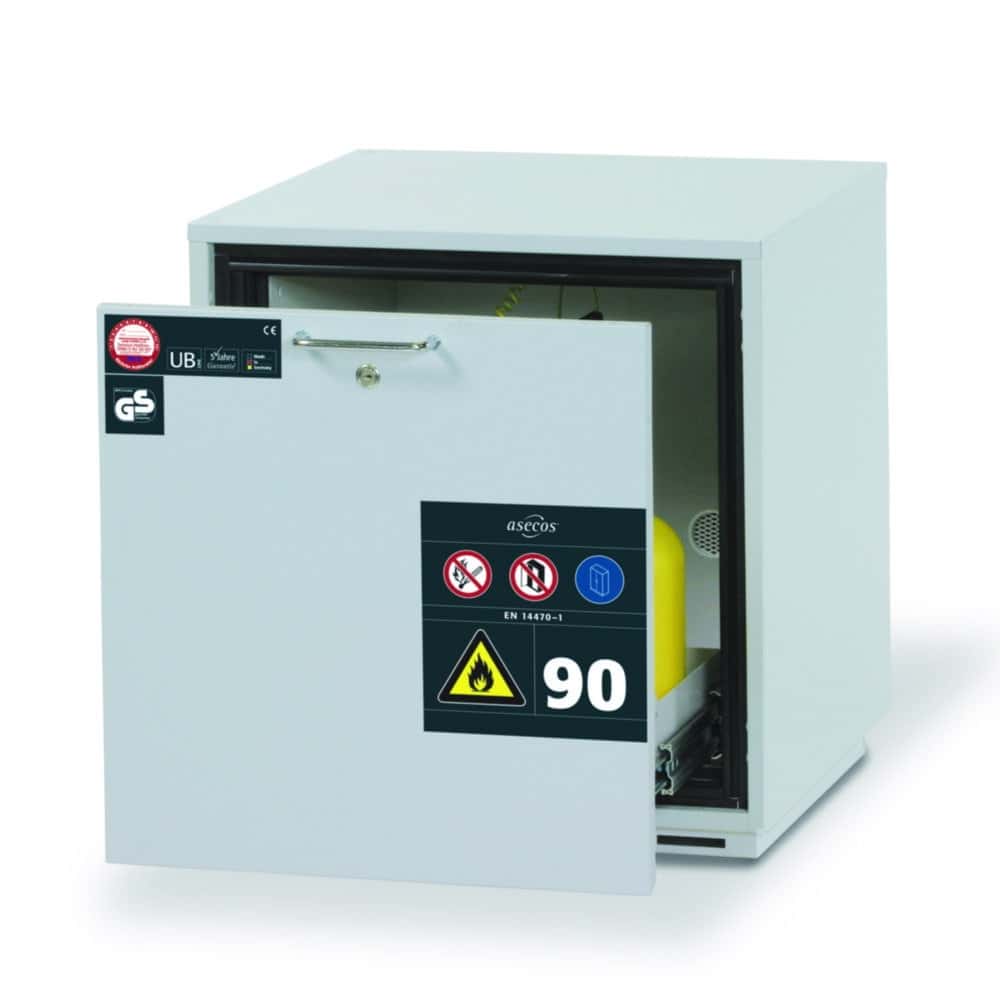

Safe and approved storage of hazardous materials in workroomsType proofed according to DIN EN 14470-1, fire resistance 90 minutes, GS approved, CE conformalMobile: integrated castors with plinth, easy moving of the cabinetQuickly put into operation: integrated air ducts ready for connection (NW 50) to a technical exhaust systemSafe access to all containers: interior of the drawer is completely visible, 135° opening of the wing doorsConvenient: doors and drawer remain open in any positionSafety: drawer standard fitted with earthing wire incl. clamp and with seal welded sump, doors and drawer are self-closing in the event of a fireNo unauthorised use: doors and drawer are lockable with cylinder locking and locking state indicator (red/green)Scope of delivery: Models UB90.060.059.S and UB90.060.110.S incl. drawer with sump and perforated insertFurther cabinet versions available on request.

Sichere und vorschriftsmäßige Lagerung von Gefahrstoffen in ArbeitsräumenTypgeprüft gemäß DIN EN 14470-1, Feuerwiderstandsfähigkeit 90 MinutenGS-geprüftAussenkorpus aus Stahlblech in lichtgrau (RAL 7035), Innenkorpus mit chemisch resistenter OberflächePlatzsparende Falttüren mit geringem Platzbedarf vor dem Schrank bei geöffneten Türenleichte Handhabung, mit einer Hand zwei Türen öffnen (AGT)Serienmäßige Feststellanlage arretiert die Türen, sicheres Ein-/Auslagern der GebindeIntegrierte Tür-Schließ-Automatik (TSA) löst nach ca. 60 Sekunden die arretierten Türen, optisches und akustisches Warnsignal vor TürschließungTüren abschließbar mit Profilzylinder, Schränke integrierbar in SchließanlageJustierhilfen zum Ausrichten der Schränke bei BodenunebenheitenAbluftanschluss (NW 75) in der SchrankdeckeSerienmäßige Türfeststellanlage arretiert die Türen und erleichtert das Ein- und AuslagernModell S90.196.120.FDAC und Modell S90.196.060.FDAC mit Fachböden:Fachböden, höhenverstellbar (Rastermaß 32 mm), Tragkraft 75 kg (gleichmäßig verteilte Last), Bodenauffangwanne mit oder ohne Lochblecheinsatz als erste StellebeneAuffangvolumen Bodenauffangwanne: 33 Liter (Modellbreite 1200 mm), 22 Liter (Modellbreite 600 mm)Modell S90.196.120.FDAC und Modell S90.196.060.FDAC mit Vollauszügen:Hohes Lagervolumen, optimale Nutzung vorhandener Lagerkapazitäten, ideal zur Lagerung von Gebinden < 5 LiterModellbreite 1200 mm: Selbsteinzug im Brandfall, Traglast: 60 kg (gleichmäßig verteilt), Auffangvolumen 30 LiterModellbreite 600 mm: permanenter Selbsteinzug, Traglast 25 kg (gleichmäßig verteilt), Auffangvolumen 5 LiterViele weitere Schrankversionen erhältlich. Bitte sprechen Sie uns an.Inneneinrichtung mit:3 x Fachboden, Tragkraft: 75 kg, Edelstahl1 x Lochblecheinsatz, Tragkraft: 75 kg, Edelstahl1 x Bodenauffangwanne, Volumen: 33 Liter, Edelstahl

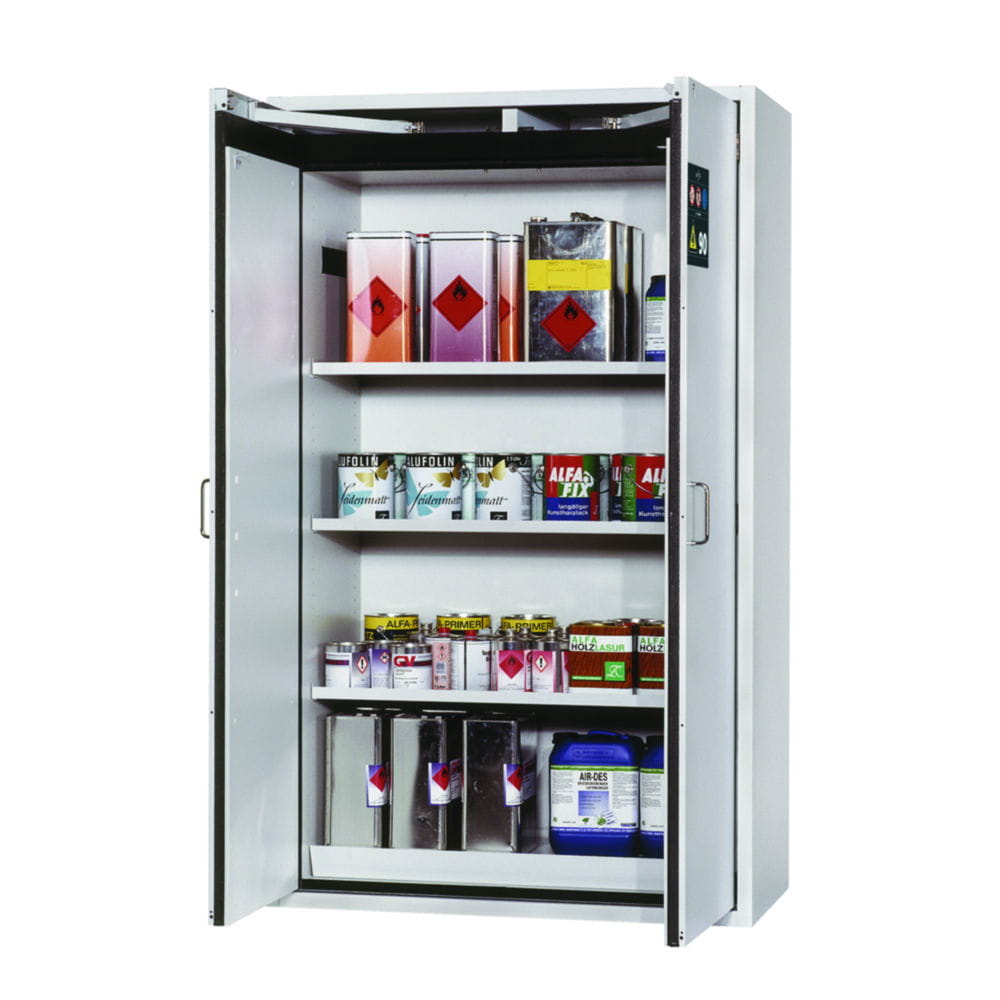

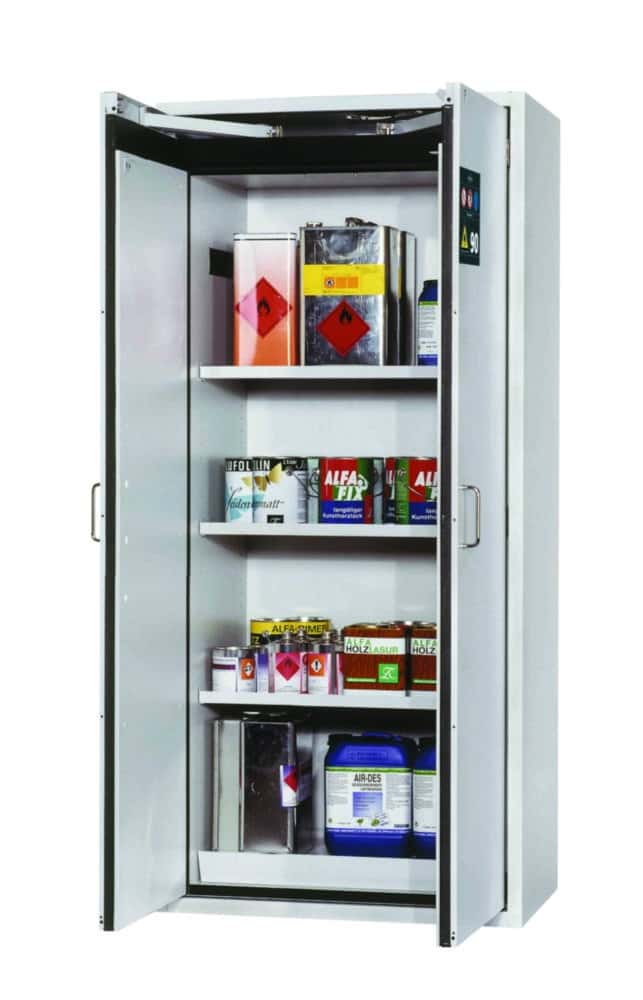

safe and approved storage of hazardous materials in workroomstype proved according to EN 14470-1, fire resistance 90 minutesGS-approvedouter body made of sheet steel, colour light grey (RAL 7035), interior with chemical resistant surfacelockable doors with cylinder lock (integration into a locking system possible)adjusting aids for compensation for uneven floorventilation connection (NW 75)in the cabinet ceilingstandard door open arrest system holds doors open, safe and convenient storage and removalShelves, height adjustable (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity bottom collecting sump: 33 litre (model width 1200 mm), 22 litre (model width 600 mm).Supplied with: Safety Storage Cabinet S-CLASSIC-90 Model S90.196.120.WDAS or S90.196.060.WDAS incl. interior equipment with 3 shelves, bottom collecting sump with perforated insertA wide variety of cabinet versions is available. Please enquire.

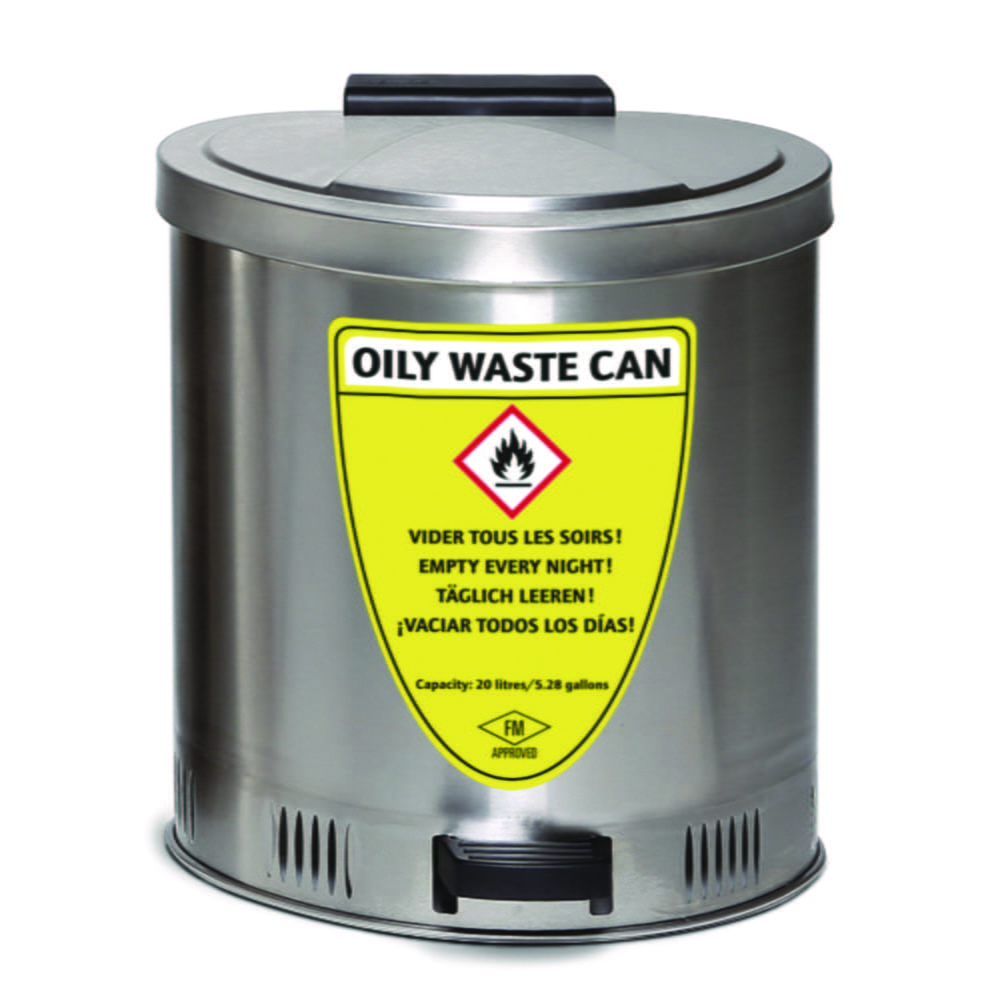

approved for waste materials containing solventslid opened by foot pedallid is self-closingbase edge has ventilation openings; prevents heating up of the base and spontaneous combustion of contents

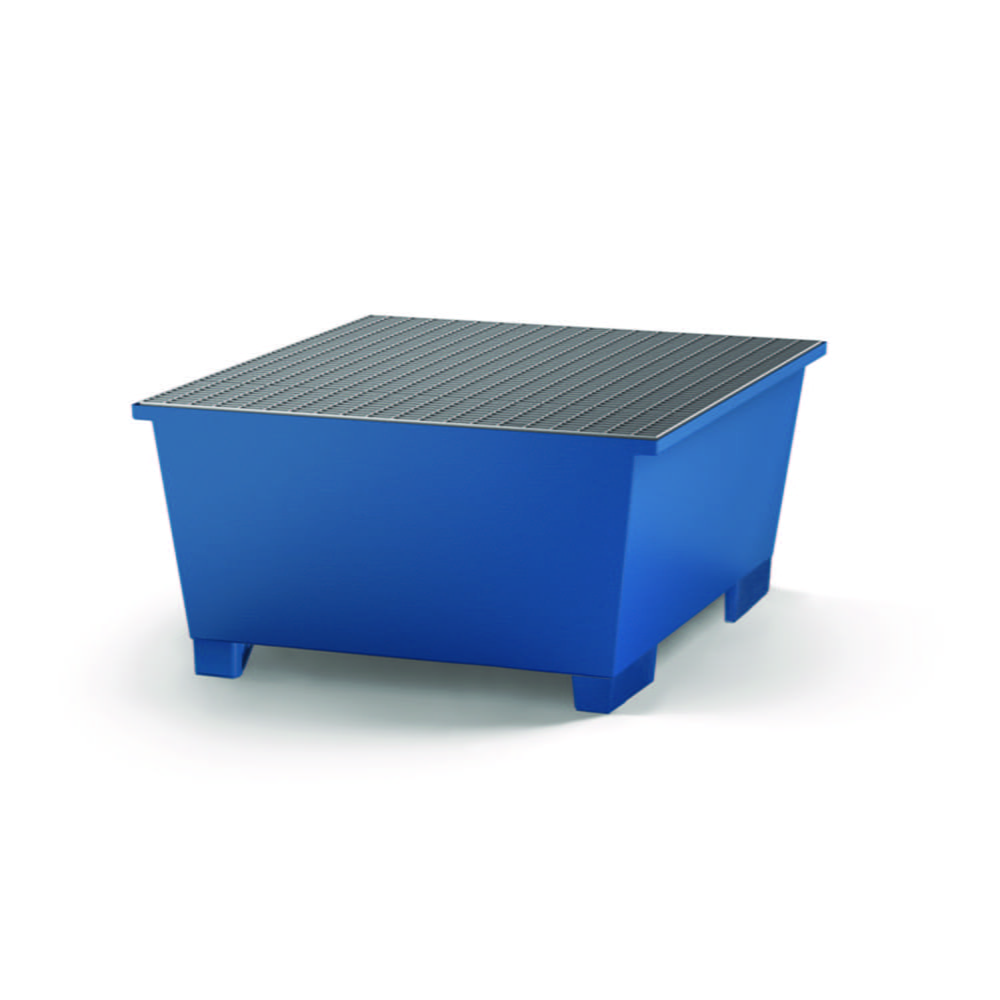

Ideal for acids and alkalis.Approved for the storage of water polluting and flammable liquids of all hazard classesMeets the requirements of the Water Resources Act (WHG)Optimal for storage of KTC/IBCUsable as filling and dosing station in connection with a bearing blockOptional with PE insert tray, increased corrosion protection when storing aggressive storage mediaCollectable volume: 1000 liters

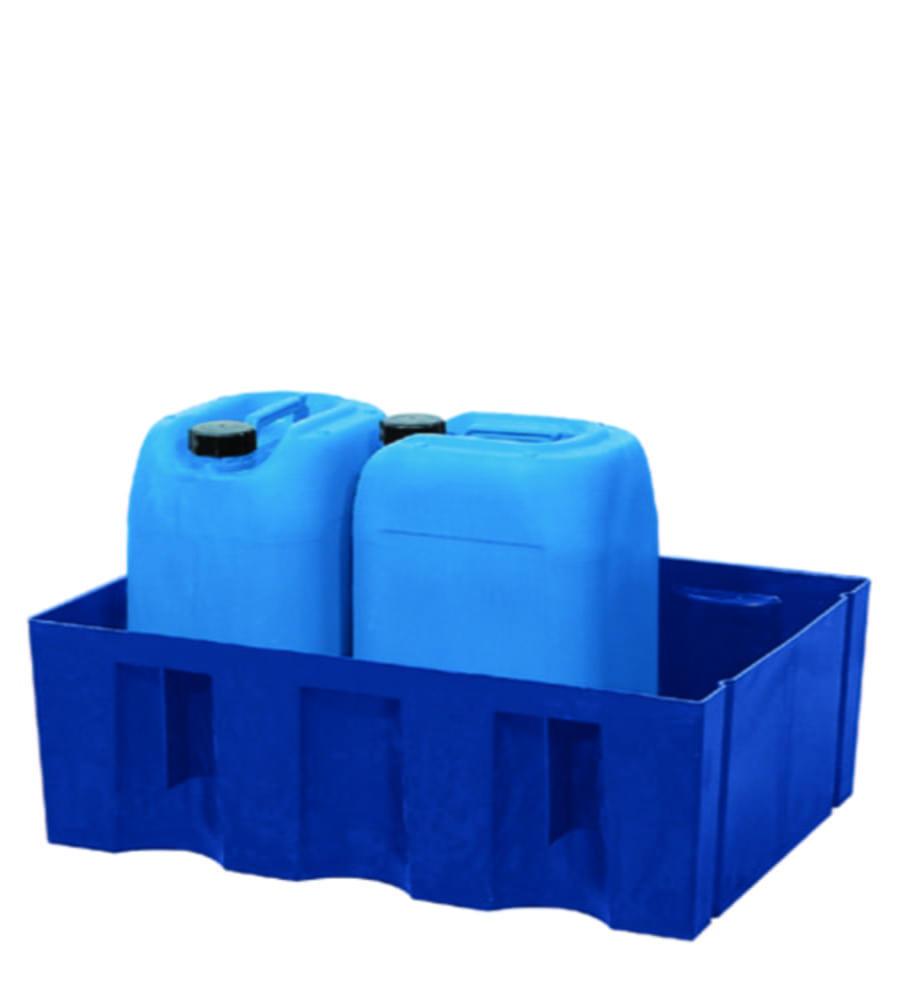

High resistance to acids, alkalis, oil and other aggressive hazardous materialsFor the storage of pollutantsAvailable with galvanized or polyethylene gridCapacity with grid: 2 drums of 60 litresCapacity without grid: 1 drum of 60 litresSump for direct placing onto the ground or on a palletWith feet: for safe transport with fork lift truckWith castors: for safe transport without additional helpLoad capacity: 150kg, version with castors: 120kg

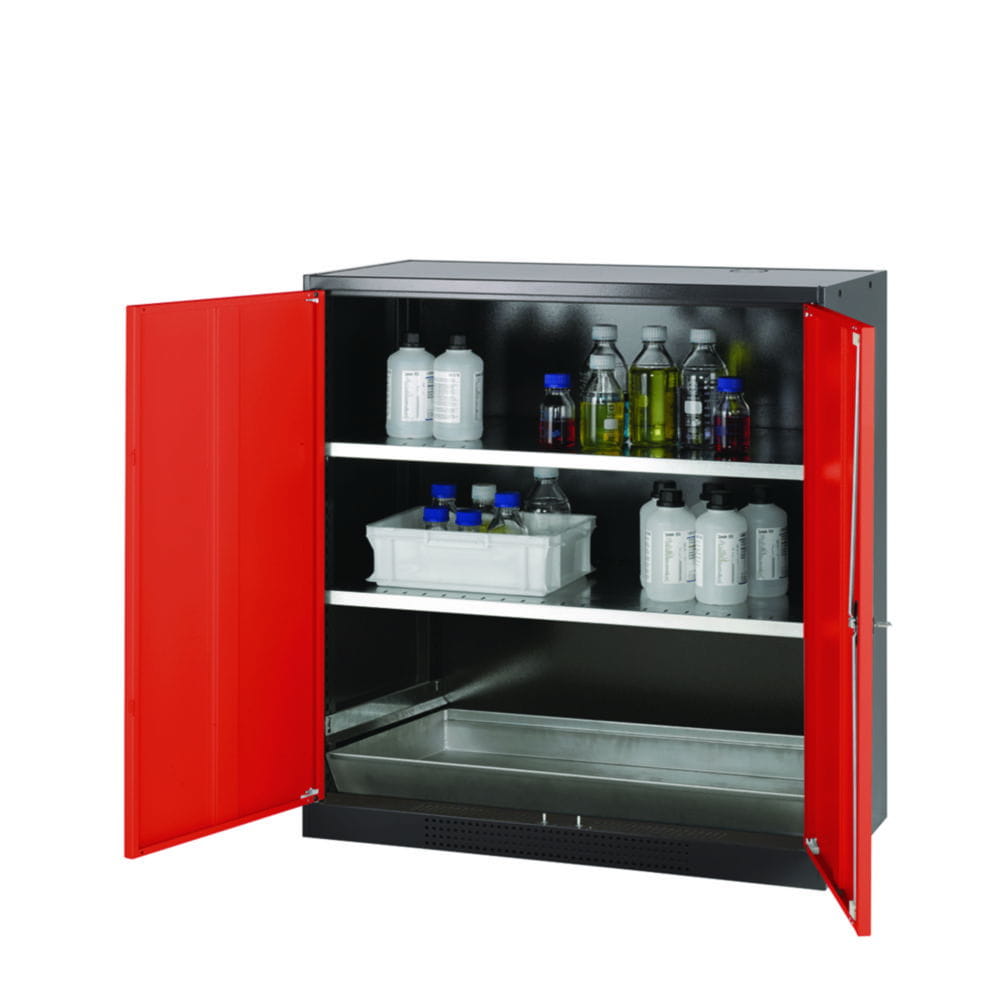

Safe and regulation-compliant storage of non-flammable chemicals and poisons in workrooms3 cabinet widths, 2 different cabinet heights, 3 door variants, 7 different door colours and countless interior fitting variants are available. Please contact us.high-grade steel plate body with sturdy, high-quality structured paint finish7 different door colours at no extra costdoors with safety cylinder integrated into the turning handleprepared for connection (NW 75) to an extraction system on the cabinet's ceilingintegrated adjustable feet, easy to alignnatural ventilation thanks to vent openings in the floor regionoptionally galvanised or painted shelves (RAL 7035 light grey), height adjustable (grid size 25mm)watertight, zinc plated bottom collecting sump, optionally included according to STAWA-Rpull-out drawers with plastic sump

Safe and approved storage of hazardous materials in workroomsType proved according to EN 14470-1, fire resistance 90 minutesGS-approvedOuter body made of sheet steel, interior with chemical resistant surface, colour: body anthracite grey RAL 7016, doors light grey (RAL 7035), door colour pure white(RAL 9010) available on requestConvenient handling: one-hand operation for double-door cabinets (AGT)Standard door open arrest system holds doors open, safe and convenient storage and removalSerial automatic door closing (TSA) releases arrested doors after approx. 60 seconds. Acoustic and visual signal before closingLockable doors with cylinder lock (integration into a locking system possible), integrated locking state indicator (red/green)Integrated transport base with removable, optional base cover, easy indoor transportAdjusting aids for compensation for uneven floorVentilation connection (NW 75) in the cabinet ceilingShelves, height adjustable (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity bottom collecting sump: 33 litre (model width 1200 mm), 22 litre (model width 600 mm)Supplied with: Safety Storage Cabinet Q-PEGASUS-90 Model Q90.195.120.WDAC or Q90.195.060.WDAC incl. interior equipment with 3 shelves, bottom collecting sump with perforated insertA wide variety of cabinet versions is available. Please enquire.

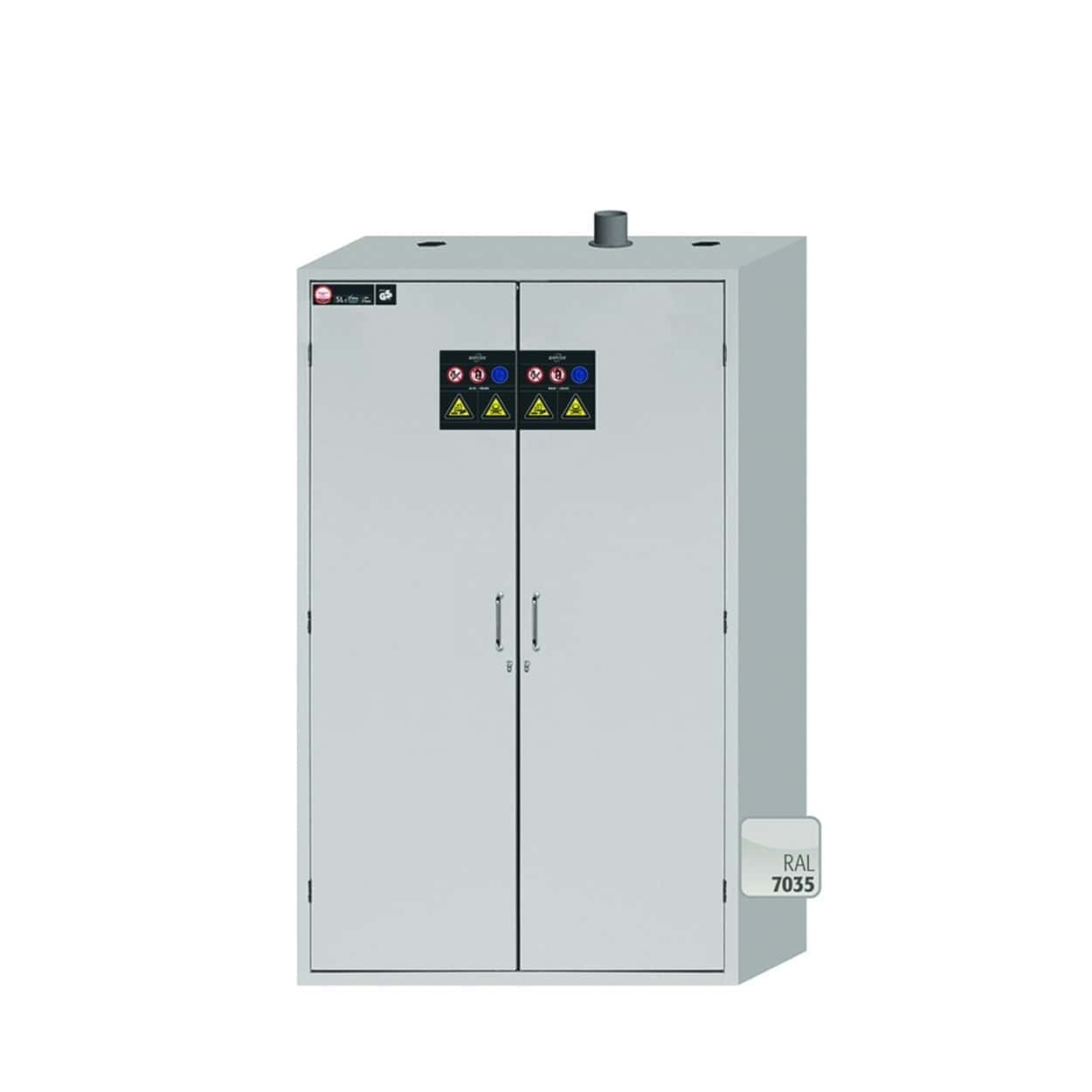

Safe and approved storage of aggressive, non-flammable hazardous materials in workroomsRobust construction and longevity, safety elements assembled outside the storage compartment for increased protection against corrosion, easy to cleanSafe storage with two hermetically separated storage compartmentsDoors lockable with cylinder locking (integration in locking system possible)Integrated adjusting aids to compensate for uneven floorIntegrated metal-free air ducts ready for connection (NW 75) to a technical exhaust system with only one extraction air InletPull-out shelves: high quality and sturdy construction with removable plastic sump, load capacity 25 kg (evenly distributed load), capacity 15 litreSupplied with: Cabinet for acids and alkalis SL-CLASSIC incl. interior equipment, Model SL.196.120.MV with 8 or 12 pull-out shelves, Model SL.196.060.MH with 4 or 6 pull-out shelvesA wide variety of cabinet versions is available. Please enquire.
