Photometer: Precise Analyses for Your Laboratory – Introduction

How can the phosphate content in wastewater be precisely determined? Or nitrate concentration in a soil extraction solution be detected – reproducibly, according to standards, and without lengthy titrations?

The answer: with a photometer.

Whether in environmental analysis, food control, or the research laboratory – the photometer's functionality enables precise, quantitative measurements based on photometric principles. In a regulated laboratory environment, where ISO and DIN standards apply, reliable devices are not an option, but a duty.

In this article, we will show you:

• How a photometer is constructed and how it works
• Which photometer types are particularly relevant in the laboratory (e.g., UV/Vis, Flame, BOD)
• What you should consider when buying a photometer
• And which specific devices are worthwhile for your laboratory – including a short comparison table

Regardless of whether you analyze water samples daily or occasionally measure potassium values: This guide brings you up to date with the latest technology and helps you find the right device for your requirements.

What is a Photometer? – Definition & Areas of Application

What do the determination of nitrate in groundwater, the analysis of sulfates in industrial process liquids, and color measurement in food control have in common? They all rely on the same principle – the precise measurement of light absorption by a solution.

But what exactly is a photometer?

A photometer is an optical analytical device that measures the amount of light a substance absorbs at a specific wavelength. The derived concentration is precise, reproducible, and in many cases, standard-compliant – e.g., according to DIN EN ISO 6878 for phosphate or DIN 38405 for nitrite.

Typical areas of application in the laboratory:

• Water analysis: e.g., drinking water monitoring or wastewater treatment
• Food control: color measurement, sugar analysis, additive detection
• Research & Development: biochemical assays, enzyme reactions, kinetic studies

Today, the photometer definition includes not only classic handheld devices but also modern UV/Vis spectrometers with interfaces for LIMS and automated evaluations. Technological progress has made them a standard instrument in practically every analytical laboratory.

Tip: A well-maintained photometer delivers reliable results for years – provided it fits the respective application exactly.

Photometer Construction Explained

How exactly does a photometer work – and what distinguishes a simple field device from a high-resolution spectrophotometer?

The photometer's construction almost always follows this principle:

• Light source – usually a halogen, LED, or xenon lamp, depending on the wavelength range
• Monochromator or filter – separates specific wavelengths
• Cuvette with sample – usually glass or quartz, with a standardized light path (e.g., 10 mm)
• Detector – measures the light intensity after passing through the sample
• Evaluation electronics – converts optical signals into measured values (absorption, transmission)

This measurement is typically based on the Lambert-Beer Law, which establishes a direct relationship between concentration and light absorption.

A classic photoelectric photometer uses light-sensitive sensors (e.g., photodiodes) to accurately detect even the smallest intensity differences – ideal for quantitative analyses in trace analysis or environmental chemistry.

Note: A schematic representation can be found further down in our exploded view graphic (ALT = "Photometer Construction"), which clearly explains the individual components.

Would you like to know which photometer is best suited for your laboratory equipment? In the next section, we will show you an overview of the most important device types – including their typical areas of application.

Measurement Principle: Absorption vs. Emission Photometry

Did you know that even concentrations in the microgram range can be reliably detected – if the right measurement principle is used?

Most laboratory devices work on the principle of absorption photometry. An absorption photometer measures how much light a solution absorbs at a specific wavelength. The higher the concentration of the analyte, the less light passes through the sample. The basis is the Lambert-Beer Law, which describes a linear relationship between concentration and light absorption.

A special case is emission photometry – for example, with a Flame Photometer. Here, not the transmitted light is measured, but the self-emission of light by atoms that have been excited in a flame. This method is particularly suitable for the determination of sodium, potassium, or lithium – often in clinical chemistry or environmental analysis.

Both methods have their strengths – and determine which photometer type is suitable for your daily laboratory work.

Photometer Types & Typical Applications

In modern laboratories, various device types are available – depending on the application area and the required standard.

• Flame Photometer A classic for the determination of sodium and potassium ions. Particularly widespread in environmental laboratories and clinical analysis. Many devices are verifiable according to ISO 9964 or DIN EN 11885.
• Aquarium Photometer Ideal for the exact determination of nitrite, nitrate, pH, and total hardness in aquariums. Long a standard in professional pet stores and aquaculture facilities.
• Pool Photometer Specifically for measuring free and combined chlorine, cyanuric acid, and pH in the swimming pool area. Generally support the requirements of DIN 19643.
• BOD Photometer Developed for the analysis of Biochemical Oxygen Demand. Often compatible with methods according to DIN EN 1899-1.
• UV-Vis Photometer High-precision devices with spectral resolution. Standard in research laboratories, ideal for DNA/RNA analysis, protein concentrations, or color measurements in the food sector.

Which type is right for you strongly depends on the application and your measurement parameters. In the next section, we will show you how to specifically select the right device.

Buying Guide: Which Photometer to Buy?

You want to buy a photometer but don't know what to look for?

The selection is large – from simple handheld devices to fully automatic laboratory stations. To help you find the best photometer for your requirements, the following criteria will help:

• Measuring range & accuracy For trace analysis (e.g., BOD5, phosphorus), high-resolution devices are crucial.
• Portability For field measurements or mobile laboratories, compact photometers with batteries and robust housings are ideal.
• Standard conformity Pay attention to DIN/ISO certifications suitable for your application.
• Budget & additional functions Whether touchscreen, USB interface, or LIMS connection – modern features make laboratory work easier. Be sure to compare the follow-up costs (e.g., reagents, cuvettes).

An objective photometer test of various models helps with the selection. We have already put together a pre-selection of the most powerful devices on our photometer category page – for every laboratory size and every application.

Discover now: Which photometer suits your laboratory?

Selected Photometer Models at a Glance

In the world of laboratory and water analysis, spectrophotometers are indispensable instruments for the precise determination of concentrations in samples. Here we present five models that are characterized by their functionality and versatility.

1. NANOCOLOR® Advance Spectrophotometer This device offers a user-friendly touchscreen interface and enables the analysis of numerous parameters through pre-programmed test sets. It is ideal for routine analyses in water and wastewater investigations.

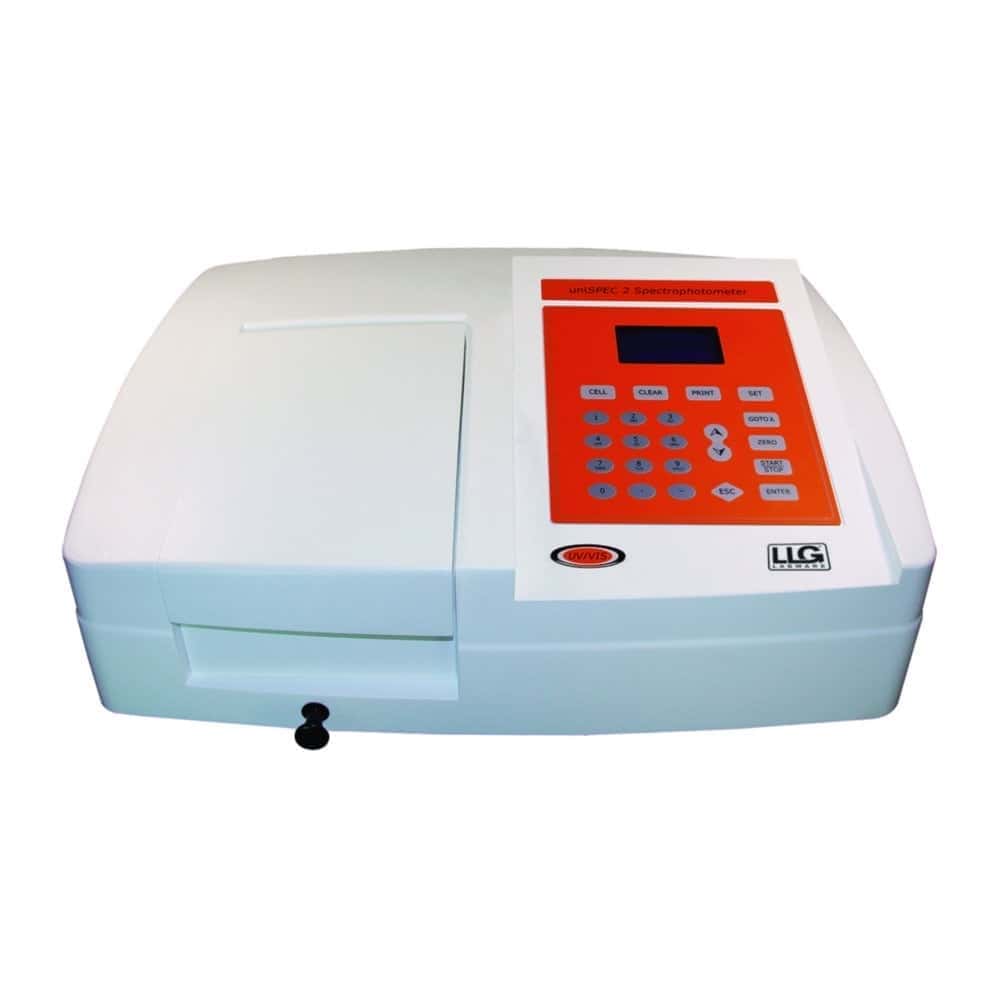

2. LLG-uniSPEC 2 Spectrophotometer A cost-effective UV/VIS spectrophotometer suitable for pharmaceutical, biochemical, and clinical applications. It supports various measurement methods such as kinetics, wavelength scans, and quantitative analyses.

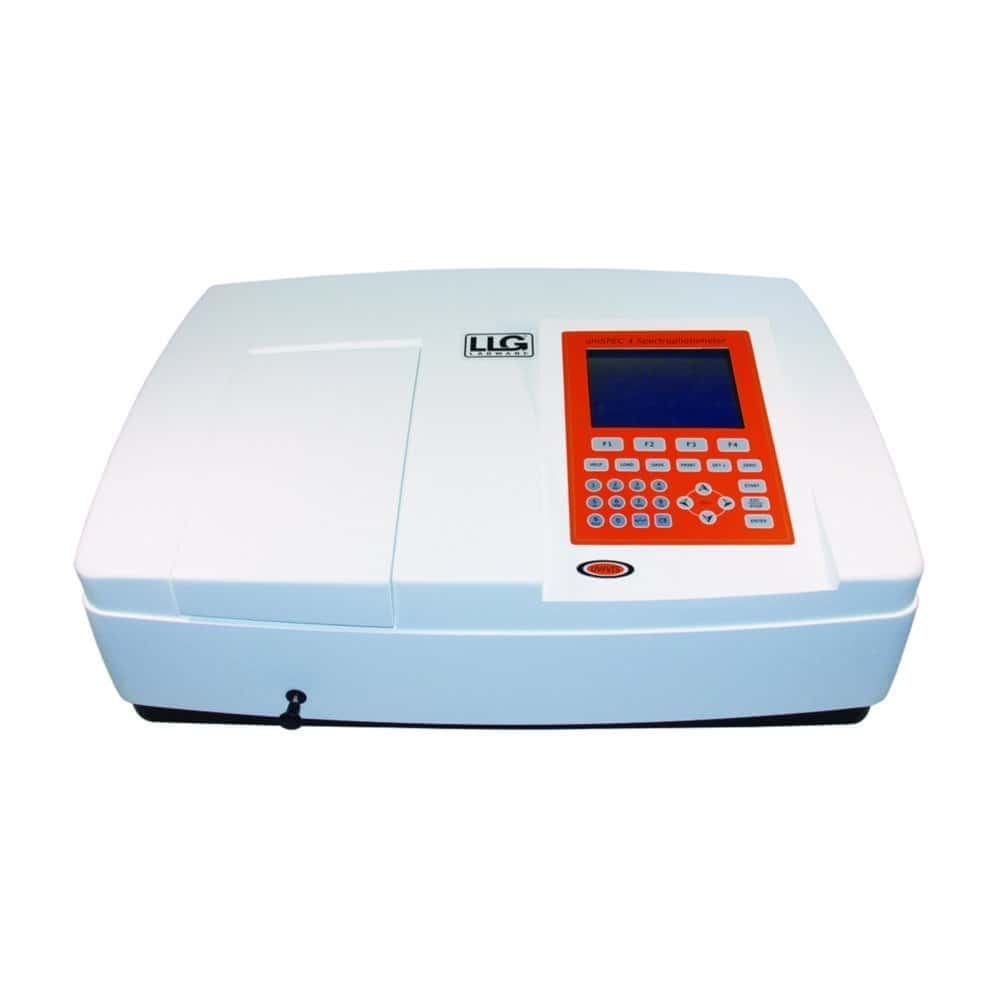

3. LLG-uniSPEC 4 Spectrophotometer This model offers extended functions for demanding analyses in laboratory environments. It is particularly suitable for applications requiring high precision and versatility.

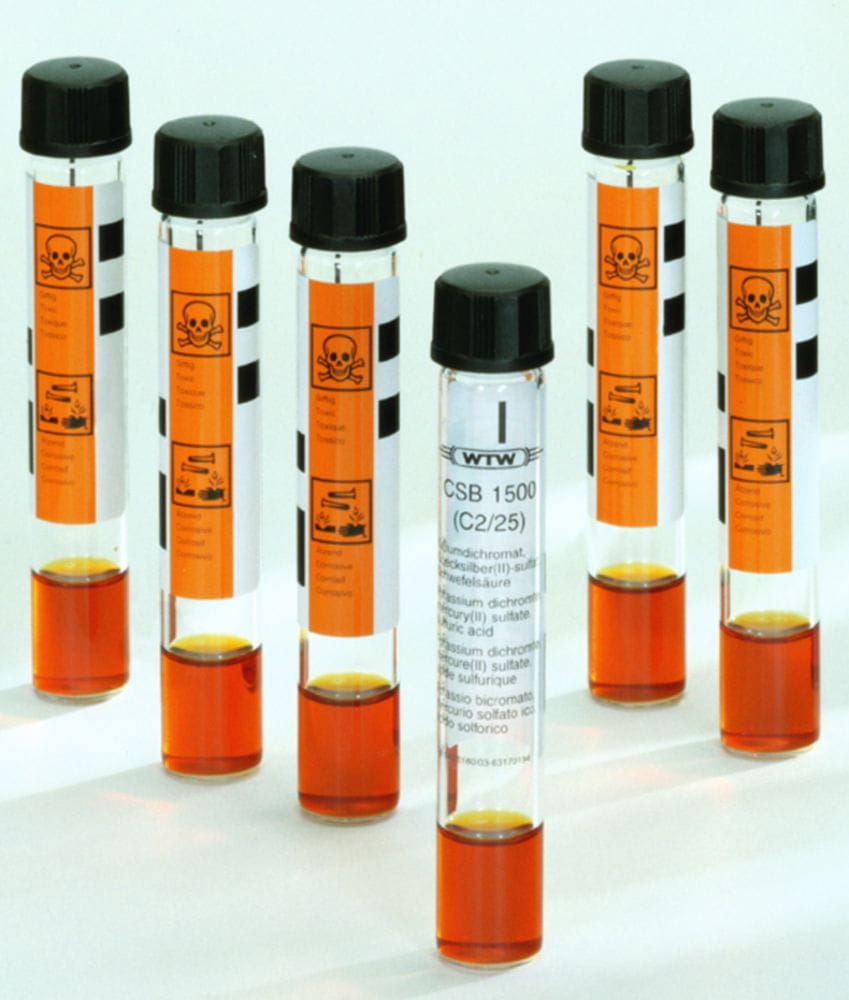

4. photoLab® and photoFlex® Test Sets For performing specific tests such as nitrate, nitrite, or phosphate, these test sets offer easy handling and quick results. They are compatible with the corresponding photometers and enable efficient analysis.

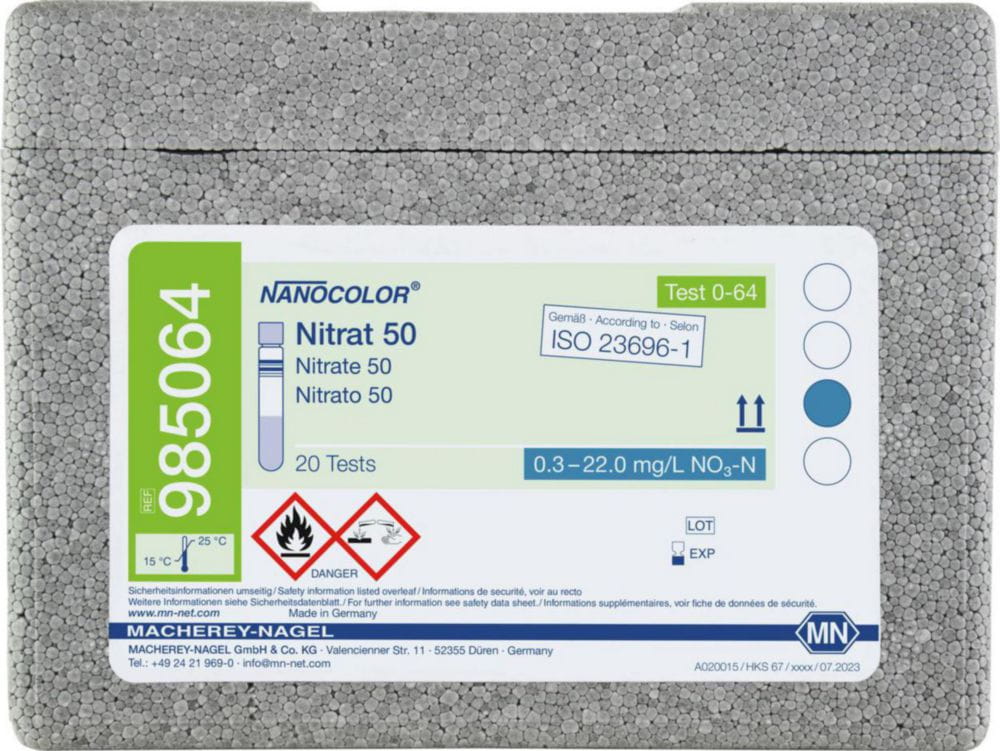

5. NANOCOLOR® Nitrate/Nitrite Round Cuvette Tests These tests are specifically designed for the determination of nitrate and nitrite in water samples. They offer high sensitivity and accuracy, making them a valuable tool in environmental analysis.

The choice of the right spectrophotometer depends on the specific requirements of your analyses. Consider factors such as the parameters to be measured, the required precision, and the budget to select the appropriate device for your needs.

Photometer FAQ – Functionality, Types, Standards & Buying a Photometer

What is measured with a photometer? Concentrations of ions/molecules such as nitrate, phosphate, iron, or potassium. The device directly converts light absorption or emission into mg/L or µg/L.

Why do you need a photometer in the laboratory? For fast, standard-compliant quality control in water analysis, food testing, environmental and biochemistry – without lengthy titration.

How does a photometer work? Light passes through the sample; a detector measures how much light is lost (absorption) or generated (emission). The photometer calculates the concentration using the Lambert-Beer Law.

What is the difference between a photometer and a spectrophotometer? A photometer measures individual wavelengths; a spectrophotometer scans a complete spectrum and thus also provides qualitative substance identification.

What types of photometers are there? UV/Vis, Flame, BOD, Aquarium, Pool, and portable handheld photometers – each optimized for different parameters and standards.

How do you calibrate a photometer correctly? With certified standard solutions in duplicate determination, protocol according to DIN EN ISO 17025; deviation should be < ±2%.

Which standards apply to photometer measurements? Frequently DIN 38404 (water), DIN 19643 (swimming pool), DIN 38405 (nitrite/nitrate), and ISO 9964 (sodium/potassium).

Which photometer to buy – what to look for? Measuring range, accuracy, standard conformity, portability, and follow-up costs (reagents & cuvettes). Always compare the real photometer price per analysis.

What is the difference between a photometer and a spectrometer? A photometer quantifies concentrations; a spectrometer provides detailed spectra for the qualitative analysis of compounds.

Who manufactures flame photometers? Leading in German-speaking laboratory supplies: Sherwood Scientific, Jenway, and BWB Technologies – all offer ISO-compliant calibration kits.

Conclusion: Which Photometer Suits Your Laboratory?

Whether water analysis, environmental testing, or research – a precise photometer is now part of the basic equipment of every laboratory. We have presented the most important photometer types, their functionality, and criteria for buying a photometer.

Are you unsure which model suits your applications?

Our team will be happy to advise you – practical, brand-independent, and standard-compliant. Call us anytime at 07336 96030 or write to us at info@haeberle-lab.de.
