Bohlender GmbH b.safe Waste Caps, S 50, PP ( 4681585 )
Article number: 4681585
Manufacturer number: M 350-40
€133.20*
on order

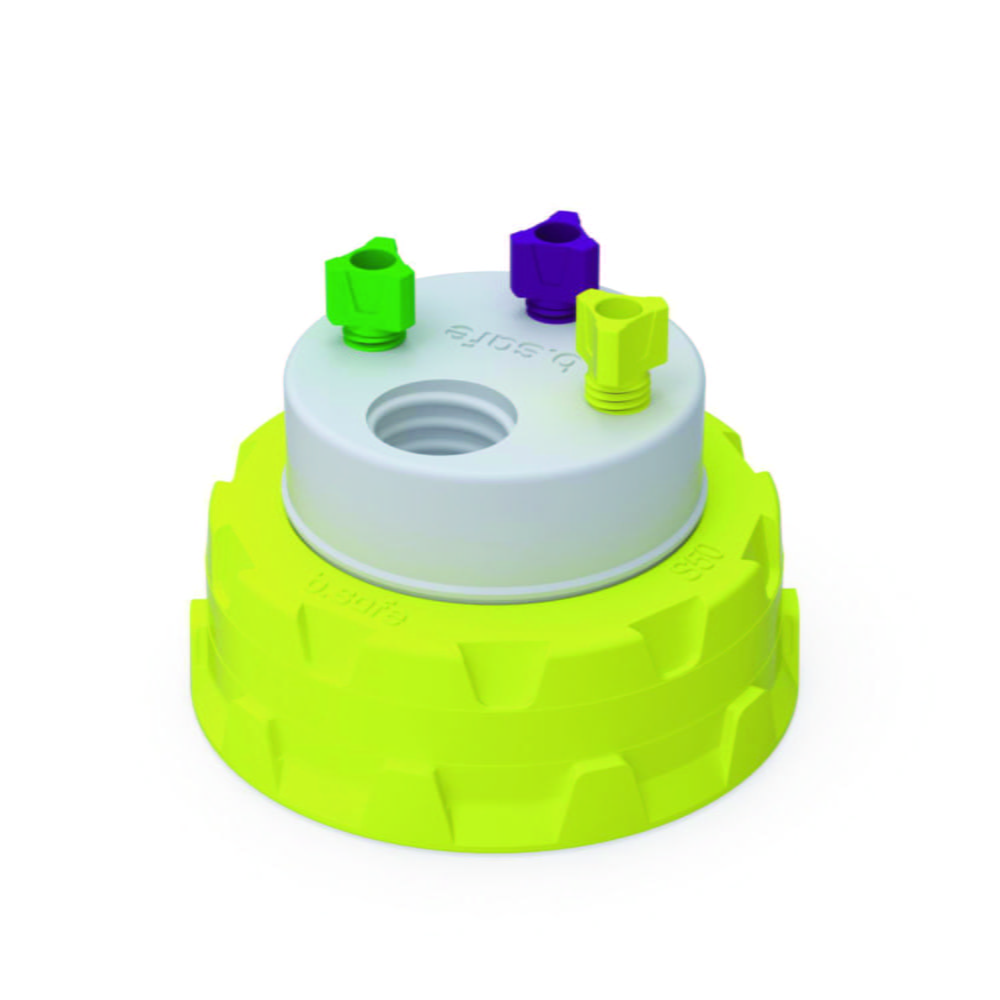

Product information "b.safe Waste Caps, S 50, PP"
Scope of supply:
Fittings, blind fittings (UNF ¼"), blind fittings (NPT 1/8"), hose olives (NPT 1/8")
| Capillary connections: | 4 |
|---|---|
| Connection for exhaust filter: | 1 |
| Hose connections: | 4 |
| Manufacturer Article Number: | M 350-40 |
| Material: | PP |
| No. of blind plugs: | 4 x UNF ¼", 4 x NPT 1/8" |
| No. of fittings: | 4 x 1,6/ 2,2/ 3,2 mm |
| No. of olives: | 4 |
| Thread: | S 50 |
| UNSPSC: | 41115700 |
Accessories
For closing unused connections on b.safe Caps and b.safe Waste Caps.
For the connection of tubing on b.safe Waste Caps.
Lid with integrated ventilation openings and service life indicator. The filling of activated carbon is protected by two porous membranes made of PE. This allows an unobstructed flow of exhaust air, solvents are adsorbed by the activated carbon and only filtered air streams out.
For fixing tubes in capillary connections (thread UNF 1/4" 28G) of b.safe Caps and b.safe Waste Caps.
