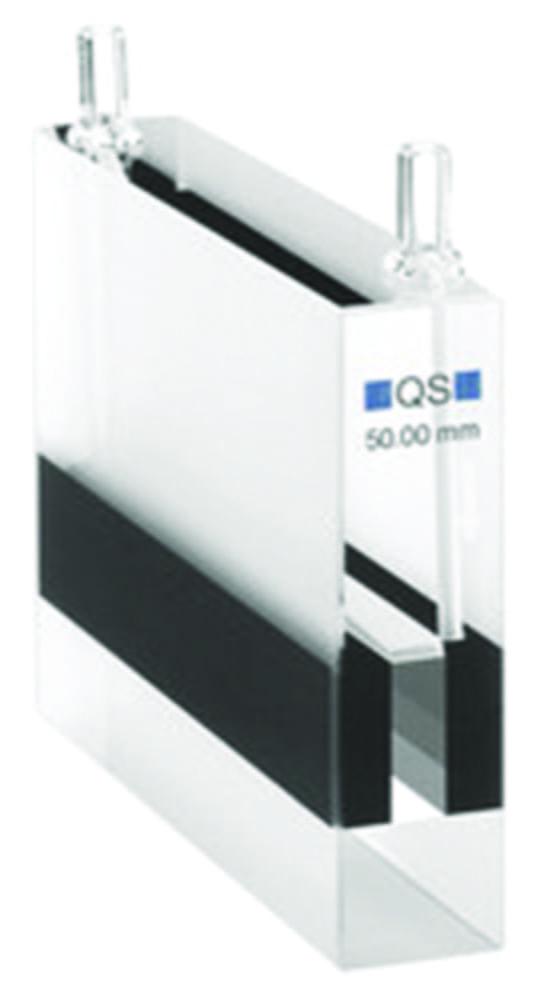

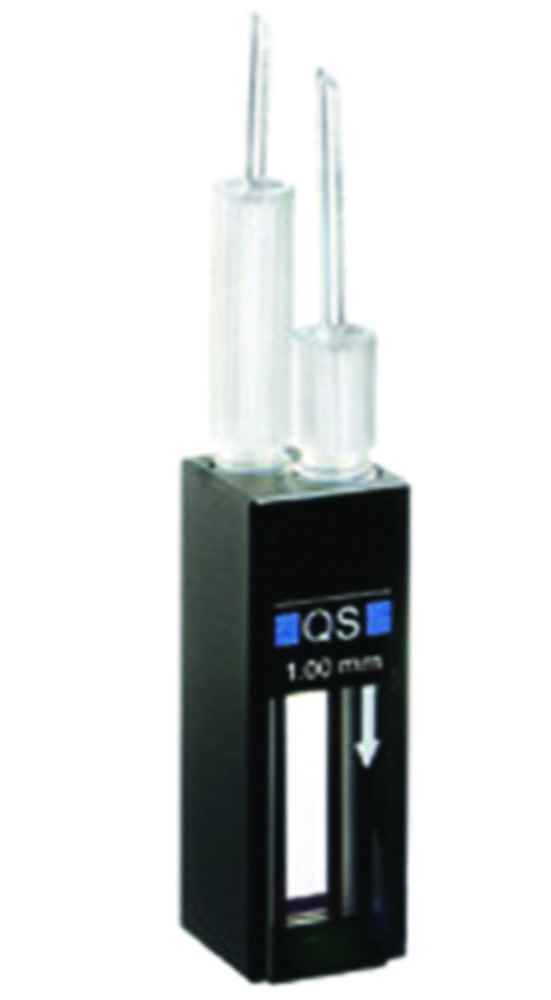

Hellma GmbH & Co. KG Cells for Absorption Measurement, Flow-Through Measurement, UV-range ( 6051845 )

Article number: 6051845

Herstellernummer: 176-15-10-40

Cells for Absorption Measurement, Flow-Through Measurement, UV-range

€482.00*

Packaging unit: 1 piece

* Prices excl. VAT plus shipping costs

on order

Capacity

2,250 µl

2,600 µl

3,200 µl

120 µl

240 µl

260 µl

450 µl

750 µl

Capacity µl

120

240

260

450

750

2250

2600

3200

Centre height

8.5 mm

15 mm

Centre height mm

8.5

15.0

Description

Supply and outlet tubes

Ext. depth

3.5 mm

12.5 mm

52.5 mm

Ext. height

35 mm

38.5 mm

45 mm

External dimensions (WxDxH)

12.5 x 3.5 x 45 mm

12.5 x 12.5 x 35 mm

12.5 x 12.5 x 38.5 mm

12.5 x 12.5 x 45 mm

12.5 x 52.5 x 38.5 mm

12.5 x 52.5 x 45 mm

Int. width

4 mm

6.5 mm

9 mm

9.5 mm

Material

Max. capacity

120 µl

240 µl

260 µl

450 µl

750 µl

2250 µl

2600 µl

3200 µl

Path length

1 mm

2 mm

10 mm

50 mm

Path length mm

Type

macro

micro

semi-micro

Type of cuvette

Macro

Micro

Semi-Micro

UNSPSC

41-12-18-13

41121813

Product information "Cells for Absorption Measurement, Flow-Through Measurement, UV-range"

Optical material:
QS: Quartz glass High Performance, wavelength range: 200 - 2500 nm.
OS: Special Optical Glass, wavelength range: 320 - 2500 nm.

* M 6 x 1 and FEP tubes (outside diameter 1.9mm, inner diameter 1.1mm, length 500mm)

Capacity:	450 µl
Capacity µl:	450
Centre height:	15 mm
Centre height mm:	15.0
Description:	Supply and outlet tubes
Ext. depth:	12.5 mm
Ext. height:	45 mm
Ext. width:	12.5 mm
External dimensions (WxDxH):	12.5 x 12.5 x 45 mm
External dimensions (W x D x H) mm:	12.5 x 12.5 x 45
Int. width:	4 mm
Internal width mm:	11 x 4
Manufacturer Article Number:	176-15-10-40
Material:	QS
Material:	Quartz glass
Max. capacity:	450 µl
Path length:	10 mm
Path length mm:	10
Type:	semi-micro
Type of cuvette:	Semi-Micro
UNSPSC:	41-12-18-13
Wavelength:	200...2500 nm
