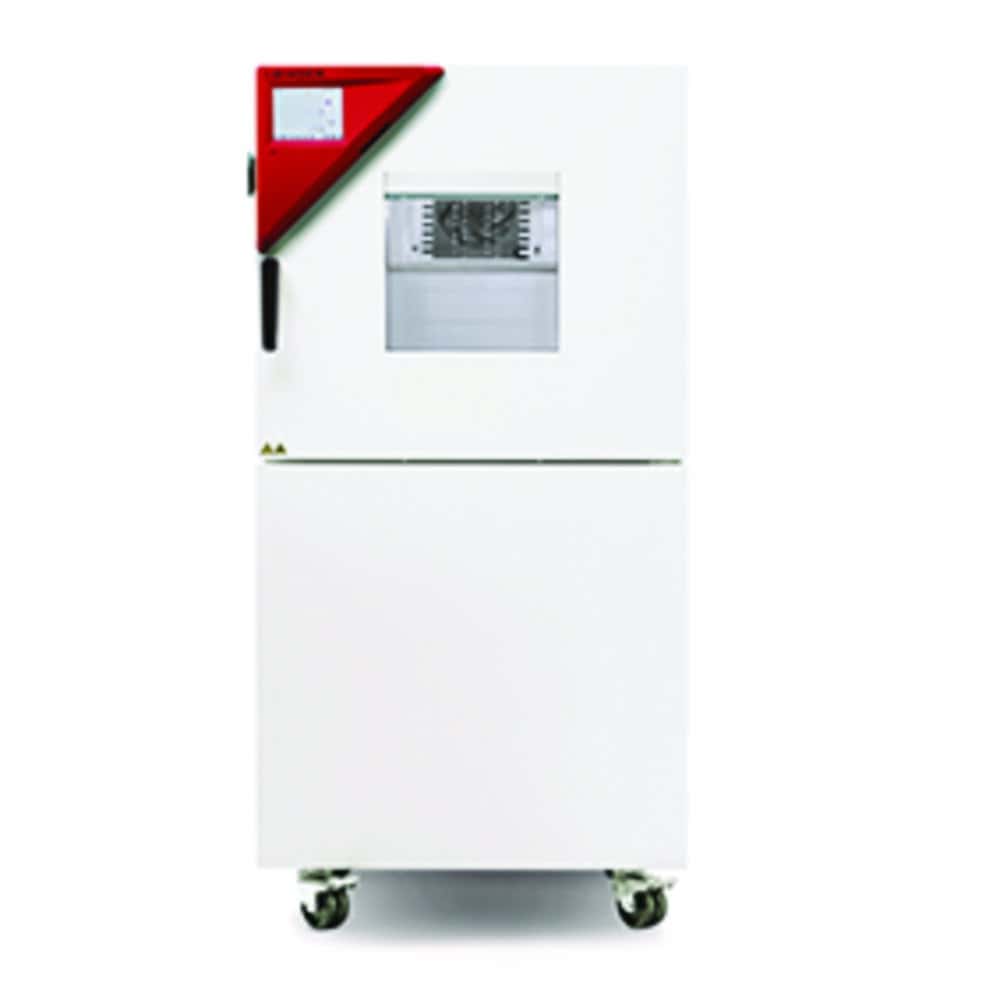

BINDER GmbH Dynamic climate chambers MK ( 4664440 )
Article number: 4664440
Manufacturer number: 9020-0374
€23,721.60*
on order
Product information "Dynamic climate chambers MK"
- Homogeneous climate conditions thanks to APT.line™ preheating chamber technology
- Touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out via USB
- Programmable condensation protection
- Troubleshooting system with visual and acoustic alarms
- Heated viewing window with LED interior lighting
- BINDER Multi Management Software APT-COM™ Basic Edition
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ethernet interface
- Adjustable ramp function
- Integrated chart recorder
- Door heating
- Inner chamber made of stainless steel
- 1 stainless steel rack
- CFC-free refrigerant R-452A
Models with 480 V nominal voltage are equipped with a voltage and frequency converter.
| Depth int.: | 350 mm |
|---|---|
| Ext. depth: | 778 mm |
| Ext. height: | 1445 mm |
| Ext. width: | 720 mm |
| External dimensions (WxDxH): | 720 x 778 x 1,445 mm |
| Height int.: | 420 mm |
| Int. width: | 400 mm |
| Internal dimensions (WxDxH): | 400 x 350 x 420 mm |
| Manufacturer Article Number: | 9020-0374 |
| Material inserts: | Stainless steel |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 4 |
| Max. temperature: | 180 °C |
| Max. voltage: | 230 V |
| Min. temperature: | -40 °C |
| Nominal capacity: | 60 l |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Rated capacity: | 2.8 kW |
| Temperature: | -40 ... 180 °C |
| Temperature stability: | 0,1 ... 0,5 K |
| Type: | MK 56 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104506 |
| Weight: | 165 kg |
| With CO₂ control: | No |
High-Quality Laboratory Equipment from BINDER GmbH – Incubators, Drying Ovens, and Specialized Solutions
Precision Technologies for Research and Quality Assurance
As an official distributor of BINDER GmbH, Haeberle Lab offers a comprehensive range of premium laboratory equipment specifically designed for demanding applications in research and development. BINDER stands for German engineering excellence and sets global standards in precision, reliability, and innovation.
Incubators and Climate Chambers – Optimal Conditions for Biological Cultures
BD-S Solid.Line Incubators:
Ideal for cultivating microorganisms and tissue samples, featuring natural convection and stable temperature conditions.CB-S Solid.Line CO₂ Incubators:
Ensure maximum safety for cell cultures with stable CO₂ atmospheres and integrated contamination protection systems.KB Series Refrigerated Incubators:
Perfect solutions for incubations at low temperatures, suitable for microbiology and materials testing.
The combination of precise temperature control and reliable humidity regulation guarantees reproducible results for every application.
Drying Ovens and Vacuum Drying Ovens – Efficient and Safe Drying
ED and FED Classic.Line Drying and Heating Ovens:
Robust solutions for general drying tasks, optionally available with forced convection for faster processing.VD Series Vacuum Drying Ovens:
Specifically designed for the gentle drying of sensitive samples without oxidation — ideal for pharmaceutical compounds and electronic components.FDL Safety Drying Ovens:
Engineered for materials with a higher risk of ignition, equipped with comprehensive safety systems complying with the latest standards.
Thanks to innovative technologies like uniform temperature distribution and energy-efficient control systems, BINDER drying ovens are among the best in their class.
Specialized Solutions – Climate Chambers, Ultra-Low Temperature Freezers, and More
KBF-S ECO Solid.Line Constant Climate Chambers:
Deliver precisely controlled temperature and humidity conditions for material testing and stability studies according to ICH guidelines.Dynamic Climate Chambers and Growth Chambers:
Flexible climate simulation for research projects in biotechnology and agricultural science.UF V Ultra-Low Temperature Freezers:
Provide secure long-term storage at temperatures down to -86°C, ideal for biomedical samples and pharmaceuticals.Walk-in Chambers:
Custom-built large-scale climate chambers for extensive testing and long-term studies.
These specialized devices reflect BINDER’s strategic focus on offering flexible, energy-saving, and user-friendly technologies tailored to the increasing demands of modern research environments.
Market Trends and Technological Innovations
The laboratory industry is increasingly driven by sustainability and digitalization trends. BINDER responds to these needs with innovative series like the Avantgarde.Line, which not only reduces energy consumption but also enhances process safety through digital monitoring systems. Additional accessories, such as potential-free alarm outputs and integrated lighting systems, further expand the functionality and safety of the devices.
Thanks to the modular design of many models, custom configurations can be created to meet specific industry requirements — a clear competitive advantage for laboratories in research, pharmaceuticals, and quality assurance.
Digitalization and automation in the laboratory: the future of laboratory technology
Accessories
Shelves made of stainless steel, perforated.If you are ordering replacement shelves, please provide the serial number prior to ordering, since it might be necessary to order other shelves with different dimensions.
Inclusive fasteners.
Other customers also bought

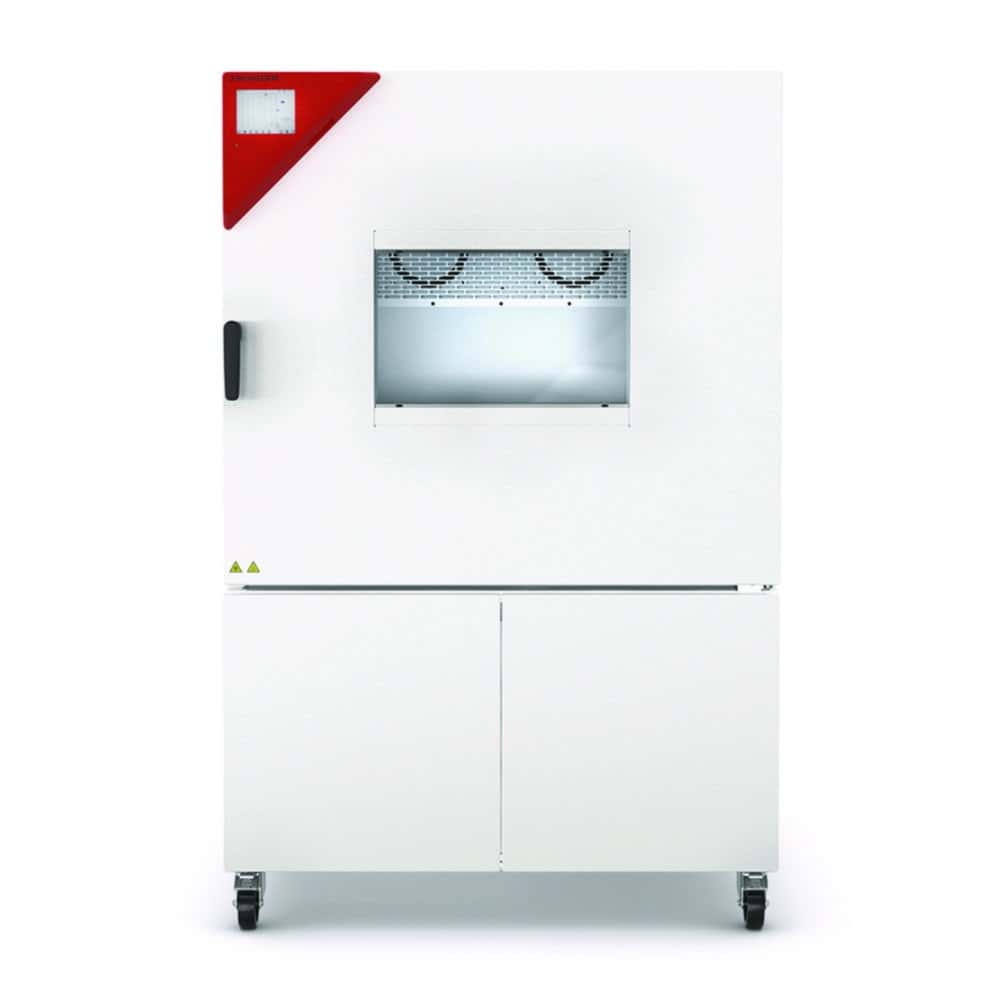

Environmental chambers are ideal for material testing under dynamic conditions. The standard rapid alternation speeds of approx. 5 K/min enable standard-compliant testing.Homogeneous climate conditions thanks to APT.line™ preheating chamber technologyTouchscreen controller with time-segment and real-time programmingInternal data logger, measured values can be read out via USBProgrammable condensation protectionTroubleshooting system with visual and acoustic alarmsHeated viewing window with LED interior lightingBINDER Multi Management Software APT-COM™ Basic EditionClass 2 independent adjustable temperature safety device (DIN 12880) with visual alarmEthernet interfaceAdjustable ramp functionIntegrated chart recorderDoor heatingInner chamber made of stainless steel1 stainless steel rackHumidity regulation with capacitive humidity sensor and responsive steam humidificationAutomatic water and wastewater managementIntegrated 20 l water storage tank4 zero-voltage relay contactsCFC-free refrigerant R-452AModels with 480 V nominal voltage are equipped with a voltage and frequency converter.
