Manufacturer Navigation
Fritsch GmbH
High-Performance Equipment from Fritsch GmbH – Precision Technology for Sample Preparation and Material AnalysisIntroductionFritsch GmbH, based in Idar-Oberstein, is a globally respected manufacturer of advanced laboratory instruments for particle size analysis and sample preparation. Known for ...
Show more
Our bestsellers

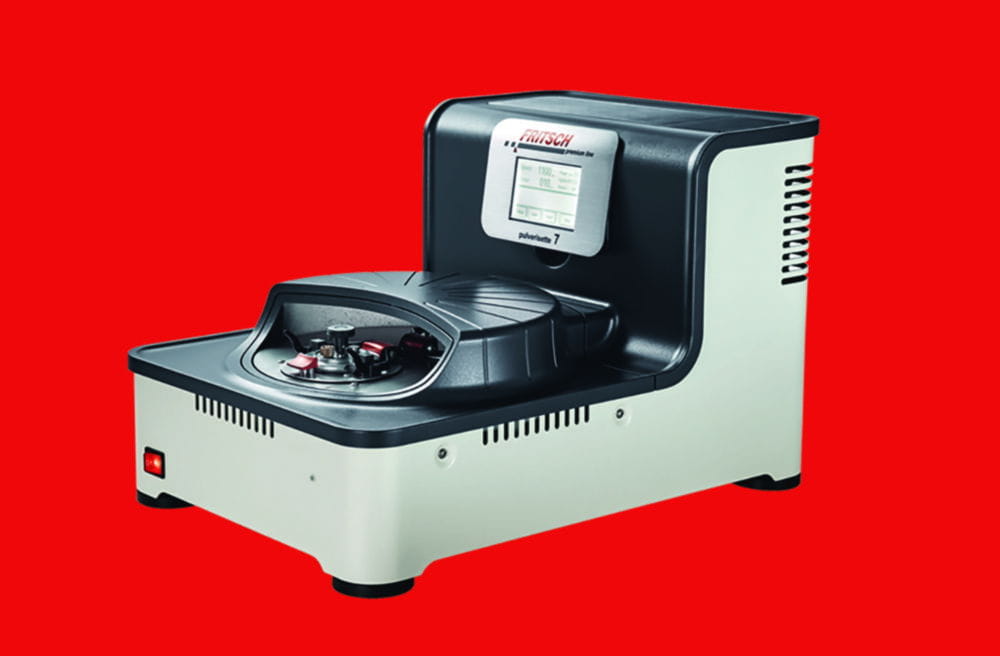

Planetary ball mills PULVERISETTE 7 premium line
€12,455.00*
Depth:
580 mm
|
Dimensions (WxDxH):
400 x 580 x 360 mm
|
Feed particle size:
5 mm
|
Feed quantity:
1 ... 60 ml
|
Height:
360 mm
|
Manufacturer Article Number:
07.5000.00
|
Max. feed particle size:
5 mm
|
Max. feed quantity:
60 ml
|
Max. final fineness:
100 nm
|
Max. speed:
2200 1/min
|
Max. voltage:
230 V
|
Min. feed quantity:
1 ml
|
Min. speed:
200 1/min
|
Min. voltage:
115 V
|
No. of milling positions:
2
|
Plug type:
EU
|
Power supply:
115 ... 230 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Rated capacity:
1200 W
|
Speed:
200 ... 2,200 1/min
|
Type of auxiliary energy:
Mains connection
|
Type of grinding:
dry/wet
|
UNSPSC:
41-10-17-01
|
Weight:
44 kg
|
Width:
400 mm
Ideal for high-performance grinding down into the nano range of hard, medium-hard, brittle and fibrous materials with extremely short grinding times dry, in suspension or in inert gas in the areas of nanotechnology, geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying/activation, pharmaceuticals, chemistry, biology, sample preparation for analysis. They are also the perfect choice for highly efficient mixing and homogenizing.Grinding bowls and balls are offered in different sizes for optimal adaption to the sample volume and desired final fineness as well as in different materials to provide maximum protection against undesired contamination.The completely brand new clamping of the grinding bowls, the automatic check of the fastening of the bowls inside the mill, the blockage of the mill in the event of impermissible operating states or imbalance and the automatic bowl detection guarantee maximum safety.Grinding bowls and grinding balls must be ordered additionally.Software MillControl for automatic control of the Planetary mills PULVERISETTE 5/7 premium line.

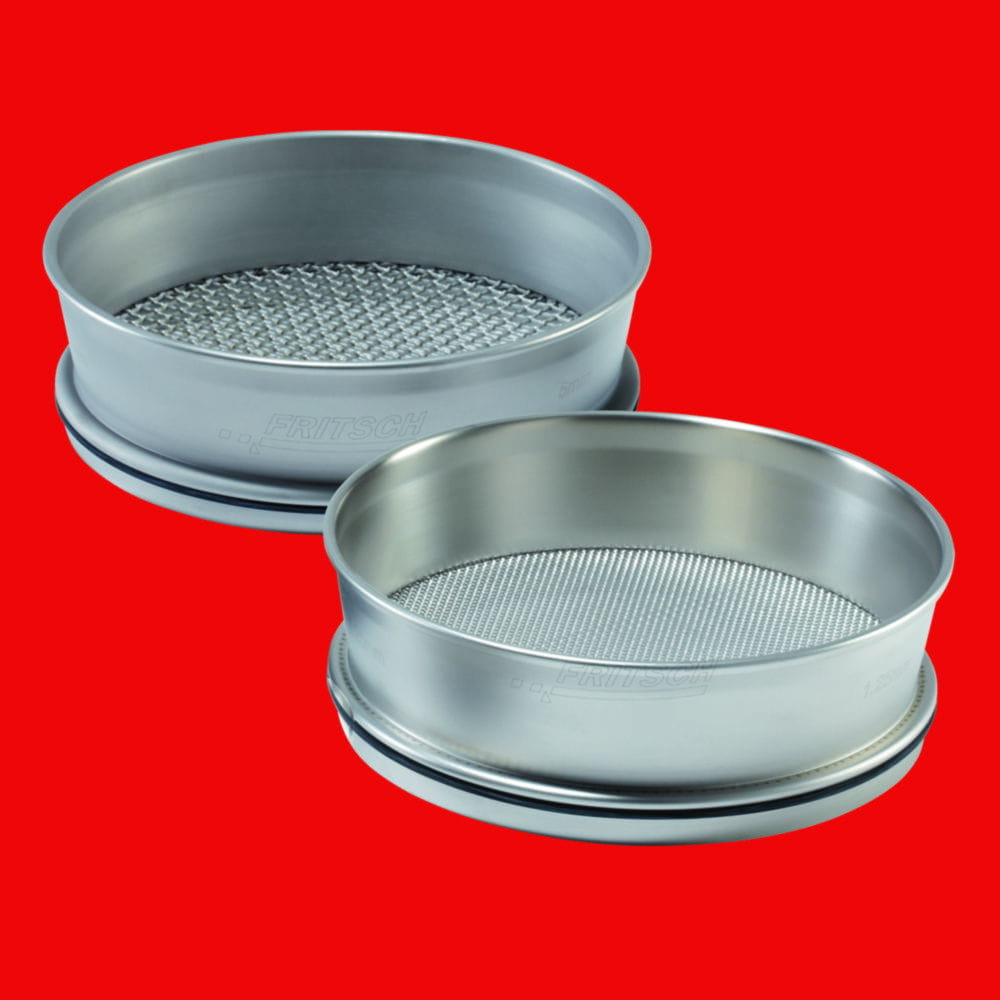

Test sieves, 200 x 50 mm
€164.00*
Height:
50 mm
|
Manufacturer Article Number:
30.1600.03
|
Material:
Stainless steel
|
Mesh size:
6.30 mm
|
UNSPSC:
41105003
|
Ø:
200 mm
Frame and mesh made of stainless steel, according to ISO 3310-1, with compliance certificate. Further test sieves and sieving accessories in other diameters and mesh widths also according to ASTM on request.
Variants from €139.00*

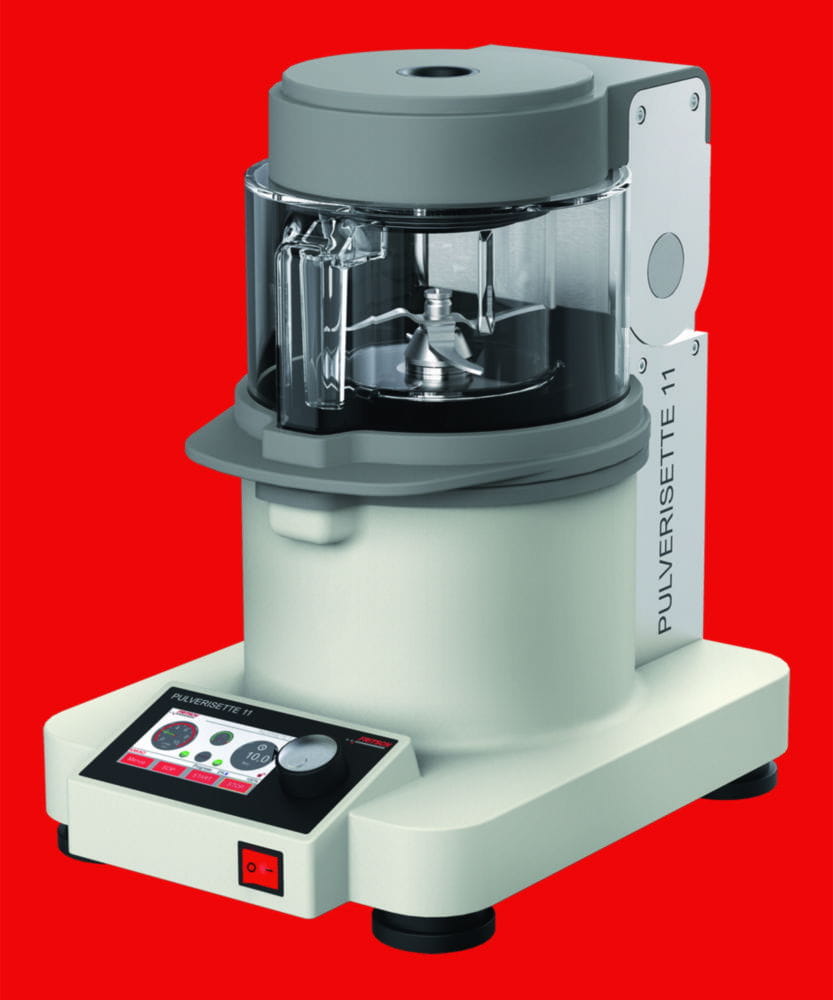

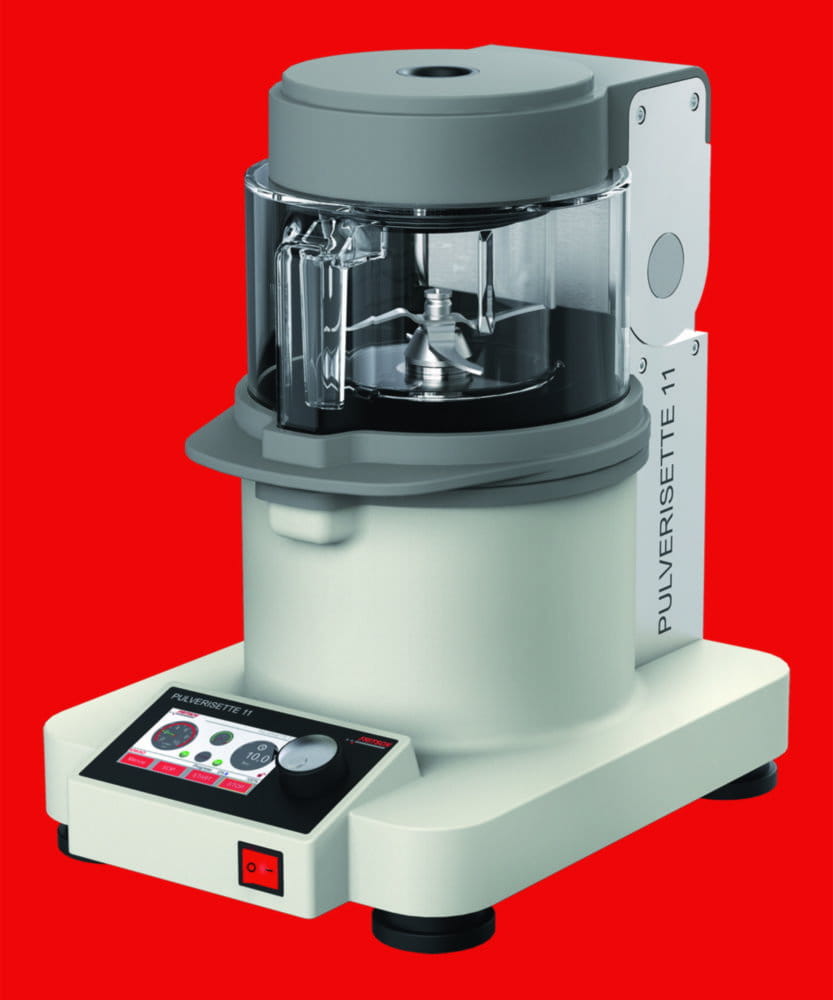

Knife mill PULVERISETTE 11
€4,580.00*
Depth:
430 mm
|
Dimensions (WxDxH):
320 x 430 x 480 mm
|
Feed particle size:
40 mm
|
Feed quantity:
1,400 ml
|
Height:
480 mm
|
Manufacturer Article Number:
11.3020.00
|
Max. feed particle size:
40 mm
|
Max. feed quantity:
1400 ml
|
Max. final fineness:
300 µm
|
Max. speed:
10000 1/min
|
Max. voltage:
240 V
|
Min. speed:
2000 1/min
|
Min. voltage:
200 V
|
Plug type:
EU
|
Power supply:
200 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Rated capacity:
1250 W
|
Speed:
2,000 ... 10,000 1/min
|
Type of auxiliary energy:
Mains connection
|
Type of grinding:
cryogenic
|
Weight:
17.6 kg
|
Width:
320 mm
For reproducible homogenisation of all common samples in food or feed testing, pharmaceuticals, chemicals and many other applications. The quietly operating knife mill is ideal for gentle grinding and homogenisation of moisty, oily and greasy as well as dry, soft, medium-hard and fibrous samples within seconds.Motor power up to 1250 WattVariable speed setting with turbo functionStandard, reverse and interval operationKnife blades with 4 cutting edges, up to 56000 cuts per minuteFeed quantity up to 1400 ml (depending on material)Average grinding time only 30 seconds (depending on material)Fast cryogenic grinding20 SOPs can be stored, USB interface for SOP management and generation of grinding reportsEasy cleaningSample-contacting parts such as grinding containers, lids and knives can be autoclavedScope of supply: Knife mill, grinding container 1.4 l made of polycarbonate, standard lid, standard knife made of stainless steel

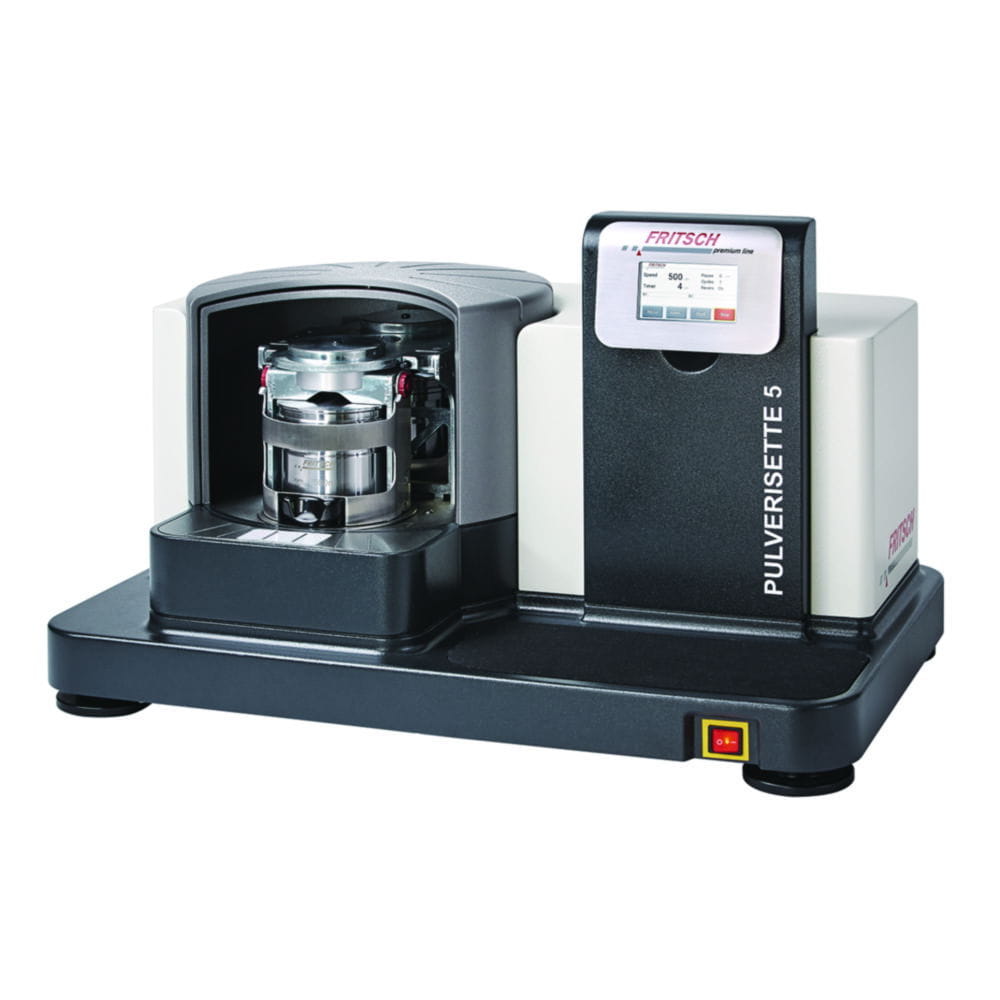

Planetary ball mills PULVERISETTE 5 premium line
€21,675.00*
Depth:
520 mm
|
Dimensions (WxDxH):
820 x 520 x 480 mm
|
Feed particle size:
10 mm
|
Feed quantity:
15 ... 450 ml
|
Height:
480 mm
|
Manufacturer Article Number:
05.7020.00
|
Max. feed particle size:
10 mm
|
Max. feed quantity:
450 ml
|
Max. final fineness:
100 nm
|
Max. speed:
1600 1/min
|
Max. voltage:
240 V
|
Min. feed quantity:
15 ml
|
Min. speed:
200 1/min
|
Min. voltage:
200 V
|
No. of milling positions:
2
|
Plug type:
EU
|
Power supply:
200 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Rated capacity:
2800 W
|
Speed:
200 ... 1,600 1/min
|
Type of auxiliary energy:
Mains connection
|
Type of grinding:
dry/wet
|
Weight:
110 kg
|
Width:
820 mm
Ideal for high-performance grinding down into the nano range of hard, medium-hard, brittle and fibrous materials with extremely short grinding times dry, in suspension or in inert gas in the areas of nanotechnology, geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying/activation, pharmaceuticals, chemistry, biology, sample preparation for analysis. They are also the perfect choice for highly efficient mixing and homogenizing.Grinding bowls and balls are offered in different sizes for optimal adaption to the sample volume and desired final fineness as well as in different materials to provide maximum protection against undesired contamination.The completely brand new clamping of the grinding bowls, the automatic check of the fastening of the bowls inside the mill, the blockage of the mill in the event of impermissible operating states or imbalance and the automatic bowl detection guarantee maximum safety.Grinding bowls and grinding balls must be ordered additionally.Software MillControl for automatic control of the Planetary mills PULVERISETTE 5/7 premium line.

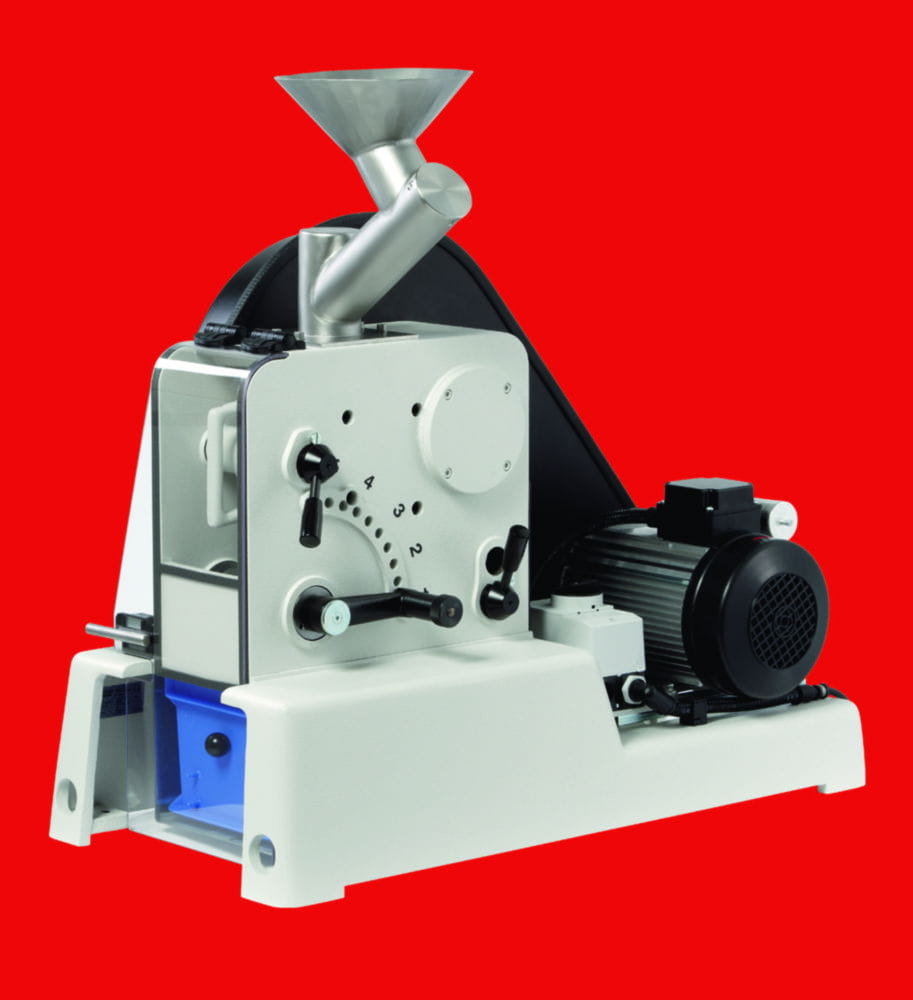

Jaw crushers PULVERISETTE 1 classic line
€17,316.00*
Depth:
800 mm
|
Dimensions (WxDxH):
400 x 800 x 800 mm
|
Height:
800 mm
|
IP code:
IP 54
|
Manufacturer Article Number:
01.5030.00
|
Material grinding tools:
Steel, hardened
|
Max. feed particle size length:
60 mm
|
Max. feed particle size width:
60 mm
|
Max. final fineness:
1 mm
|
Max. throughput:
140 kg/h
|
Max. voltage:
400 V·3P+N+E
|
Power supply:
400 V·3P+N+E, 50 Hz
|
Power supply frequency:
50 Hz
|
Rated capacity:
1340 W
|
Type:
PULVERISETTE 1 classic line, Modell I
|
Type of auxiliary energy:
Mains connection
|
Weight:
177 kg
|
Width:
400 mm
Ideal for fast batchwise or continuous pre-crushing of very hard to medium-hard, brittle and tough materials in the areas of mining and metallurgy, chemistry, geology and mineralogy, glass industry, ceramics industry, rocks and soils. The final fineness can be easily set from the outside (10 different stages are possible).Scope of supply: Jaw crusher, crushing jaws, support walls made of tempered steel.Crushers are also available in other voltages and with crushing jaws and lateral support walls made of stainless steel, chromium-free steel, hardmetal, tungsten carbide, zirconium oxide and manganese steel.The Jaw Crushers PULVERISETTE 1 are also available as premium line models with increased performance, even easier to operate and fast cleaning.

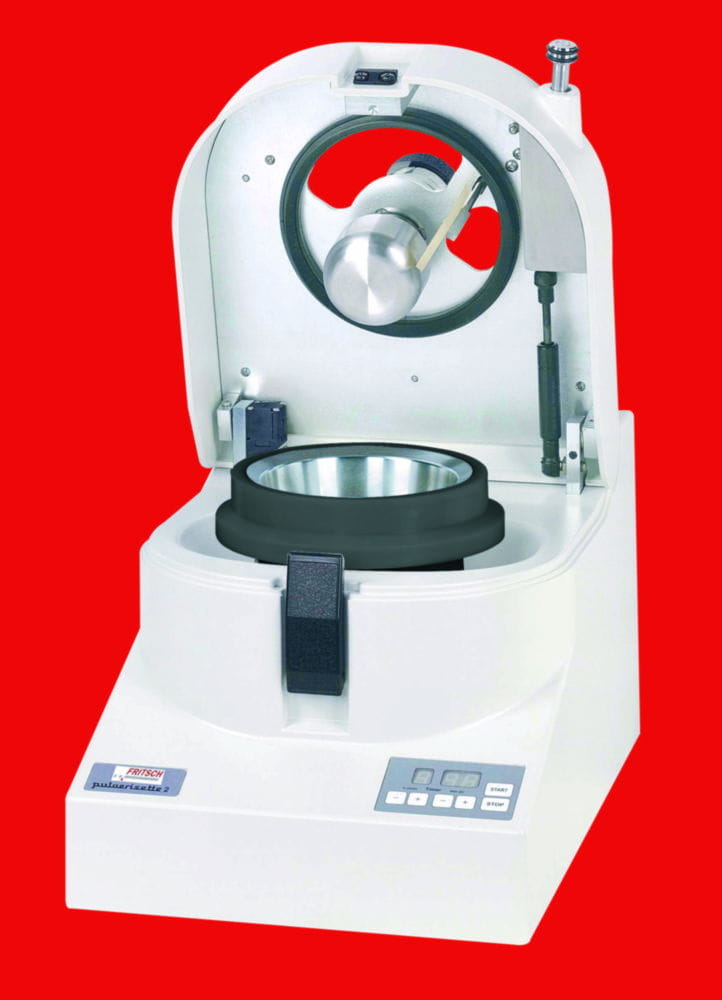

Mortar grinder PULVERISETTE 2
€5,901.00*
Depth:
460 mm
|
Dimensions (WxDxH):
310 x 460 x 410 mm
|
Feed particle size:
8 mm
|
Feed quantity:
190 ml
|
Height:
410 mm
|
Manufacturer Article Number:
02.2000.00
|
Max. feed particle size:
8 mm
|
Max. feed quantity:
190 ml
|
Max. final fineness:
10 µm
|
Max. speed:
80 1/min
|
Min. speed:
70 1/min
|
Plug type:
EU
|
Power supply frequency:
50/60 Hz
|
Rated capacity:
300 W
|
Speed:
70 ... 80 1/min
|
Type of auxiliary energy:
Mains connection
|
Weight:
24 kg
|
Width:
310 mm
For wet and dry grinding of hard, medium-hard, soft, brittle and temperature-sensitive samples for analysis, quality control and materials testing. It even grinds difficult samples with a moist, fibrous or elastic structures using liquid nitrogen. And it's also excellently suited for mixing or homogenisation of organic and inorganic solids or liquids.Reproducible and accurate grinding resultsPrecise adjustment and readout of the pestle pressureShort grinding and mixing timesLoss and dust freeMortar and pestle must be ordered additionally.

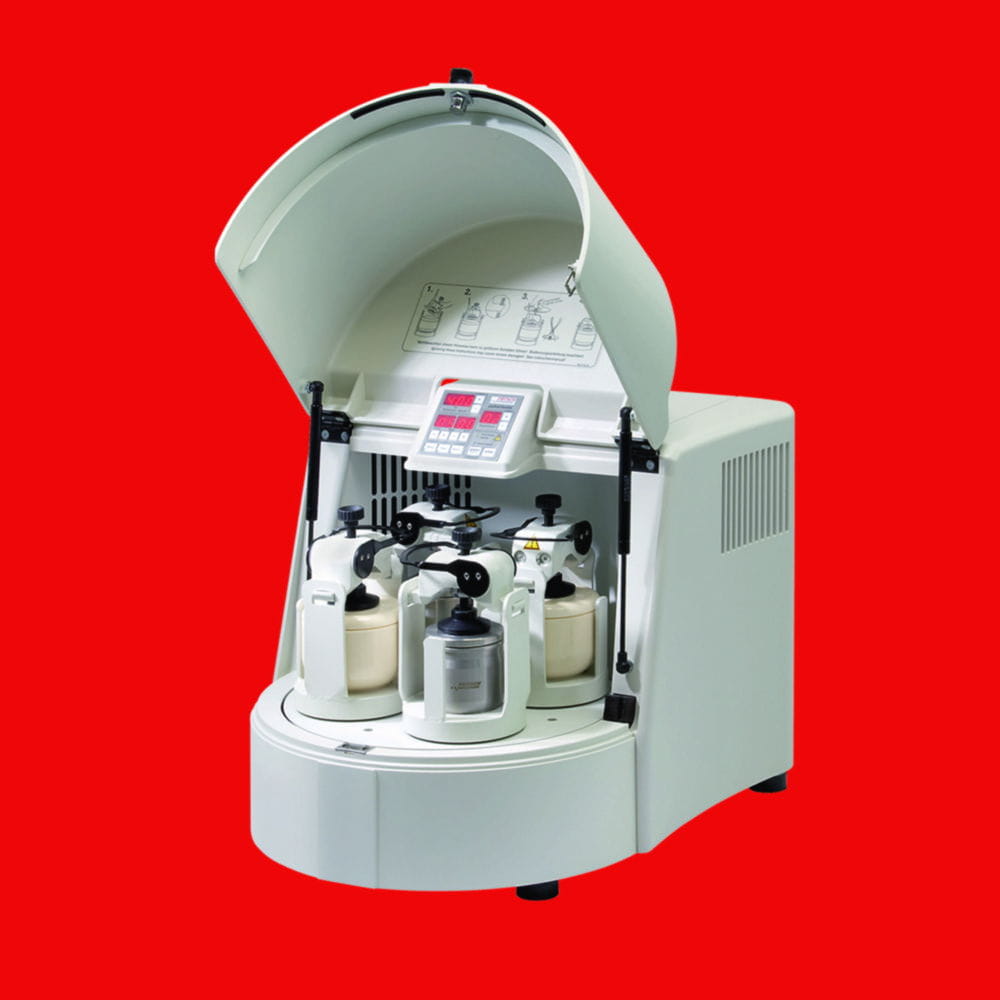

Planetary ball mills PULVERISETTE 5 classic line
€19,267.00*
Depth:
670 mm
|
Dimensions (WxDxH):
580 x 670 x 570 mm
|
Feed particle size:
10 mm
|
Feed quantity:
10 ... 900 ml
|
Height:
570 mm
|
Manufacturer Article Number:
05.5020.00
|
Max. feed particle size:
10 mm
|
Max. feed quantity:
900 ml
|
Max. final fineness:
1 µm
|
Max. speed:
400 1/min
|
Max. voltage:
240 V
|
Min. feed quantity:
10 ml
|
Min. speed:
50 1/min
|
Min. voltage:
200 V
|
No. of milling positions:
4
|
Plug type:
EU
|
Power supply:
200 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Speed:
50 ... 400 1/min
|
Type of auxiliary energy:
Mains connection
|
Type of grinding:
dry/wet
|
Weight:
120 kg
|
Width:
580 mm
Ideal for fast, loss-free fine grinding of hard, medium-hard, brittle and fibrous materials - dry or in suspension in the areas of geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying, pharmaceuticals, chemistry, biology, sample preparation for analysis.Sample can be processed from a few mg to several kg at a wide range of fineness levels down to less than 1 µm. They are especially easy to operate and fast and easy to clean. Suitable for continuous, heavy duty usage and guarantee safe clamping of the grinding bowls.Matching grinding parts of 7 different materials are available to provide max.protection against undesired contamination. In addition to size-reduction, planetary ball mills can also be used for mixing and homogenising of emulsions and pastes or for mechanical alloying and activation.FRITSCH also offers a Planetary Mill Generation premium line, for fast high-tech grinding down to the nano range, worldwide unique in operation, performance and safety, a new reference class. Information on the Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line can be found in the LLG Online Shop.Grinding bowls and grinding balls must be ordered additionally.Further models of planetary mills on request.
Variants from €15,359.00*

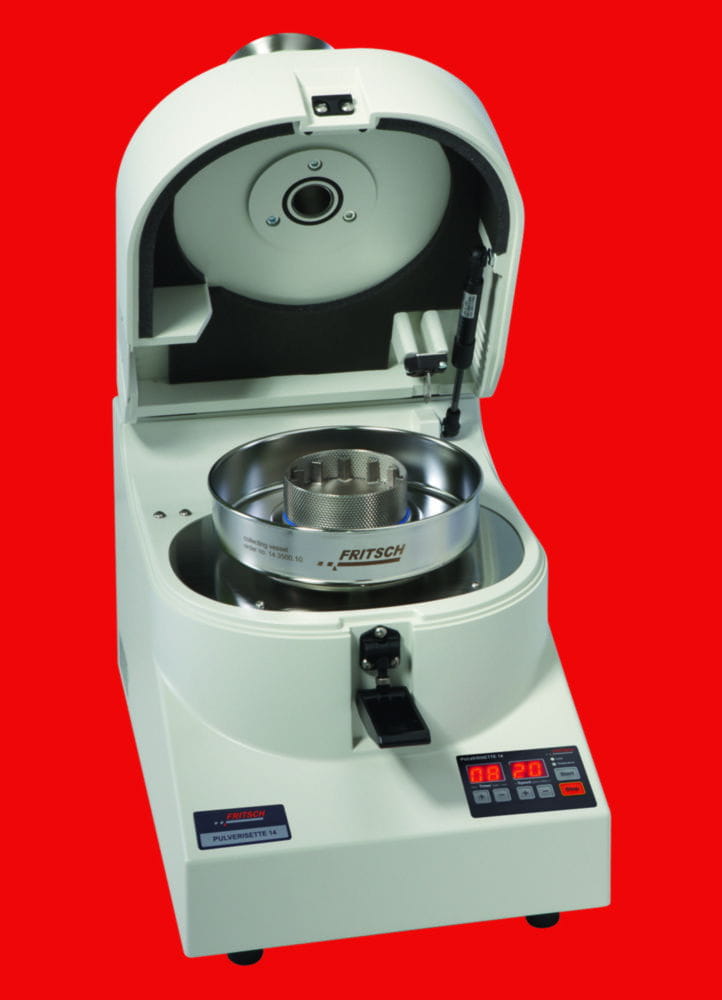

Variable Speed Rotor Mill PULVERISETTE 14 classic line
€7,799.00*
Depth:
480 mm
|
Dimensions (WxDxH):
310 x 480 x 470 mm
|
Height:
470 mm
|
Manufacturer Article Number:
14.5010.00
|
Max. feed particle size:
10 mm
|
Max. final fineness:
80 µm
|
Max. speed:
20000 1/min
|
Max. throughput:
5 l/h
|
Max. voltage:
120 V
|
Min. speed:
6000 1/min
|
Min. voltage:
100 V
|
Power supply:
100 ... 120 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Rated capacity:
1100 W
|
Speed:
6,000 ... 20,000 1/min
|
Type of auxiliary energy:
Mains connection
|
Weight:
23 kg
|
Width:
310 mm
Ideal for fast, effective comminution of soft to medium-hard, brittle, fibrous materials, as well as difficult-to-mill and temperature-sensitive samples. Cryogenic grinding, dispersion and homogenisation are also one of the areas of operation. The variable speed rotor mill is an ultra-centrifugal mill with variable speed settings between 6000rpm and 20000rpm and automatic speed regulation for constant milling in the areas of analytic, biology, chemistry, agriculture and forestry, foodstuffs, plastics and textiles, pharmaceuticals, environment, RoHS. For optimal material feeding the Vibratory Feeder LABORETTE 24 (optional) is recommended.Impact rotor and sieve ring must be ordered additionally.FRITSCH also offers a Variable Speed Rotor Mill PULVERISETTE 14 premium line with impact, shearing and cutting comminution in one instrument. The premium line version is especially powerful with up to 22,000 rpm, a max. feed size of up to 15 mm and a sample throughput of up to 15 l/h and more. This mill offers significantly better cooling, absolutely safe operation and fast, residue-free cleaning.
Our product suggestions

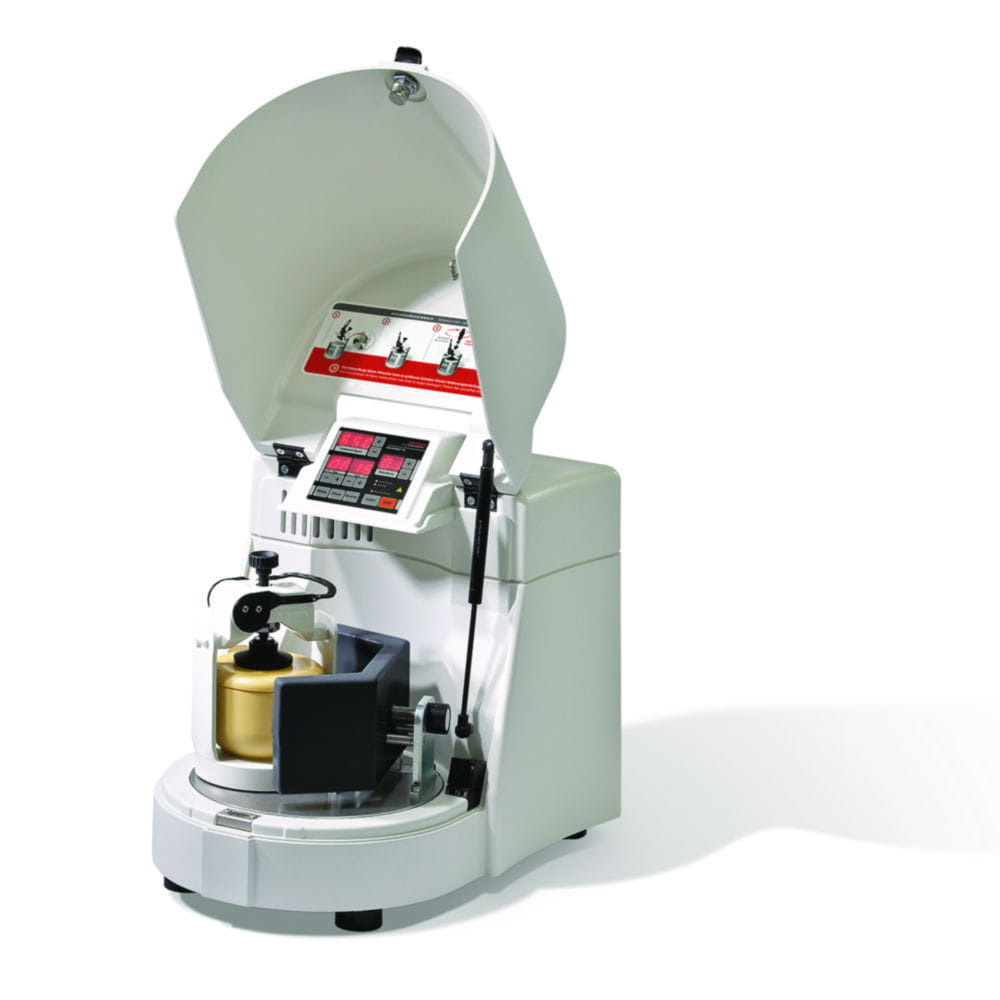

Planetary mono mills PULVERISETTE 6 classic line
€8,075.00*
Depth:
530 mm
|
Dimensions (WxDxH):
370 x 530 x 500 mm
|
Feed particle size:
10 mm
|
Feed quantity:
225 ml
|
Height:
500 mm
|
Manufacturer Article Number:
06.2000.00
|
Max. feed particle size:
10 mm
|
Max. feed quantity:
225 ml
|
Max. final fineness:
1 µm
|
Max. speed:
650 1/min
|
Max. voltage:
230 V
|
Min. speed:
100 1/min
|
Min. voltage:
115 V
|
No. of milling positions:
1
|
Plug type:
EU
|
Power supply:
115 ... 230 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Speed:
100 ... 650 1/min
|
Type of auxiliary energy:
Mains connection
|
Type of grinding:
dry/wet
|
Weight:
63 kg
|
Width:
370 mm
Ideal for fast, loss-free fine grinding of hard, medium-hard, brittle and moist materials - dry, in suspension, or under inert gas in the areas of geology, mineralogy, metallurgy, ceramics, pharmaceuticals, chemistry, biology, sample preparation for analysis.Sample can be processed from a few mg to several kg at a wide range of fineness levels down to less than 1 µm. They are especially easy to operate and fast and easy to clean. Suitable for continuous, heavy duty usage and guarantee safe clamping of the grinding bowls.Matching grinding parts of different materials are available to provide max.protection against undesired contamination. In addition to size-reduction, planetary ball mills can also be used for mixing and homogenising of emulsions and pastes or for mechanical alloying and activation.Grinding bowls and grinding balls must be ordered additionally.

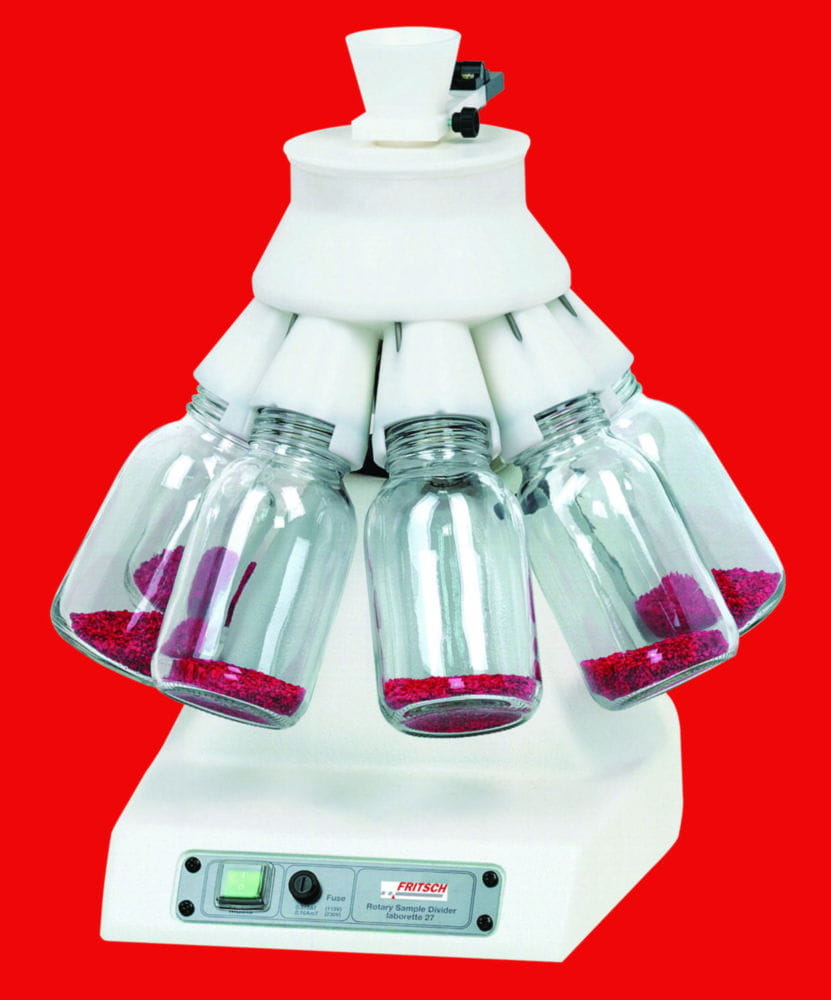

Rotary cone sample divider LABORETTE 27
€3,704.00*
Teilungsverhältnis:
1:8/1:10/1:30
|
Depth:
450 mm
|
Depth mm:
450
|
Dimensions (W x D x H) mm:
270 x 450 x 460
|
Dimensions (WxDxH):
270 x 450 x 460 mm
|
Division ratio 1 : 10:
Yes
|
Division ratio 1 : 2:
No
|
Division ratio 1 : 30:
Yes
|
Division ratio 1 : 6:
No
|
Division ratio 1 : 8:
Yes
|
Feed particle size:
10 mm
|
Height:
460 mm
|
Height mm:
460
|
Manufacturer Article Number:
27.1420.00
|
Max. Sample glass volume ml:
500
|
Max. feed particle size:
10 mm
|
Max. feed quantity:
4000 ml
|
Max. speed:
100 1/min
|
Max. speed rpm:
100
|
Max. voltage:
230 V·AC
|
Nominal volume collecting vessel:
500 ml
|
Plug type:
EU
|
Plug type:
EU
|
Power supply:
230 V·AC, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Rated capacity:
90 W
|
Speed:
100 1/min
|
Type:
LABORETTE 27
|
Type:
LABORETTE 27
|
Type of auxiliary energy:
Mains connection
|
Type of auxiliary energy:
230V AC
|
Weight:
7.7 kg
|
Weight kg:
7.7
|
Width:
270 mm
|
Width mm:
270
|
max. Material feed size mm:
10
|
max. sample size ml:
4000
For reliable, representative sample division of solids and suspensions without conversion. Divides the samples at up to 3000 graduations per minute into up to 30 partial streams via a rotating cone head. Dividing accuracy up to 99.9 %. Can be combined with 6 different dividing heads.Compact basic unit with robust cast aluminium housingEasy cleaning due to removable dividing headvariable partition ratiosMaintenance-free drive motor with slipping clutchQuick clamping device for sample tubes 250 and 500 mlFor optimum sample allocation, the vibratory feeder LABORETTE 24 (optional) is recommended.SpecificationsDivision ratio:1:8, 1:10, 1:30Number of subsamples:8, 10, 3Max. feed particle size:10 mm, 2.5 mmMax. sample quantity:4000 ml, 2500 ml, 300 mlSample bottle capacities:15, 20, 30, 32, 250, 500 mlPower supply:230 V/1~, 50-60 Hz, 90 WDimensions (W x D x H):270 x 450 x 460 mmNet weight:7.7 kgInstrument also available in other voltages.Dividing heads must be ordered separately.

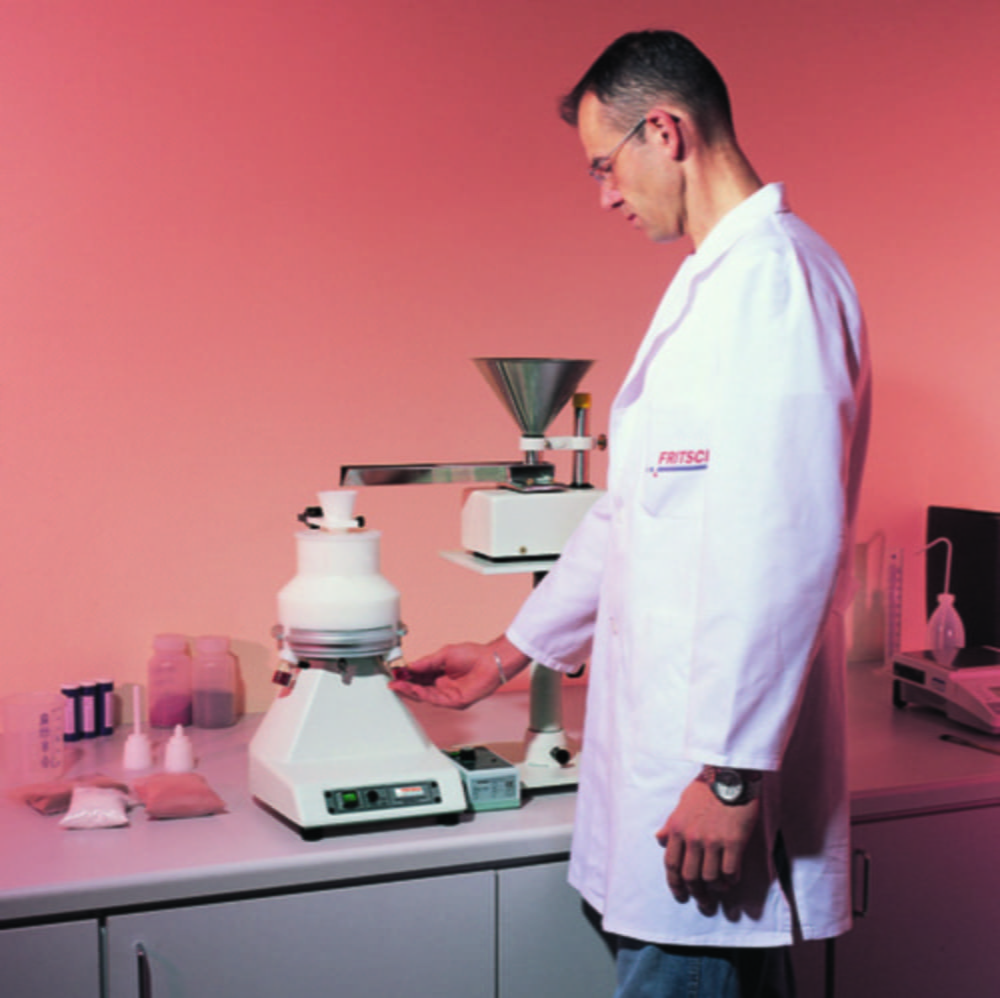

Dividing heads for rotary cone sample divider LABORETTE 27
€2,682.00*
Description:
Aluminium, 1:8, 8 x 500 ml
|
Division ratio:
1:8
|
Manufacturer Article Number:
27.1150.00
|
Material:
Aluminium
|
Sample bottles ml:
500
All dividing heads are delivered inclusive of sample bottles and funnels.

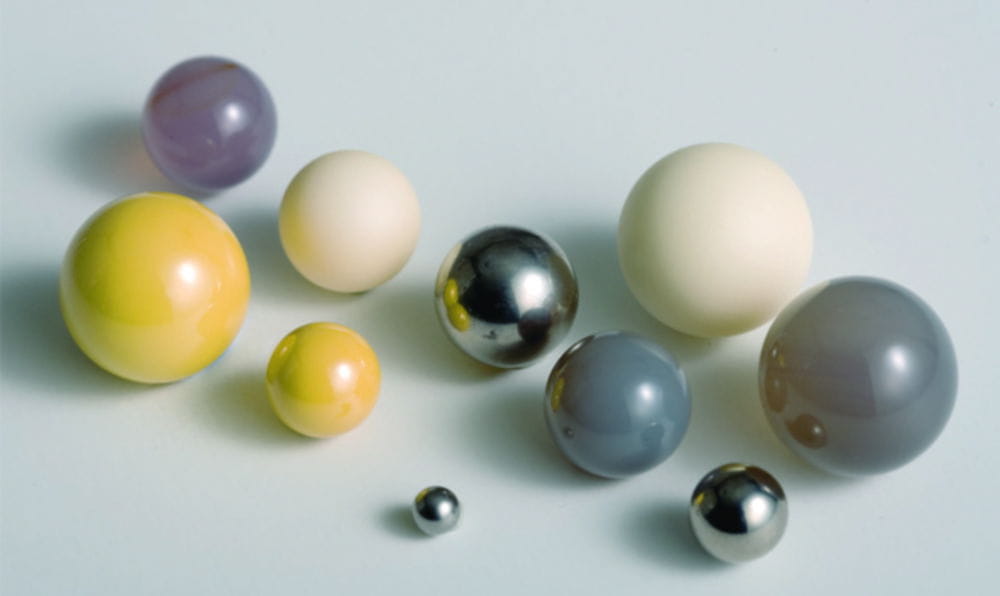

Grinding balls, zirconium oxide
€41.80*
Manufacturer Article Number:
55.0100.27
|
Material:
Zirconia
|
UNSPSC:
41-10-17-01
|
Ø:
10 mm
Grinding balls are available in different materials.Grinding balls are also offered in the diameters 0.1 mm to 3 mm (to achieve a fineness down to the nanometer-range).
Variants from €2.85*
Grinding balls, agate
€7.80*
Manufacturer Article Number:
55.0050.05
|
Material:
Agate
|
UNSPSC:
41-10-17-01
|
Ø:
5 mm
Grinding balls are available in different materials.Grinding balls are also offered in the diameters 0.1 mm to 3 mm (to achieve a fineness down to the nanometer-range).

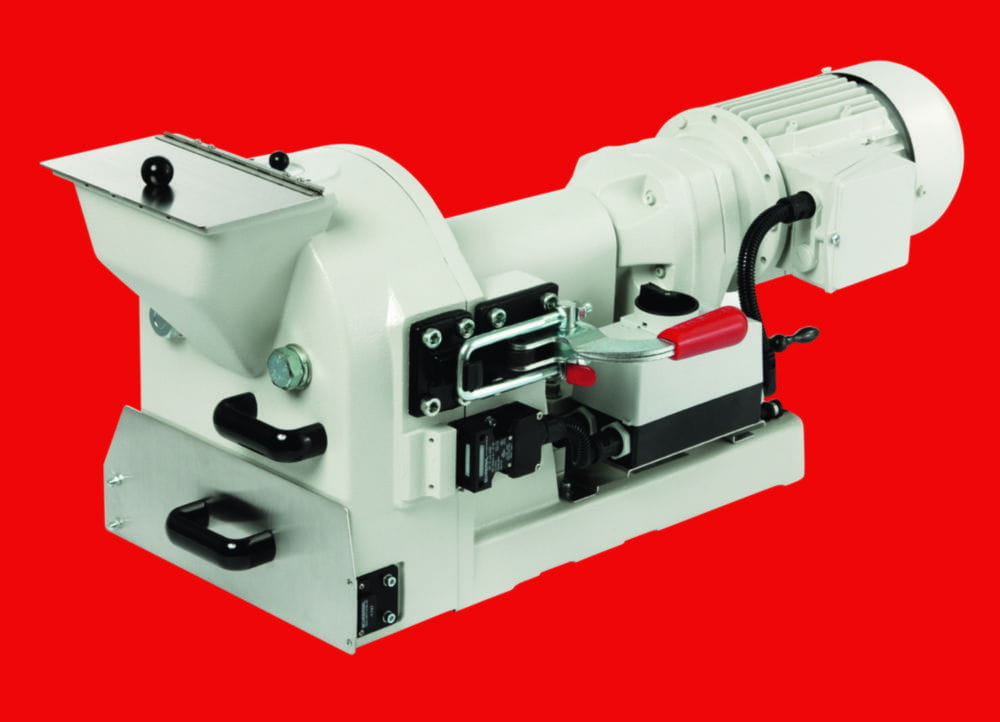

Disk mill PULVERISETTE 13 classic line
€17,783.00*
Depth:
870 mm
|
Dimensions (WxDxH):
440 x 870 x 400 mm
|
Feed particle size:
20 mm
|
Height:
400 mm
|
IP code:
IP 21
|
Manufacturer Article Number:
13.1030.00
|
Max. feed particle size:
20 mm
|
Max. final fineness:
100 µm
|
Max. speed:
440 1/min
|
Max. throughput:
150 kg/h
|
Max. voltage:
400 V·3P+N+E
|
Nominal volume collecting vessel:
1900 ml
|
Power supply:
400 V·3P+N+E, 50 Hz
|
Power supply frequency:
50 Hz
|
Rated capacity:
1790 W
|
Speed:
440 1/min
|
Type of auxiliary energy:
Mains connection
|
Weight:
140 kg
|
Width:
440 mm
Ideal for intermittent and continuous fine grinding within the medium particle size range of soft to hard, tough and temperature-sensitive solids in the areas of mining and metallurgy, glass industry, ceramics industry, soil research, rocks and soils.Instrument also available in other voltages.Fixed and movable grinding disks must be ordered additionally.The Disk Mill is also available as premium line model: even more powerful, safer and easier to operate due to easy reproducible gap width setting via display.

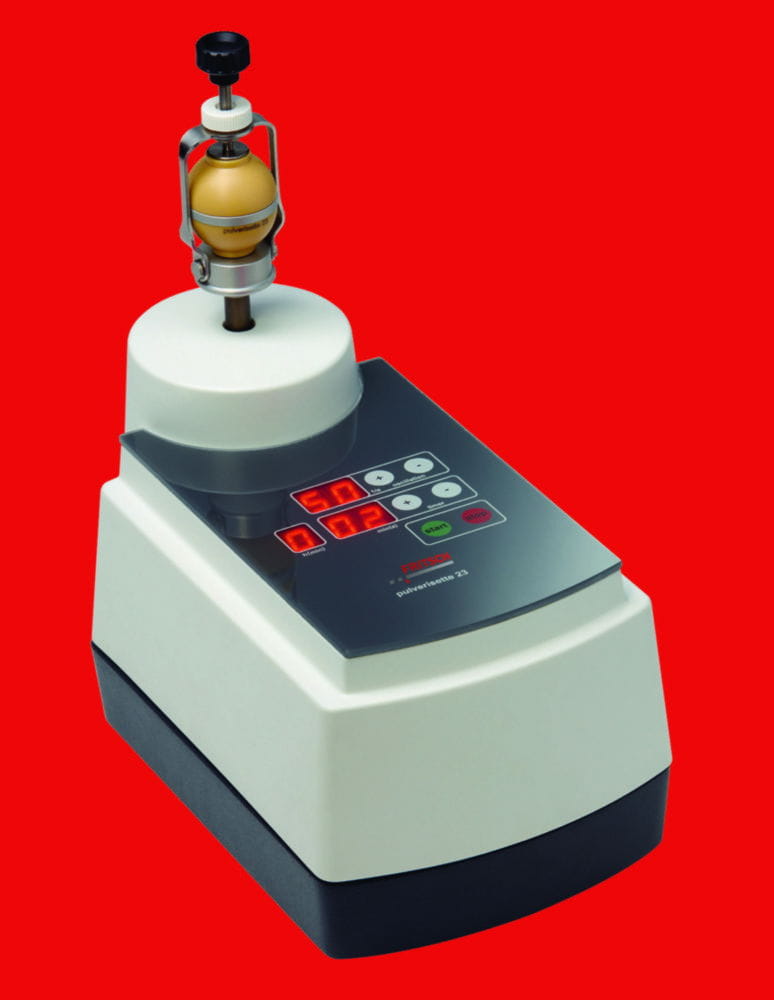

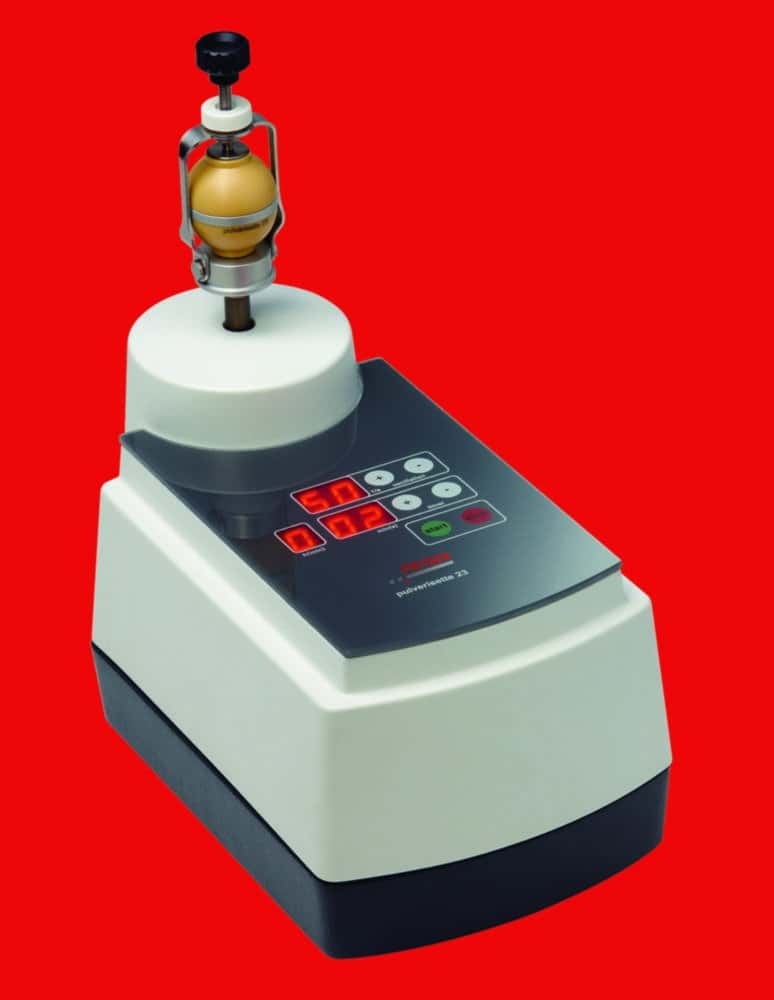

Mini mill PULVERISETTE 23
€4,020.00*
Depth:
300 mm
|
Dimensions (WxDxH):
200 x 300 x 300 mm
|
Feed particle size:
6 mm
|
Feed quantity:
5 ml
|
Height:
300 mm
|
Manufacturer Article Number:
23.1000.00
|
Max. feed particle size:
6 mm
|
Max. feed quantity:
5 ml
|
Max. final fineness:
5 µm
|
Max. speed:
3000 1/min
|
Max. voltage:
240 V
|
Min. speed:
900 1/min
|
Min. voltage:
100 V
|
No. of milling positions:
1
|
Plug type:
EU
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Speed:
900 ... 3,000 1/min
|
Type of auxiliary energy:
Mains connection
|
Type of grinding:
dry/wet/cryogenic
|
Weight:
7 kg
|
Width:
200 mm
Ideal for fine comminution of smallest quantities for wet and dry grinding as well as for cryogenic grinding. Its special spherical grinding bowl ensures much better performance in grinding, mixing and homogenising compared with similar models for example in chemical analysis, chromatography, mass spectrometry or x-ray structural analysis, preparation of samples for genetic research, homogenising of active ingredients, preparation of extracts in the forensic analysis, grinding of pigments and precious materials.Grinding bowls and grinding balls must be ordered additionally.

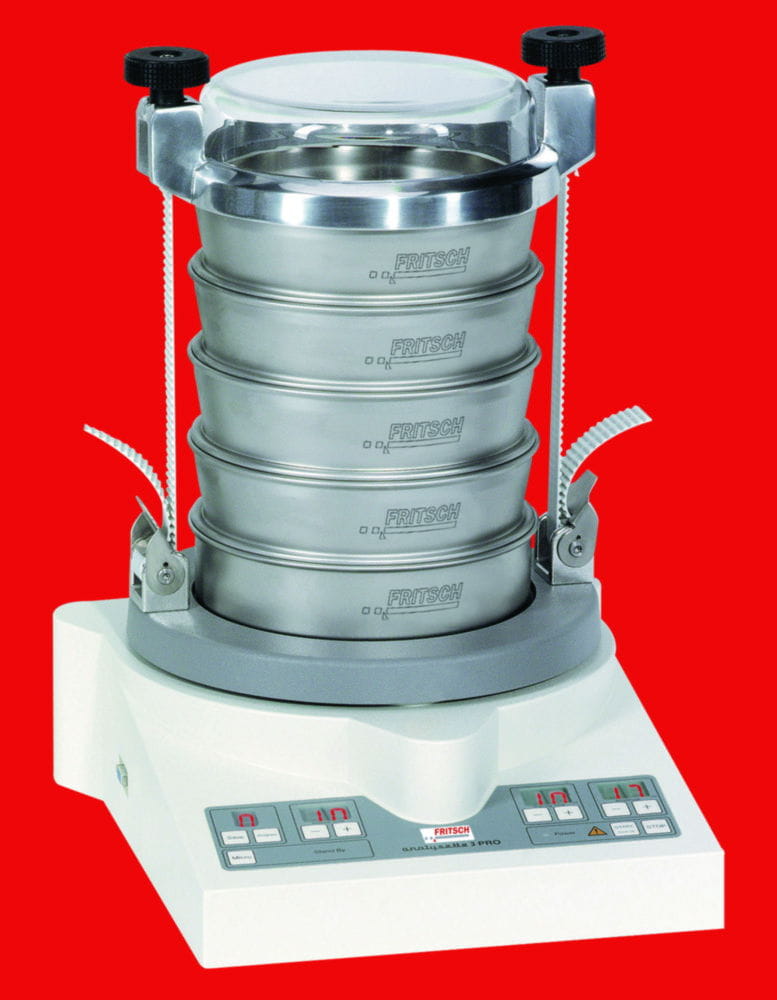

Vibratory sieve shaker ANALYSETTE 3 PRO and SPARTAN
€3,324.00*
Amplitude:
0.1 ... 3 mm
|
Depth:
400 mm
|
Depth mm:
400
|
Dimensions (W x D x H) mm:
370 x 400 x 200
|
Dimensions (WxDxH):
370 x 400 x 200 mm
|
Display / Control:
digital
|
Dry sieving:
Yes
|
Height:
200 mm
|
Height mm:
200
|
Manufacturer Article Number:
03.7020.00
|
Max. amplitude:
3 mm
|
Max. feed quantity:
2000 g
|
Max. measurement:
63 mm
|
Max. sieve stack height:
550 mm
|
Max. sieve stack mass:
3 kg
|
Max. voltage:
240 V
|
Measurement range:
0.02 ... 63 mm
|
Min. amplitude:
0.1 mm
|
Min. measurement:
0.02 mm
|
Min. voltage:
100 V
|
Plug type:
EU
|
Plug type:
EU
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Rated capacity:
50 W
|
Suitable sieve diameter 100 mm:
Yes
|
Suitable sieve diameter 150 mm:
Yes
|
Suitable sieve diameter 200 mm:
Yes
|
Suitable sieve diameter 203 mm:
Yes
|
Suitable sieve diameter 305 mm:
No
|
Suitable sieve diameter 315 mm:
No
|
Suitable sieve diameter 400 mm:
No
|
Suitable sieve diameter 450 mm:
No
|
Suitable sieve diameter 510 mm:
No
|
Type:
ANALYSETTE 3 PRO
|
Type:
ANALYSETTE 3 PRO
|
Type of auxiliary energy:
115/230, 50-60 Hz
|
Type of sieving:
Dry/wet sieving
|
Usable sieve diameters:
100/150/200/203 mm
|
Weight:
21 kg
|
Weight kg:
21
|
Wet sieving:
Yes
|
Width:
370 mm
|
Width mm:
370
|
max. mass of sieve stack g:
3000
|
max. measuring range mm:
63
|
max. number of fractions:
10/16
|
max. sample amount g:
2000
|
max. sieve tower height mm:
550
|
min. measuring range mm:
0.02
For quantitative particle size analysis of dry samples and suspensions of all kind by dry and wet sieving with woven test sieves. FRITSCH Sieve Shakers satisfy all requirements for accurate and reproducible sieving analysis and perform automatic sieve analysis with the control and evaluation software AUTOSIEVE, which is delivered as trial version for 90 days. The top model ANALYSETTE 3 PRO guarantees absolutely reproducible sieving results due to automatic amplitude control, programme selection, can be integrated as testing device into any quality management systems, has an RS232-interface, to mention only some of its innovative and practical features.Sieving:Dry or wetSieve diameters:100mm, 200mm or 8"Maximum number of sieves:10 x 50 mm (full) or 16 x 25 mm (half) heightSieves:woven mesh metal sievesMeasuring range:Dry sieving: 20 µm to 63 mm
Wet sieving: 20 µm to 10 mmSample quantity:Dry sieving: up to 2 kg (depending on the sample material and sieve used)
Wet sieving: 20 to 100 gSieving time:Dry sieving: 3 to 20 min
Wet sieving: 3 to 10 minPower supply:100-240 V/1~, 50-60 Hz, 50 WDimensions (W x D x H):370 x 400 x 200 mmNet weight:21 kgClamping lid, sieve pan and sieves must be ordered separately.Further sieve shakers available on request.
Variants from €2,494.00*
