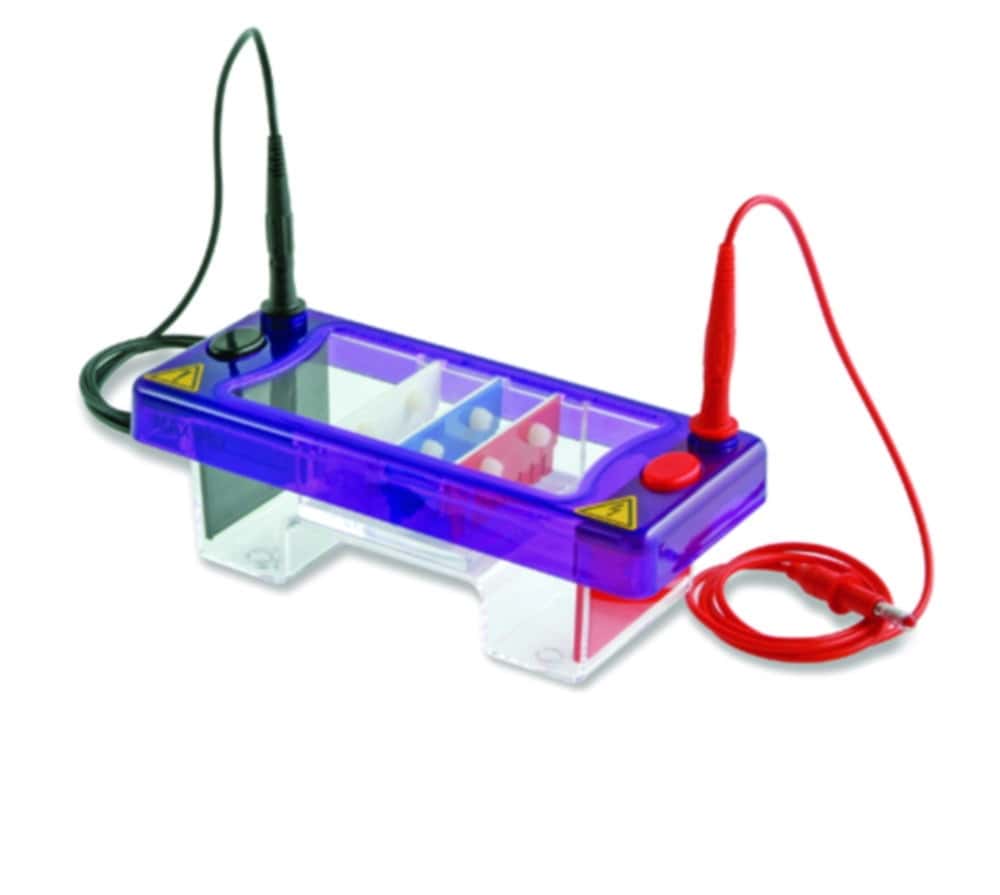

Thistle Scientific Ltd. Gel electrophoresis tank MultiSUB Mini ( 9584650 )
Article number: 9584650
Manufacturer number: MSMINI10
€314.00*
€507.57*
on order
Product information "Gel electrophoresis tank MultiSUB Mini"
Supplied with:

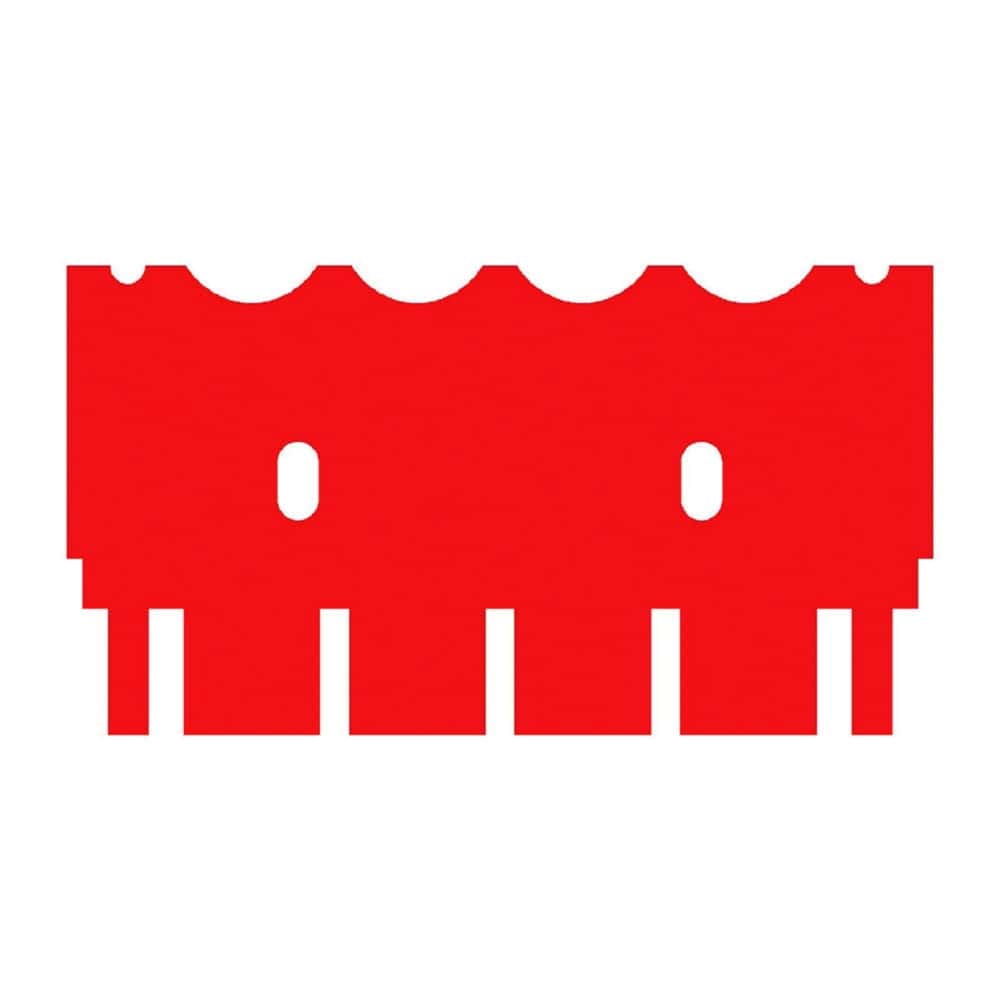

MultiSUB Mini 7: 7 x 7 cm UV Tray, 2 x 8 sample combs.
MultiSUB Mini 10: 7 x 10 cm UV Tray, 2 x 8 sample combs.
MultiSUB Mini DUO: 7 x 7 cm and 7 x 10 cm UV Tray, 2 x 8 sample combs.
Set: MultiSUB Mini DUO + Power supply OmniPAC, MINi 300 V 400mA 60 W, 110/230 V.
Each model has an additional loading guides and dams.
| Specifications | |
| Gel dimensions (W x L): | 7 x 7cm and 7 x 10 cm |
| Unit dimensions (W x L x H): | 21 x 9 x 9 cm |
| Max. sample capacity: | 7 x 7 cm tray, 32 samples 7 x 10 cm tray, 64 samples |
| Buffer volume: | 225 ml |
| Depth: | 210 mm |
|---|---|
| Depth gel: | 100 mm |
| Dimensions (WxDxH): | 90 x 210 x 90 mm |
| Gel (WxD): | 70 x 100 mm |
| Height: | 90 mm |
| Manufacturer Article Number: | MSMINI10 |
| Max. number of samples: | 64 |
| Nominal capacity: | 225 ml |
| Type: | MultiSUB Mini 10 |
| UNSPSC: | 41105340 |
| Width: | 90 mm |
| Width gel: | 70 mm |
Accessories

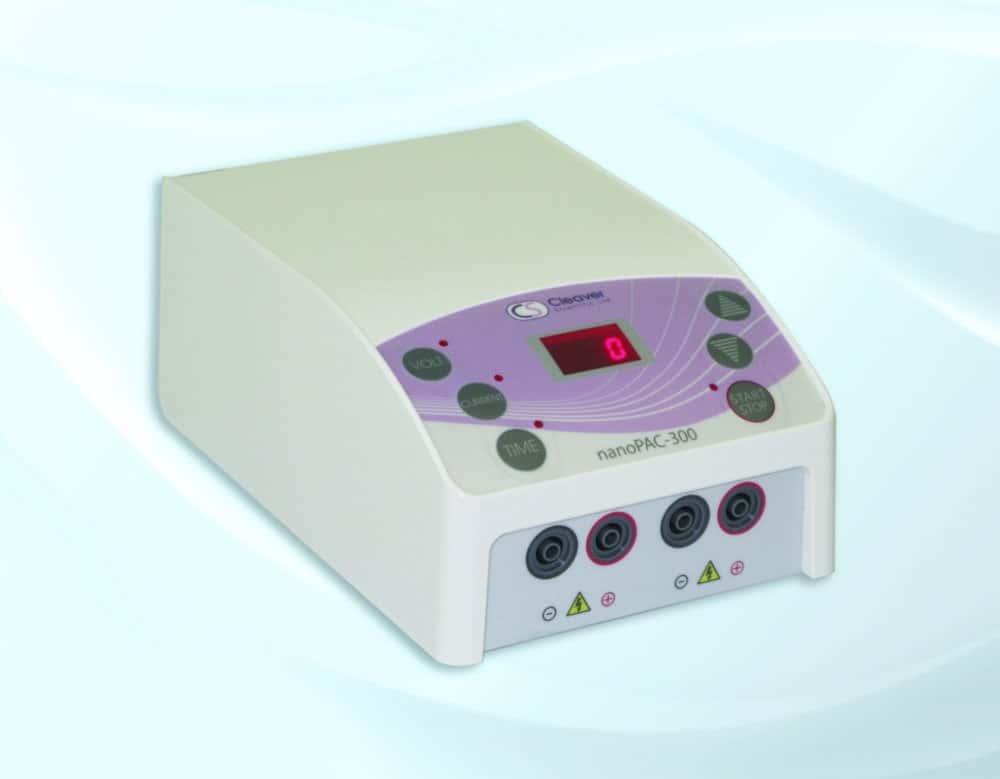

The nanoPAC-300 is capable of running all Cleaver Scientific horizontal multiSUB™ systems and vertical omniPAGE mini gel systems.Maximum constant current output of 400mASimple two step feature to set a programmable change in voltage, current and time during the runConstant voltage up to 300 VAdjustable in 1 V and 1 mA incrementsTwo parallel outputsContinuous run or timed setting up to 999 minutesAutomatic safety shutdownAlarm functionEasy-to-clean polycarbonate housing3-digit LED display

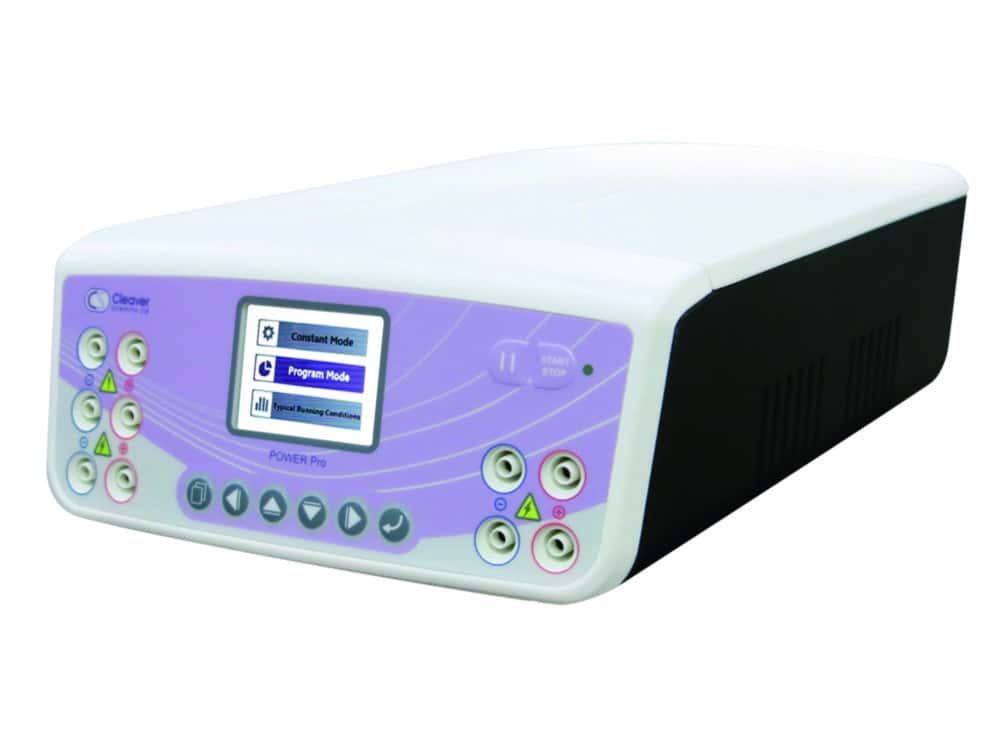

The POWERpro series is perfectly suited to use with all Cleaver Scientific horizontal multiSUB™ systems and omniPAGE mini vertical gel units, and may also be adapted for specialist techniques including the Comet Assay, and clinical and high throughput horizontal electrophoresis.Microprocessor controled with 5 sets of power terminals allow simultaneous operationContinuous run or timed setting up to 999 minutesProgrammable with multi step protocols for advanced electrophoresis methodsStores preset programs for each Cleaver Scientific electrophoresis systemAlarm function2.4" TFT displayStackable designRigorous in-built safety mechansimsAutomatic crossoverDual voltage compatibility
