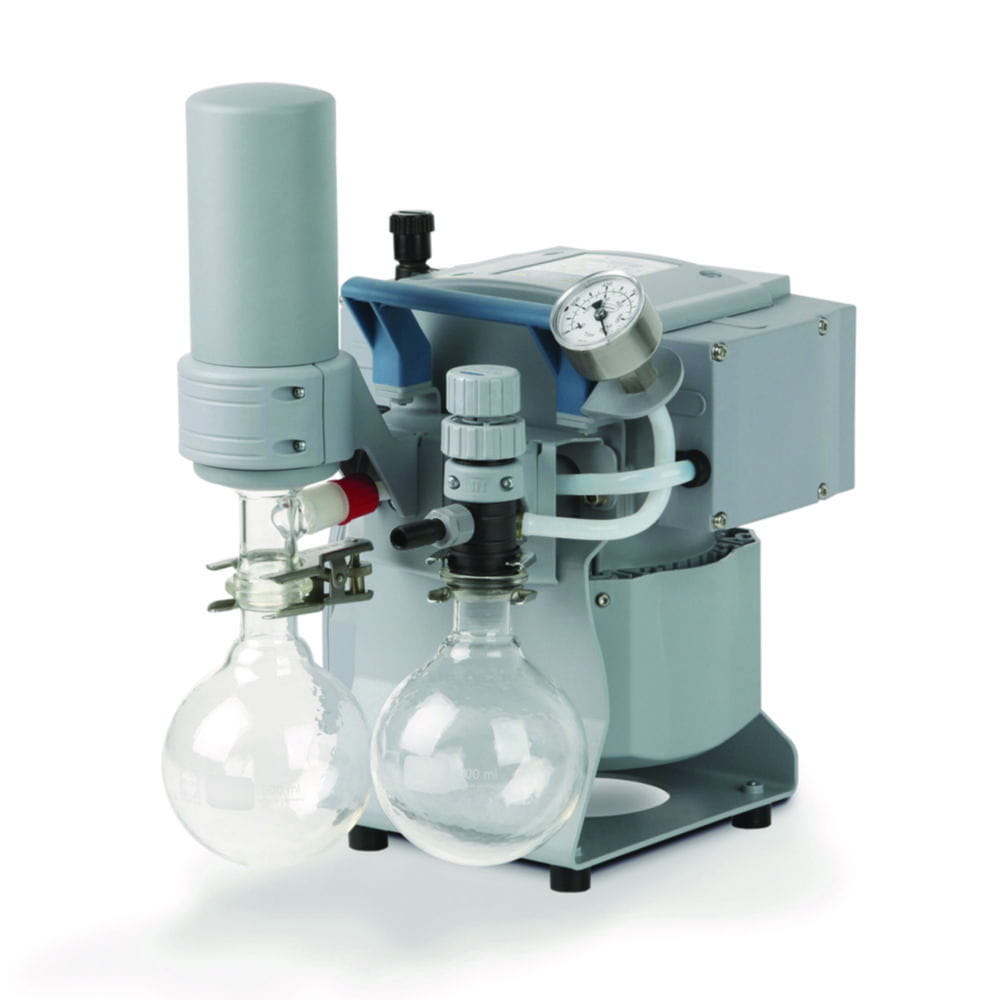

Vacuubrand GmbH & Co.KG Chemistry Pump Units and Vacuum Systems ( 6701344 )
Article number: 6701344
Manufacturer number: 20733000
€3,420.00*
on order
Product information "Chemistry Pump Units and Vacuum Systems"
- 100% oil-free pumping of gases
- gas ballast as standard for working with condensable vapours
- good vacuum even with gas ballast
- high vapour tolerance for water and solvents
- long service life, low maintenance
Features:
2AK: Inlet and outlet separator
AK + EK: Inlet separator, exhaust vapour condenser
PC 510 select (two-stage) / 610 select (three-stage) : with AK + EK; 1 electronically controlled vacuum port
PC 511 select (two-stage) / 611 select (three-stage) : with AK + EK; 1 electronically controlled and 1 manually controlled vacuum port
PC 520 select (two-stage) / 620 select (three-stage) : with AK + EK; 2 electronically controlled vacuum ports
Characteristics and applications:
Without vacuum control:
MZ 2C NT +2AK: e.g. filtration, distillation without condensation at the outlet
MZ 2C NT +AK+EK: Well-proven unit for a wide range of applications for a single-user, e.g. gel drying, distillation, vacuum concentrator. For solvents with medium to low volatility.
MD 1C +AK+EK: Space-saving single-user configuration. For high-boiling-point solvents.
MD 4C NT + AK+EK: Larger or multi-user applications, the local vacuum network VACUU·LAN®. For high-boiling solvents.
MV 10C NT +EK: Four-stage diaphragm pump with exhaust vapour condenser. For particularly high demands regarding low ultimate vacuum and pumping speed in chemistry laboratories, pilot plant or small production units.
With vacuum controller:
PC 510 select / 511 select: Well-proven units for a wide range of processes in chemistry laboratories, e.g. all common solvents. PC 511 select with addtional manually controlled vacuum port.
PC 610 select / 611 select: Proven solution for supporting electronically controlled evaporation or drying processes even with many high boiling point solvents. PC 611 select with additional manually controlled vacuum port.
PC 520 select / 620 select: Compact solution for simultaneous operation of two electronically controlled vacuum applications with one single pump.
Country-specific power cord versions available on request.
| Depth: | 326 mm |
|---|---|
| Dimensions (WxDxH): | 243 x 326 x 402 mm |
| Flow rate: | 2.0 m³/h |
| Height: | 402 mm |
| Manufacturer Article Number: | 20733000 |
| Plug type: | CEE |
| Type: | PC 101 NT |
| UNSPSC: | 40-15-15-48 |
| Ultimate vacuum: | 7 mbar |
| Ultimate vacuum with gas ballast: | 12 mbar |
| Width: | 243 mm |
