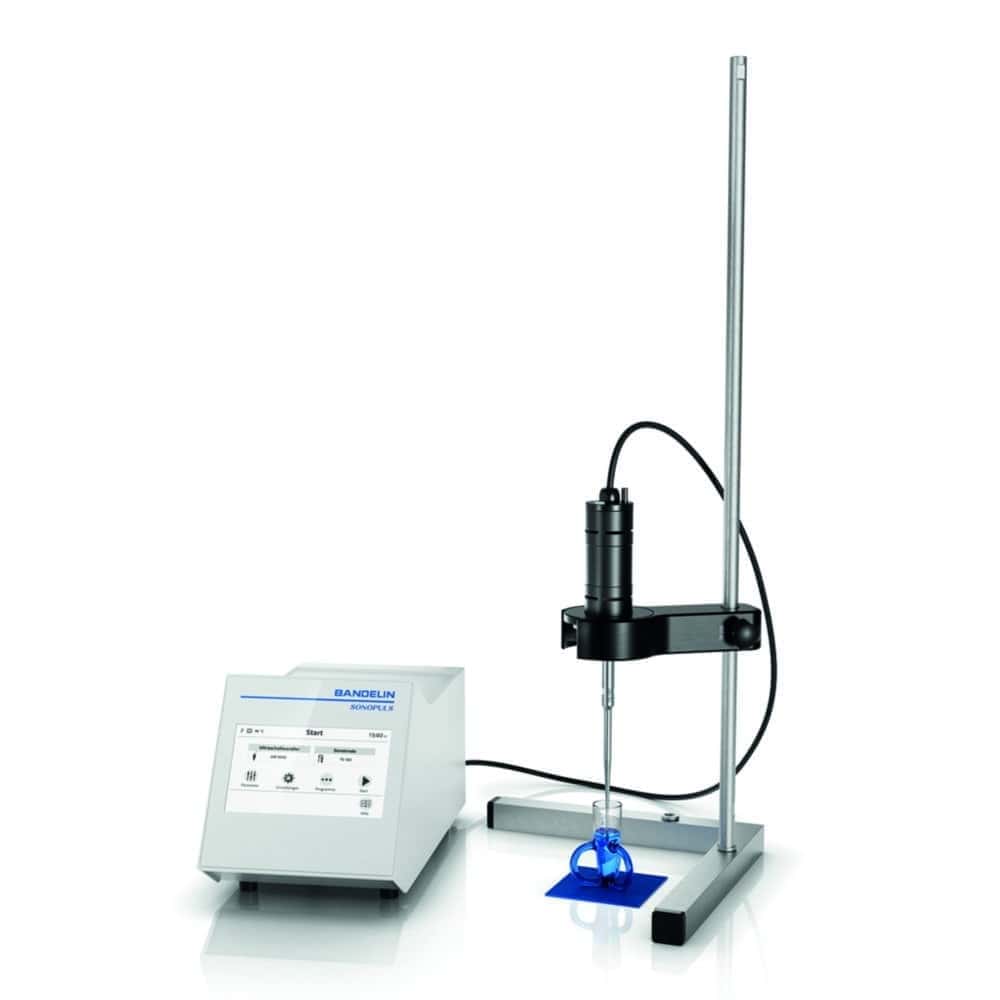

Bandelin electronic Ultrasonic homogeniser SONOPULS HD 5050, set without stand annd vessel ( 4686323 )
Article number: 4686323
Manufacturer number: 15050
€4,645.00*
on order
Product information "Ultrasonic homogeniser SONOPULS HD 5050, set without stand annd vessel"
- 7" colour touch display with intuitive, user-friendly operation
- Display and control of all set parameters of the running programme
- Amplitude and pulse interval individual adjustable
- 8 programmes can be stored
- Timer or continuos operation
- USB and Ethernet interface
- Connection socket for optional temperature sensor
Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:
- Ultrasound generator GM 5000
- Ultrasonic converter UW 5050
- Titanium sonotrode TS 102, Ø 2 mm
Optional temperature sensor and further titanium sonotrodes with Ø 3 mm, 4.5 mm, 6 mm and 9 mm available separately.
| Amplitude: | 10 ... 100 % |
|---|---|
| Depth: | 380 mm |
| Height: | 215 mm |
| IP code: | IP 30 |
| Manufacturer Article Number: | 15050 |
| Max. amplitude: | 100 % |
| Max. voltage: | 240 V |
| Max. working volume: | 100 ml |
| Min. amplitude: | 10 % |
| Min. voltage: | 100 V |
| Min. working volume: | 0.5 ml |
| Plug type: | EU |
| Power setting range: | 2...20 W |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 50 W |
| Type: | SONOPULS HD 5050 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41102914 |
| Ultrasonic frequency: | 30 kHz |
| Weight: | 3.1 kg |
| Width: | 195 mm |
| Working volume: | 0.5 ... 100 ml |
Accessories
The temperature probe can be connected to the socket of the ultrasonic transducer. This activates the temperature detection and enables user-defined temperature monitoring during the sonication process. On the ultrasonic generator, either a warning signal or a shutdown of the ultrasound can be set when the limit temperature is reached.

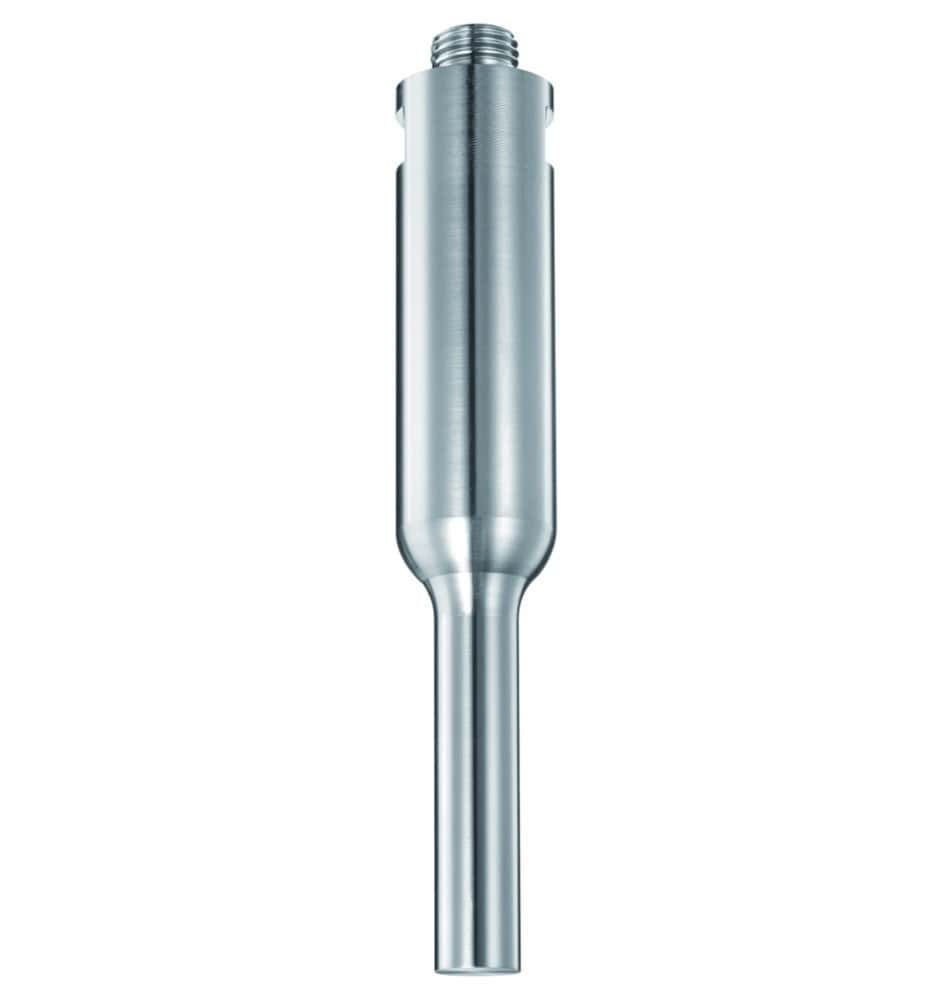

Titanium sonotrodes.For connection to stepped horns/booster horns.
For direct ultrasonic irradiation.
For correct and variable positioning of the ultrasonic transducers.Suitable for direct and indirect sound reinforcementCan be used with and without LS 40 noise protection boxCommercially available sockets can be mounted on stand rod (d=16 mm)Material base and rod: stainless steel
To reduce the noise level when sonicating samples with an ultrasonic homogeniser. The lower part of the interior and the removable bottom tray are made of stainless steel and are therefore chemically resistant and easy to clean.Noise reduction of up to 30 dB-AULED interior lightingAcrylic glass windowWith effective ventilation systemWith opening (40 x 70 mm) for cooling tubing, sample circulation or the SONOPULS temperature sensor on the backRemovable bottom trayEasy retrofitting for use with sonotrodes or cup booster possibleThe stand HG 40 is required to attach the ultrasonic converter. Please order separately.
Other customers also bought

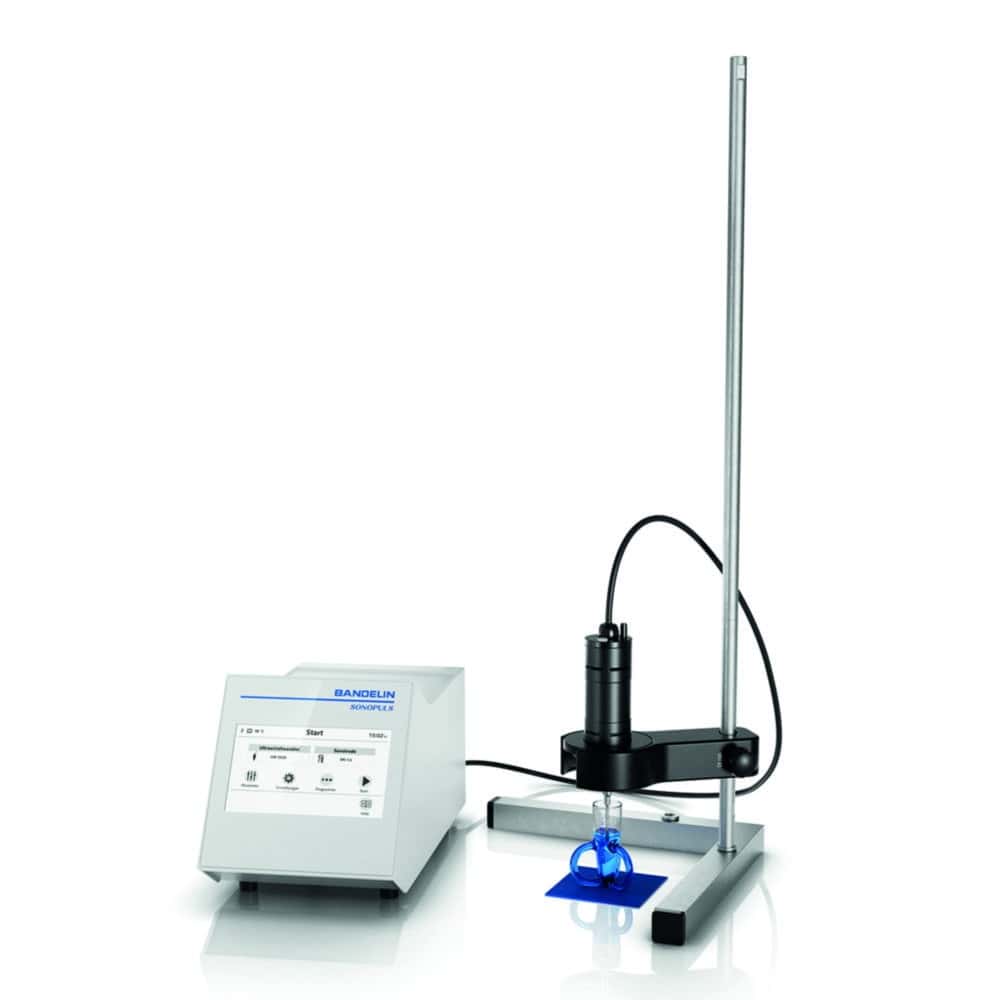

Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 5000 series are characterised by optimised process times and quickly available reproductive results.7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceConnection socket for optional temperature sensorFor volumes from 0.1 to 25 ml (depending on the sonotrode used).Ready-to-operate set for volumes from 0.1 to 10 ml consisting of:Ultrasound generator GM 5000Ultrasonic converter UW 5020Titanium sonotrode MS 1.5, Ø 1.5 mmOptional temperature sensor and further titanium sonotrodes with Ø 2.0 mm and 2.5 mm available separately.HF generatorGM 5000Dimensions (W x D x H):195 x 385 x 215 mmConverterUW 5020Dimensions (Ø x L):50 x 150 mmUltrasonic nominal power:max. 20 WWorking frequency:40 kHzPower supply:90 ... 250 V, 50/60 Hz
