Bellingham + Stanley Ltd. Refractometer Abbe 5 ( 4694612 )
Article number: 4694612
Manufacturer number: 44-501
€1,499.00*
Packaging unit:
1 piece
on order

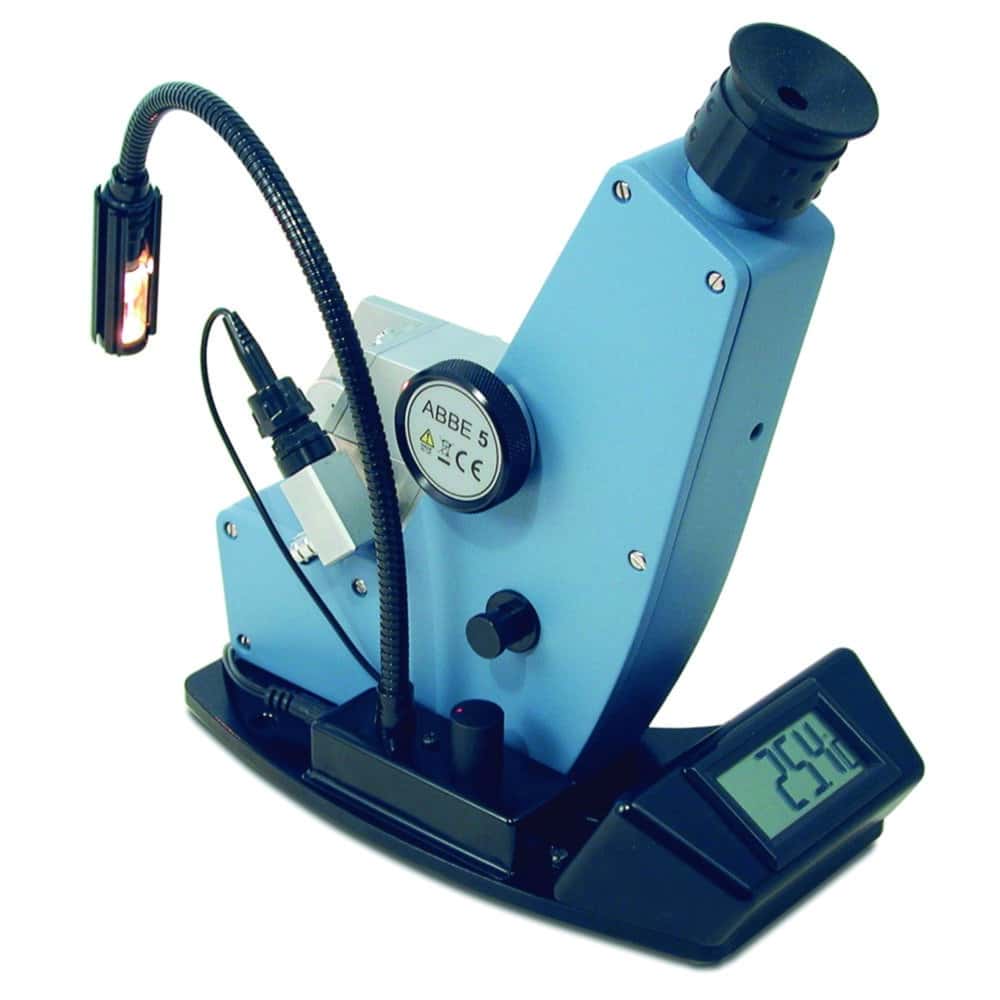

Product information "Refractometer Abbe 5"
The refractometer measures both the refractive index over a large measuring range and the Brix value, and is suitable for applications in small laboratories with low sample throughput, schools, colleges, and universities. The prism temperature is monitored electronically and shown on the integrated digital display. Dispersion measurements of solids such as glass, contact lenses, and fibre optics can be performed according to standard procedures.
- Complete measuring range 0 to 95 °Brix
- Water bath connections enable prism temperature control
- Optional LED light source for mounting on the instrument base
- Battery operation 1 x 1.5 V
- Hard case for transport and storage
- Supplied with glass calibration plate and contact liquid
| Battery/rechargeable battery: | 1 x 1.5 V, AA |
|---|---|
| Designation ANSI: | AA |
| Manufacturer Article Number: | 44-501 |
| Max. temperature: | 70 °C |
| Max. voltage battery/rechargeable battery: | 1.5 V |
| Measured range: | 0 ... 95 °Brix, 1.30 ... 1.70 RI |
| Min. temperature: | 5 °C |
| No. of batteries/rechargeable batteries: | 1 |
| Resolution: | 0.1 °Brix, 0.0005 RI |
| Temperature: | 5 ... 70 °C |
| Type: | Abbe 5 |
| Type of auxiliary energy: | Battery |
| Weight: | 2.55 kg |
