Harry Gestigkeit GmbH Sand bath ST with performance control, thermostatic controller and permanent connection ( 6251772 )
Article number: 6251772
Herstellernummer: ST93-400

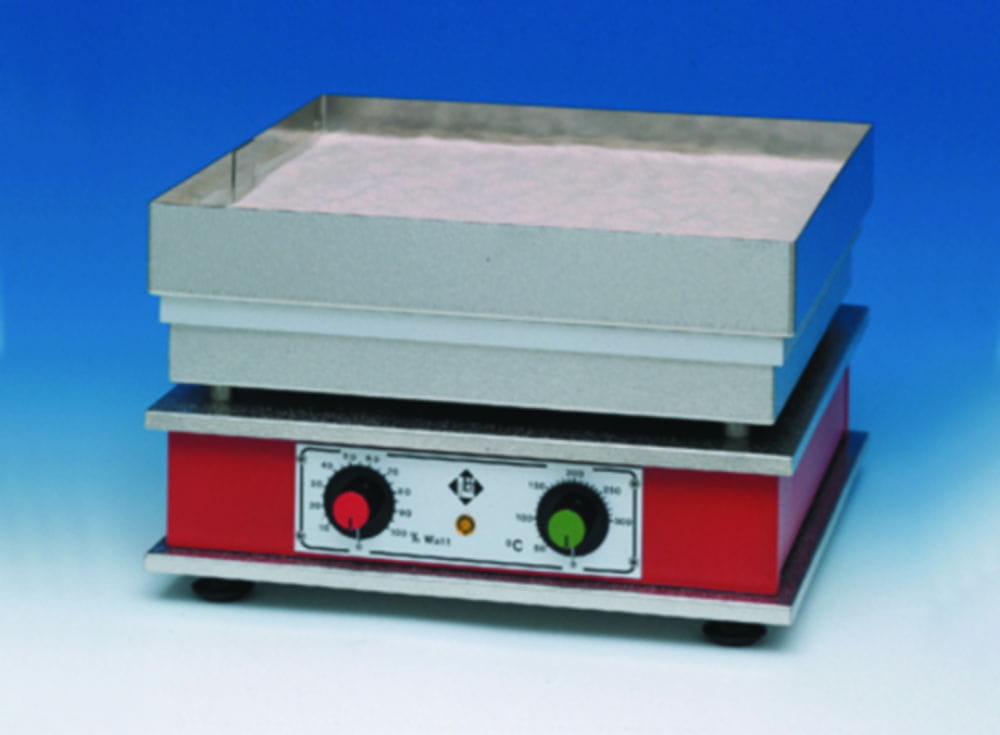

Product information "Sand bath ST with performance control, thermostatic controller and permanent connection"
For continuous operation. Electrical sand bath with thermostatic temperature control and separate power controller. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet.
| Depth int.: | 590 mm |
|---|---|
| Display: | Analogue |
| Ext. depth: | 592 mm |
| Ext. height: | 220 mm |
| Ext. width: | 442 mm |
| External dimensions (WxDxH): | 442 x 592 x 220 mm |
| Heating capacity: | 4000 W |
| Height int.: | 50 mm |
| Int. width: | 440 mm |
| Internal dimensions (WxDxH): | 440 x 590 x 50 mm |
| Manufacturer Article Number: | ST93-400, ST 93-400 |
| Max. temperature: | 370 °C |
| Max. voltage: | 400 V·3/N/PE |
| Min. temperature: | 100 °C |
| Operation: | Rotary knob |
| Power supply: | 400 V·3/N/PE |
| Temperature: | 100 ... 370 °C |
| Type: | ST 93-400 |
| Type of auxiliary energy: | Permanent connection |
| Type of display: | Without display |
| UNSPSC: | 41-10-37-08 |
| Weight: | 28 kg |
| With stirrer drive: | No |
