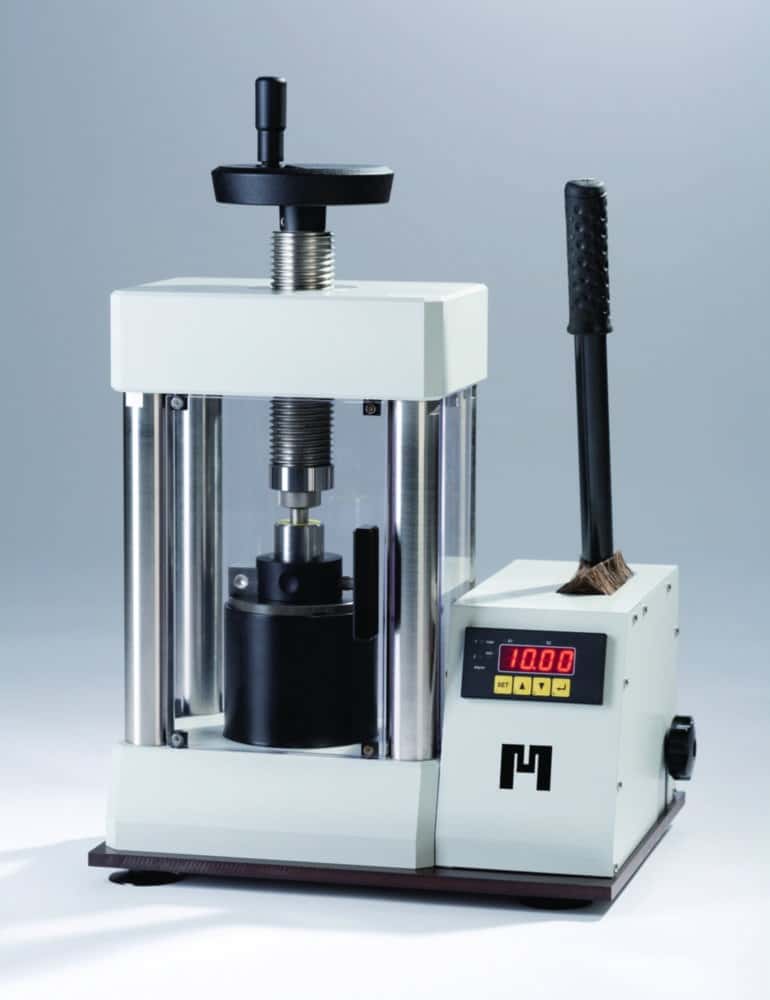

Maassen GmbH Laboratory presses MP250 ( 6290217 )
Article number: 6290217
Manufacturer number: 54MP250D
€5,643.75*
on order
Product information "Laboratory presses MP250"
- Manuelles Ventil für kontrollierten Druckabbau
- Hält Druck über mehrere Stunden stabil
- Integrierter Splitterschutz
- Integriertes Druckbegrenzungsventil
- Presswerkzeuge sind von 3 bis 50 mm erhältlich (optional)
- Anschluss Vakuumpumpe vorhanden
| Depth: | 300 mm |
|---|---|
| Dimensions (WxDxH): | 370 x 300 x 497 mm |
| Display: | Digital |
| Height: | 497 mm |
| Manufacturer Article Number: | 54MP250D |
| Max. Lichte Höhe: | 185 mm |
| Max. pressure: | 25 t |
| Max. voltage: | 1.5 V |
| Min. pressure: | 1 t |
| Power supply: | 1.5 V |
| Pressure: | 1 ... 25 t |
| Resolution: | 0.01 t |
| Type: | MP250D |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41101707 |
| Weight: | 51 kg |
| Width: | 370 mm |
| Ø Zylinder: | 107 mm |
Zubehör

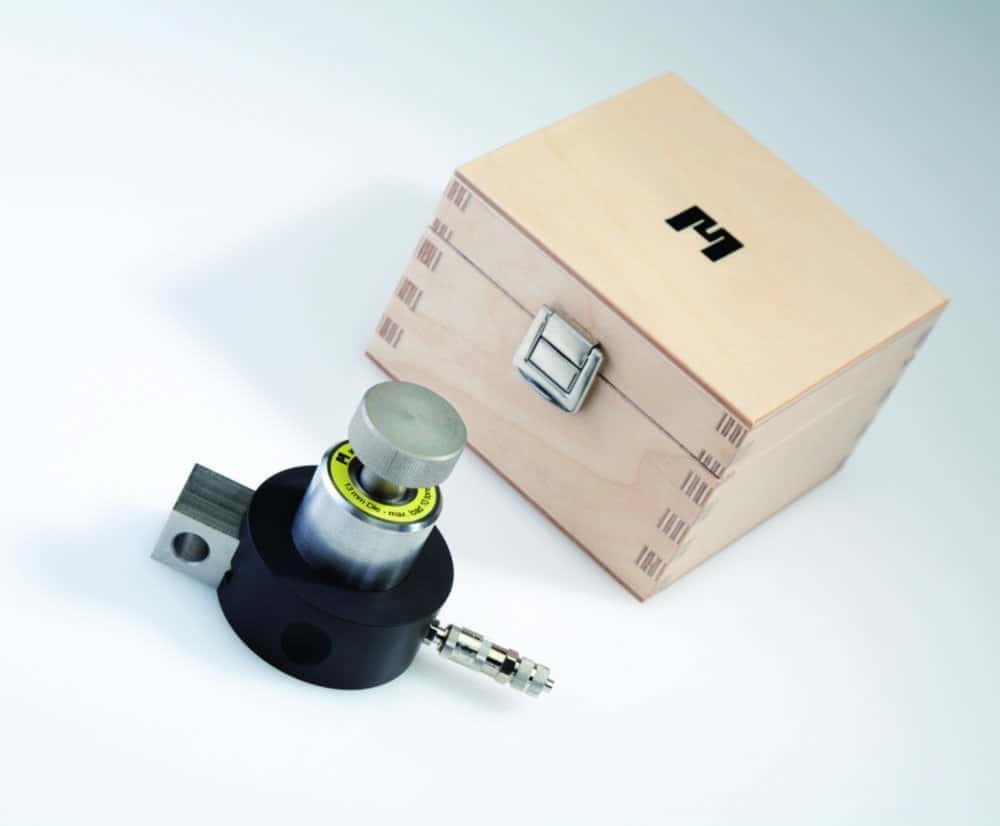

The 13 mm press die is supplied in a wooden box (for 32 and 40 mm: optional)The 32 and 40 mm press die can be combined to save costs, since the same parts can be usedAll press dies from 10 mm have a vacuum connection with a special self-locking tubing adapter, which makes it easier to connect and disconnectFurther diameters available on request.
Andere Kunden kauften auch

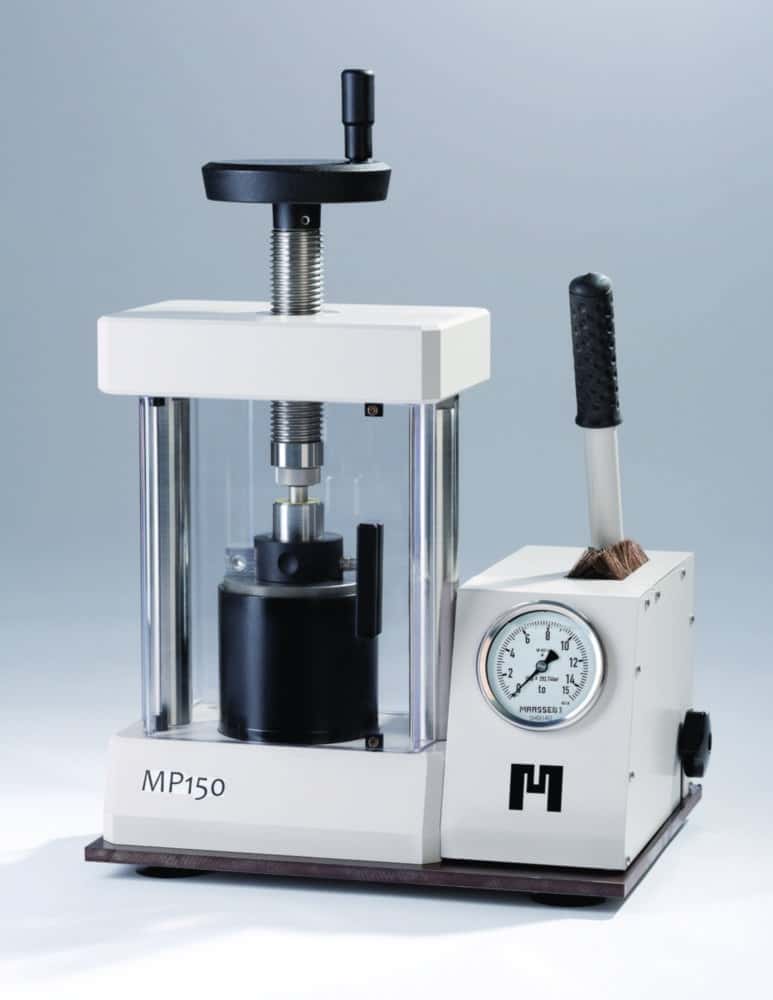

The laboratory presses are available as analogue models with pressure gauge or as digital models with digital pressure display. MP150 is ideal for IR spectroscopy, for 13 mm diameter press dies. MP250 is used in RFA analysis to form tablets with a diameter of 32 mm or 40 mm. For smaller press dies or more accurate pressure control, the MP150D or MP250D digital models are suitable.The MP150D and the MP250D can be equipped with a serial interface (optional). In addition, an individually programmable pressure limitation (optional) is available for setting the desired maximum pressure. Further pumping then does not build up higher pressure beyond the set value. This is especially useful if the sample should always be pressed with the same pressure. This makes every pressing process easy to control and reproduceable.Manual valve for controlled pressure reductionKeeps pressure stable for several hoursIntegrated splinter protectionIntegrated pressure control valvePress dies available from 3 to 50 mmWith connection for Vacuum pumpPlease order press dies separately.With pressure gauge (MP150) or digital pressure display (MP150D). Press for up to 15 tons pressure. Recommended for press dies up to 18 mm. Please order press dies separately.SpecificationsPressure gauge Ø: Pressure:80 mm 15 tResolution:0.5 t / 0.01 tWidth between pistons:150 mmClear width min. / max.:52 mm / 142 mmSpindle diam.:36 mmSpindle path:90 mmPiston diameter / Stroke:107 mm / 22 mmDimensions (H min. / max. x W x D):436 / 526 x 370 x 300 mmWeight:approx. 43 kgPower supply MP150D:ext. power adapter, 12 V
