Lauda Dr.R.Wobser GmbH & Co.KG Steam baths Hydro ( 9695690 )
Article number: 9695690
Manufacturer number: L003066
€956.00*
on order

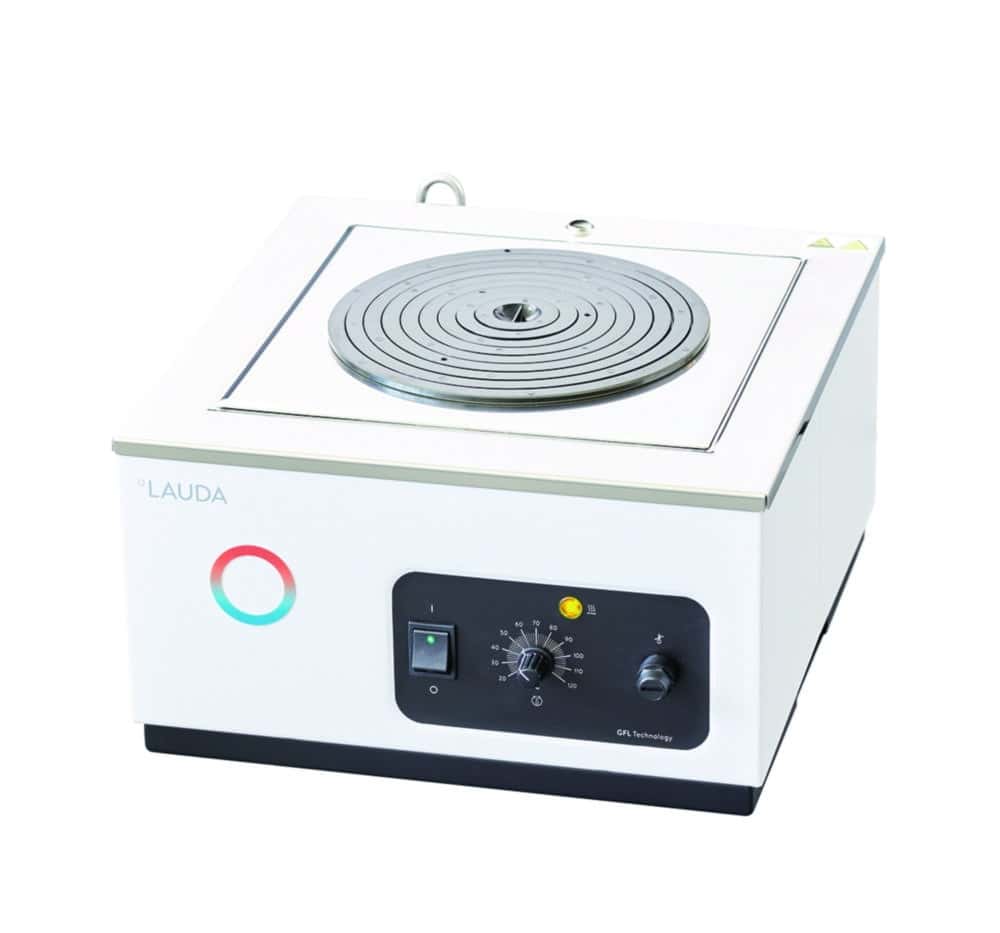

Product information "Steam baths Hydro"
- With »GFL Technology« for the highest quality, reliability and durability
- Water level regulator as standard
- Removable perforated lid made of heat-resistant plastic
- H 11 V and H 19 V completely made of stainless steel, suitable for the evaporation of aggressive media
| Capacity: | 5 l |
|---|---|
| Display: | Analogue |
| Ext. depth: | 400 mm |
| Ext. height: | 180 mm |
| Ext. width: | 342 mm |
| External dimensions (WxDxH): | 342 x 400 x 180 mm |
| Heating capacity: | 1 kW |
| IP code: | IP 20 |
| Manufacturer Article Number: | L003066 |
| Max. capacity: | 5 l |
| Max. temperature: | 100 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +5 °C |
| No. of openings: | 1 |
| Opening Ø: | 192 mm |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1 kW |
| Temperature: | RT+5 ... 100 °C |
| Temperature addition: | RT |
| Temperature stability: | ±3 K |
| Type: | H 5 V |
| Type of auxiliary energy: | Mains connection |
| Type of display: | Without display |
| Type of lid (Water baths etc.): | Cover with openings |
| UNSPSC: | 41103706 |
| Weight: | 9 kg |
| With circulation: | No |
| With stopcock: | No |
Products from Lauda Dr. R. Wobser GmbH & Co. KG – Thermostat Technology for Precision in Laboratory and Industrial Applications
LAUDA thermostats from häberle LABORTECHNIK stand for reliable temperature control in demanding environments. The portfolio includes a broad range of heating and cooling thermostats, water baths, calibration devices, and accessory components—ideal for research, quality assurance, and industrial processes.
Heating Thermostats for Stable Conditions in Research and Development
Devices such as the LAUDA ECO E 40 G offer:
Temperature range: 20–200 °C
Heating capacity: 2.6 kW
Bath volume: 32–40 L
Bath opening: 300 × 613 mm
These units are ideal for high-volume samples or multiple reactor vessels. Accessories such as the three-piece stainless steel bath cover minimize heat loss and ensure temperature stability.
Heating-Cooling Circulators for Flexible Applications
The LAUDA PRO RP 240 E combines heating and cooling capabilities, making it suitable for complex process simulations. Paired with the Variocool VC 3000 W , these units enable precision thermal control in:
Pharmaceutical production
Chemical synthesis
Quality assurance test benches
Circulation Chillers and Refrifluid for Continuous Industrial Operation
The Ultracool UC 8 circulation chiller ensures stable cooling for continuous, high-load operations. Complementary products include:
Refrifluid B ( 2 L): Low-viscosity heat transfer fluid with high thermal stability
Applications: Cooling loops requiring consistent thermal conditions
Water and Evaporation Baths for Standard Laboratory Workflows
Paraffin stretching bath Hydro H 2 P : 280 × 280 × 100 mm, ideal for histological sample prep
LAUDA Hydro H 19 V: Designed for controlled evaporation at uniform heating
Calibration and Accessory Components for System Integration
Precise calibration requires specialized components such as:
Glass condenser
Electrode complete for 2002–2012 models
Motor controller
Motor RA 24 LCK1909-11-0169
Power board
Bridge and immersion thermostats support seamless integration into existing systems.
Accessory Highlights & Modular Integration
Base shelf 98 × 121 mm for RE-series
Polycarbonate bath vessel ET 20 (20 L, up to 100 °C)
NAMUR contact module with LiBus interface for smart process control
Puridest PD 4 D water distiller for ultrapure lab water
Industry Trends: Digital Interfaces & Modular Control Systems
With increasing digitalization, modular control and digital interfaces like LiBus are essential. LAUDA supports this shift by offering systems that:
Ensure reproducible measurement results
Integrate into modern process automation frameworks
