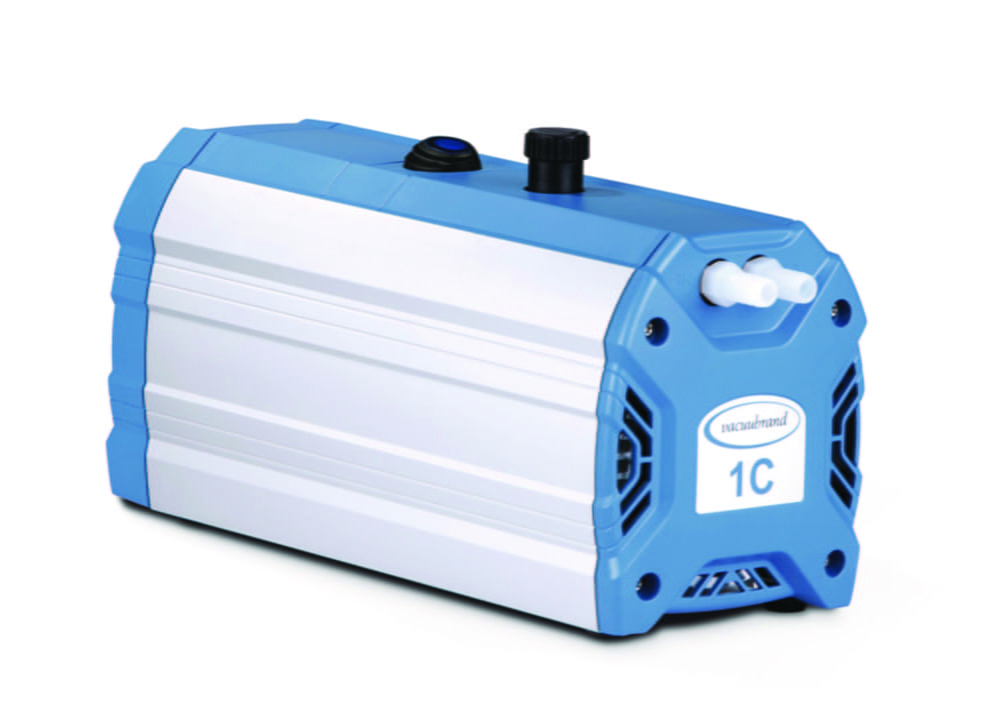

Vacuubrand GmbH & Co.KG Diaphragm pumps chemistry design, ME 1C ( 9880934 )
Article number: 9880934
Herstellernummer: 20721100
€663.30*
% €1,030.00* (35.6% saved)Available
One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.
Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.
In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).

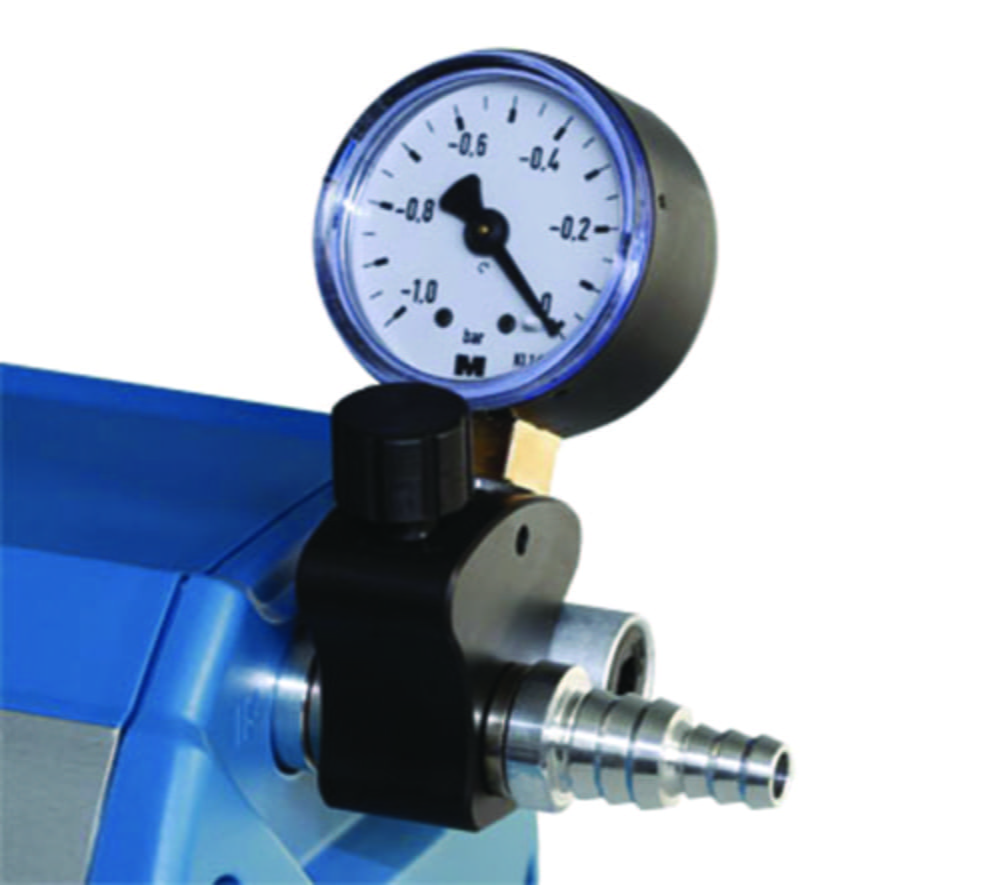

An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.
Gas ballast for reliable pump performance.
Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.
One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.
Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.
In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).
An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.
Gas ballast for reliable pump performance.
Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.
Diaphragm pumps ATEX-models available on request. Country-specific power cord versions available on request.
| Connection pressure side: | DN 8-10 mm |
|---|---|
| Connection suction side: | DN 8-10 mm |
| Depth: | 270 mm |
| Dimensions (WxDxH): | 121 x 270 x 154 mm |
| Flow rate: | 0.7 m³/h |
| Height: | 154 mm |
| IP code: | IP 40 |
| Manufacturer Article Number: | 20721100 |
| Max. voltage: | 230 V |
| Min. voltage: | 220 V |
| No. of stages: | 1 |
| Plug type: | CEE |
| Power supply: | 220 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Type: | ME 1C |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 40151502 |
| Ultimate vacuum: | 100 mbar |
| Weight: | 5.0 kg |
| Width: | 121 mm |
Vacuum Technology at Its Finest: Vacuubrand Products at häberle LABORTECHNIK
häberle LABORTECHNIK GmbH & Co. KG proudly presents the high-precision vacuum technology by Vacuubrand GmbH & Co. KG, one of the leading manufacturers for laboratory and industrial applications. The product range includes powerful rotary vane pumps, advanced diaphragm pumps, intelligent vacuum controllers, and robust screw pumps, all designed to meet the highest standards of efficiency and reliability.
Rotary Vane Pumps from Vacuubrand: High-Performance Solutions for Demanding Applications
Rotary vane pumps operate through a rotating vane mechanism that efficiently removes air molecules to generate a strong vacuum.
Key advantages include:
Extremely low achievable ultimate pressures
High pumping speeds for demanding processes
Ideal for industrial applications and laboratories requiring consistently high vacuum levels
Examples from the range:
Rotary Vane Pump RZ 6, two-stage: Currently discounted by 41%
Rotary Vane Pump RZ 2.5, two-stage: A compact solution for precise applications, now 20% off.
For highly aggressive media, the chemically resistant rotary vane pump RC 6 ensures reliable performance under challenging conditions.
Diaphragm Pumps from Vacuubrand: Purity and Durability Without Compromise
Diaphragm pumps operate using a flexible membrane that compresses gas without the need for lubricants, making them ideal for sensitive applications.
Main benefits:
Oil-free operation ensuring maximum purity
Minimal maintenance requirements
Outstanding service life even under continuous use
Typical fields of application:
Analytical laboratories
Precision vacuum applications in research and development
Featured products:
Diaphragm Pumps, Chemistry Version chemical-resistant options for aggressive vapors.
Aluminum-PTFE Diaphragm Pumps ME 1 / MD 1: Compact models with a 15% discount.
Intelligent Vacuum Control with VACUU·SELECT® and CVC 3000
Accurate control is crucial in many processes. VACUU·SELECT® packages and the CVC 3000 vacuum controller offer intelligent solutions for automated vacuum operations.
Highlights:
VACUU·SELECT® Package for Fine Vacuum Control with Pirani sensor – available for KF DN 16 and DN 25, with 20-24% discounts.
CVC 3000: Automatic vacuum controller featuring an intuitive interface and robust construction.
Screw Pumps VACUU·PURE® 10/10C: For Oil-Free High Vacuum Applications
With the VACUU·PURE® screw pumps, Vacuubrand sets new standards in oil-free high vacuum technology.
Distinctive features:
Chemical-resistant versions available for aggressive vapors
Exceptional service life and minimal operating costs
The perfect choice for applications in chemistry and analytics
Special offer: VACUU·PURE® models are currently discounted by 15%.
Complete Vacuum Solutions with Accessories and Systems
In addition to individual pumps, Vacuubrand offers a comprehensive range of accessories:
BioChem-VacuuCenter BVC Liquid Aspiration Systems – specifically designed for biological and chemical applications
VARIO® select Chemical Pump Stands – for flexible and powerful system solutions
VACUU·VIEW Vacuum Gauges – for precise monitoring of your vacuum processes
All systems are engineered to enhance operational safety, reduce maintenance effort, and optimize workflows.
