The PC 3001 VARIO® select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. This pump is suitable for even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The pump's variable motor speed responds to demand, reducing energy waste and mechanical wear, ensuring unrivalled service life for the diaphragms.For solvent evaporation, the controller detects solvent boiling and automatically adjusts the pump's motor speed to maintain process controlUser-defined applications with simple drag-and-drop editing.Small footprint and low weight for flexible use in the laboratoryThe inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pumpThe included emission condenser Peltronic® works without any cooling media like water or dry ice.Scope of supply: Chemistry pumping unit PC 3001 VARIO® select completely mounted with conderser Peltronic®, ready for use, with manual.Without mains cable, please order separately.

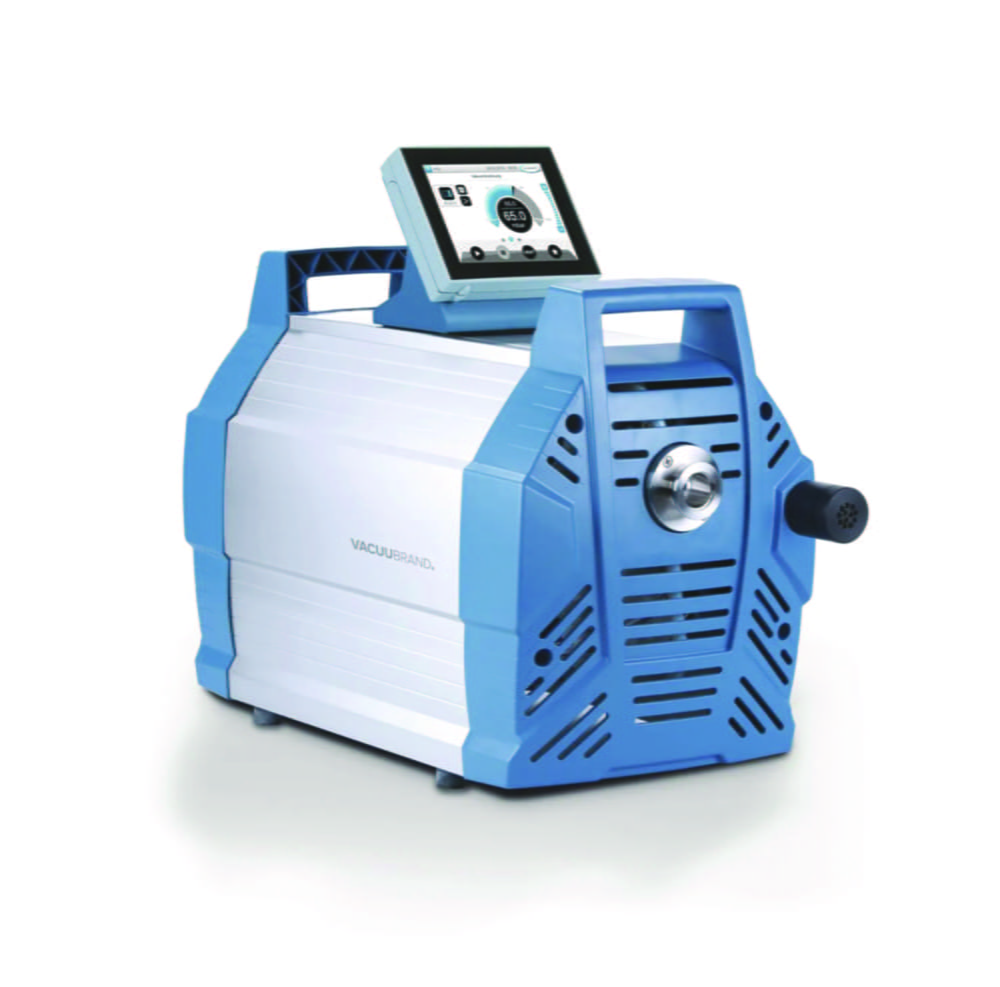

Improved performance, increased pumping speed (up to 16 m³/h) and better ultimate vacuum (up to 0.3 mbar). Extend applications with non-aggressive gases whether used in the laboratory or for industrial processesVery low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics - even after many years of operation. Ideal for analytical applicationsLong diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stabilityVery quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipmentEasy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environmentsThe VARIO® design provides vacuum control by precise and continuous adaption of the diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.Country-specific power cord versions available on request.

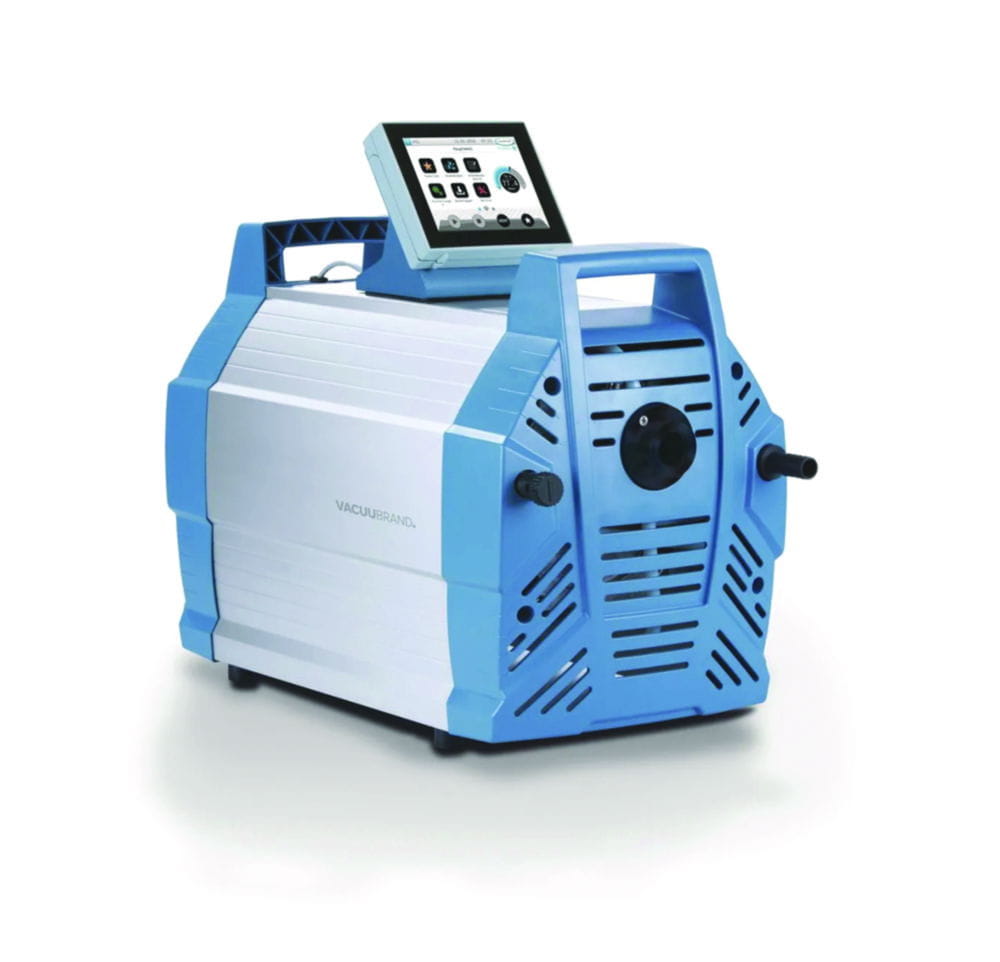

The VARIO® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applicationsLong-life diaphragm with PTFE sandwich construction and unstressed diaphragm supportEasy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustmentVery quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industrySuperior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge Easy to clean due to smooth exterior surfacesThe VARIO® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applicationsLong-life diaphragm with PTFE sandwich construction and unstressed diaphragm supportEasy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustmentVery quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industrySuperior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge Easy to clean due to smooth exterior surfaces

Compact design, ready to use, no set-up required. Constructed in chemically resistant materials. Quiet operation.100% oil-free pumping of gasesgas ballast as standard for working with condensable vapoursgood vacuum even with gas ballasthigh vapour tolerance for water and solventslong service life, low maintenanceFeatures:2AK: Inlet and outlet separatorAK + EK: Inlet separator, exhaust vapour condenserPC 510 select (two-stage) / 610 select (three-stage) : with AK + EK; 1 electronically controlled vacuum portPC 511 select (two-stage) / 611 select (three-stage) : with AK + EK; 1 electronically controlled and 1 manually controlled vacuum portPC 520 select (two-stage) / 620 select (three-stage) : with AK + EK; 2 electronically controlled vacuum portsCharacteristics and applications: Without vacuum control: MZ 2C NT +2AK: e.g. filtration, distillation without condensation at the outletMZ 2C NT +AK+EK: Well-proven unit for a wide range of applications for a single-user, e.g. gel drying, distillation, vacuum concentrator. For solvents with medium to low volatility.MD 1C +AK+EK: Space-saving single-user configuration. For high-boiling-point solvents.MD 4C NT + AK+EK: Larger or multi-user applications, the local vacuum network VACUU·LAN®. For high-boiling solvents.MV 10C NT +EK: Four-stage diaphragm pump with exhaust vapour condenser. For particularly high demands regarding low ultimate vacuum and pumping speed in chemistry laboratories, pilot plant or small production units.With vacuum controller: PC 510 select / 511 select: Well-proven units for a wide range of processes in chemistry laboratories, e.g. all common solvents. PC 511 select with addtional manually controlled vacuum port.PC 610 select / 611 select: Proven solution for supporting electronically controlled evaporation or drying processes even with many high boiling point solvents. PC 611 select with additional manually controlled vacuum port.PC 520 select / 620 select: Compact solution for simultaneous operation of two electronically controlled vacuum applications with one single pump.Country-specific power cord versions available on request.

For connection of a second hand controller please order additionally to the adapter set the handset 6.260 677.

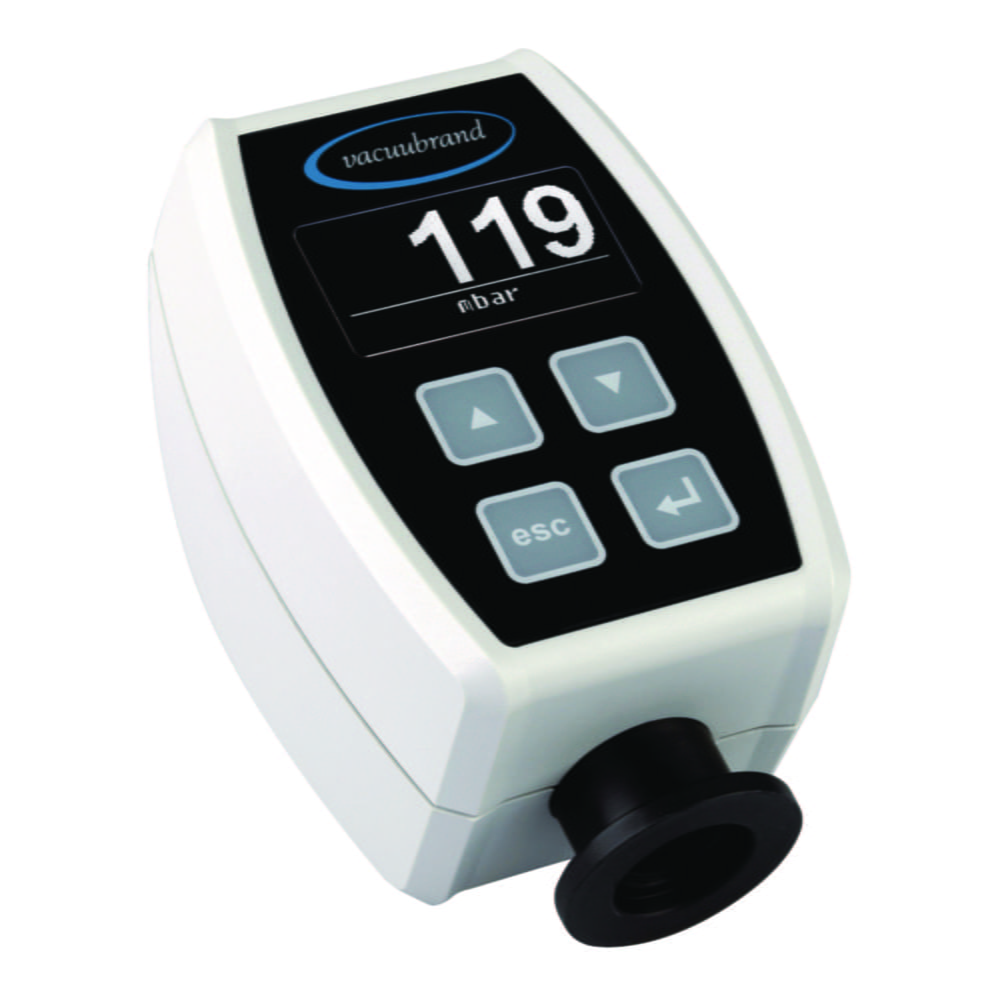

The rough vacuum gauge VACUU·VIEW covers the measuring range from atmospheric pressure down to 0.1 mbar very precisely. With the chemically resistant ceramic diaphragm sensor VACUU·VIEW provides gas-independent pressure indication with precise capacitive readout. The illuminated display enables comfortable reading.Compact design with integrated sensors for useful setup in laboratory and processChemically resistant, heavy duty vacuum sensors, highly reliable at harsh laboratory conditions even in case of very aggressive chemicalsHigh repeatability and long-term accuracy under all typical conditions reliable and repeatable resultsDisplay with menu driven handling, easy to use e.g. for unit settingsCompatible to gauge DCP 3000 and controller CVC 3000 or VACUU·SELECTThe product is delivered ready for use

Heavy-walled and flexible.

Butterfly design. Housing made of stainless steel with fluoroelastomer seal. Two Buna-N rings act as rotary shaft seals. Helium leak-tested. Leak rate 1 x 10-6 mbar x l/s. Excellent throughput.

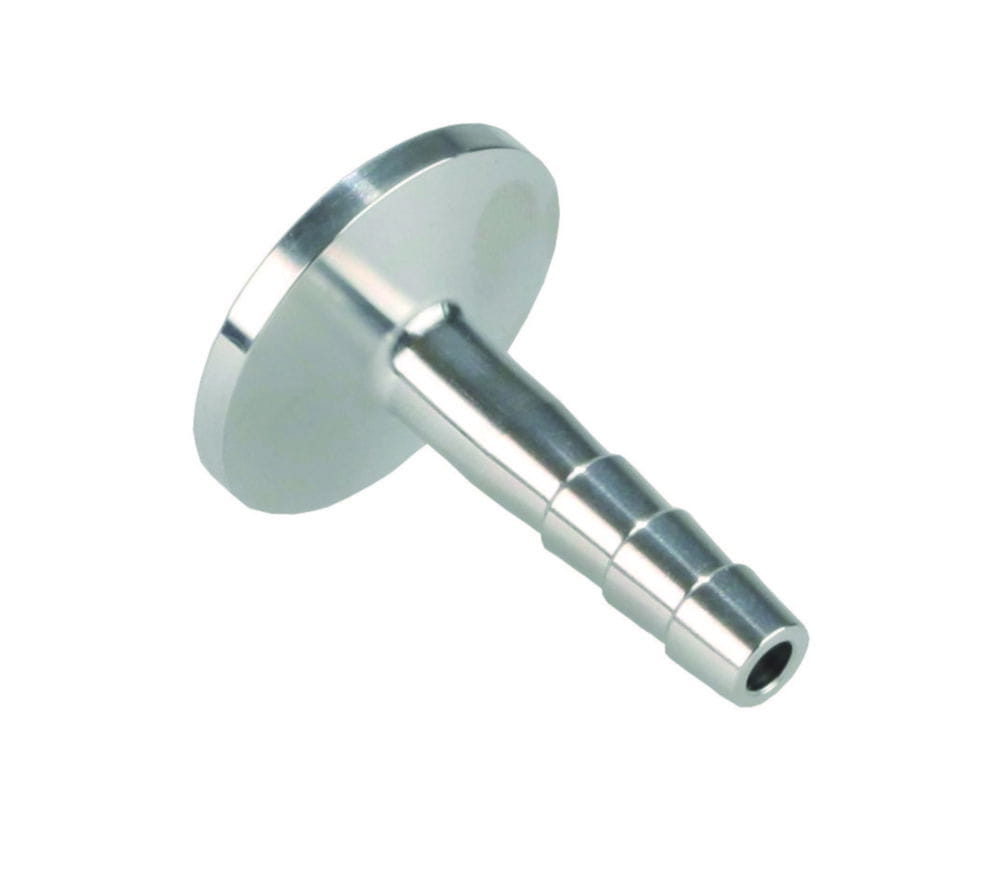

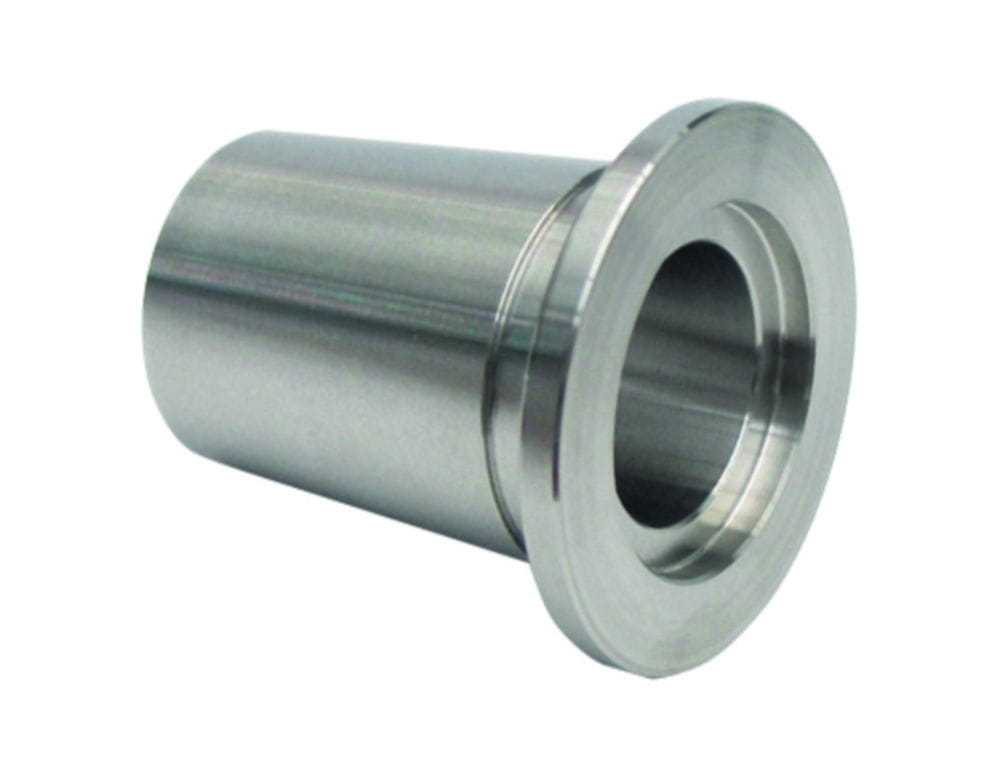

Flanged tubing nozzles. For Type KF small flange.

Stainless steel/FPM (e.g. Viton®). For Type KF small flange.

Plastic 'PBT'. For Type KF small flange.

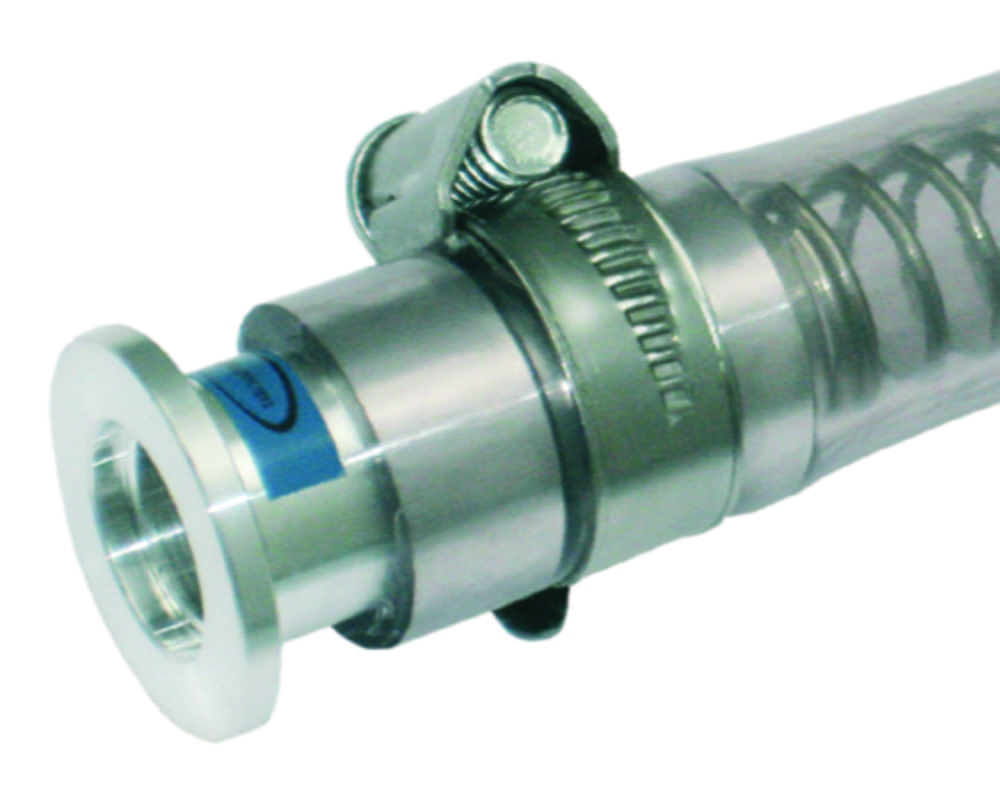

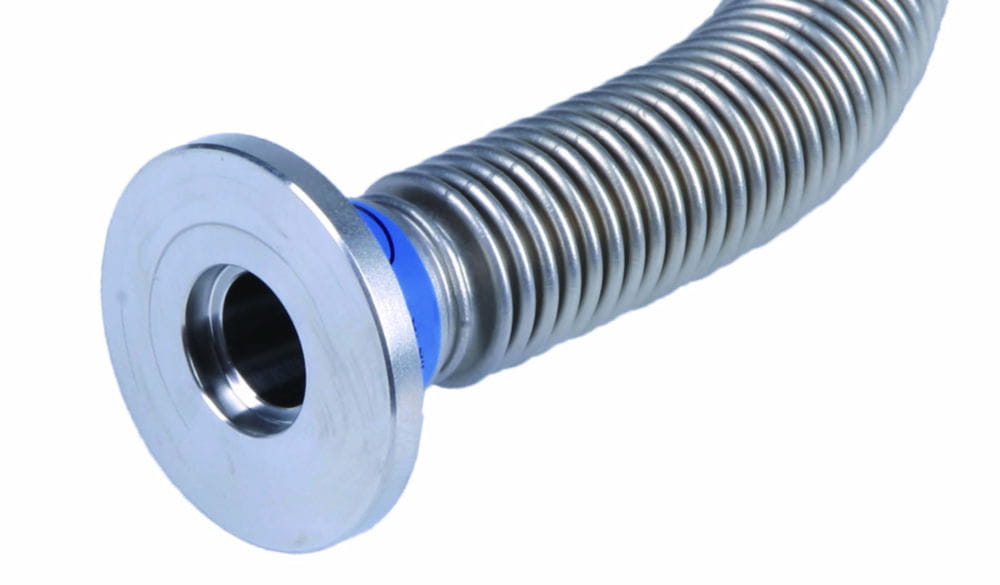

Flanged at both ends. For Type KF small flange.

Flanged at both ends. For Type KF small flange. Resistant to most chemicals.

Standard pump oil. High viscosity, low vapour pressure, good chemical resistance.

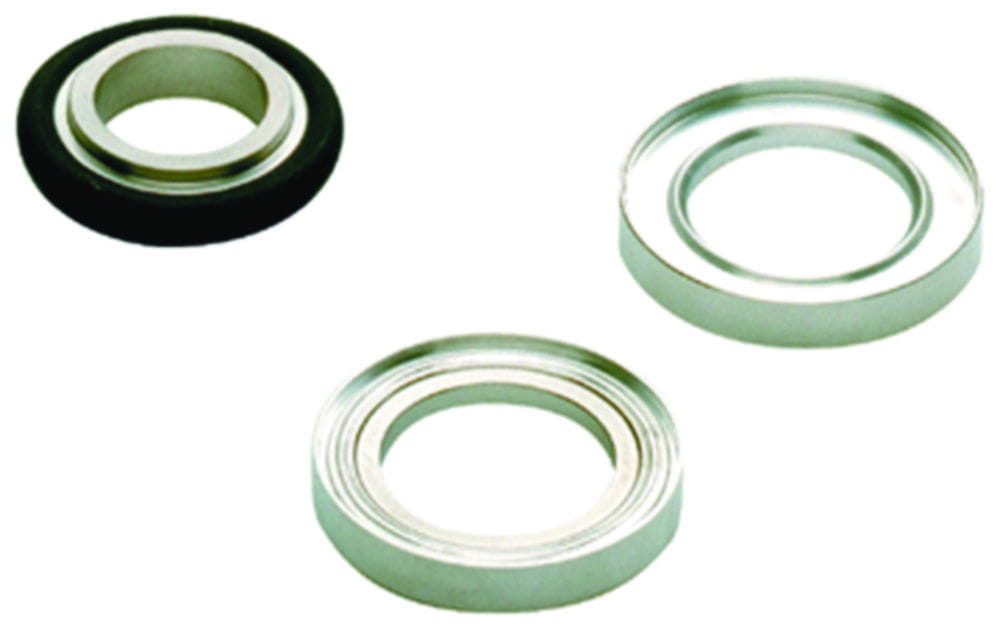

Small flanges. Stainless steel.

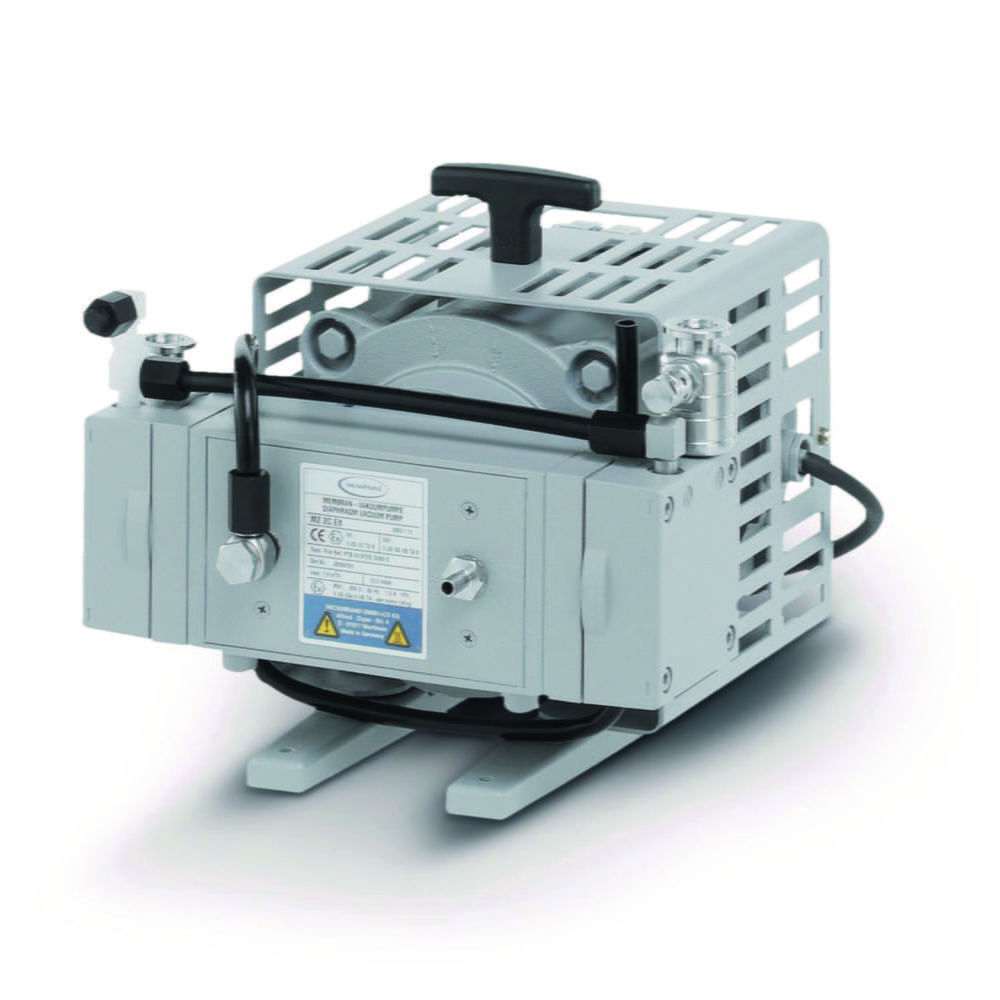

ATEX chemistry diaphragm pumps offer all advantages of oil-free chemistry diaphragm pumps. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The ATEX approval includes the interior of the pump (in contact with pumped gases) as well as the surrounding area of the pump.Outstanding chemical resistance and superior vapor toleranceMainly made of antistatic materialsFlame proof motor with integrated, self-locking overload and excess temperature protection for direct 230V / 50Hz single phase power supplyOverpressure safety relief valves internally and at outletWith separate gas ballast connection part for use of inert gasSafety diaphragm technology with option for inert gas purge and detection of diaphragm breakageATEX compliance:Pump chamber (pumped gases): II 2G IIC T3 XExterior space (pump environment): II 2G IIB T4 X (with inert gas purging) / II 3G IIB T4 X (without inert gas purging)Speed-controlled ATEX VARIO vacuum pumps on request.

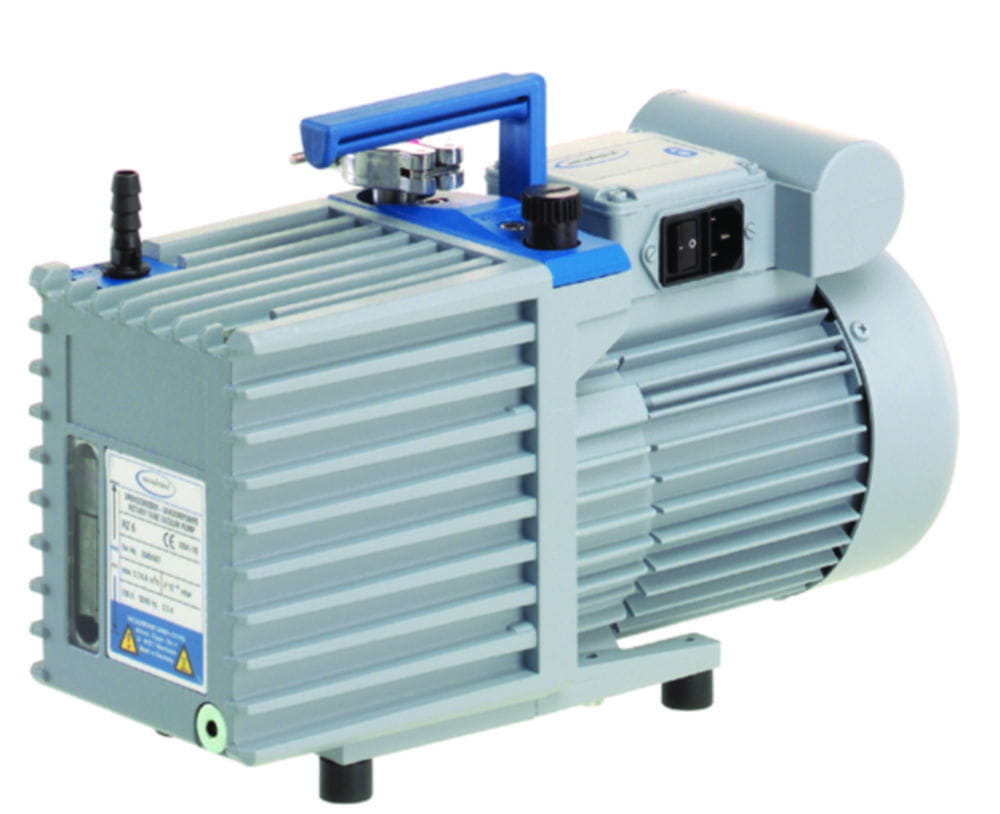

Vacuubrand rotary vane pumps encompass one and two stage pumps with throughputs from 2 to 9 m³/h.Typical rotary vane pump applications include, use as a backing pump for turbomolecular pumps but also serve in diverse chemical laboratory applications.Features and important characteristics: high water vapour tolerance, vacuum tight pumping mechanism when switched off, high performance gas ballast mechanisms. These increase the overall performance potential of these pumps, the service life of mechanical parts, increase oil-change intervals and reduce maintenance overheads.Country-specific power cord versions available on request.

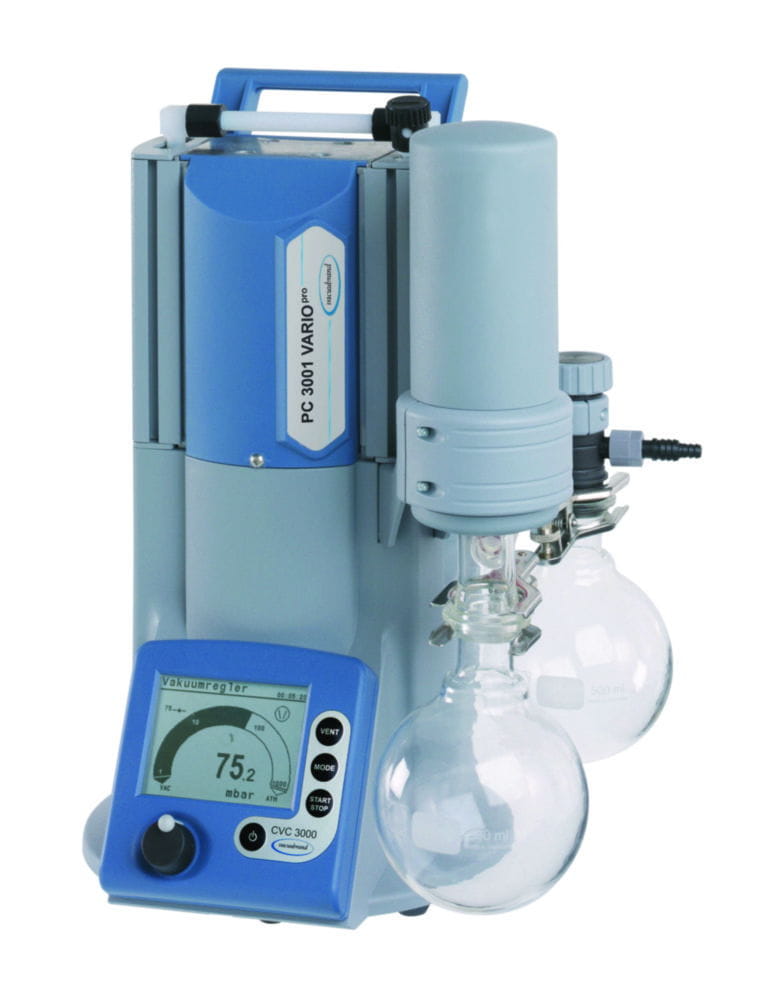

VARIO® Chemistry Pumping Units offer all the advantages of modern control technology and provide excellent possibilities for solvent recovery. They attain an ultimate vacuum down to 0.6mbar. They are exceptionally quiet in operation and entirely oil-free. Inside the pump, vapours and gases only come into contact with fluoroplastics of optimum chemical resistance.VARIO® Chemistry Pumping Units provide vacuum control by adaptation of motor speed. This has clear advantages compared to even the best of two-point control systems. The vacuum is continuously adjusted to actual process requirements, irrespective of apparatus size and vapour volume. Process times are typically shortened by 30%. Solvent recovery next to 100% is supported through continuous evaporation.All VARIO® Chemistry Pumping Units include a chemistry diaphragm vacuum pump and an integrated vacuum controller with display and vacuum sensor.

The diaphragm pumps ME 1C offer a compact and high performance solution. With their easy-to-use functionality, they are the perfect partner for both single and multiple filtrations.One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.Gas ballast for reliable pump performance.Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.The diaphragm pumps ME 1C offer a compact and high performance solution. With their easy-to-use functionality, they are the perfect partner for both single and multiple filtrations.One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.Gas ballast for reliable pump performance.Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.Diaphragm pumps ATEX-models available on request. Country-specific power cord versions available on request.

The VACUU LAN® local vacuum network allows multiple work stations to be connected to a single vacuum pump. This is useful for almost any conventional vacuum application in a chemical laboratory VACUU LAN® can be directly incorporated into new laboratory installations or retro-fitted. All assemblies have integral check (1-way) valves. A practical and economical solution for multiple vacuum users in a single laboratory.Detailed brochures are available on request!The VACUU LAN® local vacuum network allows multiple work stations to be connected to a single vacuum pump. This is useful for almost any conventional vacuum application in a chemical laboratory VACUU LAN® can be directly incorporated into new laboratory installations or retro-fitted. All assemblies have integral check (1-way) valves. A practical and economical solution for multiple vacuum users in a single laboratory.Detailed brochures are available on request!
