NaturalTemperature range (without mechanical stress) from -20 to 95°CAcid and chemical resistantSuitable for cold storage rooms and refrigeratorsStackableFood safe

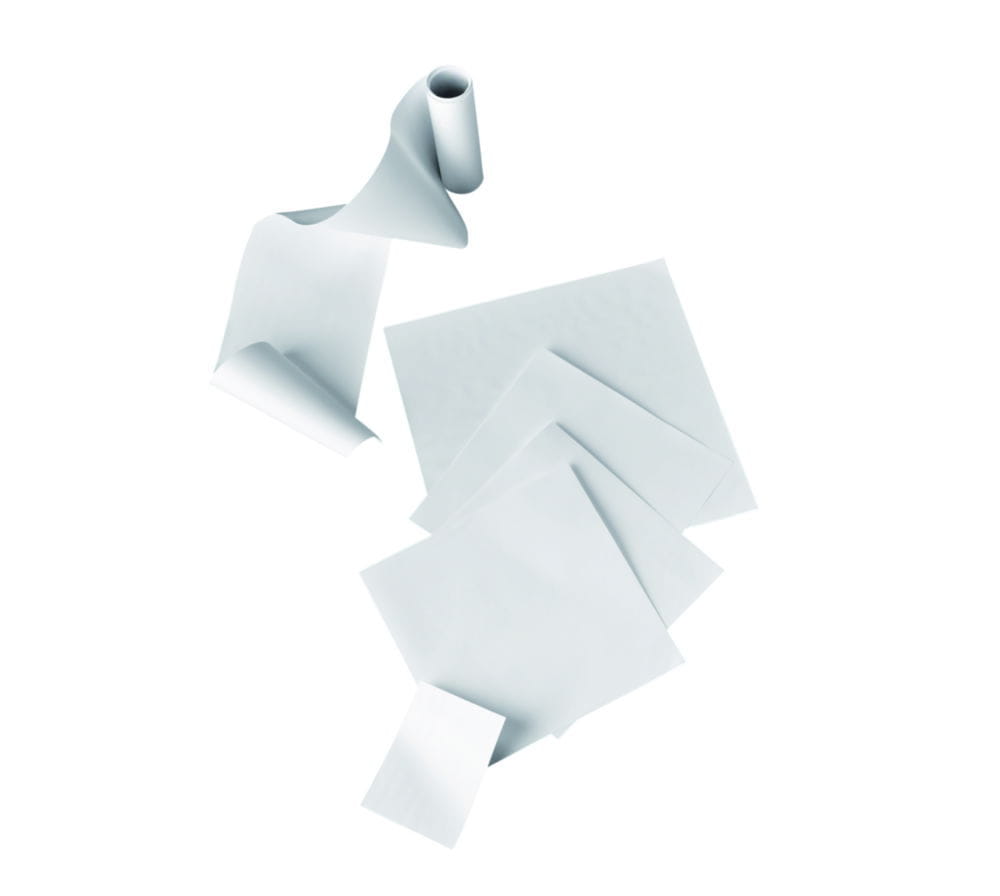

Pure Nitrocellulose transfer membrane for all protein or immunoblotting applications. The high sensitivity and low background ensures excellent results in all transfers. Compatible with all detection systems. BSA binding capacity up to 100µg/cm2.Signal word:H phrases:P phrases:Hazardous Substance DataGHSSignal wordGefahrH-SatzH228P-SatzP210, P243SDSLink

Supported Nitrocellulose transfer membranes combine the binding characteristics of nitrocellulose membranes with the strength of nylon membranes. These membranes are used for DNA/RNA transfers requiring low background or for multiple hybridizations. For use with chemiluminescence and radiographic detection systems. BSA binding capacity up to 100 µg/cm2.Signal word:H phrases:P phrases:Hazardous Substance DataGHSSignal wordGefahrH-SatzH228P-SatzP210, P243SDSLink

Hydrophobic Polyvinylidene Fluoride (PVDF) transfer membrane with high binding capacity and low background. Ideal for use in protein binding applications such as Western blots, solid phase assays and immunoblotting procedures. BSA binding capacity up to 125 µg/cm2

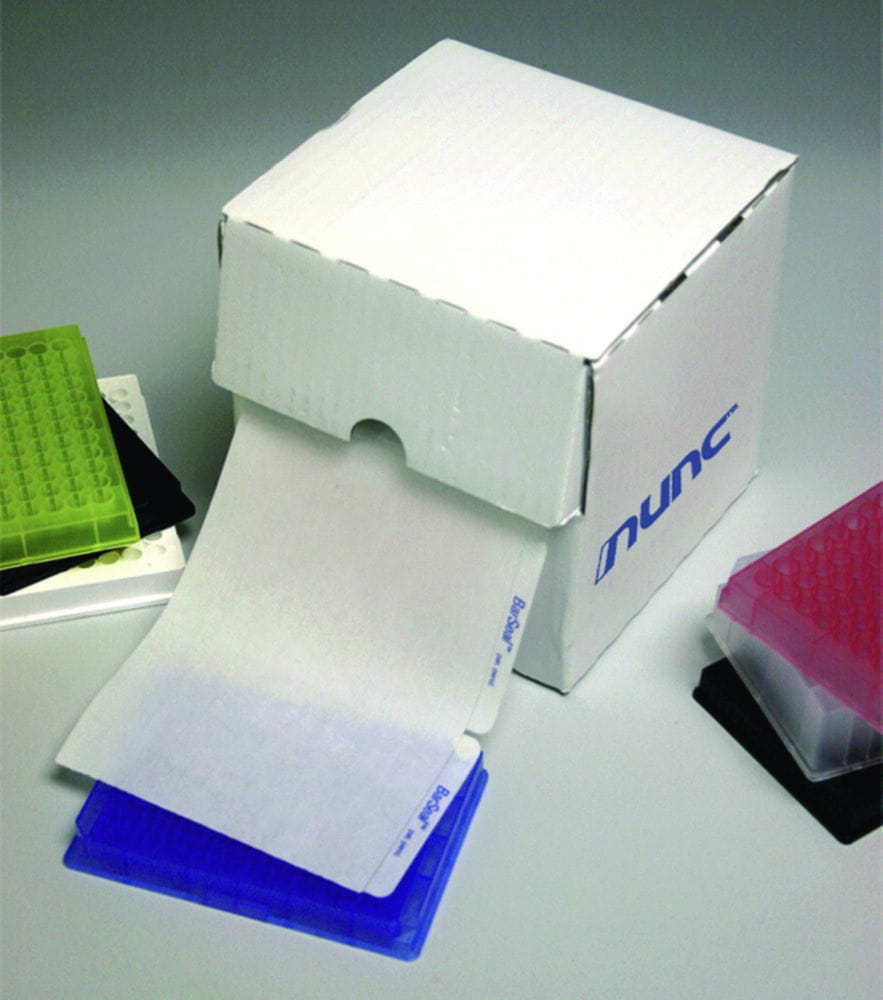

Effectively seals all microplate formats for storage, PCR, microscopy, culture and protection. Pre-cut, plate-sized sheets.Type 1) General use, PCR, storage, photo-sensitive samplesType 2) Cell Culture, sterile applicationsType 3) Microscopy, good optics, low auto-fluorescence, DMSO compatibleType 4) Breathable, cell culture

pH 7. In a HDPE bottle.Hazardous Substance DataSDSLink

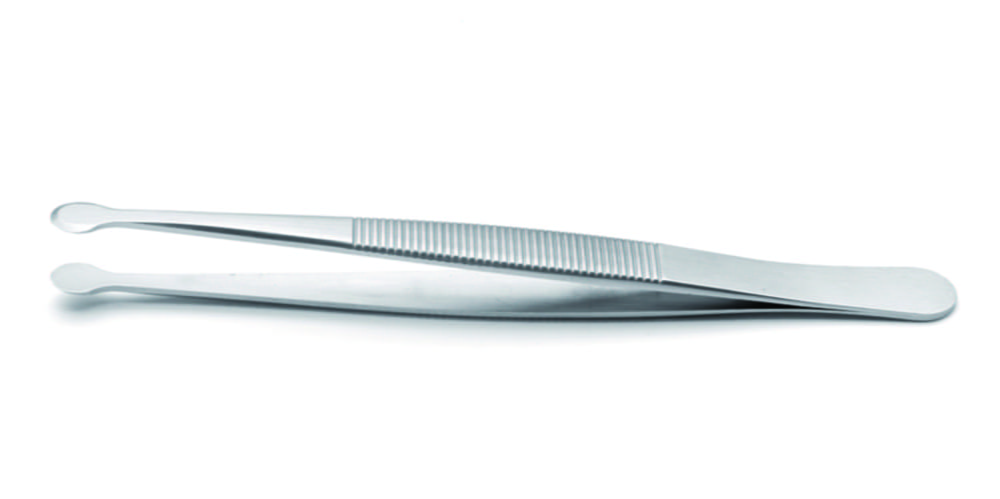

Swiss made. Made of austenitic steel. Non-magnetizable. Good corrosion resistance to most chemicals, salts and acids. Especially suitable for safe handling of transfer membranes.

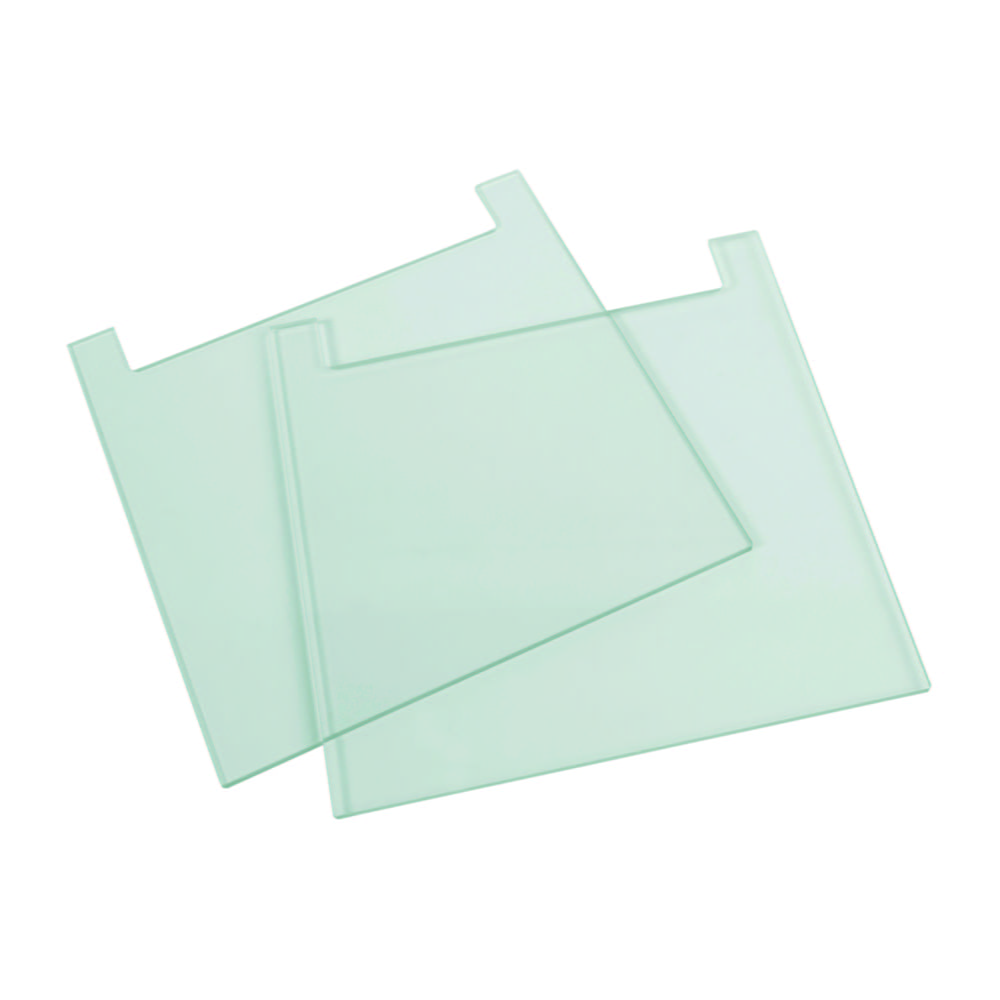

Suitable for BIO-RAD™ Mini-PROTEAN™ III and Tetra Cell.Pack of 5 plates.

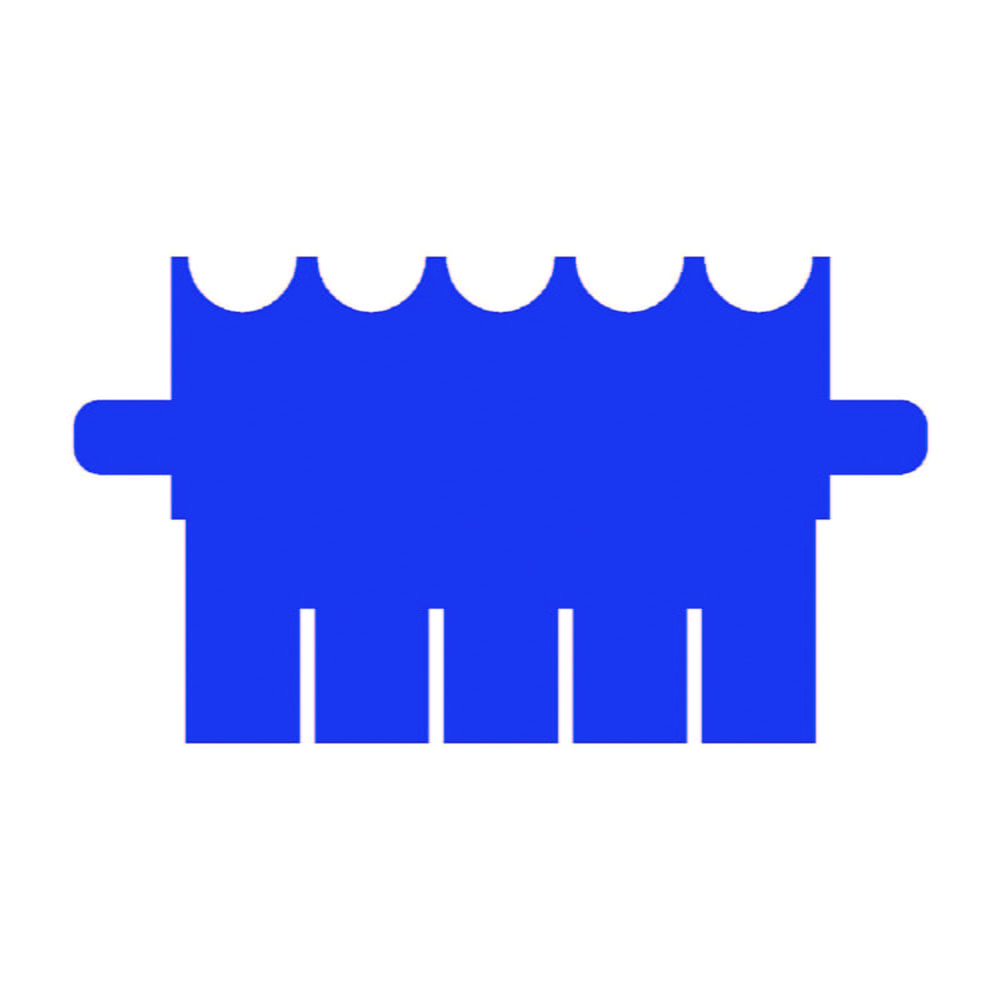

MC = Multichannel compatible with consecutive loading.

Enhanced Coomassie based protein stain formulated for fast and sensitive protein detection without the involvement of hazardous chemicals such as methanol, acetic acid, and other toxic agents. Protein detection limits are as low as 10 ng and visualization can be achieved in less than 1 hour. Applications suitable for native PAGE, SDSPAGE, isoelectric focusing, and 2D gels.Detection of protein concentration as low as 10 ngProtein bands visualization within 10 minutesWithout involvement of hazardous chemicalsHazardous Substance DataSDSLink

Imaging system for the detection of proteins in Western Blot analysis. Peltier cooling of the highly sensitive CCD camera allows exposure times to be increased to detect even faint chemiluminescence without adding background noise.Cooled, high-resolution camera with high quantum efficiency (QE)Motorised lens, stage and filter wheel (7-stage)Long-life white LED EPI lightingCFR21 Part 11 compliantWith acquisition and analysis software genePIX and geneQUANTScope of supply: Gel documentation system, UV filter, manual, acquisition and analysis softwareLense:f0.8 or f0.95, auto focusCamera cooling:-57 °CSensor bit-depth:16 BitGreyscales:65536Dynamic range:4.8Max. image area:345 x 276 mmDimensions (W x D x H):570 x 550 x 990 mmWeight:45 kgPower supply:230 V, 50 Hz

Complete solution for chemiluminescence and fluorescent Western blot imaging. With highly sensitive cooled CCD Camera with high quantum efficiency, for detection of picogram level proteins. Peltier cooling allows exposure times to be increased to detect faint chemiluminescence without adding annoying background noise. Suitable for chemiluminescence Western blots, auto-rads, DNA or RNA stained with ethidium bromide, SYPRO, SYBR and SAFE dyes on agarose gels, Coomassie blue or silver stained proteins on acrylamide gels, stain-free gels and fluorescent gels. Furthermore GFP-plantimaging, colonies or plaques detection on Agar plates, bioluminescence and 2d gels. The free of charge software allows automated imaging of multicolour blots with a simple and user friendly interface.Cooled, high resolution, high quantum efficiency (QE) cameraMotor driven lens and 7-position motor-driven filter wheelLong-life white LED EPI lightingCFR21 Part 11 compliantWith acquisition and analysis software genePIX and geneQUANTScope of supply:Darkroom, camera, UV transilluminator, UV emission filter, license free acquisition and analysis softwareSpecificationsResolution:4 megapixelsEffective resolution:16 megapixelsLens:Zoom, f1.2Camera cooling:-57 °CSensor bit-depth:16 bitGreyscales:65536Dynamic range:4.8Transilluminator wavelength:302 nmTransilluminator size:250 x 300 mmDimensions (W x D x H):570 x 450 x 840 mmWeight:37 kgPower supply:230 V/50 Hz

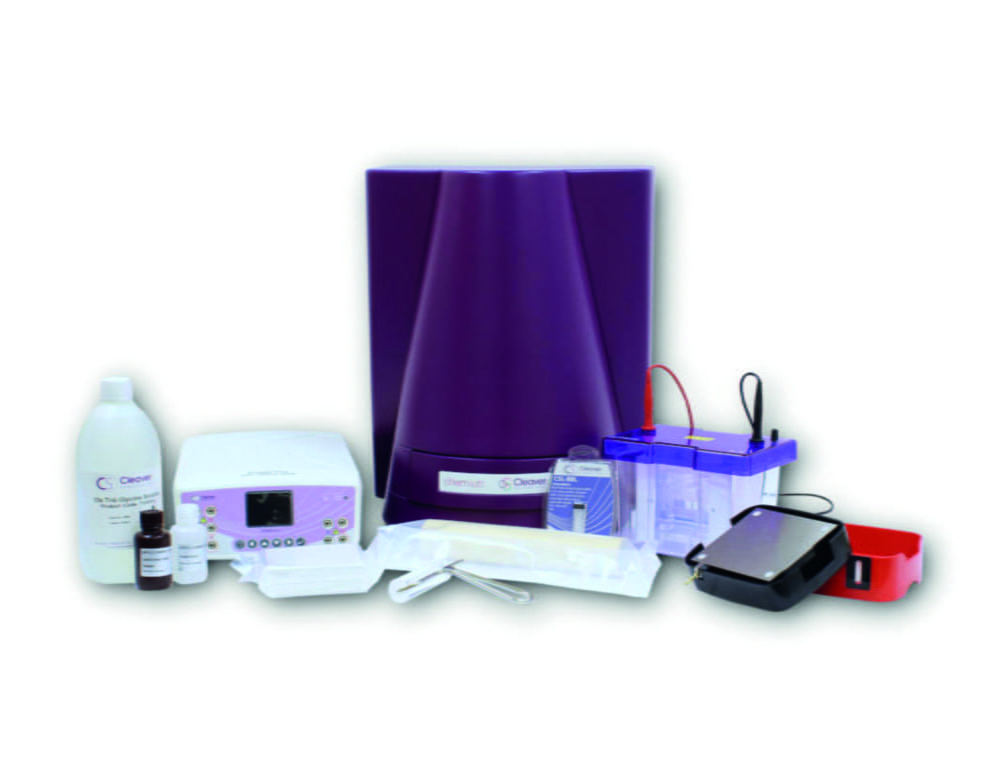

Complete package for Western blotting of mini gels with chemiluminescence. It includes everything necessary from gel loading to gel documentation and quantification.Gel documentation system chemiLITE with Peltier-cooled CCD camera. Acquisition and analysis software is already included licence-freeVertical electrophoresis tank omniPAGE Mini for protein analysis in up to 4 gelsPower supply PowerPro can be operated in constant mode or programmed. With the power supply can be used to operate both the electrophoresis tank and the semi-dry blotterScope of supply: Gel documentation system chemiLITE, electrophoresis tank omniPAGE Mini SYS, power supply PowerPro 3AMP, semi-dry blotter SD10, roller for western blotting, blotting paper (10 x 10 cm), PVDF transfer membrane (roll á 28 cm x 3 m, 0.22 µm pore size), protein ladder BLUE Wide Range (10 to 245 kDa), ECL substrate kit LumiPRO, Blocking solution (500 ml), Tris-Glycine SDS buffer (1 l)

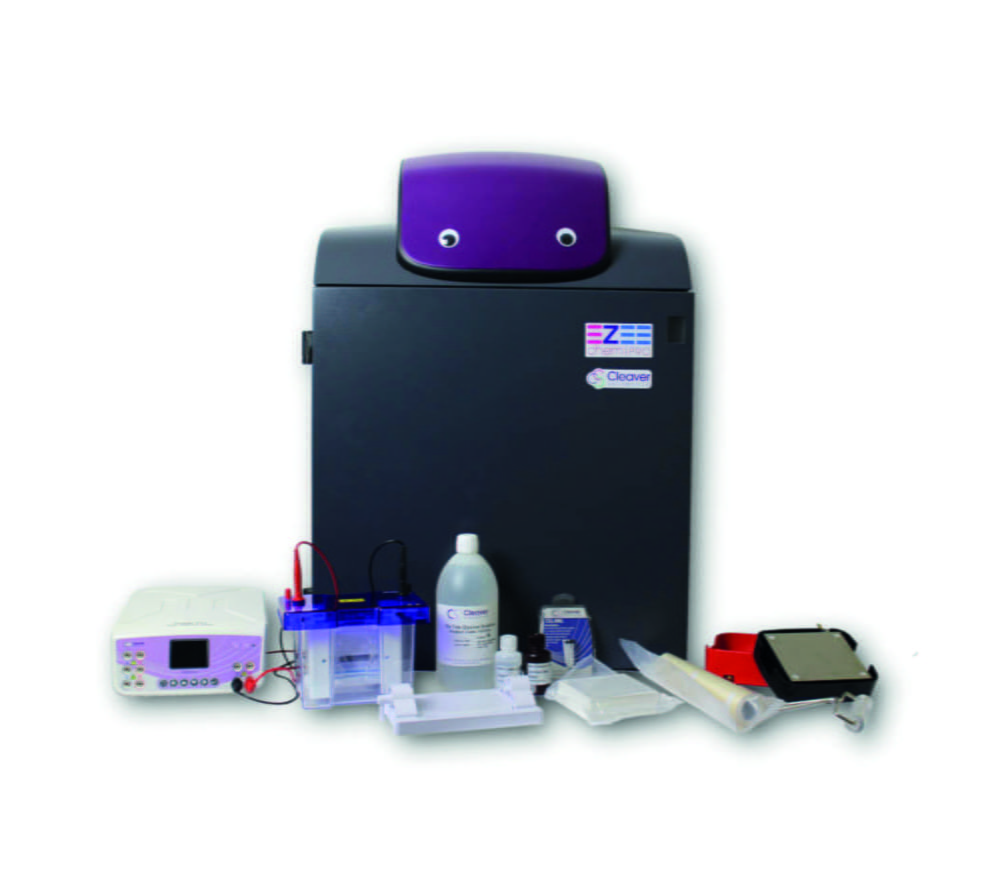

Complete package for Western blotting of mini gels with chemiluminescence. It includes everything necessary from gel loading to gel documentation and quantification.Gel documentation system chemiPro with UV transilluminator and large imaging area. Acquisition and analysis software is already included licence-freeVertical electrophoresis tank omniPAGE Mini for protein analysis in up to 4 gelsPower supply PowerPro can be operated in constant mode or programmed. With the power supply can be used to operate both the electrophoresis tank and the semi-dry blotterScope of supply: Gel documentation system chemiPro-302E, electrophoresis tank omniPAGE Mini SYS, power supply PowerPro 3AMP, semi-dry blotter SD20, roller for western blotting, blotting paper (10 x 10 cm), PVDF transfer membrane (roll á 28 cm x 3 m, 0.22 µm pore size), protein ladder BLUE Wide Range (10 to 245 kDa), ECL substrate kit LumiPRO, Blocking solution (500 ml), Tris-Glycine SDS buffer (1 l)

MC = Mehrkanal kompatibel mit aufeinanderfolgender Beladung.

MC = Multichannel compatible with consecutive loading.

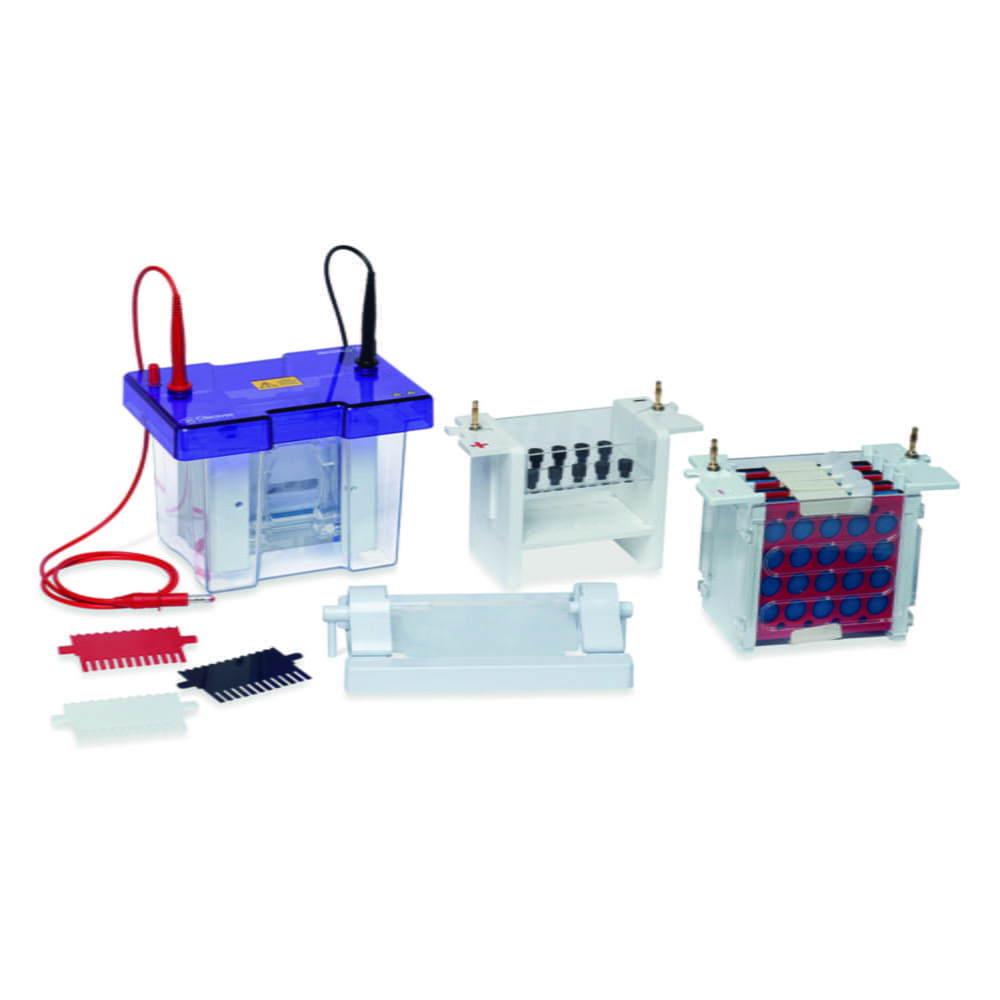

Vertikale Kammer speziell für Proteinanalysen in bis zu 4 Gelen. Das spezielle Herstellungsverfahren ergibt ein Gerät mit einzigartiger Qualität und Haltbarkeit zu einem sehr günstigen Preis. Sehr einfache Handhabung und schnelle Kühlung. Die Abmessungen sind kompatibel zu allen 8 x 10 und 10 x 10 cm Fertiggelen. Hoher Proben-Durchsatz durch bis zu 4 Gele mit je 20 Proben. Geringes Puffervolumen von 250 bis 1200 ml.Lieferumfang: Kammer mit Platinelektroden, 2x Glasplatten mit Spacern (1 mm), Elektroden, 2 Kämme (12 Zähne), Gelgießbasis

Vertikale Kammer speziell für Proteinanalysen in bis zu 4 Gelen. Das spezielle Herstellungsverfahren ergibt ein Gerät mit einzigartiger Qualität und Haltbarkeit zu einem sehr günstigen Preis. Sehr einfache Handhabung und schnelle Kühlung. Die Abmessungen sind kompatibel zu allen 8 x 10 und 10 x 10 cm Fertiggelen. Hoher Proben-Durchsatz durch bis zu 4 Gele mit je 20 Proben. Geringes Puffervolumen von 250 bis 1200 ml.Lieferumfang: Kammer mit Platinelektroden, 2x Glasplatten mit Spacern (1 mm), Elektroden, 2 Kämme (12 Zähne), Gelgießbasis, Blotting insert

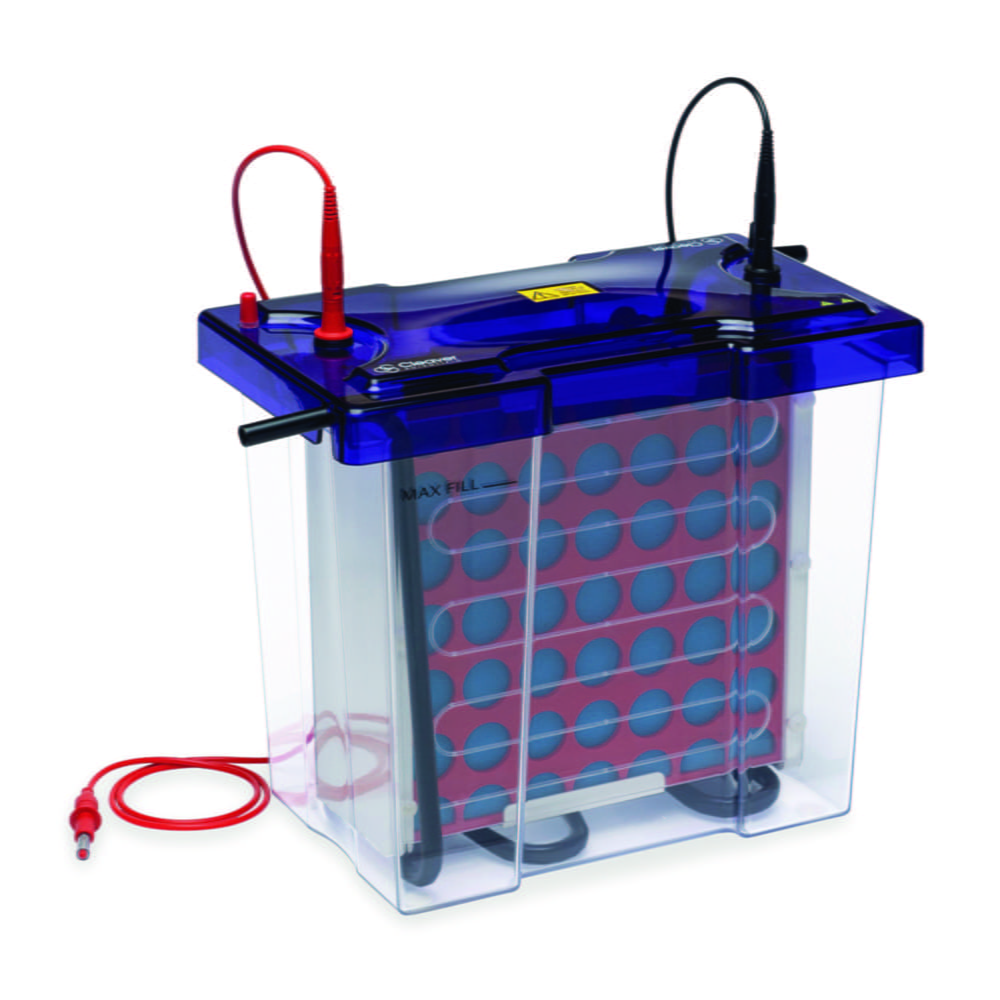

The omniBlot is an stand-alone unit for the tank-blot method. Each unit consists of an OmniPAGE tank and lid, a electroblotting insert as well as cassettes and fibre pads. The versatile design of the tanks and the matching lids are compatible with the vertical PAGE or IEF systems with the appropriate optional inserts.Mini system transfers up to 4 Mini gelsMini Wide system transfers up to 4 Mini Wide and 8 Mini gelsMaxi system transfers up to 4 Maxi gels, 8 Mini Wide and 16 Mini gelsRun-times ranging between 2 and 20 hoursRigid cassettes eliminate the formation of shadow bandsColour coded cassettes prevent reverse polarity for correct orientationCooling with cooling packs at high transmission intensitySpecificationsDimensions (W x D x H):Mini: 15 x 13 x 19 cm Mini Wide: 26 x 16 x 16 cm Maxi: 27 x 18 x 30 cmGel dimension:Mini: 8 x 8.5 cm Mini Wide: 16 x 8.5 cm Maxi: 16 x 17.5 cmMax. buffer volume:Mini: 1200 ml Mini Wide: 2800 ml Maxi: 6400 mlRun time:Mini: 1-2 h Mini Wide: 1-2 h Maxi: 5-20 hPower supply:100 V

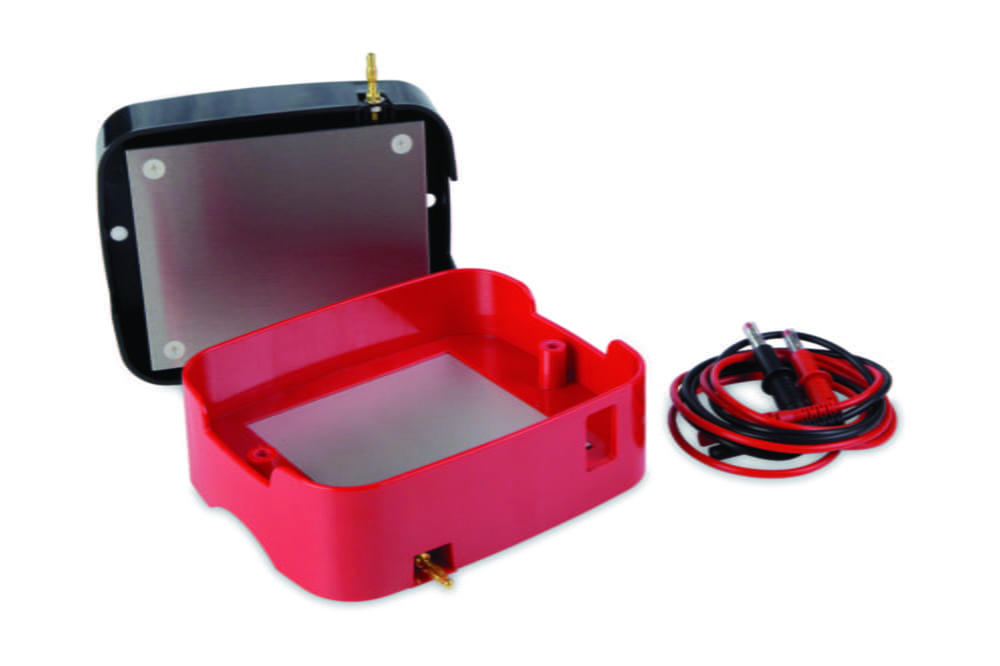

These Semi Dry Blotters offer rapid transfer times for DNA, RNA and protein blotting; typically 15 to 30 minutes. All units can be used for all types of blotting: western, southern and northern via uncomplicated buffer and set up procedures and are compatible with gel thicknesses from 0.25 up to 10mm without the need for additional equipment. Each unit is compatible with their respective omniPAGE vertical gel system. Semi Dry Blotting has the added benefit of economic transfers due to very low buffer volumes - typically only a few millilitres of buffer are required per transfer. These Semi-Dry Blotters utilise a screw down lid, which secures the blot sandwich and allows complete control of pressure ensuring even transfer. The electrodes, comprising platinum coated anode and stainless steel cathode, will exhibit practically no corrosion and so provide many years of trouble free use. Uniform heat dispersion across the blot sandwich ensures stable transfer times and no heat induced sample loss or transfer distortions. Being translucent, it allows viewing of the blot sandwich to ensure correct positioning and transfer is occurring correctly. Electrode plates are fully separated to prevent arching or damage.
