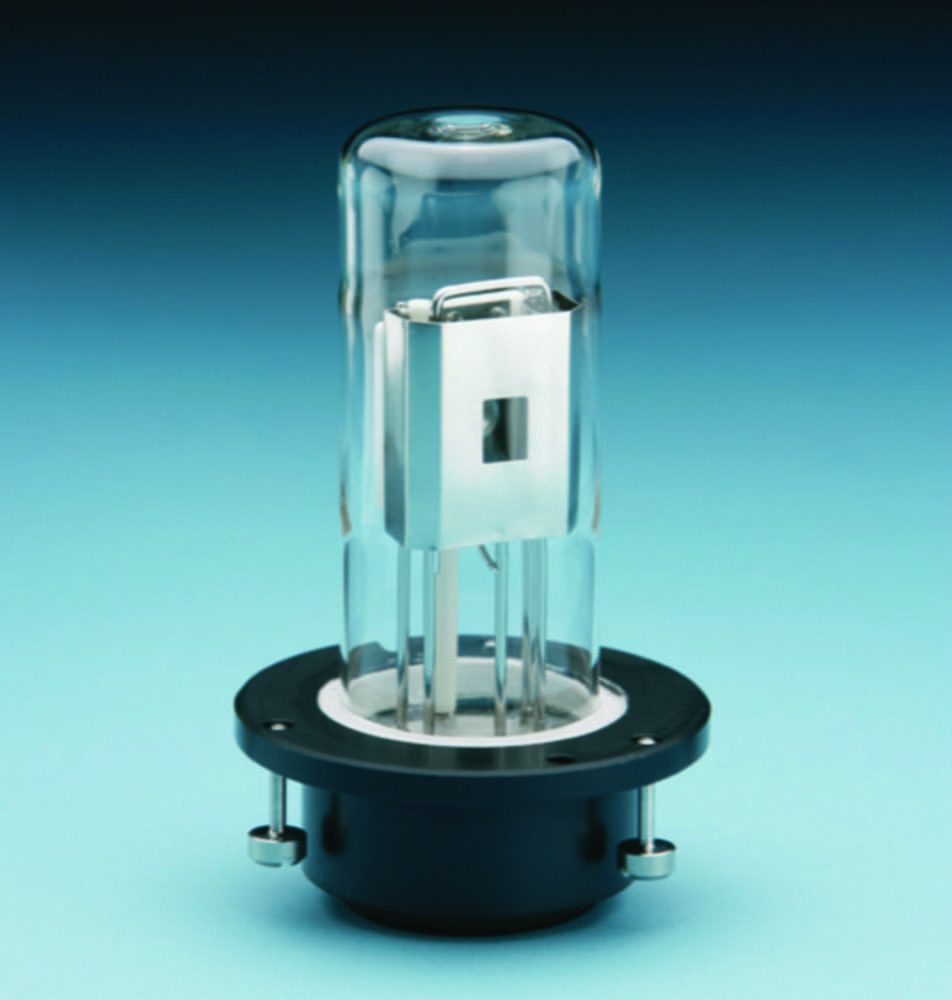

Fits for:
ABI 757, 759, 783A, 785A, 1000S, 980, 120A, 130A D2 Lamp
|
For detectors:
ABI 757, 759, 783A, 785A, 1000S, 980, 120A, 130A D2 Lamp
|
Manufacturer Article Number:
11941-10
Variants from €576.13*
Description:
with frit (P=1) NS 14/23
|
Dimensions (ØxL):
10 x 300 mm
|
Int. diam. mm:
10
|
Length:
300 mm
|
Length mm:
300
|
Manufacturer Article Number:
066.11.002
|
Material:
Borosilicate
|
Material stopcock:
PTFE key
|
Socket[s]:
NS14/23
|
Standard:
DIN 12242
|
With stopcock:
Yes
|
Ø:
10 mm
Pore size 1. NS necks are in compliance with DIN 12242 standards.
Variants from €94.93*
For external tube diam. mm:
7 ... 9
|
Int. tubing Ø:
7 ... 9 mm
|
Manufacturer Article Number:
SC000168.3*LE
|
Material:
PTFE
|
Material:
PTFE
|
Max. int. tubing Ø:
9 mm
|
Min. int. tubing Ø:
7 mm
|
Shape (Tubing connectors):
Straight
|
Thread:
1/4"-28
Thread:
1/4"-28

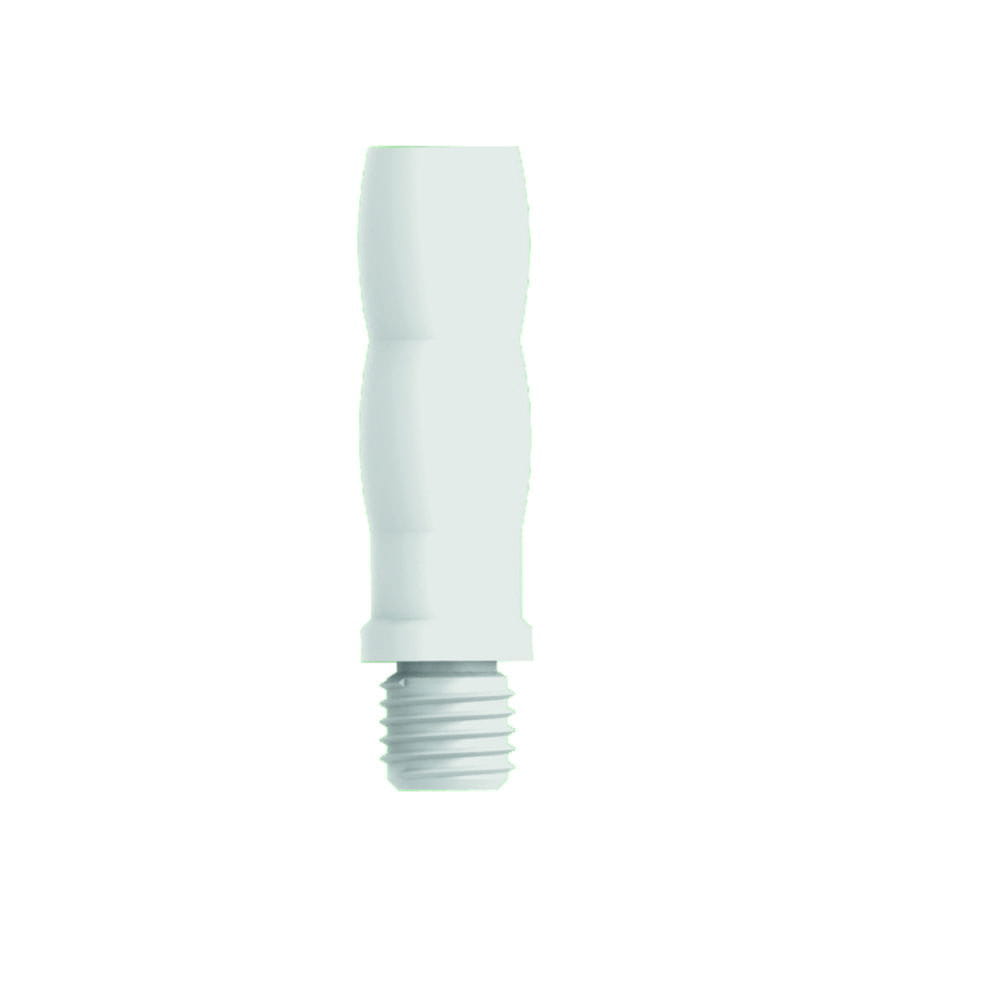

For connecting hoses to the capillary positions of the Waste SafetyCaps.
Dimensions (ØxL):
15 x 200 mm
|
Length:
200 mm
|
Manufacturer Article Number:
05440702
|
Material:
DURAN® tubing
|
Material stopcock:
PTFE key
|
Nominal capacity:
35 ml
|
Socket[s]:
NS14/23
|
UNSPSC:
23-15-18-16
|
With stopcock:
Yes
|
Ø:
15 mm

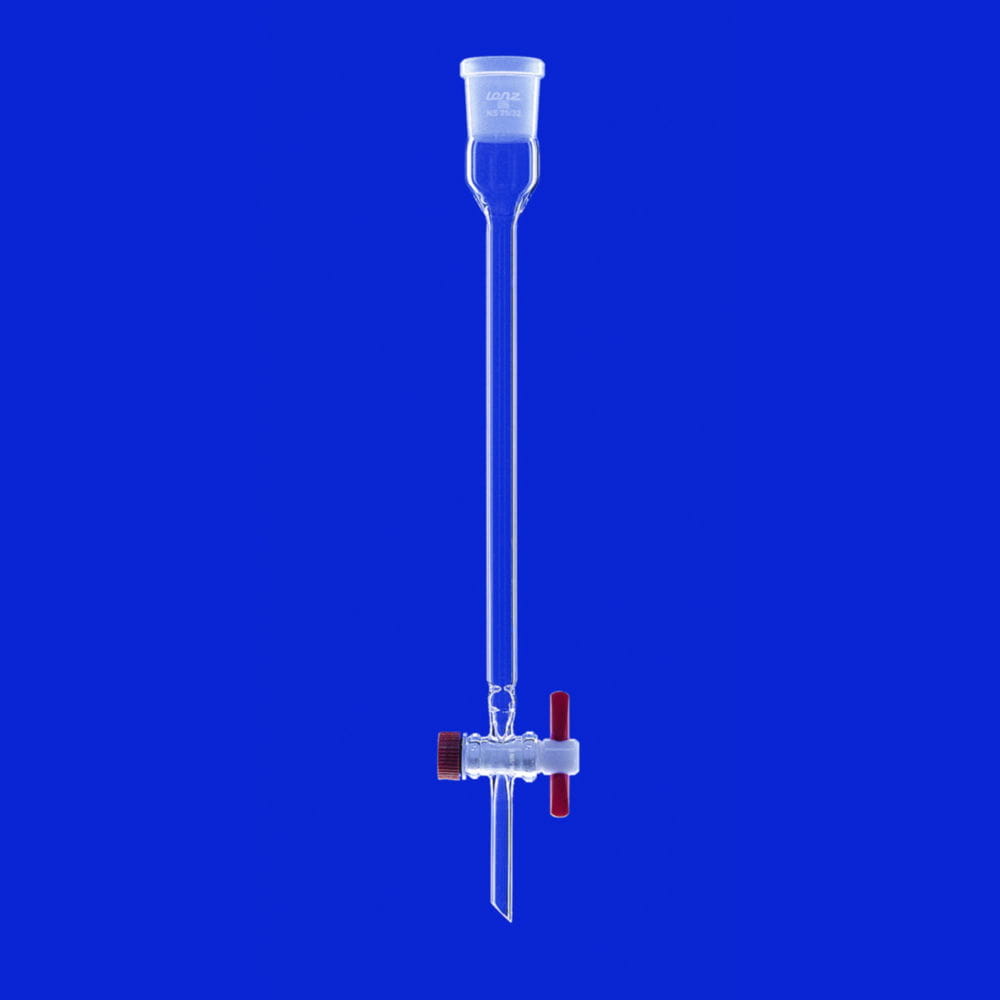

Made of DURAN® tubing. Basic chromatographic columns with indentations above the stopcock for placing a cotton plug, with NS socket, with PTFE stopcock and retaining device.
Variants from €61.74*
Description:
without frit NS 14/23
|
Dimensions (ØxL):
10 x 200 mm
|
Int. diam. mm:
10
|
Length:
200 mm
|
Length mm:
200
|
Manufacturer Article Number:
066.10.001
|
Material:
Borosilicate
|
Material stopcock:
PTFE key
|
Socket[s]:
NS14/23
|
Standard:
DIN 12242
|
With stopcock:
Yes
|
Ø:
10 mm
Chromatography columns with socket and with frit. Manufactured from borosilicate glass 3.3 which is resistant to heat and almost all chemicals. NS necks are in compliance with DIN 12242 standards.

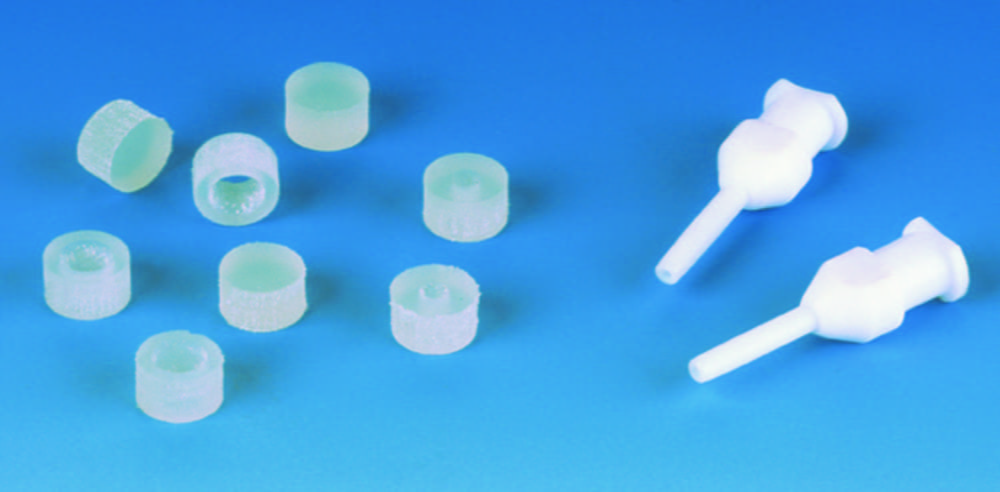

Description:
Replacement caps, for tubes with an outsideØ of 1.6 to 2.0 and 2.1 to 4.0 mm
|
Manufacturer Article Number:
D 610-02
|
UNSPSC:
41115700
Dimensions (ØxL):
20 x 400 mm
|
Length:
400 mm
|
Manufacturer Article Number:
05450704
|
Material:
DURAN® tubing
|
Material stopcock:
PTFE key
|
Nominal capacity:
125 ml
|
Socket[s]:
NS29/32
|
With stopcock:
Yes
|
Ø:
20 mm
Made of DURAN® tubing. Chromatography columns with sintered frit (porosity 0), NS socket and PTFE stopcock.
Variants from €79.17*
Capillary connections:
3
|
Manufacturer Article Number:
SC000129.1*LE
|
Material:
PTFE
|
No. of fittings:
3 x 2,3 ... 3,2 mm
|
Thread:
GL 45/DIN 45
|
UNSPSC:
41115700

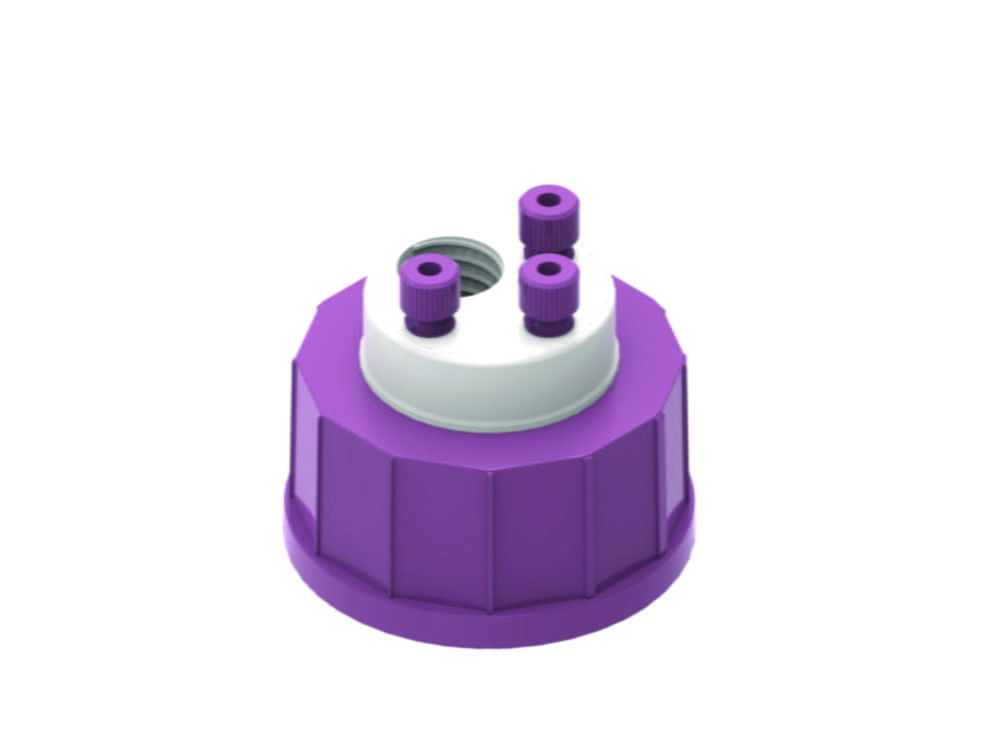

Ideal for collecting liquid HPLC waste. The activated carbon in the exhaust filter binds all hazardous solvent vapours. Replacement of the exhaust filter after 6 months is recommended. Both capillaries and hose barbs can be inserted into the capillary connections.With timestrip stickerCaps and fittings made of PPBody and hose barbs made of PTFEPlease order exhaust filter separately.
Variants from €57.70*
Autoclavable:
Yes
|
Colour:
Clear
|
Height:
225 mm
|
Manufacturer Article Number:
1129820
|
Material:
DURAN® glass
|
Material closure:
PP
|
Nominal capacity:
1000 ml
|
Thread:
GL45
|
Type of graduation:
Printed
|
UNSPSC:
41121804
|
Ø:
101 mm

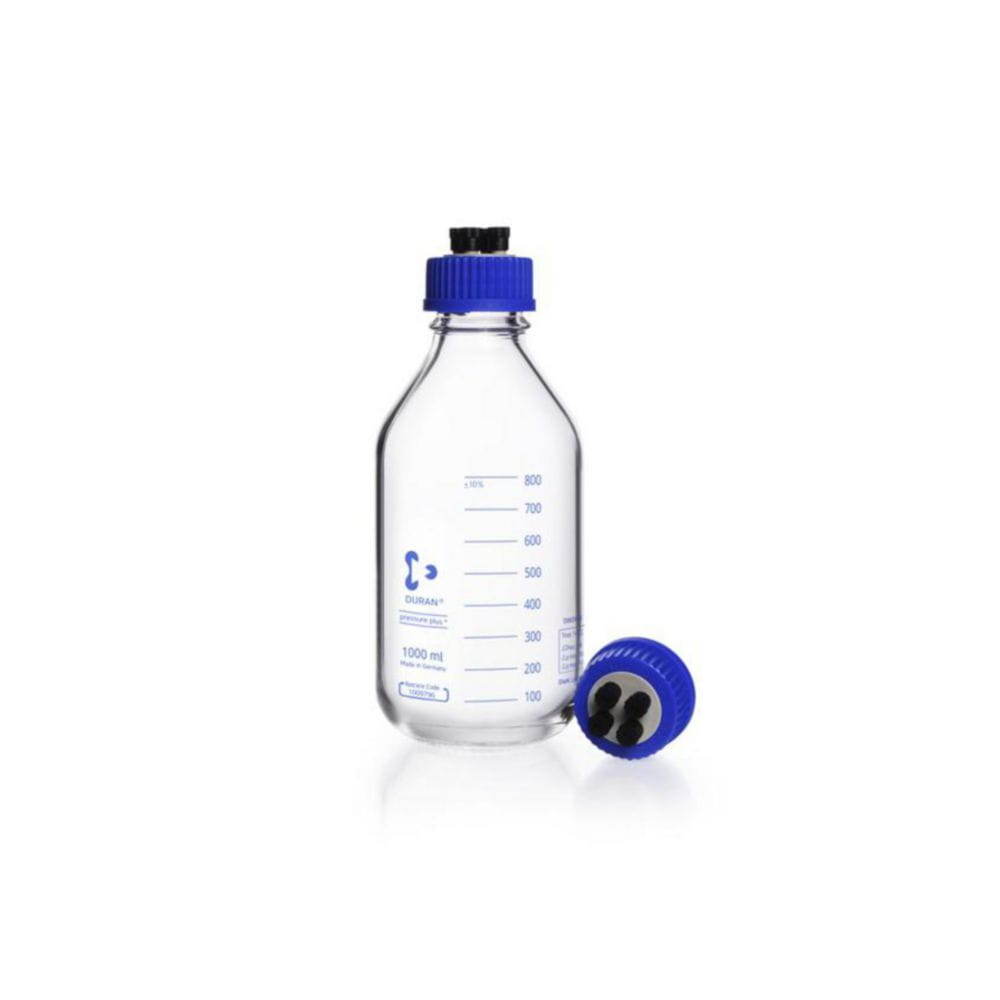

For sterile transfer of media or for feeding solvent to HPLC instruments. The bottle is pressure/vacuum resistant from -1 to +1.5 bar (tested by TÜV in accordance with EN 1596, GS marked). Complete with a 4-port screw cap (autoclavable, reusable) made from PP, 4 connection screw caps (black, M8 thread) and silicone seal. Suitable for tube diameters of 1.6mm and 3.2mm. Spare parts are available individually. Further connection system components for the GL45 thread are available upon request (Tubing not included). Neutral / Type I glass acc. to USP/EP. With Retrace Code (Batch Identification), with certificate available via the internet. Autoclavable.
Variants from €68.88*
Capillary connections:
2
|
Hose connections:
1
|
Manufacturer Article Number:
160130
|
Material:
PTFE
|
No. of fittings:
2 x 2,3/3,2 mm (90°)
|
No. of olives:
1 x 5 ... 11,5 mm
|
Thread:
NPT 1/8"
|
UNSPSC:
41115700
|
UNSPSC:
41-00-00-00
Collectors for additional parts to add more tubings and capillaries. Delivered with fittings.Further configurations available on request.
Variants from €40.50*
Description:
Screw cap GL 45, 4 ports (4 x M8 screw caps, 12 x silicone seals)
|
Manufacturer Article Number:
1129812
|
UNSPSC:
41-10-51-08
|
UNSPSC:
41115700

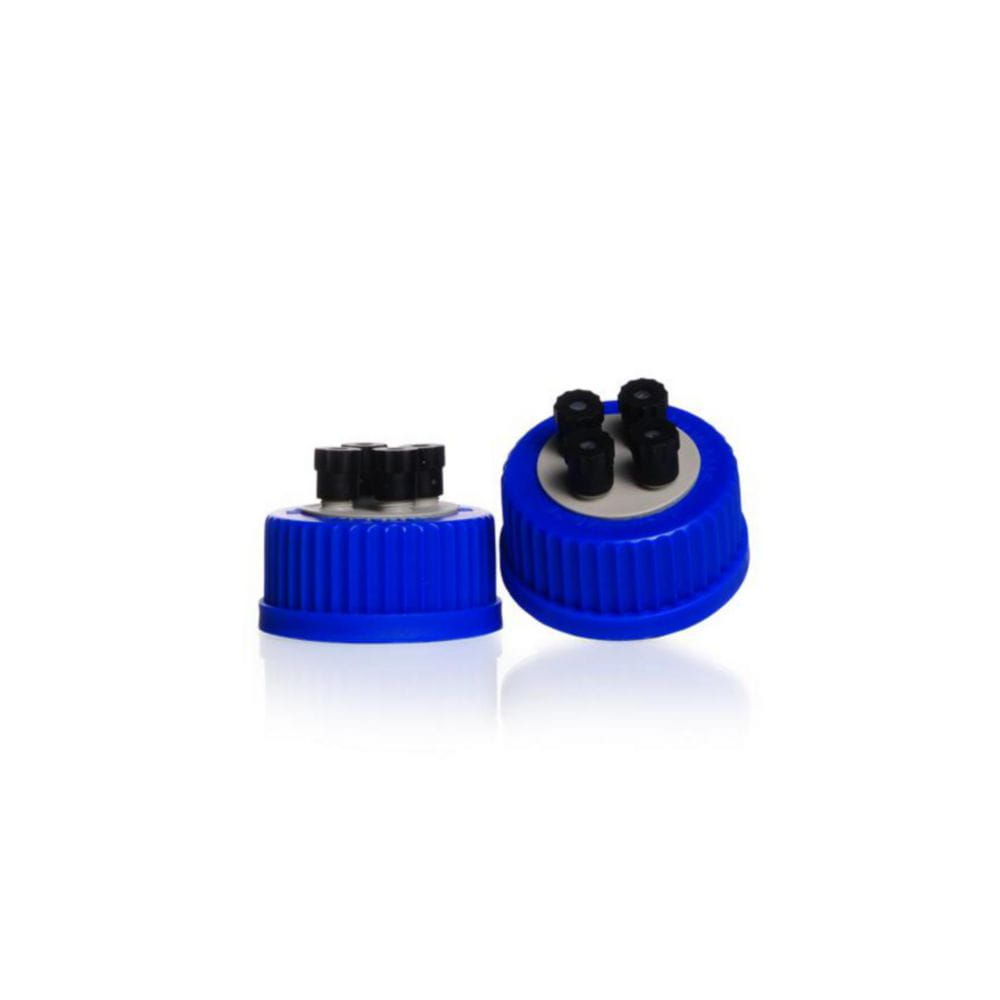

For safe transfer of liquid media within a closed and sterile system (evaporation is reduced).Screw closure GL 45 with two, three or four ports GL 14 threadAutoclavableTemperature restistant up to max. 140 °CFlexible modular systemSterile pressure equalisation is possible through use of a membrane filterUnused ports can be provided with a blind cap
Variants from €3.63*
Autoclavable:
Yes
|
Colour:
Clear
|
Height:
295 mm
|
Manufacturer Article Number:
218415407
|
Material:
Boro 3.3
|
Nominal capacity:
1000 ml
|
Standard:
ISO 3585
|
Thread:
GL45
|
Type of closure:
Without
|
Type of graduation:
Printed
|
UNSPSC:
41121804
|
Ø:
110 mm

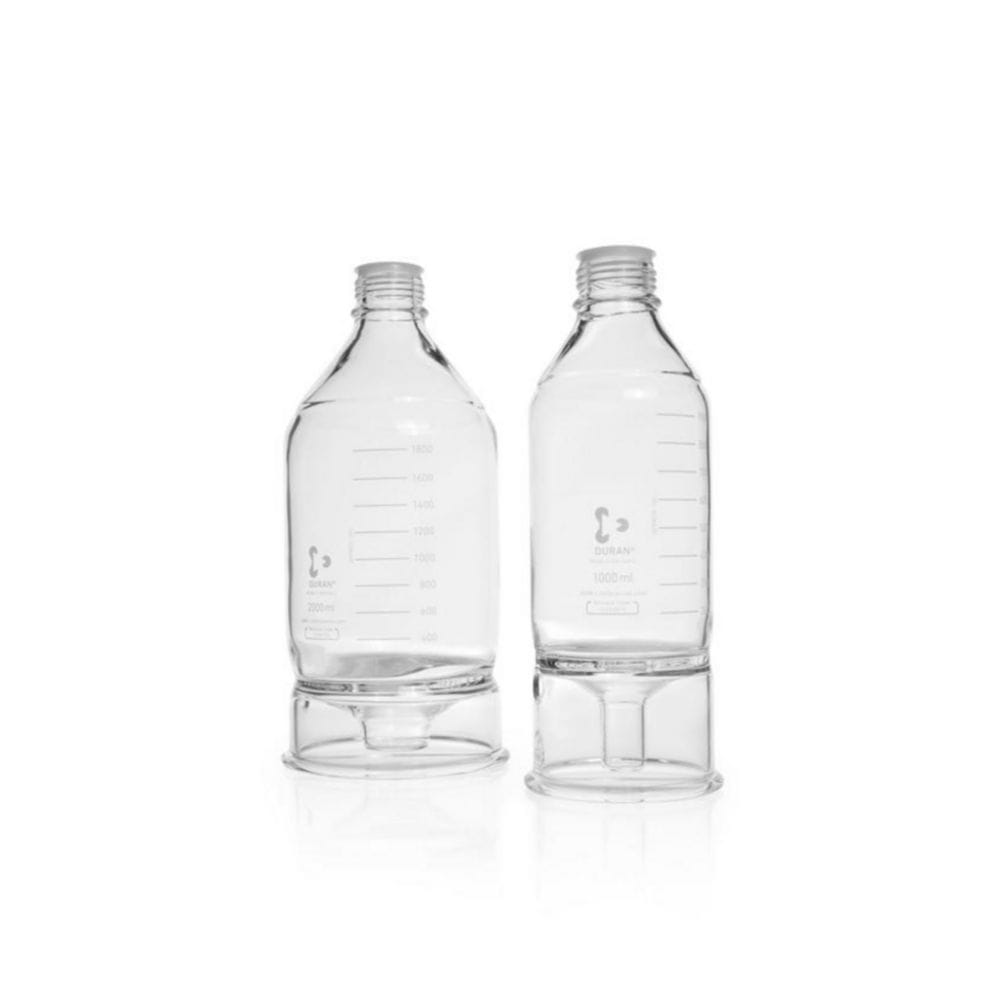

The DURAN® reservoir bottles have been designed for use in high-performance liquid chromatography (HPLC) and allows longer, uninterrupted analyses. A central cavity in the bottom of the bottle allows mobile phases and solvents to be dispensed without tilting the bottle. Side vent hole in the base for ultrasonic bath degassing, or water drainage after cleaning. Screw caps HPLC (PTFE, GL 45, 3 ports) available as accessories.GL 45 ThreadISO 3585Type I neutral glass, by USP / EPWith Retrace Code and certificate for manufacturing lot traceabilityAvailable in four sizes: 1, 2, 5, or 10 Litres5 and 10 litre bottles can accommodate magnetic stirring barsDurable white enamel volume graduationsAutoclavable at 121 °C or 134 °C
Capillary connections:
4
|
Connection for exhaust filter:
1
|
Manufacturer Article Number:
107927
|
Material:
PTFE
|
No. of fittings:
4 x 1,6/ 2,3/ 3,2 mm
|
No. of olives:
0
|
Thread:
S 90
|
UNSPSC:
41-12-18-14
|
UNSPSC:
41115700

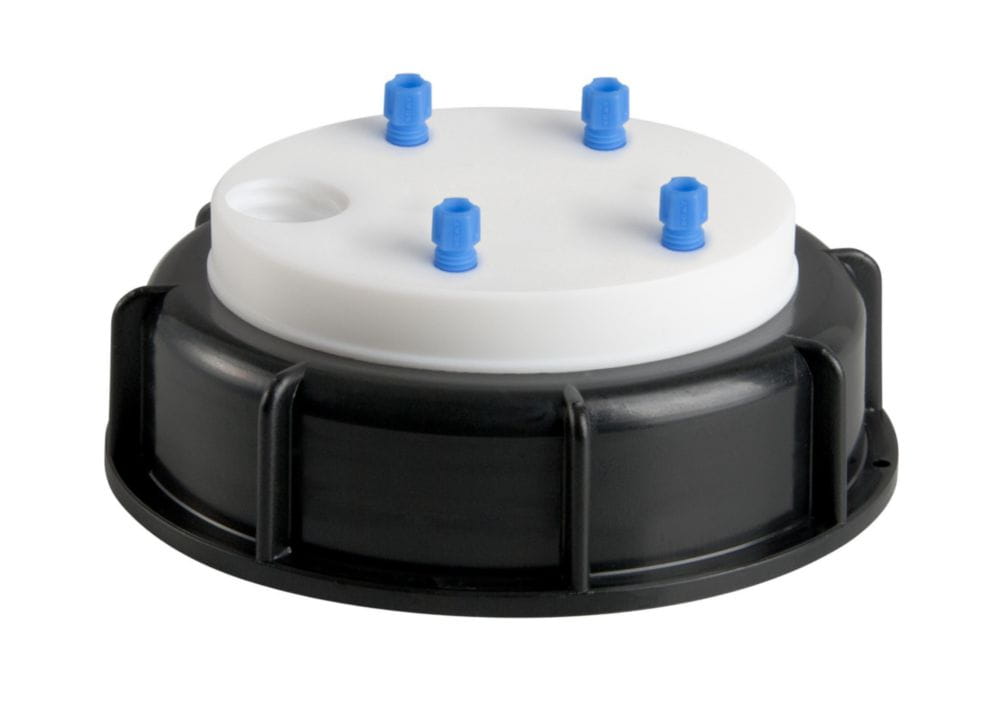

For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries, hose olives for tubes with 5.0 - 11.5 mm inner diameter and a connection for exhaust air filter. Please order your exhaust filter separately.Scope of supply:Safety Waste Cap, PFA fittings, hose olive
Description:
very fine fibers
|
GHS:
GHS08
|
Manufacturer Article Number:
718587
|
Type:
Quartz wool
|
UNSPSC:
23-15-18-16
|
Weight g:
25

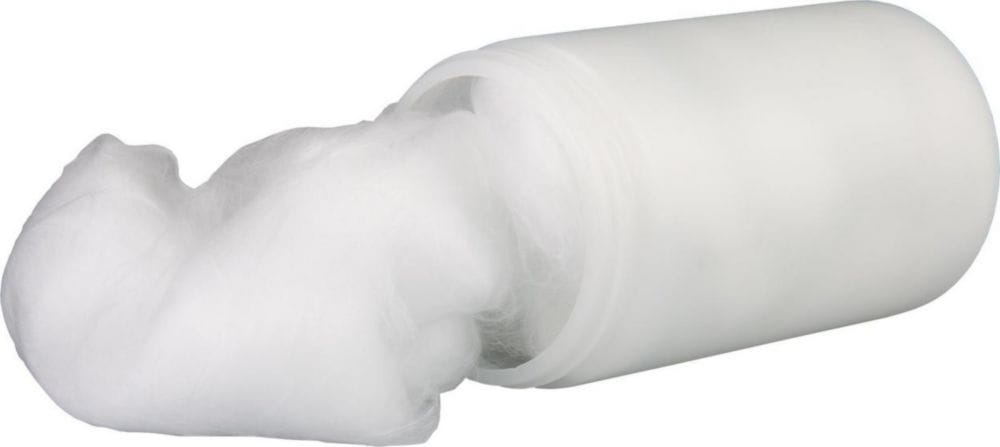

Glass wool, quartz wool and glass fiber wadding are, e.g., used for GC liners, packed GC columns etc.Hazardous Substance DataGHSSignal wordAchtungH-SatzH373P-SatzP260sh, P280shSDSLink
Variants from €39.70*
Capillary connections:
3
|
Connection for exhaust filter:
1
|
Manufacturer Article Number:
107960
|
Material:
PTFE
|
No. of fittings:
3 x 2,3/3,2 mm
|
Thread:
S 55
|
UNSPSC:
41-12-18-14
|
UNSPSC:
41115700

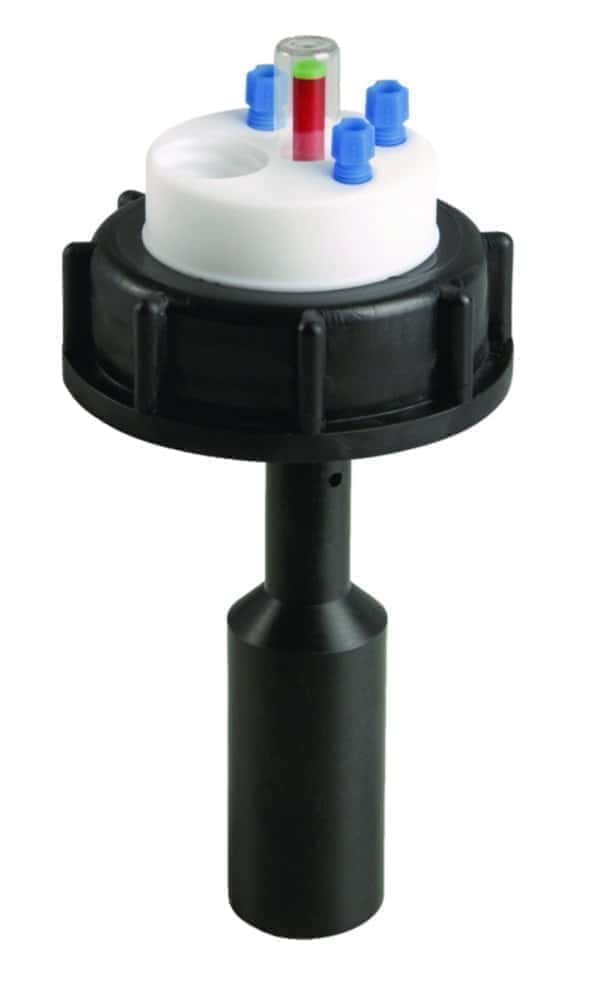

For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries, hose olives for tubes with 5.0 - 11.5 mm inner diameter and a connection for exhaust air filter. Please order your exhaust filter separately.The integrated float warns in time if the container is overfilled. Perfect for containers of opaque material, where the fill level is not visible from the outside.

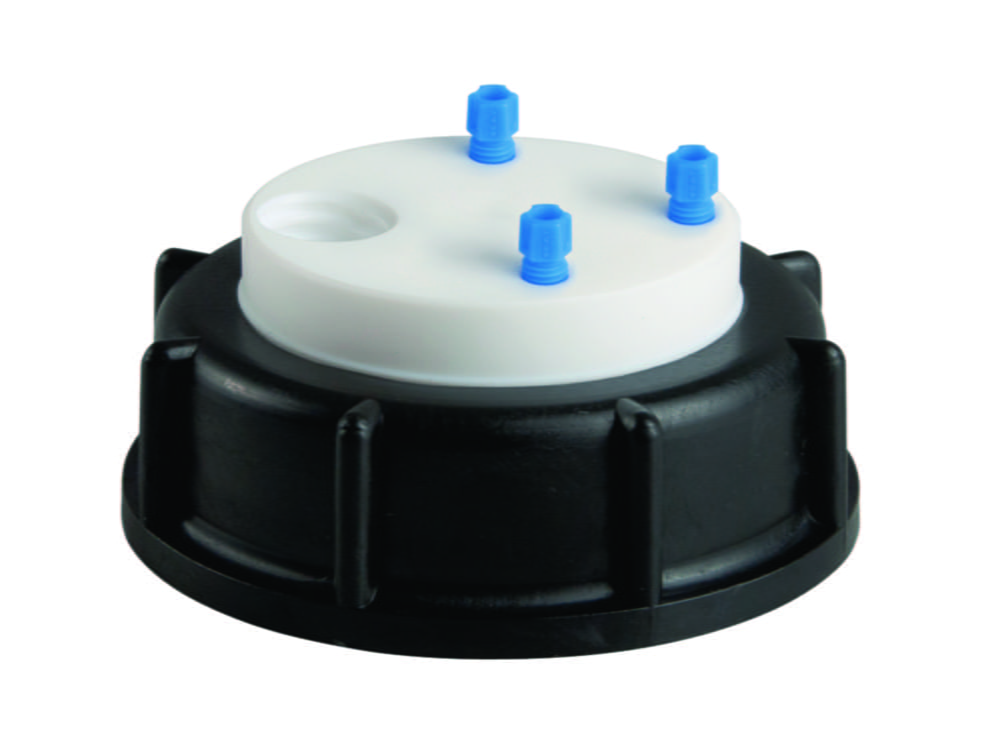

Capillary connections:
3
|
Connection for exhaust filter:
1
|
Manufacturer Article Number:
107913
|
Material:
PTFE
|
No. of fittings:
3 x 1,6/ 2,3/ 3,2 mm
|
No. of olives:
0
|
Thread:
S 70/71
|
UNSPSC:
41-12-18-14
|
UNSPSC:
41115700
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries, hose olives for tubes with 5.0 - 11.5 mm inner diameter and a connection for exhaust air filter. Please order your exhaust filter separately.Scope of supply:Safety Waste Cap, PFA fittings, hose olive
Dimensions (ØxL):
10 x 200 mm
|
Length:
200 mm
|
Manufacturer Article Number:
05450801
|
Material:
DURAN® tubing
|
Nominal capacity:
15 ml
|
Socket[s]:
NS14/23
|
Type of stopcock:
Needle-valve stopcock
|
With stopcock:
Yes
|
Ø:
10 mm

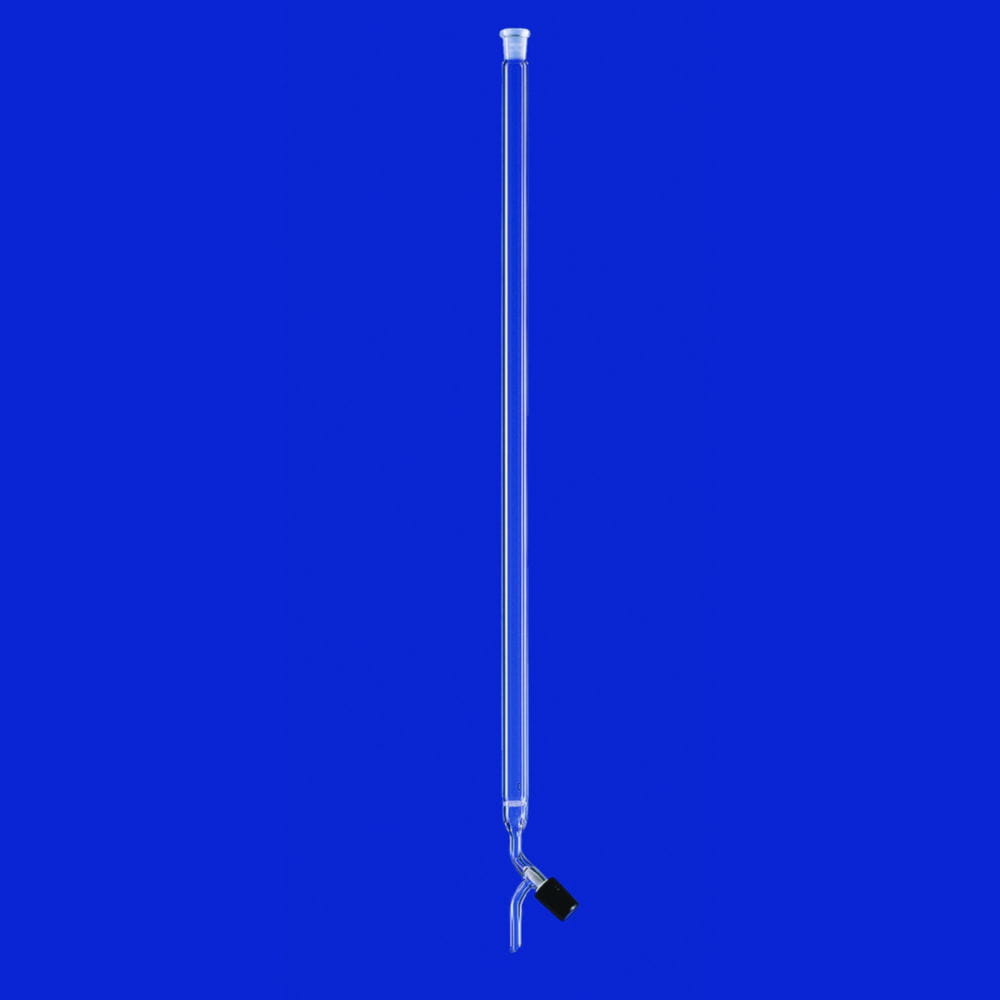

Made of DURAN® tubing. Chromatography columns with sintered frit (porosity 0), NS socket and needle-valve stopcock (bore 0 - 2.5 mm).
Variants from €101.53*
Dimensions (ØxL):
20 x 400 mm
|
Length:
400 mm
|
Manufacturer Article Number:
05445704
|
Material:
DURAN® tubing
|
Material stopcock:
PTFE key
|
Nominal capacity:
125 ml
|
With beaded rim:
Yes
|
With stopcock:
Yes
|
Ø:
20 mm

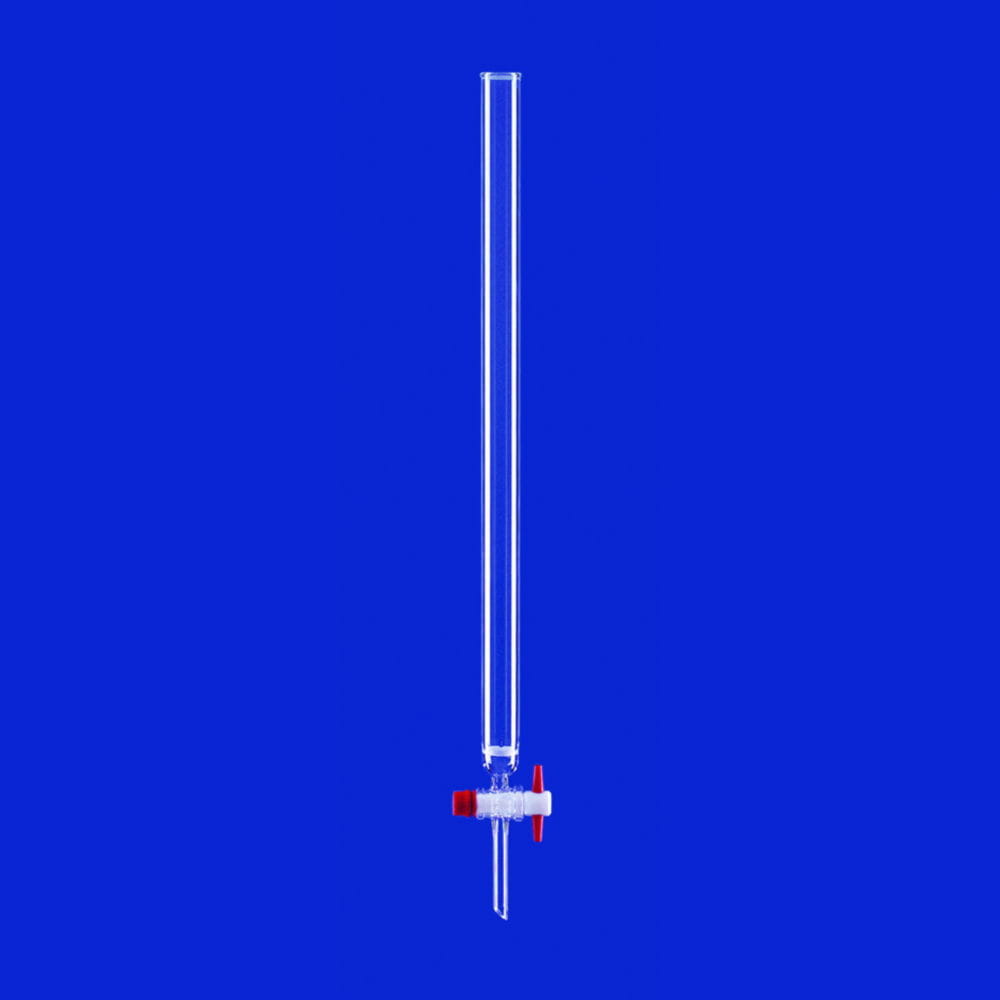

Made of DURAN® tubing. Chromatography columns with sintered frit, porosity 0.
Variants from €77.28*
Colour:
Red
|
Ext. Ø:
1.6 mm
|
Ext. Ø:
1,6 mm
|
Int. Ø:
0.13 mm
|
Length:
3 m
|
Manufacturer Article Number:
1302005001-10F
|
Material:
PEEK
|
Max. temperature resistance:
100 °C
|
Operating pressure bar:
483 bar
|
Temperature resistance:
100 °C
|
UNSPSC:
41105108

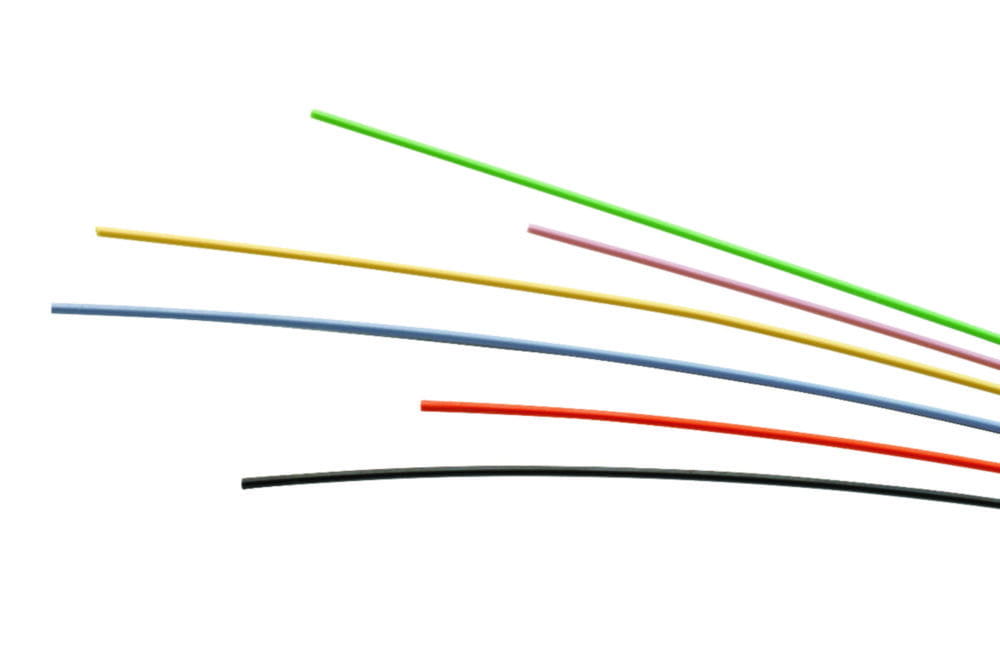

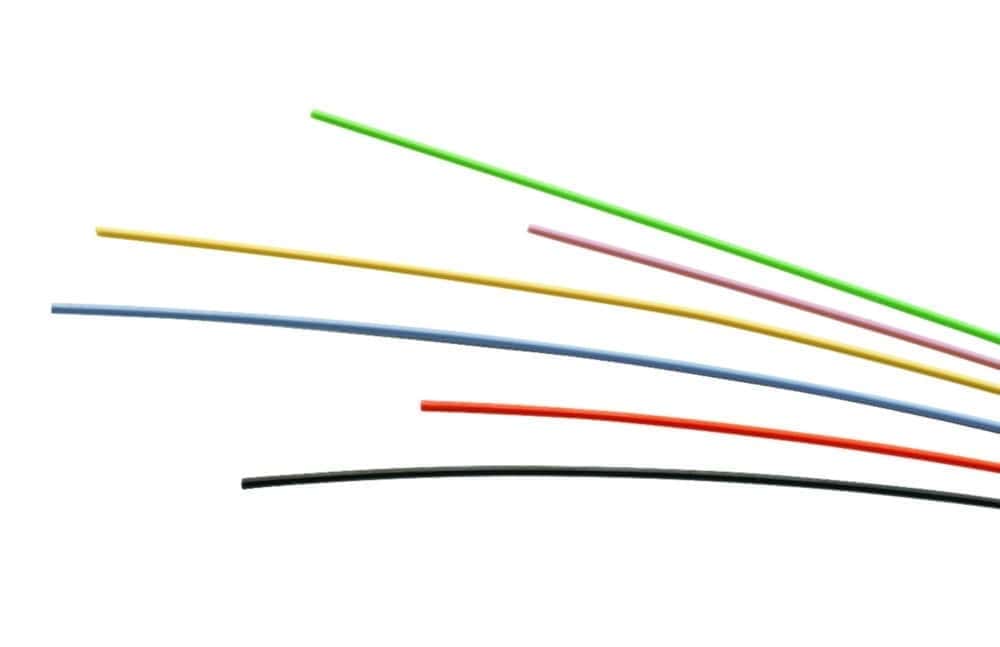

For use in LC, LCMS and automation technology. The polyetheretherketone (PEEK) tubing are a flexible alternative to stainless steel tubing in high pressure applications. The tubing are color coded to industry standards for easy identification of the inner diameter. They are inert to most commonly used solvents. Exceptions are very caustic reagents, strong acids and bases.Smooth inner surfaceGood chemical resistanceBio-inert and biocompatibleOperating temperature up to max. 100 °CPressure stable up to 483 bar (7000 psi, 48000 kPa), size dependentTube length 3 m
Variants from €50.27*
Capillary connections:
3
|
Colour:
Blue/white
|
Manufacturer Article Number:
292312801
|
Material:
PTFE
|
No. of fittings:
3
|
Thread:
GL45
|
UNSPSC:
41115700

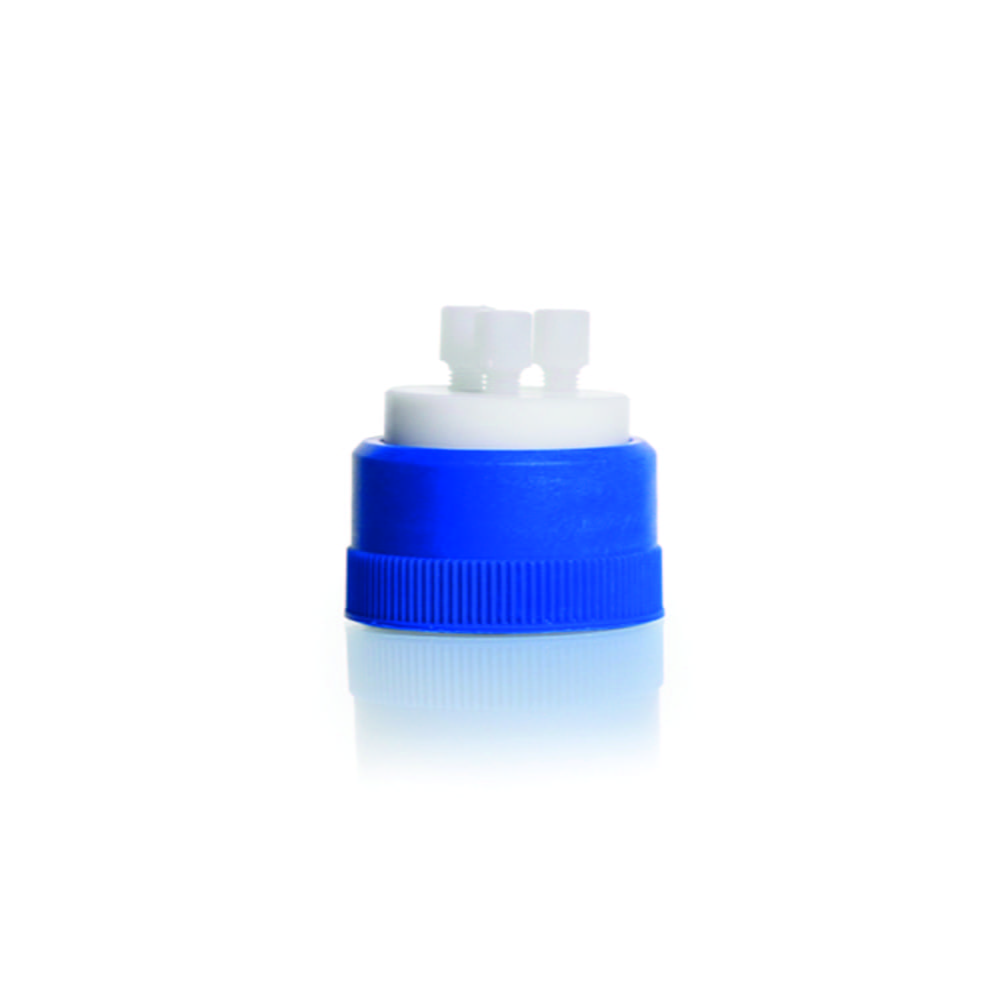

With 3 ports, for tubing outer diameter 3.2 mm, complete with 3 UNF 1/4" 28G ETFE plugs and seal (TFE / PP).

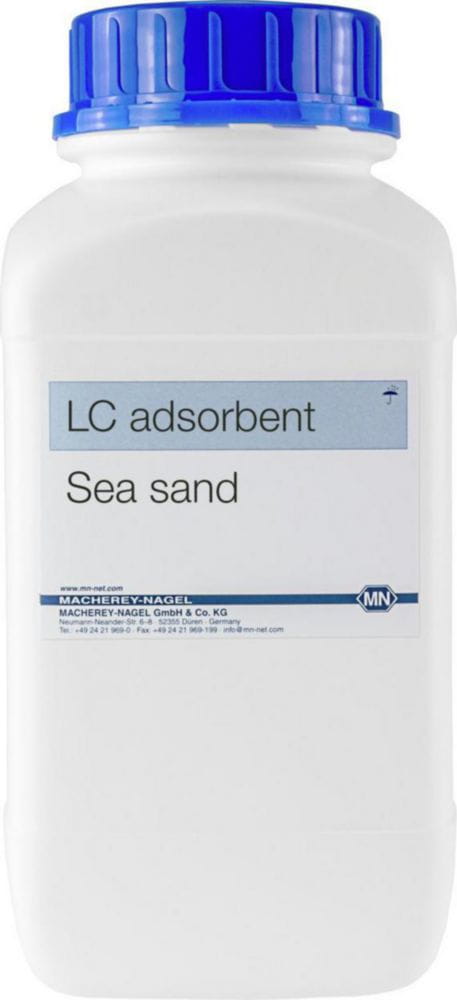

Description:
Seasand, acid washed, calcined, pack of 1000 g
|
Manufacturer Article Number:
727423
|
UNSPSC:
41-10-37-08
Acid washed, calcined. Pack of 1000 g.
Filter size:
S
|
Manufacturer Article Number:
M 506-01
|
Material:
PP
|
Shelf life:
3 months
|
Thread:
GL 14
|
UNSPSC:
41115700

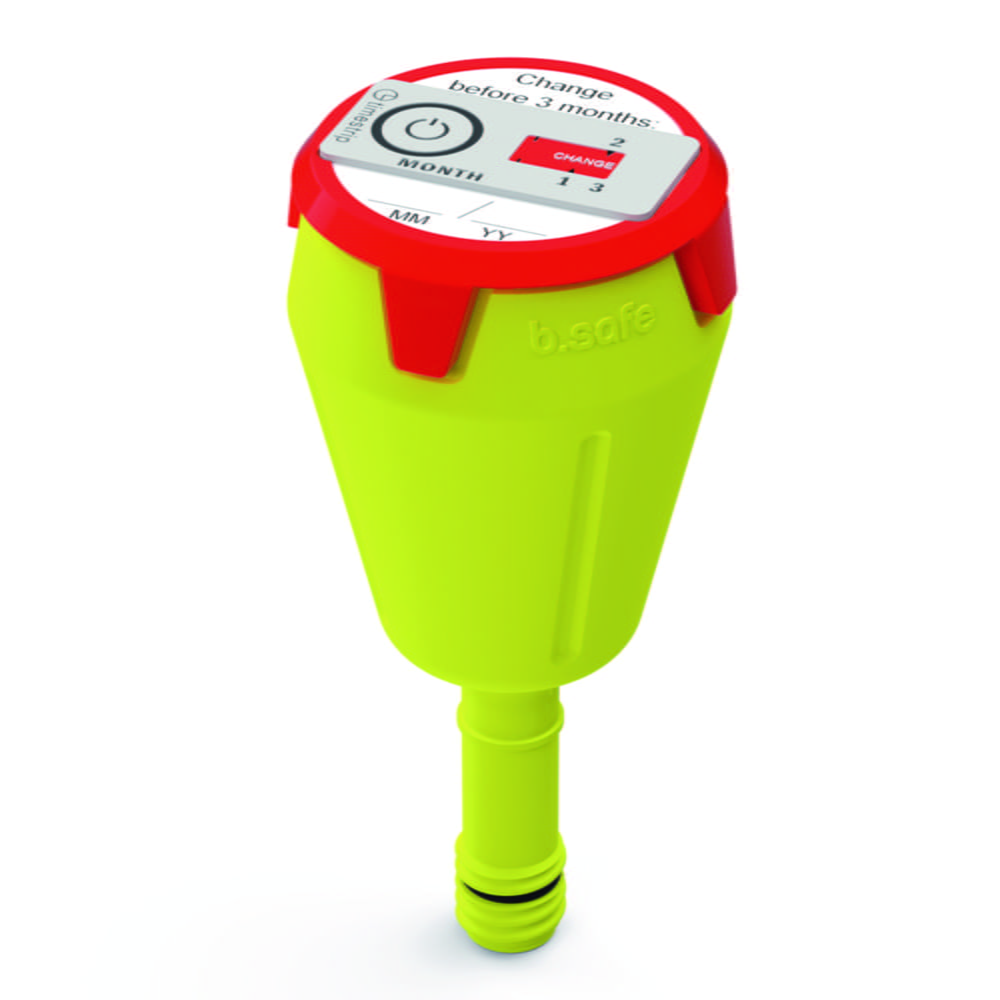

Lid with integrated ventilation openings and service life indicator. The filling of activated carbon is protected by two porous membranes made of PE. This allows an unobstructed flow of exhaust air, solvents are adsorbed by the activated carbon and only filtered air streams out.
Manufacturer Article Number:
SC000128.10*LE
|
Shelf life:
6 months
|
Thread:
1/4"-28
|
UNSPSC:
41115700

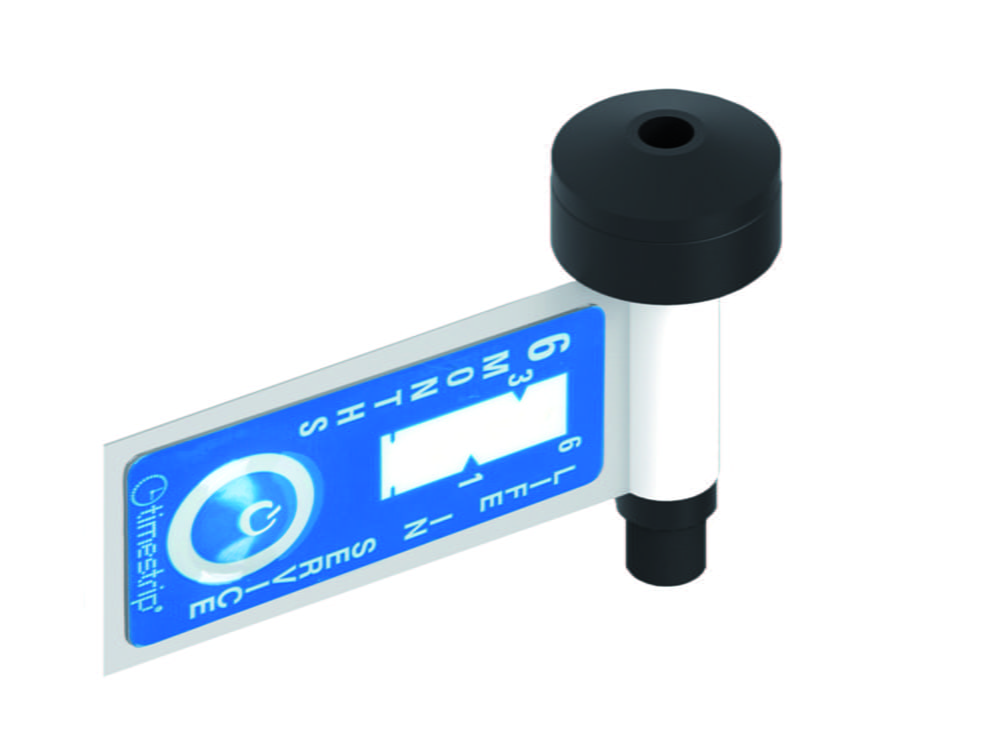

Air valves prevent the formation of vacuum in HPLC bottles.PTFE membrane1/4"-28 thread portWith timestrip sticker
Variants from €17.20*
Bore:
3.2 mm
|
Colour:
White
|
Int. tubing Ø:
4 ... 5 mm
|
Length:
21 mm
|
Manufacturer Article Number:
M 519-01
|
Material:
PP
|
Max. int. tubing Ø:
5 mm
|
Min. int. tubing Ø:
4 mm
|
Shape (Tubing connectors):
Straight
For the connection of tubing on b.safe Waste Caps.
