Article 1 - 24 from 56
Haldenwanger GmbH
Halsic-R RSIC Platten, eckig, L: 187,50 B: 212,50 D: 8,00, 187,5 ±2,0 x 212,5 ±2,0 x 8 ±0,5 mm, Durchbiegung 0,2% der Diagonalen
Halsic-R RSIC Platten, eckig, L: 187,50 B: 212,50 D: 8,00, 187,5 ±2,0 x 212,5 ±2,0 x 8 ±0,5 mm, Durchbiegung 0,2% der Diagonalen
€225.00*
Muffle furnaces series L, max. 1200 °C, with flap door

Muffle furnaces series L, max. 1200 °C, with flap door
Depth int.: 115 mm | Ext. depth: 280 mm | Ext. height: 430 mm | Ext. width: 290 mm | External dimensions (WxDxH): 290 x 280 x 430 mm | Height int.: 110 mm | Int. width: 90 mm | Internal dimensions (WxDxH): 90 x 115 x 110 mm | Manufacturer Article Number: L-014K271 | Max. temperature: 1200 °C | Max. voltage: 230 V·1/N/PE | Nominal capacity: 1 l | Plug type: EU | Power supply: 230 V·1/N/PE, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 1500 W | Type: L 1/12/R7 | Type of auxiliary energy: Mains connection | Type of door: Flap door | UNSPSC: 40101805 | Weight: 10 kg
For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlCeramic heating plates with integrated heating wire, splash and exhaust protected, easy to replaceHeating from two sides (three sides for interior volumes of 24 and 40 l)Flap door can be used as work platformExternal dimensions vary for versions with additional equipment. Dimensions on request.
€2,340.00*
Ashing/Burn off furnaces LV 3/11 - LVT 15/11

Ashing/Burn off furnaces LV 3/11 - LVT 15/11
Depth int.: 240 mm | Ext. depth: 485 mm | Ext. height: 845 mm | Ext. width: 415 mm | External dimensions (WxDxH): 415 x 485 x 845 mm | Height int.: 170 mm | Int. width: 230 mm | Internal dimensions (WxDxH): 230 x 240 x 170 mm | Manufacturer Article Number: LV095K11NL | Max. temperature: 1100 °C | Max. voltage: 240 V | Nominal capacity: 9 l | Power supply: 240 V, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 3.0 kW | Type: LV 9/11/B510 | Type of auxiliary energy: Mains connection | UNSPSC: 40-10-18-05
The models LV 3/11 - LVT 15/11 are especially designed for ashing in the laboratory. A special air intake and exhaust system allows air exchange of more than 6 times per minute. Incoming air is preheated to ensure a good temperature uniformity.Tmax 1100°CHeating from two sidesCeramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replaceInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Housing made of sheets of textured stainless steelDual shell housing for low external temperatures and stabilityOptional flap door (LV) which can be used as work platform or lift door (LVT) with hot surface facing away from the operatorSolid state relays provide for low noise operationAir exchange of more than 6 times per minuteGood temperature uniformity due to preheating of incoming air220-240 V 1/N/PE 50/60 Hz connector as standardOption:Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadObservation hole in the oven doorProcess control and documentation via VCD software package for monitoring, documentation and controlHeight incl. exhaust tube (diam. 80 mm)External dimensions vary for versions with additional equipment. Dimensions on request.
Variants from €3,710.00*
€5,170.00*
Muffle furnaces series L, max. 1100 °C, with flap door

Muffle furnaces series L, max. 1100 °C, with flap door
Depth int.: 340 mm | Ext. depth: 555 mm | Ext. height: 515 mm | Ext. width: 415 mm | External dimensions (WxDxH): 415 x 555 x 515 mm | Height int.: 170 mm | Int. width: 230 mm | Internal dimensions (WxDxH): 230 x 340 x 170 mm | Manufacturer Article Number: L-155K1AL | Max. temperature: 1100 °C | Max. voltage: 230 V·1/N/PE | Nominal capacity: 15 l | Plug type: EU | Power supply: 230 V·1/N/PE, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 3200 W | Type: L 15/11/B510 | Type of auxiliary energy: Mains connection | Type of door: Flap door | UNSPSC: 40101805 | Weight: 40 kg
For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlCeramic heating plates with integrated heating wire, splash and exhaust protected, easy to replaceHeating from two sides (three sides for interior volumes of 24 and 40 l)Flap door can be used as work platformExternal dimensions vary for versions with additional equipment. Dimensions on request.
Variants from €3,160.00*
€4,970.00*
High-temperature chamber furnaces with air circulation NA / NAT

High-temperature chamber furnaces with air circulation NA / NAT
Depth int.: 600 mm | Door opening: To the right | Ext. depth: 1550 mm | Ext. height: 1550 mm | Ext. width: 1250 mm | External dimensions (WxDxH): 1,250 x 1,550 x 1,550 mm | Height int.: 450 mm | Int. width: 450 mm | Internal dimensions (WxDxH): 450 x 600 x 450 mm | Manufacturer Article Number: NA--1243K2 | Max. temperature: 450 °C | Max. voltage: 480 V | Min. voltage: 380 V | Nominal capacity: 120 l | Power supply: 380 ... 480 V, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 9800 W | Type: NA 120/45/B500 | Type of auxiliary energy: Mains connection | Type of door: Tilting door | Weight: 460 kg
These chamber furnaces with air circulation are characterized by their extremely high temperature uniformity. Hence, they are especially suitable for processes such as cooling, crystalizing, preheating, curing, but also for numerous processes in tool making. Due to the modular concept, the forced convection furnaces can be adjusted to the process requirements by adding suitable equipment.Tmax 450 °C, 650 °C, or 850 °CHorizontal air circulationSwing door hinged on the rightTemperature uniformity up to ±4 °C according to DIN 17052-1 (model NA 15/65 and NAT 30/85 up to ±5 °C)Optimum air flow and temperature uniformity through high circulation ratesOne frame sheet and rails for two additional trays included in the scope of delivery (NA 15/65 and NAT 30/85 without frame sheet)Stainless steel air-baffles in the furnace for optimum air circulationBase frame included in the delivery, NA 15/65 and NAT 30/85 designed as table-top modelAir inlet and exhaust air flaps as additional equipment for using as drying ovenNTLog Basic for Nabertherm controller: recording of process data with USB-flash driveAvailable with the programmable controllers B 500 and C 540 with adjustable ramps and hold times (NA 15/65 with B 510 or C 550)Standard power supply 400 V 3/N/PE 50/60 Hz (NA 15/65: 220 - 240 V, 1/N/PE)External dimensions vary for versions with additional equipment. Dimensions on request.
Variants from €8,940.00*
€8,970.00*
Muffle furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC-T controller

Muffle furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC-T controller
Depth int.: 310 mm | Door opening: To the left | Ext. depth: 530 mm | Ext. height: 495 mm | Ext. width: 440 mm | External dimensions (WxDxH): 440 x 530 x 495 mm | Height int.: 135 mm | Int. width: 195 mm | Internal dimensions (WxDxH): 195 x 310 x 135 mm | Manufacturer Article Number: ALSM012F000018 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 8 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 1800 W | Type: SNOL 8.2/1100 LSM01 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 28 kg
Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
€2,140.00*

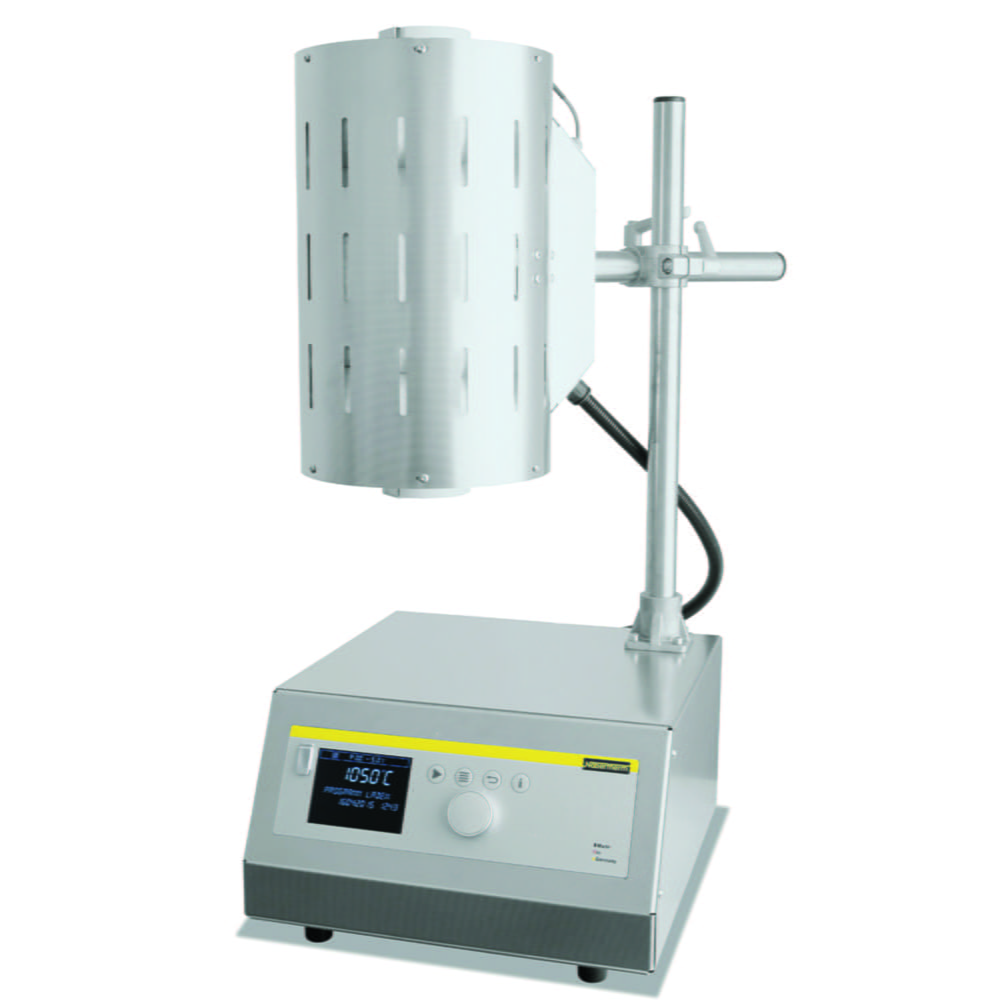

Tube Furnaces

Tube Furnaces
Depth: 340 mm | Dimensions (WxDxH): 670 x 340 x 508 mm | Height: 508 mm | Length tube: 700 mm | Manufacturer Article Number: R-252W2AN3 | Max. ext. tube Ø : 50 mm | Max. temperature: 1200 °C | Rated capacity: 2.3 W | Type: R 50/500/12/P580 | Type of auxiliary energy: Mains connection | Width: 670 mm
These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have an unbeatable price/performance ratio.Tmax 1200 °C or 1300 °CSingle-zoned design as standardDual shell housing made of sheets of textured stainless steelOuter tube diameter of 50 to 170 mm, heated length from 250 to 1000 mmWorking tube of C 530 ceramic including two fiber plugs as standard equipmentSolid state relays provide for lownoise operationAvailable with the programmable controllers B 510, C 550 and P 580 (for three-zoned design) with adjustable ramps and hold timesStandard power supply 400 V 3/N/PE 50/60 Hz (R 50/250 und R 50/500: 220 V, 1/N/PE, 50/60 Hz)Option:Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadCharge control with temperature measurement in the working tube and in the furnace chamber outside the tubeThree-zoned design (heated length from 500 mm)Working tubesGas supply systems for protective gas or vacuum operationProcess control and documentation with VCD software package
Variants from €4,100.00*
€6,040.00*
Ashing furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC-T controller

Ashing furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC-T controller
Depth int.: 310 mm | Door opening: Upwards | Ext. depth: 710 mm | Ext. height: 495 mm | Ext. width: 445 mm | External dimensions (WxDxH): 445 x 710 x 495 mm | Height int.: 135 mm | Int. width: 195 mm | Internal dimensions (WxDxH): 195 x 310 x 135 mm | Manufacturer Article Number: ALHM012F021285 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 8 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 1800 W | Type: SNOL 8.2/1100 LHM21 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 28 kg
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Variants from €2,530.00*
€2,770.00*
Muffle furnaces series L, max. 1400 °C, with flap door | Type: L 5/14/B510

Muffle furnaces series L, max. 1400 °C, with flap door
Depth int.: 170 mm | Ext. depth: 450 mm | Ext. height: 580 mm | Ext. width: 490 mm | External dimensions (WxDxH): 490 x 450 x 580 mm | Height int.: 130 mm | Int. width: 200 mm | Internal dimensions (WxDxH): 200 x 170 x 130 mm | Manufacturer Article Number: L-055K4AL | Max. temperature: 1400 °C | Max. voltage: 230 V·1/N/PE | Nominal capacity: 5 l | Plug type: EU | Power supply: 230 V·1/N/PE, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 2400 W | Type: L 5/14/B510 | Type of auxiliary energy: Mains connection | Type of door: Flap door | UNSPSC: 40101805 | Weight: 42 kg
For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlMax. temperature 1400 °C (recommended working temperature for processes with longer dwell times is 1300 °C)Heating elements on support tubes for free heat radiation, short heating times and long service lifeHeating from two sidesFlap door can be used as work platformExternal dimensions vary for versions with additional equipment. Dimensions on request.
€5,590.00*

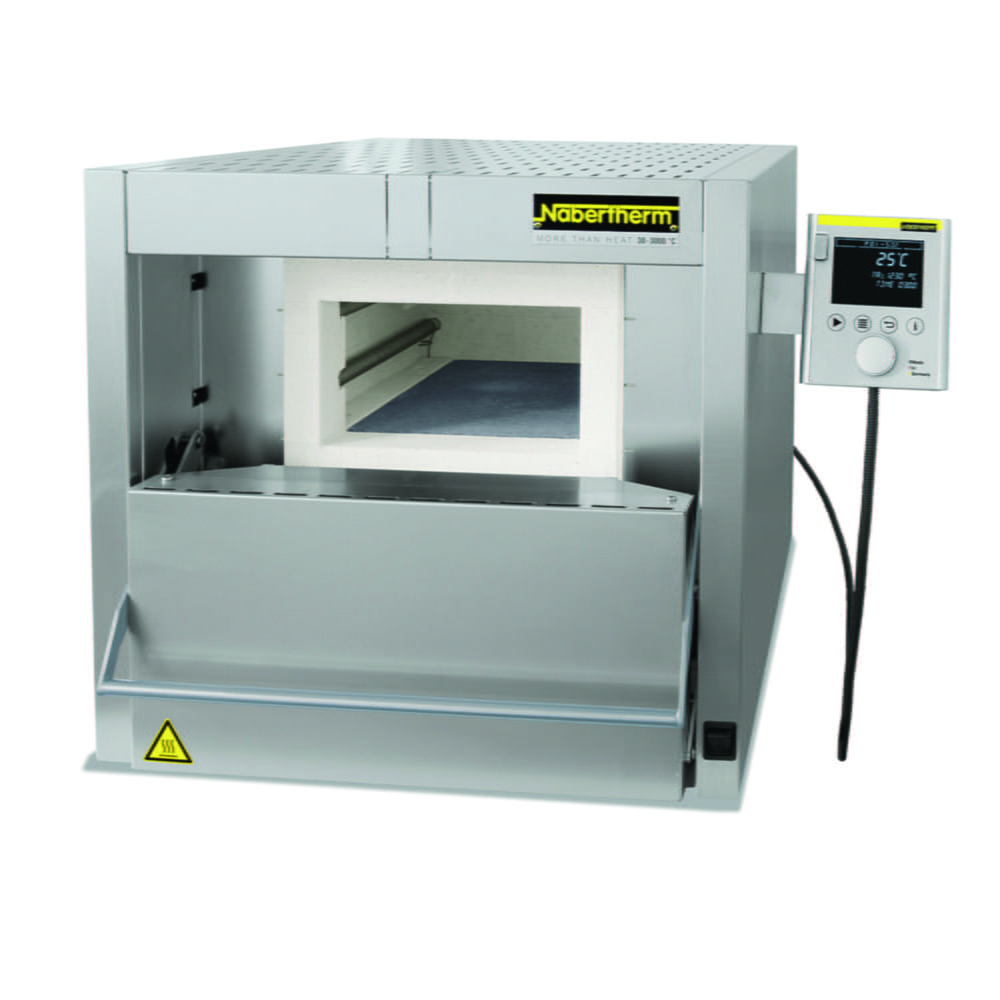

Chamber furnaces

Chamber furnaces
Capacity litres: 30 | External dimensions (W x D x H) mm: 1040 x 1100 x 1340 | Internal dimensions (W x D x H) mm: 350 x 350 x 250 | Manufacturer Article Number: N04H1NKNE | Temp. max. °C: 1280 | Type: N 31/H/B500 | Type of auxiliary energy: 400 V, 3/N/PE, 50 Hz
The chamber furnaces are suitable for Annealing, Hardening and Brazing. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium can be implemented without the use of expensive and complicated annealing systems.Robust insulation with light refractory bricksDeep furnace chamber with three-sides heating: from both side walls and bottomLow energy consumption due to multi-layer insulationBase frame includedN 7/H - N 17/HR designed as table-top modelParallel guided downward swinging door (user protected from heat radiation)NTLog Basic for Nabertherm controller: recording of process data with USB-flash driveEquipped with the B 500 programmable controller (with touch panel, 5 programmes with 4 segments each), optionally available with the C 540 controller
Variants from €3,780.00*
€6,420.00*
Muffle furnaces SNOL 6.7/1300, up to 1300 °C, Omron E5CC-T controller

Muffle furnaces SNOL 6.7/1300, up to 1300 °C, Omron E5CC-T controller
Depth int.: 310 mm | Door opening: To the left | Ext. depth: 575 mm | Ext. height: 525 mm | Ext. width: 445 mm | External dimensions (WxDxH): 445 x 575 x 525 mm | Height int.: 135 mm | Int. width: 145 mm | Internal dimensions (WxDxH): 145 x 310 x 135 mm | Manufacturer Article Number: ALSM012F001020 | Max. temperature: 1300 °C | Max. voltage: 230 V | Nominal capacity: 7 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 2400 W | Type: SNOL 6.7/1300 LSM01 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 35 kg
Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
€3,270.00*
Muffle furnaces SNOL 3/1100, up to 1100 °C, Omron E5CC controller

Muffle furnaces SNOL 3/1100, up to 1100 °C, Omron E5CC controller
Depth int.: 200 mm | Door opening: Upwards | Ext. depth: 470 mm | Ext. height: 430 mm | Ext. width: 345 mm | External dimensions (WxDxH): 345 x 470 x 430 mm | Height int.: 105 mm | Int. width: 120 mm | Internal dimensions (WxDxH): 120 x 200 x 105 mm | Manufacturer Article Number: ALHM0121001288 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 3 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 1700 W | Type: SNOL 3/1100 LHM01 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 17 kg
Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
€1,580.00*
High-temperature Tube Furnaces RHTH/RHTV series

High-temperature Tube Furnaces RHTH/RHTV series
Depth: 480 mm | Dimensions (WxDxH): 470 x 480 x 640 mm | Height: 640 mm | Length tube: 380 mm | Length tube heated: 150 mm | Manufacturer Article Number: RH152V72AN | Max. ext. tube Ø : 50 mm | Max. temperature: 1700 °C | Max. voltage: 480 V | Min. voltage: 380 V | Power supply: 380 ... 480 V, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 5400 W | Type: RHTH 50/150/17/P570 | Type of auxiliary energy: Mains connection | Weight: 70 kg | Width: 470 mm
The high-temperature tube furnaces are available in either horizontal (type RHTH) or vertical (type RHTV) designs. High-quality insulation materials made of vacuum-formed fibre plates enable energy-saving operation and a fast heating time due to low heat storage and heat conductivity. By using different gas supply systems, operations can be performed under a protective gas atmosphere, vacuum, or even with flammable gasses.Tmax 1600 °C, 1700 °C or 1800 °CMoSi2 heating elements, mounted vertically for easy replacementInsulation with vacuum-formed ceramic fibre platesRectangular outer housing with slots for convection coolingModels RHTV with hinges for wall mountingHousing made of sheets of textured stainless steelCeramic working tube made of material C 799 incl. fibre plugs operation under airType B thermocoupleSwitchgear separate from furnace in separate floor standing cabinetSwitchgear with control unitPossible controller variants are the programmable B 500, C 550 and P 570 (threes) with adjustable ramps and hold times.Over-temperature limit controller with manual reset for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the oven and loadInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Standard power supply 400 V 3/N/PE 50/60 HzDimensions without tube.Option:Charge control with temperature measurement in the working tube and in the oven chamber behind the tubeAlternative working tubes designed for process requirementsDisplay of inner tube temperature with additional thermocoupleGas-tight flanges for protective gas and vacuum operationManual or automatic gas supply systemThree- or five-zone control for optimization of temperature uniformityCheck valve at gas outlet avoids intrusion of false air
Variants from €18,100.00*
€20,310.00*
Muffle furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC controller

Muffle furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC controller
Depth int.: 310 mm | Door opening: Upwards | Ext. depth: 660 mm | Ext. height: 495 mm | Ext. width: 445 mm | External dimensions (WxDxH): 445 x 660 x 495 mm | Height int.: 135 mm | Int. width: 195 mm | Internal dimensions (WxDxH): 195 x 310 x 135 mm | Manufacturer Article Number: ALHM0121001285 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 8 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 1800 W | Type: SNOL 8.2/1100 LHM01 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 28 kg
Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Variants from €1,750.00*
€1,990.00*
High-temperature chamber furnaces with SiC rod heating LHTC/LHTCT 03/14 - 08/16 series

High-temperature chamber furnaces with SiC rod heating LHTC/LHTCT 03/14 - 08/16 series
Capacity litres: 3.0 | External dimensions (W x D x H) mm: 415 x 545 x 490 | Internal dimensions (W x D x H) mm: 120 x 210 x 120 | Manufacturer Article Number: LC034K6ON5 | Rating kW: 9.0 | Temp. max. °C: 1600 | Type/Controller: LHTC 03/16/C550 | UNSPSC: 41-10-46-01
These powerful laboratory muffle furnaces are available for temperatures up to 1400 °C, 1500 °C, 1550 °C or 1600 °C. The durability of the SiC rods in periodic use, in combination with their high heating speed, make these furnaces the all-rounders in the laboratory. Heating times of 40 minutes to 1400 °C can be achieved, depending on the furnacemodel and the conditions of use.Tmax 1400 °C, 1500 °C, 1550 °C or 1600 °CWorking Temperature 1500 °C (for models LHTC ../16), increased wear and tear of heating elements must be expected in case of working at higher temperaturesInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Housing made of sheets of textured stainless steelDual shell housing for low external temperatures and high stabilityFurnace room lined with durable fiber material, not classifiedOptional flap door (LHTC) which can be used as work platform or lift door (LHTCT) with hot surface facing away from the operator (HTCT 01/ only with lift door)Switching system with solid-state-relays, power tuned to the SiC rodsController is the programmable C 550 with adjustable ramps and holding timesEasy replacement of heating rodsAdjustable air inlet opening, exhaust air opening in the roof400 V 3/N/PE 50/60 Hz connector as standardOption:Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadSquare saggar for charging of up to three layersLid for top saggarManual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and control* 220-240 V 1/N/PE 50/60 Hz connector as standard. Height plus max. 240 mm for the open LHTCT models.External dimensions vary for versions with additional equipment. Dimensions on request.
Variants from €6,650.00*
€8,920.00*

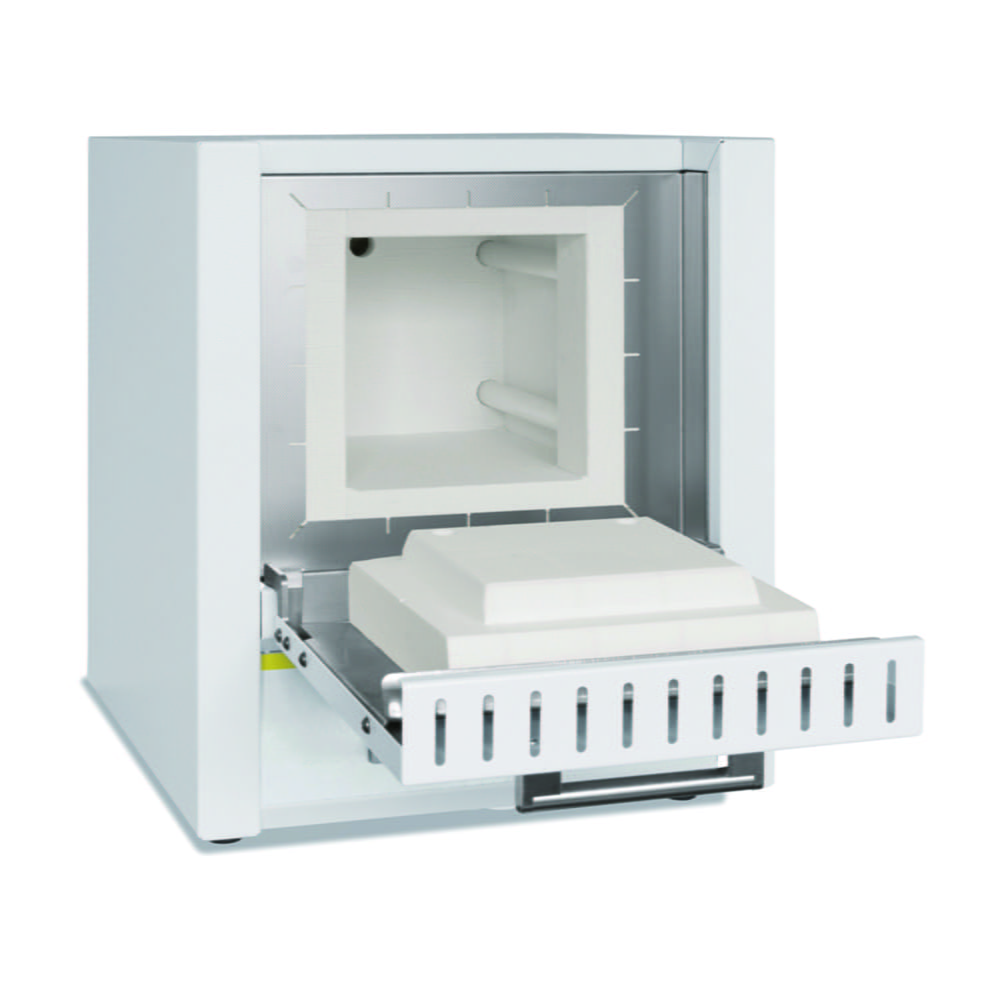

Muffle Furnaces Series LE 1/11 - LE 24/11 up to 1100 °C

Muffle Furnaces Series LE 1/11 - LE 24/11 up to 1100 °C
Depth int.: 330 mm | Door opening: Downwards | Ext. depth: 570 mm | Ext. height: 585 mm | Ext. width: 490 mm | External dimensions (WxDxH): 490 x 570 x 585 mm | Height int.: 285 mm | Int. width: 260 mm | Internal dimensions (WxDxH): 260 x 330 x 285 mm | Manufacturer Article Number: LE241K17N1 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 24 l | Power supply: 230 V, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 3.5 kW | Type: LE 24/11/R7 | Type of auxiliary energy: Mains connection | Type of door: Flap door | UNSPSC: 40101805 | Weight: 42 kg
Compact muffle furnaces with dual shell furnace housing of rust-free stainless steel and heating elements encased in quartz glass tubes.Tmax 1100 °C, working temperature 1050 °CHeating from two sides from heating elements in quartz glass tubesMaintenance-friendly replacement of heating elements and insulationInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Housing made of sheets of textured stainless steelDual shell housing for low external temperatures and high stabilityFlap door which can also be used as a work platformExhaust air outlet in rear wallCompact dimensions and light weightController mounted under the door to save spaceEquipped with the basic controller R 7 with one free storeable temperature, which is dwelled until the controller is switch offStandard power supply 230 V, 1/N/PE, 50/60 HzExternal dimensions vary for versions with additional equipment. Dimensions on request.
Variants from €1,860.00*
€4,480.00*
Muffle furnaces SNOL 22/1100, up to 1100 °C, Omron E5CC-T controller

Muffle furnaces SNOL 22/1100, up to 1100 °C, Omron E5CC-T controller
Depth int.: 500 mm | Door opening: Upwards | Ext. depth: 855 mm | Ext. height: 620 mm | Ext. width: 605 mm | External dimensions (WxDxH): 605 x 855 x 620 mm | Height int.: 160 mm | Int. width: 280 mm | Internal dimensions (WxDxH): 280 x 500 x 160 mm | Manufacturer Article Number: ALHM012F001223 | Max. temperature: 1100 °C | Max. voltage: 230 V·2P+E | Nominal capacity: 22 l | Plug type: CEE | Power supply: 230 V·2P+E, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 3000 W | Type: SNOL 22/1100 LHM01 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 58 kg
Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
€3,660.00*
Muffle furnaces series LT, max. 1100 °C, with lift door

Muffle furnaces series LT, max. 1100 °C, with lift door
Depth int.: 140 mm | Ext. depth: 330 mm | Ext. height: 405 mm | Ext. width: 385 mm | External dimensions (WxDxH): 385 x 330 x 405 mm | Height int.: 100 mm | Int. width: 160 mm | Internal dimensions (WxDxH): 160 x 140 x 100 mm | Manufacturer Article Number: L-035H1AO | Max. temperature: 1100 °C | Max. voltage: 230 V·1/N/PE | Nominal capacity: 3 l | Plug type: EU | Power supply: 230 V·1/N/PE, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 1200 W | Type: LT 3/11/C550 | Type of auxiliary energy: Mains connection | Type of door: Lift door | UNSPSC: 40101805 | Weight: 20 kg
For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlCeramic heating plates with integrated heating wire, splash and exhaust protected, easy to replaceHeating from two sides (three sides for interior volumes of 24, 40 and 60 l)The hot side of the lift door is facing away from the operatorExternal dimensions vary for versions with additional equipment. Dimensions on request.
Variants from €3,160.00*
€3,930.00*
Muffle furnaces SNOL 13/1100, up to 1100 °C, Omron E5CC-T controller

Muffle furnaces SNOL 13/1100, up to 1100 °C, Omron E5CC-T controller
Depth int.: 335 mm | Door opening: Upwards | Ext. depth: 685 mm | Ext. height: 555 mm | Ext. width: 505 mm | External dimensions (WxDxH): 505 x 685 x 555 mm | Height int.: 170 mm | Int. width: 220 mm | Internal dimensions (WxDxH): 220 x 335 x 170 mm | Manufacturer Article Number: ALHM012F001269 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 13 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 1800 W | Type: SNOL 13/1100 LHM01 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 38 kg
Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
€2,860.00*
Muffle furnaces series LT, max. 1200 °C, with lift door

Muffle furnaces series LT, max. 1200 °C, with lift door
Depth int.: 490 mm | Ext. depth: 705 mm | Ext. height: 580 mm | Ext. width: 530 mm | External dimensions (WxDxH): 530 x 705 x 580 mm | Height int.: 250 mm | Int. width: 320 mm | Internal dimensions (WxDxH): 320 x 490 x 250 mm | Manufacturer Article Number: L-405H2DL | Max. temperature: 1200 °C | Max. voltage: 400 V·3/N/PE | Nominal capacity: 40 l | Plug type: CEE | Power supply: 400 V·3/N/PE, 50/60 Hz | Power supply frequency: 50/60 Hz | Rated capacity: 6000 W | Type: LT 40/12/B510 | Type of auxiliary energy: Mains connection | Type of door: Lift door | UNSPSC: 40101805 | Weight: 65 kg
For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlCeramic heating plates with integrated heating wire, splash and exhaust protected, easy to replaceHeating from two sides (three sides for interior volumes of 24, 40 and 60 l)Lift door with hot surface facing away from the operatorExternal dimensions vary for versions with additional equipment. Dimensions on request.
Variants from €3,860.00*
€7,940.00*
Ashing furnaces SNOL 10/1300, up to 1300 °C, Omron E5CC-T controller

Ashing furnaces SNOL 10/1300, up to 1300 °C, Omron E5CC-T controller
Depth int.: 335 mm | Door opening: To the left | Ext. depth: 760 mm | Ext. height: 560 mm | Ext. width: 500 mm | External dimensions (WxDxH): 500 x 760 x 560 mm | Height int.: 170 mm | Int. width: 190 mm | Internal dimensions (WxDxH): 190 x 335 x 170 mm | Manufacturer Article Number: ALSM012F021827 | Max. temperature: 1300 °C | Max. voltage: 230 V | Nominal capacity: 10 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 2400 W | Type: SNOL 10/1300 LSM21 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 38 kg
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
€4,350.00*
Ashing furnaces SNOL 13/1100, up to 1100 °C, Omron E5CC controller

Ashing furnaces SNOL 13/1100, up to 1100 °C, Omron E5CC controller
Depth int.: 335 mm | Door opening: Upwards | Ext. depth: 735 mm | Ext. height: 555 mm | Ext. width: 505 mm | External dimensions (WxDxH): 505 x 735 x 555 mm | Height int.: 170 mm | Int. width: 220 mm | Internal dimensions (WxDxH): 220 x 335 x 170 mm | Manufacturer Article Number: ALHM0121021269 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 13 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 1800 W | Type: SNOL 13/1100 LHM21 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 38 kg
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
€2,900.00*
Muffle furnaces Thermolyne™

Muffle furnaces Thermolyne™
Depth int.: 180 mm | Ext. depth: 340 mm | Ext. height: 483 mm | Ext. width: 500 mm | External dimensions (WxDxH): 500 x 340 x 483 mm | Height int.: 130 mm | Int. width: 250 mm | Internal dimensions (WxDxH): 250 x 180 x 130 mm | Manufacturer Article Number: F48020-33-80 | Max. temperature: 1200 °C | Max. voltage: 240 V | Nominal capacity: 5.8 l | Power supply: 240 V, 50/60 Hz | Power supply frequency: 50/60 Hz | Type: F48020/C1 | UNSPSC: 40101805
The muffle furnaces are suitable for ashing, annealing processes, digestion, heat treatment of metals and drying processes at high temperatures.Built-in ventilation portDoor safety switch: when the door is opened, the power supply to the heating elements is interruptedPort in the rear of the chamber for external temperature monitoring
Variants from €1,610.00*
€4,690.00*
Muffle furnaces SNOL 3/1100, up to 1100 °C, Omron E5CC-T controller

Muffle furnaces SNOL 3/1100, up to 1100 °C, Omron E5CC-T controller
Depth int.: 200 mm | Door opening: Upwards | Ext. depth: 470 mm | Ext. height: 430 mm | Ext. width: 345 mm | External dimensions (WxDxH): 345 x 470 x 430 mm | Height int.: 105 mm | Int. width: 120 mm | Internal dimensions (WxDxH): 120 x 200 x 105 mm | Manufacturer Article Number: ALHM012F001288 | Max. temperature: 1100 °C | Max. voltage: 230 V | Nominal capacity: 3 l | Plug type: EU | Power supply: 230 V, 50 Hz | Power supply frequency: 50 Hz | Rated capacity: 1700 W | Type: SNOL 3/1100 LHM01 | Type of auxiliary energy: Mains connection | UNSPSC: 40101805 | Weight: 17 kg
Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
€1,970.00*
Article 1 - 24 from 56

Promotion

Evaporating dishes, DURAN®
Evaporating dishes, DURAN®
DIN 12336Flat-bottom with spoutAutoclavable
Variants from €9.92*
Variations
Evaporating basins, quartz glass
Evaporating basins, quartz glass
DIN 12336Flat-bottom with spout
Variants from €31.24*
Variations
Evaporating basins, porcelain, shallow form
Evaporating basins, porcelain, shallow form
Glazed inside and outside except for rim.
Variants from €12.99*
Variations

Promotion

Evaporating dishes, DURAN®
Evaporating dishes, DURAN®
DIN 12336Flat-bottom with spoutAutoclavable
Variants from €9.92*
Variations
Evaporating basins, quartz glass
Evaporating basins, quartz glass
DIN 12336Flat-bottom with spout
Variants from €31.24*
Variations
Evaporating basins, porcelain, shallow form
Evaporating basins, porcelain, shallow form
Glazed inside and outside except for rim.
Variants from €12.99*
Variations

Muffle Furnace/Chamber Furnace

A muffle furnace is a brilliant invention! It allows materials that require heat treatment to be safely and cleanly separated from the fuel. This is particularly important to avoid contamination from ash, gas vapors, or soot. With the introduction of electric heating elements, these side effects have been largely reduced, so that the heating elements in modern laboratory furnaces can be located directly in the heating chamber.

In addition, there are still some applications where separating heating elements from the furnace chamber is necessary. Examples include ashing in ashing furnaces or creating controlled atmospheres in vacuum furnaces. Muffle furnaces are available in various sizes as tabletop and floor-standing units. They reach temperatures up to 1800 °C (vacuum furnaces up to 3000 °C).

No matter what budget you have available, we have the perfect solution for you! Our products impress with their speed, excellent temperature homogeneity, intuitive controls, and numerous optional features. Note whether the door swings upward or opens downward.

Our extensive portfolio offers the appropriate standard solution for many applications. For beyond-standard, custom requirements, we offer numerous options up to complete custom designs. Our manufacturer portfolio includes Nabertherm, Carbolite, Snoltherm, Thermo, etc.

Your Häberle laboratory technology team is here for you! We are happy to provide telephone consultation on all matters related to muffle furnaces, chamber furnaces. Simply call us at Tel. +497336/96030 or write to us atinfo@haeberle-lab.de


Your watch lists
Loading...

häberle LABORTECHNIK GmbH & Co.KG

Oberer Seesteig 7

D-89173 Lonsee-Ettlenschieß

T +49 (0)7336 9603 0

F +49 (0)7336 9603 30

E info@haeberle-lab.de
Company
  • About us
  • Career
  • Downloads
  • E-Catalogues
  • Newsletter subscription
  • News
Orders
  • Contact
  • Personal contact
  • Service
  • Returns and repair
  • Batch certificate / Safety data sheet
Legal notice
  • Basic conditions of export sale and deliveries
  • Imprint
  • Privacy Policy
LLG Partner Logo

* All prices excl. VAT plus shipping costs and possible delivery charges, if not stated otherwise.

A sale is made only to entrepreneurs, tradesmen, freelancers, public institutions and not to consumers in the sense of § 13 BGB.

This website uses cookies to ensure the best experience possible. More information...
