VARIO® Chemistry Pumping Units offer all the advantages of modern control technology and provide excellent possibilities for solvent recovery. They attain an ultimate vacuum down to 0.6mbar. They are exceptionally quiet in operation and entirely oil-free. Inside the pump, vapours and gases only come into contact with fluoroplastics of optimum chemical resistance.VARIO® Chemistry Pumping Units provide vacuum control by adaptation of motor speed. This has clear advantages compared to even the best of two-point control systems. The vacuum is continuously adjusted to actual process requirements, irrespective of apparatus size and vapour volume. Process times are typically shortened by 30%. Solvent recovery next to 100% is supported through continuous evaporation.All VARIO® Chemistry Pumping Units include a chemistry diaphragm vacuum pump and an integrated vacuum controller with display and vacuum sensor.

Vacuum regulator valve for ME 1, ME 1C and MZ 1C with manual vacuum control using air bleed. The manometer can be mounted and pivoted in several orientations for optimal visibility. High chemical compatibility (especially with the vacuum regulator valve for ME 1C)

Exhaust Vapour Condenser Peltronic®: Fully automatic electronic control of cooling surface temperature and fan

ATEX chemistry diaphragm pumps offer all advantages of oil-free chemistry diaphragm pumps. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The ATEX approval includes the interior of the pump (in contact with pumped gases) as well as the surrounding area of the pump.Outstanding chemical resistance and superior vapor toleranceMainly made of antistatic materialsFlame proof motor with integrated, self-locking overload and excess temperature protection for direct 230V / 50Hz single phase power supplyOverpressure safety relief valves internally and at outletWith separate gas ballast connection part for use of inert gasSafety diaphragm technology with option for inert gas purge and detection of diaphragm breakageATEX compliance:Pump chamber (pumped gases): II 2G IIC T3 XExterior space (pump environment): II 2G IIB T4 X (with inert gas purging) / II 3G IIB T4 X (without inert gas purging)Speed-controlled ATEX VARIO vacuum pumps on request.SpecificationsMZ 2C EXVacuum inlet:Small flange KF DN 16Pressure outlet:Small flange KF DN 16MV 10C EX / MD 4C EXVacuum inlet:Small flange KF DN 25Pressure outlet:Kleinflansch KF DN 16MZ 2C EX+AK+EK / MD 4C EX+AK+EKVacuum inlet:Small flange KF DN 16Pressure outlet:Tubing nozzle DN 8-10 mmCooling water connection:2 x tubing nozzle DN 6-8 mm

Compact design, ready to use, no set-up required. Constructed in chemically resistant materials. Quiet operation.100% oil-free pumping of gasesgas ballast as standard for working with condensable vapoursgood vacuum even with gas ballasthigh vapour tolerance for water and solventslong service life, low maintenanceFeatures:2AK: Inlet and outlet separatorAK + EK: Inlet separator, exhaust vapour condenserPC 510 select (two-stage) / 610 select (three-stage) : with AK + EK; 1 electronically controlled vacuum portPC 511 select (two-stage) / 611 select (three-stage) : with AK + EK; 1 electronically controlled and 1 manually controlled vacuum portPC 520 select (two-stage) / 620 select (three-stage) : with AK + EK; 2 electronically controlled vacuum portsCharacteristics and applications: Without vacuum control: MZ 2C NT +2AK: e.g. filtration, distillation without condensation at the outletMZ 2C NT +AK+EK: Well-proven unit for a wide range of applications for a single-user, e.g. gel drying, distillation, vacuum concentrator. For solvents with medium to low volatility.MD 1C +AK+EK: Space-saving single-user configuration. For high-boiling-point solvents.MD 4C NT + AK+EK: Larger or multi-user applications, the local vacuum network VACUU·LAN®. For high-boiling solvents.MV 10C NT +EK: Four-stage diaphragm pump with exhaust vapour condenser. For particularly high demands regarding low ultimate vacuum and pumping speed in chemistry laboratories, pilot plant or small production units.With vacuum controller: PC 510 select / 511 select: Well-proven units for a wide range of processes in chemistry laboratories, e.g. all common solvents. PC 511 select with addtional manually controlled vacuum port.PC 610 select / 611 select: Proven solution for supporting electronically controlled evaporation or drying processes even with many high boiling point solvents. PC 611 select with additional manually controlled vacuum port.PC 520 select / 620 select: Compact solution for simultaneous operation of two electronically controlled vacuum applications with one single pump.Country-specific power cord versions available on request.

The PC 3001 VARIO® select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. This pump is suitable for even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The pump's variable motor speed responds to demand, reducing energy waste and mechanical wear, ensuring unrivalled service life for the diaphragms.For solvent evaporation, the controller detects solvent boiling and automatically adjusts the pump's motor speed to maintain process controlUser-defined applications with simple drag-and-drop editing.Small footprint and low weight for flexible use in the laboratoryThe inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pumpThe included emission condenser Peltronic® works without any cooling media like water or dry ice.Scope of supply: Chemistry pumping unit PC 3001 VARIO® select completely mounted with conderser Peltronic®, ready for use, with manual.Without mains cable, please order separately.SpecificationsCooling power at 21 °C:50 WAmbient temperature range:10 ... 40 °CPreset cooling temperature:10 °CMaterials in contact with media:PP, PFA, ETFE/ECTFE, borosilicate glassPower supply:100 ... 230 V, 50/60 HzDimensions (W x D x H):175 x 179 x 392 mm

The combination of speed controlled VARIO® chemistry diaphragm pumps and the new VACUU·SELECT vacuum controller makes the VARIO® select chemistry pumps the ideal solution for chemical processes that require precise vacuum, such as rotary evaporation, vacuum drying or vacuum concentration.High chemical resistance and therefore ideally suited for pumping aggressive gases and vapours.Short process times and smooth running due to optimal setting of the pressure via the VACUU·SELECT controller.The VARIO® technology controls the vacuum precisely and efficiently via motor speed.Power consumption, maintenance and noise are exceptionally low.The outlet catchpot and solvent condenser combine to prevent solvent vapor emissions into the lab, allowing for nearly full recovery of solvents.Country-specific power cord versions available on request.

Vacuubrand chemistry vacuum systems and chemistry pumping units for fine to high vacuum ranges. Complete chemical vacuum systems and chemical pump stands offer the advantages of practical, connection-ready units.Compact structure, little space requirement and a high degree of mobilityThe great convenience of proven pump stand configurationGood ultimate vacuum even with gas ballast and smooth runningHigh tolerance to water and solvent vapours due to efficient gas ballast

The Chemistry Vacuum Pumping Unit PC 8 / RC 6 incorporates the Chemistry Hybrid Pump RC 6 (Cat. No. 9.882 235). It achieves an ultimate vacuum in the 0,0004 mbar range and is used for demanding vacuum applications such as freeze drying, drying chambers, concentrators, etc. The RC 6 provides the vacuum performance of a two stage oil sealed rotary vane pump. The chemistry diaphragm pump evacuates the oil reservoir of the rotary vane pump and prevents- under intended operating conditions- the condensation inside the oil-filled section. Any condensation inside the oil-free diaphragm pump is much less problematic.Scope of supply: Pumping unit completely mounted, with Chemistry Hybrid Pump RC 6, insulated exhaust vapour condenser, condensate catchpot on pumping unit console, mains cable, manual, oil (bottle of 500 ml)SpecificationsPumping speed 50/60 Hz:98,33 / 115 l/minUltimate vacuum (partial) without gas ballast:0.0004 mbarUltimate vacuum (total) without gas ballast:0.002 mbarUltimate vacuum (total) with gas ballast:0.01 mbarOil capacity (B-Oil):min. 0.34 l max. 0.53 lInlet connection: Outlet connection: Cooling water connection:Small flange NW 16 Hose nozzle NW 8-10 mm 2 x hose nozzle NW 6 / 8Motor rating:0.37kWNominal speed 50/60 Hz: Dimensions (L x W x H): Weight:1500/1800 rpm 507 x 377 x 429 mm 31.2 kgProtection class:IP 40

The surfaces of the different wetted parts of the PIZA 111 cr-gold have been specially treated, making it highly resistant to chemicals. Due to its flexible use the PIZA 111 cr-gold can be adapted to any Schlenkline position.Scope of supply: CRVpro with digital vacuum gauge PIZA 111 cr-gold, oil mist separator AKD 16, 2-way ball valve, T-piece, hose connector DN16KF-10/8 mm, vacuum hose (2,5 m), oil change set

Improved performance, increased pumping speed (up to 16 m³/h) and better ultimate vacuum (up to 0.5 mbar). Extend applications with non-aggressive gases whether used in the laboratory or for industrial processesVery low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics - even after many years of operation. Ideal for analytical applicationsLong diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stabilityVery quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipmentEasy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environmentsThe VARIO® design provides vacuum control by precise and continuous adaption of the diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.SpecificationsVacuum inlet10 mm tubing nozzle:ME4NT, ME4RNT, ME8NT, MZ2NTKF DN16:MZ2DNT, MD4NT, MV2NTPressure outletSilencer:ME4NT, MZ2NT, MZ2DNT, MD4NT, MV2NTTwin silencers:ME8NTTubing nozzle:ME4RNTCountry-specific power cord versions available on request.

The two-stage pump is designed for pumping and compressing gases and vapours and generate vacuum e.g. for rotary evaporators, vacuum ovens and vacuum filtration. Their electrical conductivity prevents electrostatic charging and minimizes the risk of the gas mixture igniting inside the pump.For tubes with ID = 8 mmChemically resistantResistant to aggressive solvents and acid vapoursElastomer diaphragms with PTFE layerPump and connection heads are carbon fibre reinforcedIntegrated motor protection switchVibration isolating feetScope of delivery: 2-head chemical diaphragm pump, external power supply and device connection cable with plug (EU, UK).SpecificationPump speed 50 / 60 Hz:16.7 / 18.3 l/minFinal vacuum (abs.): 8 mbarSuction / pressure connection:Hose nozzle DN 8Noise: 44 dB(A)Motor power:60 WVoltage / frequency:230 V / 50/60 HzDimensions (W x D x H):225 x 195 x 147 mmWeight:6.5 kgIP code:IP 54

The two-stage pump is designed for pumping and compressing gases and vapours and generate vacuum e.g. for rotary evaporators, vacuum ovens and gel dryers. Their electrical conductivity prevents electrostatic charging and minimizes the risk of the gas mixture igniting inside the pump.For tubes with ID = 8 mmChemically resistantResistant to aggressive solvents and acid vapoursElastomer diaphragms with PTFE layerPump and connection heads are carbon fibre reinforcedIntegrated motor protection switchVibration isolating feetScope of delivery: 2-head chemical diaphragm pump, external power supply and device connection cable with plug (EU, UK).SpecificationPump speed 50 / 60 Hz:38.3 / 41.7 l/minFinal vacuum (abs.): 8 mbarSuction / pressure connection:Hose nozzle DN 8Noise: 44 dB(A)Motor power:180 WVoltage / frequency:230 V / 50/60 HzDimensions (W x D x H):265 x 230 x 170 mmWeight:11.2 kgIP code:IP 54

The three-stage pump is designed for pumping and compressing gases and vapours and generate vacuum e.g. for rotary evaporators, vacuum ovens and turbomolecular pumps. Their electrical conductivity prevents electrostatic charging and minimizes the risk of the gas mixture igniting inside the pump.For tubes with ID = 8 mmChemically resistantResistant to aggressive solvents and acid vapoursElastomer diaphragms with PTFE layerPump and connection heads are carbon fibre reinforcedIntegrated motor protection switchVibration isolating feetScope of delivery: 4-head chemical diaphragm pump, external power supply and device connection cable with plug (EU, UK).SpecificationPump speed 50 / 60 Hz:75.0 / 81.7 l/minFinal vacuum (abs.): 2 mbarSuction / pressure connection:Hose nozzle DN 8Noise: 44 dB(A)Motor power:370 WVoltage / frequency:230 V / 50/60 Hz 230/400 V / 50/60 HzDimensions (W x D x H):380 x 230 x 170 mmWeight:18.3 kgIP code:IP 54

The diaphragm pumps ME 1C offer a compact and high performance solution. With their easy-to-use functionality, they are the perfect partner for both single and multiple filtrations.One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.Gas ballast for reliable pump performance.Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.Diaphragm pumps ATEX-models available on request. Country-specific power cord versions available on request.

The diaphragm pumps ME 1 offer a compact and high performance solution. With their easy-to-use functionality, they are a perfect partner for both single and multiple filtrations.One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.Typical applications for the ME 1 are aqueous filtrations. The PTFE diaphragm and valves are rugged and provide high chemical resistance. If aluminium has the required specific resistance, solvent-containing samples can also be filtrated.Country-specific power cord versions available on request.

Application: Rotary evaporation, distillation, vacuum oven, centrifugal concentrationFlow rate 3.6 m³/h / ultimate vacuum 4 mbar abs.Integrated KNF self-drying system ensures that condensate is quickly removed from the pump heads without the vacuum being altered. This significantly reduces process time and preserves the pump headsChemically resistant and thus ideal for use with extremely aggressive/corrosive gases and vaporsSpecificationsOperating pressure:1 barConnectors for tube:ID12 mmPermissible media and ambient temperature:5 to 40 °CPump head:PTFEDiaphragm:PTFE-coatedValves:FFPMWeight:14.8 kg

Application: Degassing, Gel drying, Rotary evaporation, DistillationFlow rate 1.26 m³/h / Ultimate vacuum 2 mbar abs.High suction speed, particularly in the low vacuum rangeIntegrated rotational speed control enables pumping capacity to be easily adapted manually to process requirementsPPS pump head combined with PTFE-coated diaphragm are ideal for aggressive/corrosive gases and vaporsIntegrated gas ballast valveTip: When combined with the VC 900 vacuum control unit and the connection cable, the rotational speed is controlled in accordance with the requirements of the process.SpecificationsOperating pressure:0.5 barConnectors for tube:ID10 mmPermissible media and ambient temperature:5 to 40 °C 10 to 40 °CPump head:PPSDiaphragm:PTFE-coatedValves:FFPMWeight:8.5 kg

Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications.Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support.Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustment.Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry.Superior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge (at ME 16C NT, MZ 2C NT, MD 4C / 12C NT and MV 10C NT).Easy to clean due to smooth exterior surfaces.The VARIO® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.SpecificationsVacuum inlet:10mm tubing nozzlePressure outlet:10mm tubing nozzle* diaphragm pump with reduced leakage rate (mbar x l/s). Country-specific power cord versions available on request.

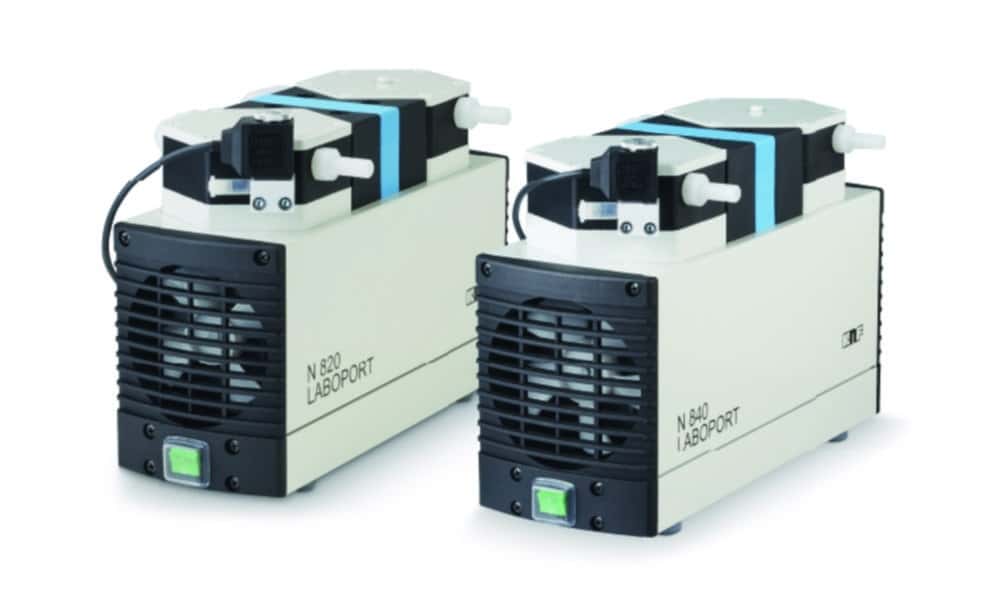

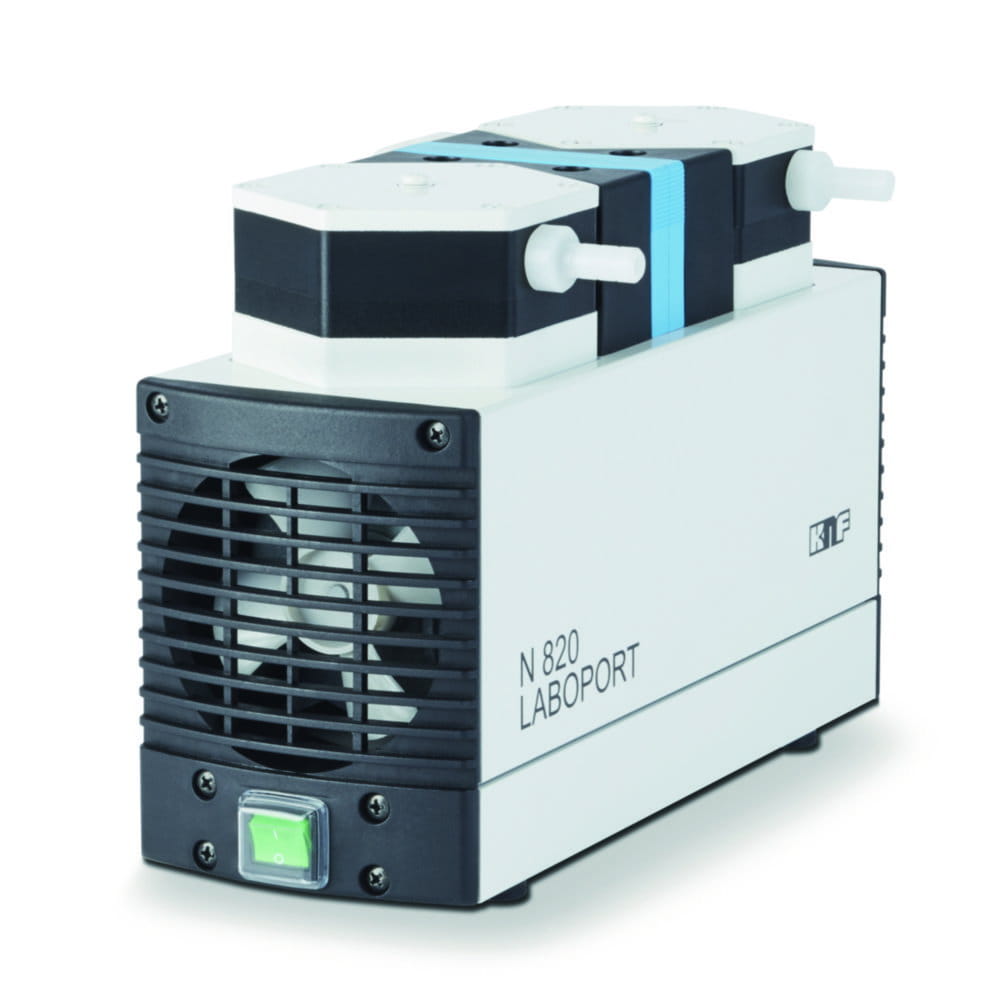

Application: Fluid aspiration, Degassing, Gel drying, Rotary evaporation, Centrifugal concentration, DistillationFlow rate up to 2.04 m³/h / Ultimate vacuum up to 8 mbar abs.High level of vapor and condensate compatibilityPTFE pump head combined with PTFE-coated diaphragm are ideal for extremely aggressive/corrosive gases and vaporsN 820.3 FT.18 and N 840.3 FT.18: ATEX-compliant in accordance with ATEX II 2/-G IIB+H2 T3 Gb internal atmosphere onlySpecificationsOperating pressure:1 barConnectors for tube:ID10 mmPermissible media and ambient temperature:5 to 40 °CPump head:PTFEDiaphragm:PTFE-coatedValves:FFPM

The compact pumps feature a control knob for manual adjustments of the flow rate, making them well suited to a wide variety of applications, e.g. rotary evaporation, distillation, gel drying, degassing as well as the use with vacuum ovens and vacuum concentrators. Due to the manual rotational speed control, the pumps are quiet, very energy efficient, and can be optimally adjusted in accordance with the application.Easy-to-clean surfaceAdjustable in flow rate due to manual rotational speed controlCombination of PTFE pump head and PTFE-coated diaphragm makes the pump ideal for extremely aggressive/corrosive gases and vaporsHigh level of compatibility with vapor and condensationIntegrated gas ballast valve3-color status display: In operation / Stand-by / ErrorATEX-compliant in accordance with II 2/-G IIB+H2 T3 internal atmpsphere only100% oil-free transfer to ensure uncontaminated transfer, evacuation and compressionOptional: Easily expandable with separators and/or condensersSpecificationsUltimate vacuum (abs.): Operating pressure:6 mbar 0.1 barConnectors for tube:ID 9/10 mmPermissible ambient temperature:5 ... 40 °CPump head:TFM™ PTFEDiaphragm:PTFE-beschichtetValves:FFPM
