Manufacturer Article Number:
0055100
|
Material:
PP
|
Plate Ø:
141 mm
PP. For use at room temperature. Not suitable for use with hot crucibles.
Flange int. Ø:
150 mm
|
Height:
190 mm
|
Manufacturer Article Number:
0055000
|
Material:
PP/PC
|
Nominal capacity:
2.15 l
|
Suitable for vacuum:
Yes
|
With stopcock:
Yes
Crystal clear, PC dome lid. PP. Lower section and desiccant tray. Venting stopper with non-return valve in lid. Polychlorbutadiene rubber (CK) O-ring seal between lid and base which is compressed when vacuum is applied. Lightweight and easy to use.
Manufacturer Article Number:
0055500
|
Material:
Neoprene
|
Ø:
150 mm
Neoprene rubber.
Flange ext. Ø:
171 mm
|
Flange int. Ø:
149 mm
|
Height:
206 mm
|
Manufacturer Article Number:
F42010-0000
|
Material:
PP/PC
|
Plate Ø:
140 mm
|
Suitable for vacuum:
Yes
|
With plate:
Yes
|
With stopcock:
Yes
This lightweight plastic vacuum desiccator holds a full vacuum of 760 mm Hg at room temperature for 24 hours.Polycarbonate lid with large ribbed buttonWhite PP baseIncl. 0.32 cm thick perforated plateConical polypropylene valve with PTFE cone, for hoses with 6.4 - 9.5 mm I.D.With neoprene O-ring, for sealing up to 0 °C without grease
Colour:
Clear
|
Depth:
196 mm
|
Dimensions (WxDxH):
380 x 196 x 160 mm
|
Height:
160 mm
|
Manufacturer Article Number:
HS120052
|
Material:
PC
|
UNSPSC:
24112902
|
Width:
380 mm
Ideal for transporting biological and clinical samples, as well as instruments and products that you want to keep clean and dry under testing environmental conditions. Are light weight and easy to carry; they are ideal for moving samples that must be protected from humidity, dust and other environmental influence. The clarity of the DURAPorter™ enables the user to visibly check sample integrity, so that it can be opened using the right precautions.Polycarbonate construction are available in three colours for use/owner identificationSilicone water-tight seal and three lid clasps provide secure closureCarry handle folds neatly into body space allowing the units to be stackedLid opens a full 180°, allowing total access to contents and making it easier to cleanWill accommodate 13 and 16 mm tubes in a 72-place one rack®, or similar sized/brand of rackUse the separators provided to create your own compartment sizes, or use empty to transport larger products and equipmentAutoclavableMatching rack (e.g. Cat. No. 9.193 997, 9.193 998) please order separately. Further colours available on request.
Autoclavable:
No
|
Colour:
Transparent
|
Height:
330 mm
|
Manufacturer Article Number:
5311-0250
|
Material:
PC
|
Suitable for vacuum:
Yes
|
Type:
5311
|
With plate:
No
|
With stopcock:
Yes
Transparent, lightweight, unbreakable, for vacuum or non-vacuum use. With stopcock. Large, stable base. No danger of implosion. Capable of maintaining 0.95 bar negative pressure over a 24 hour period. With silicone O-ring, no lubrication required. Suitable for 230 mm diameter desiccator discs or plates. Max. height over plate 195 mm. Suitable for vacuum hoses with an inner diameter of 6 to 10 mm.Plate not included.
Colour:
Clear
|
DN:
300
|
Flange ext. Ø:
392 mm
|
Manufacturer Article Number:
632415270300
|
Material:
Boro 3.3
|
Plate Ø:
290 mm
|
UNSPSC:
41-12-30-04
|
With plate:
Yes
Clear glass, with porcelain plate, without vacuum connector.
Variants from €134.80*
DN:
150
|
Flange ext. Ø:
210 mm
|
Manufacturer Article Number:
632415272150
|
Material:
Boro 3.3
|
Plate Ø:
140 mm
|
Suitable for vacuum:
Yes
|
UNSPSC:
41-12-30-04
|
With plate:
Yes
|
With stopcock:
Yes
With porcelain plate. Vacuum-tight. The stopcock has an outer diameter of approx. 9 mm.
Variants from €316.90*
DN:
200
|
Flange ext. Ø:
269 mm
|
Manufacturer Article Number:
632415271200
|
Material:
Boro 3.3
|
Plate Ø:
190 mm
|
Suitable for vacuum:
Yes
|
UNSPSC:
41-12-30-04
|
With plate:
Yes
|
With stopcock:
Yes
With porcelain plate.
Variants from €255.20*
Description:
Desiccator stopcock Ø 8mm, 100mm
|
Manufacturer Article Number:
632441334521
Connection size:
NS 24/29
|
Length:
124 mm
|
Manufacturer Article Number:
02822404
|
Material:
Boro 3.3
|
Olives ext. Ø:
8 mm
With PTFE spindle. For NOVUS-type desiccators.Cone: NS 24/29, bore: NW 2,5 mm, hose connection: outer dia. 8 mm.
Autoclavable:
Yes
|
Colour:
Blue
|
Height:
262 mm
|
Manufacturer Article Number:
5309-0250
|
Material:
PC
|
Suitable for vacuum:
Yes
|
Type:
5309
|
UNSPSC:
41-12-30-04
|
With stopcock:
No
Transparent PC bell and blue PP lower part. Will not break or implode under vacuum provided that the operating instructions are obeyed. Lower part is resistant to diluted acids, alkalis and other common desiccants. Vacuum connection at lower part. TFE stopcock is suitable for vacuum tubing 6.4mm i.d. For air tight sealing it is sufficient to grease sealing surface a little. No additional sealing ring is necessary. The additional rim at the bell prevents grease stains on lab benches.
Connection size:
NS 24/29
|
Length:
108 mm
|
Manufacturer Article Number:
02842404
|
Material:
Boro 3.3
|
Olives ext. Ø:
8 mm
With PTFE spindle. For NOVUS-type desiccators.Cone: NS 24/29, bore: NW 2,5 mm, hose connection: outer dia. 8 mm.
Regenerationstemperatur:
100 °C
|
Regenerationszeit:
6 h
|
Regenerierbar:
Ja
|
Capacity:
30 g
|
Manufacturer Article Number:
F42049-0100
|
Weight g:
30
|
Ø mm:
72
For moisture reduction in desiccators and precision laboratory instruments. The transparent polypropylene dish allows visual inspection of silica gel, which changes in colour from blue to pale pink as it absorbs moisture. The desiccant can be easily regenerated by heating cartridges in an oven at 50°C overnight or at 100°C for 6 hours. For faster regeneration, remove the membrane lid, heat the spent gel crystals in a suitable glass or porcelain dish at 150°C in the oven for one hour.Inert, non-corrosive, non-toxic silica gelIndividually foil sealed
Manufacturer Article Number:
5312-0230
|
Plate Ø:
230 mm
Light-green, ceramic-metal composite. With numbered quadrants. Autoclavable.
Ext. depth:
305 mm
|
Ext. height:
178 mm
|
Ext. width:
305 mm
|
External dimensions (WxDxH):
305 x 305 x 178 mm
|
Manufacturer Article Number:
5317-0070
|
Material:
Acrylic
|
Max. no. of shelves:
3
|
Nominal capacity:
15 l
|
UNSPSC:
41-10-44-00
All components requiring controlled storage conditions can be stored in the transparent drying chambers, from anhydrous and hygroscopic materials to electronic equipment.Safe sealing with neoprene door sealsDoors secured with two stainless steel locks (three at the largest chamber) and a hinge running over the entire door heightRemovable tray with rim for solid desiccantsInserts are removable, height-adjustable and provided with holes
Colour:
White
|
Depth int.:
340 mm
|
Ext. depth:
380 mm
|
Ext. height:
635 mm
|
Ext. width:
300 mm
|
External dimensions (WxDxH):
300 x 380 x 635 mm
|
Height int.:
500 mm
|
Int. width:
280 mm
|
Internal dimensions (WxDxH):
280 x 340 x 500 mm
|
Manufacturer Article Number:
H42057-1003
|
Max. voltage:
240 V·AC
|
Min. voltage:
100 V
|
Power supply:
100 ... 240 V·AC
|
Type of auxiliary energy:
Mains connection

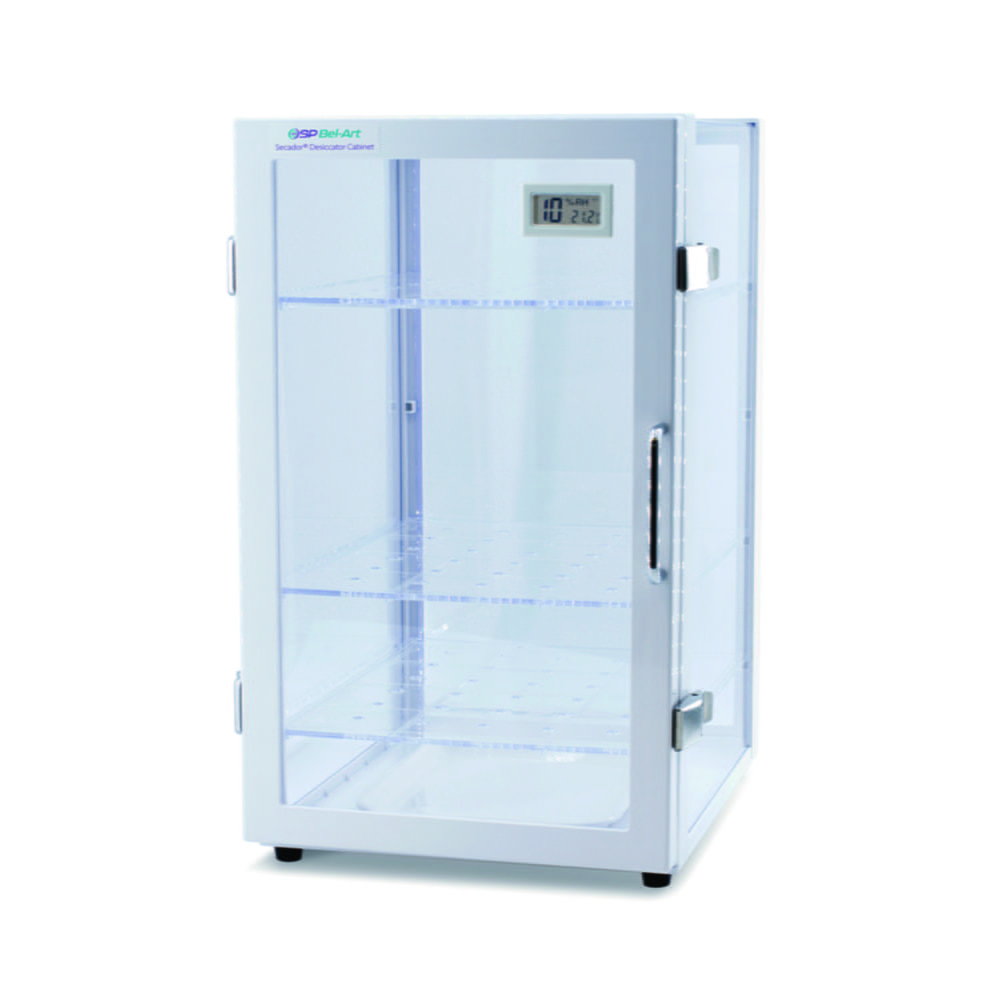

For dry storage of humidity sensitive products, such as laboratory reagents and samples, optical equipment, electronics, and 3D printing filament.Desiccant-freeKeeps internal humidity at 20-40 %LCD display for internal temperature and humidity levelHigh density foam gasketsLarge clear polycarbonate panelsScope of supply:Desiccator cabinet, 3 shelves
DN:
100
|
Manufacturer Article Number:
119C/90
|
Material:
Porcelain
|
Plate Ø:
90 mm

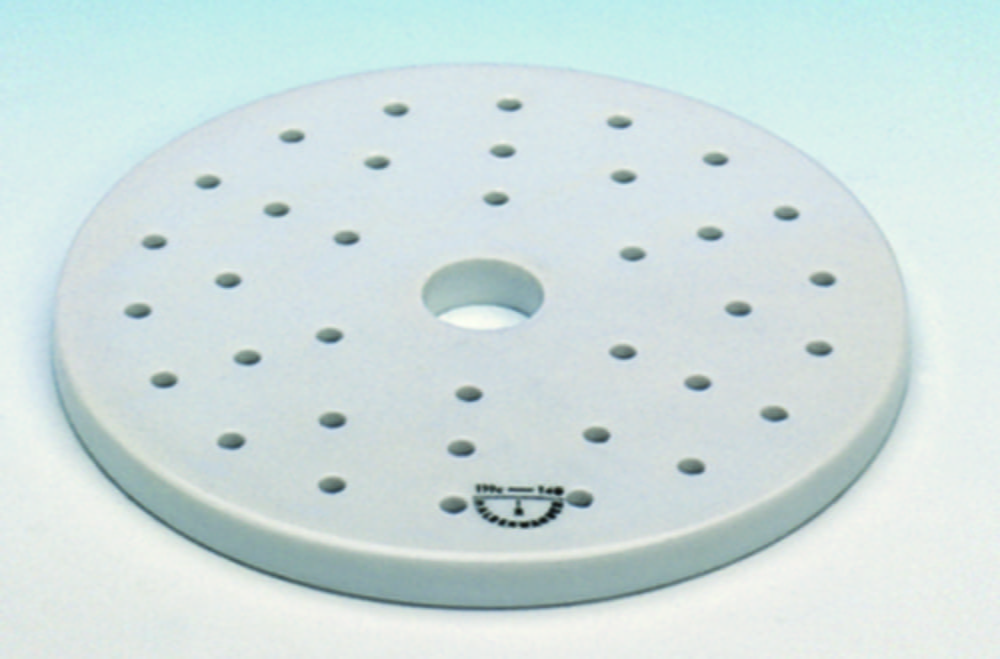

Perforated. Without feet. To DIN 12911. 20mm diameter central hole and 5mm diameter outer holes.
Colour:
White
|
Depth int.:
340 mm
|
Ext. depth:
380 mm
|
Ext. height:
520 mm
|
Ext. width:
300 mm
|
External dimensions (WxDxH):
300 x 380 x 520 mm
|
Height int.:
500 mm
|
Int. width:
280 mm
|
Internal dimensions (WxDxH):
280 x 340 x 500 mm
|
Manufacturer Article Number:
H42057-0001
For dry storage of humidity sensitive products, such as laboratory reagents and samples, optical equipment, electronics, and 3D printing filament.LCD display for internal temperature and humidity levelHigh density foam gasketsLarge clear polycarbonate panelsScope of supply:Desiccator cabinet, 3 shelves
Flange ext. Ø:
273 mm
|
Height:
311 mm
|
Manufacturer Article Number:
326294
|
Material:
PP/PC
|
Plate Ø:
230 mm
|
UNSPSC:
41-12-30-04
|
With stopcock:
No
Lower portion can be filled with desiccants. The materials to be dried are placed on a perforated disc made of PP. The lid is sealed with a neoprene gasket. Ideal for use in educational laboratories. Also available with stopcock for evacuation.
Description:

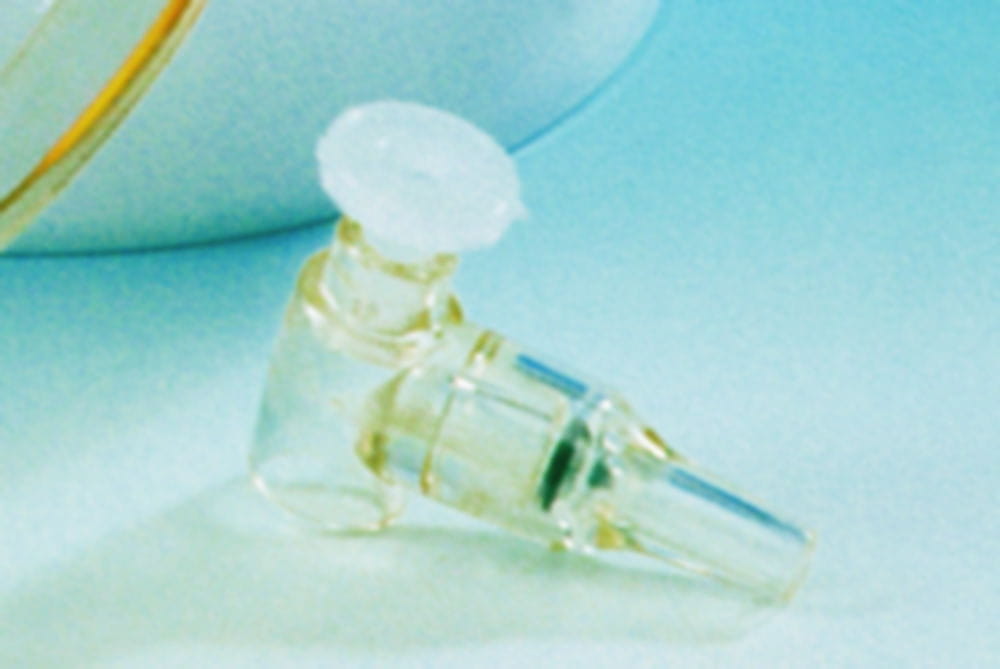

Venting stopper
|
Manufacturer Article Number:
65804
|
Material:
PC
With non-return valve.
Autoclavable:
Yes
|
Colour:
Clear
|
DN:
150
|
Flange ext. Ø:
215 mm
|
Flange int. Ø:
172 mm
|
Height:
239 mm
|
Manufacturer Article Number:
247825752
|
Material:
Boro 3.3
|
Suitable for vacuum:
Yes
|
With plate:
Yes
|
With stopcock:
Yes

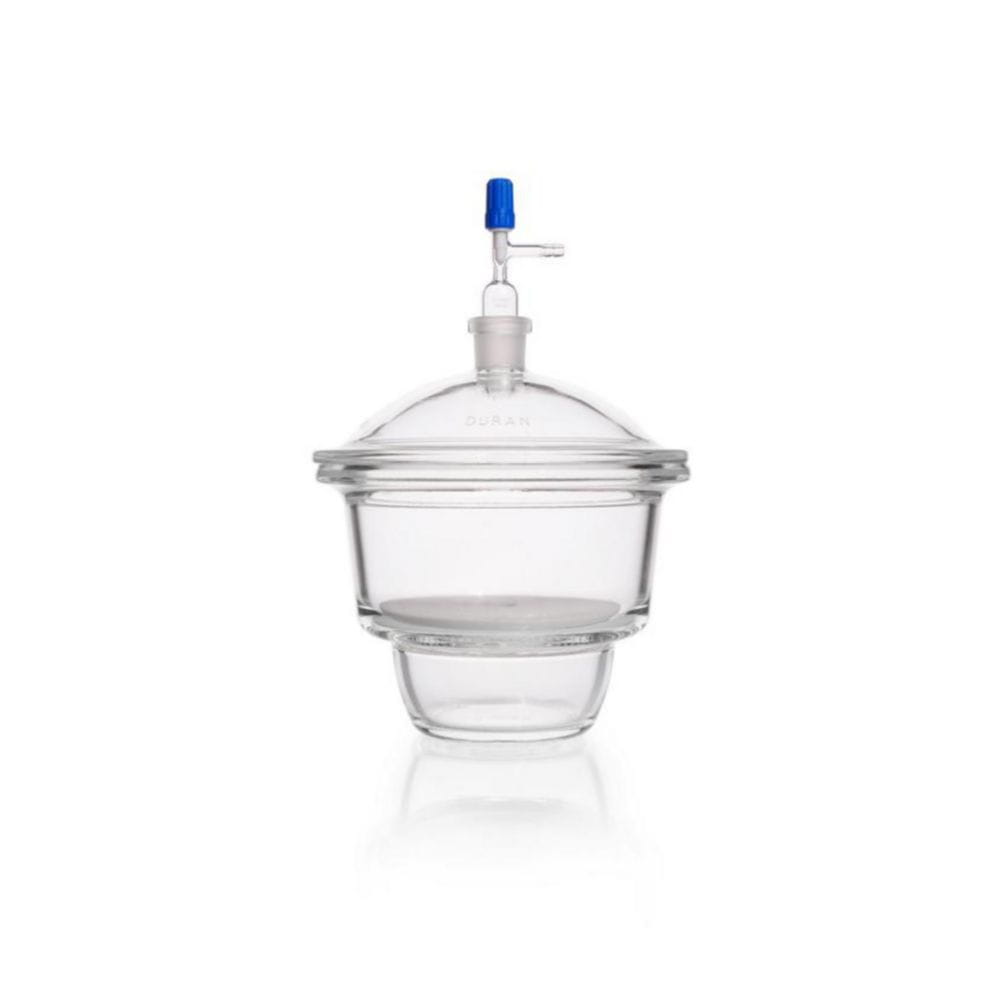

DURAN® vacuum desiccators complete - with porcelain plate and vacuum connection.DIN ISO 13130Standard ground joint (NS 24/29) junction tube in the lidStopcock with PTFE spindleWith flat flange
Autoclavable:
Yes
|
DN:
150
|
Flange ext. Ø:
215 mm
|
Flange int. Ø:
172 mm
|
Height:
239 mm
|
Manufacturer Article Number:
247835753
|
Material:
Boro 3.3
|
Suitable for vacuum:
Yes
|
With plate:
Yes
|
With stopcock:
Yes
DURAN® vacuum desiccators complete - with porcelain plate and vacuum connection.DIN ISO 13130Threaded outlet GL 32Stopcock with PTFE spindlePBT screw cap, sealing ring
Autoclavable:
Yes
|
Colour:
Clear
|
DN:
100
|
Flange ext. Ø:
153 mm
|
Flange int. Ø:
119 mm
|
Height:
187 mm
|
Manufacturer Article Number:
247814603
|
Material:
Boro 3.3

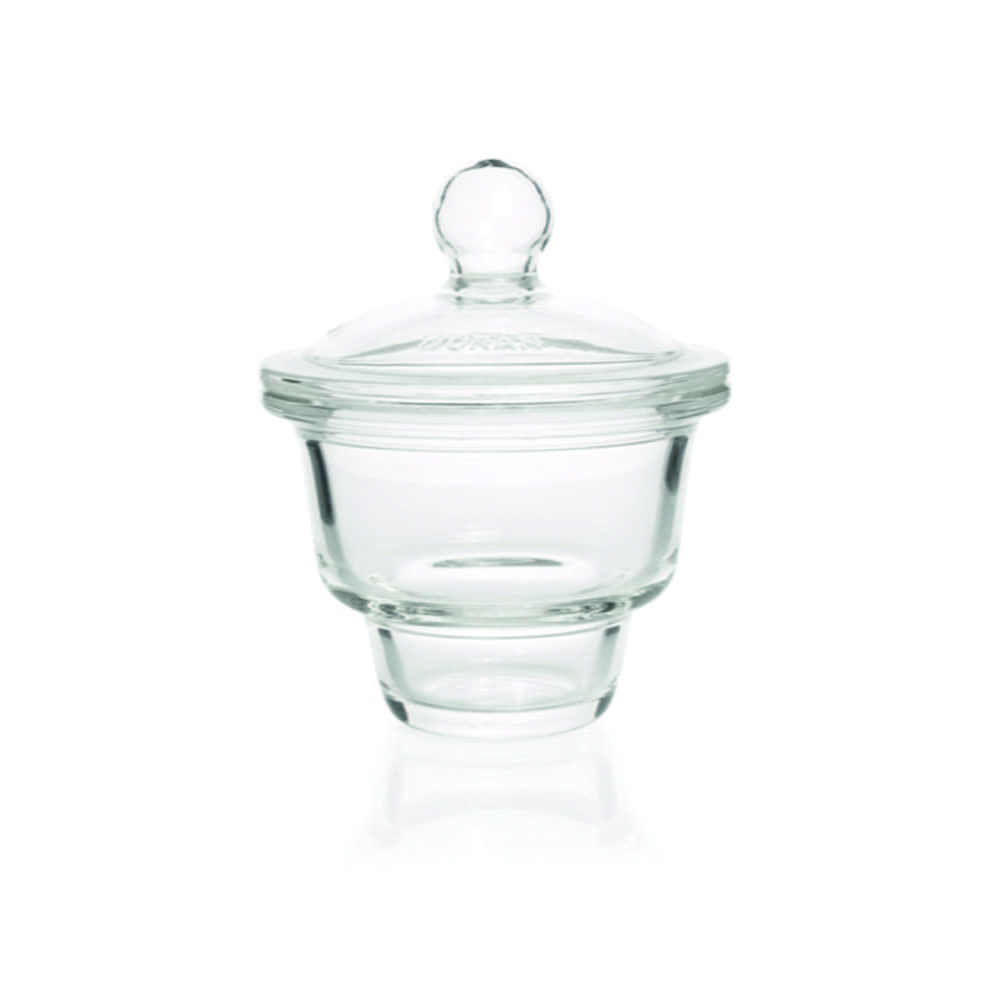

DURAN®. Clear glass, without vacuum, with knob lid. DIN 13130.
