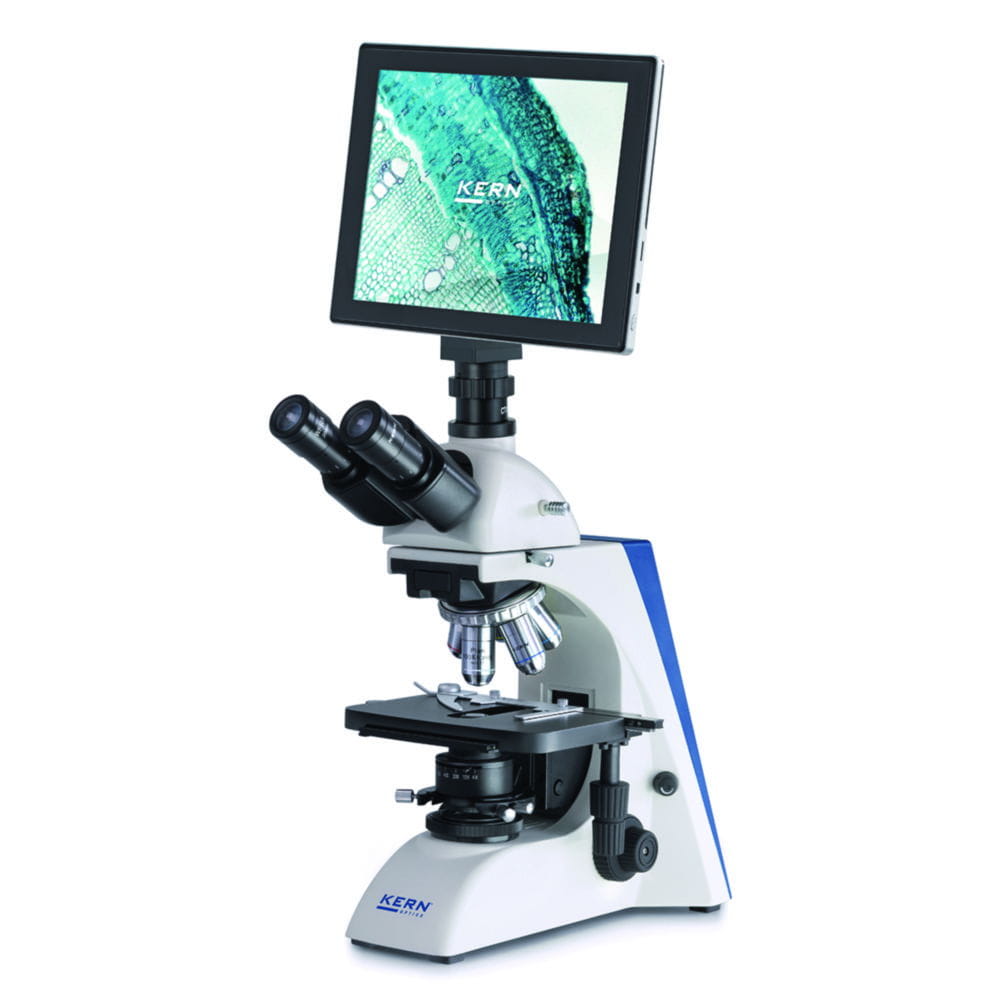

Interfaces:
WLAN, USB 2.0, HDMI, SD
|
Manufacturer Article Number:
OBN 132T241
|
Type:
OBN 132T241
The sets are the complete digital solution for live investigations. The adapted 5 MP tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen.Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)
Variants from €2,690.00*
Condenser:
Abbe 1,25
|
Depth:
220 mm
|
Depth stage:
145 mm
|
Dimensions (WxDxH):
530 x 220 x 490 mm
|
Height:
490 mm
|
Inclination angle tube:
30°
|
Light type:
Halogen
|
Magnification eyepieces:
WF 10x/20 mm
|
Magnification objectives:
4x, 10x, 20x, 40x, 100x
|
Manufacturer Article Number:

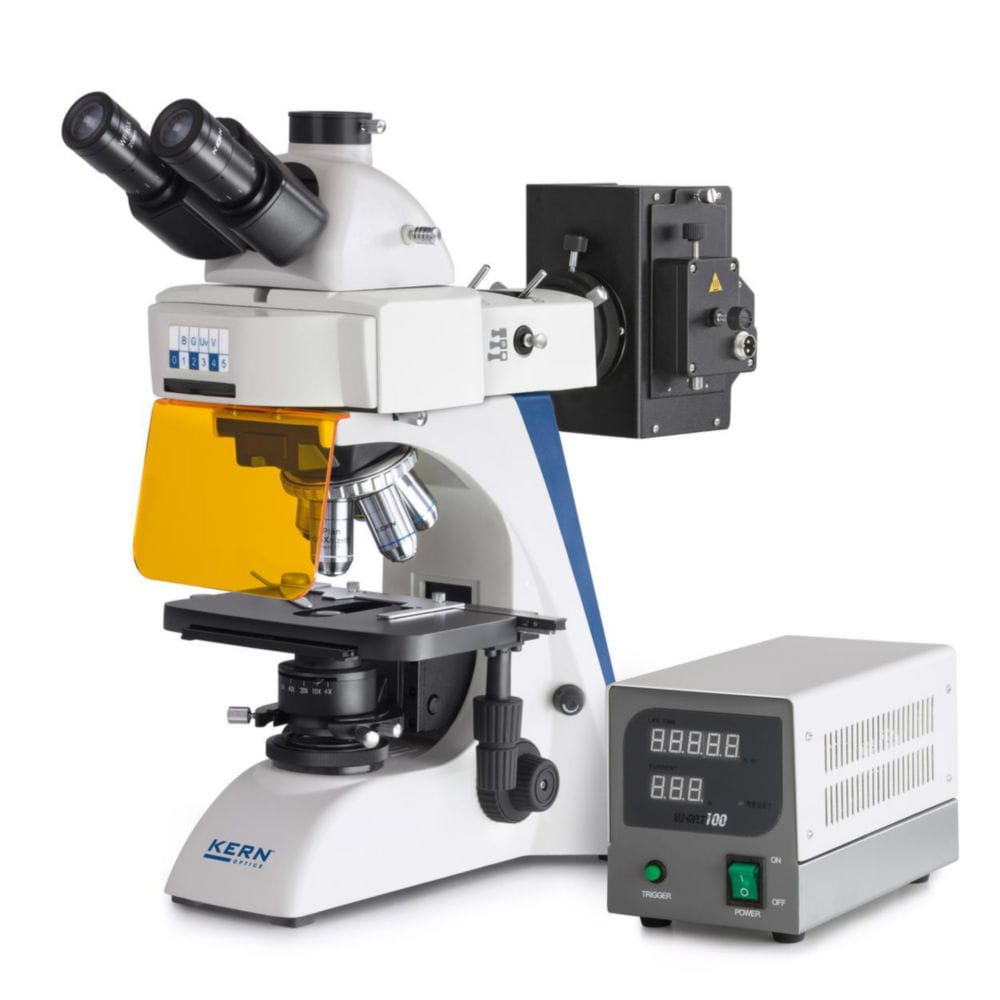

OBN 147
|
Max. voltage:
230 V
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Revolving nosepiece:
5-fold
|
Stage (WxD):
175 x 145 mm
|
Tube:
Trinocular
|
Type:
OBN 147
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
16 kg
|
Weight:
13 kg
|
Width:
530 mm
|
Width stage:
175 mm
Diese Serie verfügt über eine professionelle Köhler-Beleuchtung mit einstellbarer Leuchtfeldblende, mit Infinity Optik. Eine Vielfalt an modularen Systemen, wie z. B. ein Swing-Out-Kondensor, diverse Okulare, Objektive, Farbfilter, Phasenkontrasteinheiten, einem Dunkfeldkondensor, einer einfachen Polarisationseinheit, Butterfly-Tubus, bis hin zu kompletten Fluoreszenzeinheiten sind optional erhältlich. Für den Anschluss einer Kamera ist ein C-Mount Adapter erforderlich (optional).Tubus 30° geneigt, 360° drehbarDioptrienausgleich beidseitigObjektivqualität: Infinity PlanKoaxialer Grob- und FeintriebFür transluzente und dünne, kontrastarme, anspruchsvolle Präparate (z. B. Immunfluoreszenz, FISH, DAPI-Färbung etc.)Zentrier- und höhenverstellbaren 1,25-Abbe-Kondensor mit regulierbarer AperturblendeInkl. Zentrierobjektiv zur Fluoreszenzeinstellung20 W-Halogendurchlichtbeleuchtung und 100 W-Epi-Fluoreszenzauflichteinheit6-fach bestückbares Filterrad mit B/G FluoreszenzfilterLieferumfang: Mikroskop, Zentrierobjektiv, Staubschutzhaube, Augenmuschel, Bedienungsanleitung

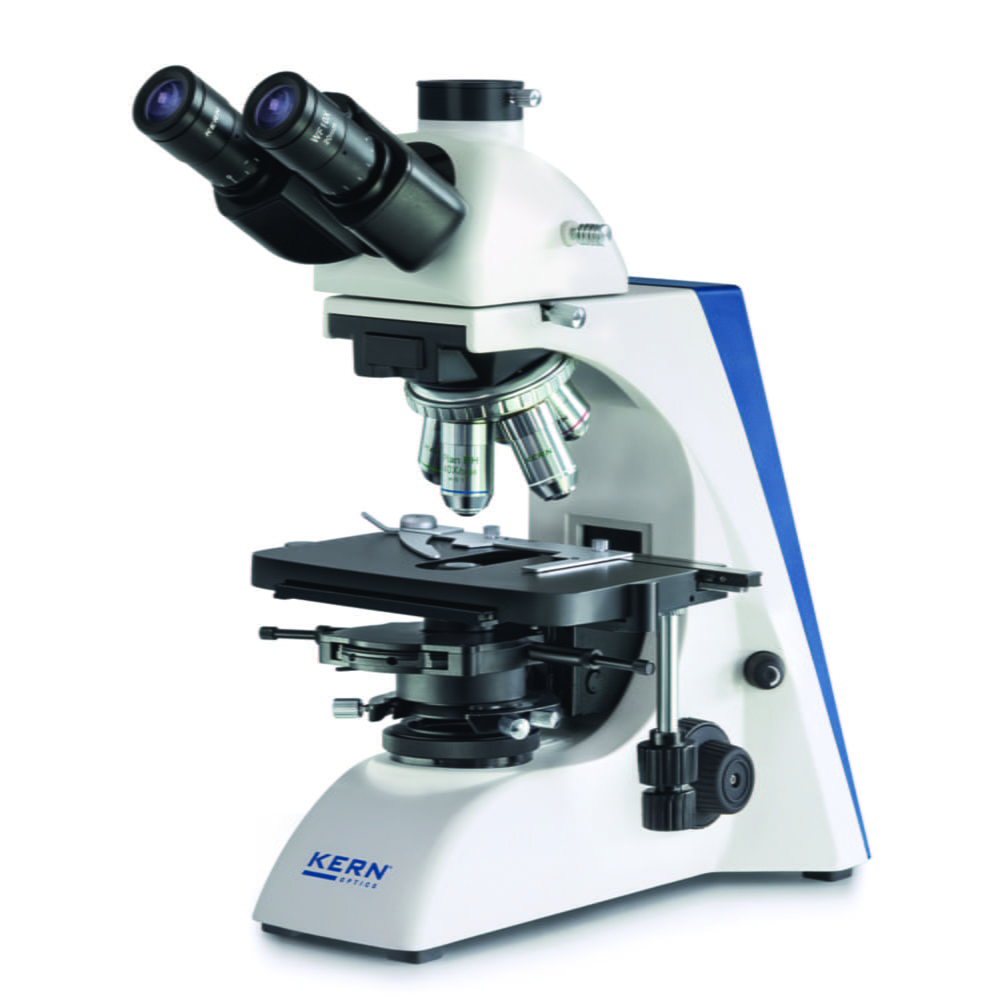

Depth:
200 mm
|
Dimensions (WxDxH):
390 x 200 x 400 mm
|
Height:
400 mm
|
Inclination angle tube:
30°
|
Light type:
Halogen
|
Magnification eyepieces:
HWF 10x/20 mm
|
Magnification objectives:
4x, PH10x, PH20x, PH40x, PH100x
|
Manufacturer Article Number:
OBN 158
|
Revolving nosepiece:
5-fold
|
Tube:
Trinocular
|
Type:
OBN 158
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
9 kg
|
Width:
390 mm
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentre and height adjustable PH universal rotary condenser, aperture diaphragm and field diaphragmCoaxial coarse and fine focusingOBN 158: Halogen lighting 20 WOBN 159: LED lighting 3 WScope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual

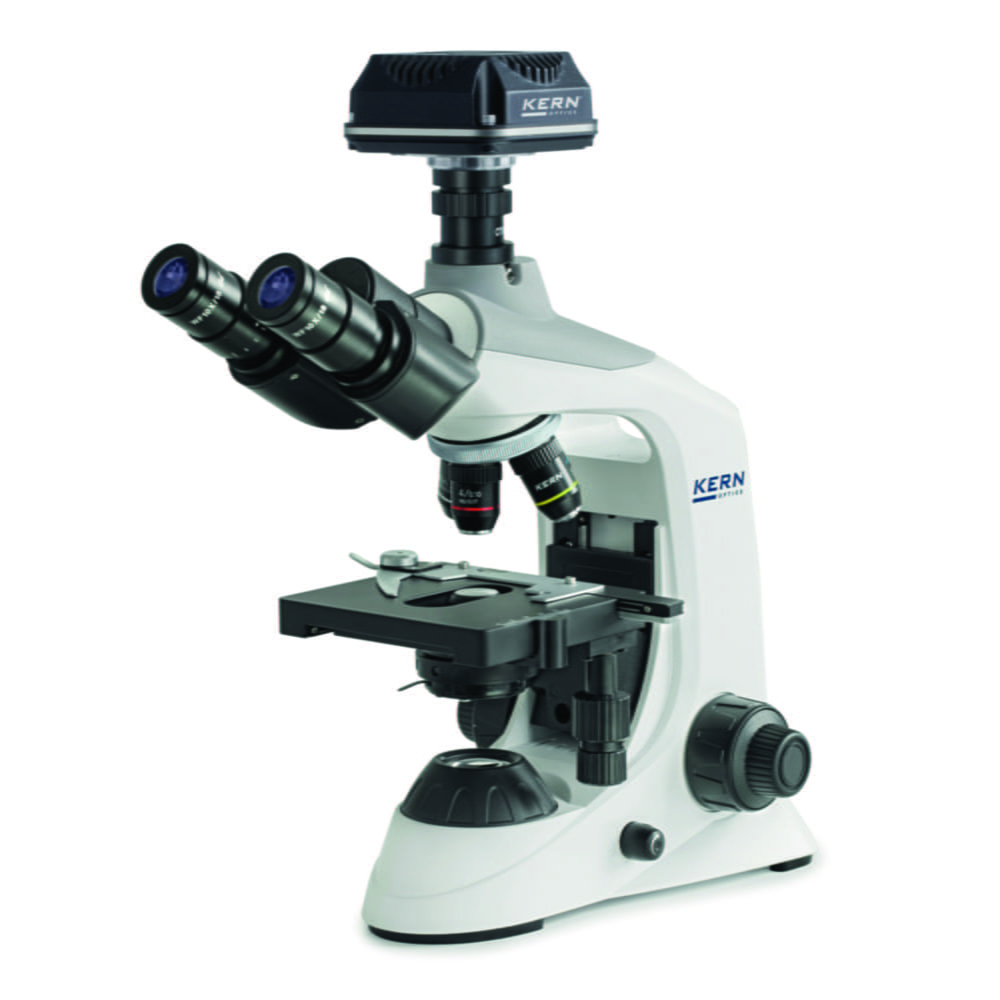

Condenser:
Abbe N.A. 1,25
|
Depth:
180 mm
|
Depth stage:
115 mm
|
Dimensions (WxDxH):
320 x 180 x 365 mm
|
Height:
365 mm
|
Inclination angle tube:
30°
|

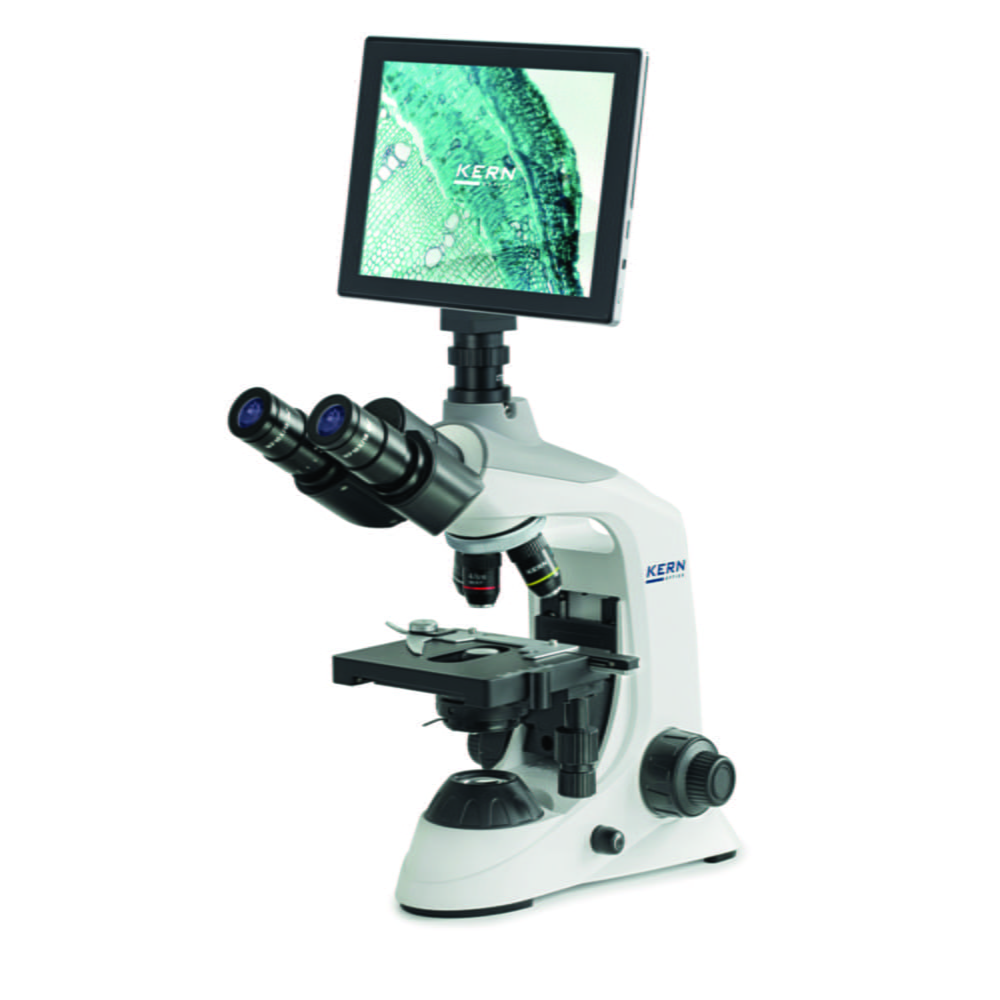

Interfaces:
WLAN, USB 2.0, HDMI, SD (15 ... 30 FPS)
|
Interpupillary distance:
48 ... 75 mm
|
Light type:
LED
|
Magnification eyepieces:
HWF 10x/18 mm
|
Magnification objectives:
4x, 10x, 40x
|
Manufacturer Article Number:
OBE 124T241
|
Max. interpupillary distance:
75 mm
|
Max. voltage:
230 V
|
Min. interpupillary distance:
48 mm
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
5 MP
|
Revolving nosepiece:
4-fold
|
Sensor:
CMOS 1/2,5"
|
Stage (WxD):
125 x 115 mm
|
Tube:
Trinocular
|
Type:
OBE 124T241
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
5.5 kg
|
Width:
320 mm
|
Width stage:
125 mm
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, dust cover, eye cups, manual instruction

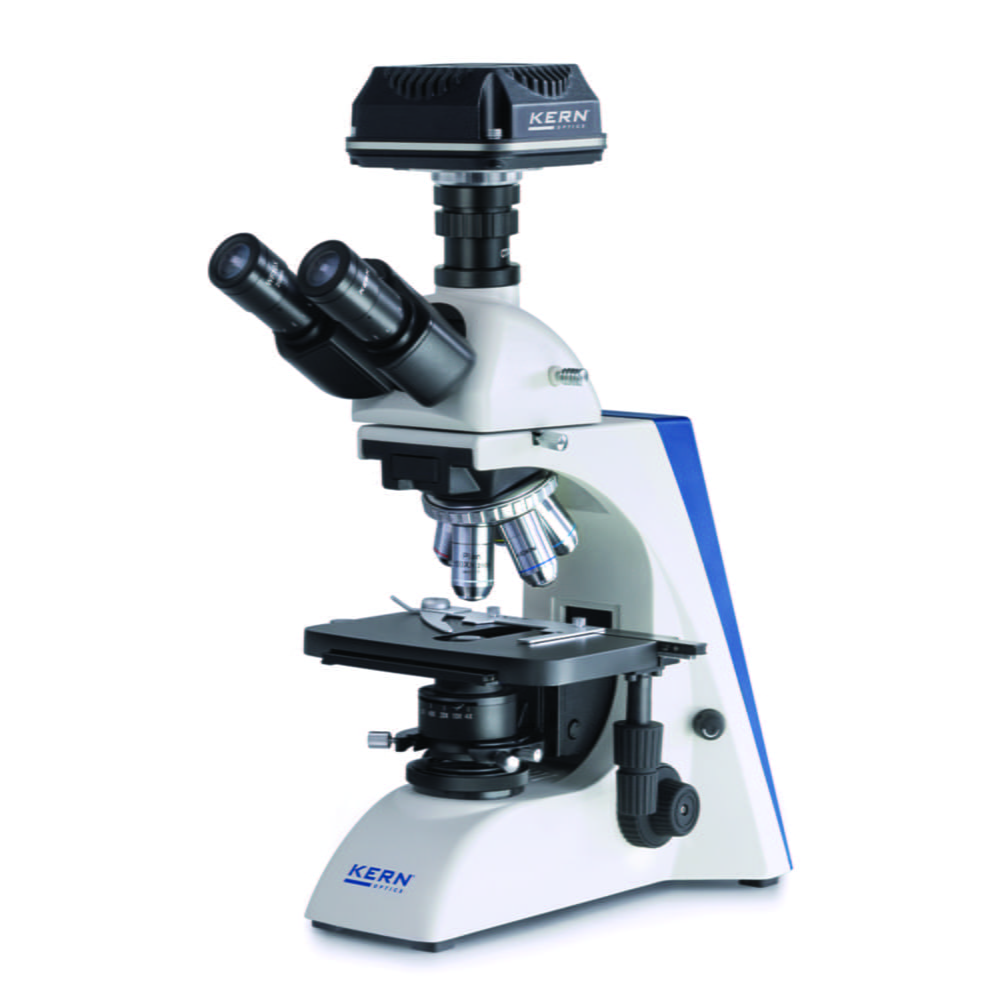

Interfaces:
USB 2.0
|
Manufacturer Article Number:
OBN 132C825
|
Type:
OBN 132C825
The sets are the complete digital solution for live investigations, including appropriate C-mount adapter. Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)
Variants from €2,090.00*
Condenser:
Abbe 0,3
|
Depth:
304 mm
|
Dimensions (WxDxH):
599 x 304 x 530 mm
|
Height:
530 mm
|
Inclination angle tube:
45°
|
Light type:
Halogen
|
Magnification objectives:
LWD 10x, 20x, 40x, LWD 20xPH
|
Manufacturer Article Number:

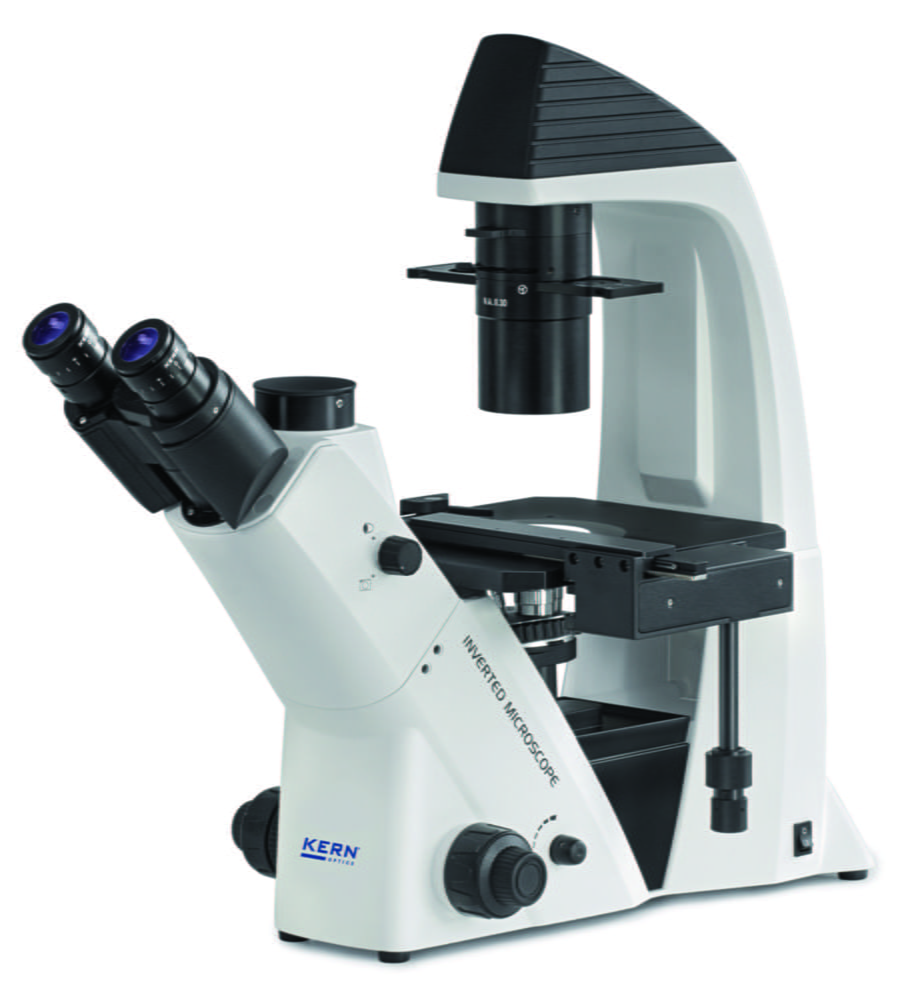

OCM 161
|
Revolving nosepiece:
5-fold
|
Tube:
Trinocular
|
Type:
OCM 161
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Width:
599 mm
This design, with its large working distance of 72 mm, is particularly suitable for viewing samples in culture vessels (flasks, petri dishes, microtiter plates) and for translucent, thin, low-contrast, challenging samples (immunofluorescence, FISH, DAPI staining etc.).TrinocularTube 45° inclinedEyepiece: HWF 10x/22 mmObjectives: LWD 10x, 20x, 40x, LWD 20xPHDiopter adjustment: both-sidedQuintuple nosepieceObjective quality: Infinity PlanMechanical stage, including specimen holder (Ø 118 mm)Abbe N.A. 0.3 condenser with aperture diaphragmOCM 161: 30 W halogen illuminationOCM 165: 30 W halogen illumination and 100 W Epi fluorescence illumination unitIncluding blue and green colour filterDust Cover and manual instruction included

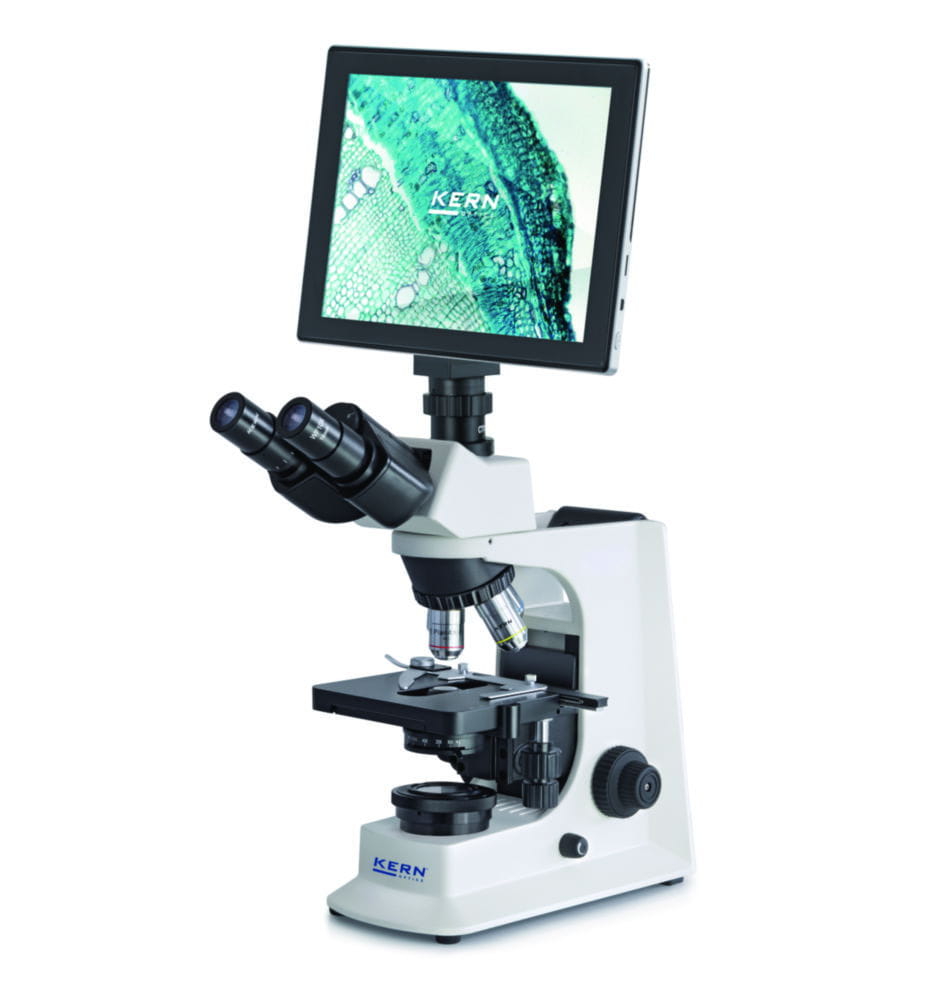

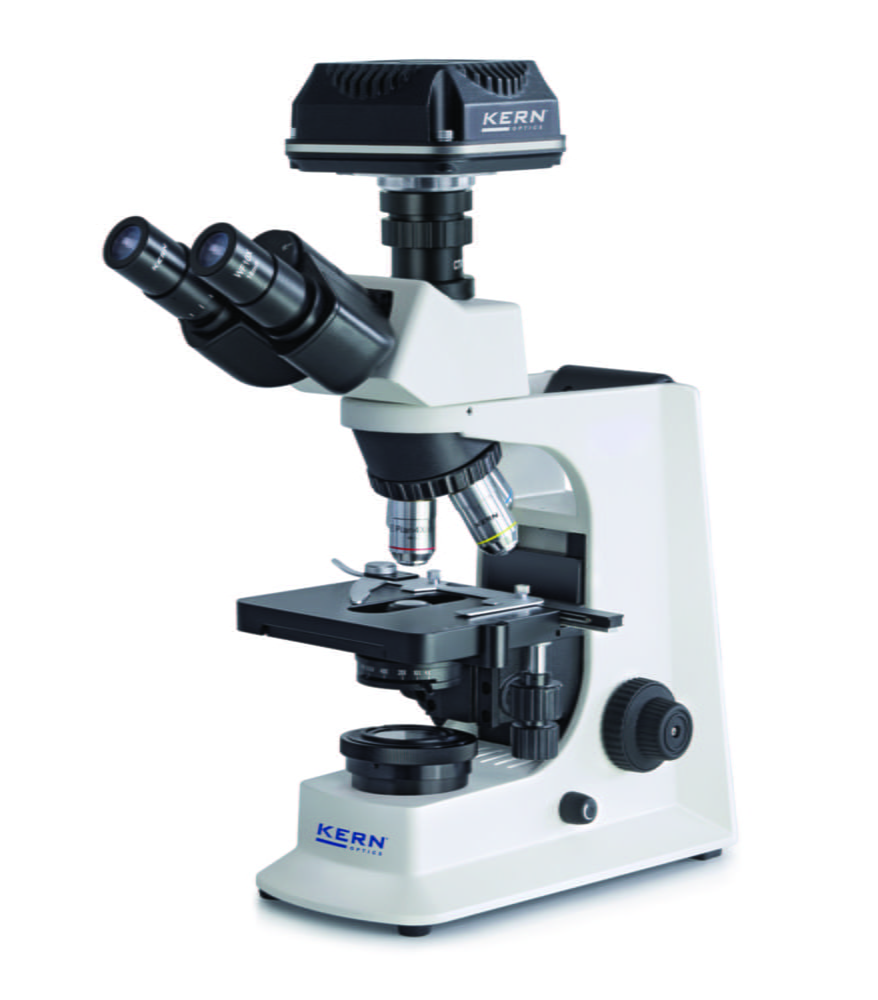

Condenser:
Abbe N.A. 1,25
|
Depth:
200 mm
|
Depth stage:
130 mm
|
Dimensions (WxDxH):
395 x 200 x 380 mm
|
Height:
380 mm
|
Inclination angle tube:
30°
|
Interfaces:
WLAN, USB 2.0, HDMI, SD
|
Interpupillary distance:
50 ... 75 mm
|
Light type:
LED
|
Magnification eyepieces:
HWF 10×/ 20 mm
|
Magnification objectives:
4×/10×/40×/100×
|
Manufacturer Article Number:
OBL 137T241
|
Max. interpupillary distance:
75 mm
|
Max. voltage:
230 V
|
Min. interpupillary distance:
50 mm
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
5 MP
|
Revolving nosepiece:
4-fold
|
Sensor:
CMOS 1/2,5"
|
Stage (WxD):
145 x 130 mm
|
Tube:
Trinocular
|
Type:
OBL 137T241
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
7.7 kg
|
Width:
395 mm
|
Width stage:
145 mm
The sets are the complete digital solution for live investigations.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm3 W LED illuminationScope of supply:Light microscope, camera, dust cover, eye cups, manual instruction

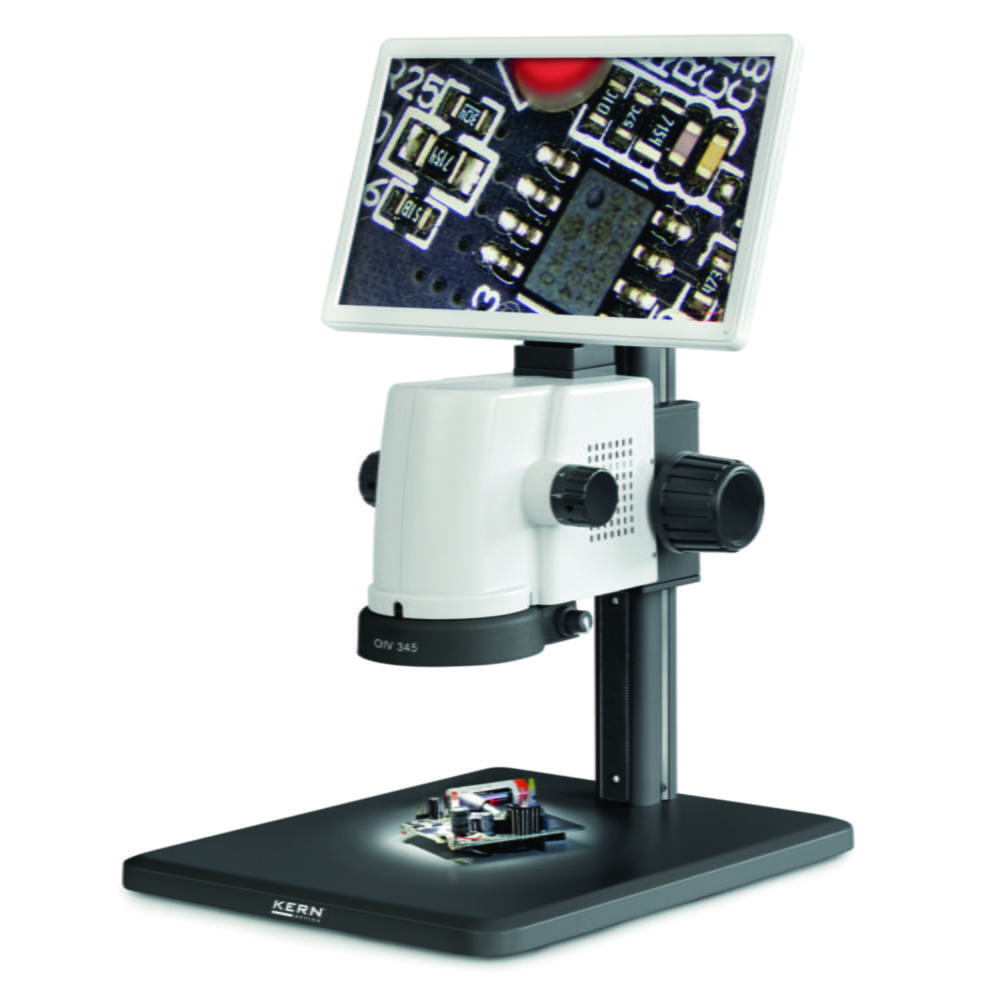

Depth:
320 mm
|
Dimensions (WxDxH):
260 x 320 x 450 mm
|
Height:
450 mm
|
Interfaces:
USB 2.0, HDMI
|
Light type:
LED
|
Magnification objectives:
0,7x ... 5x
|
Manufacturer Article Number:
OIV 345
|
Max. voltage:
230 V
|
Objective system:
Zoom
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
5 MP
|
Sensor:
CMOS 1/2,8"
|
Type:
OIV 345
|
Type of auxiliary energy:
Mains connection
|
Weight:
4.4 kg
|
Width:
260 mm
|
Working distance:
100 mm
The powerful 5.0 megapixel camera of the microscope without eyepieces offers, thanks to the HDMI output, smooth live monitoring of the samples from the HD monitor. An additional HDMI interface makes it possible to connect an external monitor.Optical system: Axial3 W LED incident illumination unit (ring)Dimmable lightingLarge working surfaceStand mechanicZoom wheels with integrated click-stopScreen: 12“, 1920×1080 HDData storage: External using USB (max. 128 GB)Scope of supply:Video microscope, software for image and video recording and documentation, USB mouse, USB stick, dust cover, user instructions
Condenser:
Abbe 1,25
|
Depth:
220 mm
|
Dimensions (WxDxH):
530 x 220 x 490 mm
|
Height:
490 mm
|
Inclination angle tube:
30°
|
Light type:
Halogen
|
Magnification eyepieces:
HWF 10x/20 mm
|
Magnification objectives:
4x, 10x, 20x, 40x, 100x
|
Manufacturer Article Number:
OBN 148
|
Revolving nosepiece:
5-fold
|
Tube:
Trinocular
|
Type:
OBN 148
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
16 kg
|
Width:
530 mm
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingFor translucent, thin, low-contrast, challenging samples (e.g. immunofluorescence, FISH, DAPI staining, etc.)Centering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmIncl. centering objective for fluorescence adjustmentOBN 141:3W LED transmitted illumination unit and 3W LED epi-fluorescence incident illumination unitWith B/G fluorescence filter with changeover sliderOBN 147 / OBN 148:20 W halogen transmitted illumination unit and 100 W epi-fluorescent incident illumination unit6-position filter wheel with B/G or B/G/UV/V fluorescence filterScope of supply: microscope, centring objective, dust Cover, eyepiece rubber caps, manual instruction
Variants from €5,140.00*
Depth:
235 mm
|
Dimensions (WxDxH):
230 x 235 x 360 mm
|
Height:
360 mm
|
Inclination angle tube:
45°
|
Interpupillary distance:
55 ... 75 mm
|
Light type:
LED
|
Magnification objectives:
7,5x ... 36x
|
Manufacturer Article Number:
OZL 445
|
Max. interpupillary distance:
75 mm
|
Max. voltage:
240 V
|
Min. interpupillary distance:
55 mm
|
Min. voltage:
100 V
|
Objective system:
Zoom
|
Power supply:
100 ... 240 V
|
Tube:
Binocular
|
Type:
OZL 445
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Incident/transmitted light
|
Width:
230 mm
The flexible all-rounder with zoom function for schools, training companies, inspection authorities and laboratories.Tube 45° inclinedWide Field HWF 10x/20 mmDiopter adjustment: Both-sidedIllumination: 3 W-LED Incident and 3 W-LED transmitted, seperately dimmableInterpupillary distance 55 to 75 mmLarge selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessoriesOZL 466 with strong, continuously dimmable, integrated LED ring illumination in the objective housingOZL 468 with integrated handle and stable, mechanical standProtective dust cover, eye piece rubber caps, as well as multi-lingual user instructions included in the scope of supply
Depth:
285 mm
|
Dimensions (WxDxH):
372 x 285 x 482 mm
|
Height:
482 mm
|
Interfaces:
USB 2.0, HDMI
|
Light type:
LED
|
Magnification objectives:
0,7x ... 5x
|
Manufacturer Article Number:
OIV 656
|
Max. voltage:
230 V
|
Objective system:
Zoom
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
2 MP
|
Sensor:
CMOS 1/2,8"
|
Type:
OIV 656
|
Type of auxiliary energy:
Mains connection
|
Weight:
7 kg
|
Width:
372 mm
|
Working distance:
91 mm
The powerful 2.0 megapixel camera of the microscope without eyepieces offers, thanks to the HDMI output, live monitoring of the samples on an external monitor (not included with delivery). Through the integrated auto-focus, the focus level can also be optimised within a defined image section.Optical system: Axial3 W LED incident illumination unit (ring)Dimmable lightingLarge working surfaceStand mechanicData storage: External using USB (max. 128 GB)Scope of supply:Video microscope, software for image and video recording and documentation, USB mouse, USB stick, user instructions
Depth:
260 mm
|
Dimensions (WxDxH):
320 x 260 x 483 mm
|
Height:
483 mm
|
Interfaces:
USB 2.0, HDMI
|
Light type:
LED
|
Magnification objectives:
0,7x ... 5x
|
Manufacturer Article Number:
OIV 255
|
Max. voltage:
230 V
|
Objective system:
Zoom
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
2 MP
|
Sensor:
CMOS 1/2"
|
Type:
OIV 255
|
Type of auxiliary energy:
Mains connection
|
Weight:
6 kg
|
Width:
320 mm
|
Working distance:
105 mm
The powerful 2.0 megapixel camera of the microscope without eyepieces offers, thanks to the HDMI output, live monitoring of the samples from the HD monitor.Optical system: AxialLED incident illumination unit (ring)Dimmable lightingLarge working surfaceStand mechanicScreen: 12", 1920×1080 HDData storage: External using USB (max. 128 GB)Software-controlled taking of images and videos with additional, documentation functionsScope of supply:Video microscope, software for image and video recording and measurements, USB mouse, USB stick, dust cover, user instructions
Depth:
285 mm
|
Dimensions (WxDxH):
330 x 285 x 470 mm
|
Height:
470 mm
|
Inclination angle tube:
35°
|
Interfaces:
USB 2.0 (6,8 ... 55 FPS)
|
Interpupillary distance:
52 ... 76 mm
|
Light type:
LED
|
Magnification eyepieces:
HSWF 10x/ 23 mm
|
Magnification objectives:
0,6x ... 5,5x
|
Manufacturer Article Number:

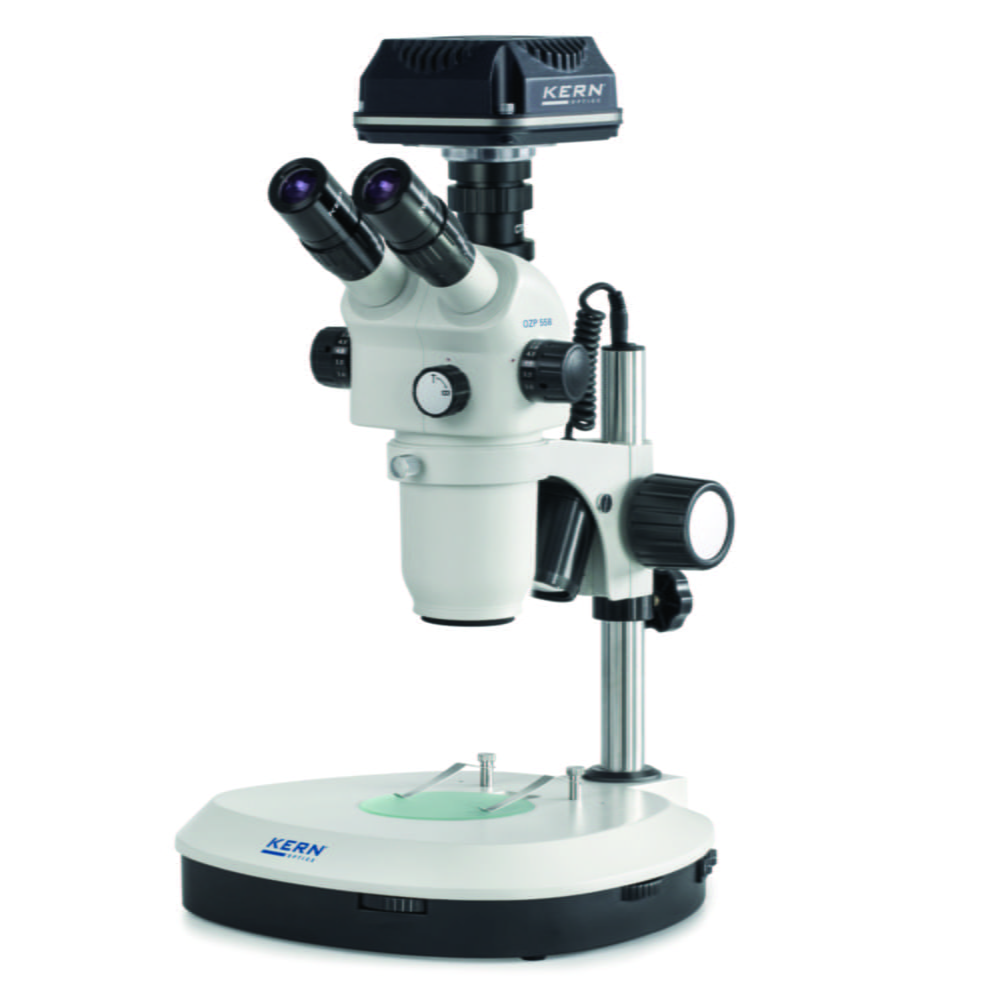

OZP 558C825
|
Max. interpupillary distance:
76 mm
|
Max. voltage:
230 V
|
Min. interpupillary distance:
52 mm
|
Objective system:
Zoom
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
5 MP
|
Sensor:
CMOS 1/2,5"
|
Tube:
Trinocular
|
Type:
OZP 558C825
|
Type of auxiliary energy:
Mains connection
|
Weight:
5.5 kg
|
Width:
330 mm
Stereo zoom microscope with above-average magnification range and robust, ergonomic shape.Optical system: Greenough opticsDiopter adjustment both-sidedLarge working distanceLarge field of viewPillar standIllumination 3 W LED (incident), 3 W LED (transmitted)Illumination separately adjustableScope of supply:Stereo zoom microscope, camera, C-mount adapter, dust cover, eye cups, user instructions

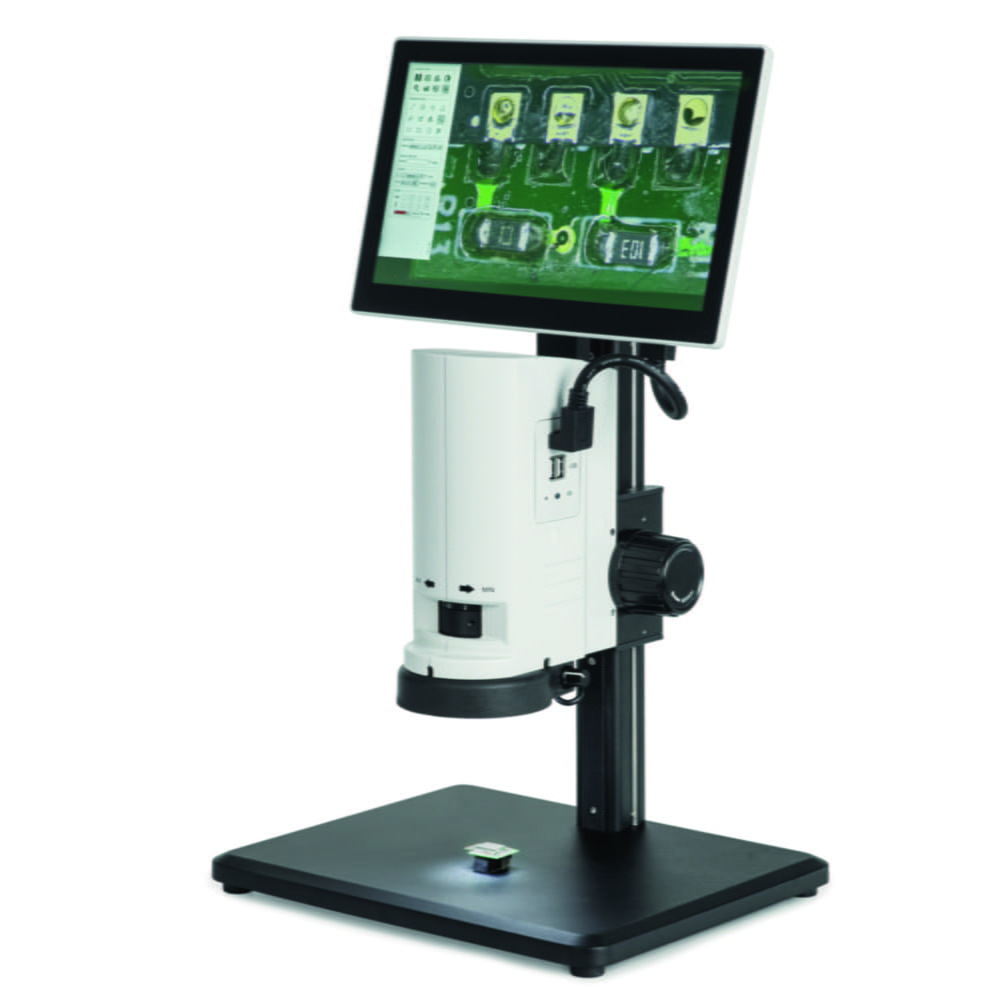

Depth:
260 mm
|
Dimensions (WxDxH):
320 x 260 x 483 mm
|
Height:
483 mm
|
Interfaces:
USB 2.0, HDMI
|
Light type:
LED
|
Magnification objectives:
0,7x ... 5x
|
Manufacturer Article Number:
OIV 254
|
Max. voltage:
230 V
|
Objective system:
Zoom
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
2 MP
|
Sensor:
CMOS 1/2"
|
Type:
OIV 254
|
Type of auxiliary energy:
Mains connection
|
Weight:
6 kg
|
Width:
320 mm
|
Working distance:
105 mm
The powerful 2.0 megapixel camera of the microscope without eyepieces offers, thanks to the HDMI output, live monitoring of the samples from the HD monitor.Optical system: AxialLED incident illumination unit (ring)Dimmable lightingLarge working surfaceStand mechanicScreen: 12", 1920×1080 HDData storage: External using USB (max. 128 GB)Image capture at the push of a buttonScope of supply:Video microscope, software for image capture, USB mouse, USB stick, dust cover, user instructions
Condenser:
Abbe N.A. 1,25
|
Depth:
180 mm
|
Depth stage:
115 mm
|
Dimensions (WxDxH):
320 x 180 x 365 mm
|
Height:
365 mm
|
Inclination angle tube:
30°
|
Interfaces:
USB 2.0 (6,8 ... 55 FPS)
|
Interpupillary distance:
48 ... 75 mm
|
Light type:
LED
|
Magnification eyepieces:
HWF 10x/18 mm
|
Magnification objectives:
4x, 10x, 40x
|
Manufacturer Article Number:
OBE 124C825
|
Max. interpupillary distance:
75 mm
|
Max. voltage:
230 V
|
Min. interpupillary distance:
48 mm
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
5.1 MP
|
Revolving nosepiece:
4-fold
|
Sensor:
CMOS 1/2,5"
|
Stage (WxD):
125 x 115 mm
|
Tube:
Trinocular
|
Type:
OBE 124C825
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
5.5 kg
|
Width:
320 mm
|
Width stage:
125 mm
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Condenser:
Abbe 1,25
|
Depth:
200 mm
|
Dimensions (WxDxH):
390 x 200 x 400 mm
|
Height:
400 mm
|
Inclination angle tube:
30°
|
Light type:
Halogen
|
Magnification eyepieces:
HWF 10x/20 mm
|
Magnification objectives:
4x, 10x, 20x, 40x, 100x
|
Manufacturer Article Number:
OBN 132
|
Revolving nosepiece:
5-fold
|
Tube:
Trinocular
|
Type:
OBN 132
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
9 kg
|
Width:
390 mm
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: Halogen illumination 20 W, including blue color filterOBN 135: LED illumination 3 WScope of supply: microscope, centring eyepiece, dust cover, eyepiece rubber caps, manual instruction

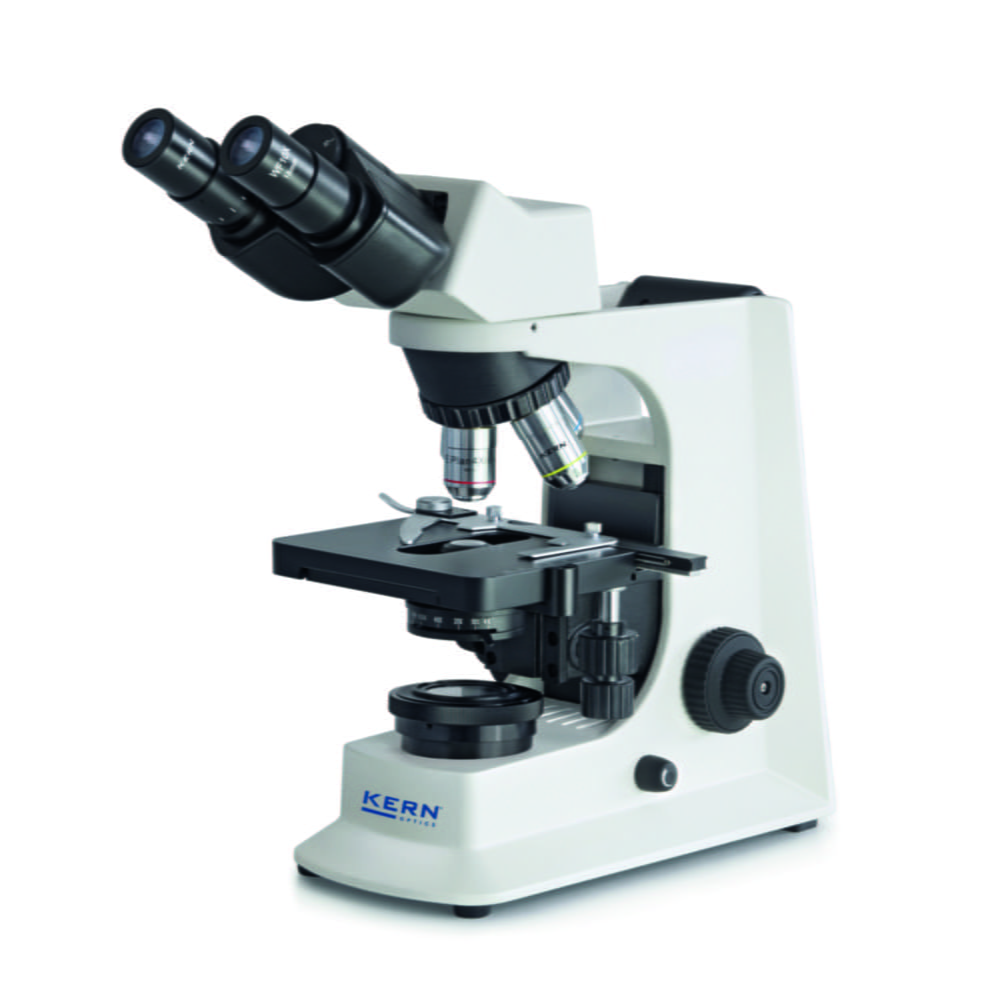

Condenser:
Abbe N.A. 1,25
|
Depth:
200 mm
|
Depth stage:
130 mm
|
Dimensions (WxDxH):
395 x 200 x 380 mm
|
Height:
380 mm
|
Inclination angle tube:
30°
|
Interpupillary distance:
50 ... 75 mm
|
Light type:
LED
|
Magnification eyepieces:
HWF 10×/20 mm
|
Magnification objectives:
4x, PH10x, PH40x, 100x
|
Manufacturer Article Number:
OBL 146
|
Max. interpupillary distance:
75 mm
|
Max. voltage:
230 V
|
Min. interpupillary distance:
50 mm
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Revolving nosepiece:
4-fold
|
Stage (WxD):
145 x 130 mm
|
Tube:
Binocular
|
Type:
OBL 146
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
6.7 kg
|
Width:
395 mm
|
Width stage:
145 mm
For extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast.Infinity optical systemTube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingAbbe N.A. 1,25 precentered, for bright field and phase contrastLightfield diaphragm20 W halogen or 3 W LED illuminationScope of supply: Microscope, protective dust cover, eye cups, user instructions
Condenser:
Abbe N.A. 1,25
|
Depth:
200 mm
|
Depth stage:
130 mm
|
Dimensions (WxDxH):
395 x 200 x 380 mm
|
Height:
380 mm
|
Inclination angle tube:
30°
|
Interfaces:
USB 3.0
|
Interpupillary distance:
50 ... 75 mm
|
Magnification eyepieces:
HWF 10×/ 20 mm
|
Magnification objectives:
4×/10×/40×/100×
|
Manufacturer Article Number:
OBL 137C832
|
Max. interpupillary distance:
75 mm
|
Max. voltage:
230 V
|
Min. interpupillary distance:
50 mm
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Resolution camera:
5 MP
|
Sensor:
CMOS 1/2,5"
|
Stage (WxD):
145 x 130 mm
|
Type:
OBL 137C832
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
7.7 kg
|
Width:
395 mm
|
Width stage:
145 mm
The sets are the complete digital solution for live investigations.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm3 W LED illuminationScope of supply:Light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Variants from €1,660.00*
Interfaces:
HDMI, SD, WLAN
|
Manufacturer Article Number:
ODC 852
|
Max. voltage:
240 V·AC
|
Min. voltage:
100 V·AC
|
Plug type:
EU
|
Power supply:
100 ... 240 V·AC, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution camera:
5 MP
|
Sensor:
CMOS
|
Type:
ODC 852
|
Type of auxiliary energy:
Mains connection
|
Warranty:
3 years

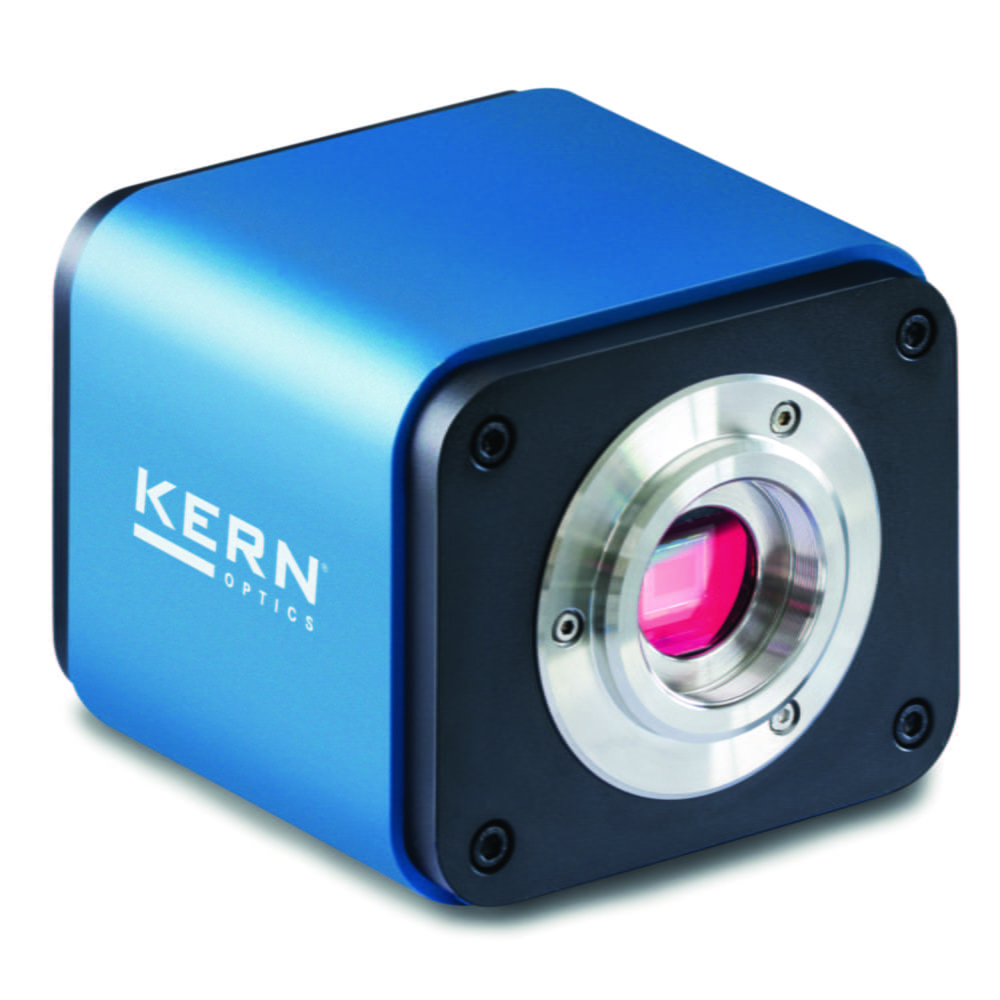

The real time images from the HDMI autofocus camera can be transferred directly to an HDMI compatible display device. For applications in connection with a KERN stereo microscope.Data transfer via WLAN module to a PC or laptop.Storage on SD cardPower supply via external 12 V power unitScope of supply:Camera, USB mouse, HDMI cable (2 m), SD card (16 GB), WiFi adapter, camera software Microscope VIS Pro KERN OXM 902
Interfaces:
WLAN, USB 2.0, HDMI, MicroSD
|
Manufacturer Article Number:
ODC 241
|
Max. voltage:
240 V
|
Min. voltage:
100 V
|
Plug type:
EU
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution camera:
5 MP
|
Resolution live image:
2048x1536
|
Sensor:
Sony CMOS
|
Type:
ODC 241
|
Type of auxiliary energy:
Mains connection

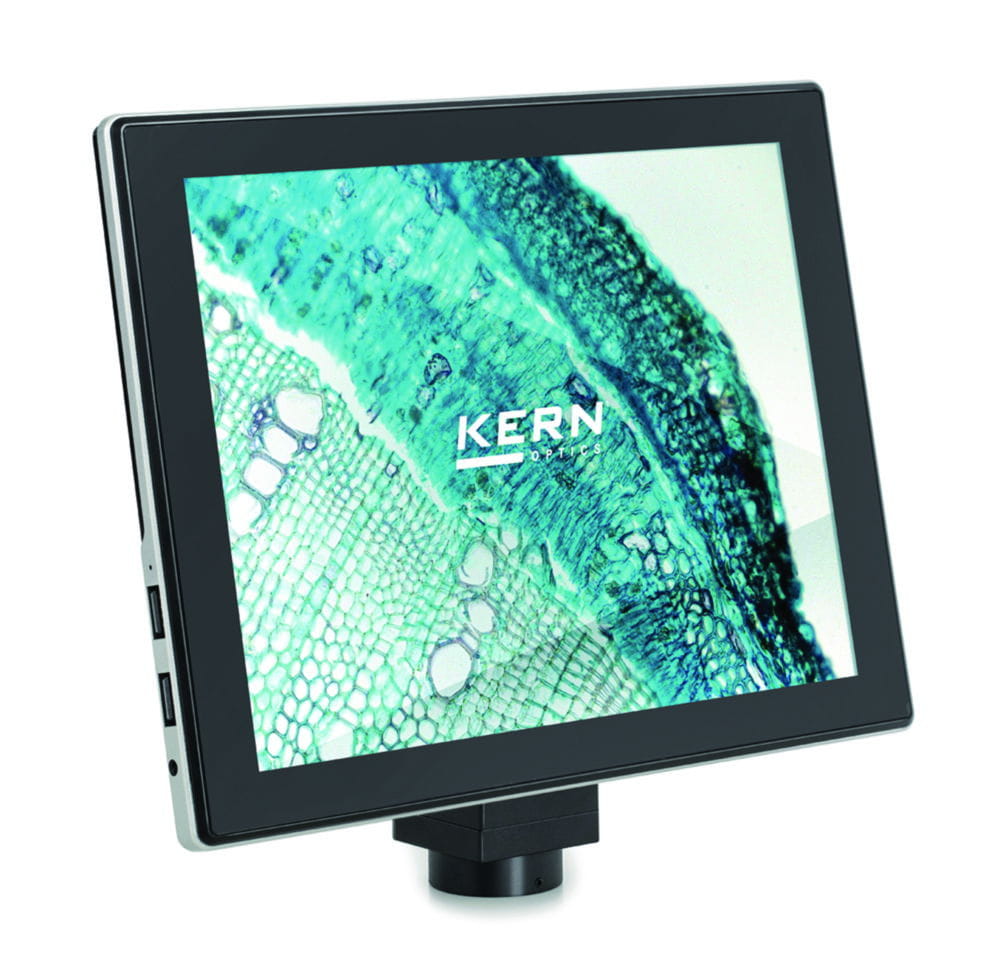

The Microscope-tablet-camera consists of a large Android tablet in combination with a 5-MP camera, for trinocular microscopes with C-mount adapter.9.7" LCD-TouchscreenIncl. functions for measuring distance, surfaces and angles as well as a manual counting functionAutomatic white balance and contrast adjustmentScope of supply: Tablet camera with pre-installed software, mains adapter
Condenser:
Abbe N.A. 1,25
|
Depth:
200 mm
|
Depth stage:
130 mm
|
Dimensions (WxDxH):
395 x 200 x 380 mm
|
Height:
380 mm
|
Inclination angle tube:
30°
|
Interpupillary distance:
50 ... 75 mm
|
Light type:
LED
|
Magnification eyepieces:
HWF 10×/ 20 mm
|
Magnification objectives:
4×/10×/40×/100×
|
Manufacturer Article Number:
OBL 127
|
Max. interpupillary distance:
75 mm
|
Max. voltage:
230 V
|
Min. interpupillary distance:
50 mm
|
Plug type:
EU
|
Power supply:
230 V, 50 Hz
|
Power supply frequency:
50 Hz
|
Revolving nosepiece:
4-fold
|
Stage (WxD):
145 x 130 mm
|
Tube:
Binocular
|
Type:
OBL 127
|
Type of auxiliary energy:
Mains connection
|
Type of illumination (Microscopy):
Transmitted light
|
Weight:
6.7 kg
|
Width:
395 mm
|
Width stage:
145 mm

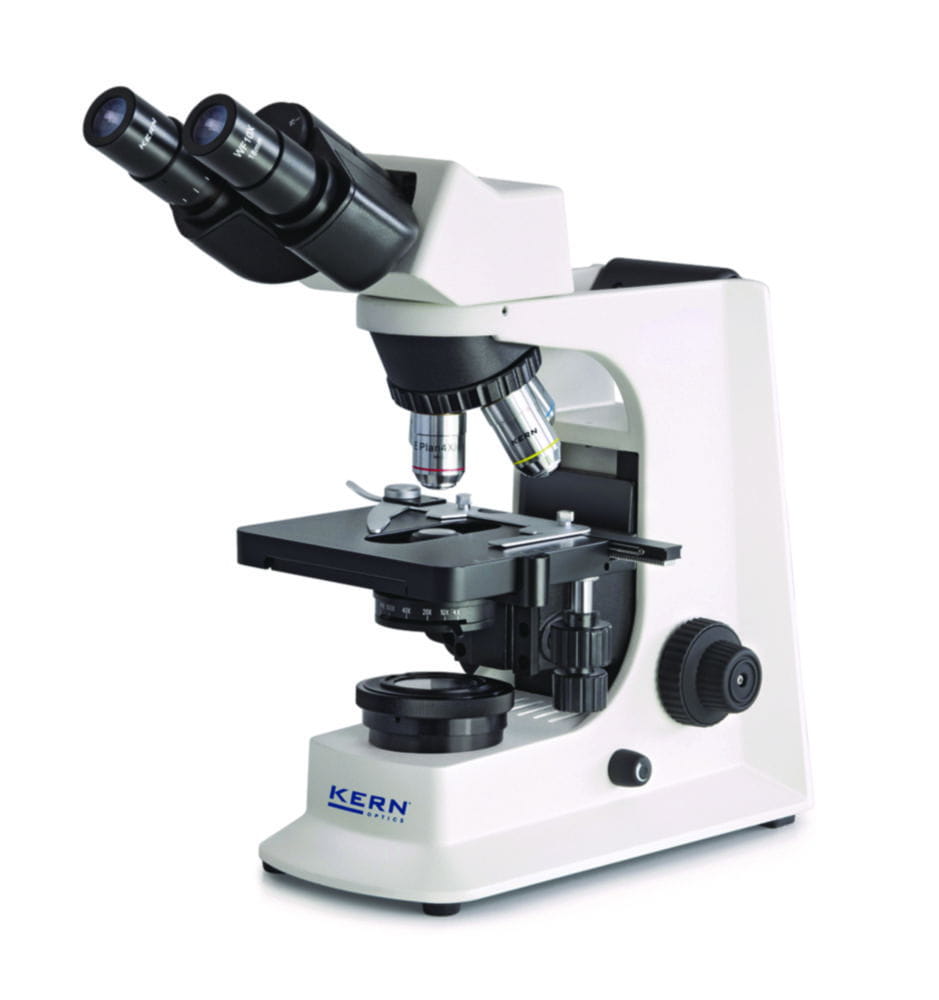

The flexible laboratory assistant with infinity optical system and fixed, pre-centred Koehler illumination.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm20 W Halogen or 3 W LED illuminationScope of supply:Light microscope, dust cover, eye cups, manual instruction
Interfaces:
USB 3.0
|
Manufacturer Article Number:
ODC 841
|
Resolution camera:
20 MP
|
Sensor:
CMOS
|
Type:
ODC 841
|
Warranty:
3 years

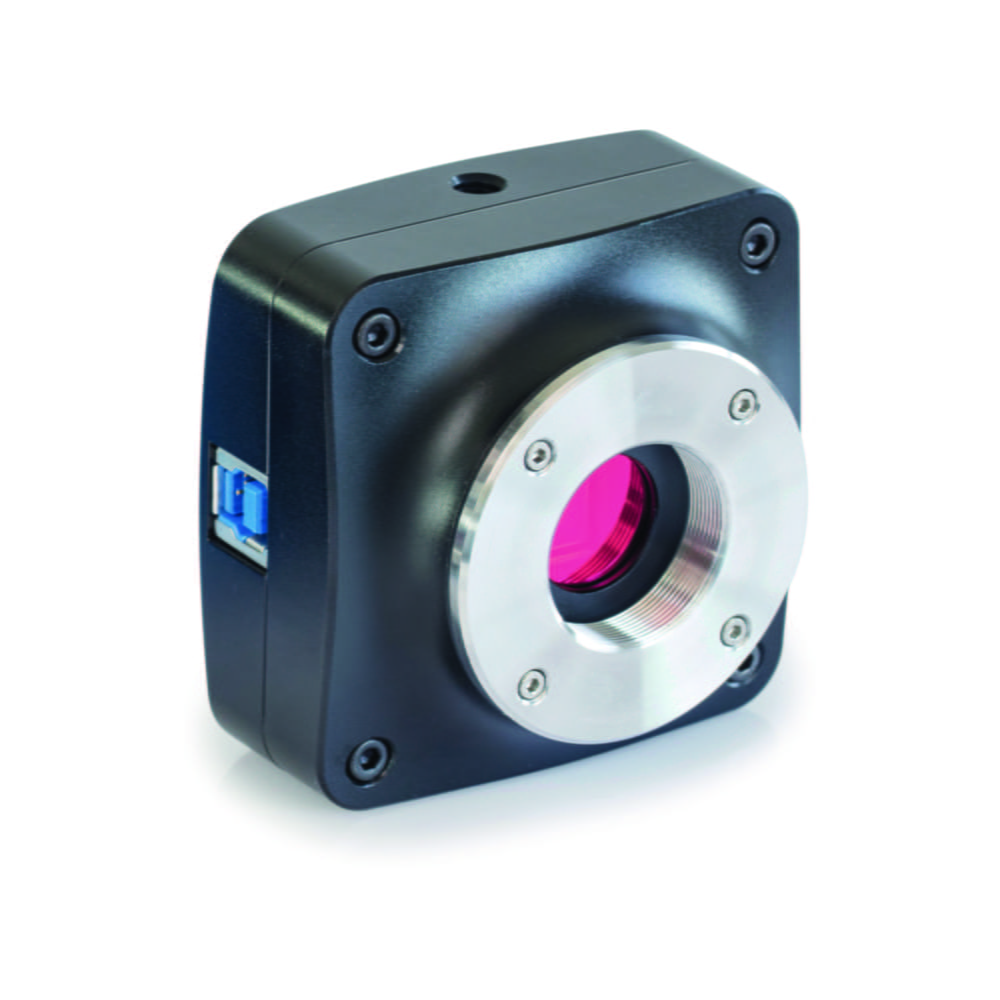

For measurement, counting, documentation, archiving and image processing.USB 3.0 interfaceUSB power supplyCan only be used in combination with compound microscopesScope of supply:Camera, camera software VIS Pro microscope KERN OXM 902, USB cable (2 m), eyepiece adapters, object micrometre to calibrate the software
Accessories:
Calibration benchmark (4-Punkt)
|
Description:
Calibration benchmark (4-Punkt)
|
Manufacturer Article Number:
1101002300142
Variants from €17.08*

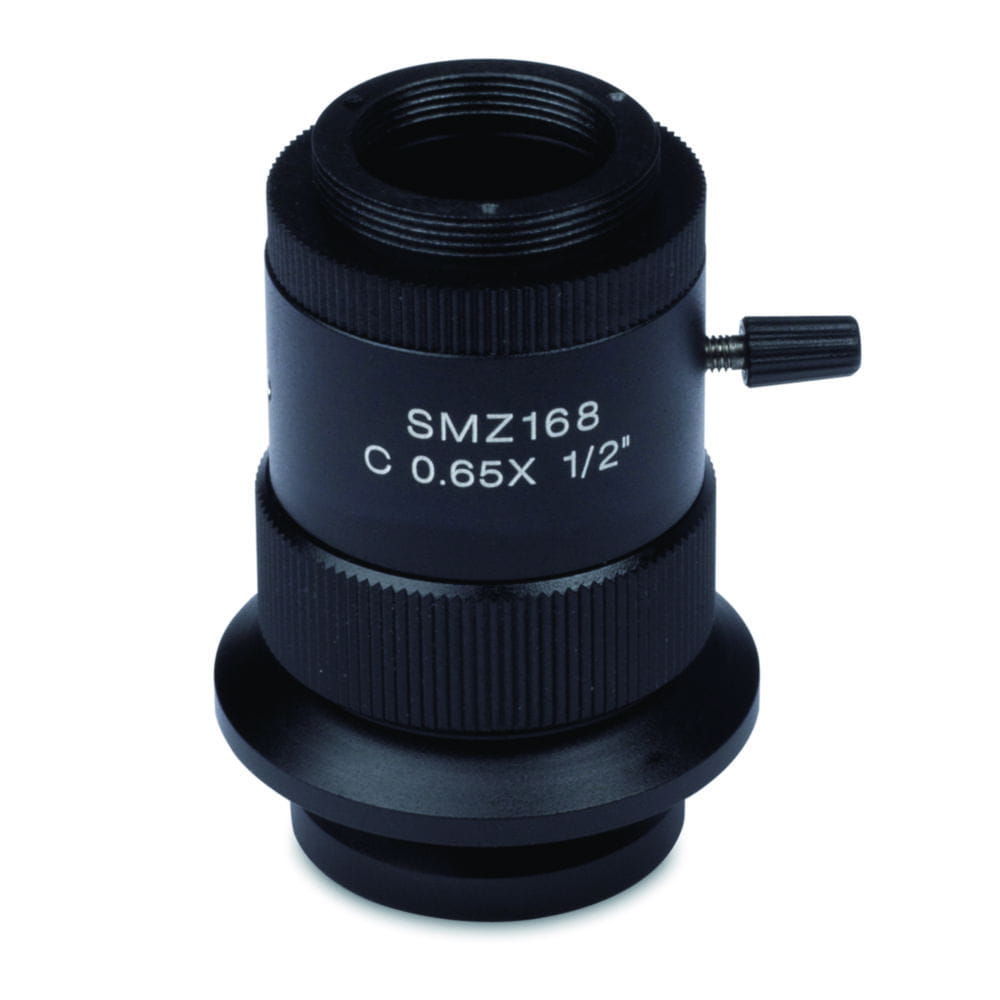

Description:
0.65X (focusable) for 1/2" chip sensors
|
For:
SMZ 168
|
Manufacturer Article Number:
SW0113W9
