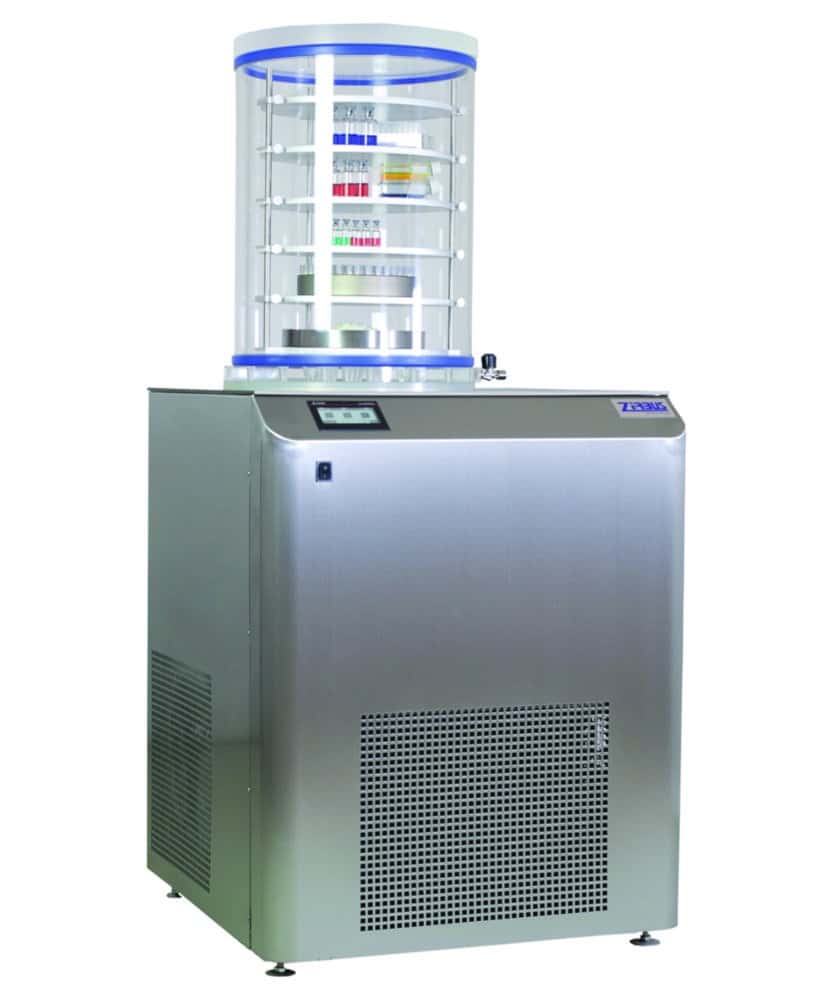

Zirbus technology GmbH Laboratory freeze dryer VaCo 10 ( 9863450 )
Article number: 9863450
Manufacturer number: B1060000
€19,141.30*
Packaging unit:
1 piece
on order
Product information "Laboratory freeze dryer VaCo 10"
Freeze dryer in modular design for routine applications in the laboratory. Cooling is done by air-cooled compressor with direct temperature measurement at the cooling surface. A pre-cooling of the condenser is possible to avoid a delayed start or thawing of the samples. Further functions are the display of the vacuum and temperature curves, an error message memory and an operating hours counter.
Operating language: English or German, other languages on request.
-Adjustable parameters for each drying stage: Hold-up time, vacuum setpoint, (shelf space temperature (with the option heated shelf spaces)
-Automatic defrosting of the ice condenser
-Variable shelf space
The perfectly matched single parts of the modular system can be combined individually. All required parts of the optional accessories must be ordered separately.
- 3 program places with 3 drying stages each
- Operation via 4,3" colour touch screen
- Displayed actual values during operation: Condenser temperature, vacuum (mbar), time
- Stainless steel housing resistant against commercial disinfectants
- CFC-free refrigerant
Operating language: English or German, other languages on request.
-Automatic defrosting of the ice condenser
-Variable shelf space
The perfectly matched single parts of the modular system can be combined individually. All required parts of the optional accessories must be ordered separately.
| Specifications | |
| Ice condenser | |
| Temperature: | -50 °C or -80 °C |
| Ice condensor capacity: | 15 kg / 24 h |
| max. ice capacity: | 20 kg |
| Volume: | 50 l |
| Cooling system: | one-stage (-50 °C) / two-stage (-80 °C) |
| Material: | Stainless steel 1.4404/AiSi316L |
| Dimensions (Ø x H ): | 400 x 400 mm |
| Basic unit | |
| Weight: | 75 or 90 kg (depending on the version ice condenser) |
| Dimensions (W x D x H): | 750 x 750 x 900 mm |
| Power supply: | 230 V, 50/60 Hz (-50 °C) / 400 V, 50/60 Hz (-80 °C) |
| Depth: | 750 mm |
|---|---|
| Dimensions (WxDxH): | 750 x 750 x 900 mm |
| Height: | 900 mm |
| Leistung Eiskondensator: | 15 kg/24h |
| Manufacturer Article Number: | B1060000 |
| Max. Eiskapazität: | 20 kg |
| Max. voltage: | 230 V |
| Min. Betriebstemperatur Eiskondensator: | -50 °C |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Type: | VaCo 10 |
| Type of auxiliary energy: | Mains connection |
| Volumen Eiskondensator: | 50 l |
| Weight: | 75 kg |
| Width: | 750 mm |
