Heidolph Scientific
Magnetic stirrer Hei-PLATE Sensor Advanced Package Core+ ( 4684892 )
Article number: 4684892
- With patented Kera-Disk® top plate made of anodized aluminum and fireproof aluminum die cast housing
- Fastest heating times thanks to 800 W (at 230 V), the built in PID controller guarantees precise control without overshooting the temperature
- Simple operating concept
- Larger distances between the heating plate and knobs for additional protection against burns
- Liquids are safely dissipated from the device
- A carrying support on the underside ensures safe transport
- Connections on the back are protected by a flap
- With connection for optional temperature sensor Pt 1000
- Compatible with EKT Hei-Con contact thermometers for external controlling and display of actual temperature values
| Colour housing: | White |
|---|---|
| Depth: | 299 mm |
| Dimensions (WxDxH): | 168 x 299 x 101 mm |
| Display: | Digital |
| Heating capacity: | 800 W |
| Heating temperature: | 20 ... 300 °C |
| Height: | 101 mm |
| IP code: | IP 42 |
| Manufacturer Article Number: | 506-21151-00 |
| Max. heating temperature: | 300 °C |
| Max. permitted ambient temperature: | 31 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 1400 1/min |
| Max. stirring capacity: | 20 l |
| Max. voltage: | 230 V |
| Min. heating temperature: | 20 °C |
| Min. permitted ambient temperature: | 5 °C |
| Min. speed: | 100 1/min |
| No. of stirring positions: | 1 |
| Permitted ambient temperature: | 5 ... 31 °C |
| Plug type: | EU |
| Power supply: | 230 V |
| Rated capacity: | 825 W |
| Speed: | 100 ... 1,400 1/min |
| Type: | Hei-PLATE Sensor Advanced Core+ |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41103806 |
| Weight: | 3 kg |
| Width: | 168 mm |
| With connection ext. temperature sensor: | Yes |
| With timer: | No |
| Working area Ø: | 145 mm |
Heidolph Laboratory Equipment: Precision Tools for Research and Quality Control
Heidolph Rotational Evaporators: Optimizing Sample Preparation with Hei-VAP Series
Heidolph’s Hei-VAP line of rotational evaporators is engineered for high-efficiency solvent evaporation under reduced pressure. Designed for both routine and complex evaporation processes, these systems combine intuitive operation with advanced safety features and excellent thermal performance.
- Models such as the Hei-VAP Core with motor lift and the Hei-VAP Ultimate Control with hand lift offer flexibility across research disciplines.
- Vacuum control and programmable temperature profiles enable precise regulation of process parameters.
- Integrated safety mechanisms, including dry-run protection and automatic lift-out in case of power failure, ensure uninterrupted operation and sample integrity.
Particularly in pharmaceutical R&D and chemical synthesis workflows, the Hei-VAP series improves throughput and reproducibility, making it a reliable choice for labs demanding consistent results.
Magnet Stirrers with Heating: Accurate Mixing with Hei-PLATE Series
Heidolph’s Hei-PLATE magnetic stirrers with heating capabilities are designed for precise temperature-controlled stirring applications.

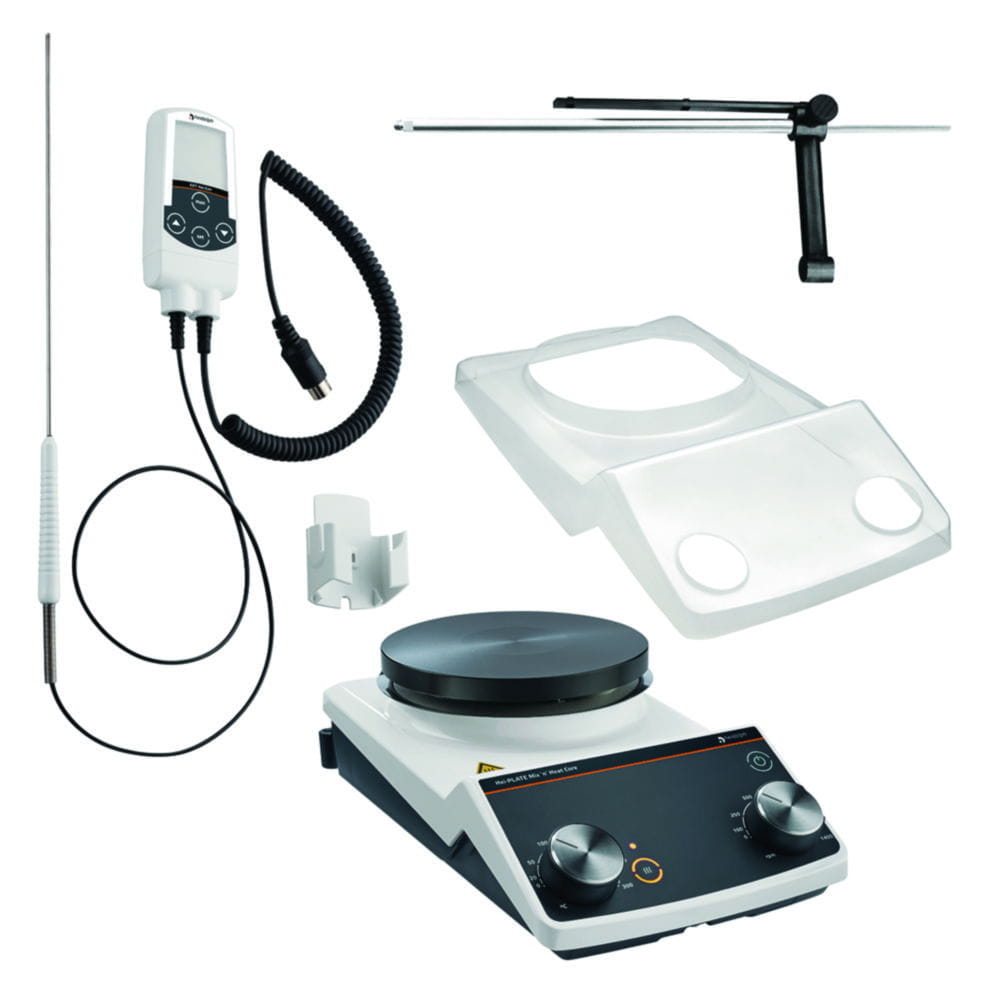

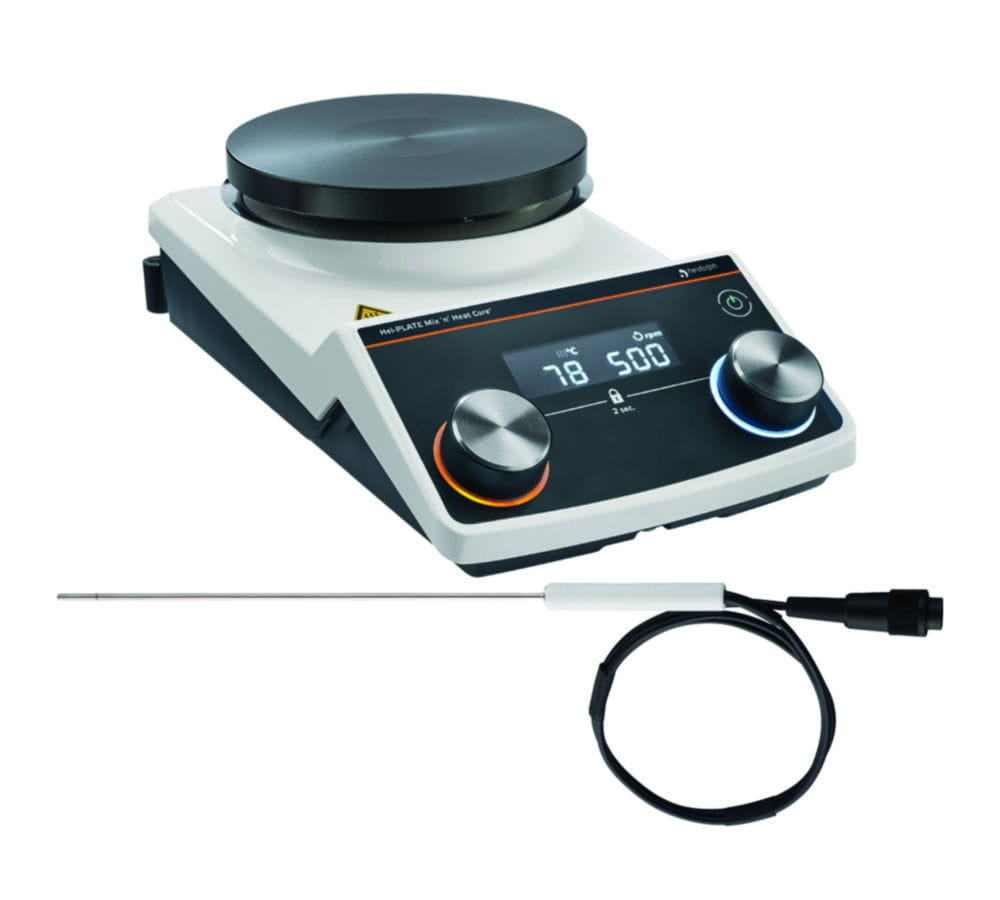

- The Hei-PLATE Sensor Basic and Sensor Advanced packages combine PID temperature regulation with external temperature sensor feedback, maintaining fluid temperatures within ±1 °C.

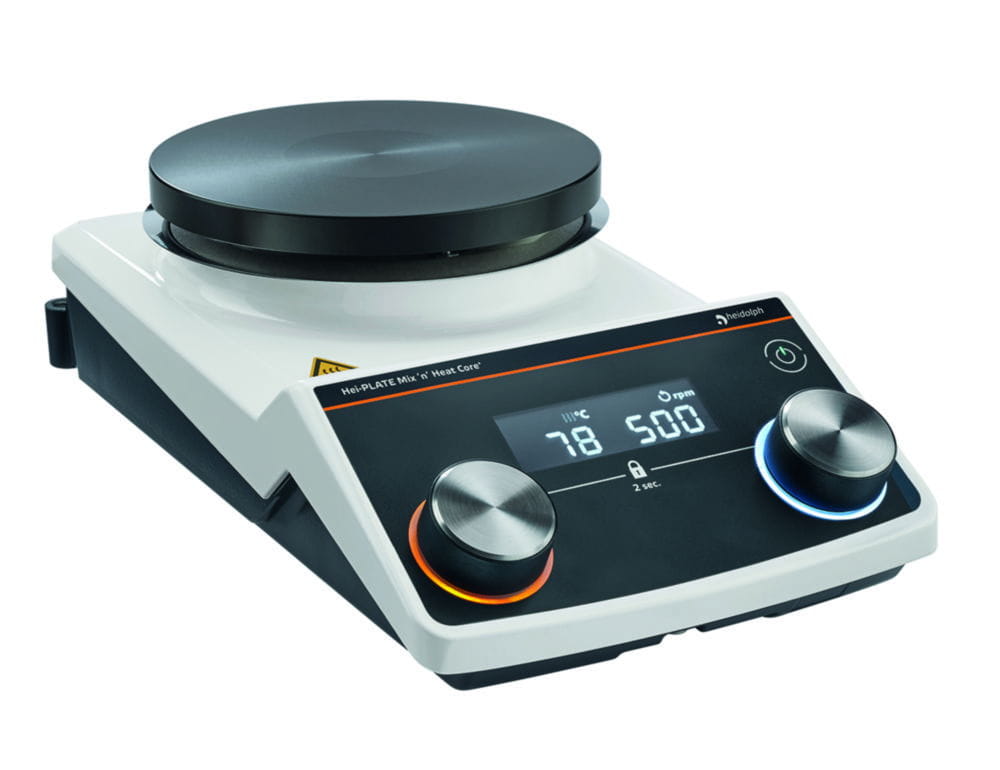

- The Mix’n’Heat models, such as the Core and Ultimate Sensor Advanced, support fast heat-up times and robust stirring for volumes up to 20 L.
- Coated ceramic tops ensure chemical resistance and allow for easy cleaning in demanding environments.
These devices are ideal for reaction setups, media preparation, or titration protocols, especially where thermal stability and uniform agitation are critical.
Overhead Stirrers: Hei-TORQUE Series for High-Viscosity Applications
The Hei-TORQUE range offers reliable overhead stirring across viscosities and batch sizes, supporting process scale-up and reproducibility.
- The Hei-TORQUE Core is ideal for medium-viscosity fluids and day-to-day laboratory mixing tasks.
- For intensive applications, the Hei-TORQUE Expert 400 and Ultimate 200 models deliver up to 400 Ncm torque and support programmable ramping and speed profiles.
- All models integrate overload protection, quick chuck locking systems, and digital feedback for precise RPM monitoring.
Use cases include emulsification, dispersion, and pilot-scale formulation development in materials science and biopharmaceutical processing.
Platform Shakers: Reliable Sample Homogenization
Heidolph’s platform shakers provide efficient, reproducible sample mixing for cell culture, staining, or extraction procedures.
- Programmable timers, orbital and reciprocating motion profiles, and variable speed controls make them highly adaptable.
- Models are available with stackable platforms, increasing throughput in limited bench space.
High mechanical stability minimizes vibration transmission, supporting consistent results in sensitive workflows.
Peristaltic Pumps and Accessories: Fluid Handling with Hei-FLOW Series
Heidolph’s Hei-FLOW peristaltic pumps offer modular, high-precision fluid transport solutions for both single- and multichannel applications.
- The Core 120 and Ultimate 600 models support flow rates from 0.38 mL/min to 4,000 mL/min.
- Interchangeable pump heads—including SP quick, SP standard, and SP vario—allow rapid switching between dosing regimes.
- Digital interfaces and closed-loop feedback ensure consistent flow control, even under varying back pressure.
These systems are optimal for continuous media delivery, reagent dosing, and bioprocessing applications that demand sterility and accuracy.
Heating Plates for Controlled Temperature Applications
Heidolph’s standalone heating plates deliver precise thermal regulation for general-purpose laboratory heating.
- Integrated thermal sensors, programmable temperature limits, and chemical-resistant surfaces extend operational lifespan.
- They are frequently used for evaporation tasks, crystallization experiments, and hot plate-based chemical reactions.
All devices comply with laboratory safety directives, including independent over-temperature protection.
Strategic Value: Why Source Heidolph Equipment via häberle
As an authorized distributor, häberle offers more than access to Heidolph’s premium portfolio. Customers benefit from:
- Expert consultation on equipment integration and workflow design
- Reliable delivery and warranty-backed servicing
- Technical support for installation, calibration, and troubleshooting
This partnership ensures that research institutions and quality control labs are equipped with cutting-edge solutions that maximize efficiency and data reliability.
