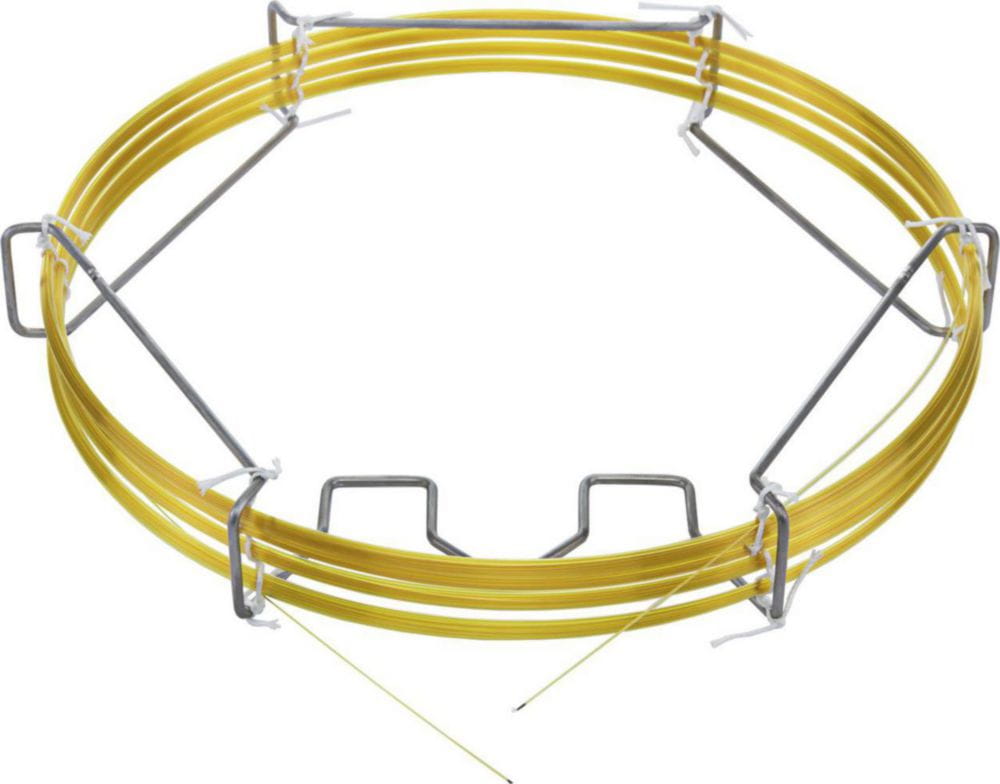

Macherey-Nagel GmbH & Co. KG OPTIMA® 1 high performance capillary columns for GC ( 9003664 )
Article number: 9003664
Manufacturer number: 726050.50
€980.00*
on order
Product information "OPTIMA® 1 high performance capillary columns for GC"
nonpolar phase separation of components according to boiling points thick film columns ≥3µm film are especially recommended for solvent analysis.
Similar phases: Permabond® SE-30, OV-1, DB-1, SE-30, HP-1, SPB-1, CP-Sil 5 CB, Rtx-1, 007-1, BP1, MDN-1, AT-1, ZB-1, OV-101.
For columns with 0.25 to 0.32mm ID and films <3µm the max. temperature for isothermal operation is 340°C, the max. temperature for short isotherms in a temperature programme is 360°C.
For 0.53mm ID columns with films <3µm the max. temperatures are 320 and 340°C, resp. for thick film columns with films ≥3µm the max. temperatures are 300 and 320 °C, resp.
Custom-made columns to your specifications available on request.
Each column is individually tested and supplied with test certificate and test chromatogram, but without fittings or ferrules.
Column ends are melted or closed with septa, and thus protected from atmospheric oxygen. Additionally, we supply the corresponding test mixture with each column.
| Film thickness: | 0.25 µm |
|---|---|
| Int. Ø: | 0.25 mm |
| Length: | 50 m |
| Manufacturer Article Number: | 726050.50 |
| Material column: | Quartz glass |
| Max. temperature programme: | 360 °C |
| Polarity: | Nonpolar |
| Temperature max isotherm: | 340 °C |
| USP listing: | G1,G2,G38 |
