Xylem Analytics Germany (WTW)

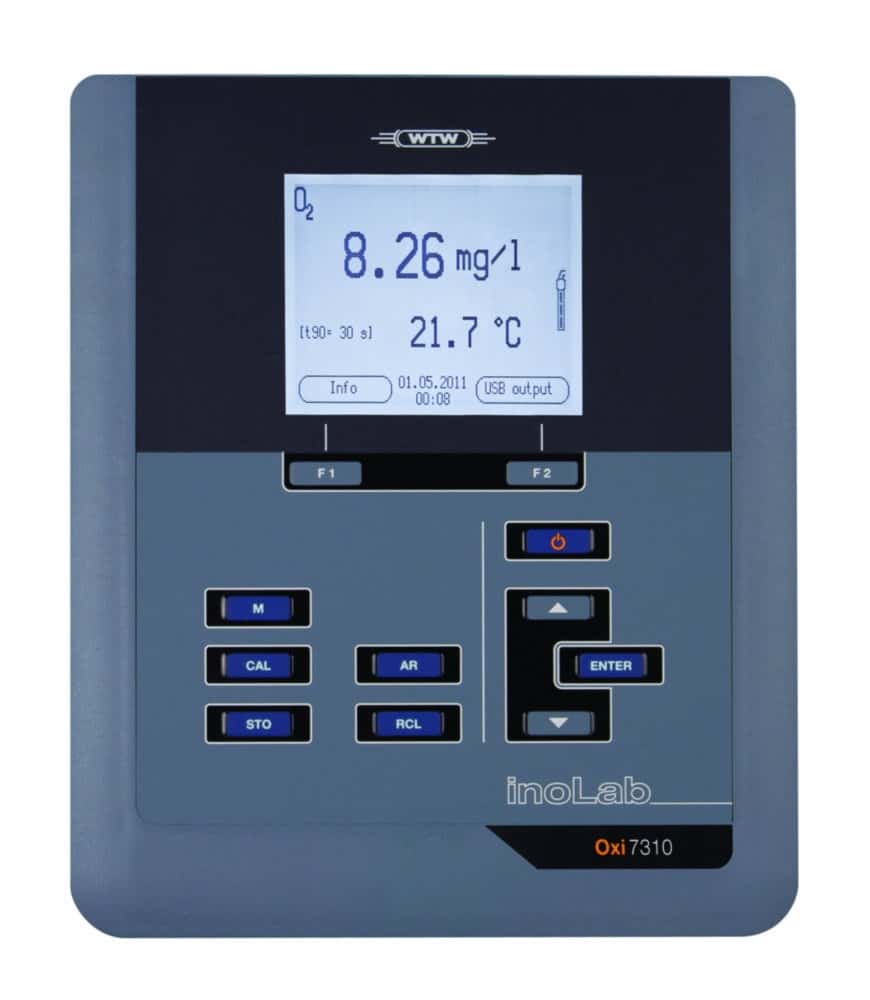

Oxygen meter inoLab® Oxi 7310 Set 1 ( 9920109 )
Article number: 9920109
Herstellernummer: 1BA301
Product information "Oxygen meter inoLab® Oxi 7310 Set 1"
Reliable Documentation for dissolved oxygen measurement: This is the inoLab® Oxi 7310 or inoLab® Oxi 7310P. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. The inoLab® Oxi 7310 supports the long proven WTW galvanic sensors, CellOx® 325 and StirrOx® G. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor. Calibrations versus external standards e.g. Winkler titration, are possible, too. The meter includes automatic barometric pressure and temperature compensation.
Scope of supply: Device, oxygen sensor CellOx® 325, electrolyte, abrasive foil, replacement membrane caps, universal power supply, stand, operating instructions, CD-ROM with software, USB cableScope of supply: Device, oxygen sensor CellOx® 325, electrolyte, abrasive foil, replacement membrane caps, universal power supply, stand, operating instructions, CD-ROM with software, USB cable
| Hazardous Substance Data | |
| GHS |   |
| H-Satz | H290, H315, H319 |
| P-Satz | P280, P302+P352, P305+P351+P338 |
| Accuracy temperature: | ±0.1 °C |
|---|---|
| Accuracy temperature Number: | 0.1 °C |
| Battery/rechargeable battery: | 4 x 1.5 V, AA |
| Concentration: | 0 ... 90 mg/l |
| Concentration accuracy: | ±0.5 % of measured value |
| Concentration resolution: | 0.01/0.1 |
| Depth: | 230 mm |
| Designation ANSI: | AA |
| Dimensions (WxDxH): | 190 x 230 x 80 mm |
| GHS: | GHS05, GHS07 |
| Height: | 80 mm |
| IP code: | IP 43 |
| Interfaces: | USB-B |
| Manufacturer Article Number: | 1BA301 |
| Max. temperature: | 105 °C |
| Max. voltage: | 240 V |
| Max. voltage battery/rechargeable battery: | 1.5 V |
| Min. temperature: | -5 °C |
| Min. voltage: | 100 V |
| No. of batteries/rechargeable batteries: | 4 |
| Partial pressure: | 0 ... 1250 hPa |
| Partial pressure accuracy: | ±0.5 % of measured value |
| Partial pressure resolution: | 0.1/1 |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Saturation: | 0 ... 600 % |
| Saturation accuracy: | ±0.5 % of measured value |
| Saturation resolution: | 0.1/1 |
| Temperature: | -5 ... 105 °C |
| Type: | inoLab® Oxi 7310 Set 1 |
| Type of auxiliary energy: | Battery/mains connection |
| Width: | 190 mm |
Accessories

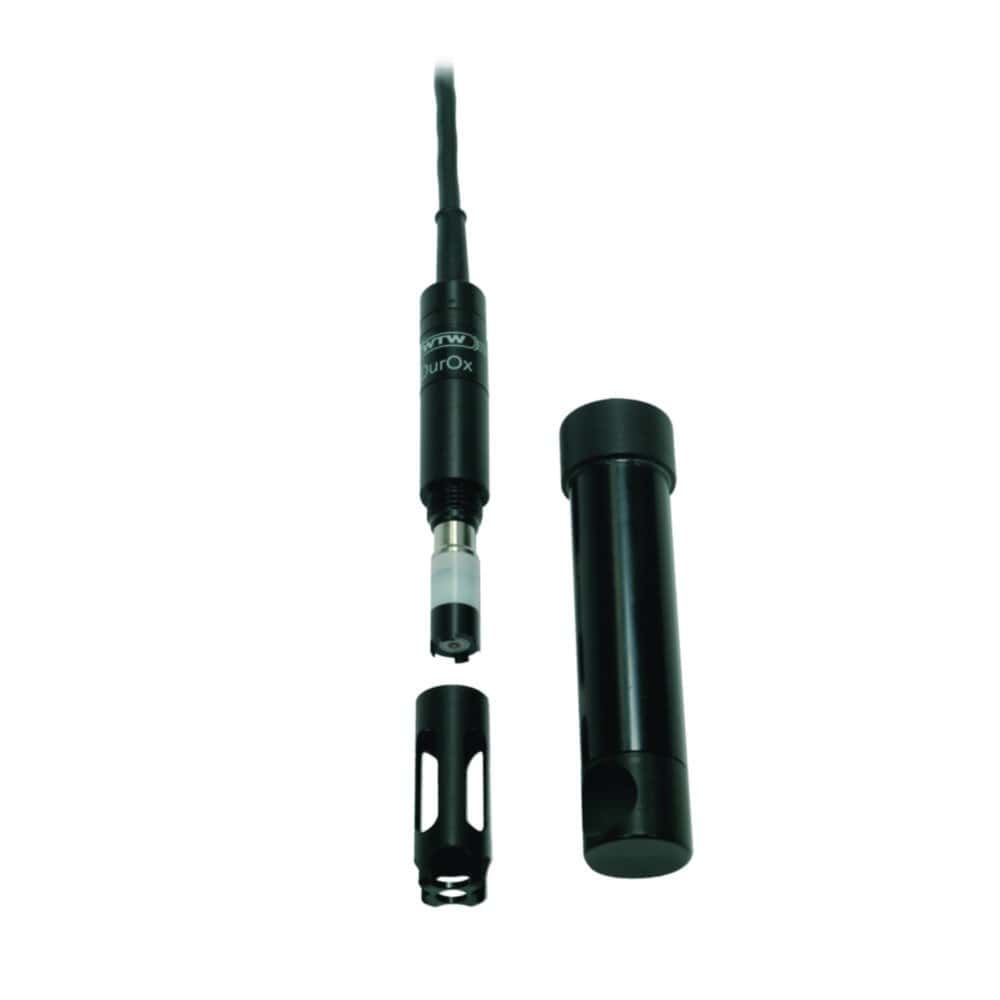

Oxygen sensor DurOx® 325
For use with Oxi 3xxi, ProfiLine Oxi 1970i, ProfiLine 3205, 3210, 3310.Membrane-covered oxygen sensor with low flow requirement and removable cage guard, for field applications (fish farm revival pools) and for educational purposes.Ready to measure - no polarisation timeIMT compensation via two integral temperature sensorsService life with one electrolyte filling approx. 6 monthsMinimal flow requirementNo zero currentSensor is watertight (IP 68 - 2)Standard with 3m cable and watertight plugStandard with calibration/storage vessel OxiCal® -DStandard with cage guard SK-D
Variants from €777.00*

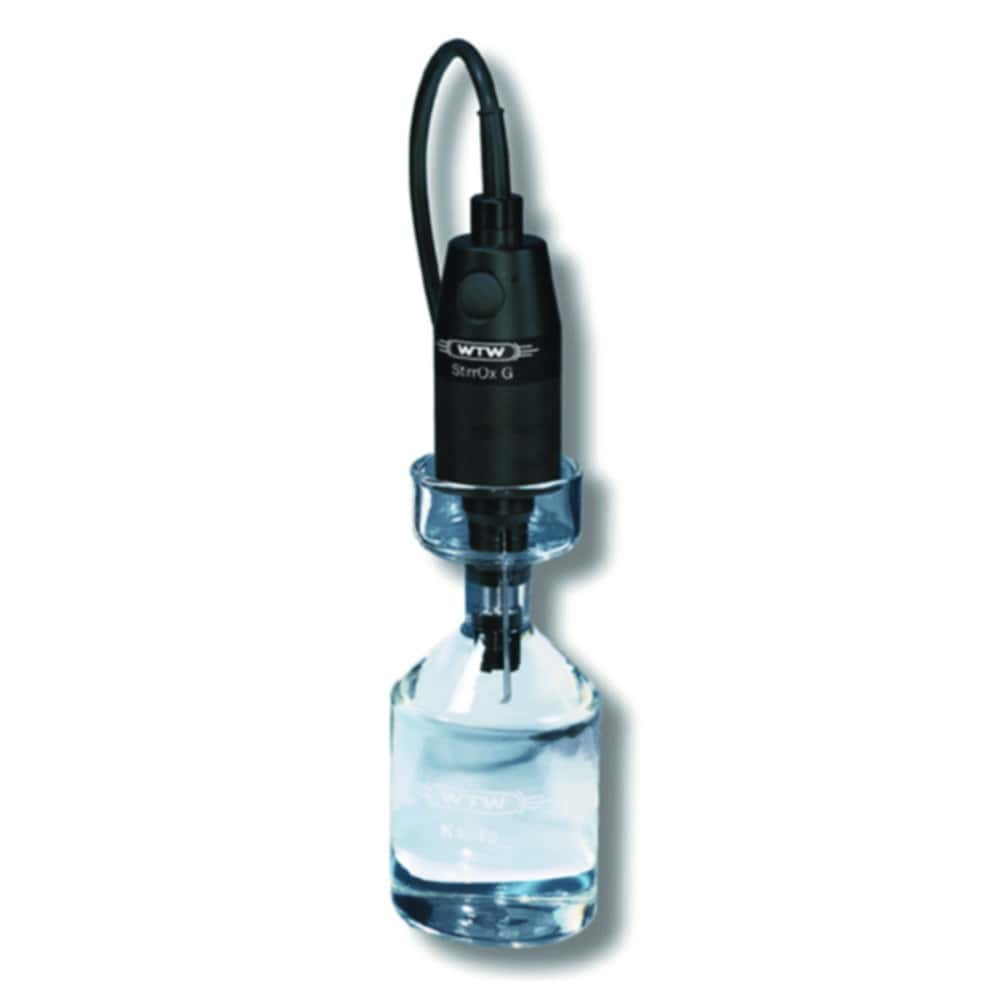

Oxygen sensor StirrOx® G
For inoLab® Oxi 730, ProfiLine 197i/1970i, inoLab® 740 Oxi, inolab Oxi 7310. Self-stirring oxygen sensor.Single-handed useHigh reproducibilityReady for immediate use, no polarisation period necessaryExtremely low internal consumption of oxygen by the electrodeNo zero point calibration necessary6 months operation with one electrolyte fillingIMT function compensationMembrane leakage monitoring, damaged membranes are indicatedScope of supply: Oxygen sensor, OxiCal®-ST calibration and storage vessel, 3 exchange membrane heads, electrolyte, abrasive foilPlease order cleaning solution separately.
Variants from €1,360.00*
Other customers also bought
Oxygen meter inoLab® Oxi 7310
The inoLab® benchtops are perfectly designed for modern laboratory surroundings. The key pads are clearly outlined and easy-to-operate, their smooth surfaces are easy-to-clean and the operation is self-explanatory. All meters include a universal power supply and a convenient stand with sensor support. If desired they can be ordered in application oriented sets including sensors and accessories.Reliable Documentation for dissolved oxygen measurement, if desired also available with built-in printer. This is the inoLab® Oxi 7310 or inoLab® Oxi 7310P. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. The inoLab® Oxi 7310 supports the long proven WTW galvanic sensors, CellOx® 325 and StirrOx® G. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor. Calibrations versus external standards e.g. Winkler titration, are possible, too. The meter includes automatic barometric pressure and temperature compensation. An integrated thermal printer (58 mm width) is ready for printout of the measured data (option). The scope of delivery includes meter, stand, power supply and USB cable.SpecificationsRanges:All values+/-1 digitDissolved oxygen concentration:0,00 ... 20,00 mg/l +/- 0,5 % of measured value
0 ... 90 mg/L +/- 0,5 %Saturation:0,0 ... 200,0 % +/- 0,5 % of measured value
0 ... 600 % +/- 0,5 % of measured valuePartial pressure:0 ... 200,0 hPa, 0 …1250 hPaTemperature:-5,0 ... 105,0 °C +/- 0,1 °CCalibration:1-point air calibration (water vapour saturated air) or versus external standardCalibration memory:Up to 10 calibrations recallableDisplay:Backlit graphic LCDMemory:
Logger:Manual 5/5000 automatic
Manual/time controlledInterface:Mini USB-BPower supply:Universal power supply, 100 to 240 V, 50/60 Hz, 4 x 1,5 V AA
Variants from €1,726.00*
