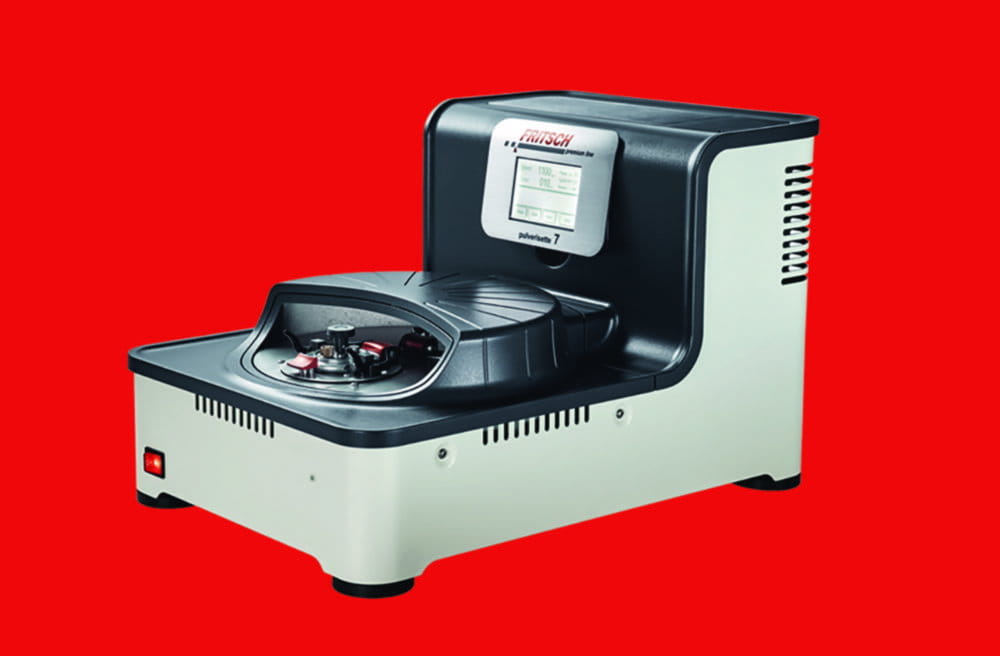

Fritsch GmbH Planetary ball mills PULVERISETTE 7 premium line ( 6233706 )
Article number: 6233706
Manufacturer number: 07.5000.00
€12,705.00*
on order
Product information "Planetary ball mills PULVERISETTE 7 premium line"
Grinding bowls and balls are offered in different sizes for optimal adaption to the sample volume and desired final fineness as well as in different materials to provide maximum protection against undesired contamination.
The completely brand new clamping of the grinding bowls, the automatic check of the fastening of the bowls inside the mill, the blockage of the mill in the event of impermissible operating states or imbalance and the automatic bowl detection guarantee maximum safety.
Grinding bowls and grinding balls must be ordered additionally.
Software MillControl for automatic control of the Planetary mills PULVERISETTE 5/7 premium line.
| Depth: | 580 mm |
|---|---|
| Dimensions (WxDxH): | 400 x 580 x 360 mm |
| Feed particle size: | 5 mm |
| Feed quantity: | 1 ... 60 ml |
| Height: | 360 mm |
| Manufacturer Article Number: | 07.5000.00 |
| Max. feed particle size: | 5 mm |
| Max. feed quantity: | 60 ml |
| Max. final fineness: | 100 nm |
| Max. speed: | 2200 1/min |
| Max. voltage: | 230 V |
| Min. feed quantity: | 1 ml |
| Min. speed: | 200 1/min |
| Min. voltage: | 115 V |
| No. of milling positions: | 2 |
| Plug type: | EU |
| Power supply: | 115 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1200 W |
| Speed: | 200 ... 2,200 1/min |
| Type of auxiliary energy: | Mains connection |
| Type of grinding: | dry/wet |
| UNSPSC: | 41-10-17-01 |
| Weight: | 44 kg |
| Width: | 400 mm |
High-Performance Equipment from Fritsch GmbH – Precision Technology for Sample Preparation and Material Analysis
Introduction
Fritsch GmbH, based in Idar-Oberstein, is a globally respected manufacturer of advanced laboratory instruments for particle size analysis and sample preparation. Known for its uncompromising quality, process reliability, and modular systems, Fritsch offers a comprehensive product range—from analytical sieves and sieve shakers to planetary mills, cutting mills, jaw crushers, and technical accessories.
Accurate Particle Size Analysis with Fritsch Sieving Technology
Test Sieves for Precise Classification
Fritsch test sieves, such as the 200 × 50 mm model with a 2.36 mm mesh size , offer precise mesh calibration and robust stainless steel construction. These sieves are ideal for both research laboratories and quality control in industrial processes.
✔️ Stainless steel mesh and frame
✔️ ASTM-compliant mesh sizes
✔️ Compatible with automated sieve shakers
ANALYSETTE Sieve Shaker – High-Precision Separation
The ANALYSETTE sieve shaker delivers reliable and reproducible particle size distributions—even for complex sample materials. With adjustable parameters, it is highly adaptable to diverse analytical needs.
PULVERISETTE Planetary Mills: Top-Tier Performance in Fine Grinding
Premium vs. Classic Line
PULVERISETTE 6 classic line:
PULVERISETTE 7 premium line:
Both models offer:
Efficient dry and wet milling
Bowl materials for reactive substances (e.g., stainless steel, zirconium oxide)
Submicron-level grinding results—ideal for nanotechnology applications
Optional add-ons include:
Gassing lid with dual valves for inert atmosphere milling
A-22 NanoTec control unit for advanced parameter management
Size Reduction and Homogenization: Cutting Mills, Jaw Crushers & Accessories
PULVERISETTE 15 – Versatile Cutting Mill
This cutting mill is optimized for dry, fibrous, or soft materials such as plastics, biomass, or foodstuffs.
Jaw Crushers – Efficient Pre-Crushing
Fritsch jaw crushers are designed for the coarse crushing of hard and brittle materials. They integrate seamlessly into sample prep workflows and can be paired with sieve shakers or mills.
Components & Spare Parts for Continuous Operation
Retaining walls (chrome-free tool steel):
Timing belt 5-700-15:
Deep groove ball bearing DIN 625:
Safety switch AZ 15 ZVRK:
Laser module 532 nm:
A comprehensive spare parts range ensures durability and minimized downtime.
What to Consider When Buying a Planetary Ball Mill
Before selecting a planetary ball mill, consider the following:
🔹 Sample volume & size: Ensure the mill is suited to your typical batch sizes.
🔹 Final fineness: For nanoscale results, opt for premium-grade planetary mills.
🔹 Material compatibility: Choose milling bowls resistant to your sample type.
🔹 Ease of use: Look for intuitive operation and effortless cleaning.
🔹 Cost-performance ratio: Compare functionality, build quality, and support options.
Fritsch Equipment from häberle LABORTECHNIK
As an official distributor, häberle LABORTECHNIK supports you in selecting, configuring, and commissioning Fritsch instruments.
Our services include:
Expert product consultation
Technical service and spare part delivery
User training and custom adaptations
Conclusion
Fritsch leads the way in high-end laboratory technology, offering superior accuracy, reliability, and modular design. Whether you're preparing samples through crushing or milling, or analyzing particle sizes, solutions like the PULVERISETTE series and the ANALYSETTE sieve shaker provide unmatched performance. With häberle LABORTECHNIK as your partner, you gain access to world-class instruments and outstanding support to elevate your lab’s capabilities.
Accessories

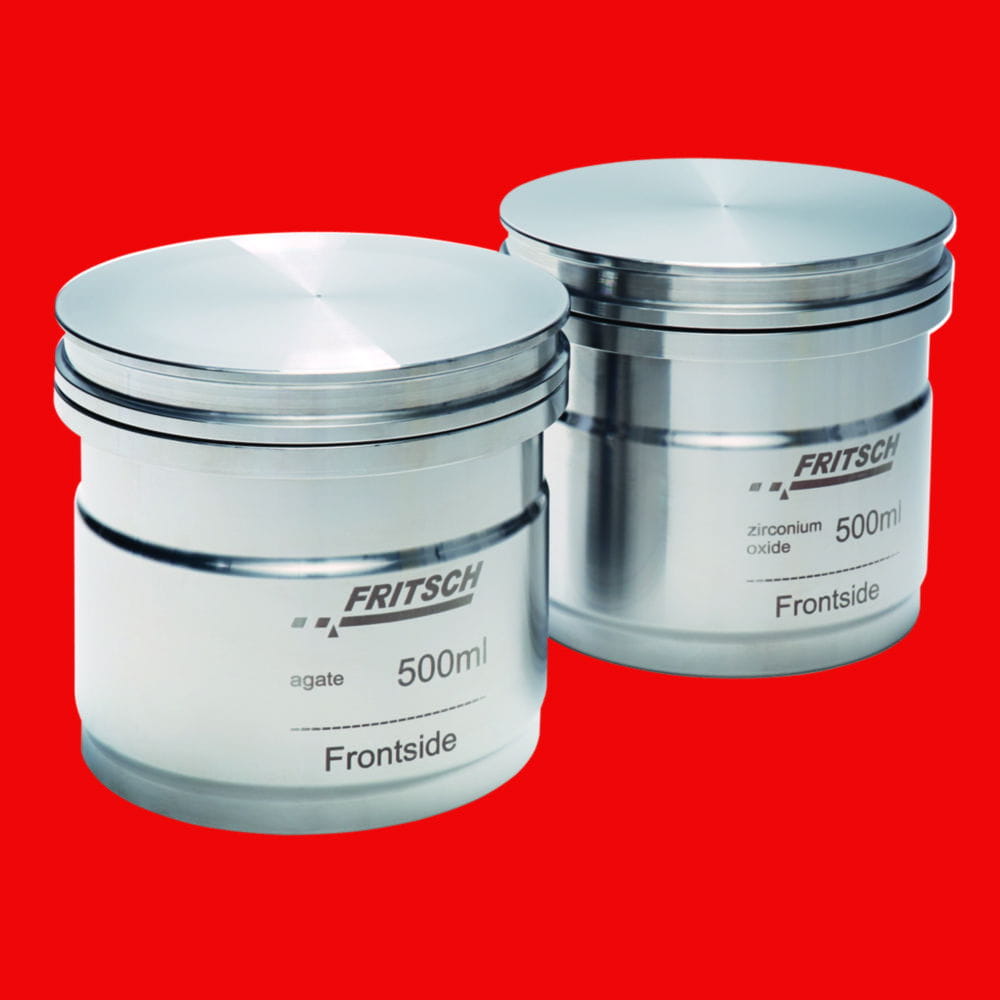

Grinding bowls in steel casing.Special gassing lids for grinding in an inert atmosphere and for mechanical alloying as well as the EASY GTM - Gas pressure and temperature measuring system, for controlling the grinding process due to continuous measurement of gas pressure and temperature are available.
Grinding bowl in steel casing.One grinding bowl holder can hold either 2 x 125-150 ml bowls together with a stacking ring or 1 x 125-150 ml bowl with a grinding bowl adapter mounted one on top of the other.Special gassing lids and screw-on grinding bowl lids for grinding in an inert atmosphere and for mechanical alloying as well as the EASY GTM Gas pressure for controlling the grinding process due to continuous measurement of gas pressure and temperature and for grinding in inert gas are available.

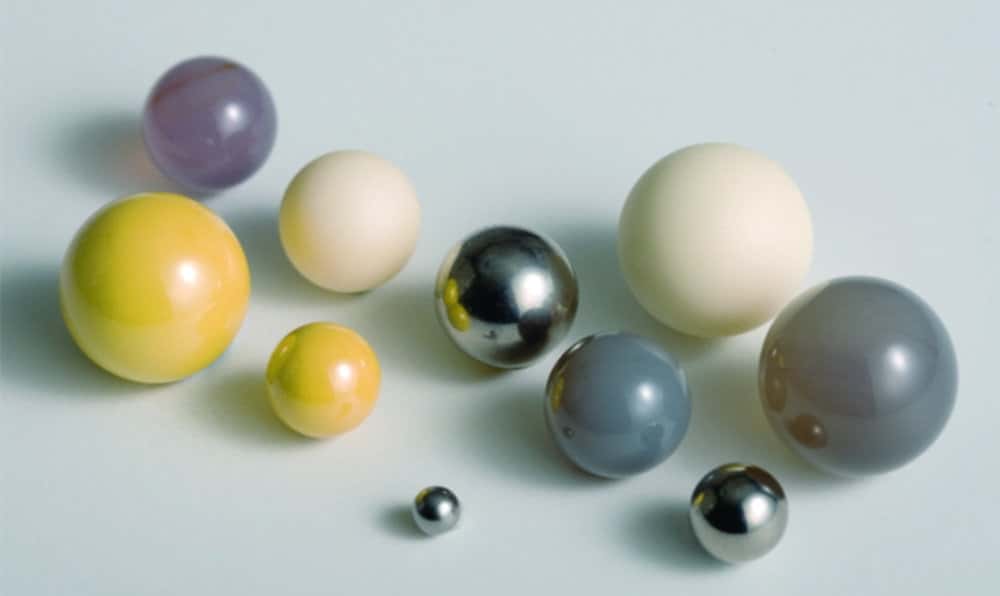

Grinding balls are available in different materials.Grinding balls are also offered in the diameters 0.1mm to 3mm (to achieve a fineness down to the nanometer-range).
