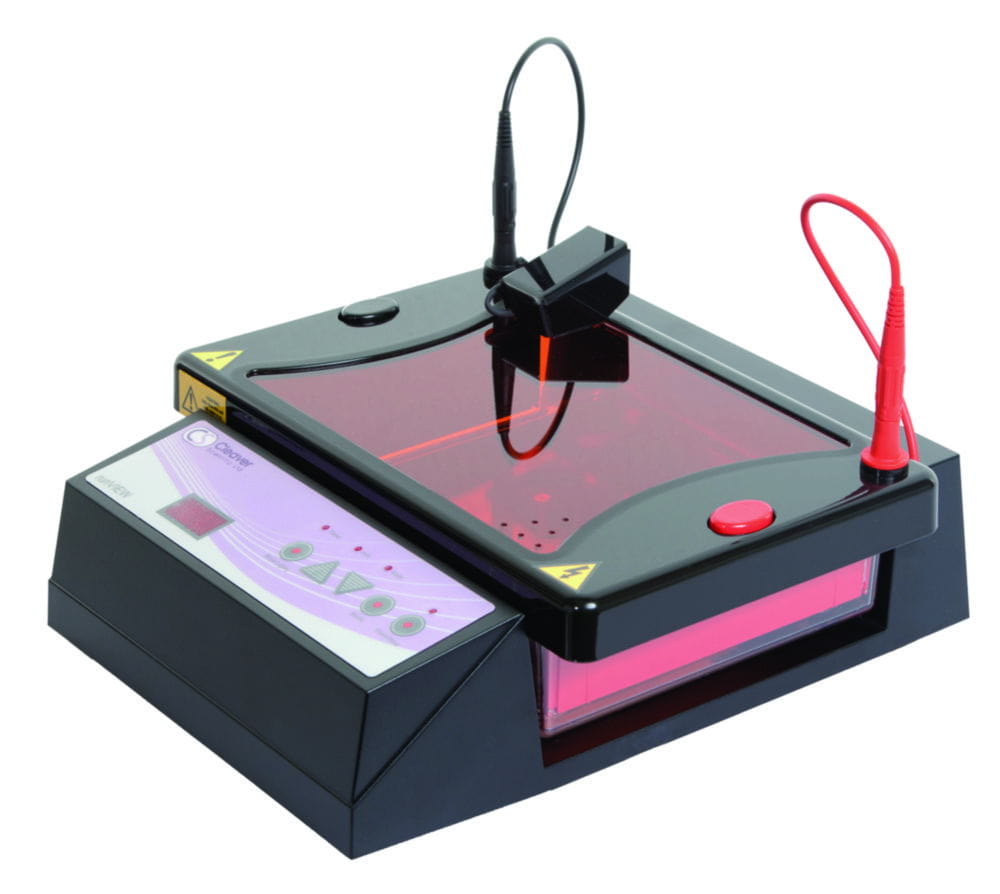

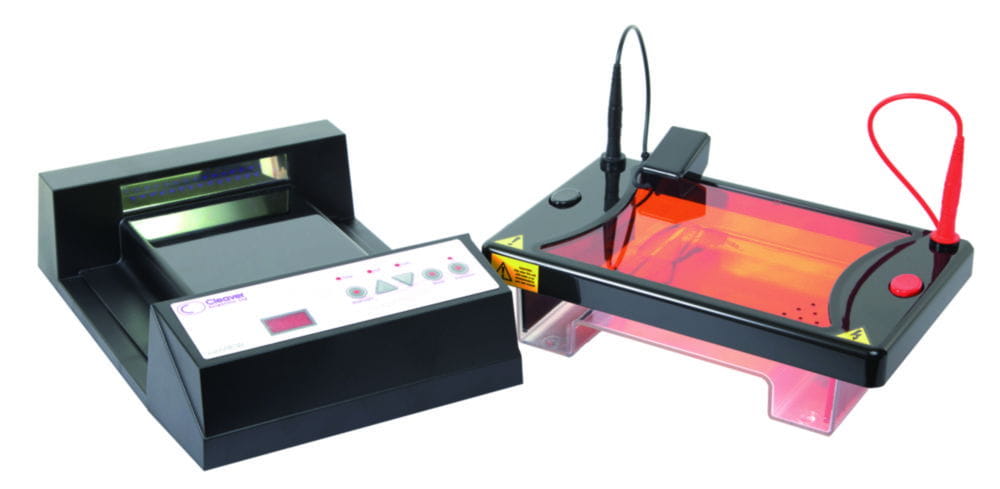

Product information "Real-time horizontal gel electrophoresis system runVIEW"
- Versatile, self-contained system on the market for real-time horizontal gel electrophoresis
- System includes everything except chemicals and reagents to run and visualize horizontal SYBR- and EtBr-stained gels in real-time
- Combines the flexibility and high resolution capability of the MSCHOICE system with the time- and space saving convenience of having the power supply and gel illuminator integrated within one highly compact bench top unit
- Optional dark room with 24.1 megapixel digital camera fits directly over the base unit and gel tank to allow gels to be imaged either as bands migrate in real-time or at the end of the electrophoresis run
- Includes accessories for standard gel electrophoresis and for size fractionation and simplified real-time gel free DNA band extraction and purification
- runVIEW Gel System with bluVIEW Lid Design: Orange spectral emission filter with condensation-free viewing panel.
- Extractor fan in the bluVIEW lid eliminates condensation to optimise DNA visualisation and resolution during electrophoresis.
Included Double-sided Combs: 2x 1-sample / 2-sample preparatory; 2x 4-sample preparatory / 16-sample combs; 4x 20- /28- sample multichannel compatible screening. Comb Thickness: 1mm. Extra-thick 2x 4- and 2x 6-sample 3mm preparatory combs are also included.
| Specifications | |
| runVIEW Viewing Dock | |
| Blue Light Wavelength: | 470 nm |
| Voltage / Resolution: | 25-150 V / 1 V |
| Current / Resolution: | 300 mA / 1 mA |
| Power: | 30 W |
| Timer: | 1 to 999 min (with alarm) |
| Dimensions (W x D x H): | 29.3 x 22.0 x 8.0 cm |
| Power supply: | 100-240 V, 50/60 Hz |
| runVIEW Gel System | |
| Gel Dimensions (W X L): | 15 x 7, 15 x 10 and 15 x 15 cm |
| Unit dimensions (W X D X H): | 26.5 x 17.5 x 9.0 cm |
| Buffer volume: | 500 ml |
