asecos GmbH Safety Storage Cabinets Q-PEGASUS-90 with Wing Doors ( 9840681 )
Article number: 9840681
Manufacturer number: 30002-041-30003
€3,832.50*
on order

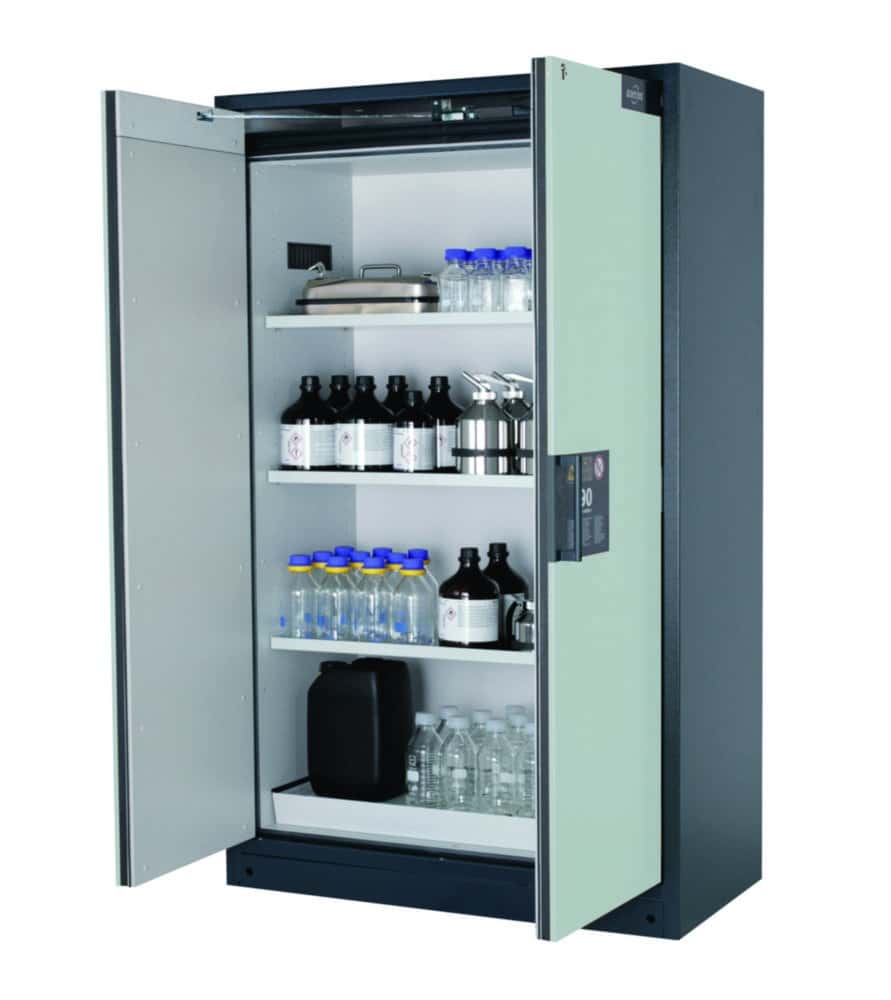

Product information "Safety Storage Cabinets Q-PEGASUS-90 with Wing Doors"
- Safe and approved storage of hazardous materials in workrooms
- Type proved according to EN 14470-1, fire resistance 90 minutes
- GS-approved
- Outer body made of sheet steel, interior with chemical resistant surface, colour: body anthracite grey RAL 7016, doors light grey (RAL 7035), door colour pure white(RAL 9010) available on request
- Convenient handling: one-hand operation for double-door cabinets (AGT)
- Standard door open arrest system holds doors open, safe and convenient storage and removal
- Serial automatic door closing (TSA) releases arrested doors after approx. 60 seconds. Acoustic and visual signal before closing
- Lockable doors with cylinder lock (integration into a locking system possible), integrated locking state indicator (red/green)
- Integrated transport base with removable, optional base cover, easy indoor transport
- Adjusting aids for compensation for uneven floor
- Ventilation connection (NW 75) in the cabinet ceiling
Shelves, height adjustable (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity bottom collecting sump: 33 litre (model width 1200 mm), 22 litre (model width 600 mm)
Supplied with: Safety Storage Cabinet Q-PEGASUS-90 Model Q90.195.120.WDAC or Q90.195.060.WDAC incl. interior equipment with 3 shelves, bottom collecting sump with perforated insert
A wide variety of cabinet versions is available. Please enquire.
| Colour body: | Anthracite |
|---|---|
| Colour doors: | Light grey |
| Depth int.: | 522 mm |
| Ext. depth: | 615 mm |
| Ext. height: | 1953 mm |
| Ext. width: | 1193 mm |
| External dimensions (WxDxH): | 1,193 x 615 x 1,953 mm |
| Height int.: | 1647 mm |
| Int. width: | 1050 mm |
| Internal dimensions (WxDxH): | 1,050 x 522 x 1,647 mm |
| Manufacturer Article Number: | 30002-041-30003 |
| Standard: | DIN EN 16121/16122 |
| Type: | Q90.195.120.WDAC |
| Version cabinet: | Tall cabinet |
| Weight: | 477.5 kg |
Buying ASECOS Hazardous Material Cabinets – Maximum Safety and Quality for Your Workspace
Why ASECOS Hazardous Material Cabinets Are the Best Choice
ASECOS GmbH from Gründau is internationally recognized for developing and manufacturing high-quality hazardous material storage cabinets. With product lines such as Q-Line, S-Line, FX-Line, and V-Line, ASECOS sets standards for safety, innovation, and user-friendliness. All cabinets comply with the EN 14470-1 (Type 90/30) standard and provide reliable protection when handling flammable and hazardous substances.
Wide Range of Solutions for Various Requirements
Q-Line and S-Line:
Universal safety cabinets with optimized space usage, ideal for the safe storage of flammable liquids.FX-Line:
Recirculating air systems that operate without external exhaust connections – perfect for flexible applications.V-Line:
Models with vertical, electronically controlled drawers for ergonomic and space-saving operations.
Each series is specially designed to meet different operational needs, allowing customization for laboratories and production environments.
Battery Charging Cabinets – ION-Line
The increasing use of lithium-ion batteries in industry demands special safety measures. The ION-Line battery charging cabinets from ASECOS offer:
Type 90 fire protection
Automatic ventilation and exhaust systems
Temperature and smoke detectors for early hazard detection
This technology significantly reduces the risk of battery fires while meeting the highest safety standards.
Additional Solutions: Fume Hoods and Laboratory Furniture
In addition to hazardous material cabinets, ASECOS develops chemical fume hoods and underbench cabinets that greatly enhance laboratory safety:
CF-CLASSIC Chemical Cabinets: Robust solutions for the safe storage of non-flammable chemicals.
Type 90 Underbench Safety Cabinets: Designed to fit under lab workbenches, equipped with pull-out trays and perforated inserts for maximum flexibility.
Adjustable Laboratory Tables: Height-adjustable models for ergonomic working environments and seamless integration with safety solutions.
The combination of these systems ensures well-designed workspaces that optimize efficiency and protection.
Buying Guide: What to Look for in a Hazardous Material Cabinet
When purchasing a hazardous material cabinet, the following factors are crucial:
Safety Certifications: Only models classified as Type 90 or Type 30 under EN 14470-1 guarantee optimal fire protection.
Capacity and Layout: Ensure the cabinet size fits your needs (e.g., models like S-PHOENIX-90 or XL-CLASSIC-90) with enough spill trays and pull-outs.
Ventilation Systems: Integrated forced ventilation or recirculating air systems like those in the FX-Line ensure consistent operational safety.
Additional Features: Options such as spill containment trays, fine dosers for canisters, or integrated alarm systems enhance safety and user experience.
Industry Trend: Smart Hazardous Material Storage
The demand for connected, smart hazardous material storage systems is growing rapidly. ASECOS is increasingly integrating monitoring technologies into its cabinets to track temperature, humidity, and gas emissions in real time. These innovations not only boost operational safety but also optimize maintenance intervals and operating costs.
Accessories

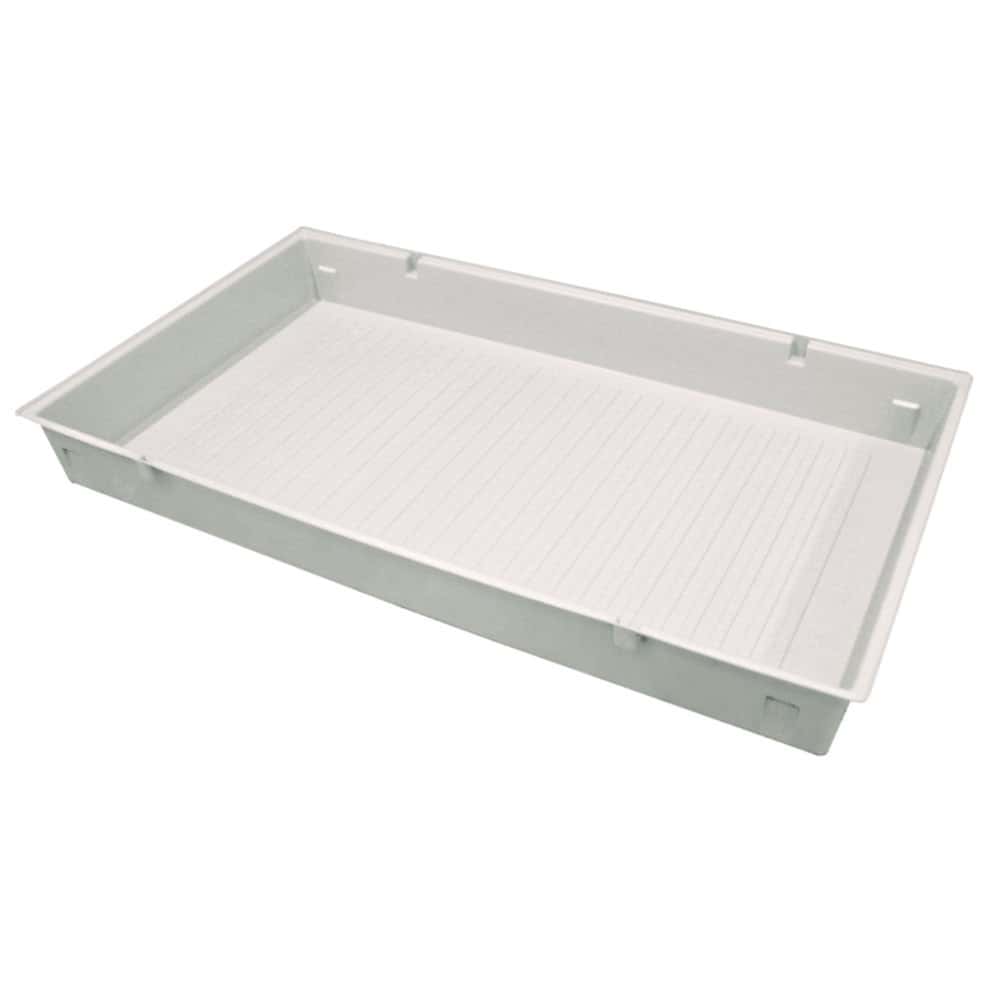

Increased protection of drawers when storing mildly aggressive liquids and in case of a leakageRemovable for safe disposal of leakages and easy cleaning
