Starna Scientific Ltd. Standard Rectangular Cells ( 4678102 )
Article number: 4678102
Herstellernummer: 1/G/10

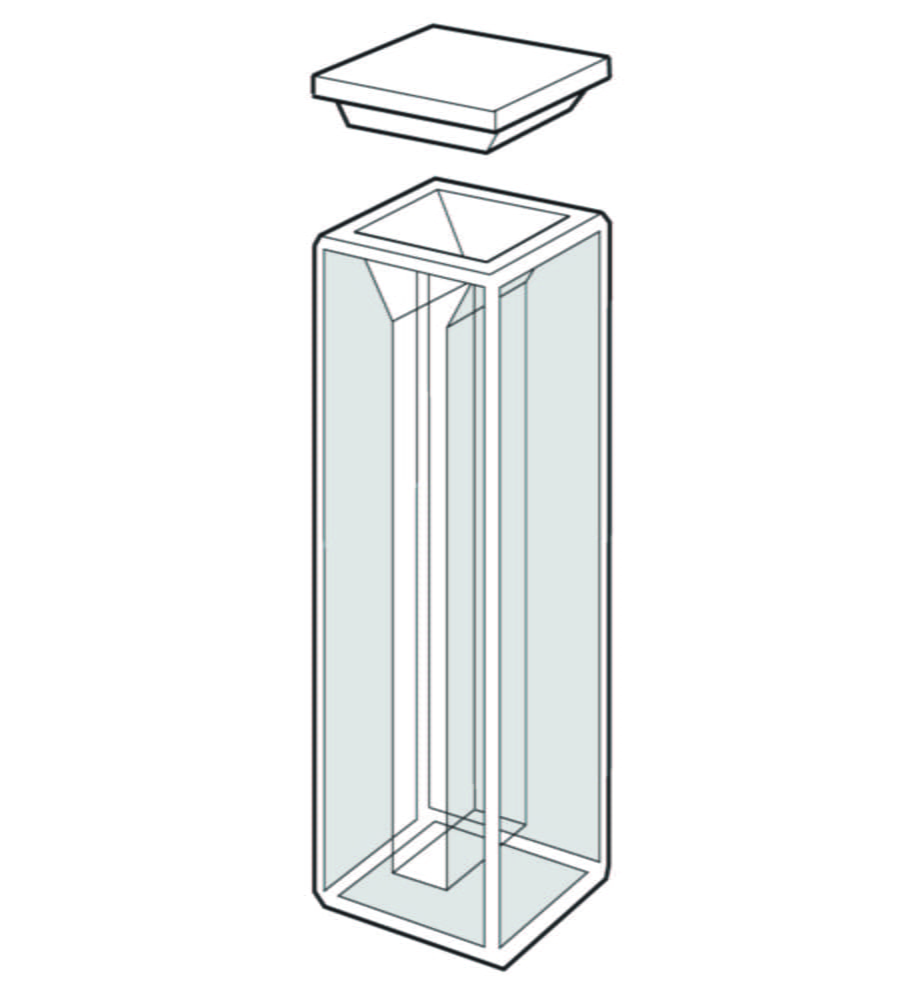

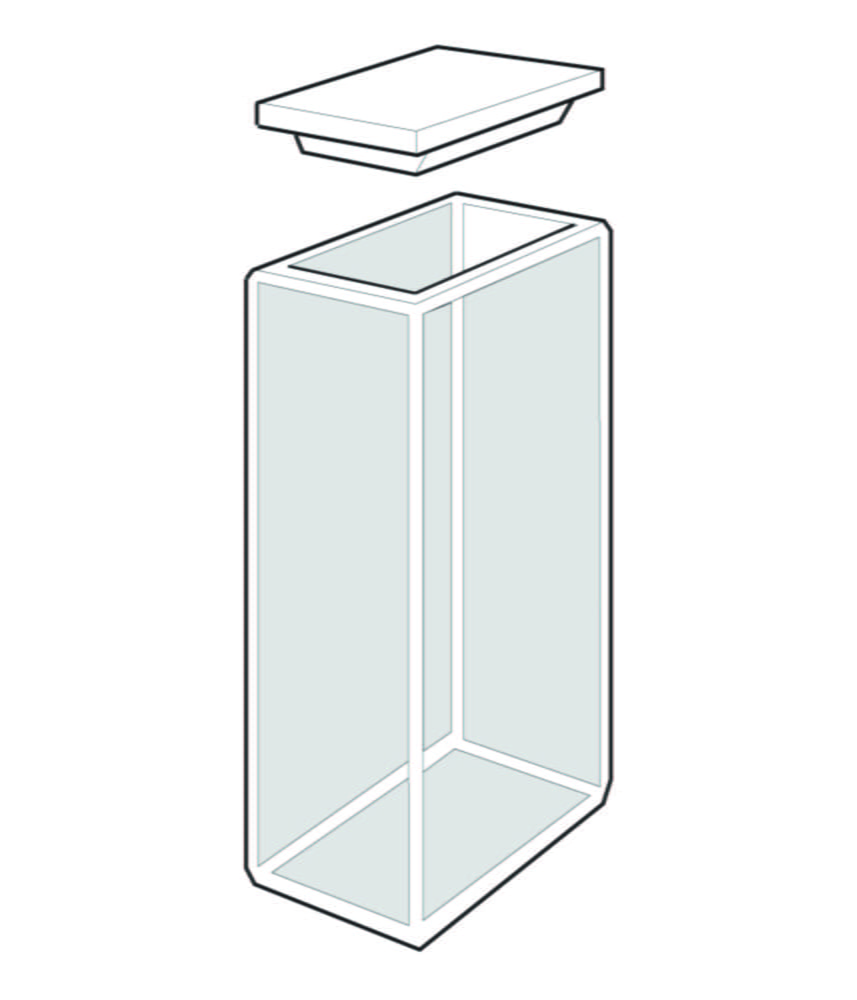

Product information "Standard Rectangular Cells"

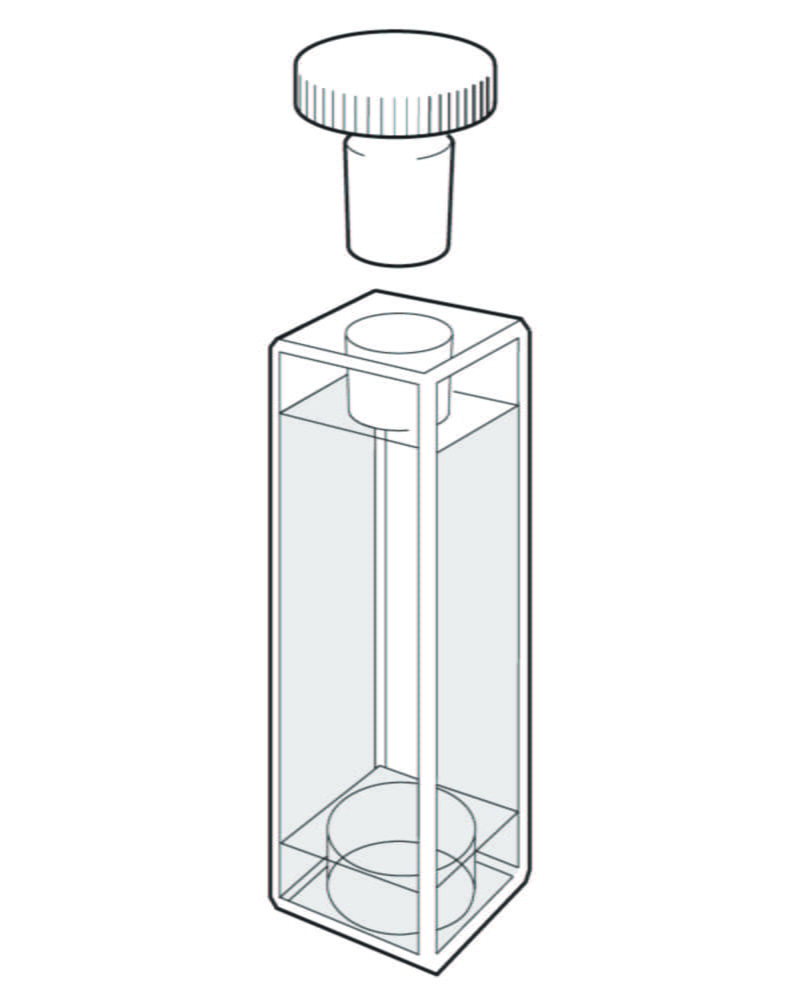

High precision standard cells for routine analysis. Suitable for most spectral photometers, using rectangular cells. Available with cover or with stopper for a liquid-tight seal. Cover and stopper made of PTFE.
Glass types
Type G: Optical glass, 334 to 2500 nm
Type SOG: Special optical glass, 320 to 2500 nm
Type Q: Spectrosil® Far UV Quartz glass, 190 to 2700 nm
Glass types
Type G: Optical glass, 334 to 2500 nm
Type SOG: Special optical glass, 320 to 2500 nm
Type Q: Spectrosil® Far UV Quartz glass, 190 to 2700 nm
| Specifications | |
| Windows parallel to: | |
| Window polish: | 60/40 scratch/dig |
| Window thickness: | 1.25 mm |
| Window flatness to: |
| Capacity: | 3.5 ml |
|---|---|
| Description: | with cover |
| Ext. depth: | 12.5 mm |
| Ext. height: | 45 mm |
| Ext. width: | 12.5 mm |
| External dimensions (WxDxH): | 12.5 x 12.5 x 45 mm |
| External dimensions (W x D x H) mm: | 12.5 x 12.5 x 45 |
| Int. width: | 10 mm |
| Internal width mm: | 10 |
| Manufacturer Article Number: | 1/G/10 |
| Max. capacity: | 3.5 ml |
| Path length: | 10 mm |
| Path length mm: | 10 |
| Type: | 1/G/10 |
| Type: | 1/G/10 |
| Type of closure: | Lid |
| Type of cuvette: | Standard |
| UNSPSC: | 41121813 |
| Volume ml: | 3.500 |
