Kern & Sohn GmbH Transmitted light microscope-digital sets OBE, with tablet camera ( 4691070 )
Article number: 4691070
Manufacturer number: OBE 124T241
€1,365.00*
€1,820.00*
on order
Product information "Transmitted light microscope-digital sets OBE, with tablet camera"
- Tube 30° inclined, 360° rotatable
- Diopter adjustment at one eyepiece tube
- Coaxial pre-and fine focussing
- ABBE 1,25 N.A. condensor focussed with aperture diaphragm
- Dimmable 3 W LED illumination
Scope of supply:
Transmitted light microscope, camera, dust cover, eye cups, manual instruction
| Condenser: | Abbe N.A. 1,25 |
|---|---|
| Depth: | 180 mm |
| Depth stage: | 115 mm |
| Dimensions (WxDxH): | 320 x 180 x 365 mm |
| Height: | 365 mm |
| Inclination angle tube: | 30° |
| Interfaces: | WLAN, USB 2.0, HDMI, SD (15 ... 30 FPS) |
| Interpupillary distance: | 48 ... 75 mm |
| Light type: | LED |
| Magnification eyepieces: | HWF 10x/18 mm |
| Magnification objectives: | 4x, 10x, 40x |
| Manufacturer Article Number: | OBE 124T241 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 230 V |
| Min. interpupillary distance: | 48 mm |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Resolution camera: | 5 MP |
| Revolving nosepiece: | 4-fold |
| Sensor: | CMOS 1/2,5" |
| Stage (WxD): | 125 x 115 mm |
| Tube: | Trinocular |
| Type: | OBE 124T241 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 5.5 kg |
| Width: | 320 mm |
| Width stage: | 125 mm |
Products by KERN & SOHN GmbH: Precision Weighing and Microscopy Solutions for Research & Quality Control
KERN & SOHN GmbH represents precision, reliability, and innovation in laboratory technology. As an authorized distribution partner, häberle LABORTECHNIK offers a wide range of high-precision balances, refractometers, and microscopy systems tailored to meet the exacting demands of modern research, analytical laboratories, and industrial quality assurance.
High-Precision Weighing Technology from KERN & SOHN
Fine Balances
KERN fine balances are ideal for ultra-precise microgram-level measurements. They provide exceptional resolution, making them indispensable in pharmaceutical labs, environmental analysis, and chemical research.
Type EWJ: Affordable and highly accurate with internal calibration
Precision Balances
For weighing tasks requiring consistent accuracy with medium volumes, KERN’s EW-N and EG-N series deliver robust construction and user-friendly operation.
Types EW-N / EG-N: Multiple model variants available
Analytical Balances
The ABT and ABP analytical balance series ensure maximum repeatability and measurement reliability, making them essential for high-level analytical workflows.
Type ABT
Type ABP-A
Digital Microscopy Systems for Precision Imaging
KERN offers a variety of microscopes combined with digital cameras or tablet systems, enabling seamless documentation and image-based analysis.
Video Microscopes
Ideal for industrial material testing, electronics assembly, or QC labs. Their digital output allows for real-time documentation and remote analysis.
OIV-3, OIV-6, OIV 254 / 255
Digital & Stereo Microscope Sets
Transmitted light, stereo, and zoom microscopes cover a broad spectrum—from educational applications to advanced lab environments.
OZL 963 Stereo Set, OZL Digital Set with Tablet Camera, OBE Digital Set with C-Mount Camera
Multi-Component Sets
Comprehensive kits for advanced microscopy workflows:
OZM 923 with Trinocular & Universal Stand, Complete Digital Set (947-10, OZM 544, OZB-A5702, ODC 832)
Complementary Measurement Instruments: Refractometers & Density Sets
KERN’s refractometers deliver exact refractive index readings for liquids, essential in food science, pharmaceuticals, and chemical engineering. Additionally, density determination kits are available, such as for the EMB 200-3V series, supporting precise analysis of solids and fluids.
Industry Trends: Precision & Digitalization
The combination of precise weighing systems with digital imaging has become a decisive competitive factor in modern laboratories. As automation, traceable documentation, and digital interfaces become the norm, KERN continues to lead with product innovations that meet future-ready standards.
Accessories
The Microscope-tablet-camera consists of a large Android tablet in combination with a 5-MP camera, for trinocular microscopes with C-mount adapter.9.7" LCD-TouchscreenIncl. functions for measuring distance, surfaces and angles as well as a manual counting functionAutomatic white balance and contrast adjustmentScope of supply: Tablet camera with pre-installed software, mains adapter

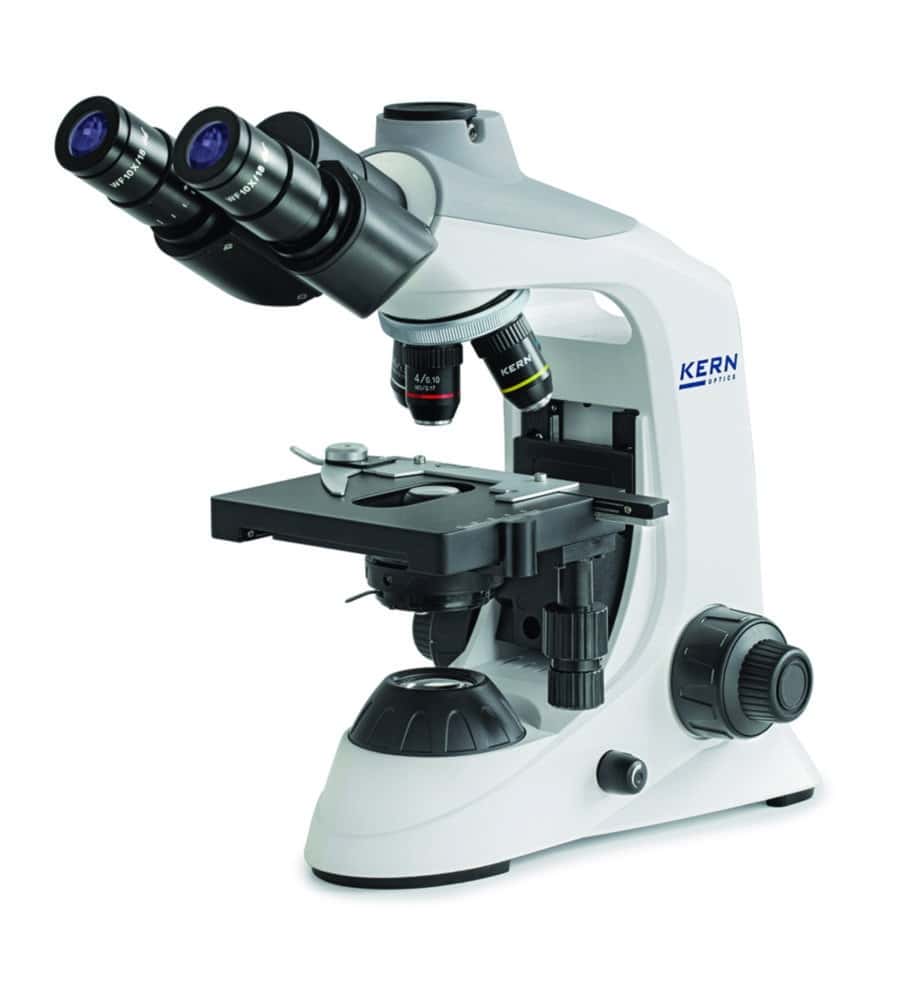

The fully equipped all-round compound microscope for school, training and laboratories.Monocular (OBE 121, 131): Tube 30° inclinedBinocular (OBE 122, OBE 132): Tube Butterfly 30° inclined, 360° rotatableTrinocular (OBE 124, 134): Tube Butterfly 30° inclined, 360° rotatableachromatic objective 100x (oil immersion)Widefield Eyepiece: WF 10x/18 mmDiopter adjustment at bino- and trinocular Version available (at one eyepiece tube)Quadruple nosepieceCoaxial pre-and fine focussingAbbe 1,25 condensor focussed with aperture diaphragmDimmable 3 W LED illuminationStorage compartment on the rear sideUSB connection (only as power source)Dust Cover, eyepiece rubber caps and manual instruction includedDifferent colour filters as accessoires available

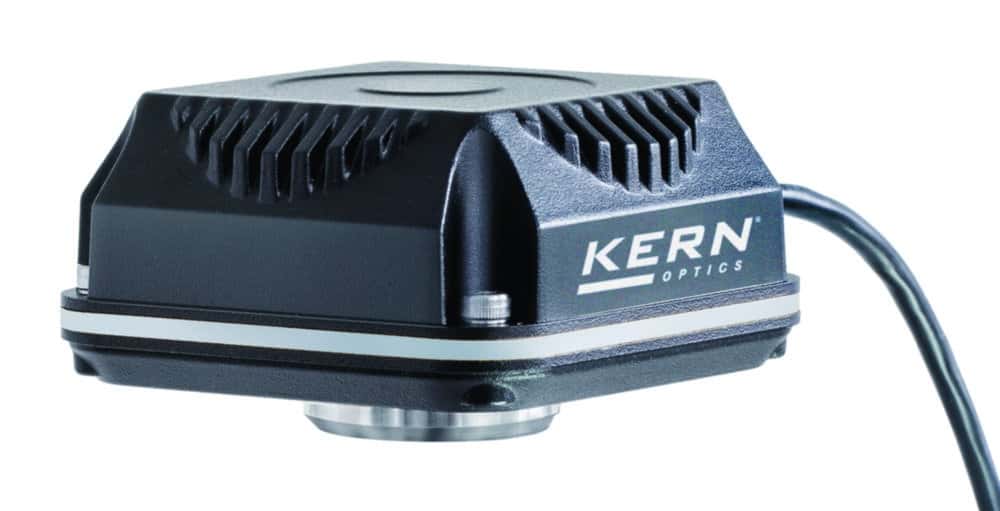

Specialists in microscopy for measurement, counting, documentation, archiving and image processing.C-Mount USB-camera with CMOS sensorUSB-cable, eyepiece adapter and calibration slide includedKern-Microscope-VIS Software in 6 languages inclusive, for WINDOWS XP and higher
