Vacuubrand GmbH & Co.KG Vacuum measuring instrument DCP 3000 with VSK 3000 ( 9882206 )
Article number: 9882206
Manufacturer number: 20683170
€1,410.00*
on order
Product information "Vacuum measuring instrument DCP 3000 with VSK 3000"
- External sensor on-the-spot measuring, flexible and upgradeable up to four sensors
- External capacitive alumina-ceramic vacuum gauge head with excellent chemical resistance
- Outstanding measuring accuracy and long term stability
- Splash-proof pressure transducer for tough operation conditions
- Datalogger with 32000 measurement reading recording capacity
- Vacum connection: Small flange KF DN 16, PTFE tubing connection 10/8 mm, hose nozzle DN 6/10 mm
Scope of supply: Vacuum gauge and vacuum gauge head (ready to use), kit hose nozzle DN 6/10 mm, power supply, manual
| Accuracy: | ±1 mbar, ±1 digit |
|---|---|
| Depth: | 124 mm |
| Dimensions (WxDxH): | 144 x 124 x 114 mm |
| Height: | 114 mm |
| Manufacturer Article Number: | 20683170 |
| Max. measured value: | 1080 mbar |
| Max. permitted ambient temperature: | 40 °C |
| Max. voltage: | 230 V |
| Measured range: | 0.1 ... 1,080 mbar |
| Min. measured value: | 0.1 mbar |
| Min. permitted ambient temperature: | 10 °C |
| Min. voltage battery/rechargeable battery: | 100 V |
| Plug type: | EU/UK/CH/US/AUS/CN |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Type: | DCP 3000 + VSK 3000 |
| UNSPSC: | 41-11-00-00 |
| Weight: | 440 g |
| Width: | 144 mm |
Vacuum Technology at Its Finest: Vacuubrand Products at häberle LABORTECHNIK
häberle LABORTECHNIK GmbH & Co. KG proudly presents the high-precision vacuum technology by Vacuubrand GmbH & Co. KG, one of the leading manufacturers for laboratory and industrial applications. The product range includes powerful rotary vane pumps, advanced diaphragm pumps, intelligent vacuum controllers, and robust screw pumps, all designed to meet the highest standards of efficiency and reliability.
Rotary Vane Pumps from Vacuubrand: High-Performance Solutions for Demanding Applications
Rotary vane pumps operate through a rotating vane mechanism that efficiently removes air molecules to generate a strong vacuum.
Key advantages include:
Extremely low achievable ultimate pressures
High pumping speeds for demanding processes
Ideal for industrial applications and laboratories requiring consistently high vacuum levels
Examples from the range:
Rotary Vane Pump RZ 6, two-stage: Currently discounted by 41%
Rotary Vane Pump RZ 2.5, two-stage: A compact solution for precise applications, now 20% off.
For highly aggressive media, the chemically resistant rotary vane pump RC 6 ensures reliable performance under challenging conditions.
Diaphragm Pumps from Vacuubrand: Purity and Durability Without Compromise
Diaphragm pumps operate using a flexible membrane that compresses gas without the need for lubricants, making them ideal for sensitive applications.
Main benefits:
Oil-free operation ensuring maximum purity
Minimal maintenance requirements
Outstanding service life even under continuous use
Typical fields of application:
Analytical laboratories
Precision vacuum applications in research and development
Featured products:
Diaphragm Pumps, Chemistry Version chemical-resistant options for aggressive vapors.
Aluminum-PTFE Diaphragm Pumps ME 1 / MD 1: Compact models with a 15% discount.
Intelligent Vacuum Control with VACUU·SELECT® and CVC 3000
Accurate control is crucial in many processes. VACUU·SELECT® packages and the CVC 3000 vacuum controller offer intelligent solutions for automated vacuum operations.
Highlights:
VACUU·SELECT® Package for Fine Vacuum Control with Pirani sensor – available for KF DN 16 and DN 25, with 20-24% discounts.
CVC 3000: Automatic vacuum controller featuring an intuitive interface and robust construction.
Screw Pumps VACUU·PURE® 10/10C: For Oil-Free High Vacuum Applications
With the VACUU·PURE® screw pumps, Vacuubrand sets new standards in oil-free high vacuum technology.
Distinctive features:
Chemical-resistant versions available for aggressive vapors
Exceptional service life and minimal operating costs
The perfect choice for applications in chemistry and analytics
Special offer: VACUU·PURE® models are currently discounted by 15%.
Complete Vacuum Solutions with Accessories and Systems
In addition to individual pumps, Vacuubrand offers a comprehensive range of accessories:
BioChem-VacuuCenter BVC Liquid Aspiration Systems – specifically designed for biological and chemical applications
VARIO® select Chemical Pump Stands – for flexible and powerful system solutions
VACUU·VIEW Vacuum Gauges – for precise monitoring of your vacuum processes
All systems are engineered to enhance operational safety, reduce maintenance effort, and optimize workflows.
Other customers also bought

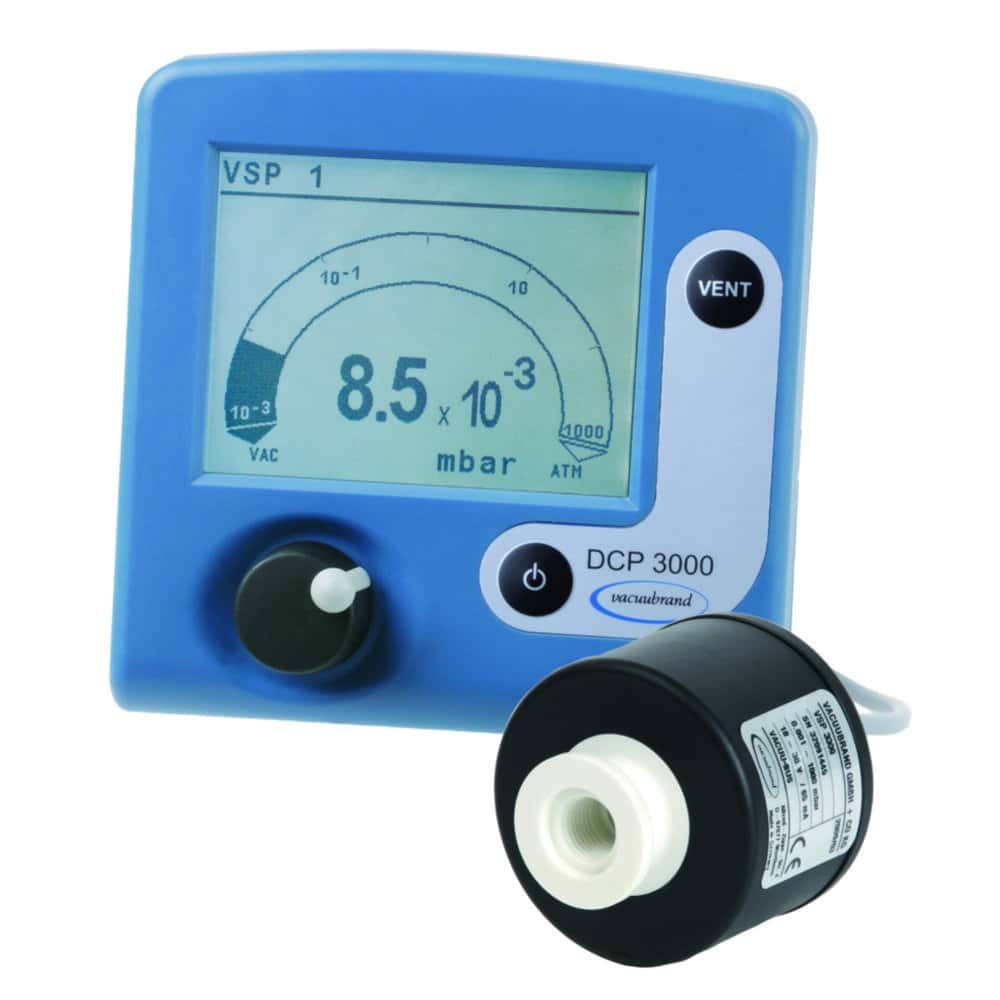

The DCP 3000 is an outstanding vacuum gauge for rough and fine vacuum. A large illuminated display shows the measuring values of all sensors by a simple turn of a button. Up to eight external gauge heads (four of ceramic diaphragm-type VSK 3000 and four VSP 3000) can be connected simultaneously to the DCP 3000 vacuum gauge for easy measurements at multiple points. Communication between the DCP 3000 and the external components is provided by the especially developed bus control system VACUU·BUS®.The Pirani-type vacuum sensor VSP 3000 offers an outstanding corrosion resistance and mechanical robustness for fine vacuum measurements. It is primarily designed for applications in chemistry and process engineering. The vacuum gauge DCP 3000 is now also available with this new Pirani sensor VSP 3000 for an increased measuring range down to the 10-3 mbar range. It is self-configuring, easy to use due to standardized plug connectors and allows cable extensions up to 30m. The large illuminated display, controlled by a simple jog wheel, displays the readings from each gauge head.Brand new rugged vacuum sensor VSP 3000 made of plastics and ceramics with high chemical resistanceWide measurement range from atmospheric pressure to fine vacuum (10-3 mbar) due to Pirani measurement system (thermal conductivity)Up to 8 gauge heads VSP 3000 (Atm. to 10-3 mbar), VSK 3000 (Atm. to 0.1mbar) can be connected ( 4 of each)rugged, splash-water proof vacuum sensor, also for rough operating conditionsWith vacuum controller CVC 3000, VSP 3000 and vacuum solenoid valves of type VV-B vacuum control from atm. to 10-3 mbar is achievedVacum connection: Small flange KF DN 16 and screw in hose nozzle DN 6/10 mmScope of supply: Vacuum gauge and vacuum gauge head (ready to use), kit hose nozzle DN 6/10 mm, power supply, manual
