Description:

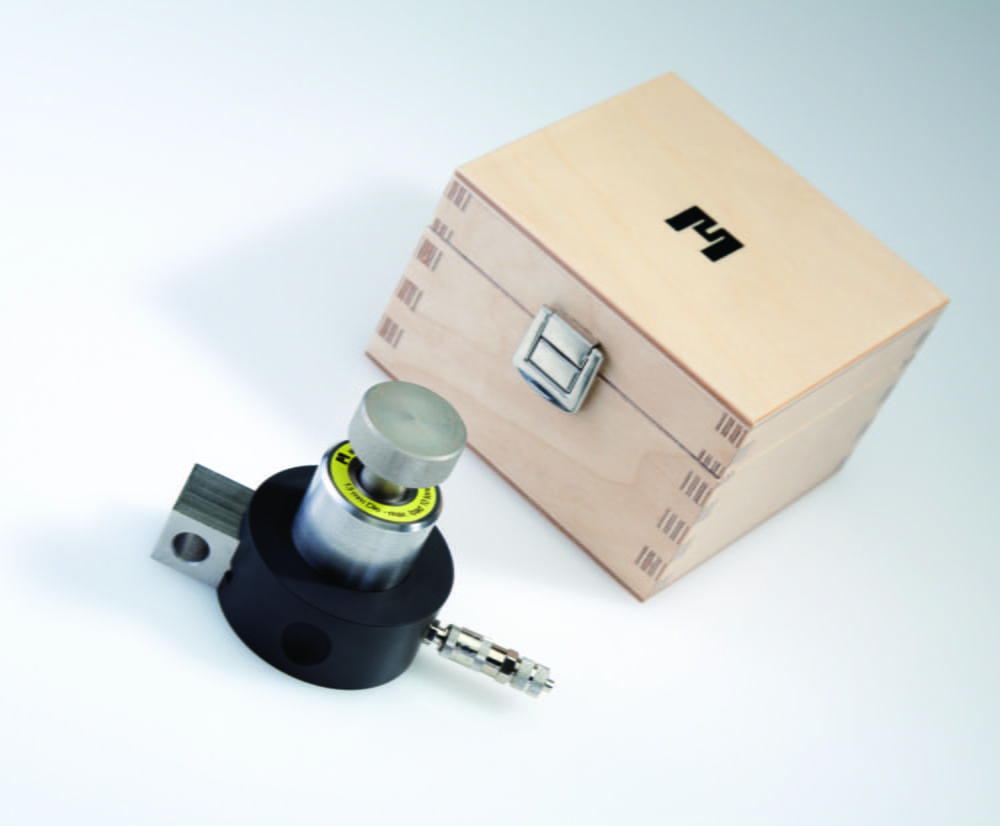

Press die set for Alucups, 40 mm
|
Dual Use:
0
|
Manufacturer Article Number:
XRF-BC40
|
Pressure max. t:
40
The 13 mm press die is supplied in a wooden box (for 32 and 40 mm: optional)The 32 and 40 mm press die can be combined to save costs, since the same parts can be usedAll press dies from 10 mm have a vacuum connection with a special self-locking tubing adapter, which makes it easier to connect and disconnectFurther diameters available on request.
Variants from €57.75*
Dual Use:
0
|
Manufacturer Article Number:
54MP250M
|
Type:
MP250M
The motorised, hydraulic Laboratory press MP250M with pressure gauge is suitable for a variety of applications and a high sample throughput. The pressure is adjustable directly on the manometer. For press dies from 10 mm. With illuminated emergency stop button.Pressure build-up only possible with closed coverPressure built-up at the push of a buttonPressure release with manual valveSpecificationsPressure gauge Ø:
Pressure:63 mm
25 tResolution:1 tWidth between pistons:150 mmClear height min. / max.:73 mm / 185 mmSpindle diam.:45 mmSpindle path:112 mmPiston diameter / Stroke:107 mm / 22 mmDimensions (H min. / max. x W x D):497 / 609 x 400 x 360Weight:65 kgPower supply:230 V, 50 Hz / 250 W
Dual Use:
0
|
Manufacturer Article Number:
54MP150+54MP151
|
Type:
MP150

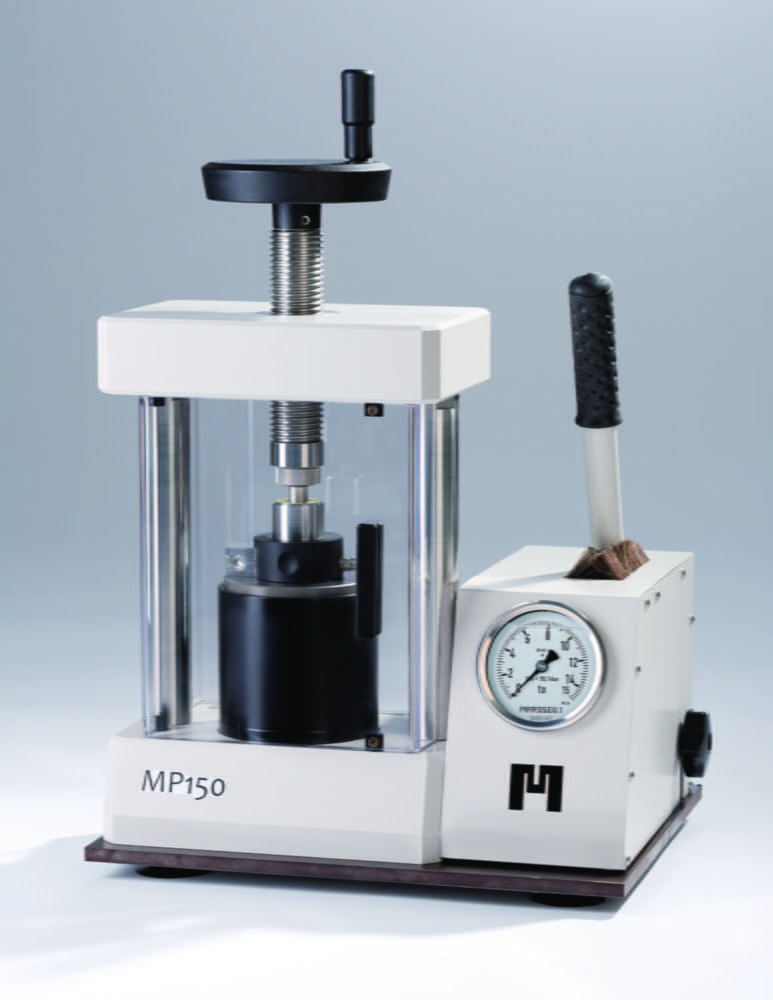

The laboratory presses are available as analogue models with pressure gauge or as digital models with digital pressure display. MP150 is ideal for IR spectroscopy, for 13 mm diameter press dies. MP250 is used in RFA analysis to form tablets with a diameter of 32 mm or 40 mm. For smaller press dies or more accurate pressure control, the MP150D or MP250D digital models are suitable.The MP150D and the MP250D can be equipped with a serial interface (optional). In addition, an individually programmable pressure limitation (optional) is available for setting the desired maximum pressure. Further pumping then does not build up higher pressure beyond the set value. This is especially useful if the sample should always be pressed with the same pressure. This makes every pressing process easy to control and reproduceable.Manual valve for controlled pressure reductionKeeps pressure stable for several hoursIntegrated splinter protectionIntegrated pressure control valvePress dies available from 3 to 50 mmWith connection for Vacuum pumpPlease order press dies separately.With pressure gauge (MP150) or digital pressure display (MP150D). Press for up to 15 tons pressure. Recommended for press dies up to 18 mm. Please order press dies separately.SpecificationsPressure gauge Ø:
Pressure:80 mm
15 tResolution:0.5 t / 0.01 tWidth between pistons:150 mmClear width min. / max.:52 mm / 142 mmSpindle diam.:36 mmSpindle path:90 mmPiston diameter / Stroke:107 mm / 22 mmDimensions (H min. / max. x W x D):436 / 526 x 370 x 300 mmWeight:approx. 43 kgPower supply MP150D:ext. power adapter, 12 V
Dual Use:
0
|
Manufacturer Article Number:
54MP250+54MP151
|
Type:
MP250

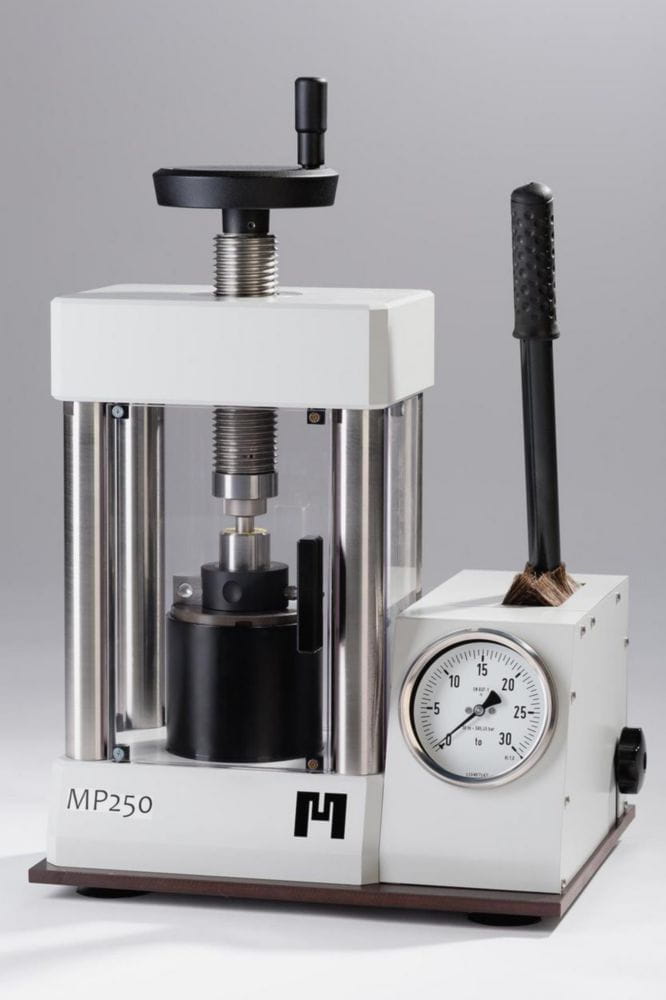

The laboratory presses are available as analogue models with pressure gauge or as digital models with digital pressure display. MP150 is ideal for IR spectroscopy, for 13 mm diameter press dies. MP250 is used in RFA analysis to form tablets with a diameter of 32 mm or 40 mm. For smaller press dies or more accurate pressure control, the MP150D or MP250D digital models are suitable.The MP150D and the MP250D can be equipped with a serial interface (optional). In addition, an individually programmable pressure limitation (optional) is available for setting the desired maximum pressure. Further pumping then does not build up higher pressure beyond the set value. This is especially useful if the sample should always be pressed with the same pressure. This makes every pressing process easy to control and reproduceable.Manual valve for controlled pressure reductionKeeps pressure stable for several hoursIntegrated splinter protectionIntegrated pressure control valvePress dies available from 3 to 50 mmWith connection for Vacuum pumpPlease order press dies separately.With pressure gauge (MP250) or digital pressure display (MP250D). Press for up to 25 tons pressure. Recommended for press dies up to 50 mm.SpecificationsPressure gauge Ø:
Pressure:100 mm
25 tResolution:0.5 t / 0.01 tWidth between pistons:150 mmClear width min. / max.:73 mm / 185 mmSpindle diam.:45 mmSpindle path:112 mmPiston diameter / Stroke:107 mm / 22 mmDimensions (H min. / max. x W x D):497 / 609 x 370 x 300 mmWeight:approx. 51 kgPower supply MP250D:ext. power adapter, 12 V
