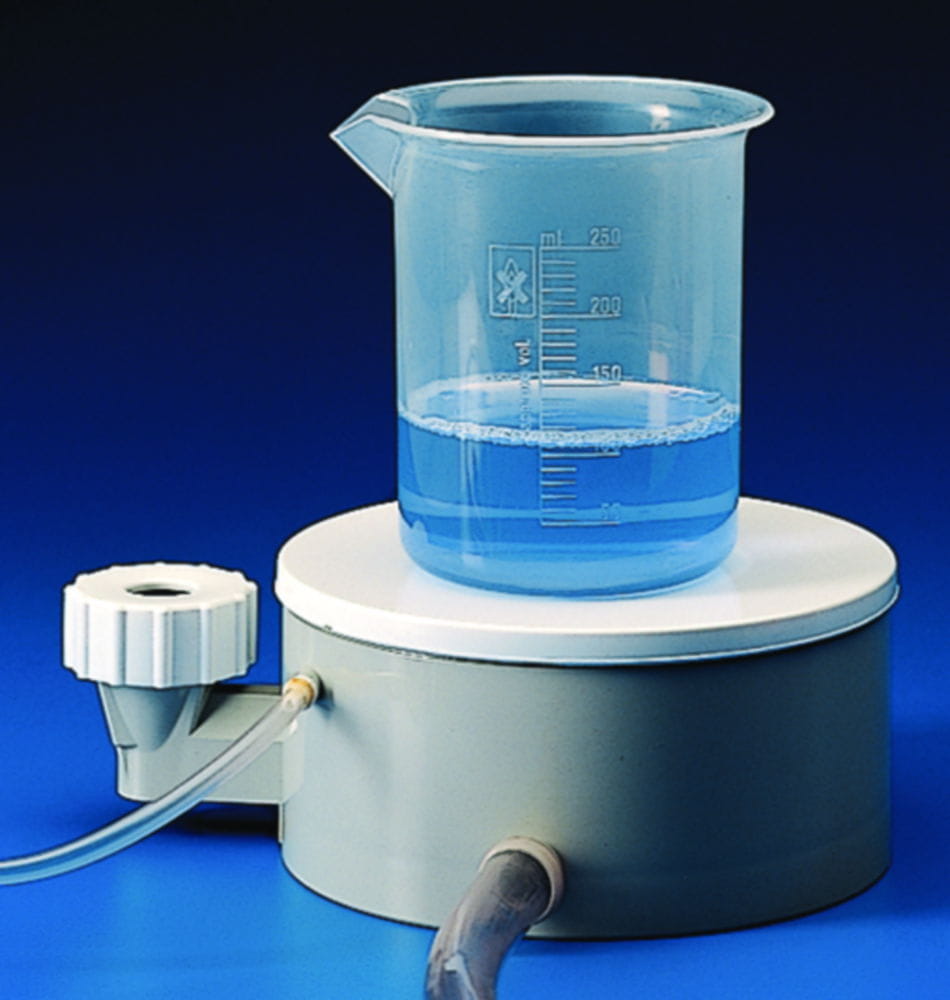

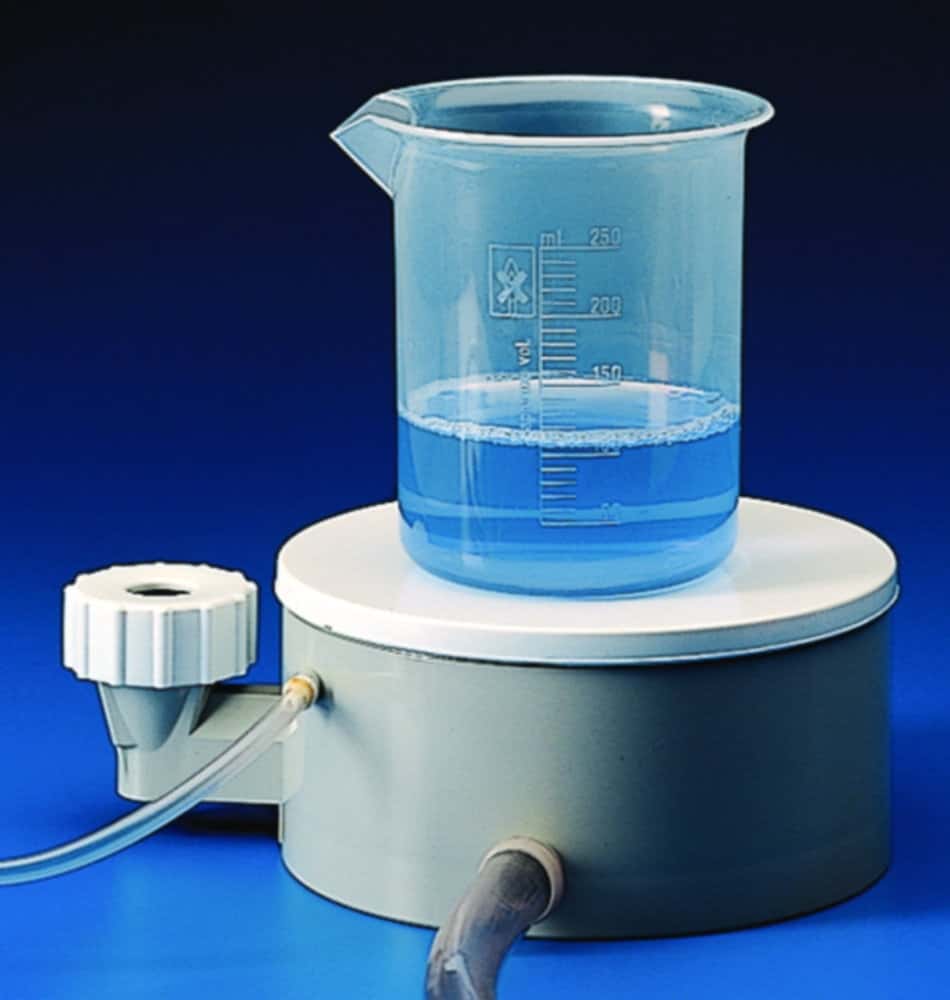

PP-ABS construction. This unique stirrer is operated either by water pressure between 1 kg/cm² and 2.5 kg/cm² (15 psi to 40 psi) or by air pressure. No electrical supply is needed, thus eliminating heat, electric shock and explosion hazards. Corrosion-proof, all-plastic construction. Can be used on the bench or clamped to a stand with a 12 mm (½'') diameter rod using the integral bosshead.

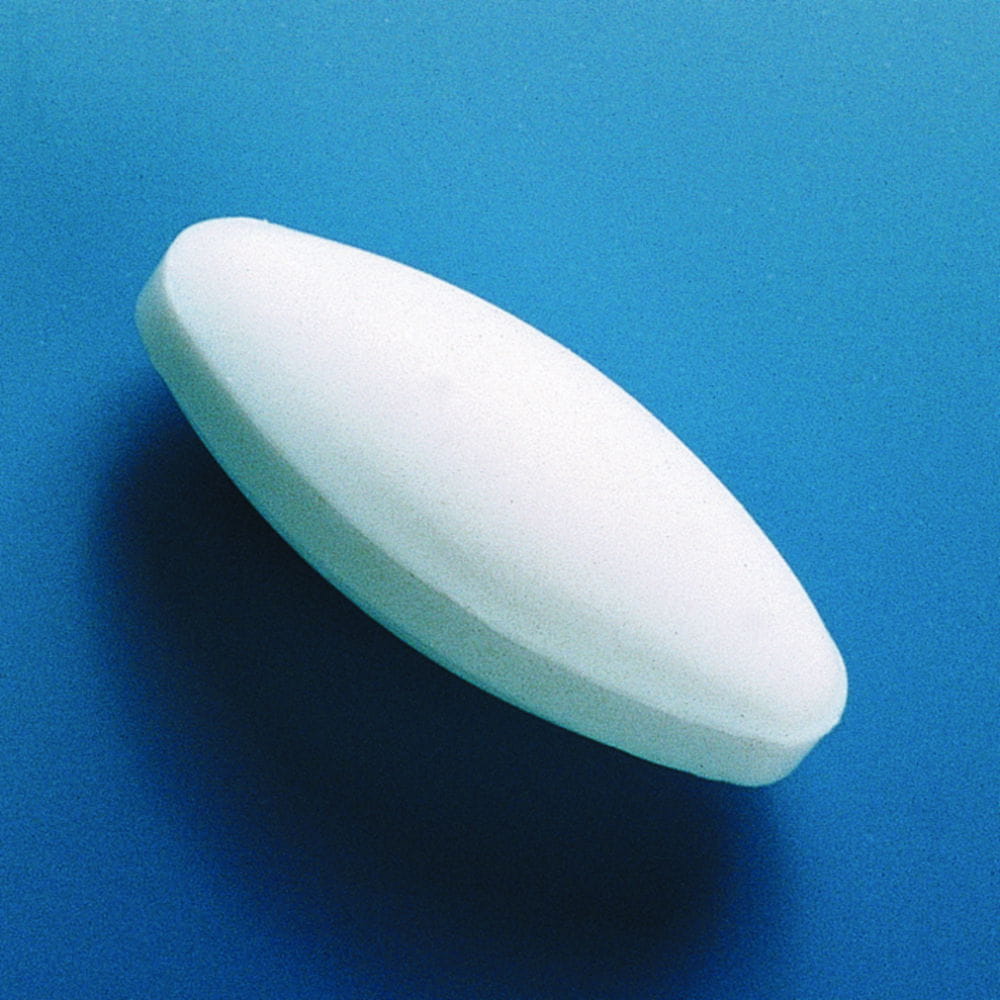

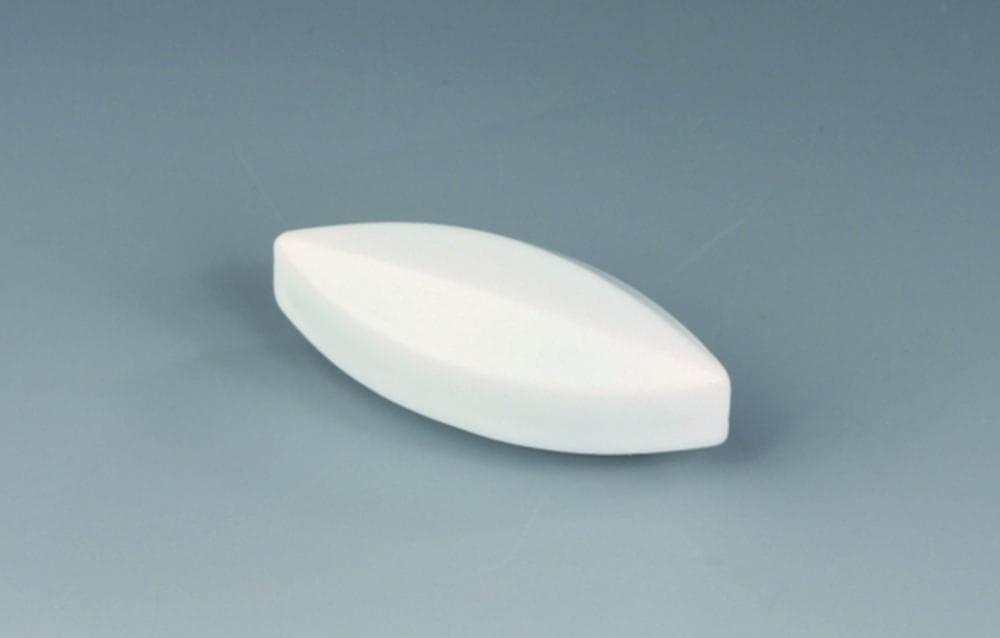

Encapsulated in PTFE. Oval. Ideal for round bottom flasks.

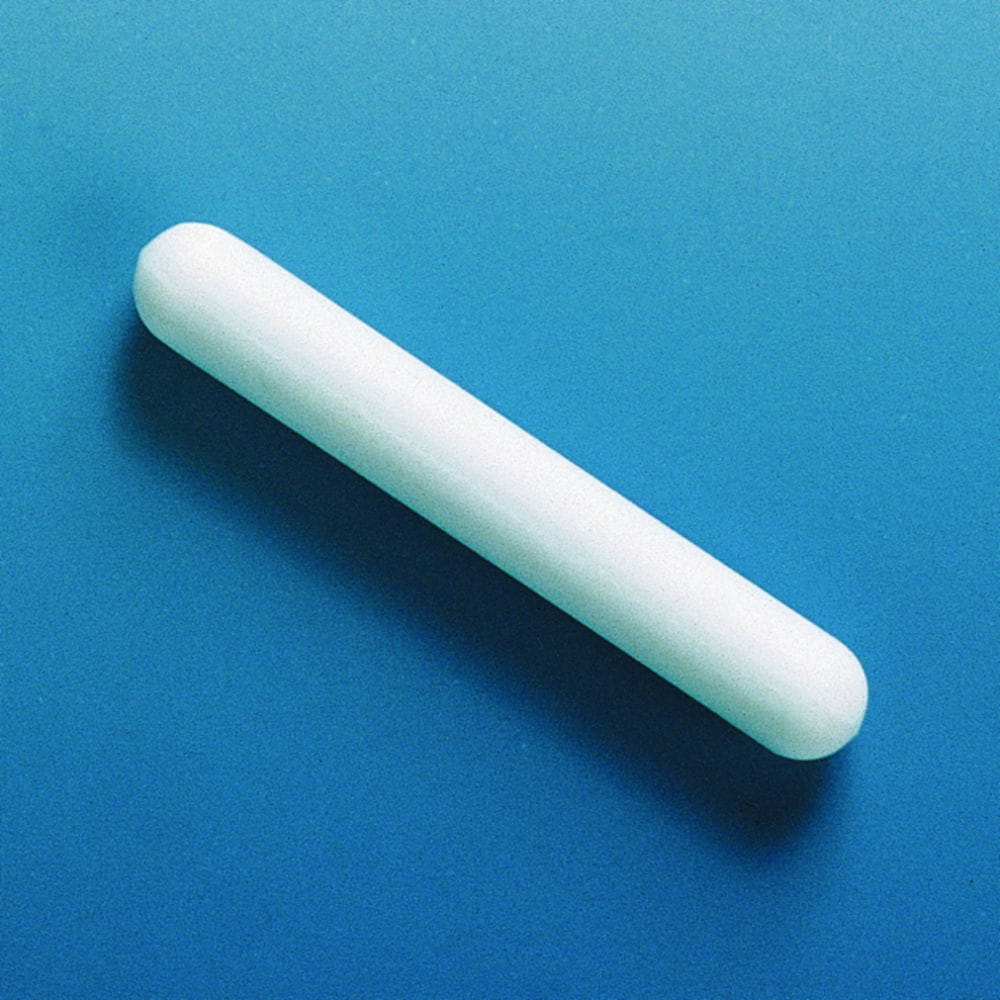

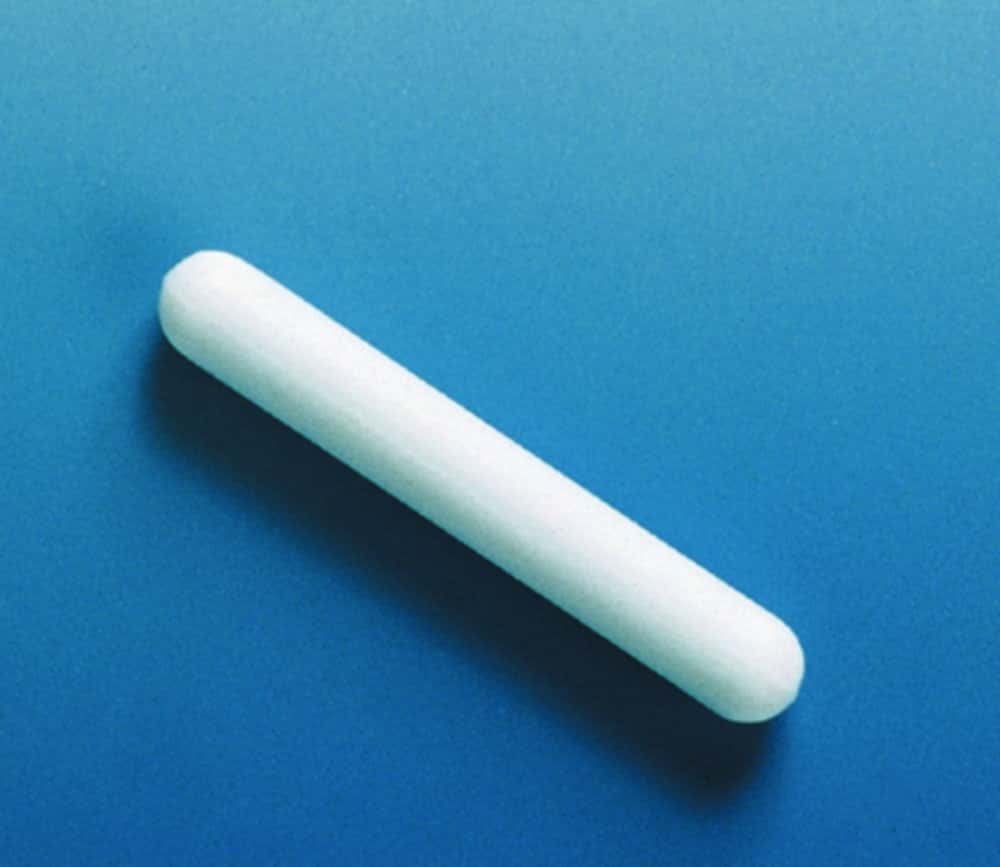

PTFE-coated. Cylindrical. Round, smooth surface. Versatile. Autoclavable. Further sizes available on request.
For magnetic stirring bars up to 80mm long.

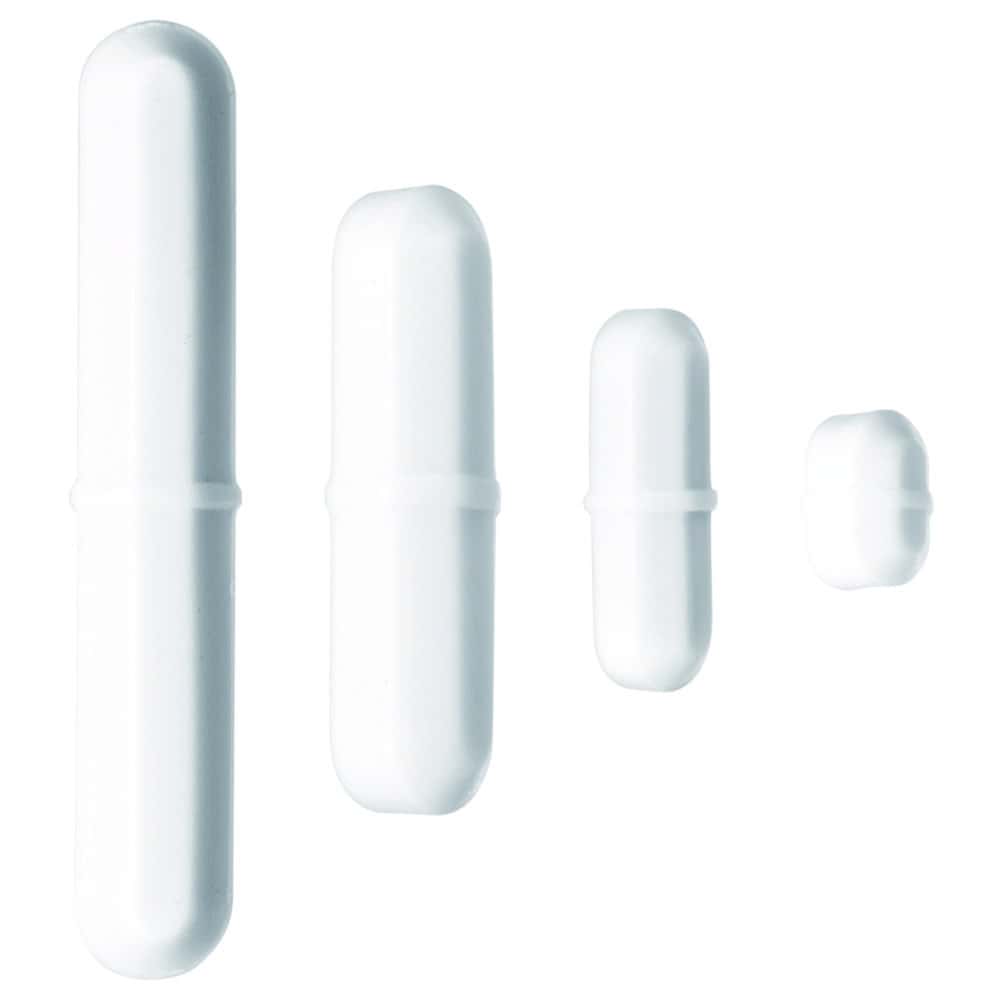

Multi-faceted shape provides greater surface area and added turbulence for more vigorous, thorough mixing when compared to the smooth surface of cylindrical bars.With pivot ring for better mixing conditionsAlnico magnet encapsulated with Teflon® brand PTFE coatingFDA Grade, USP Class VIGood chemical compatibilityAutoclavableManufactured in a registered ISO 9001:2015 facility
Interrupted profile provides greater surface area and added turbulence when compared to the smooth surface of cylindrical barsPivot ring aids in reducing friction and chatteringPTFE encapsulated Alnico magnetAutoclavable

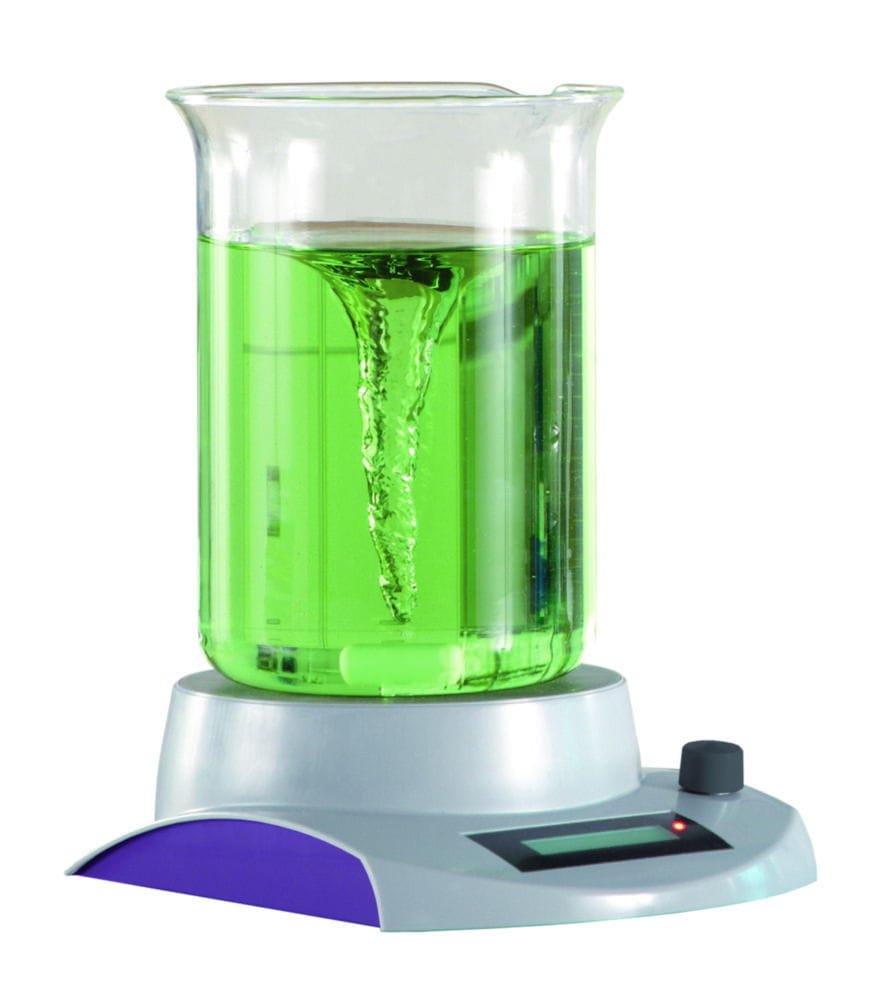

Easy-to-read digital display precisely controls time and speed enabling reproducible conditionsTimer from 30 s to 60 min or continuous in stirrer mode or programmable in oscillation mode with 50% duty up to 99 cyclesTime and speed can be conveniently adjusted while the unit is runningReverse rotation option for better mixing resultsSpeed remains constant, even when load changesRapid acceleration and braking in less than 10 secondsScope of delivery: Magnetic Induction Stirrer incl. 2 cylindrical stirring bars (12 x 35 mm) and power adapter

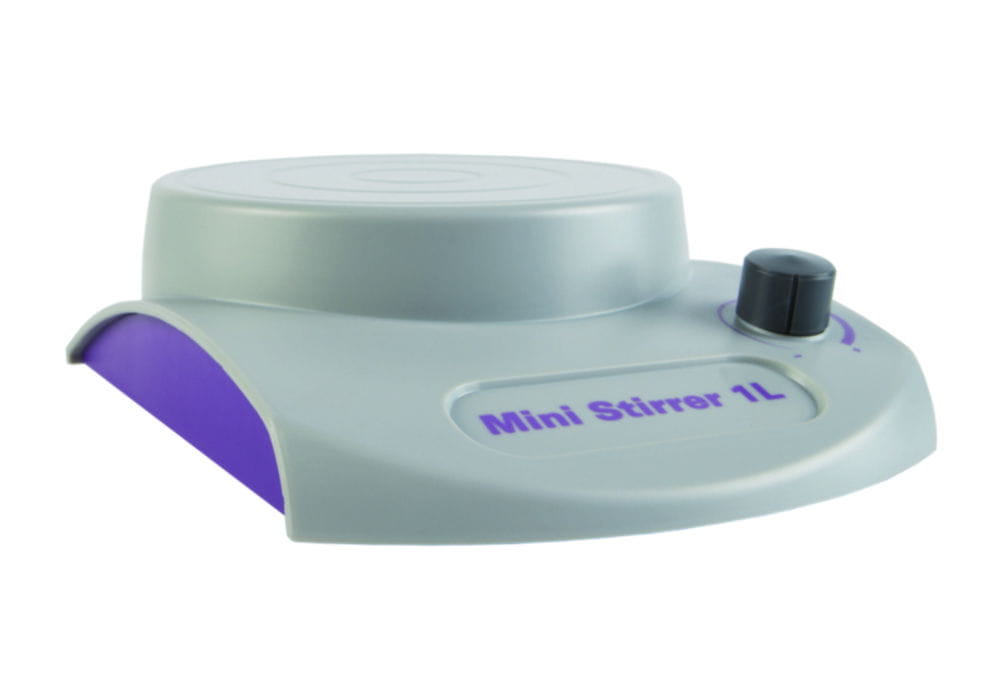

Economical solution made for ultimate function with optimal magnetic coupling to ensure dependable stirring efficiency.Chemical resistant housingEasy to cleanLightweight low-profile design with small footprintQuiet operation (53 dB) with low vibrationScope of supply: Mini Stirrer, 2 octagonal stirring bars (9 x 35 mm) and power adapter

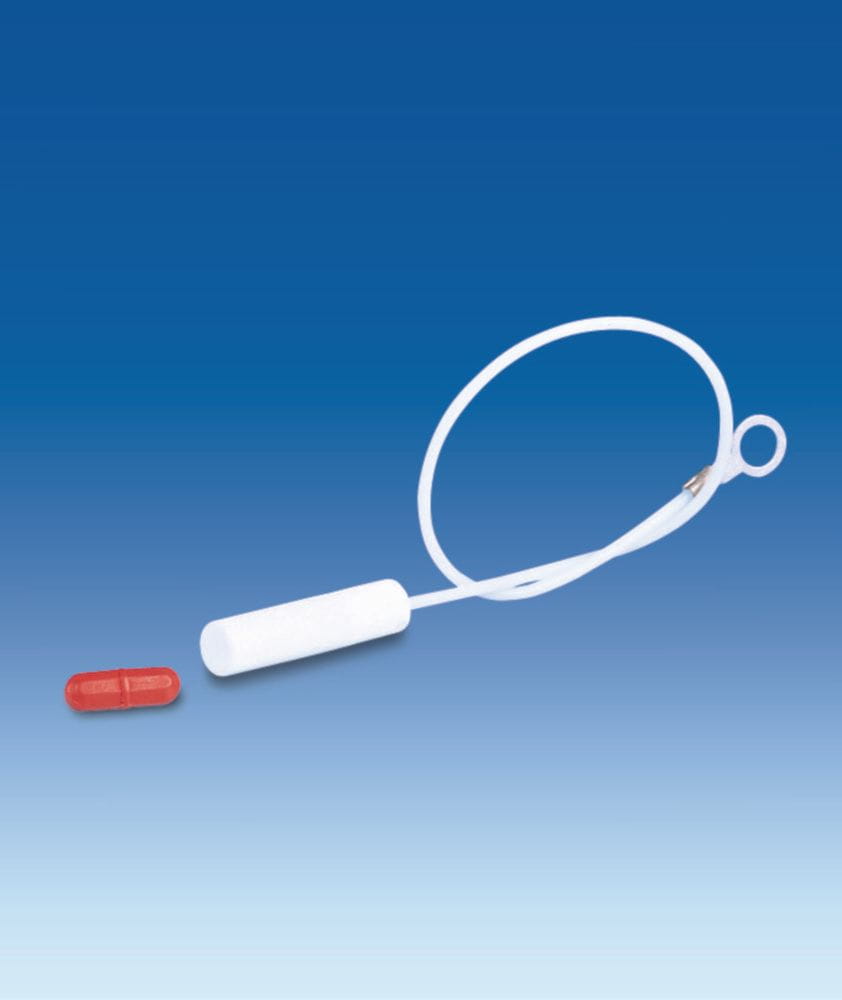

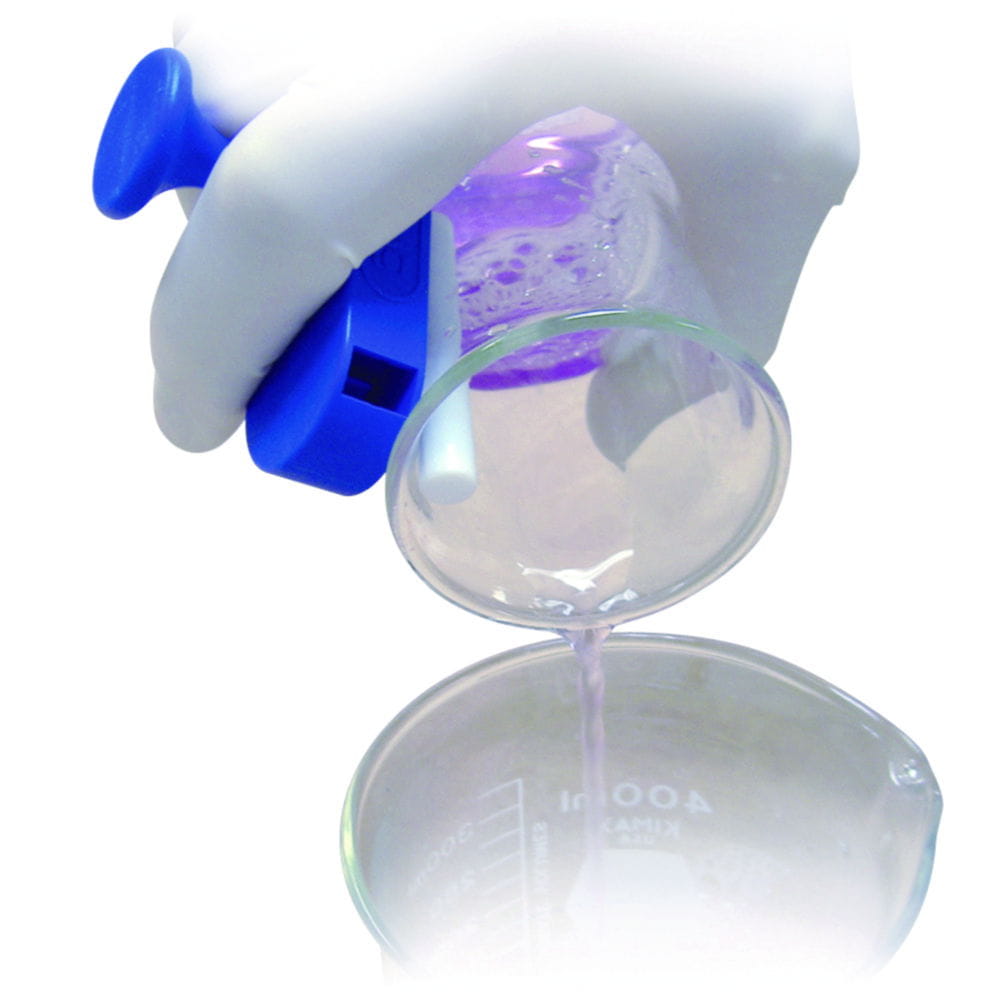

For risk-free removal of magnetic stirring bars even from agressive liquids. Powerful magnet encapsulated in PTFE.

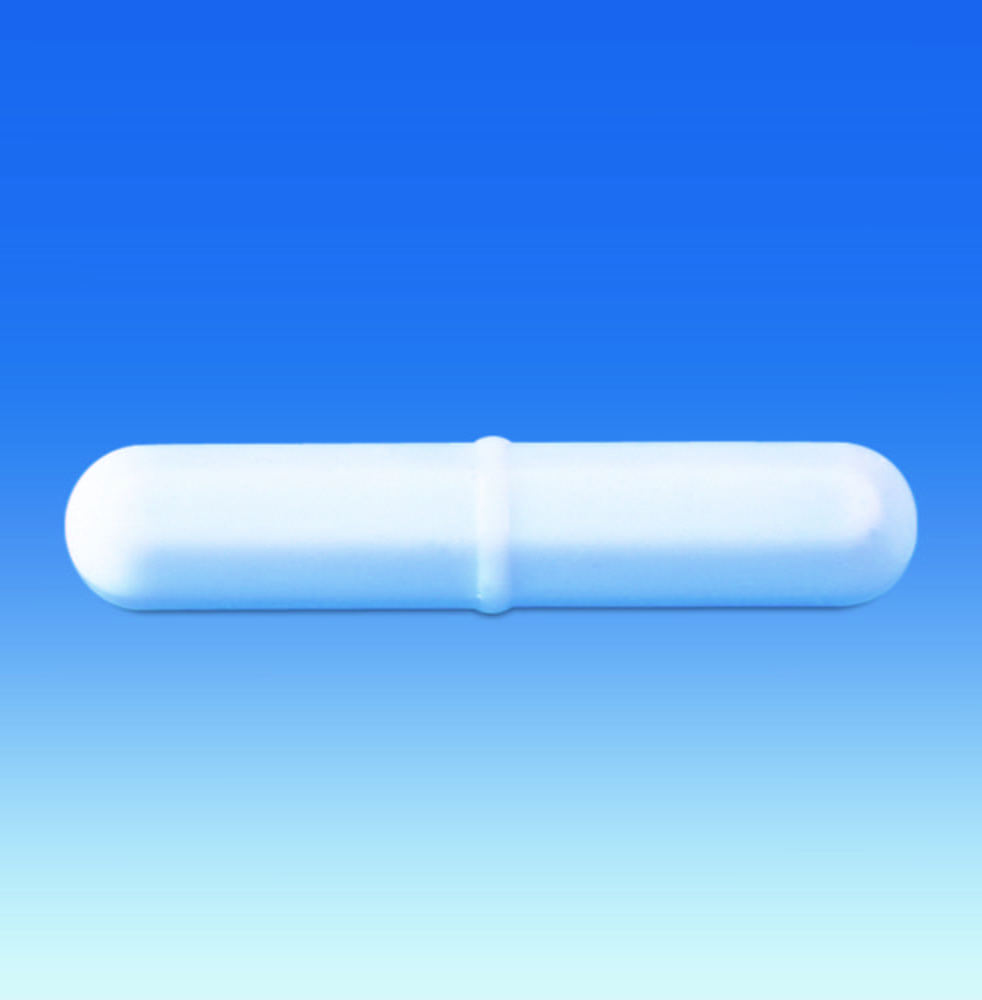

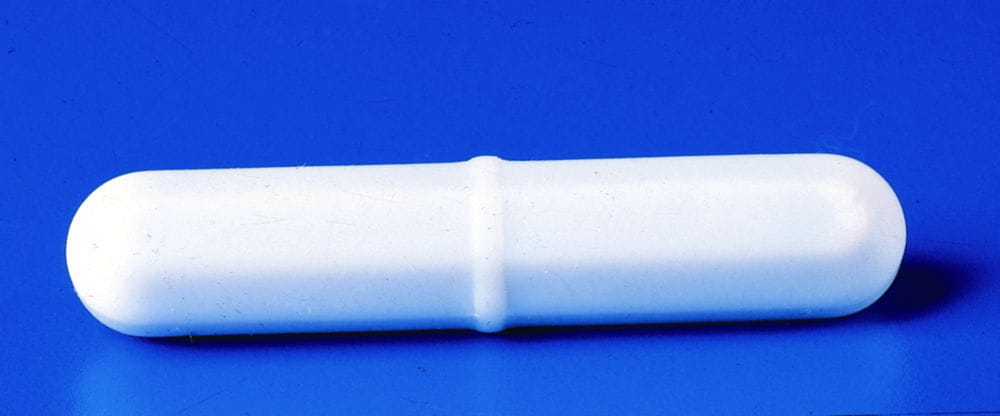

With pivot ring. PTFE-encapsulated magnetic core (Alnico 5). Universal chemical resistance. This shape provides a bigger surface area and a very steady spinning position with additional turbulences. Temperature resistant from -200 to +250 °C.

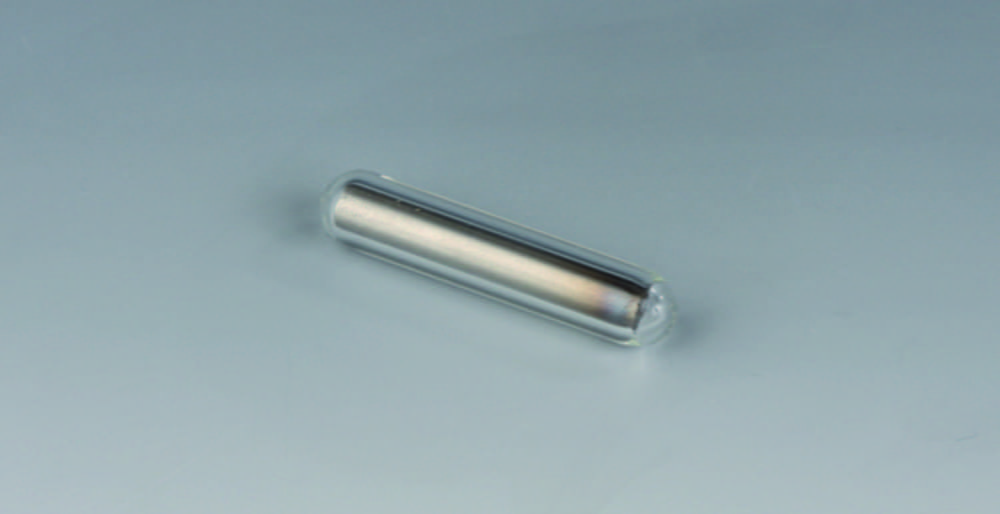

Magnetic core (Alnico 5) encapsulated in borosilicate glass, cylindrical shape, extremely smooth surface prevents from penetration of substances, non-porous, non-contaminating, universal chemical resistance. FDA conformity. Temperature resistance -200 bis +250 °C.

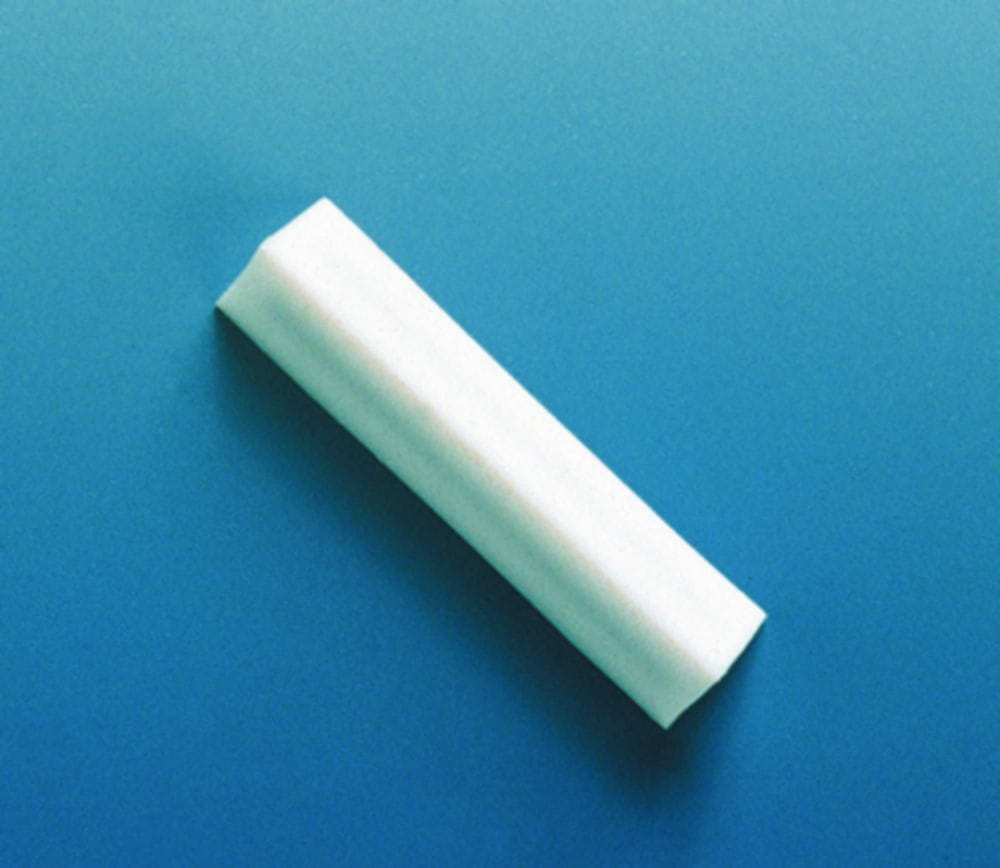

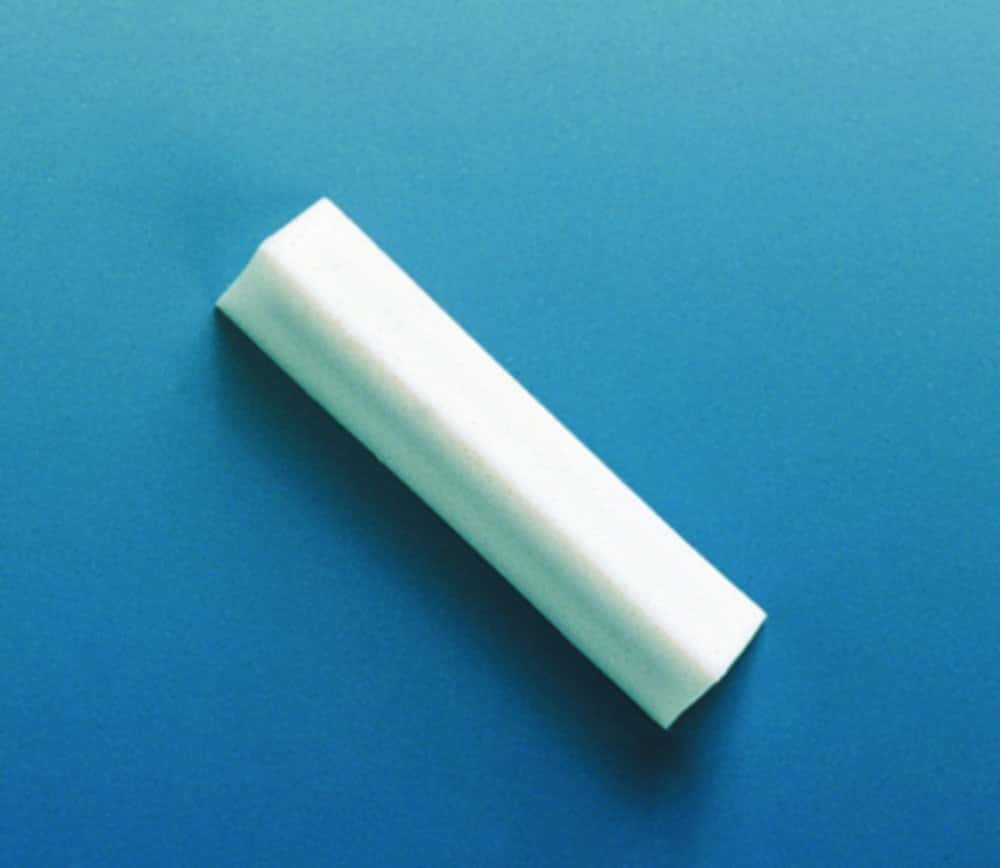

Triangular. PTFE-coated. Wedge-shaped, ideal for dissolving solids and re-suspending sediments due to scraping action. Angular surface produces high turbulence, even at low stirring speeds.

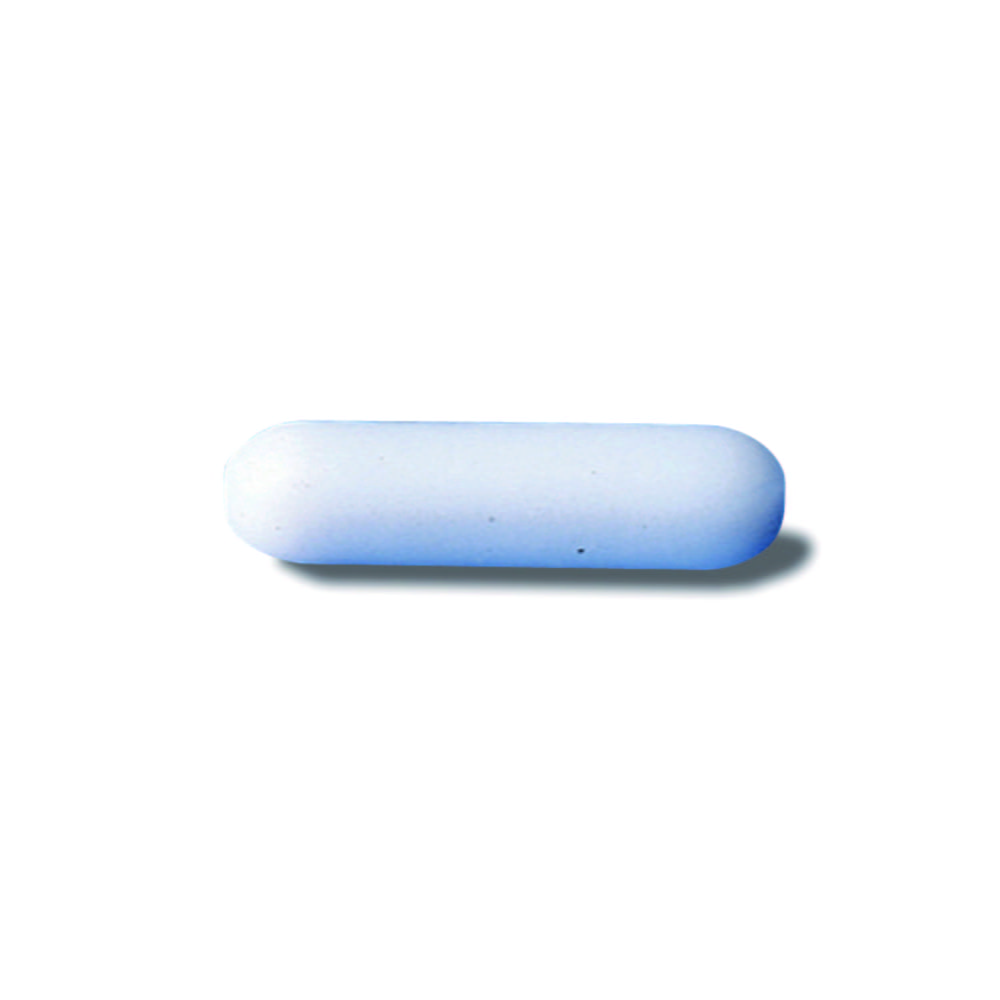

Designed for small volume mixing in vessels such as vials and tubes. Particularly useful for environmental testing and life science applications in which small sample volumes need to be prepared and evaluatedAlnico magnet encapsulated with Teflon® brand PTFE coatingFDA Grade, USP Class VIGood chemical compatibilityAutoclavableManufactured in a registered ISO 9001:2015 facility
PTFE-encapsulated magnetic core (Alnico 5), standard magnetic stirring bars, universal chemical resistance. Temperature resistance: from -200 to +250 °C. Cylindrical magnetic stirring bars offer excellent centering and smooth running characteristics.

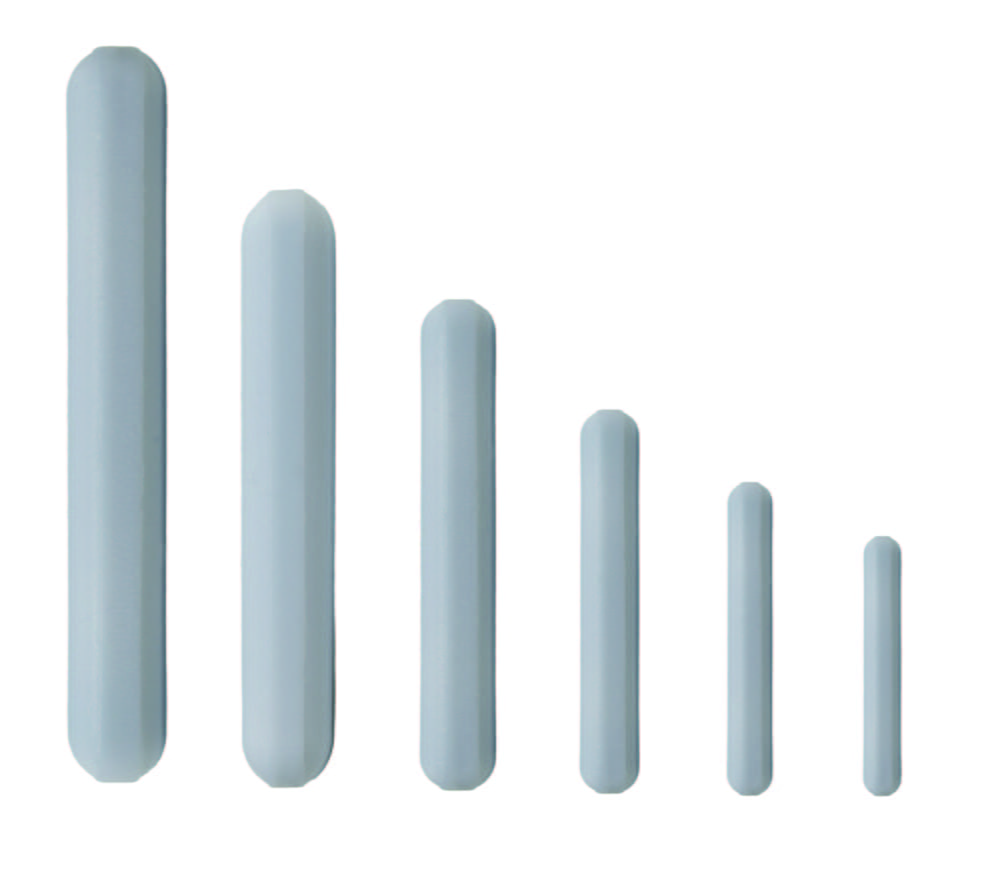

Multi-faceted polygon shape with increased surface area creates added turbulence relative to similar sized, smooth cylindrical bars to provide thorough mixing.Alnico magnet encapsulated with Teflon® brand PTFE coatingFDA Grade, USP Class VIGood chemical compatibilityAutoclavableManufactured in a registered ISO 9001:2015 facility

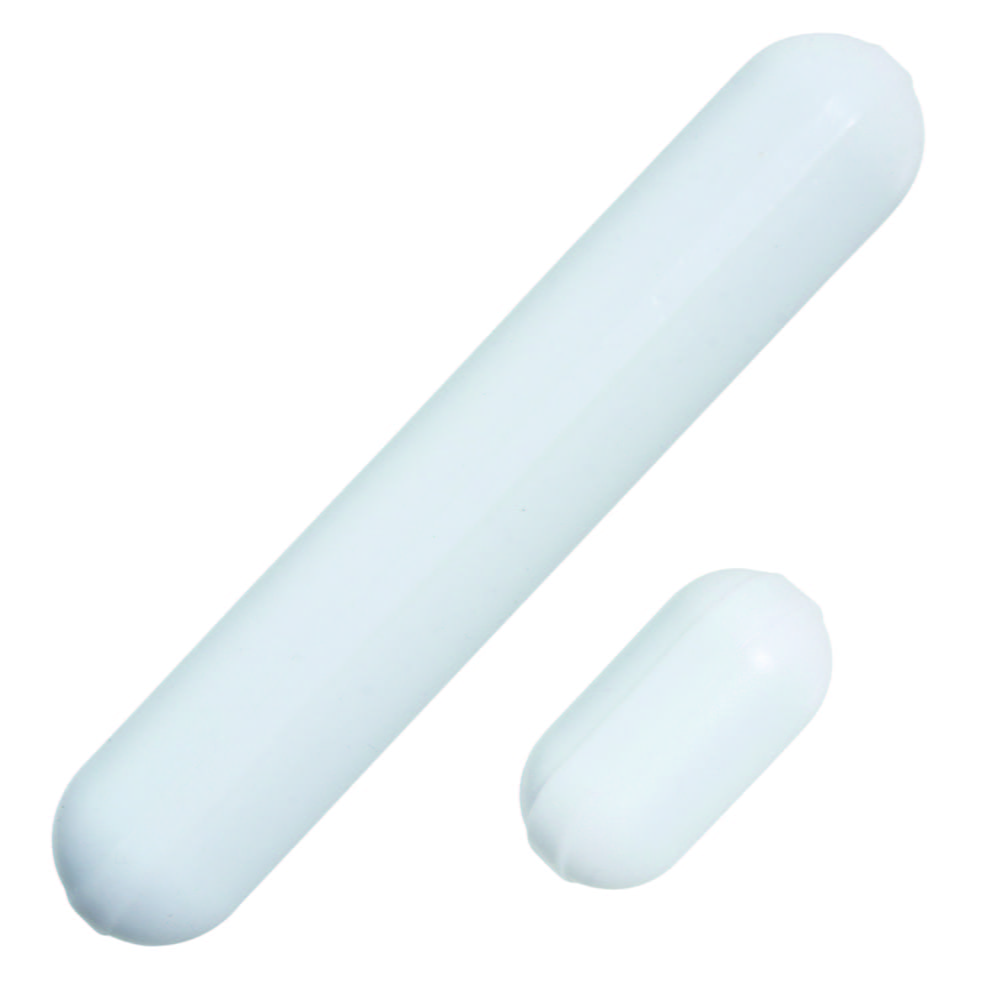

Heavy duty stirring bars for use in stirring large volumes of fluid. Will fit into vessels with a minimum neck diameter of 32 mm.Alnico magnet encapsulated with Teflon® brand PTFE coatingFDA Grade, USP Class VIGood chemical compatibilityAutoclavableManufactured in a registered ISO 9001:2015 facility
For vessels with round bottom.
PTFE-coated. Cylindrical. Round, smooth surface. Versatile. Autoclavable. Further sizes available on request.
With permanent magnet AlNiCo V core. The angled shape gives rise to significant turbulence and thus achieves effective mixing. Autoclavable.
Smooth surface. With rings and permanent magnet AlNiCo V core.

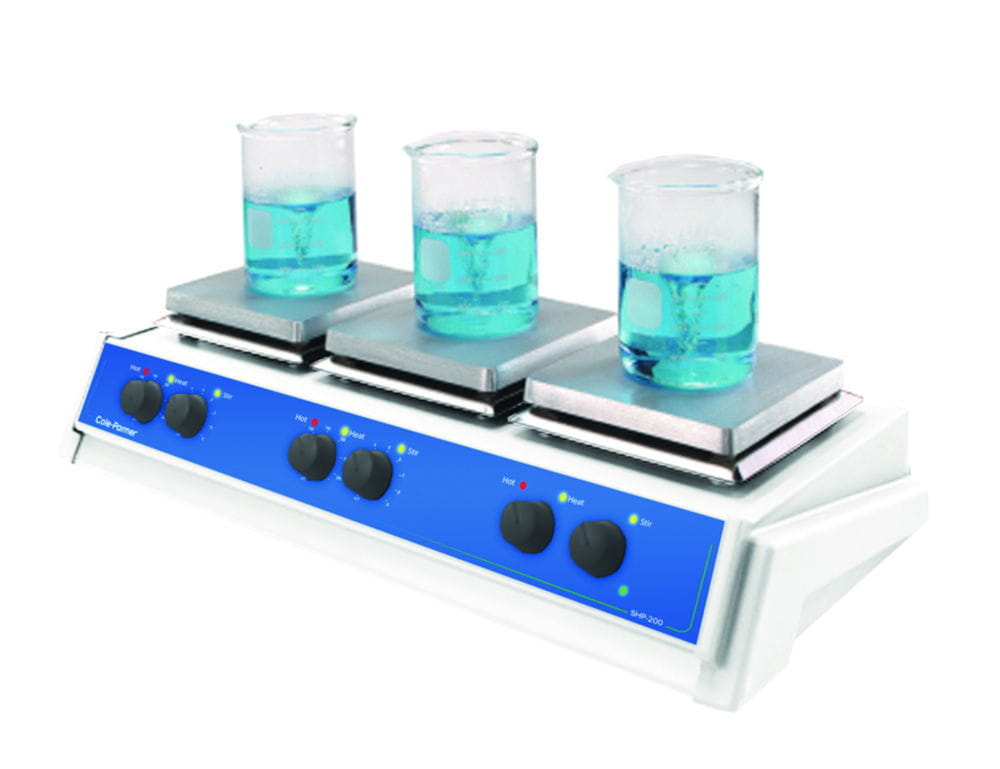

With 3 independently adjustable aluminium hotplates, Overheat protection mechanism and warning light which switches on when the plate temperature exceeds 50°C. With facility for mounting a 12.5mm retort rod at the rear of each plate and 3mm x 25mm PTFE coated followers.With BioCote, silver-based, antimicrobial protection.

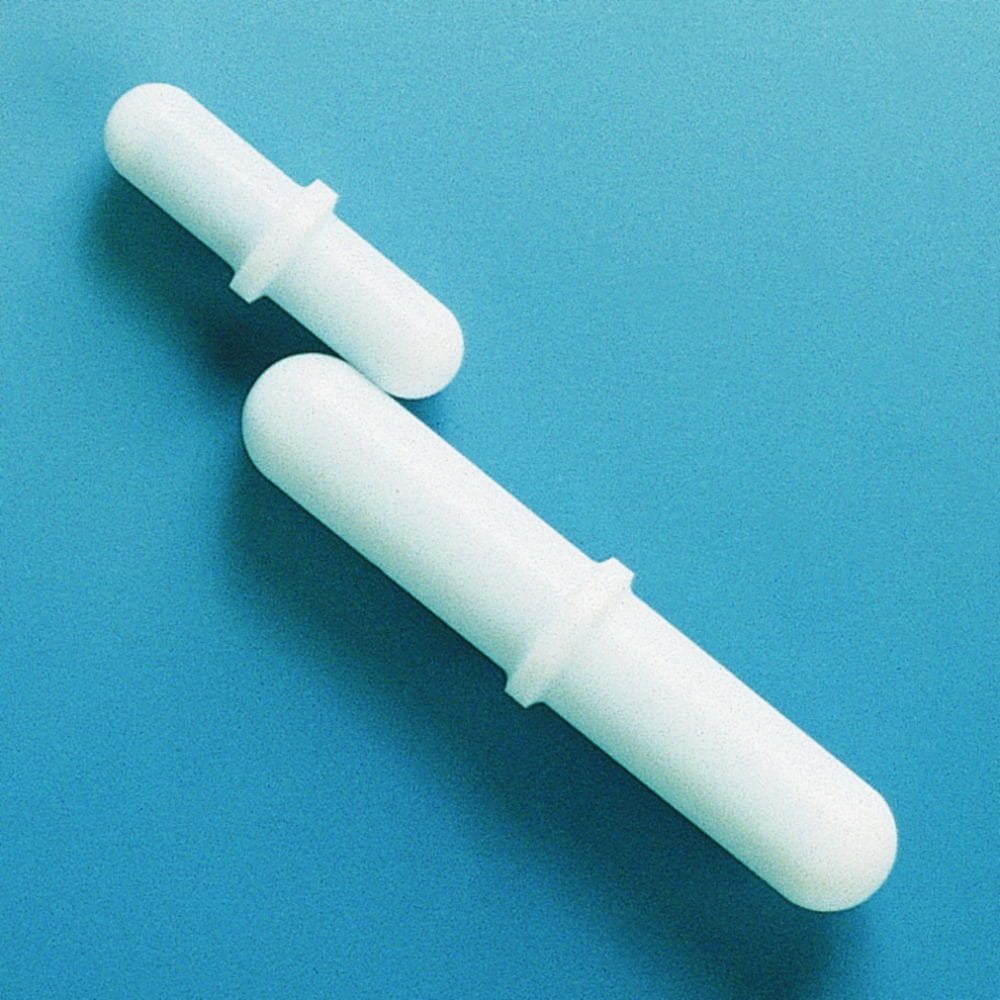

Cylindrical, with pivot ring. For vessels with slightly uneven bottoms. Alnico V magnetic cores. Maximum operating temperature 270 °C.

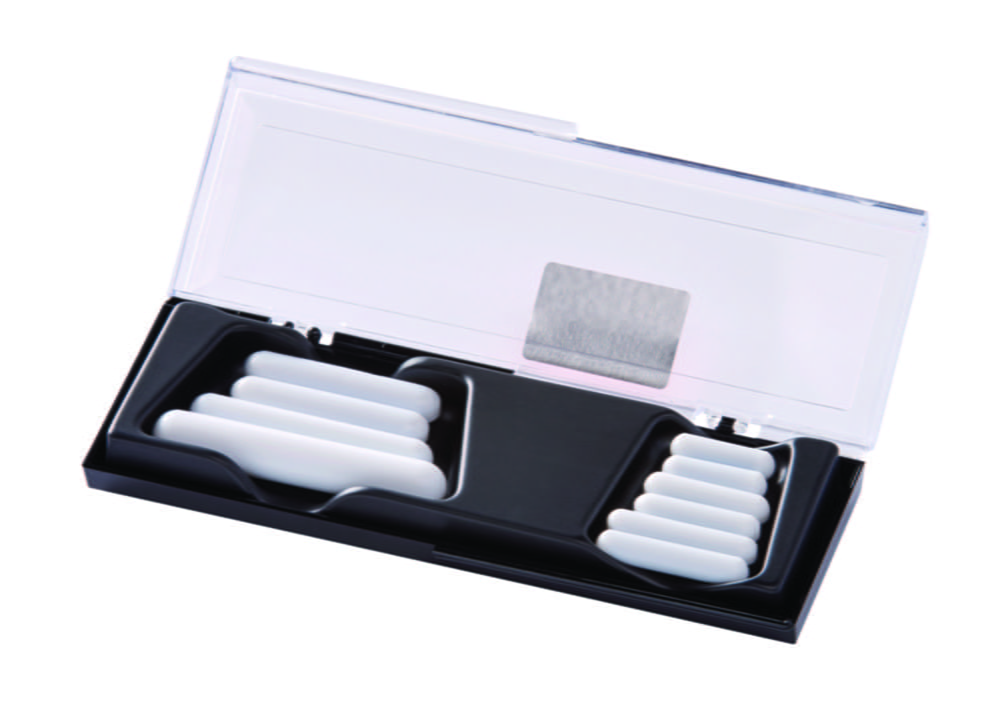

Magnetic stirring bars behrotest ®, Set 1 in a transparent box with hinged lidConsisting of: 2x 20 x 6 mm, 2x 25 x 6mm, 2x 30 x 6 mm, 2x 40 x 8 mm, 1x 50 x 8 mm, 1x 60 x 9 mmMagnetic stirring bars behrotest®, Set 2 in a transparent box with hinged lid including magnetic stirring bar retriever, length 245 mmConsisting of: 1x 15 x 6 mm, 2x 20 x 6 mm, 2x 25 x 6mm, 1x 30 x 6 mm, 2x 40 x 8 mm, 1x 50 x 8 mm, 1x 60 x 9 mmBoth sets with a deep insert for easier removal and sorting of the stirring bars.

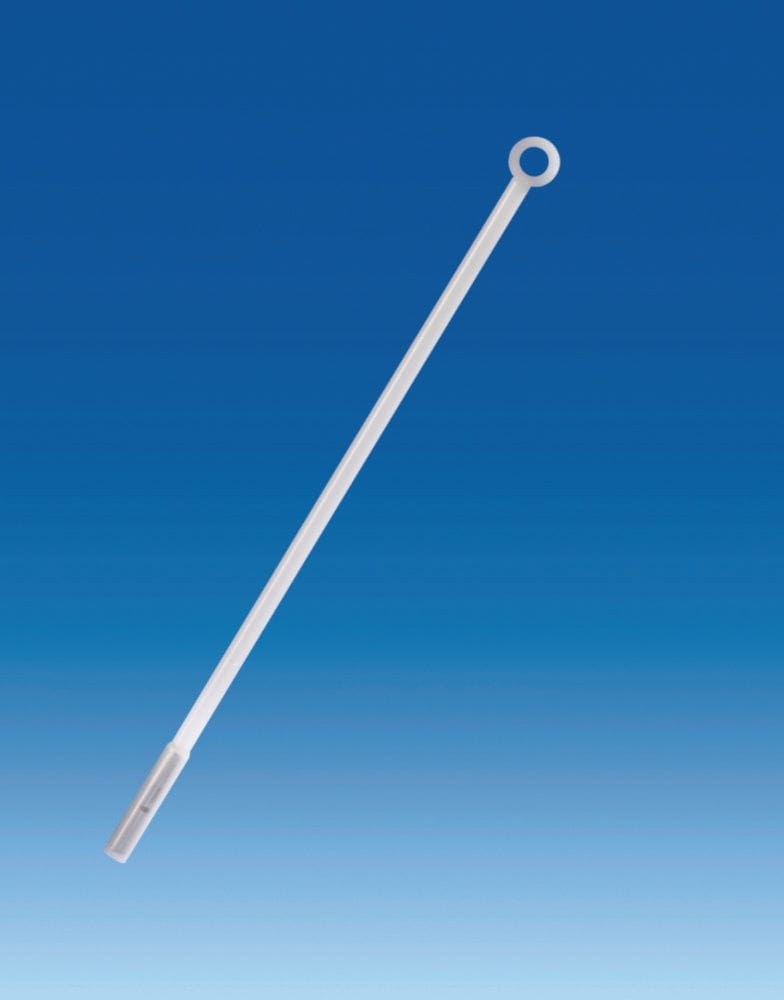

With a permanent magnet on one end and holding ring on the other one. Magnet is completely encapsulated.
Promotion
DIN 12336Flat-bottom with spoutAutoclavable
DIN 12336Flat-bottom with spout
Glazed inside and outside except for rim.
Promotion
DIN 12336Flat-bottom with spoutAutoclavable
DIN 12336Flat-bottom with spout
Glazed inside and outside except for rim.
Order magnetic stirrers online at the häberle Labortechnik shop
At häberle, you can find magnetic stirrers from leading manufacturers such as Heidolph, Velp, IKA, and LLG. We also carry devices from 2mag, Phoenix Instrument, and Thermo. Our range includes magnetic stirrers with and without heating options, with heating plates available in stainless steel, glass ceramic, or induction variants.
High-quality magnetic stirrers for all applications
Magnetic stirrers are used in chemical laboratories to ensure uniform stirring and mixing of liquids and solutions. Depending on the application, you can choose between single-position or multi-position magnetic stirrers with adjustable stirring speeds. Even liquids in closed containers can be effectively mixed using a magnetic stirrer.
Operation and applications of magnetic stirrers
In addition to stirring liquids, magnetic stirrers are also used for mixing. They are particularly valuable in sample preparation and in the dosing process for food and water analysis. Here’s how a magnetic stirrer operates:
A beaker or flask containing the liquid is placed on a plate, which may be heated. A magnetic stirring bar, coated with glass or plastic, is added to the liquid. Below the plate, a magnet rotates at an adjustable speed, causing the stir bar to rotate and thereby mixing the sample. Temperature control ensures uniform heating of the vessel contents.
Magnetic stirrers with heating
When a magnetic stirrer includes an integrated, controllable heating element, it is referred to as a heating magnetic stirrer. The heating plates of these devices are typically made of glass ceramic or stainless steel, suitable for containers of various sizes and types, such as beakers or Erlenmeyer flasks. Heating is regulated through the integrated heating system.
Difference between magnetic stirrers and Bunsen burners
Compared to heating individual samples with a Bunsen burner, magnetic stirrers with heating plates offer advantages such as achieving a consistently regulated temperature for samples. They also allow for safe handling of flammable liquids and solvents, which is not entirely safe with an open flame.
Advantages of magnetic stirrers
Underneath the heating plate, a magnet rotates at a precisely controlled speed. Inside the vessel on the heating plate, a rod-shaped magnet, known as a magnetic stirring bar or stir bar, also rotates, mixing the liquid. Stir bars, often coated with PTFE, are inert and do not react with the solutions they stir. After use, stir bars can be easily removed from the mixing vessel for cleaning.
Heating duration with magnetic stirrers
Magnetic stirrers with integrated heating not only ensure uniform heating but also effective mixing of liquids, reducing the risk of boiling over. In contrast, heating liquids over an open flame, especially with larger quantities and longer heating durations, requires more precise temperature control.
Stir bars and stir bar removers
At häberle, we offer a wide range of stir bars and magnetic stirring bars suitable for all types of magnetic stirrers, along with stir bar removers in various sizes. Stir bars come in different dimensions and shapes, including triangular magnetic stirring bars, cylindrical stirring bars, egg-shaped stirring bars, and middle-ring stirring bars. We also provide high-quality laboratory stirring bars from leading manufacturers, all available in one place. If you need assistance selecting the right stir bar or stir bar remover, please feel free to contact us.
Application of magnetic stirring bars
Magnetic stirring bars, also known as magnetic fish or stir fish, are essential components of magnetic stirrers. They are commonly used in conjunction with heating magnetic stirrers, which you can also find in our product range. The stir fish is attracted and held in place by the stirrer's magnetic field at the bottom of the flask. This ensures the stir fish remains stationary within the flask, facilitating the re-solution of deposits. Depending on the specific requirements, various sizes and types of stir fish are available. After use, stir fish can be easily removed from the flask and cleaned using a stir fish remover.
