Peter Huber Kältemaschinenbau Chillers, Minichiller® ( 4675313 )
Article number: 4675313
Manufacturer number: 3066.0004.98
€4,580.00*
Packaging unit:
1 piece
on order

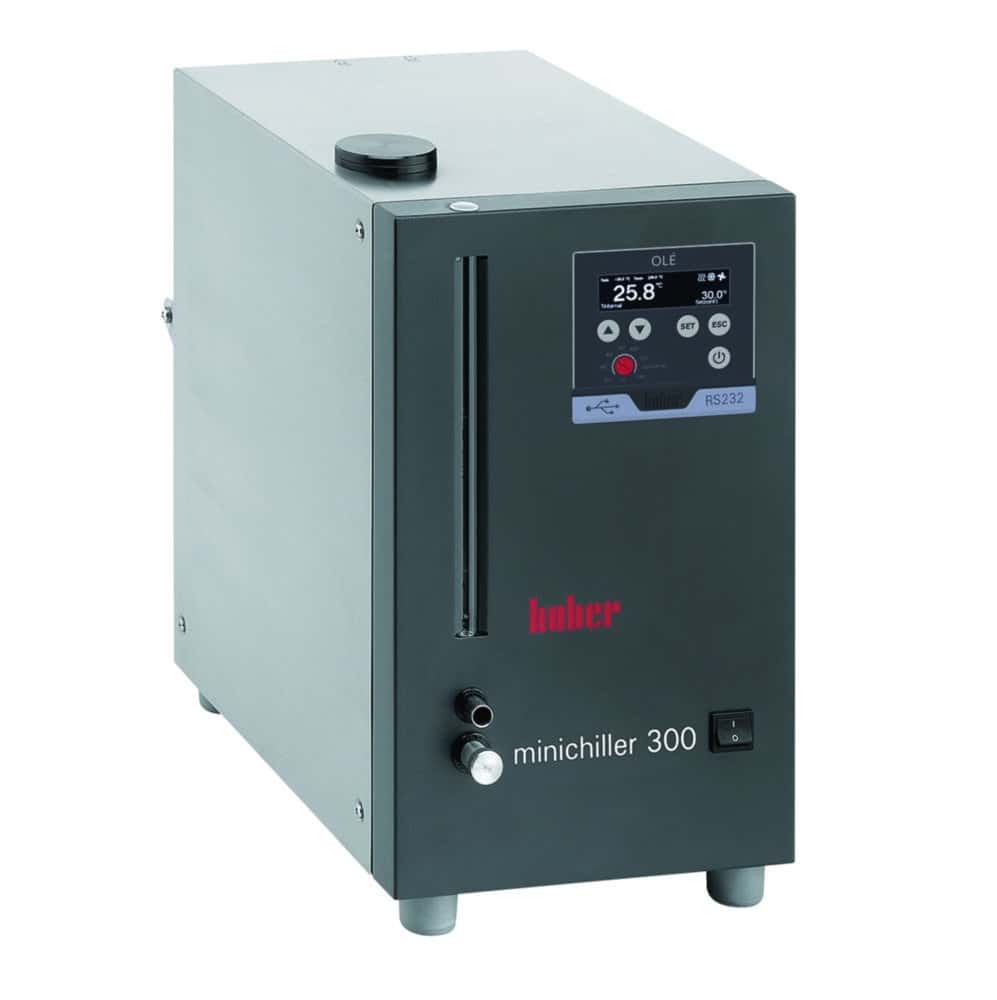

Product information "Chillers, Minichiller®"
Small, robust and cost effective with its stainless steel casing. The Minichiller is the smallest Unichiller in the world. Minichillers are available with air or water-cooled refrigeration systems, illuminated level indicator, overflow and drain on the front. The filling port is on the top of the unit. All models use natural refrigerants as standard. Minichillers have suction and pressure pumps and therefore have the advantage of have a high flow at low pressure. This is particularly interesting for all pressure sensitive applications (e.g. glass condensors).
* Permissible temperature in return line 80 °C
* Permissible temperature in return line 80 °C
| Ext. depth: | 490 mm |
|---|---|
| Ext. height: | 424 mm |
| Ext. width: | 280 mm |
| External dimensions (WxDxH): | 280 x 490 x 424 mm |
| IP code: | IP 20 |
| Manufacturer Article Number: | 3066.0004.98 |
| Max. delivery pressure: | 0.7 bar |
| Max. flow rate: | 24 l/min |
| Max. suction capacity: | 18 l/min |
| Max. suction pressure: | 0.4 bar |
| Max. temperature: | 40 °C |
| Max. voltage: | 240 V |
| Min. temperature: | -20 °C |
| Min. voltage: | 208 V |
| Power supply: | 208 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Refrigerant: | R290 |
| Temperature: | -20 ... 40 °C |
| Temperature stability: | ±0,5 K |
| Type: | Minichiller® 600w OLÉ |
| Type of auxiliary energy: | Mains connection |
| Type of display: | OLED |
| Weight: | 36 kg |
