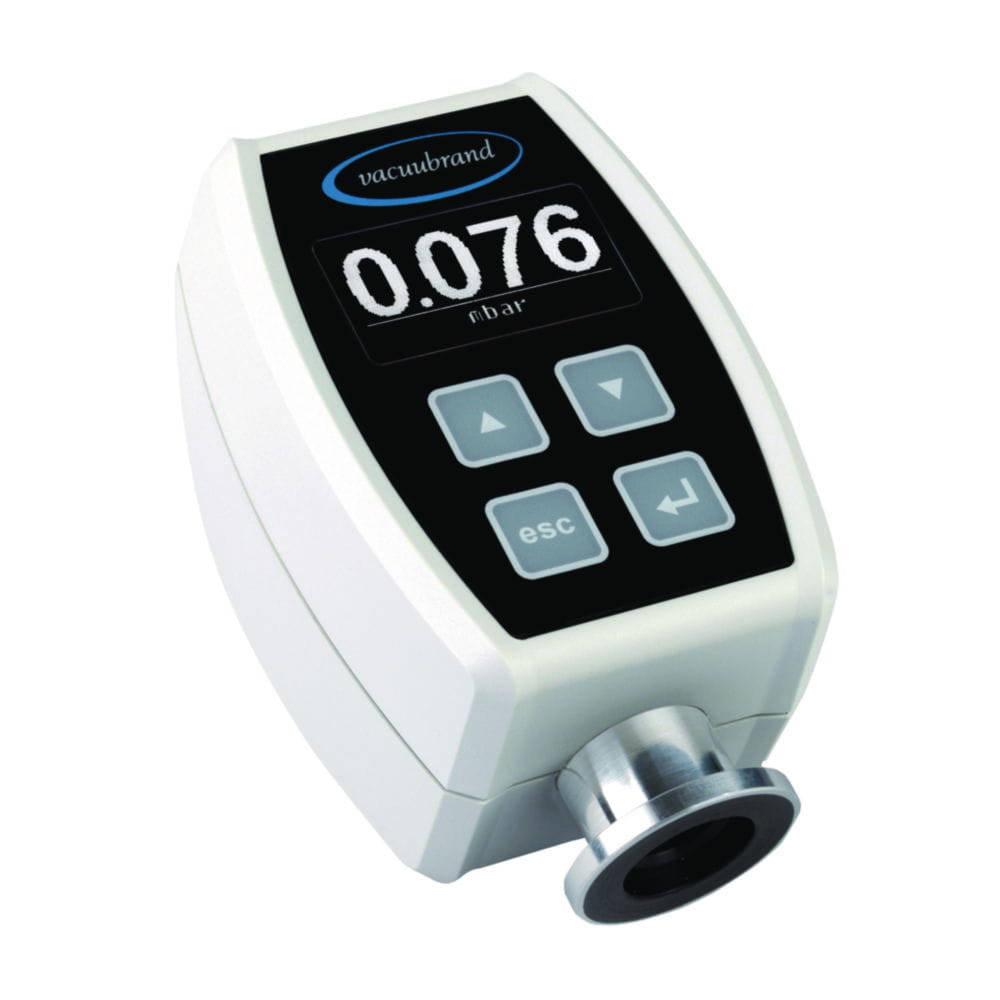

Vacuubrand GmbH & Co.KG Vacuum measuring instrument VACUU·VIEW extended ( 6268864 )
Article number: 6268864
Herstellernummer: 20683210
- Compact design with integrated sensors for useful setup in laboratory and process
- Chemically resistant, heavy duty vacuum sensors, highly reliable at harsh laboratory conditions even in case of very aggressive chemicals
- High repeatability and long-term accuracy under all typical conditions reliable and repeatable results
- Display with menu driven handling, easy to use e.g. for unit settings
- Compatible to gauge DCP 3000 and controller CVC 3000 or VACUU·SELECT
- The product is delivered ready for use
| Accuracy: | ±15 % of indicated value in the range from 0.01 ... 5 mbar, ±3 mbar for >5 mbar |
|---|---|
| Depth: | 50 mm |
| Dimensions (WxDxH): | 62 x 50 x 103 mm |
| Height: | 103 mm |
| Manufacturer Article Number: | 20683210 |
| Max. measured value: | 1100 mbar |
| Max. permitted ambient temperature: | 40 °C |
| Max. voltage: | 230 V |
| Measured range: | 0.001 ... 1,100 mbar |
| Min. measured value: | 0.001 mbar |
| Min. permitted ambient temperature: | 10 °C |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Type: | VACUU·VIEW extended |
| UNSPSC: | 40151502 |
| Weight: | 190 g |
| Width: | 62 mm |
Vacuum Technology at Its Finest: Vacuubrand Products at häberle LABORTECHNIK
häberle LABORTECHNIK GmbH & Co. KG proudly presents the high-precision vacuum technology by Vacuubrand GmbH & Co. KG, one of the leading manufacturers for laboratory and industrial applications. The product range includes powerful rotary vane pumps, advanced diaphragm pumps, intelligent vacuum controllers, and robust screw pumps, all designed to meet the highest standards of efficiency and reliability.
Rotary Vane Pumps from Vacuubrand: High-Performance Solutions for Demanding Applications
Rotary vane pumps operate through a rotating vane mechanism that efficiently removes air molecules to generate a strong vacuum.
Key advantages include:
Extremely low achievable ultimate pressures
High pumping speeds for demanding processes
Ideal for industrial applications and laboratories requiring consistently high vacuum levels
Examples from the range:
Rotary Vane Pump RZ 6, two-stage: Currently discounted by 41%
Rotary Vane Pump RZ 2.5, two-stage: A compact solution for precise applications, now 20% off.
For highly aggressive media, the chemically resistant rotary vane pump RC 6 ensures reliable performance under challenging conditions.
Diaphragm Pumps from Vacuubrand: Purity and Durability Without Compromise
Diaphragm pumps operate using a flexible membrane that compresses gas without the need for lubricants, making them ideal for sensitive applications.
Main benefits:
Oil-free operation ensuring maximum purity
Minimal maintenance requirements
Outstanding service life even under continuous use
Typical fields of application:
Analytical laboratories
Precision vacuum applications in research and development
Featured products:
Diaphragm Pumps, Chemistry Version chemical-resistant options for aggressive vapors.
Aluminum-PTFE Diaphragm Pumps ME 1 / MD 1: Compact models with a 15% discount.
Intelligent Vacuum Control with VACUU·SELECT® and CVC 3000
Accurate control is crucial in many processes. VACUU·SELECT® packages and the CVC 3000 vacuum controller offer intelligent solutions for automated vacuum operations.
Highlights:
VACUU·SELECT® Package for Fine Vacuum Control with Pirani sensor – available for KF DN 16 and DN 25, with 20-24% discounts.
CVC 3000: Automatic vacuum controller featuring an intuitive interface and robust construction.
Screw Pumps VACUU·PURE® 10/10C: For Oil-Free High Vacuum Applications
With the VACUU·PURE® screw pumps, Vacuubrand sets new standards in oil-free high vacuum technology.
Distinctive features:
Chemical-resistant versions available for aggressive vapors
Exceptional service life and minimal operating costs
The perfect choice for applications in chemistry and analytics
Special offer: VACUU·PURE® models are currently discounted by 15%.
Complete Vacuum Solutions with Accessories and Systems
In addition to individual pumps, Vacuubrand offers a comprehensive range of accessories:
BioChem-VacuuCenter BVC Liquid Aspiration Systems – specifically designed for biological and chemical applications
VARIO® select Chemical Pump Stands – for flexible and powerful system solutions
VACUU·VIEW Vacuum Gauges – for precise monitoring of your vacuum processes
All systems are engineered to enhance operational safety, reduce maintenance effort, and optimize workflows.
