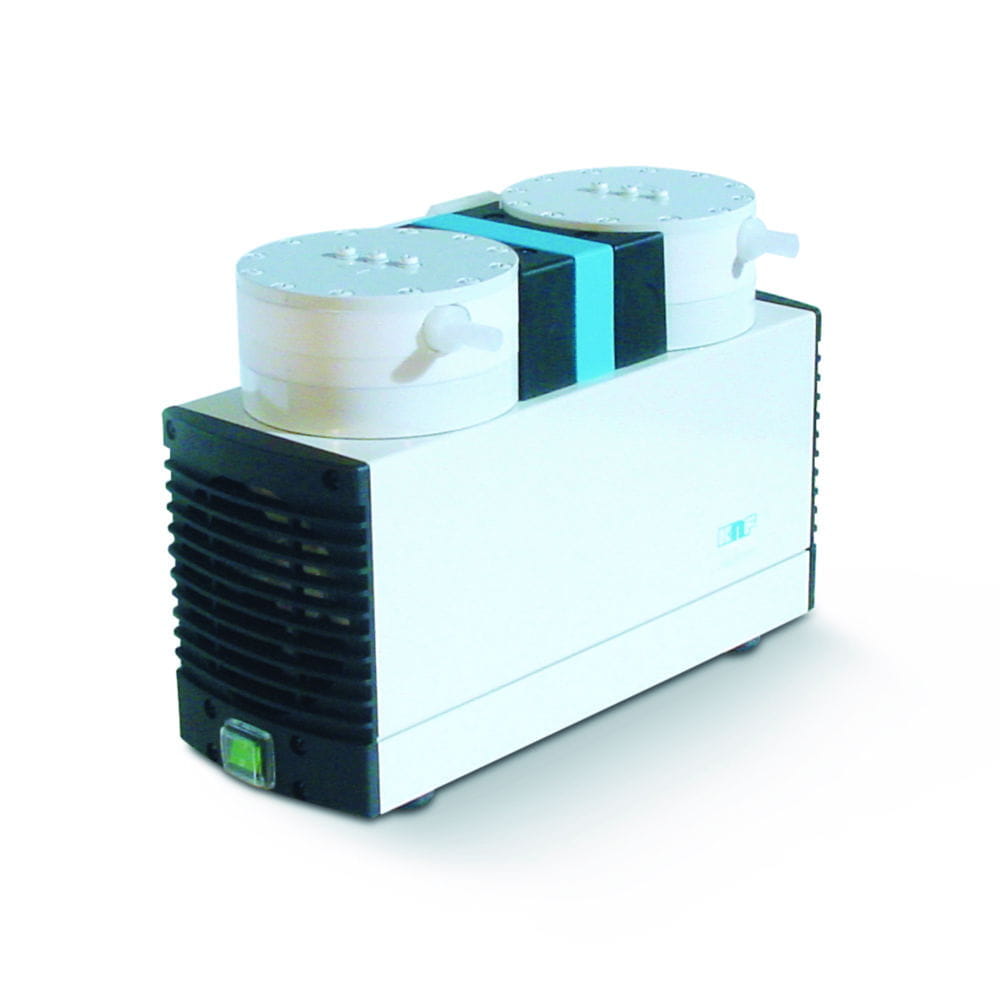

Diaphragm vacuum pumps LABOPORT® | Type: N 842.3 FT.18
Article number: 9880675
Product information "Diaphragm vacuum pumps LABOPORT® | Type: N 842.3 FT.18"
- Application: Fluid aspiration, Degassing, Gel drying, Rotary evaporation, Centrifugal concentration, Distillation
- Flow rate up to 2.04 m³/h / Ultimate vacuum up to 8 mbar abs.
- High level of vapor and condensate compatibility
- PTFE pump head combined with PTFE-coated diaphragm are ideal for extremely aggressive/corrosive gases and vapors
- N 820.3 FT.18 and N 840.3 FT.18: ATEX-compliant in accordance with ATEX II 2/-G IIB+H2 T3 Gb internal atmosphere only
| Specifications | |
| Operating pressure: | 1 bar |
| Connectors for tube: | ID10 mm |
| Permissible media and ambient temperature: | 5 to 40 °C |
| Pump head: | PTFE |
| Diaphragm: | PTFE-coated |
| Valves: | FFPM |
| Flow rate l / min.: | 34 |
|---|---|
| Height mm: | 223 |
| Length mm: | 341 |
| Type: | N 842.3 FT.18 |
| Ultimate vacuum mbar (abs).: | 2 |
| Width mm: | 167 |
