Vacuubrand GmbH & Co.KG Chemistry Pump Units and Vacuum Systems ( 4665353 )

Article number: 4665353

Herstellernummer: 20733150

€5,195.00*

Packaging unit: 1 piece

* Prices excl. VAT plus shipping costs

on order

Manufacturer Article Number

20733150

20733151

20733152

Plug type

CEE

Available

on order

Buy	Unit price	Stock	Delivery time	Prod. No.	Manufacturer Article Number	Plug type

Product information "Chemistry Pump Units and Vacuum Systems"

Dieser Pumpstand bietet ein bewährtes Konzept der Vakuumerzeugung und -regelung für viele Verdampfungsprozesse. Der saugseitige Abscheider aus Glas mit Schutzbeschichtung hält Partikel und Tröpfchen zurück. Der druckseitige Emissionskondensator ermöglicht die nahezu hundertprozentige Rückgewinnung von Lösemitteln.

Vakuum-Controller VACUU·SELECT mit grafischer Bedienoberfläche

Vordefinierte Anwendungen ersparen Zeit und bringen reproduzierbare Ergebnisse

Anwendungseditor ermöglicht eigene Prozessabläufe

Gute Chemikalien- und Kondensatverträglichkeit

Ölfrei

Vakuum-Controller VACUU·SELECT mit grafischer Bedienoberfläche

Vordefinierte Anwendungen ersparen Zeit und bringen reproduzierbare Ergebnisse

Anwendungseditor ermöglicht eigene Prozessabläufe

Gute Chemikalien- und Kondensatverträglichkeit

Ölfrei

Depth:	418 mm
Dimensions (WxDxH):	243 x 418 x 457 mm
Flow rate:	2.0 m³/h
Height:	457 mm
Manufacturer Article Number:	20733150
Plug type:	CEE
Type:	PC 510 select
UNSPSC:	40151502
Ultimate vacuum:	7 mbar
Ultimate vacuum with gas ballast:	12 mbar
Width:	243 mm

Manufacturer "Vacuubrand GmbH & Co.KG"

Vacuum Technology at Its Finest: Vacuubrand Products at häberle LABORTECHNIK
häberle LABORTECHNIK GmbH & Co. KG proudly presents the high-precision vacuum technology by Vacuubrand GmbH & Co. KG, one of the leading manufacturers for laboratory and industrial applications. The product range includes powerful rotary vane pumps, advanced diaphragm pumps, intelligent vacuum controllers, and robust screw pumps, all designed to meet the highest standards of efficiency and reliability.
Rotary Vane Pumps from Vacuubrand: High-Performance Solutions for Demanding Applications
Rotary vane pumps operate through a rotating vane mechanism that efficiently removes air molecules to generate a strong vacuum.
Key advantages include:
Extremely low achievable ultimate pressures

High pumping speeds for demanding processes

Ideal for industrial applications and laboratories requiring consistently high vacuum levels

Examples from the range:
Rotary Vane Pump RZ 6, two-stage: Currently discounted by 41%

Rotary Vane Pump RZ 2.5, two-stage: A compact solution for precise applications, now 20% off.

For highly aggressive media, the chemically resistant rotary vane pump RC 6 ensures reliable performance under challenging conditions.
Diaphragm Pumps from Vacuubrand: Purity and Durability Without Compromise
Diaphragm pumps operate using a flexible membrane that compresses gas without the need for lubricants, making them ideal for sensitive applications.
Main benefits:
Oil-free operation ensuring maximum purity

Minimal maintenance requirements

Outstanding service life even under continuous use

Typical fields of application:
Analytical laboratories

Precision vacuum applications in research and development

Featured products:
Diaphragm Pumps, Chemistry Version chemical-resistant options for aggressive vapors.

Aluminum-PTFE Diaphragm Pumps ME 1 / MD 1: Compact models with a 15% discount.

Intelligent Vacuum Control with VACUU·SELECT® and CVC 3000
Accurate control is crucial in many processes. VACUU·SELECT® packages and the CVC 3000 vacuum controller offer intelligent solutions for automated vacuum operations.
Highlights:
VACUU·SELECT® Package for Fine Vacuum Control with Pirani sensor – available for KF DN 16 and DN 25, with 20-24% discounts.

CVC 3000: Automatic vacuum controller featuring an intuitive interface and robust construction.

Screw Pumps VACUU·PURE® 10/10C: For Oil-Free High Vacuum Applications
With the VACUU·PURE® screw pumps, Vacuubrand sets new standards in oil-free high vacuum technology.
Distinctive features:
Chemical-resistant versions available for aggressive vapors

Exceptional service life and minimal operating costs

The perfect choice for applications in chemistry and analytics

Special offer: VACUU·PURE® models are currently discounted by 15%.
Complete Vacuum Solutions with Accessories and Systems
In addition to individual pumps, Vacuubrand offers a comprehensive range of accessories:
BioChem-VacuuCenter BVC Liquid Aspiration Systems – specifically designed for biological and chemical applications

VARIO® select Chemical Pump Stands – for flexible and powerful system solutions

VACUU·VIEW Vacuum Gauges – for precise monitoring of your vacuum processes

All systems are engineered to enhance operational safety, reduce maintenance effort, and optimize workflows.

More products from Vacuubrand GmbH & Co.KG

Auch interessant

Vacuum tubings, PVC

Transparent vacuum tubing for demanding laboratory applications. With its reinforced construction, the hose offers maximum operational safety for vacuum applications. The smooth inner wall prevents deposits and simplifies cleaning processes. The vacuum tubing is also characterised by its excellent chemical resistance and long service life thanks to its high abrasion and bending resistance. Sold per metre.

Variants from €52.47*

Variations

New

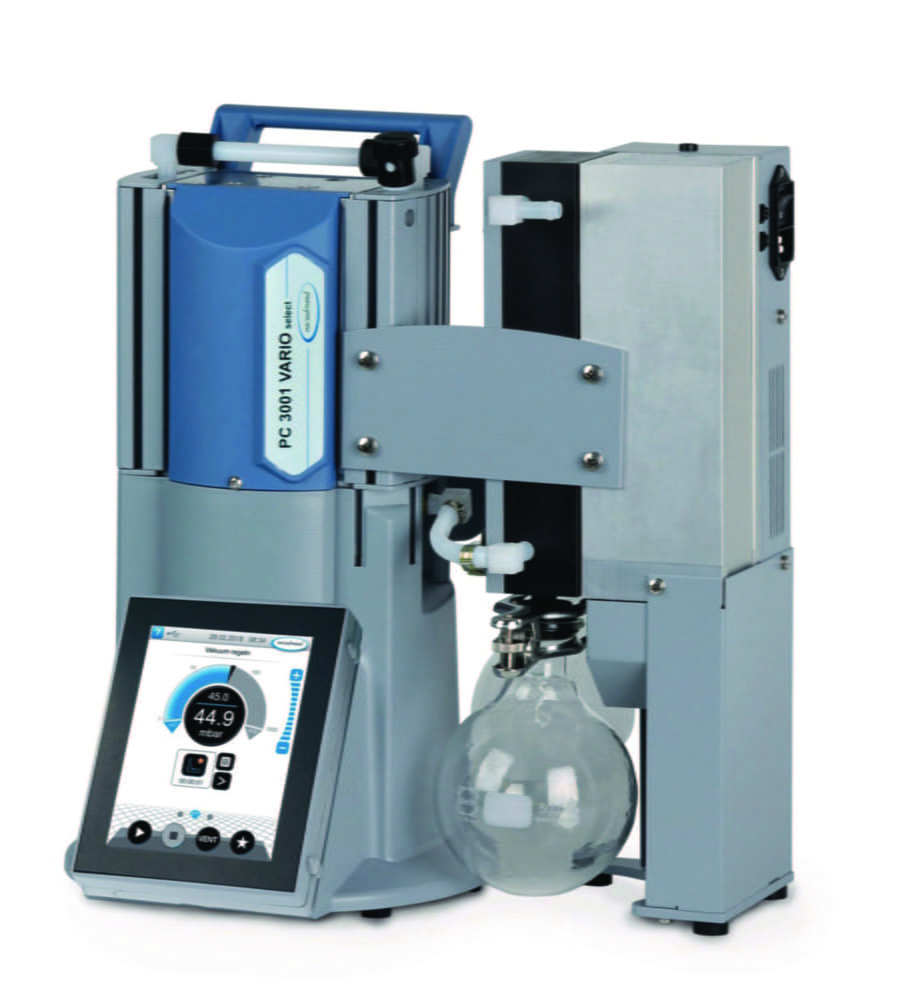

Chemistry Pumping Unit PC 3001 VARIO® select with condenser Peltronic®

The PC 3001 VARIO® select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. This pump is suitable for even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The pump's variable motor speed responds to demand, reducing energy waste and mechanical wear, ensuring unrivalled service life for the diaphragms.For solvent evaporation, the controller detects solvent boiling and automatically adjusts the pump's motor speed to maintain process controlUser-defined applications with simple drag-and-drop editing.Small footprint and low weight for flexible use in the laboratoryThe inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pumpThe included emission condenser Peltronic® works without any cooling media like water or dry ice.Scope of supply: Chemistry pumping unit PC 3001 VARIO® select completely mounted with conderser Peltronic®, ready for use, with manual.Without mains cable, please order separately.

Variants from €7,970.00*

Variations

Diaphragm pumps chemistry design, ME 1C

The diaphragm pumps ME 1C offer a compact and high performance solution. With their easy-to-use functionality, they are the perfect partner for both single and multiple filtrations.One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.Gas ballast for reliable pump performance.Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.The diaphragm pumps ME 1C offer a compact and high performance solution. With their easy-to-use functionality, they are the perfect partner for both single and multiple filtrations.One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.Gas ballast for reliable pump performance.Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.Diaphragm pumps ATEX-models available on request. Country-specific power cord versions available on request.

Variants from €663.30*

Variations

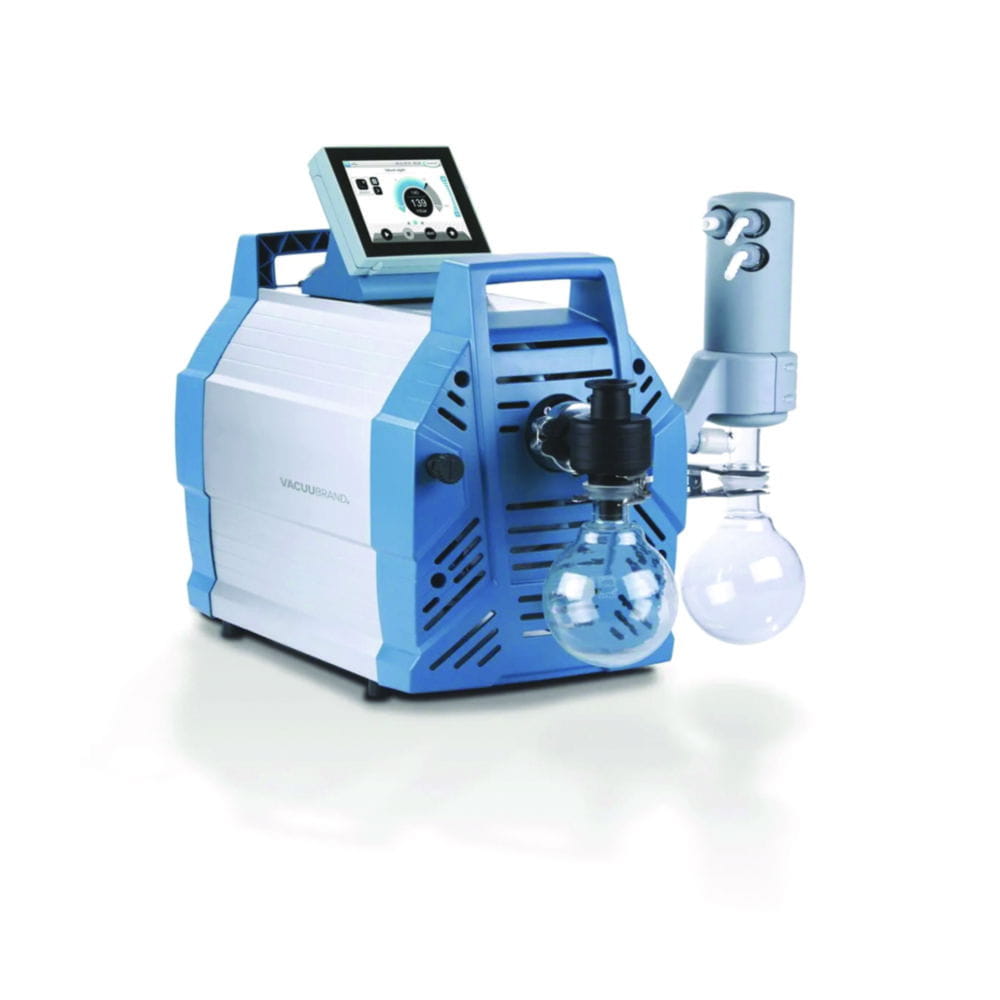

Chemistry Pumping Units VARIO® select
