Manufacturer Article Number:
290740059
|
Material hair/bristles:
Nylon
|
Material handle:
Stainless steel
|
Overall length:
250 mm
Zur Reinigung von NMR Röhrchen.
Ext. Ø:
4,97 mm
|
Ext. Ø:
4,97 mm ± 0.025
|
Frequency:
400 MHz
|
Int. Ø:
4.20 mm
|
Int. Ø:
4.20 mm ± 0.025
|
Length:
178 mm
|
Manufacturer Article Number:
231700211
|
Material:
DURAN® glass
|
Max. frequency:
400 MHz
|
Tolerance ext. Ø:
0.025 mm
|
Tolerance int. Ø:
0.025 mm
|
UNSPSC:
41-12-17-02
NMR tubes are available, according to requirement, in three accuracy classes. The correct tube can be selected depending on magnetic field and spin. The tubes are noteworthy for their close tolerances and accuracy, especially to their straightness, wall thickness and wall thickness distribution. Consequently, quick and accurate test results are achievable. With retrace code. Please order closing caps separately.For professional use in industry and research in the medium and high resolution area of NMR spectroscopy.
Ext. Ø:
4,95 mm
|
Ext. Ø:
4,95 mm ± 0.05
|
Frequency:
300 MHz
|
Int. Ø:
4.20 mm
|
Int. Ø:
4.20 mm ± 0.05
|
Length:
178 mm
|
Manufacturer Article Number:
231700117
|
Material:
DURAN® glass
|
Max. frequency:
300 MHz
|
Tolerance ext. Ø:
0.05 mm
|
Tolerance int. Ø:
0.05 mm
|
UNSPSC:
41-12-17-02
NMR tubes are available, according to requirement, in three accuracy classes. The correct tube can be selected depending on magnetic field and spin. The tubes are noteworthy for their close tolerances and accuracy, especially to their straightness, wall thickness and wall thickness distribution. Consequently, quick and accurate test results are achievable. With retrace code. Please order closing caps separately.The disposable for economical use in fully automatic sample dispensers or where high throughputs are involved.
Depth:
110 mm
|
Dimensions (W x D x H) mm:
210 x 110 x 220
|
Dimensions (WxDxH):
210 x 110 x 220 mm
|
Height:
220 mm
|
Manufacturer Article Number:
F18854-0005
|
Material:
PP
|
Type:
NMR Tube Rack
|
Width:
210 mm
Polypropylene rack with carrying handles features an upper deck with holes and a lower deck support for tube ends. Stackable. For 72 (6 x 12) tubes with 3 or 5mm diameter. Autoclavable.
Camber:
51 µm
|
Concentricity:
76 µm
|
Ext. Ø:
4,9,635 mm ± 0.0065
|
Ext. Ø:
4,9635 mm
|
Frequency:
100 MHz
|
Int. Ø:
4.21 mm ± 0.13
|
Int. Ø:
4.21 mm
|
Length:
178 mm
|
Manufacturer Article Number:
505-PS-7-5
|
Material:
Borosilicate
|
Max. frequency:
100 MHz
|
Tolerance ext. Ø:
0.0065 mm
|
Tolerance int. Ø:
0.13 mm
|
Wall thickness:
0,38 mm

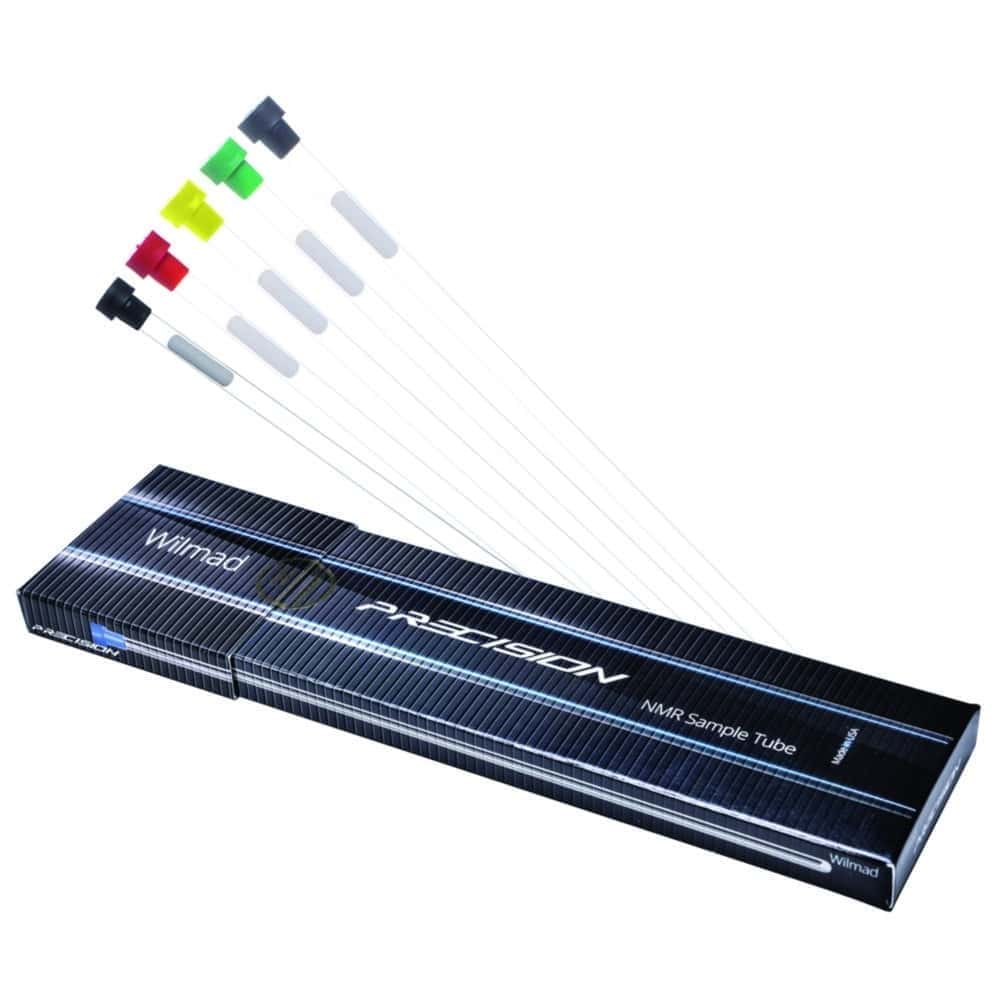

Thin-walled Precision NMR tubes. To maximize Signal-Noise-Ratio, Precision NMR tubes have minimal paramagnetic impurities that would impact shimming. For experiments requiring critical shimming quality (high/ultrahigh field, nonspinning, multi-dimensional, multi-nuclei, DNP experiments and studies involving biological samples).Made from borosilicate glass, ASTM E438 Type 1 Class AHydrolytic class 1Inner surface is resistant to strong acid and base at ambient temperatureFor temperatures up to 230 °C and within a temperature step of 120 °CInclude disposable caps
Ext. Ø:
1,0 mm
|
Ext. Ø:
1,0 mm ± 0.010
|
Int. Ø:
0.7 mm
|
Int. Ø:
0.7 mm ± 0.010
|
Length:
100 mm
|
Manufacturer Article Number:
2001727
|
Tolerance ext. Ø:
0.010 mm
|
Tolerance int. Ø:
0.010 mm
|
Wall thickness:
0,15 mm

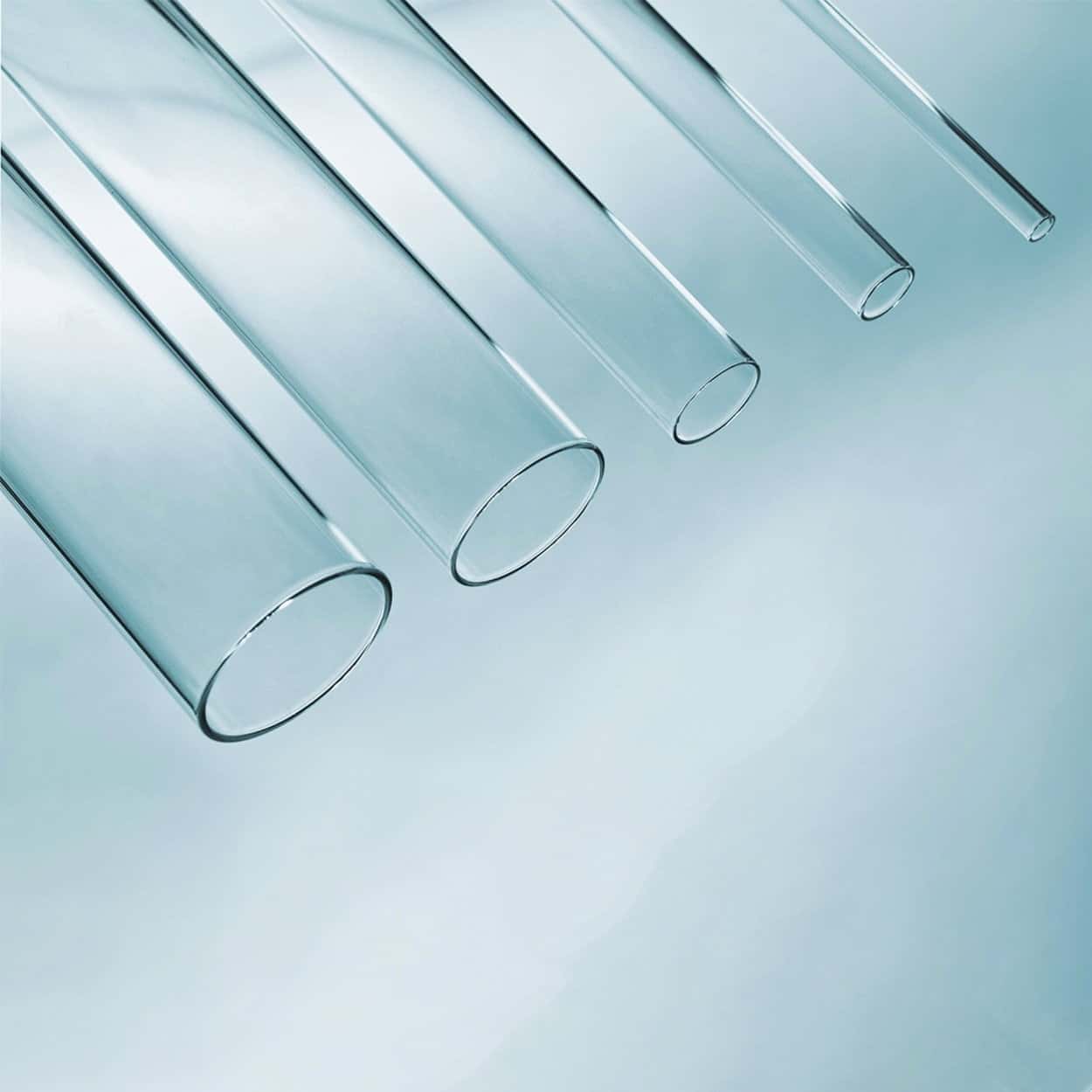

These NMR tubes were developed with the special length of exactly 100 mm and are thus specifically adjusted for the Bruker MATCH™ system.
Camber:
60 µm
|
Ext. Ø:
4,947 mm
|
Ext. Ø:
4,947 mm ± 0.019
|
Frequency:
600 MHz
|
Int. Ø:
4.1 mm
|
Int. Ø:
4.1 mm
|
Length:
178 mm
|
Manufacturer Article Number:
WG-1000-7-SJ
|
Material:
Borosilicate
|
Max. frequency:
600 MHz
|
Tolerance ext. Ø:
0.019 mm
|
Wall thickness:
0,43 mm

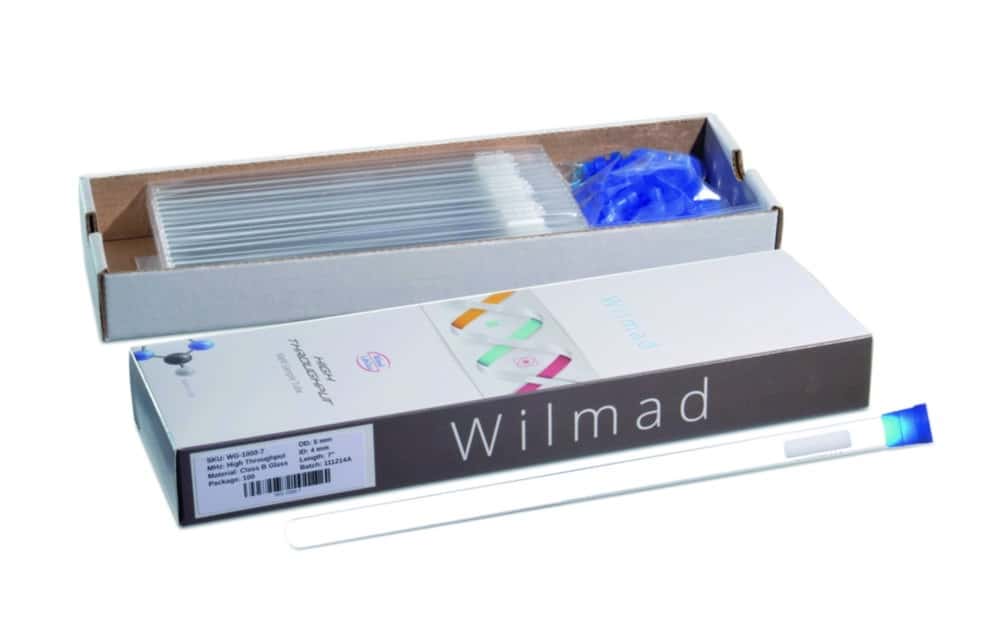

The thin-walled high-throughput Wilmad® NMR tubes have an average camber of 60 microns to guarantee the clarity of the spectrum for small molecule (MW <250) samples up to 600 MHz. Designed for routine use in most low to mid field NMR spectrometers.Made from borosilicate glass, ASTM E438 Type 1 Class B standardCamber and concentricity values listed are the Total Indicator Reading (TIR)Includes disposable capsWG-1000-7-SJ is supplied with authentic Bruker SampleJet cap
Variants from €135.50*
Colour:
Red
|
For ext. Ø:
5 mm
|
Manufacturer Article Number:
332500-50

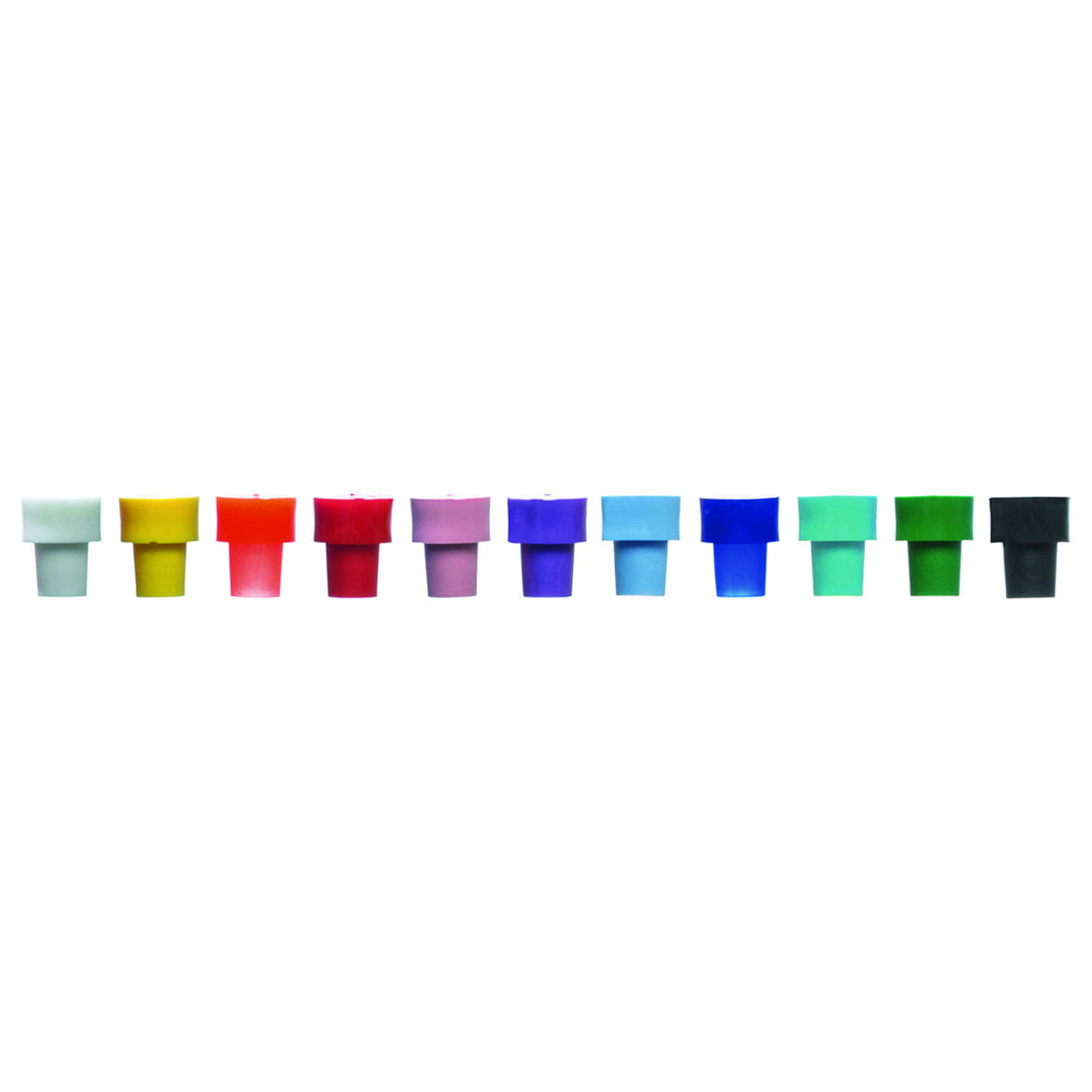

The closing caps are made of resilient plastic and are available in two sizes fitting for 3 mm and 5 mm NMR tubes as well as EPR tubes with this respective size. Available in different colours.
Ext. Ø:
2,95 mm ± 0.03
|
Ext. Ø:
2,95 mm
|
Frequency:
600 MHz
|
Int. Ø:
2.36 mm ± 0.03
|
Int. Ø:
2.36 mm
|
Length:
178 mm
|
Manufacturer Article Number:
2001749
|
Material:
Boro 3.3
|
Max. frequency:
600 MHz
|
Tolerance ext. Ø:
0.03 mm
|
Tolerance int. Ø:
0.03 mm
|
Wall thickness:
0,29 mm

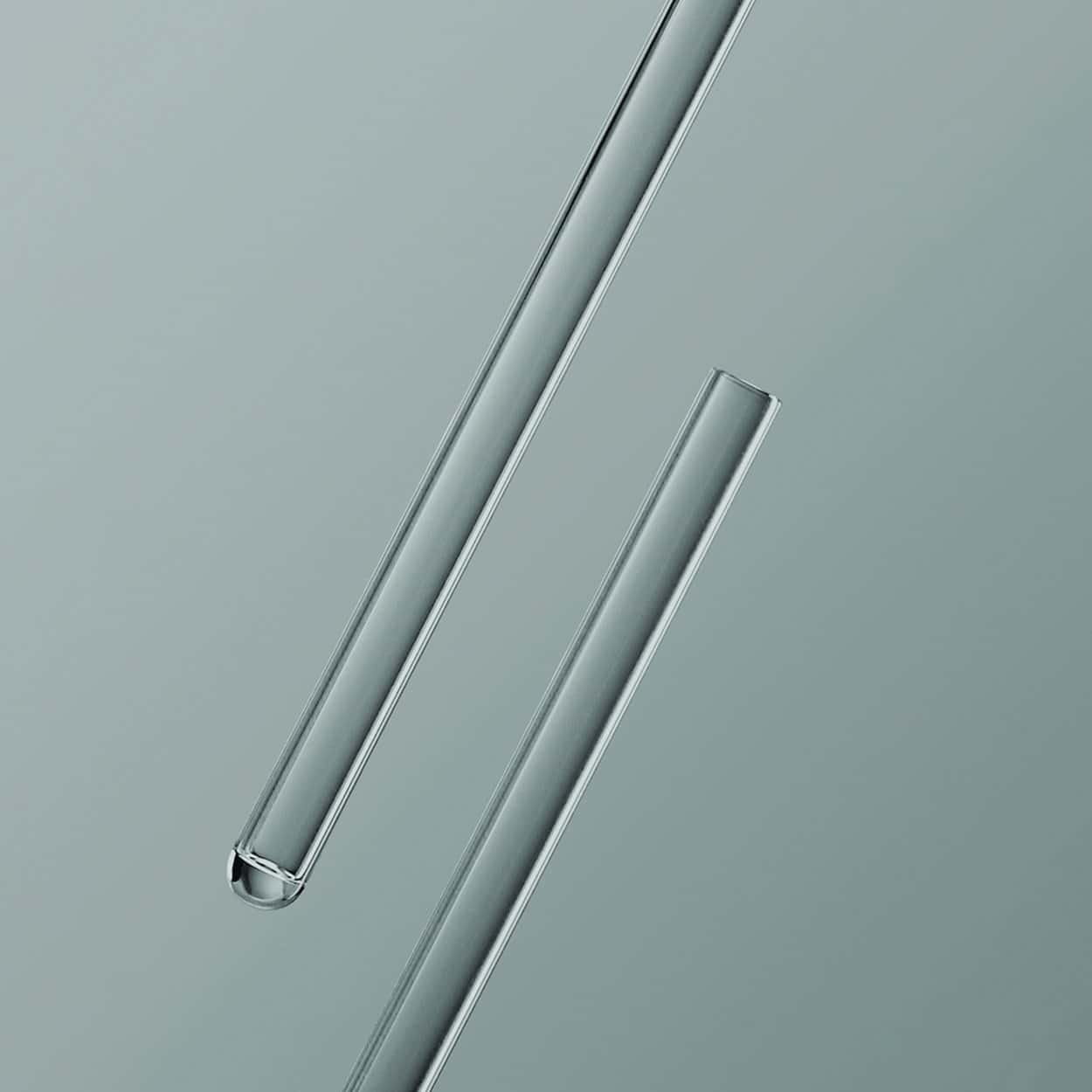

The NMR tubes are produced with high precision. They are suitable for routine measurements, high-throughput measurements or NMR systems with autosampler at measurement frequencies up to 600 MHz. The tubes are manufactured from borosilicate glass 3.3 which is conform to USP Type I and ASTM E438, Type I, Class A. Please order closing caps separately.
Variants from €147.40*
Ext. Ø:
4,97 mm
|
Ext. Ø:
4,97 mm ± 0.025
|
Int. Ø:
4.2 mm
|
Int. Ø:
4.2 mm ± 0.025
|
Length:
178 mm
|
Manufacturer Article Number:
2001797
|
Material:
Boro 3.3
|
Tolerance ext. Ø:
0.025 mm
|
Tolerance int. Ø:
0.025 mm
|
Wall thickness:
0,385 mm

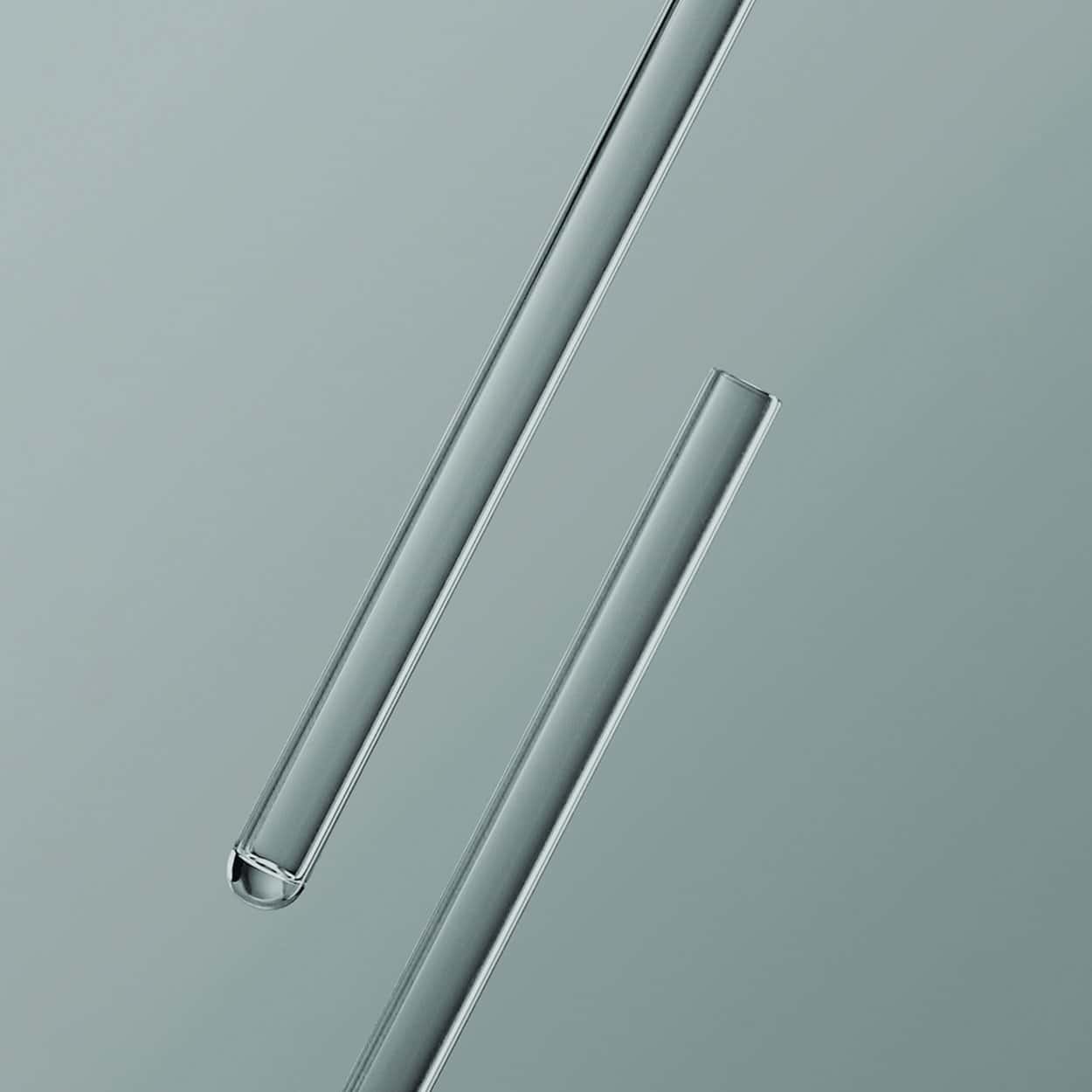

The High Precision NMR tubes are manufactured with high accuracy and excellent straightness and concentricity. They are particularly suitable for quantitative measurements and measurements in spectrometers with high measurement frequencies above 600 MHz up to the highest available field strengths above 1 GHz. The tubes are made of borosilicate glass 3.3, which complies with USP Type I and ASTM E438, Type I, Class A requirements. NMR tubes are supplied without caps, please order caps separately.
Colour septa:
White/blue
|
Manufacturer Article Number:
332521
|
Material septa:
Silicone/PTFE
|
Shore hardness:
55 A
|
Slit:
Slitted
|
Thickness:
0.9 mm

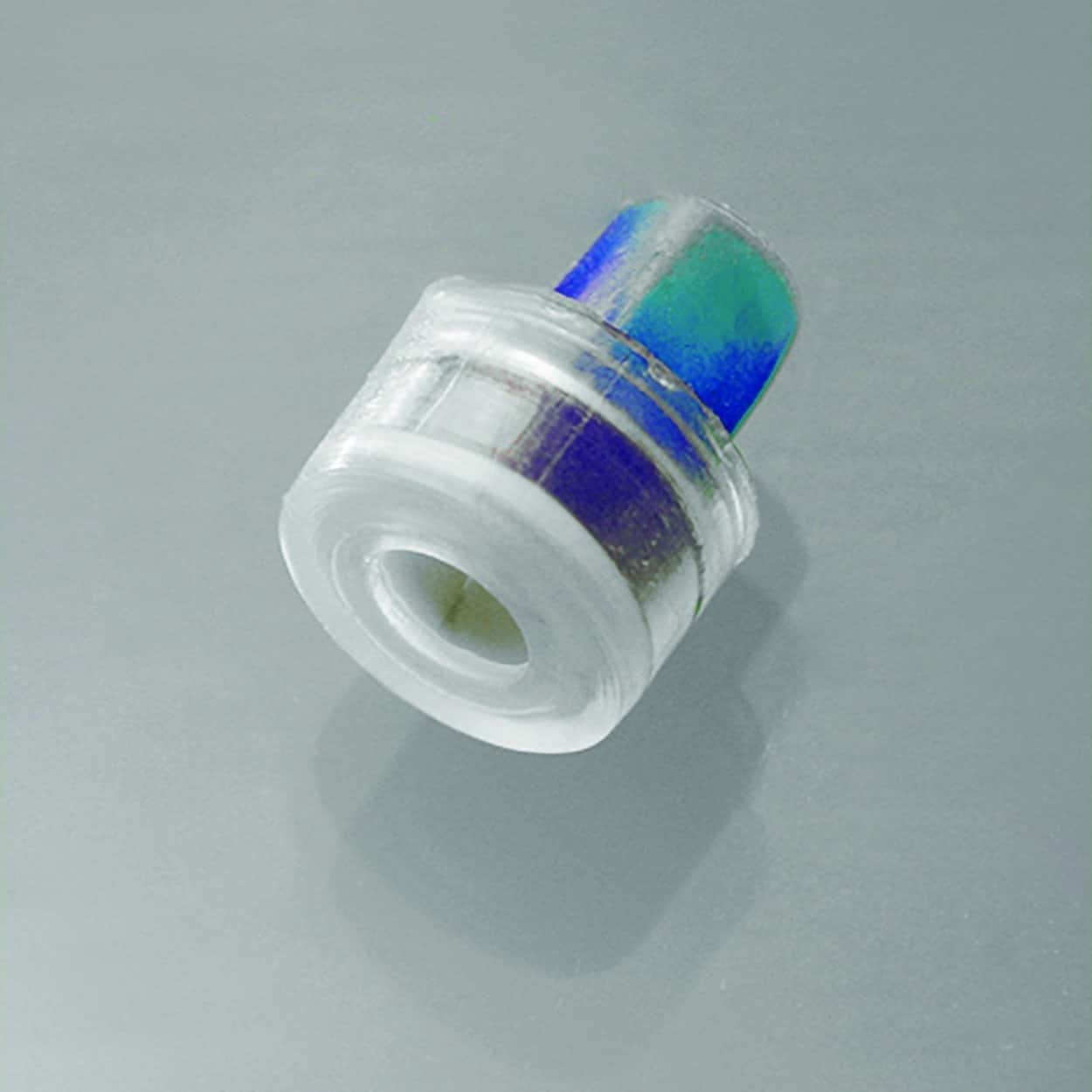

The septum caps are available with slotted or unslotted septum. This allows the addition of substances into the closed tube for titration experiments without having to open the tube.
Variants from €71.50*
Camber:
50 µm
|
Concentricity:
51 µm
|
Ext. Ø:
4,947 mm
|
Ext. Ø:
4,947 mm ± 0.019
|
Frequency:
100 MHz
|
Int. Ø:
4.1 mm
|
Int. Ø:
4.1 mm
|
Length:
178 mm
|
Manufacturer Article Number:
WG-1206-7-5
|
Material:
Borosilicate
|
Max. frequency:
100 MHz
|
Tolerance ext. Ø:
0.019 mm
|
Wall thickness:
0,43 mm

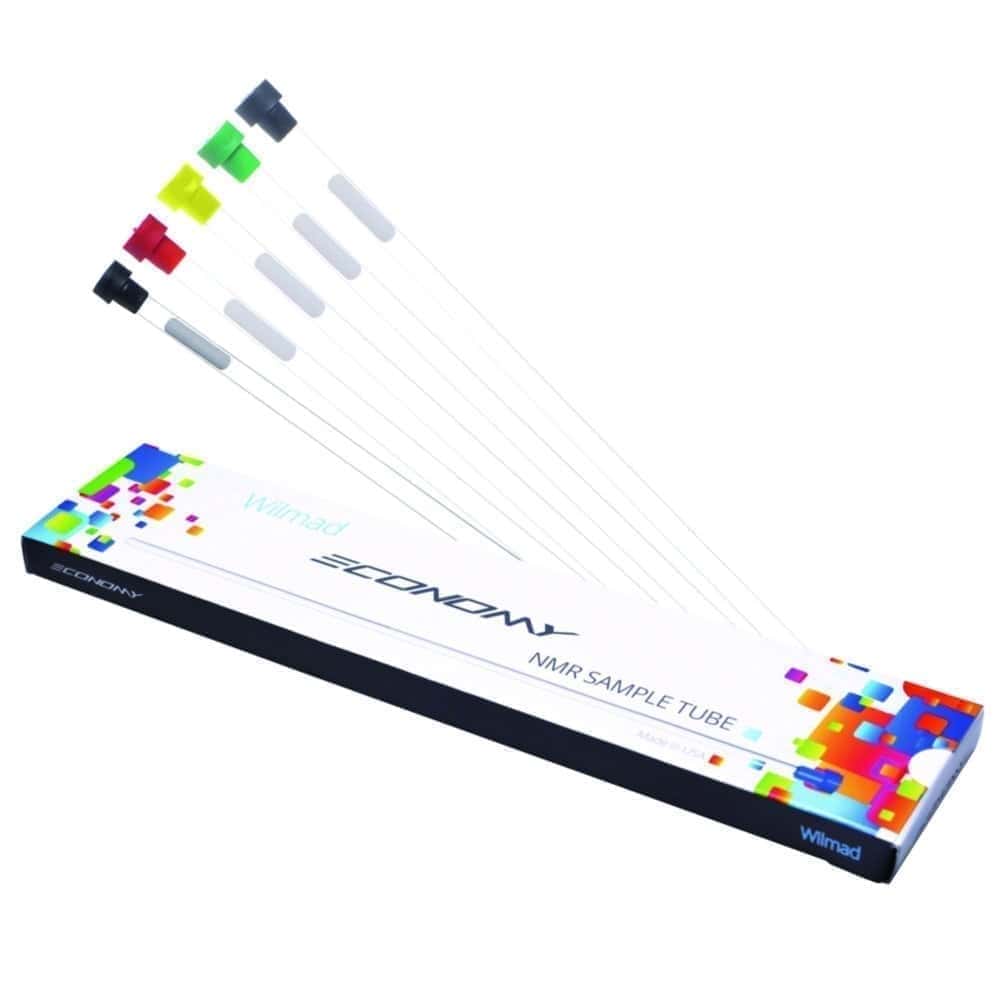

The thin walled Wilmad Economy NMR tubes are designed for routine use in all NMR spectrometers. They fit tightly in any spinner turbine and have zero NMR background. For experiments with small organic molecules (Molecular Weight ~500) at ambient temperatures. Cooling/heating of these tubes may lead to breakage.Made from borosilicate glass, ASTM E438 Type 1 Class B standardCamber and concentricity values listed are the Total Indicator Reading (TIR)Includes disposable caps
Ext. Ø:
2,95 mm
|
Ext. Ø:
2,95 mm
|
Int. Ø:
2.35 mm
|
Int. Ø:
2.35 mm
|
Length:
250 mm
|
Manufacturer Article Number:
2009830
|
Material:
Quartz glass
|
Wall thickness:
0,30 mm

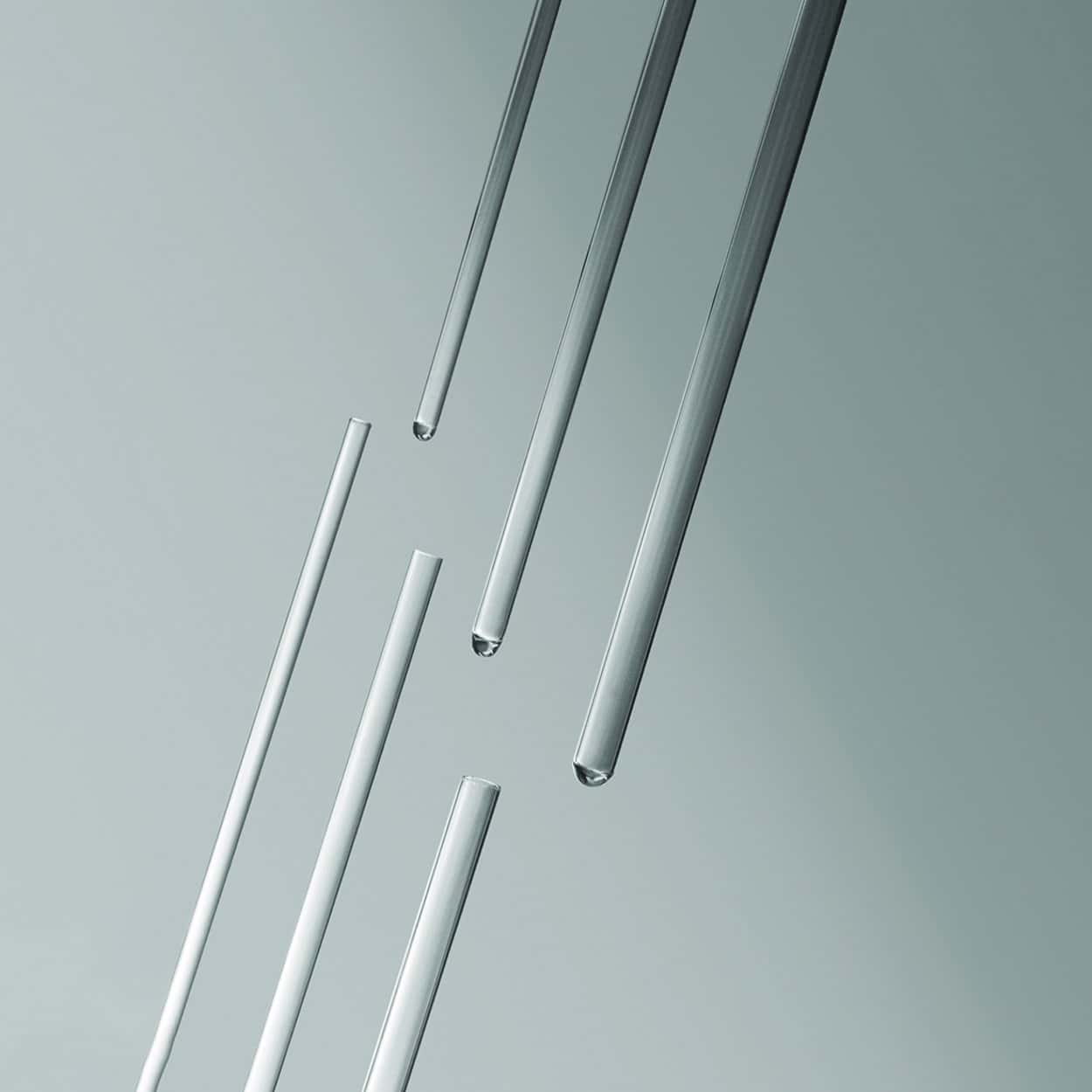

These EPR tubes are manufactured from upmarket quartz glass with only slightest amounts of paramagnetic trace elements. The tubes are delivered single packed and sealed in plastic foil.
Ext. Ø:
2,95 mm ± 0.03
|
Ext. Ø:
2,95 mm
|
Int. Ø:
2.36 mm
|
Int. Ø:
2.36 mm
|
Length:
178 mm
|
Manufacturer Article Number:
2001786
|
Material:
Boro 3.3
|
Tolerance ext. Ø:
0.03 mm
|
Wall thickness:
0,295 mm

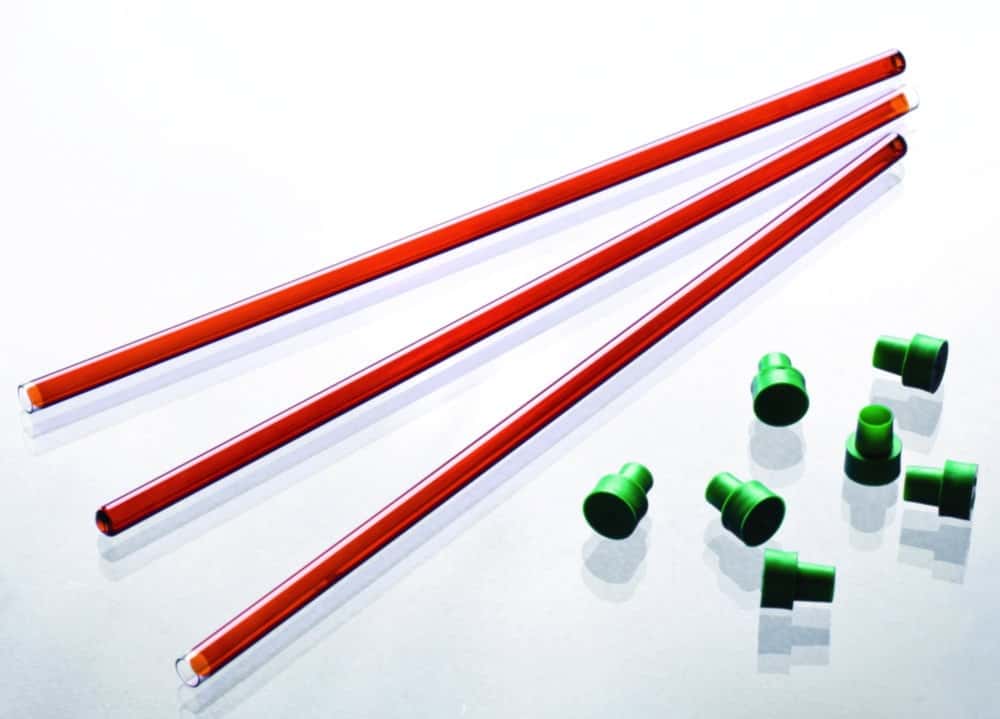

These tubes coloured by silver ion diffusion are particularly suitable for handling UV-sensitive substances. The tubes are manufactured from borosilicate glass 3.3 which is conform to USP Type I and ASTM E438, Type I, Class A. They are supplied with a green cap.
Ext. Ø:
4,97 mm
|
Ext. Ø:
4,97 mm ± 0.013
|
Frequency:
500 MHz
|
Int. Ø:
4.20 mm
|
Int. Ø:
4.20 mm ± 0.025
|
Length:
178 mm
|
Manufacturer Article Number:
231700314
|
Material:
DURAN® glass
|
Max. frequency:
500 MHz
|
Tolerance ext. Ø:
0.013 mm
|
Tolerance int. Ø:
0.025 mm
|
UNSPSC:
41-12-17-02
NMR tubes are available, according to requirement, in three accuracy classes. The correct tube can be selected depending on magnetic field and spin. The tubes are noteworthy for their close tolerances and accuracy, especially to their straightness, wall thickness and wall thickness distribution. Consequently, quick and accurate test results are achievable. With retrace code. Please order closing caps separately.For scientific use with high value samples and optimum substance exploitation in the highest resolution range of NMR spectroscopy.
Manufacturer Article Number:
290740059 VE=5
|
Material hair/bristles:
Nylon
|
Material handle:
Stainless steel
|
Overall length:
250 mm
For cleaning NMR tubes.
Camber:
3.8 µm
|
Concentricity:
5 µm
|
Ext. Ø:
4,9700 mm
|
Ext. Ø:
4,9,700 mm ± 0.013
|
Frequency:
800 MHz
|
Int. Ø:
4.2000 mm
|
Int. Ø:
4.2000 mm ± 0.013
|
Length:
178 mm
|
Manufacturer Article Number:
897245-3000
|
Material:
Boro 3.3
|
Max. frequency:
800 MHz
|
Tolerance ext. Ø:
0.013 mm
|
Tolerance int. Ø:
0.013 mm
|
Wall thickness:
0,375 mm

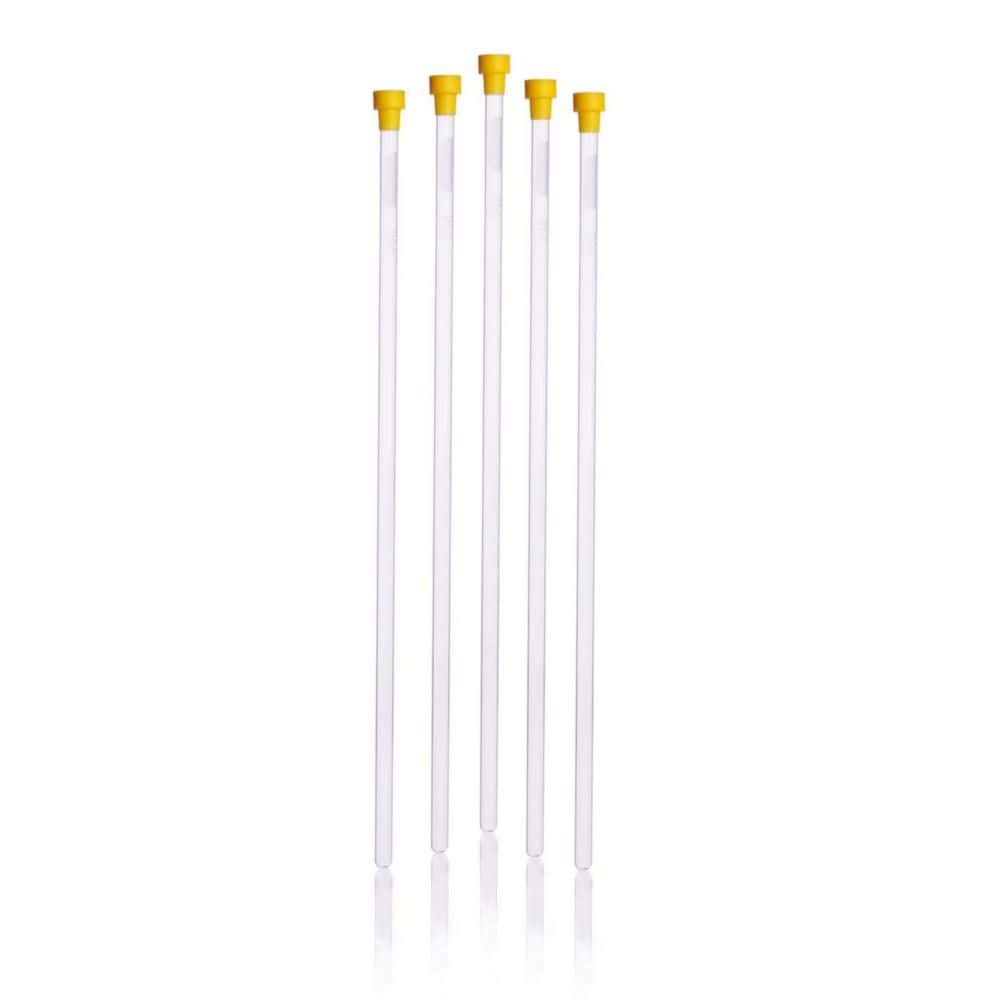

Our KIMAX®-HQ NMR tubes are our highest quality NMR tubes and are 100% gauged for wall thickness, concentricity and camber specifications.High-Quality NMR tubesAttached polyethylene capsSandblasted marking spotManufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Variants from €59.10*
Camber:
25 µm
|
Concentricity:
51 µm
|
Ext. Ø:
4.9365 mm ± 0.0065
|
Ext. Ø:
4.9365 mm
|
Frequency:
300 MHz
|
Int. Ø:
4.2065 mm ± 0.0065
|
Int. Ø:
4.2065 mm
|
Length:
178 mm
|
Manufacturer Article Number:
507-LPV-7
|
Material:
Borosilicate
|
Max. frequency:
300 MHz
|
Tolerance ext. Ø:
0.0065 mm
|
Tolerance int. Ø:
0.0065 mm
|
Wall thickness:
0,38 mm
Wilmad’s low pressure/vacuum (LPV) tubes are ideal for anaerobic and gas-tight NMR experiments and offers a flame-free sealing solution for air sensitive or volatile liquid samples. LPV Tubes consist of an NMR tube with the threaded glass section sealed on, 5 mm Pyrex® vacuum adapter, 5 mm PTFE vacuum lock valve and piston assembly.Robust sealing system allows pressure buildup inside the sampleGreaseless PTFE piston with 100 % contaminationfree sealSuitable for use in spinning experiments
Camber:
25 µm
|
Concentricity:
51 µm
|
Ext. Ø:
4,9365 mm
|
Ext. Ø:
4,9,365 mm ± 0.0065
|
Frequency:
300 MHz
|
Int. Ø:
4.2065 mm ± 0.0065
|
Int. Ø:
4.2065 mm
|
Length:
178 mm
|
Manufacturer Article Number:
507-PP-7QTZ-5
|
Material:
Quartz
|
Max. frequency:
300 MHz
|
Tolerance ext. Ø:
0.0065 mm
|
Tolerance int. Ø:
0.0065 mm
|
Wall thickness:
0.38 mm
Thin-walled Precision Quartz NMR tubes. To maximize Signal-Noise-Ratio, Precision NMR Tubes have minimal paramagnetic impurities that would impact shimming. The Quartz tubes have an extremely low thermal expansion rate and high tensile strength which is 14 times more robust during the cooling/heating process than Type 1 Class A glass tubes.Low Boron density at or below 0.1 ppm guarantees a clean background in Boron-11 NMR studiesInner surface is resistant to strong acid and base at ambient temperatureFor temperatures up to 1300˚C and variable temperature experiments that have a temperature step over 120˚CIncludes disposable caps
Camber:
51 µm
|
Concentricity:
254 µm
|
Ext. Ø:
9,9935 mm
|
Ext. Ø:
9,9,935 mm ± 0.0065
|
Frequency:
200 MHz
|
Int. Ø:
9.070 mm ± 0.013
|
Int. Ø:
9.070 mm
|
Length:
178 mm
|
Manufacturer Article Number:
513-1PP-7-5
|
Material:
Borosilicate
|
Max. frequency:
200 MHz
|
Tolerance ext. Ø:
0.0065 mm
|
Tolerance int. Ø:
0.013 mm
|
Wall thickness:
0,46 mm
Thin-walled Precision NMR Tubes. To maximize Signal-Noise-Ratio, Precision NMR Tubes have minimal paramagnetic impurities that would impact shimming. For experiments requiring critical shimming quality (high/ultrahigh field, nonspinning, multi-dimensional, multi-nuclei, DNP experiments and studies involving biological samples).Made from borosilicate glass, ASTM E438, Type 1, Class AHydrolytic class 1Inner surface is resistant to strong acid and base at ambient temperatureFor temperatures up to 230 °C and within a temperature step of 120 °CInclude disposable caps
Variants from €124.90*
Camber:
25 µm
|
Concentricity:
51 µm
|
Ext. Ø:
2,9,935 mm ± 0.0065
|
Ext. Ø:
2,9935 mm
|
Frequency:
300 MHz
|
Int. Ø:
2.4195 mm
|
Int. Ø:
2.4195 mm ± 0.0065
|
Length:
178 mm
|
Manufacturer Article Number:
307-PP-7-5
|
Material:
Borosilicate
|
Max. frequency:
300 MHz
|
Tolerance ext. Ø:
0.0065 mm
|
Tolerance int. Ø:
0.0065 mm
|
Wall thickness:
0,29 mm
Thin-walled Precision NMR Tubes. To maximize Signal-Noise-Ratio, Precision NMR Tubes have minimal paramagnetic impurities that would impact shimming. For experiments requiring critical shimming quality (high/ultrahigh field, nonspinning, multi-dimensional, multi-nuclei, DNP experiments and studies involving biological samples).Made from borosilicate glass, ASTM E438 Type 1 Class AHydrolytic class 1Inner surface is resistant to strong acid and base at ambient temperatureFor temperatures up to 230 °C and within a temperature step of 120 °CInclude disposable caps
Variants from €107.50*
Ext. Ø:
3 mm
|
Ext. Ø:
3 mm
|
Frequency:
600 MHz
|
Length:
178 mm
|
Manufacturer Article Number:
335-TR-7
|
Max. frequency:
600 MHz
The thin-walled NMR tubes are used for degassing samples and can maintain a vacuum of >10-4 Torr. Supplied with open screw cap and septum.
Variants from €42.70*
