Dimensions (WxL):
50 x 75 mm
|
Film thickness:
200 µm
|
Gel thickness mm:
0.20
|
Length:
75 mm
|
Manufacturer Article Number:
818030.20
|
Material:
Aluminium
|
Particle size:
5...17 µm
|
Plate format cm:
5 x 7.5
|
Type:
ALUGRAM® SIL G
|
Type:
ALUGRAM® aluminium sheets SIL G
|
Width:
50 mm
Kieselgel 60Spezifische Oberfläche (BET) ~500 m²/gMittlere Porenweite 60 ÅSpezifisches Porenvolumen 0,75 ml/gStandardqualitätSchichtdicke für analytische Platten 0,25 mm, für präparative Platten 0,5 und 1 mmFür präparative Schichten mit 2 mm Dicke wird ein etwas gröberes Material verwendetIndikatoren: manganaktiviertes Zinksilikat mit grüner Fluoreszenz im kurzwelligen UV-Licht (254 nm)Bindemittel: hochpolymere Produkte, die in fast allen organischen Lösemitteln und gegen aggressive Nachweisreagenzien beständig sindLieferbar mit und ohne Fluoreszenzindikator (UV 254)
Dimensions (WxL):
400 x 200 mm
|
Film thickness:
200 µm
|
Gel thickness mm:
0.20
|
Length:
200 mm
|
Manufacturer Article Number:
805014
|
Material:
Polyester
|
Particle size:
5...17 µm
|
Plate format cm:
40 x 20
|
Type:
POLYGRAM® polyester sheets SIL G
|
Type:
POLYGRAM® SIL G
|
Width:
400 mm
Kieselgel 60Spezifische Oberfläche (BET) ~500 m²/gMittlere Porenweite 60 ÅSpezifisches Porenvolumen 0,75 ml/gStandardqualitätSchichtdicke für analytische Platten 0,25 mm, für präparative Platten 0,5 und 1 mmFür präparative Schichten mit 2 mm Dicke wird ein etwas gröberes Material verwendetIndikatoren: manganaktiviertes Zinksilikat mit grüner Fluoreszenz im kurzwelligen UV-Licht (254 nm)Bindemittel: hochpolymere Produkte, die in fast allen organischen Lösemitteln und gegen aggressive Nachweisreagenzien beständig sindLieferbar mit und ohne Fluoreszenzindikator (UV 254)Kieselgel 60Spezifische Oberfläche (BET) ~500 m²/gMittlere Porenweite 60 ÅSpezifisches Porenvolumen 0,75 ml/gStandardqualitätSchichtdicke für analytische Platten 0,25 mm, für präparative Platten 0,5 und 1 mmFür präparative Schichten mit 2 mm Dicke wird ein etwas gröberes Material verwendetIndikatoren: manganaktiviertes Zinksilikat mit grüner Fluoreszenz im kurzwelligen UV-Licht (254 nm)Bindemittel: hochpolymere Produkte, die in fast allen organischen Lösemitteln und gegen aggressive Nachweisreagenzien beständig sindBindemittelsystem der POLYGRAM® Folien ist auch in rein wässrigen Eluenten stabilLieferbar mit und ohne Fluoreszenzindikator (UV 254)
Variants from €41.20*

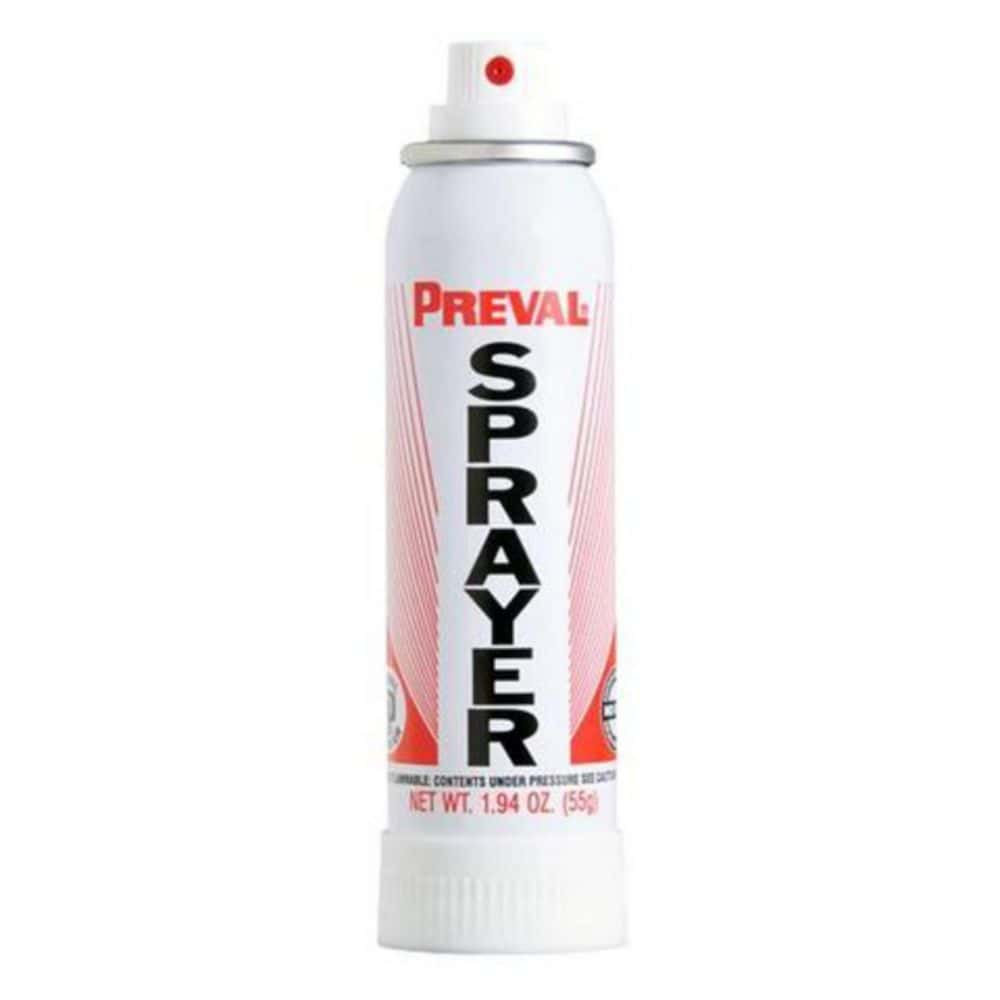

Description:
Spare propellant cartridge, 94 ml
|
GHS:
GHS02
|
Manufacturer Article Number:
0665
Versatile sprayer with gas cartridge for spraying reagents and other liquids. Spray pressure: constant 4.4 bar. Eco-friendly propellant mixture of dimethyl ether, propane and isobutane. Sufficient for approx. 500 ml of liquid.Easy to clean: unscrew cartridge, immerse uptake into vessel containing cleaning fluid and spray until the spray is free of residues.Propellants: dimethyl ether, isobutane, propane.Hazardous Substance DataGHSSignal wordGefahrH-SatzH222, H229P-SatzP210, P211, P251, P410+P412UNNR1950SDSLink
Variants from €11.10*

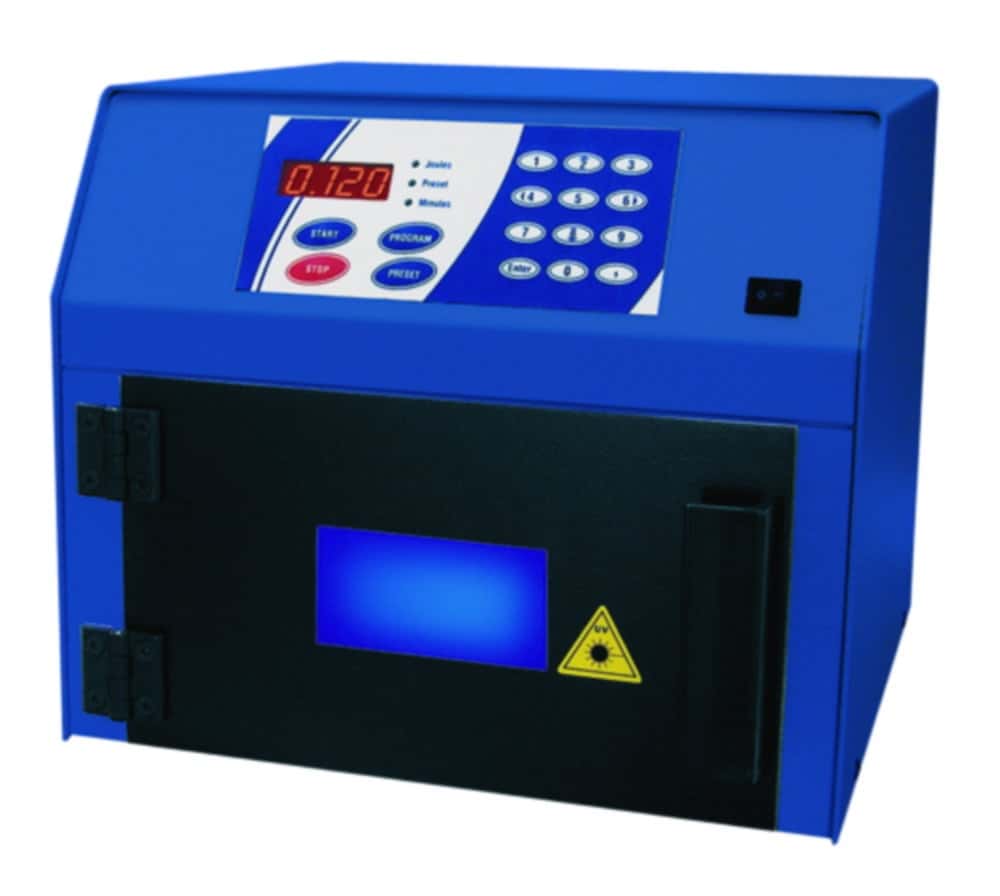

Manufacturer Article Number:
CL-508.G
|
Type:
CL-508
|
Wavelength nm:
254

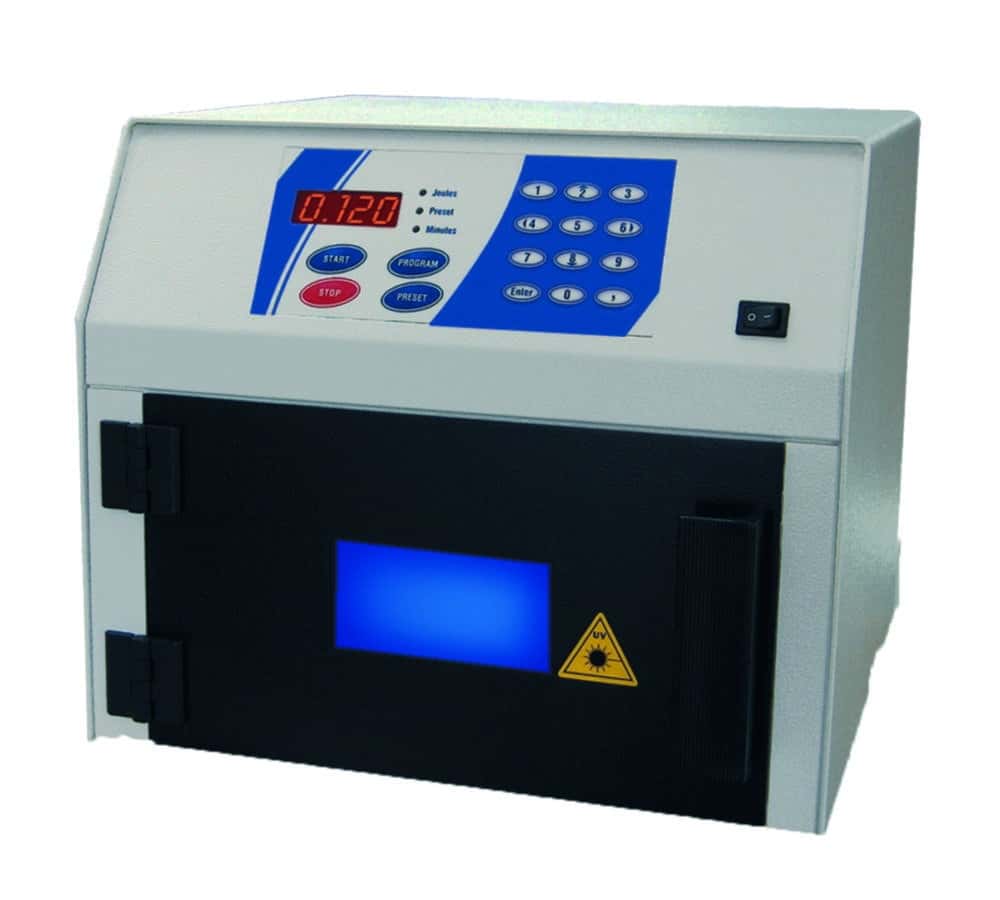

The UV Crosslinker is a UV irradiation system for versatile applications in the field of molecular biology, such as fixing nucleic acids on membranes and removing PCR contamination.Spacious stainless steel exposure chamberProgrammable microprocessor control9 preset programmes for UV dose and exposure timeLED display and membrane keypadViewing window with UV protectionSafety interlockLight source:5 x 8 W bulbEnergy:0 ... 9.999 J or 0 ... 99.99 JTimer:0 ... 999.9 minInternal dimensions (W x D x H):260 x 330 x 145 mmExternal dimensions (W x D x H):350 x 360 x 305 mmWeight:10 kgPower supply:240 V

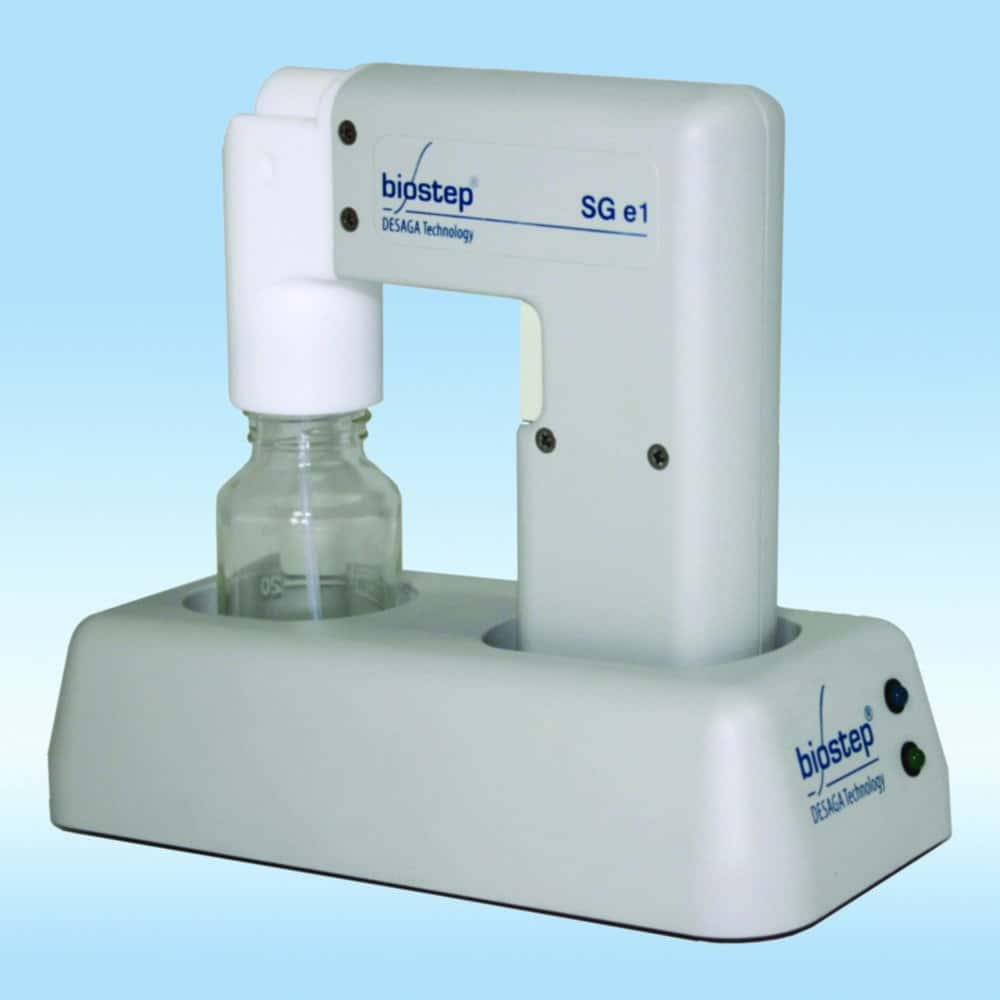

Manufacturer Article Number:
BS130.605
|
Type:
SG e1
Spraying with powerful and quiet pump.The finest spray is produced even when the battery power is low. Liquids, up to the viscosity of light oil, can be finely sprayed at the touch of a button. Particle diameter 5µm to 10µm with a throughput of 20ml/min. based on water. The reservoir bottle for the spray reagent is made of borosilicate glass. The bottle is screwed into the high-grade PTFE nozzle and can be changed in seconds. With quick-charging dock as a storage base. Overload protection enables continuous storage of the sprayer in the charging station. Supplied with battery, battery charger, bottle and nozzle.
Variants from €190.37*
Length:
570 mm
|
Manufacturer Article Number:
0501F00021
|
Max. suction height:
145 mm
|
Thickness:
0.19 mm
|
Type:
501
|
Weight:
90 g/m²
|
Width:
460 mm
Standard chromatography paper for routine applications and simple analysis. Capillary rise 145 mm/ 30 min.
Description:
Reagenzglaszerstäuber
|
Manufacturer Article Number:
BS123.990
|
Type:
Test tube atomiser
Glass atomiser for nebulising small amounts of reagents. Atomiser can be inserted in a 12ml test tube with a ground joint and held in position with a spring clip.
Length:
50 mm
|
Length mm:
50
|
Manufacturer Article Number:
BS120.155
|
Type:
Frit rods
Capacity ml:
12
|

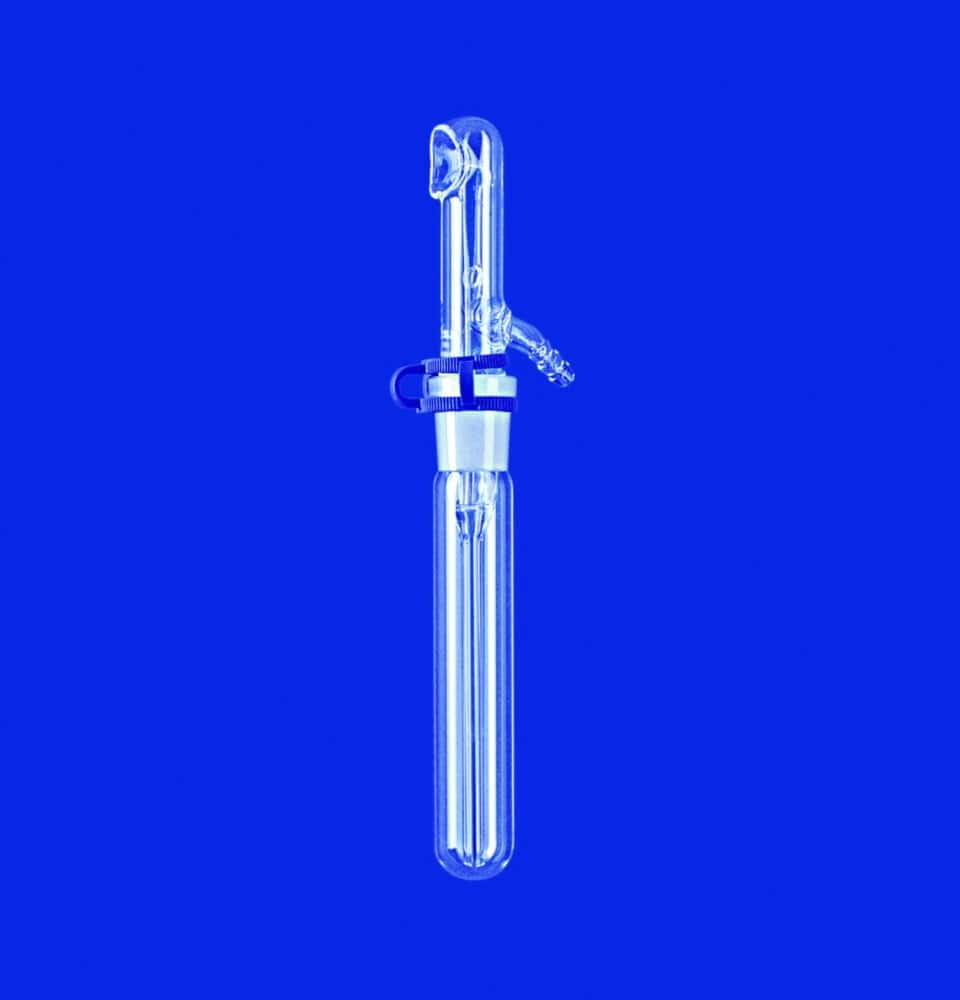

Description:
Sprayer, complete
|
Ground size:
NS19/26
|
Joint size NS:
19/26
|
Manufacturer Article Number:
05471200
|
Material:
DURAN® tubing
|
Nominal capacity:
12 ml
Made of DURAN® - tubing. Consists of a test tube with NS 14/23 or 19/26 joint neck, sprayer head, clamp and rubber bulb.
Variants from €70.35*
Length:
600 mm
|
Manufacturer Article Number:
26685860
|
Material:
Cellulose
|
Max. suction height:
155 mm
|
Thickness:
0.90 mm
|
Type:
2668
|
UNSPSC:
42-28-15-03
|
Weight:
320 g/m²
|
Width:
580 mm
Recommended for chromatographic analysis and preparations.Made from pure linters with an α-cellulose content of > 98%High-performance resolution and wet strengthThe fibres are oriented in predominantly one directionThicker papers allow higher sample volumesLower capillary rises offer higher resolutions
Variants from €338.80*
Depth:
190 mm
|
Dimensions (WxD):
460 x 190 mm
|
Manufacturer Article Number:
BS120.179
|
Type:
Filter paper for chamber saturation
|
UNSPSC:
40-16-18-03
|
Width:
460 mm
Zur Sättigung des Tanks.
Description:
For TLC plates up to 100 x 100 mm, reagent required approx. 25 ml
|
Manufacturer Article Number:
BS124.160
|
Type:
For TLC plates up to 100 x 100 mm, reagent required approx. 25 ml
|
UNSPSC:
41-10-40-05
For TLC platesHighly-resistant glassClear width 5 mmSmall volume of reagent required
For:
200x200 mm
|
Manufacturer Article Number:
BS120.173A
|
Material:
Boro 3.3
|
Type:
Separating chamber 200 x 200 mm with glass lid
|
With lid:
Yes
Flat chamber floor with glass ridge, for all TLC plates up to 200 mm x 200 mm.Filter paper for gas space saturation to optimize the separation results is available.Other separating chambers available on request.
For:
50x50 mm
|
Length mm:
50
|
Manufacturer Article Number:
BS120.150
|
Type:
H separation chamber
|
UNSPSC:
41-11-57-13
|
Width mm:
50
The H separating chambers make optimum use of HPTLC gel layer advantages. Small particle size 5µm, stringently controlled pore size and distribution, and more theoretical bases. Excellent value for money and can be supplied for time and cost saving in 50mm x 50mm plate format or traditional 100mm x 100mm format. Optimum separations are achieved even on the shortest runs.
Manufacturer Article Number:
4121 4153 1
|
Tubes W:
4 x 15
|
Type:
CN-15.LL
|
UNSPSC:
41-11-61-16
|
Wavelength nm:
365

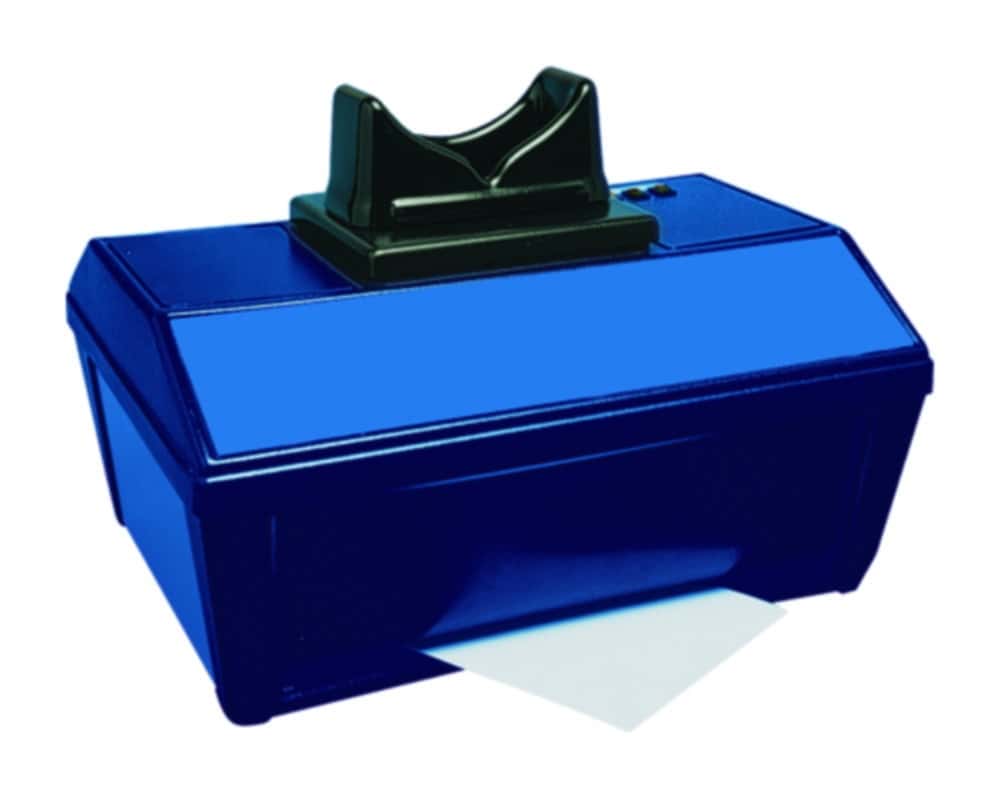

Model CN-6:For one or two UV hand lamps model BVL-6; choice of combined wavelengths 254 nm, 312 nm and 365 nmCabinet dimensions (W x D x H): 300 mm x 280 mm x 240 mmModel CN-15:Integral high intensity UV lamps, extra large capacity; easy access also for large samples; white-light bulb for normal observationRemovable bottom panelCabinet dimensions (W x D x H): 505 mm x 415 mm x 280 mm* Other models available on request.
Variants from €264.60*
Description:
UV crosslinker
|
Manufacturer Article Number:
6111 2081 1
|
Tubes W:
5 x 8
|
Type:
BLX-254
|
Wavelength nm:
254
Compact and powerful, ideal for a broad range of applicationsPrecise measurement and control technology, non-ageing UV sensorsChoice for irradiation parameter energy or timeEasy operation: Programme memory, storage of the last parameters, programme resumes after opening of the door, auto-restart after power failureSecure and stable construction, very easy to useEasy exchange of the UV tubes for wavelength changeDimensions (W x D x H)Housing:350 x 360 x 305 mmInterior:260 x 330 x 145 mmOther models available on request.
Depth:
70 mm
|
Depth mm:
70
|
Dimensions (WxDxH):
253 x 70 x 60 mm
|
Height:
60 mm
|
Height mm:
60
|
Manufacturer Article Number:
BS124.210
|
Material:
PP
|
Type:
Dipping chamber rack
|
Width:
253 mm
|
Width mm:
253
Serves as a holder during the dipping process and for storing the dipping chambers.
For:
100x100 mm
|
Manufacturer Article Number:
BS120.210A
|
Type:
Separating chamber 100 x 100 mm with glass lid
|
With lid:
Yes
The nano separating chamber was developed for the preferred plate format of 100 mm highs and have all the advantages of standard separating chambers.
Dimensions (WxL):
50 x 200 mm
|
Film thickness:
250 µm
|
Gel thickness mm:
0,25
|
Length:
200 mm
|
Manufacturer Article Number:
809011
|
Material:
Glass
|
Particle size:
5...17 µm
|
Plate format cm:
5 x 20
|
Type:
SIL G-25
|
Type:
Glass plates SIL G-25
|
Width:
50 mm
Support materials for TLC ready-to-use layersGlass plates: glass, ~ 1.3 mm thick, high requirements for weight, packaging and storage, ideal torsional strength, high temperature stability, susceptible to breakage, can not be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, suitability for aqueous detection reagents depends on the phasePOLYGRAM®: polyester, ~ 0.2 mm thick, low requirements for weight, packaging and storage, low torsional strength, max. 185 °C temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, very suitable for aqueous detection reagentsALUGRAM®: aluminium, ~ 0.15 mm thick, low requirements for weight, packaging and storage, relatively high torsional strength, high temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, low resistance against mineral acids and conc. ammonia, limited suitability for aqueous detection reagentsGlass plates, POLYGRAM®, ALUGRAM®Silica 60Specific surface (BET) ~500 m²/gMean pore size 60 ÅSpecific pore volume 0.75 ml/gParticle size 5 to 17 µmStandard gradeThickness of layer for analytical plates 0.25 mm, for preparative plates 0.5 and 1 mmFor 2 mm preparative layers a slightly coarser material is used, indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm)Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualisation reagentsBinder system for Polygram® sheets is also completely stable in purely aqueous eluentsAvailable as glass plates, Polygram polyester sheets and Alugram aluminium sheetsAvailable with or without fluorescent indicator (UV 254)
Variants from €81.50*

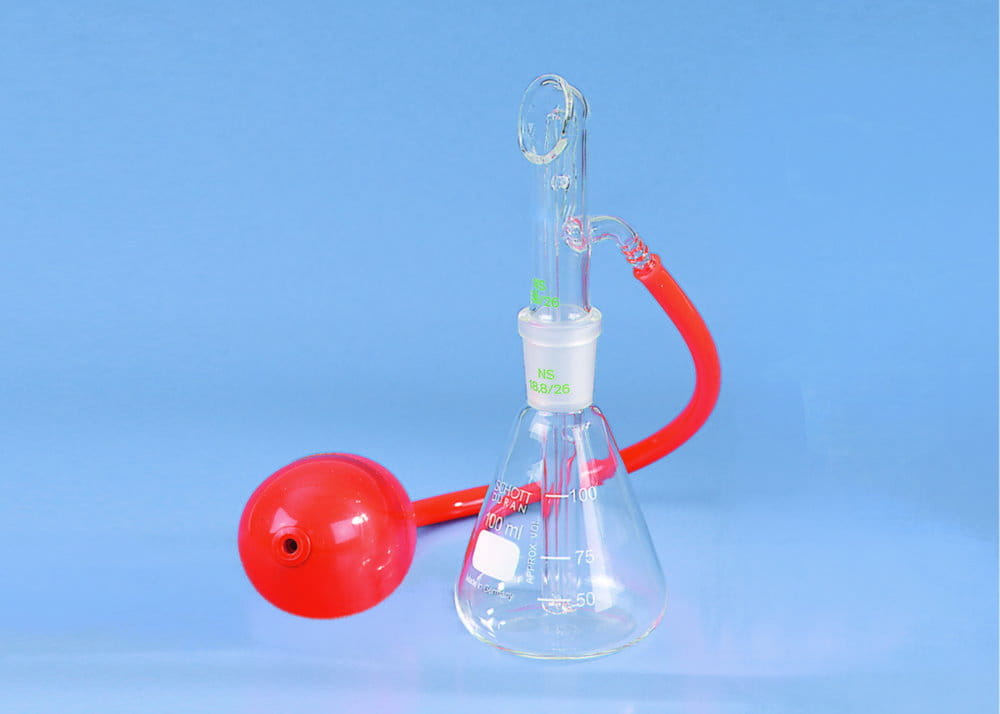

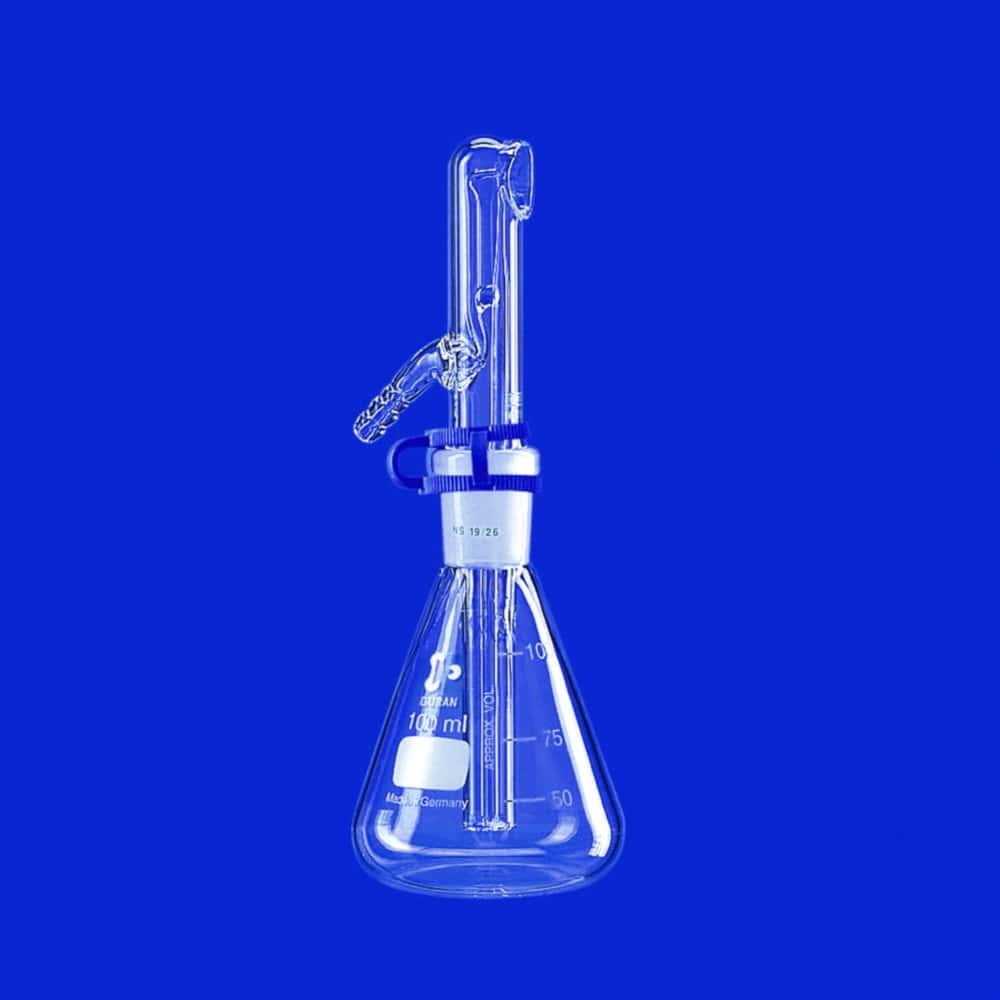

Manufacturer Article Number:
05470000
|
Nominal capacity:
100 ml
Complete sprayer consists of an Erlenmeyer flask, 100ml, with NS 19/26, sprayer head, clamp and rubber bulb.Erlenmeyer flask: DURAN®, sprayer head: made of DURAN® tubing.
For:
100x100 mm
|
Manufacturer Article Number:
BS120.210
|
Type:
Separating chamber 100 x 100 mm with knob lid
|
With lid:
Yes
Die Nano-Trennkammern wurden bevorzugt für Plattenformate mit einer Höhe von 100 mm entwickelt und weisen alle Vorteile der Standard-Trennkammern auf.
Fits for:
200 mm
|
Manufacturer Article Number:
BS121.200
|

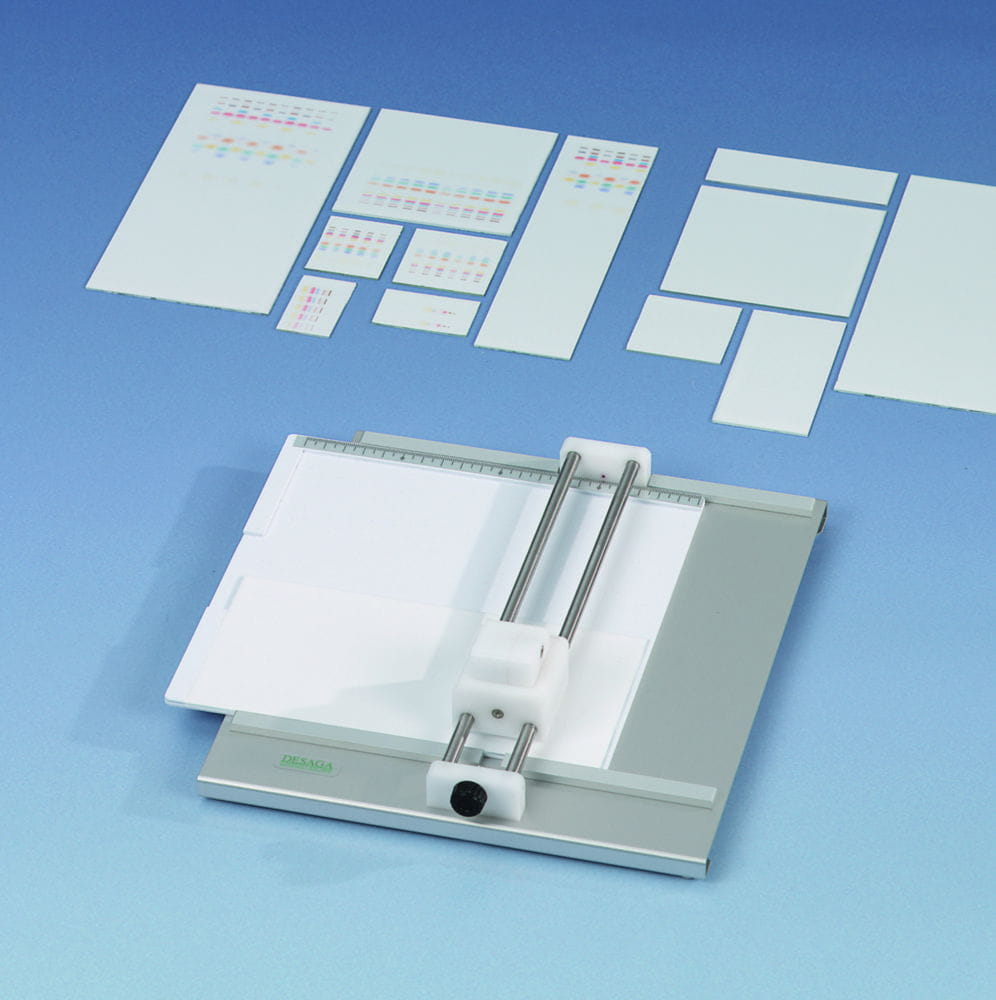

Type:
TLC plate cutter
For scoring and cutting glass backed TLC plates. For cost-effectiveness in plate use, or in order to give individual plates different derivatives after separation. Supplied with cutting ring and template.
Dimensions (WxL):
100 x 100 mm
|
Length:
100 mm
|
Length mm:
100
|
Manufacturer Article Number:
BS120.134
|
Width:
100 mm
|
Width mm:
100
With limit stops for precise positioning of the plate on the template. Provide precise pipette guidance due to triangular apertures in a 5mm spaced grid, providing 9, 19 or 39 outlining points, depending on the size of the template. A non-slip coating means that the outlining template does not slide on the bench.
Variants from €72.04*
Fits for:
200x200 mm
|
Manufacturer Article Number:
BS120.131
|
Type:
Universal application and evaluation template
Plexiglass. Simplifies application, marking and evaluation of thin layer chromatograms. Size 200mm x 200mm.
