Designed for small facilities or installations in which a number of fume hoods are needed, this unit is excellent for use in schools, junior colleges and universities.One-piece shell molded of chemical resistant polyethylene with rounded inside corners for easy cleaningClear acrylic sash slides on a track featuring stop pins for open, closed or intermediate positions; bottom gap allows for continuous air flowFront opening (W x H): 560 x 300 mmStepped exhaust duct can be used with either a 12 or 15cm diameter ductOverall dimensions (W x D X H): 690 x 330 x 560 mmShipping weight: 17 kg

For fume cupboards.Indicates if the fume cupboard is switched on.

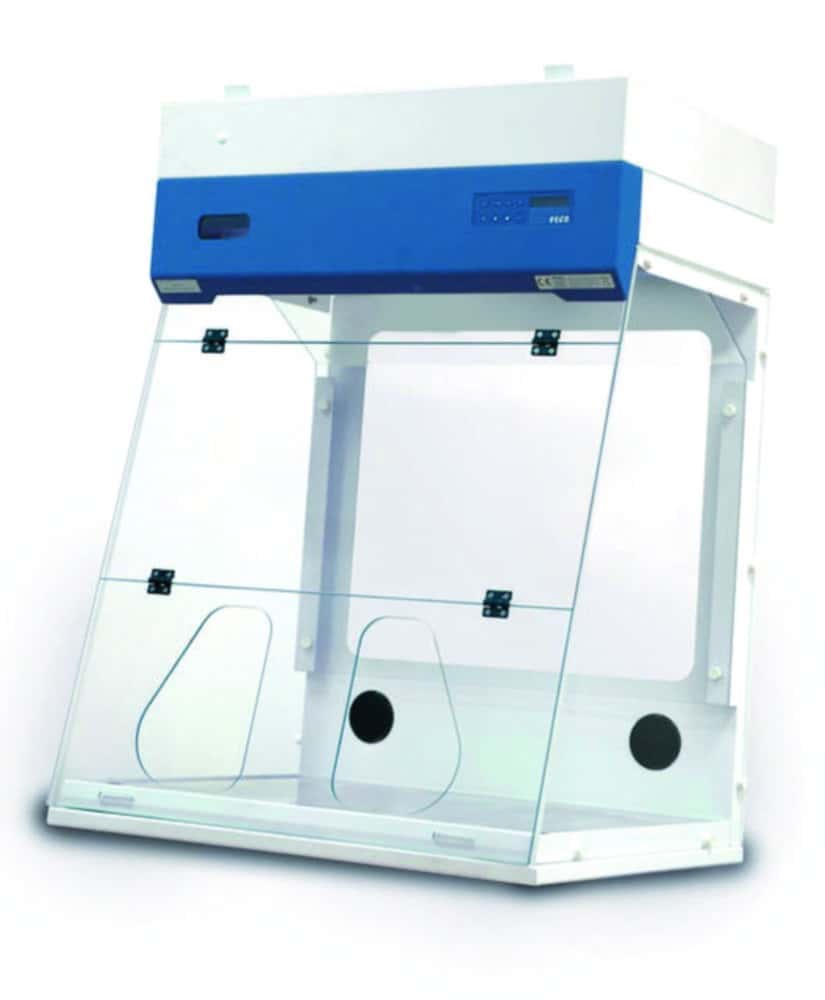

Compact, energy saving fume hood without ducting system.Independently tested and complies with AFNOR NFX 15-211 standardEasy Filter ChangeAverage Inflow Air Velocity: 0,4m/sSentinel-Microprocessor with LCD-Display, air velocity alarm and 24-hour-clockFluorescent lighting provides superior illumination of the work zoneTempered glass sliding sashTempered glass side panelISOCIDE™ antimicrobial coating on all painted surfaces minimizes contamination.Stainless steel worktopModel variations:Model type B: Pre-filter, main filter (activated carbon, different filter types available)Model type C: Pre-filter, main filter (activated carbon, different filter types available), back-up filter (activated carbon, different filter types available)Model type E: Pre-filter, main filter (activated carbon, different filter types available), back-up filter (HEPA filter)Options on request:Filter, electrical outlet, VOC sensor, service fixture, swan-neck faucet, Drip Cup (PP), support stand, installationFor operation the main filters and the back-up filter (Modell type C) have to be ordered separately.

Compact, energy saving fume hood without ducting system.Independently tested and complies with AFNOR NFX 15-211 standardAverage Inflow Air Velocity: 0.5m/sEasy Filter changeSentinel-Microprocessor with LCD-Display, air velocity alarm and 24-hour-clockFluorescent lighting provides superior illumination of the work zoneSloped acrylic front windowWith transparent back wall (for type SPD-4B1)Acrylic side wallsISOCIDE™ antimicrobial coating on all painted surfaces minimises contamination.Stainless steel spill-retaining work top.Sampling portPass-through ports in the back wallPre-filter made of polyester fibre, EU3 rating is includedHood is delivered unassembled. On-site assembly can be completed in 60 mins. Without special tools.Options on request:Support stands, installationFor operation the main filters have to be ordered separately.

Aluminiumrahmen mit Scheiben aus Acrylglas (PMMA), Boden aus Polyethylen. Frontseite mit zwei Eingriffsöffnungen und einem Paar Handschuhe Größe 9 aus Naturkautschuk, zwei Kabeldurchführungen auf der Rückseite (rechts / links oben). Arbeitsraum inklusive zwei Schlauch-Anschlüssen zur Begasung und Belüftung sowie passenden Schläuchen. Handschuhbox mit Schleuse mit 2 x 5 m Begasungsschlauch aus PVC und 2 x 5 m Belüftungsschlauch aus PE.Schleuse mit zwei Türen, Außentür mit Riegel um versehentliches Öffnen zu vermeiden, Tablett fährt bei Türöffnung in den Arbeitsraum zur einfachen Entnahme eingebrachter Produkte.

Front panel with two glove ports and one pair of gloves size 9, two lead-ins for cables on the back side (upper left and upper right). Transfer chamber with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products.Aluminium frame with panels made of acrylic glass (PMMA), base panel made of polyethylene. With gloves made of UV-resistant EPDM. Integrated ultraviolet lamp with life-time monitoring on the top side for air and surface disinfection in the workspace, exchangeable lamp. The ultraviolet lamp is an ozone-free radiation source that does not emit any radiation below 220 nm.

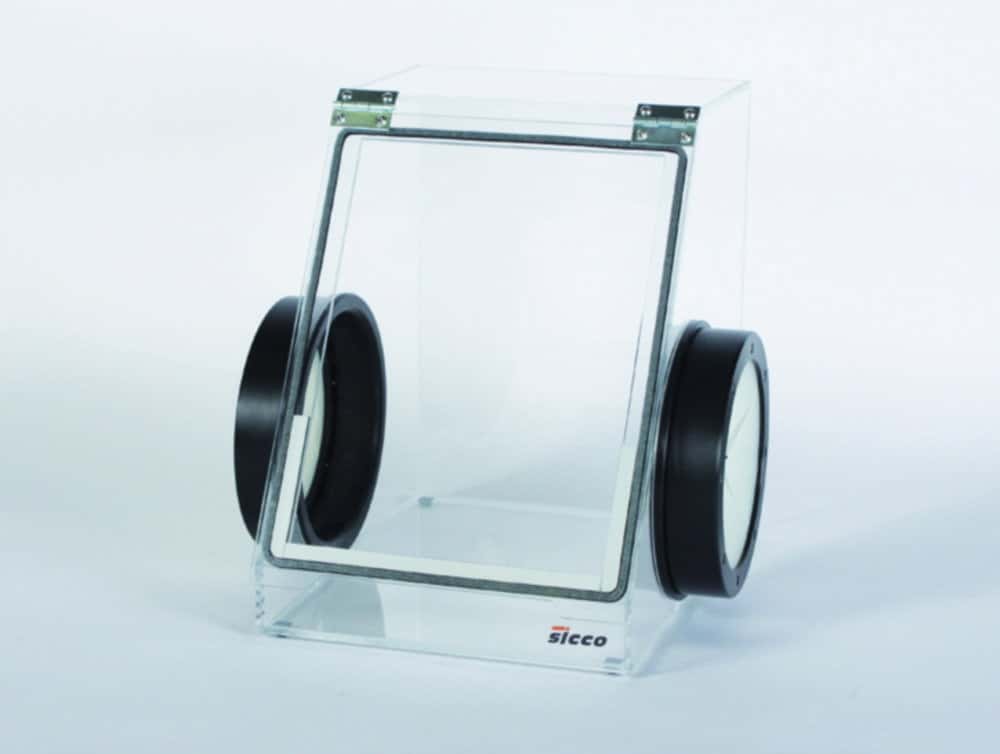

For easy handling of small quantities in a closed working space. Easily transportable due to their light weight. Panels and base panel made of acrylic glass, glove ports sideways with Iris ports (one on the right-hand side, one on the left-hand side). Iris Ports can be easily exchanged for Standard Glove Ports with a 190 mm diameter to enable a tight sealing.

Front panel with two glove ports and one pair of gloves size 9, two lead-ins for cables on the back side (upper left and upper right). Transfer chamber with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products.Aluminium frame with panels made of borosilicate glass 3.3. The workspace is made of materials with good chemical resistance (aluminium, stainless steel, borosilicate glass) for handling of aggressive products. With gloves made of natural rubber. Workspace including two hose connectors for gas-filling and aeration and 2 x 5 m PVC tubing for gas-filling and 2 x 5 m PE aeration tubing. Transfer chamber with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products.

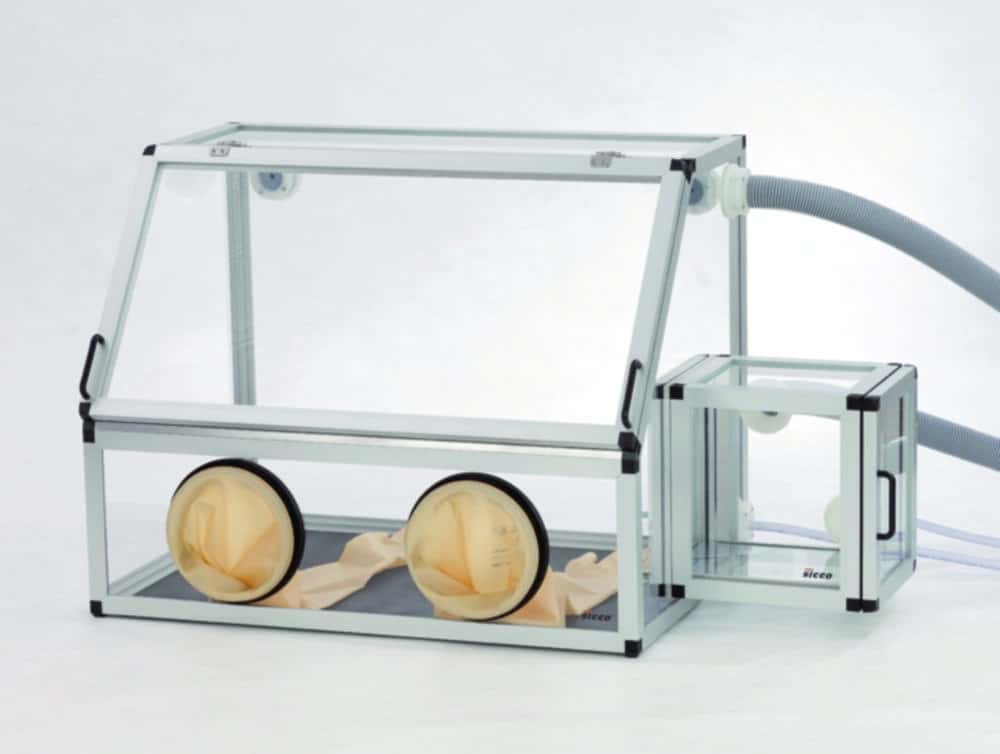

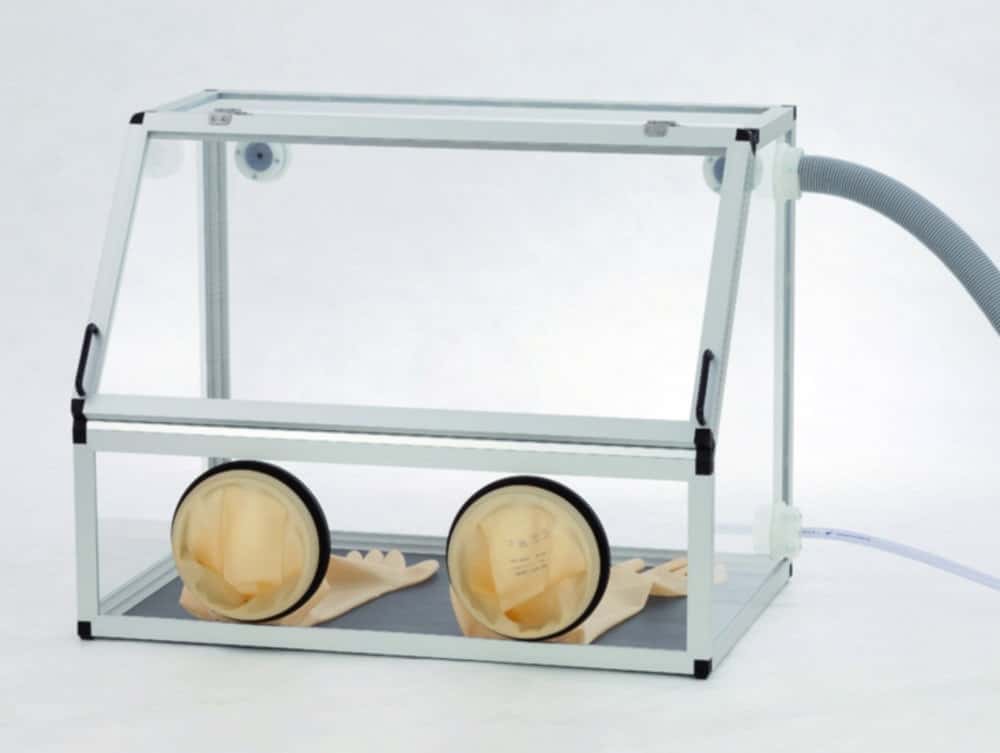

Aluminium frame with panels made of acrylic glass (PMMA), base panel made of polyethylene. Front panel with two glove ports and one pair of natural rubber gloves size 9, two lead-ins for cables on the back side (upper left and upper right). Work space including two hose connectors for gas-filling and aeration and approprate tubing. Glove box without transfer chamber with 1 x 5m PVC tubing for gas-filling and 1 x 5m PE aeration tubing. Glove box with transfer chamber with 2 x 5m PVC tubing for gas-filling and 2 x 5m PE aeration tubing.Glove box with Transfer chamberTransfer chamber with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products.

Front panel with two glove ports and one pair of gloves size 9, two lead-ins for cables on the back side (upper left and upper right). Transfer chamber with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products.Aluminium frame with panels made of acrylic glass (PMMA), base panel made of polyethylene. With gloves made of natural rubber. Integrated HEPA filtering unit in the top side for a high-purity atmosphere in the workspace. Manometer to display the degree of filter saturation. Pipe sockets made of PE are included in delivery for converting to the different operating modes: internal air circulation, fresh air supply and exhaust. Exchangeable filter cartridge. Maintenance-free and trouble-free motor.

Ambidextrous. For openings of Ø 190 mm.ElectroconductiveTear, perforation and abrasion resistantHigh flexibility

Ambidextrous. For openings of Ø 190 mm.Minimal static chargeTear, perforation and abrasion resistantHigh flexibility

Charcoal filter "ORG": for organic vaporsCharcoal filter "CORG": for organic and corrosive vapors (suitable for the most common laboratory chemicals)HEPA filter "HEP": for ParticleFrame for HEPA filter "SH"For models with 2 fans, please order 2 charcoal filters or rather HEPA filters with additional frame.For models with 3 fans, please order 3 charcoal filters or rather HEPA filters with additional frame.

Glove box with automatic reduction of the humidity in the workspace and transfer chamber to below 20 % using automatic drying units and desiccant cassettes. Front panel with two glove ports and a pair of size 9 gloves made of natural rubber. Equipped with a hygrometer in workspace and transfer chamber. The tray extends into the workspace when opening the internal door for easy removal of inserted products.Desiccant cassettes can be replaced for regenerationAluminium frame with acrylic glass panes, polyethylene baseViewable from all sides, glare-free2 cable lead-ins for electrical devicesTransfer chamber (right) with two doorsLatch on outer doorNon-slip rubber feetA power connection is required

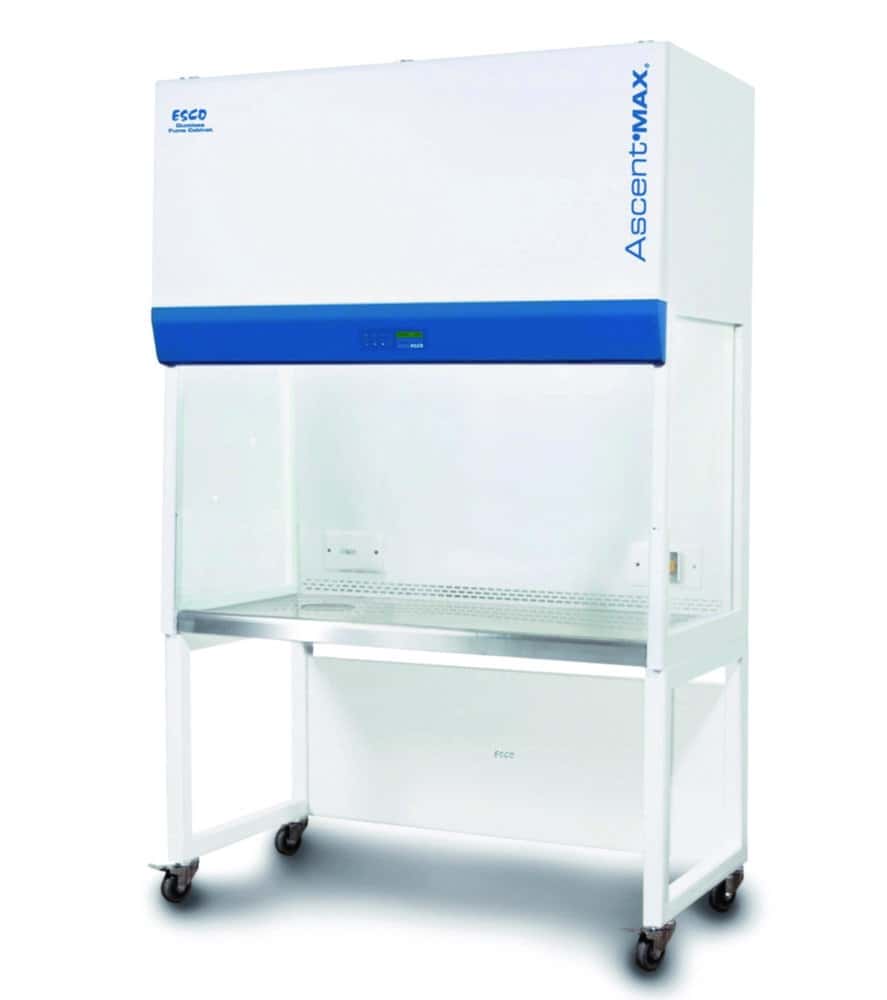

Manipulation of liquid chemicals and powders where and when needed.Advantages: eliminates installation costs, saves substantially capital and running costs, mobile and easy to relocate wherever needed; protects the user and environment against toxic fumes. Low Energy consumption: less than 200 KWh /year (for 2100 hours usage)Choice of activated charcoal filters (Please order separately!):"ORG" filter for flammables and organics"CORG" filter suitable for the most common laboratory chemicals, for organic and corrosive vapors"FOR" filter for formaldehyde vapors"AMM" filter for ammonia vaporsHEPA filter "HEP": for ParticleFrame for HEPA filter "SH"Standard equipment:Built in 15/10 steel, covered with white Epoxy (RAL 9010) with blue stripesHPL or tempered glass worktop on removable retention tank (optional)Transparent PMMA glazed walls on all four sides for comfortable working or lecturesErgonomic hand traps or trapeze opening4 protective caps for easy use of external supplies (e.g. power cables, water, gas)Air velometer; sampling outlet for reactive tube measurementRecirculating air filter system (CLASS 2) and coal filters Norm NFX 15-211Noiseless fan: 57 dB(A), 220-240 V, 50 Hz, 10 W, 0.1 AAir flow: 170 m3/h; face velocity: 0.4 to 0.6 m/sVentilation system with lighting control in case of system failurePlease choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.Please choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.

Manipulation of liquid chemicals and powders where and when needed.Advantages: eliminates installation costs, saves substantially capital and running costs, mobile and easy to relocate wherever needed; protects the user and environment against toxic fumes. Low Energy consumption: less than 200 KWh /year (for 2100 hours usage)Choice of activated charcoal filters (Please order separately!):"ORG" filter for flammables and organics"CORG" filter suitable for the most common laboratory chemicals, for organic and corrosive vapors"FOR" filter for formaldehyde vapors"AMM" filter for ammonia vaporsHEPA filter "HEP": for ParticleFrame for HEPA filter "SH"Standard equipment:Built in 15/10 steel, covered with white Epoxy (RAL 9010) with blue stripesHPL or tempered glass worktop on removable retention tank (optional)Transparent PMMA glazed walls on all four sides for comfortable working or lecturesErgonomic hand traps or trapeze opening4 protective caps for easy use of external supplies (e.g. power cables, water, gas)Air velometer; sampling outlet for reactive tube measurementRecirculating air filter system (CLASS 2) and coal filters Norm NFX 15-211Noiseless fan: 57 dB(A), 220-240 V, 50 Hz, 10 W, 0.1 AAir flow: 170 m3/h; face velocity: 0.4 to 0.6 m/sVentilation system with lighting control in case of system failurePlease choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.Please choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.

Manipulation of liquid chemicals and powders where and when needed.Advantages: eliminates installation costs, saves substantially capital and running costs, mobile and easy to relocate wherever needed; protects the user and environment against toxic fumes. Low Energy consumption: less than 200 KWh /year (for 2100 hours usage)Choice of activated charcoal filters (Please order separately!):"ORG" filter for flammables and organics"CORG" filter suitable for the most common laboratory chemicals, for organic and corrosive vapors"FOR" filter for formaldehyde vapors"AMM" filter for ammonia vaporsHEPA filter "HEP": for ParticleFrame for HEPA filter "SH"Standard equipment:Built in 15/10 steel, covered with white Epoxy (RAL 9010) with blue stripesHPL or tempered glass worktop on removable retention tank (optional)Transparent PMMA glazed walls on all four sides for comfortable working or lecturesErgonomic hand traps or trapeze opening4 protective caps for easy use of external supplies (e.g. power cables, water, gas)Air velometer; sampling outlet for reactive tube measurementRecirculating air filter system (CLASS 2) and coal filters Norm NFX 15-211Noiseless fan: 57 dB(A), 220-240 V, 50 Hz, 10 W, 0.1 AAir flow: 170 m3/h; face velocity: 0.4 to 0.6 m/sVentilation system with lighting control in case of system failurePlease choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.Please choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.

Manipulation of liquid chemicals and powders where and when needed.Advantages: eliminates installation costs, saves substantially capital and running costs, mobile and easy to relocate wherever needed; protects the user and environment against toxic fumes. Low Energy consumption: less than 200 KWh /year (for 2100 hours usage)Choice of activated charcoal filters (Please order separately!):"ORG" filter for flammables and organics"CORG" filter suitable for the most common laboratory chemicals, for organic and corrosive vapors"FOR" filter for formaldehyde vapors"AMM" filter for ammonia vaporsHEPA filter "HEP": for ParticleFrame for HEPA filter "SH"Standard equipment:Built in 15/10 steel, covered with white Epoxy (RAL 9010) with blue stripesHPL or tempered glass worktop on removable retention tank (optional)Transparent PMMA glazed walls on all four sides for comfortable working or lecturesErgonomic hand traps or trapeze opening4 protective caps for easy use of external supplies (e.g. power cables, water, gas)Air velometer; sampling outlet for reactive tube measurementRecirculating air filter system (CLASS 2) and coal filters Norm NFX 15-211Noiseless fan: 57 dB(A), 220-240 V, 50 Hz, 10 W, 0.1 AAir flow: 170 m3/h; face velocity: 0.4 to 0.6 m/sVentilation system with lighting control in case of system failurePlease choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.Please choose fume hoods, charcoal filters, trolleys and accessories according to your needs. Delivered mounted.The fume hood will be delivered without bottom retention tank and work top.
