Accuracy:
±0.1 °Brix±0.0001 RI
|
Accuracy temperature:
±0.05 °C
|
Accuracy temperature Number:
0.05 °C
|
Manufacturer Article Number:
19-00
|
Max. temperature:
40 °C
|
Max. voltage:
240 V
|
Measuring range:
0 ... 50 °Brix1.33 ... 1.42 RI
|
Min. temperature:
5 °C
|
Min. voltage:
100 V
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution:
0.1 °Brix0.0001 RI
|
Temperature:
5 ... 40 °C
|
Type:
RFM712-M
|
Type of auxiliary energy:
Mains connection
Robust, fully automated measuring device with °Brix scale and automatic temperature compensation to 20 °C in accordance with ICUMSA for demanding applications in the food, sugar, and beverage industries. The refractometer can be connected to a printer or laboratory PC and output measurement results in standard print, CSV, or secure PDF formats.Additional user scales allow measurement in various formats (e.g. RI, Öchsle, Baumé)Integrated library for user scalesAG temperature equalisation enables range calibration for AG solutionsBright, high-resolution 4" HD colour displayTwo display modes (red or colour)Alphanumeric keypad"Hands-free" auto-sense measurementTime-delayed measurementFlat prism surface facilitates cleaningWide beam scan for non-homogeneous samplesUSB (A), USB (B), and Ethernet interface
Manufacturer Article Number:
6263632
|
Type:
LLG-uniREFRACTO 5 pro
LLG-uniREFRACTO 5 pro is a compact digital 3-scale handheld refractometer for measuring, e.g. Brix and refractive index of liquids. Two scales are pre-set to 0 - 95 % Brix and 1.33 - 1.54 RI, the third scale can be freely selected from more than 45 different scales, including Brix, refractive index, AdBlue®, °Baume, °Butyro, Ethylene Glycol %, Calcium Chloride % and specific gravity. All three scales can be freely selected and changed. The operation is quick and easy, calibration can simply be done with distilled water. The waterproof housing (IP 65) allows cleaning under running water. Easy switching between the three scales4-digit LCD displayAutomatic temperature correctionSample plate made of stainless steelScope of supply: Refractometer, protective coverSpecificationsResolution:0.1 % Brix / 0.0001 RIAccuracy:±0.2 % Brix / ±0.0003 RIOperating temperature:5 ... 40 °CMeasuring temperature sample:5 ... 80 °CRel. Humidity: 95 %Dimensions (W x D x H):120 x 55 x 35 mmWeight:180 gPower supply:2 x AAA/LR03IP code:IP 65Warranty:3 years
Brix %:
10
|
Manufacturer Article Number:
BS10S
|
Refractive Index at 20 °C:
1.347824 nD
Certified stabilized Sucrose (Brix) Standards.ISO 17025 accreditedUncertainty of measurement of 0.11 % for all Brix values at 20 °CEquivalent Nominal Refractive Index values from ICUMSA published tables reported on Certificate of AnalysisCompatible with any brand of Refractometer12 month shelf lifeProvided in high quality HDPE 15 ml dropper bottlesCertified stabilized Sucrose (Brix) Standards.ISO 17025 accreditedUncertainty of measurement of 0.11 % for all Brix values at 20 °CEquivalent Nominal Refractive Index values from ICUMSA published tables reported on Certificate of AnalysisCompatible with any brand of Refractometer12 month shelf lifeProvided in high quality HDPE 15 ml dropper bottlesHazardous Substance DataSDSLink
Variants from €79.10*
Accuracy:
0,2%
|
Manufacturer Article Number:
K 71316
|
Measuring range:
0 - 90% Brix
|
Type:
RTS
Simple and precise optical instruments to analyse liquids and their solid contents. Models are equipped with an automatic temperature compensation device (ATC). Supplied with a plastic box and comfortable leather-type case.
Variants from €77.55*

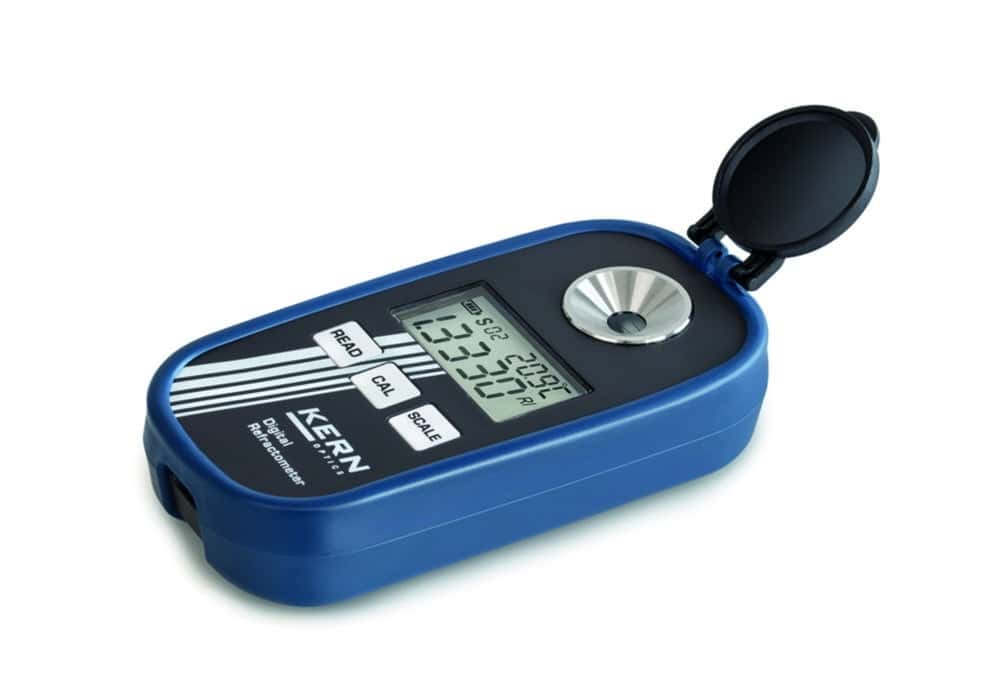

Accuracy:
1 % mas, 1 % vol, 0.1 % Brix, 0.0001 nD
|
Battery/rechargeable battery:
1 x 1.5 V, AAA
|
Depth:
58 mm
|
Designation ANSI:
AAA
|
Dimensions (WxDxH):
121 x 58 x 25 mm
|
Height:
25 mm
|
IP code:
IP 65
|
Manufacturer Article Number:
ORM 1AL
|
Max. temperature:
40 °C
|
Max. voltage battery/rechargeable battery:
1.5 V
|
Measured range:
0 ... 72 % mas, 0 ... 80 % vol, 0 ... 50 % Brix, 1.3330 ... 1.4200 nD
|
Min. temperature:
0 °C
|
No. of batteries/rechargeable batteries:
1
|
Resolution:
1 % mas, 1 % vol, 0.1 % Brix, 0.0001 nD
|
Temperature:
0 ... 40 °C
|
Type:
ORM 1AL
|
Type of auxiliary energy:
Battery
|
Weight:
289 g
|
Width:
121 mm
Accurate and maintenance free digital handheld refractometers for universal application.Large display with integrated temperature readingAutomatic temperature compensation (ATC)Automatic power-off after 60 secondsProtected against dust and splash water (IP 65)Scope of supply: Refractometer, prism cover lid, pipette, storage box, 1 × AAA battery, user manualTemperature range:10 ... 40 °CPower supply:1 × AAA (1,5 V)Battery life:approx. 10000 measurementsIP code:IP 65Dimensions (W x D x H):121 × 58 × 25 mmWeight:289 g

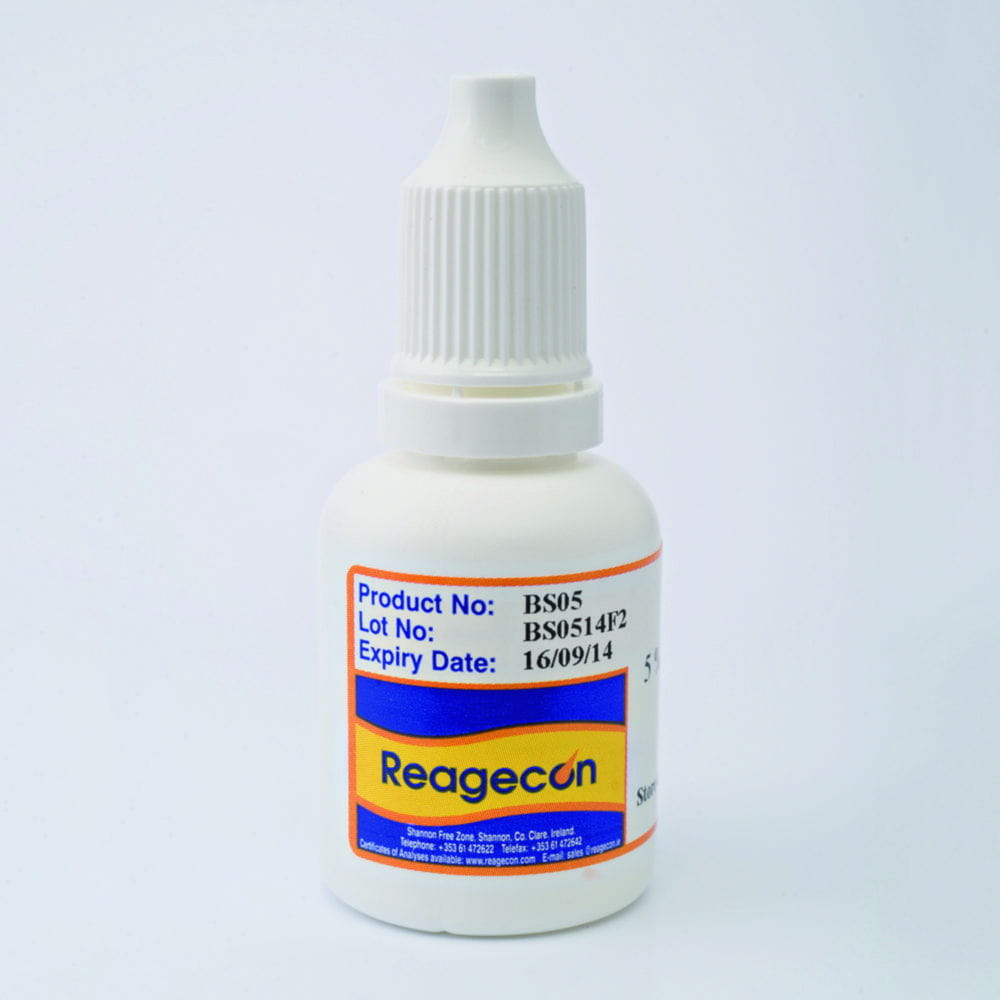

Capacity:
15 ml
|
Manufacturer Article Number:
BS05
|
Measured range:
5 % Brix
Hazardous Substance DataSDSLink
Accuracy:
±0.04 °Brix±0.00005 RI
|
Accuracy temperature:
±0.03 °C
|
Accuracy temperature Number:
0.03 °C
|
Manufacturer Article Number:
19-35
|
Max. temperature:
70 °C
|
Max. voltage:
240 V
|
Measuring range:
0 ... 100 °Brix1.32 ... 1.58 RI
|
Min. temperature:
0 °C
|
Min. voltage:
100 V
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution:
0.01 °Brix0.00001 RI
|
Temperature:
0 ... 70 °C
|
Type:
RFM330-M
|
Type of auxiliary energy:
Mains connection
High-precision measuring device with Peltier temperature control for demanding applications in the food, beverage, and chemical industry. SMART temperature stability, RFID user identification, and application-specific, pre-programmed methods simplify routine analyses. Measurements can be performed quickly and reliably in Brix, refractive index (RI), or up to 100 user-defined scales.Flat prism surface facilitates cleaningWide beam scan for non-homogeneous samplesBrix precision to three decimal placesData memory for over 8000 readingsMenu with PIN protectionDual display function: display of Brix or RI values alongside the equivalent sucrose SG resultUSB (A), USB (B), and Ethernet interfaceOutput as secure PDF possibleUSB "Back-up & clone"Remote access for diagnostics and maintenanceSupports FDA Regulation 21 CFR Part 11High-resolution 4" display with robust push-button keypad
Accuracy:
nD ±0,0001, ±0,1 %Brix
|
Depth:
360 mm
|
Dimensions (WxDxH):
230 x 360 x 170 mm
|
Height:
170 mm
|
IP code:
IP 20
|
Manufacturer Article Number:
DR7200-P
|
Max. temperature:
60 °C
|
Max. voltage:
240 V·AC
|
Measured range:
nD 1,3000 ... 1,5800, 0 ... 95 %Brix
|
Min. temperature:
10 °C
|
Min. voltage:
90 V·AC
|
Power supply:
90 ... 240 V·AC, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution:
nD 0,0001, 0,1 %Brix
|
Temperature:
10 ... 60 °C
|
Type:
DR7200-P
|
Type of auxiliary energy:
Mains connection
|
Weight:
5 kg
|
Width:
230 mm
With these digital refractometers, the measurement is based on the determination of the limiting angle of total reflection between a sample and a prism, measured at a wavelength of 589 nm. Suitable for small sample volumes of approx. 0.3 ml. With optical sensor, temperature control, measuring electronics, evaluation electronics and touch display, the devices contain all the components needed to carry out the measurements reliably. Operation takes place directly on the device, so that a separate PC with software is not necessary.Internal Peltier temperature control and integrated sensor for temperature monitoringPre-installed scales (refractive index and %Brix, temperature compensation for %Brix)Functions allowing the customer to create and edit further measurands and temperature compensationsUp to three measurands can be measured simultaneouslyInternal memory for storing measurement results1-point adjustment by the customerActivatable user management with three user levelsChemical-resistant stainless steel traySample prism made from scratch-resistant, chemical-resistant sapphireInterfaces: 2 x USB, 1 x RS-232, 1 x LANCompliant with CFR 21 Part 11
Accuracy:
±0.02 °Brix±0.00002 RI
|
Accuracy temperature:
±0.02 °C
|
Accuracy temperature Number:
0.02 °C
|
Manufacturer Article Number:
19-73
|
Max. temperature:
80 °C
|
Max. voltage:
240 V
|
Measuring range:
0 ... 100 °Brix1.30 ... 1.70 RI0 ... 40 % Urea
|
Min. temperature:
0 °C
|
Min. voltage:
100 V
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution:
0.001 °Brix0.000001 RI
|
Temperature:
0 ... 80 °C
|
Type:
RFM990-AUS32
|
Type of auxiliary energy:
Mains connection
Digital refractometer with Peltier temperature control was specially designed to meet the strict requirements of the chemical industry. The refractometer is equipped with specific urea scales, temperature compensation, and an AUS32 method that enables the input of both the F-factor and the biuret content of the solution. SMART temperature stability, RFID user identification, and application-specific, pre-programmed methods simplify routine analyses.Version for the petrochemical industryFlat prism tray and contactless prism lid facilitate sample application and cleaning7" high-resolution HD touchscreen displayUSB (A), USB (B), and Ethernet interfaceUS/EP/BP/JP compliantSupports FDA Regulation 21 CFR Part 11PHR-MEAN and ASTM D 2140 methodsConforms to ISO 22241Compliance with ISO procedures relating to the production of diesel exhaust fluids
Manufacturer Article Number:
44-501
|
Max. temperature:
70 °C
|
Measuring range:
0 ... 95 °Brix1.30 ... 1.70 RI
|
Min. temperature:
5 °C
|
Resolution:
0.1 °Brix0.0005 RI
|
Temperature:
5 ... 70 °C
|
Type:
Abbe 5
|
Type of auxiliary energy:
Battery
|
Weight:
2.55 kg
The refractometer measures both the refractive index over a large measuring range and the Brix value, and is suitable for applications in small laboratories with low sample throughput, schools, colleges, and universities. The prism temperature is monitored electronically and shown on the integrated digital display. Dispersion measurements of solids such as glass, contact lenses, and fibre optics can be performed according to standard procedures.Complete measuring range 0 to 95 °BrixWater bath connections enable prism temperature controlOptional LED light source for mounting on the instrument baseBattery operation 1 x 1.5 VHard case for transport and storageSupplied with glass calibration plate and contact liquid

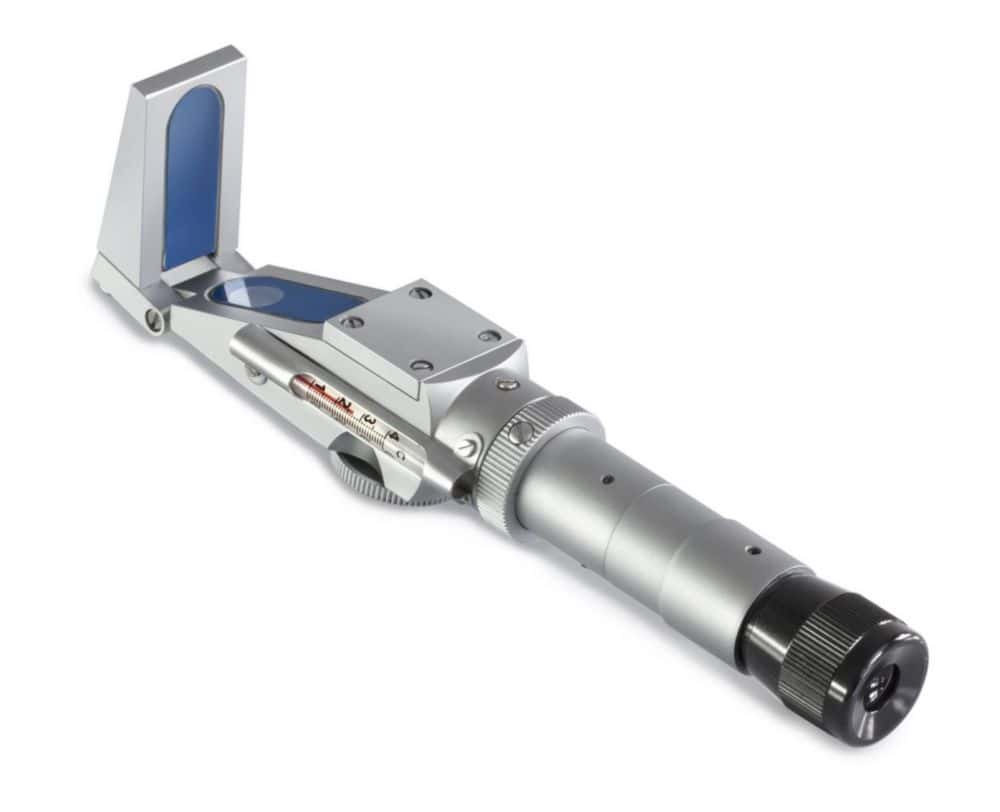

Accuracy:
1 ‰ Salt (NaCl) 0.001 sg Spec. density
|
Manufacturer Article Number:
ORA 1SA
|
Measured range:
0 ... 100 ‰ Salt (NaCl)1.000 ... 1.070 sg Spec. density
|
Type:
ORA 1SA
Versatile, maintenance-free handheld refractometers in a handy and robust design.Several selectable scalesEyepiece can be adjusted to different visual capacitiesWith automatic temperature compensation Scope of supply: Refractometer, storage box, calibration solution, pipette, screwdriver, cleaning cloth
Accuracy:
±0.2 °Brix
|
Depth:
115 mm
|
Dimensions (WxDxH):
54 x 115 x 30 mm
|
Height:
30 mm
|
IP code:
IP 65
|
Manufacturer Article Number:
38-01
|
Max. temperature:
80 °C
|
Measuring range:
0 ... 95 °Brix
|
Min. temperature:
5 °C
|
Resolution:
0.1 °Brix
|
Temperature:
5 ... 80 °C
|
Type:
OPTi®
|
Type of auxiliary energy:
Battery
|
Weight:
85 g
|
Width:
54 mm
Durable high-performance refractometer with automatic temperature compensation and a large selection of measuring scales for mobile measurements and checks.Clearly readable LCD displayOnboard library with over 40 measuring scalesUp to 3 active scales on a single deviceProgrammable read delay for temperature stabilization during sample measurementHAL sensor (High Ambient Light) detects and warns of too much light entering the sensorUnique "AG test mode" that enables the use of long-life, non-sucrose-based certified reference materialsEasy-to-clean stainless steel prism dishFast temperature stabilizationBattery operation (2 x AAA batteries)
Accuracy:
±0.1 °Brix±0.0001 RI
|
Accuracy temperature:
±0.03 °C
|
Accuracy temperature Number:
0.03 °C
|
Manufacturer Article Number:
19-60
|
Max. temperature:
80 °C
|
Max. voltage:
240 V
|
Measuring range:
0 ... 100 °Brix1.30 ... 1.70 RI
|
Min. temperature:
0 °C
|
Min. voltage:
100 V
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution:
0.1 °Brix0.0001 RI
|
Temperature:
0 ... 80 °C
|
Type:
RFM960-T
|
Type of auxiliary energy:
Mains connection
Digital refractometer with a large measuring range and Peltier temperature control for applications in the chemical, petrochemical, and pharmaceutical industries, as well as flavour and perfume production. SMART temperature stability, RFID user identification, and application-specific, pre-programmed methods simplify routine analyses.Flat prism tray and contactless prism lid facilitate sample application and cleaningHigh-resolution 6 decimal places7" high-resolution HD touchscreen displayUSB (A), USB (B), and Ethernet interfaceUS/EP/BP/JP compliantSupports FDA Regulation 21 CFR Part 11PHR-MEAN and ASTM D 2140 methods
Accuracy:
±0.01 °Brix (0 ... 30 °Brix)±0.00002 RI (1.32 ... 1.38 RI)
|
Accuracy temperature:
±0.03 °C
|
Accuracy temperature Number:
0.03 °C
|
Manufacturer Article Number:
19-40
|
Max. temperature:
70 °C
|
Max. voltage:
240 V
|
Measuring range:
0 ... 100 °Brix1.32 ... 1.58 RI
|
Min. temperature:
0 °C
|
Min. voltage:
100 V
|
Power supply:
100 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Resolution:
0.001 °Brix0.000001 RI
|
Temperature:
0 ... 70 °C
|
Type:
RFM340-T
|
Type of auxiliary energy:
Mains connection
High-precision measuring device with Peltier temperature control for demanding applications in the food, beverage, and chemical industry. SMART temperature stability, RFID user identification, and application-specific, pre-programmed methods simplify routine analyses. Measurements can be performed quickly and reliably in Brix, refractive index (RI), or up to 100 user-defined scales.Flat prism surface facilitates cleaningWide beam scan for non-homogeneous samplesBrix precision to three decimal placesData memory for over 8000 readingsMenu with PIN protectionDual display function: display of Brix or RI values alongside the equivalent sucrose SG resultUSB (A), USB (B), and Ethernet interfaceOutput as secure PDF possibleUSB "Back-up & clone"Remote access for diagnostics and maintenanceSupports FDA Regulation 21 CFR Part 11High-resolution 7" HD touchscreen display
Variants from €11,076.00*
Manufacturer Article Number:
10-44
|
Material:
Special optical glass
|
Refractive Index at 20 °C:
1.5222
Test plates with Certificate of Verification for calibration of refractometers.
Description:
Micro flowcell
|
Manufacturer Article Number:
19-83
Flowcells enable semi or fully automated sample application and prism washing.Provides an inline configuration for multiple instruments with flavours, fragrances, and essencesAuto-sampler connectivityEliminates evaporation - minimizes the risk of exposure to volatile samples
Description:
Funnel flowcell
|
Funnel Ø:
100 mm
|
Manufacturer Article Number:
19-85
|
Material:
Stainless steel
The funnel flowcell enables semi or fully automated sample application and prism washing. Ideal for larger sample volumes.Provides an inline configuration for multiple instruments with flavours, fragrances, and essencesAuto-sampler connectivityEliminates evaporation - minimizes the risk of exposure to volatile samples
Description:
Micro flowcell
|
Manufacturer Article Number:
19-91
Flowcells enable semi or fully automated sample application and prism washing.Provides an inline configuration for multiple instruments with flavours, fragrances, and essencesAuto-sampler connectivityEliminates evaporation - minimizes the risk of exposure to volatile samples
Illuminants:
LED
|
Manufacturer Article Number:
44-520
|
Max. voltage:
230 V
|
Min. voltage:
110 V
|
Plug type:
EU/UK/US
|
Power supply:
110 ... 230 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
|
Replaceable illuminant:
Yes
|
Type of auxiliary energy:
Mains connection
LED light source for mounting on the base of the refractometer Abbe 5.
Description:
Spare prism box
|
Manufacturer Article Number:
44-590
Description:
Printer cable
|
Manufacturer Article Number:
54-02
Variants from €32.89*
Manufacturer Article Number:
55-14
|
Max. voltage:
230 V
|
Min. voltage:
110 V
|
Plug type:
EU/UK/US
|
Power supply:
110 ... 230 V
|
Type:
CMB-910
Miniature 24-column dot matrix printer for the direct recording of data from digital refractometers and polarimeters. Recommended for Good Laboratory Practice applications. With serial RS232 interface.
Description:
USB thermal printer
|
Manufacturer Article Number:
55-18
|
Max. voltage:
240 V
|
Min. voltage:
110 V
|
Power supply:
110 ... 240 V, 50/60 Hz
|
Power supply frequency:
50/60 Hz
Thermal printer for the direct recording of data from digital refractometers and polarimeters.
